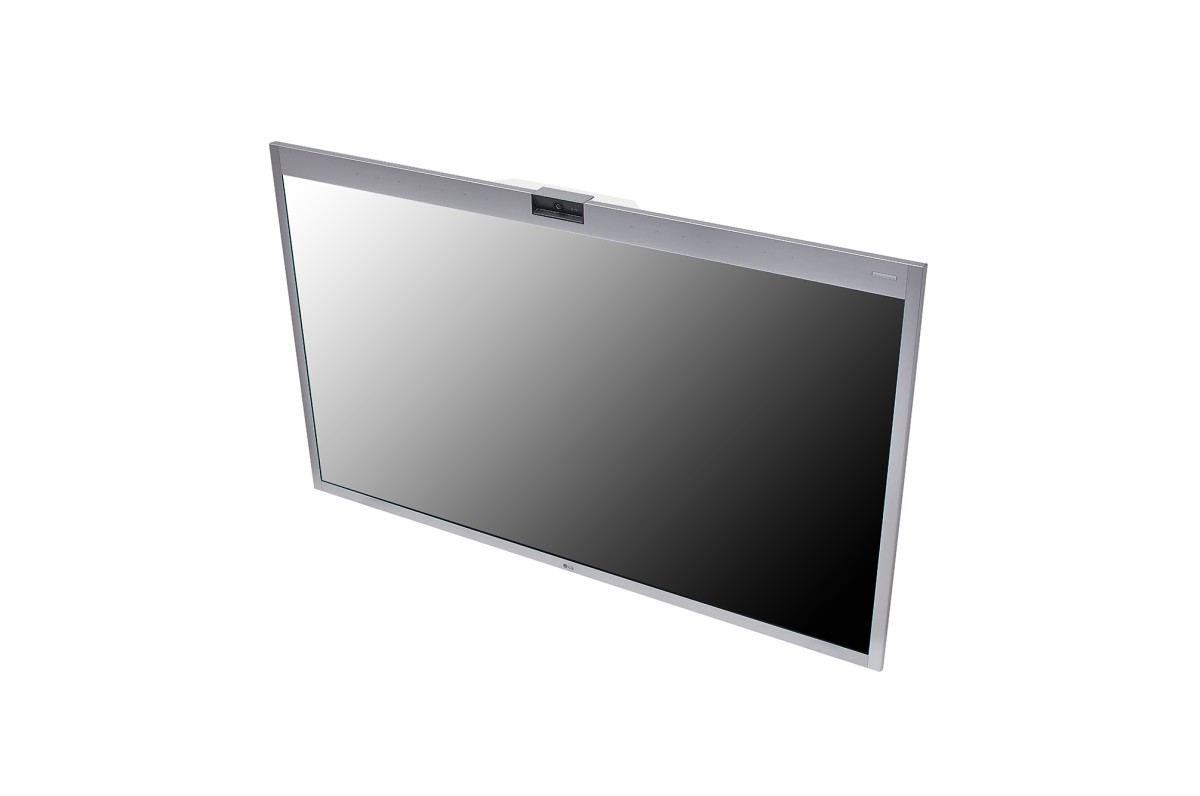

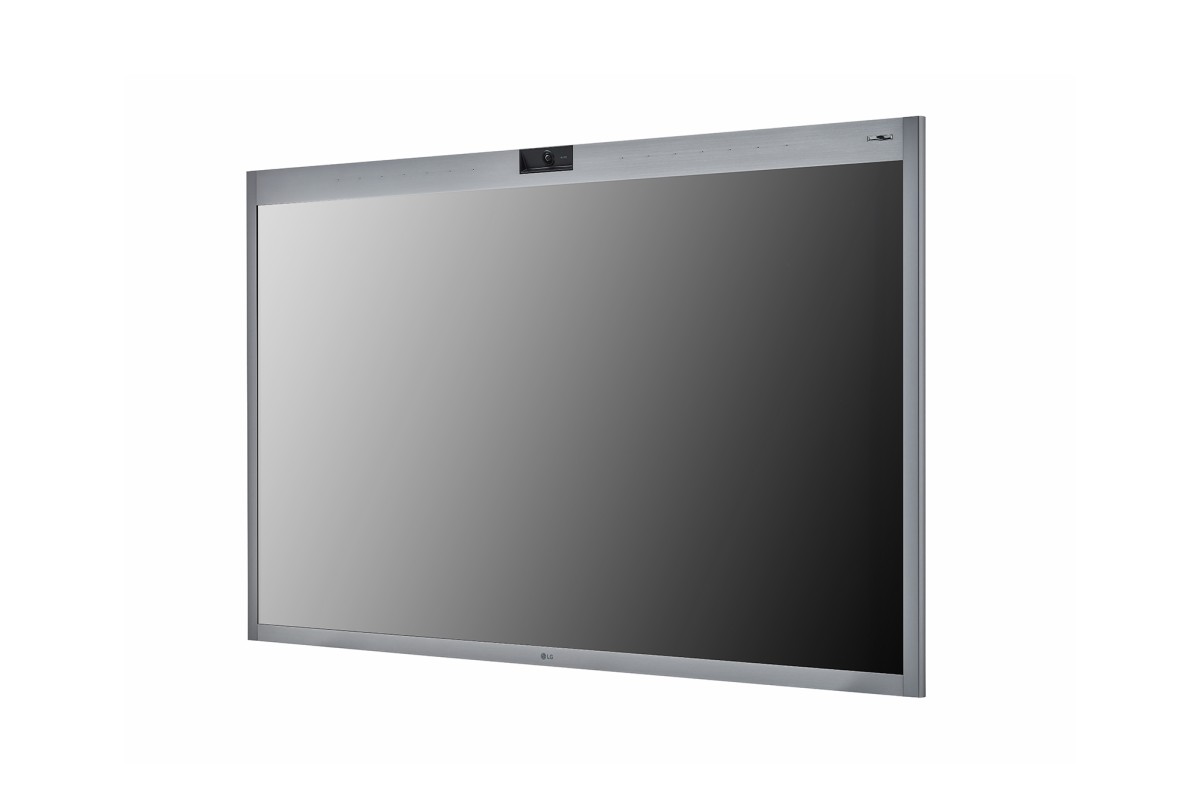

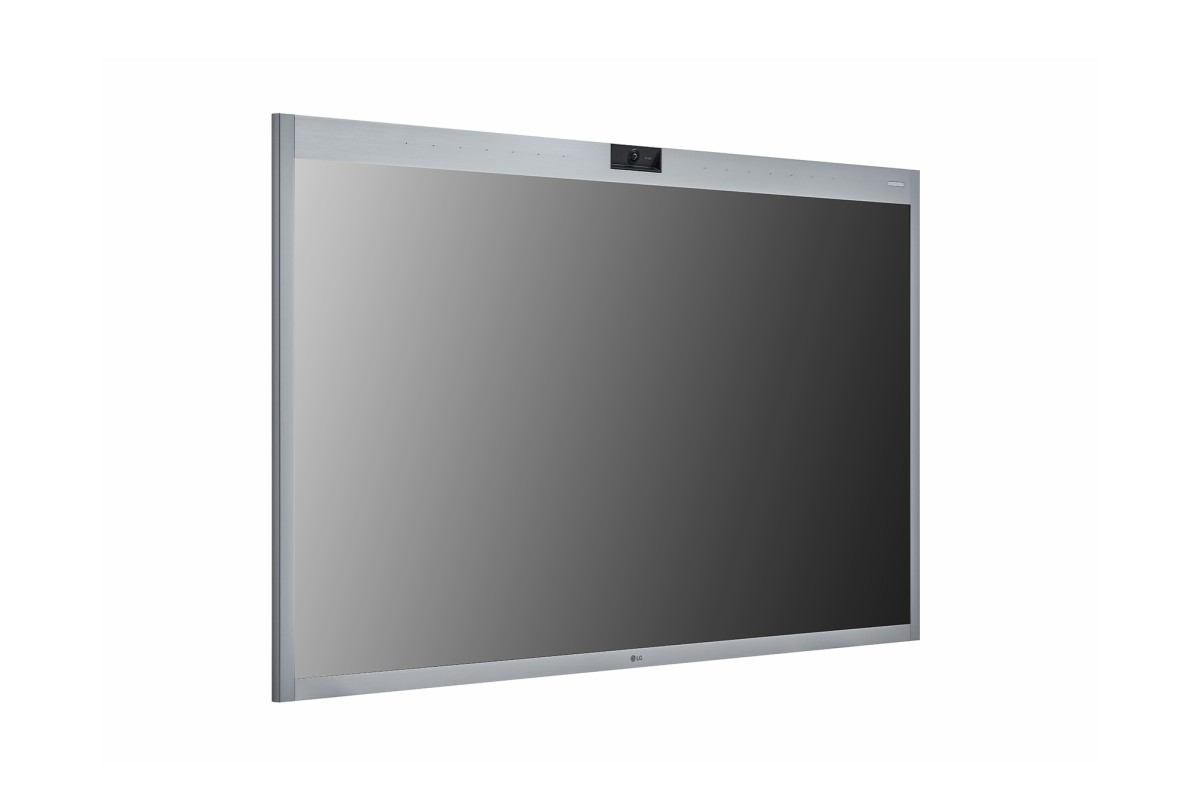

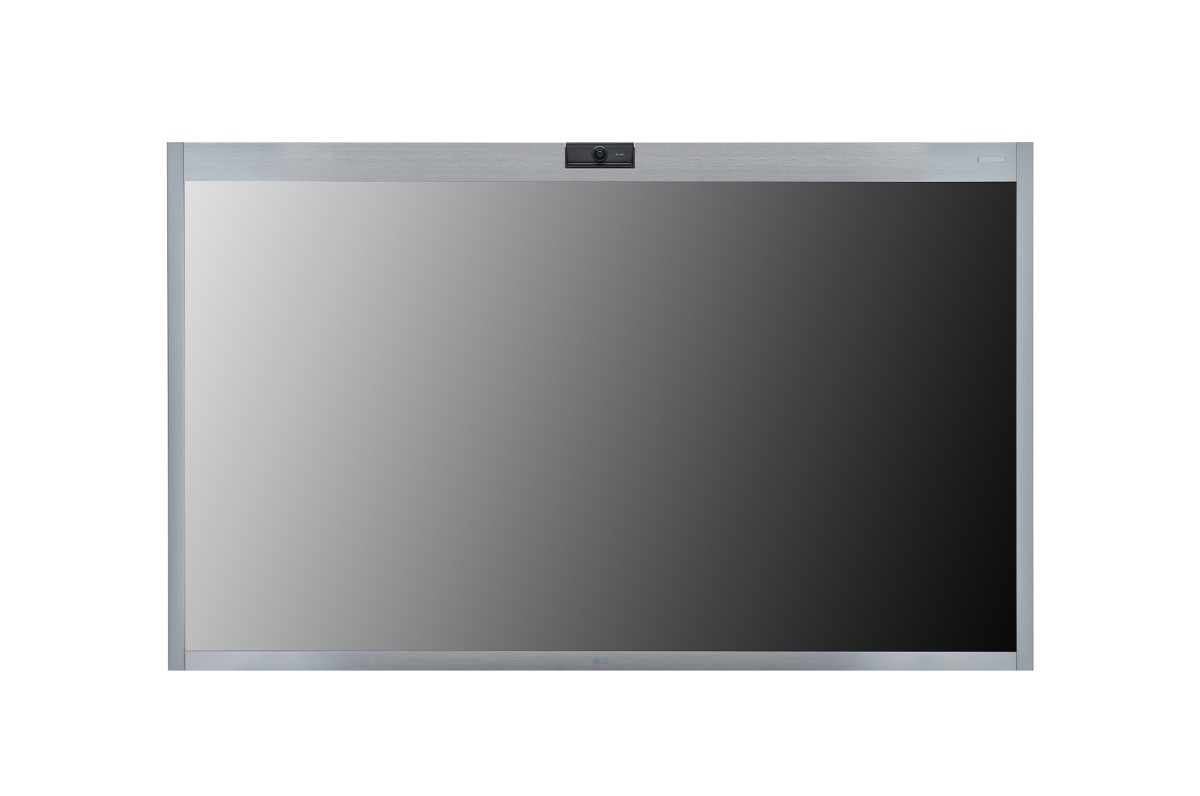

LG 55CT5WJ Digital Signage One:Quick Works Series
Product code:Make your online meetings more productive and interactive with LG One:Quick Works.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | U-IPS |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 450 nit |
| Contrast Ratio | 1000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10-bit (D),1.07 Billion Colors |
| Response Time | 9ms |
| Portrait / Landscape | No / Yes |
| Hours of Operation | 24/7 |
| OS | Windows 10 |
Additional information
Mechanical Specification
| Bezel Color | Silver |
|---|---|
| Bezel Width | 57.2 / 26.2 / 26.2 / 28.9 mm |
| Weight (Head) | 26kg |
| Monitor Dimensions (W × H × D) | 1,265 x 769.5 x 61.8 mm |
| Monitor Dimensions with Stand (W × H × D) | 1,265 x 815 x 290 mm |

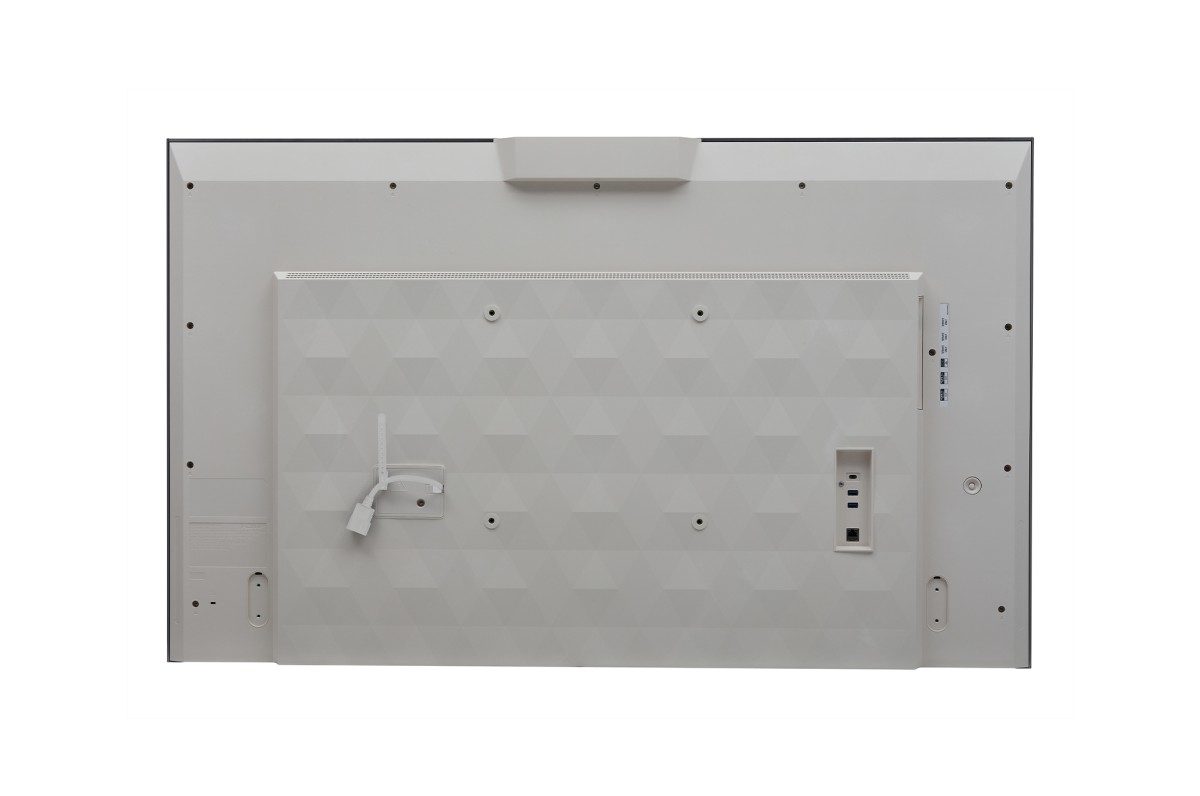

| VESA™ Standard Mount Interface | 300 x 300 |
Key Feature (Hardware)
| CPU | AMD Ryzen Embedded V1605B |
|---|---|
| Graphics | AMD Radeon Vega |
| Internal Memory | 128 GB (eMMC), 8 GB (RAM) |
| Wi-Fi | 802.11ac 2 x 2 |
| Bluetooth | Bluetooth 5.0 |
| Temperature Sensor / Auto Brightness Sensor | Yes |
| Local Key Operation | Yes (Jog Key) |

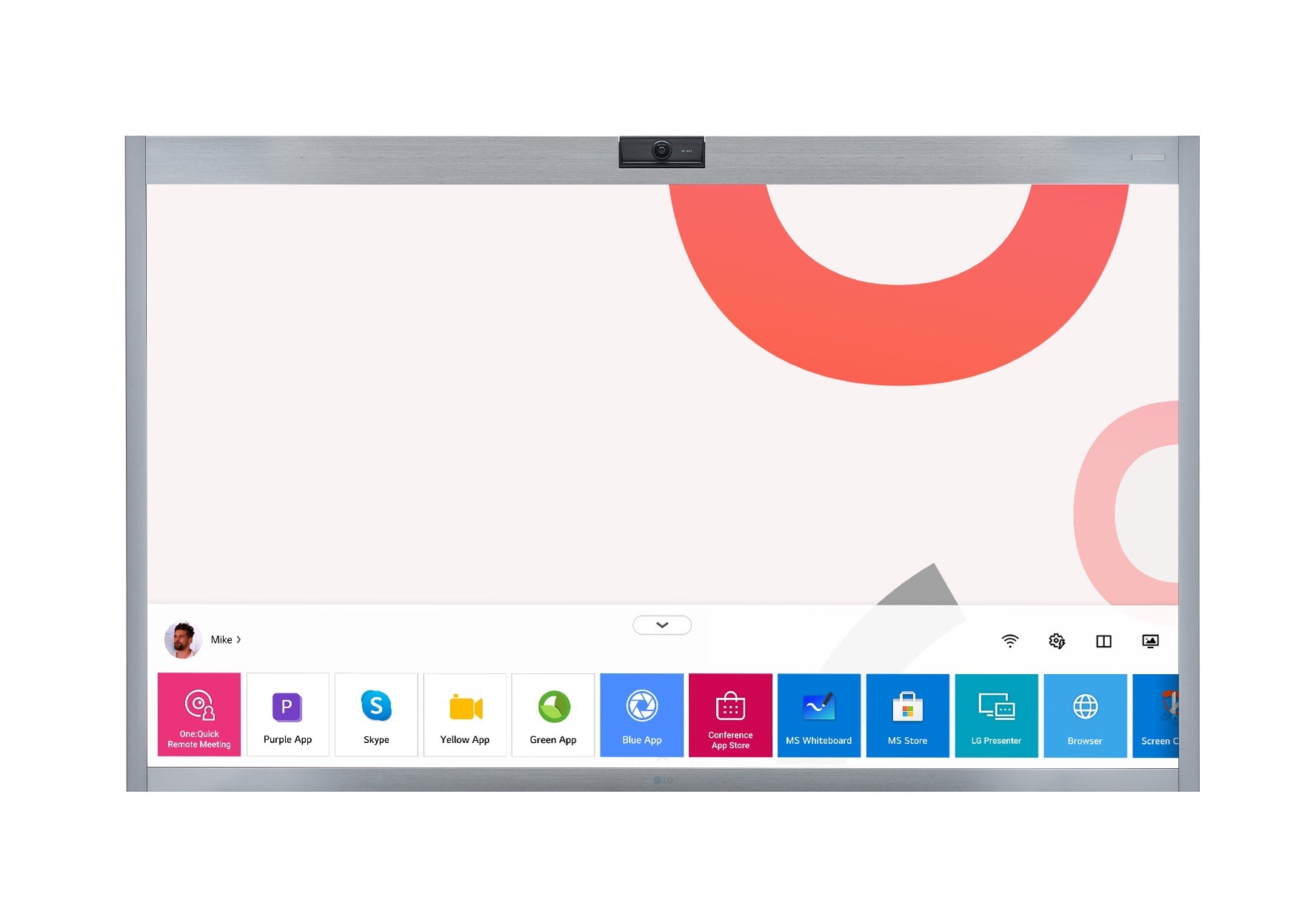

Key Feature (Software)
| OS | Windows 10 IOT Enterprise (Value) |
|---|---|
| Launcher Bar, Split View (Full / Half), Screen Capture, Meeting(Voice) Record, File Sharing, One:Quick Remote Meeting, Reader Mode (Bluelight) | Yes |
| Built-in Apps | Chrome, Skype (Preloaded) / MS Whiteboard (Download Link) |

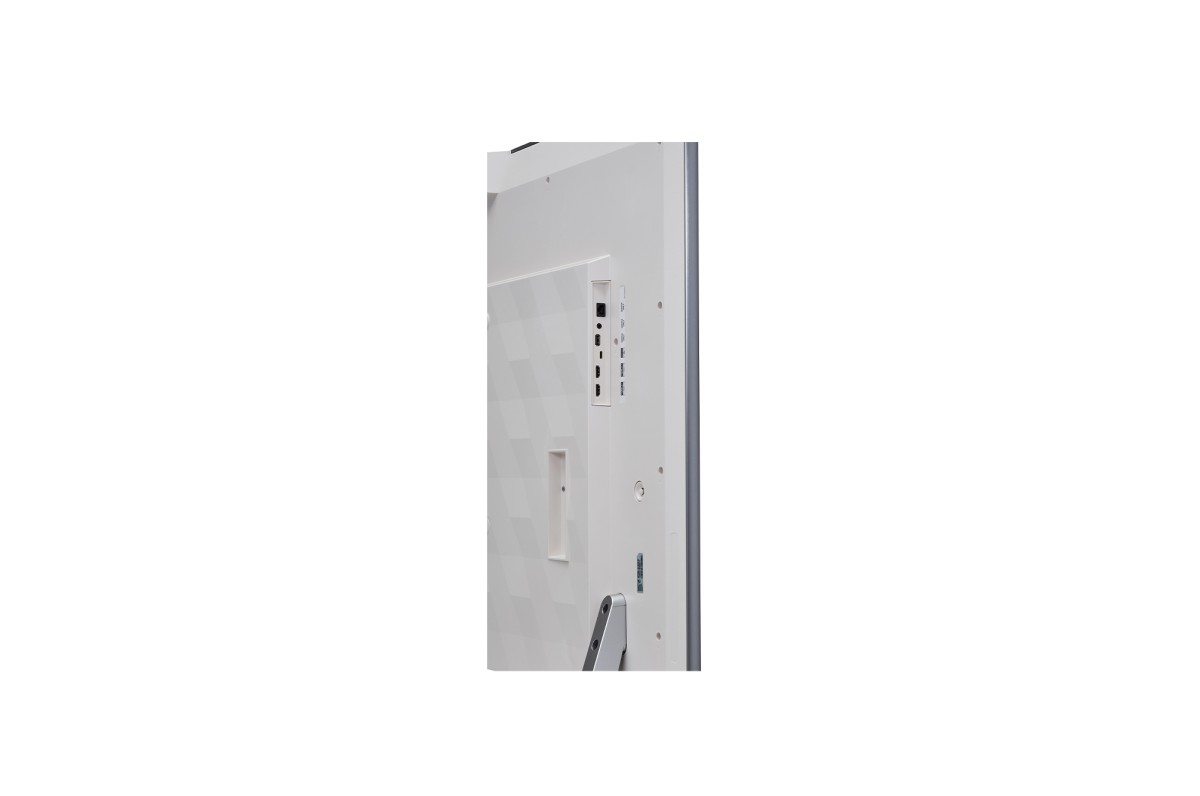

Connectivity
| Input | HDMI (2), DP, RJ45(LAN) (1), USB3.1 Type A (2), USB Type C (1) |
|---|---|
| Output | DP Out : USB Type-C (DP ALT MODE) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 127W |
|---|---|
| Max. | 245W |
| BTU (British Thermal Unit) | 72 |
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "B" / CE |
| ErP | Yes |
Sound
| Speaker | Yes (10W x 2) |
|---|
Accessory
| Basic | Remote Controller, Power Cord, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, Installation Guide |
|---|---|

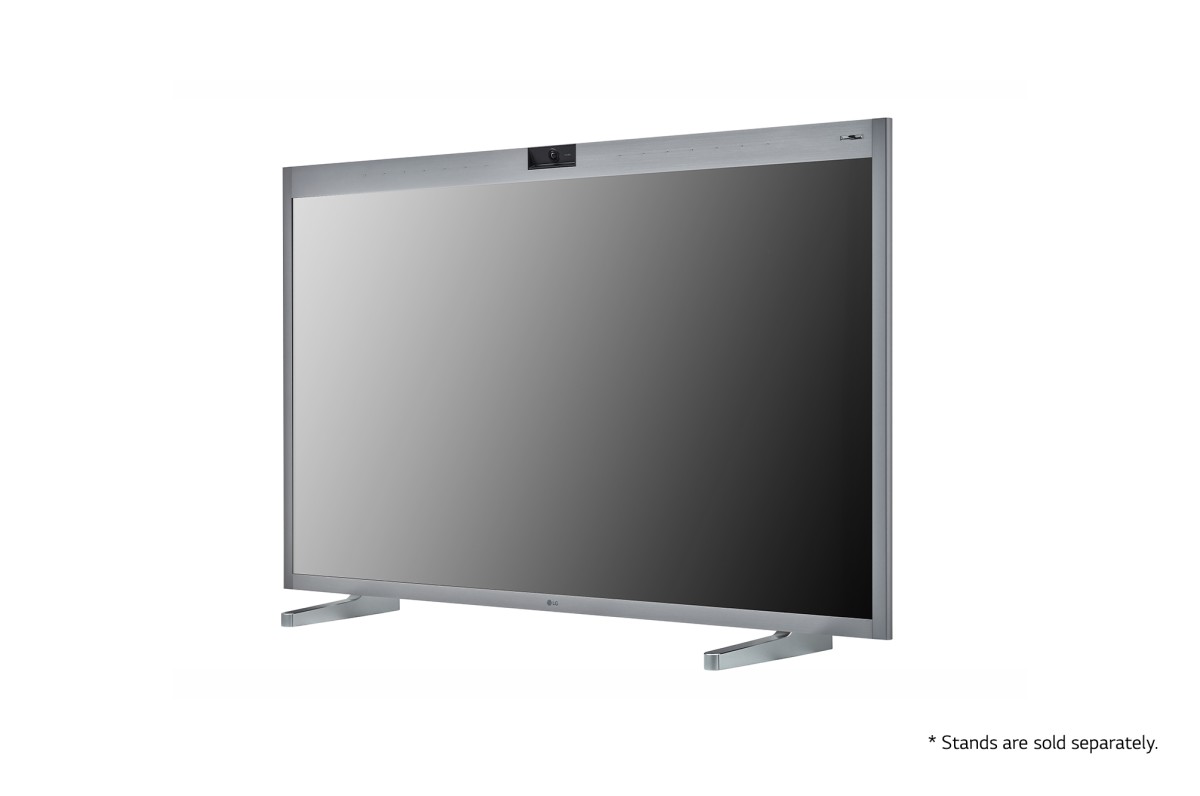

| Optional | 2 Pole Stand (ST-653TW) |

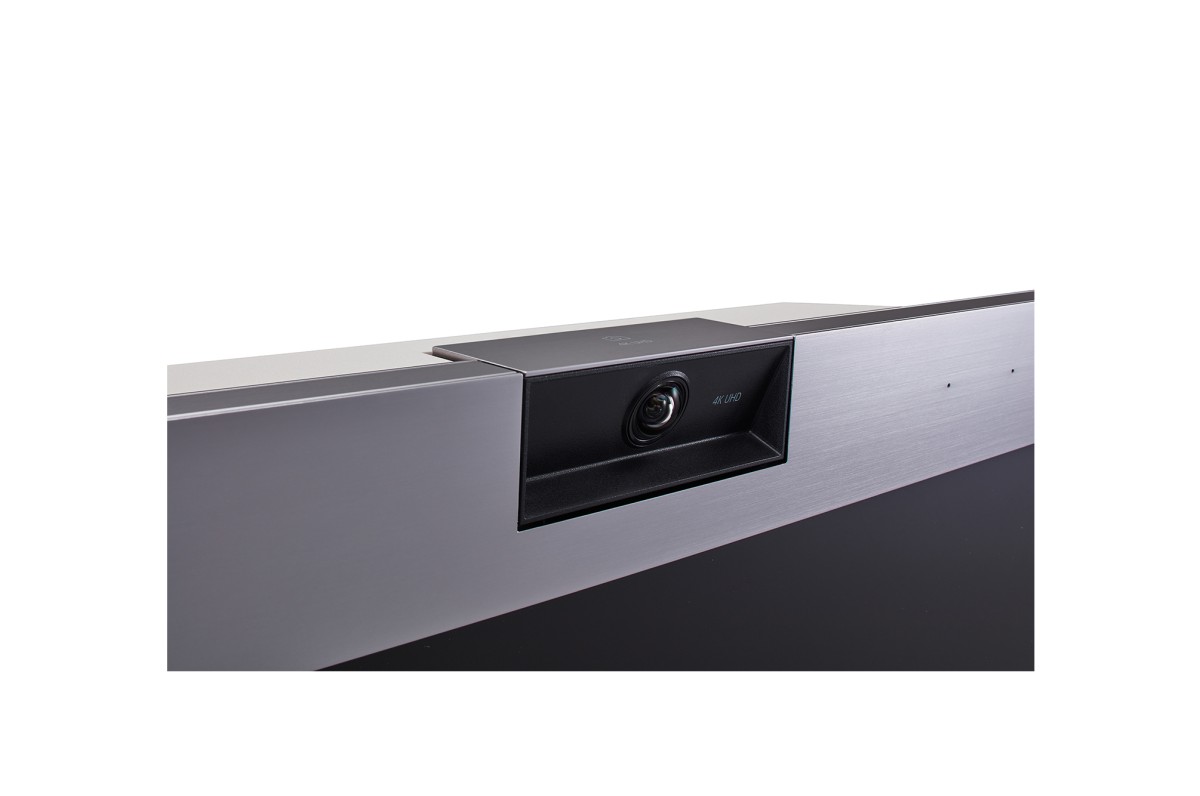

Camera
| Resolution | 3,840 x 2,160 (UHD) |
|---|---|
| Field of View (FoV) | 120° |
| Zoom (ePTZ) | 4 x Zoom |
| Video Framing | Yes |

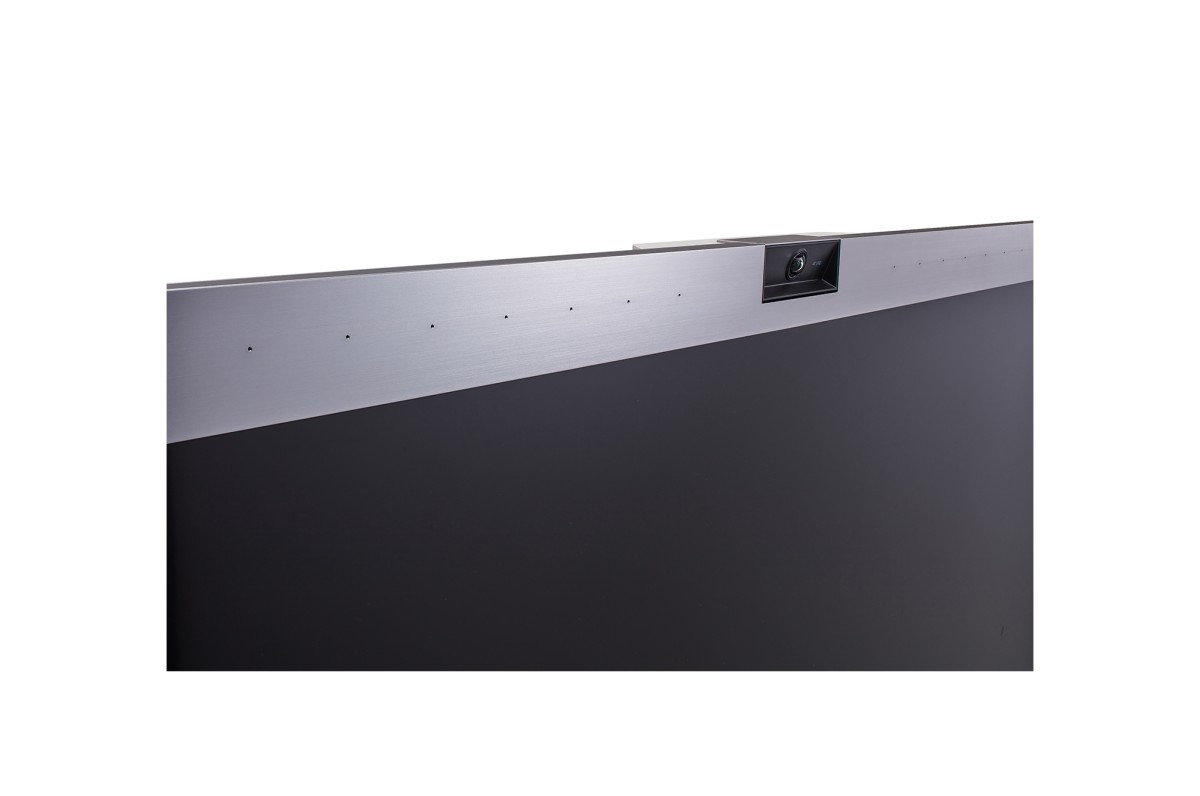

MIC
| Array | 10EA |
|---|---|
| Beamforming | Yes |
| Pickup Range | 6m |
Touch
| Available Object Size for Touch | Ø8 mm |
|---|---|
| Reponse Time (PC Win10, based on Whiteboard) | 35 mm ↓ |
| Accuracy | 3.5 mm ↓ |
| Interface | USB 1.1 |
| Operating System Support | Windows 10 or Higher |
| Multi Touch Point | Max. 10 Points |
