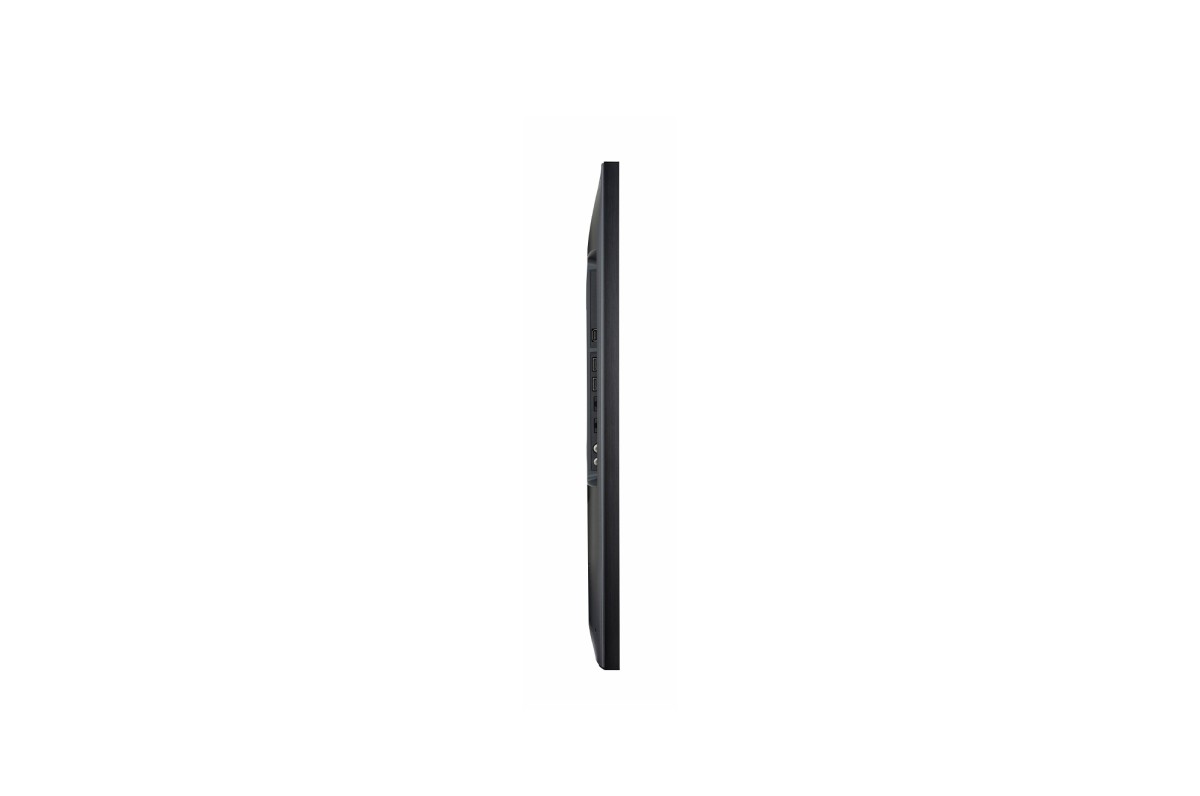

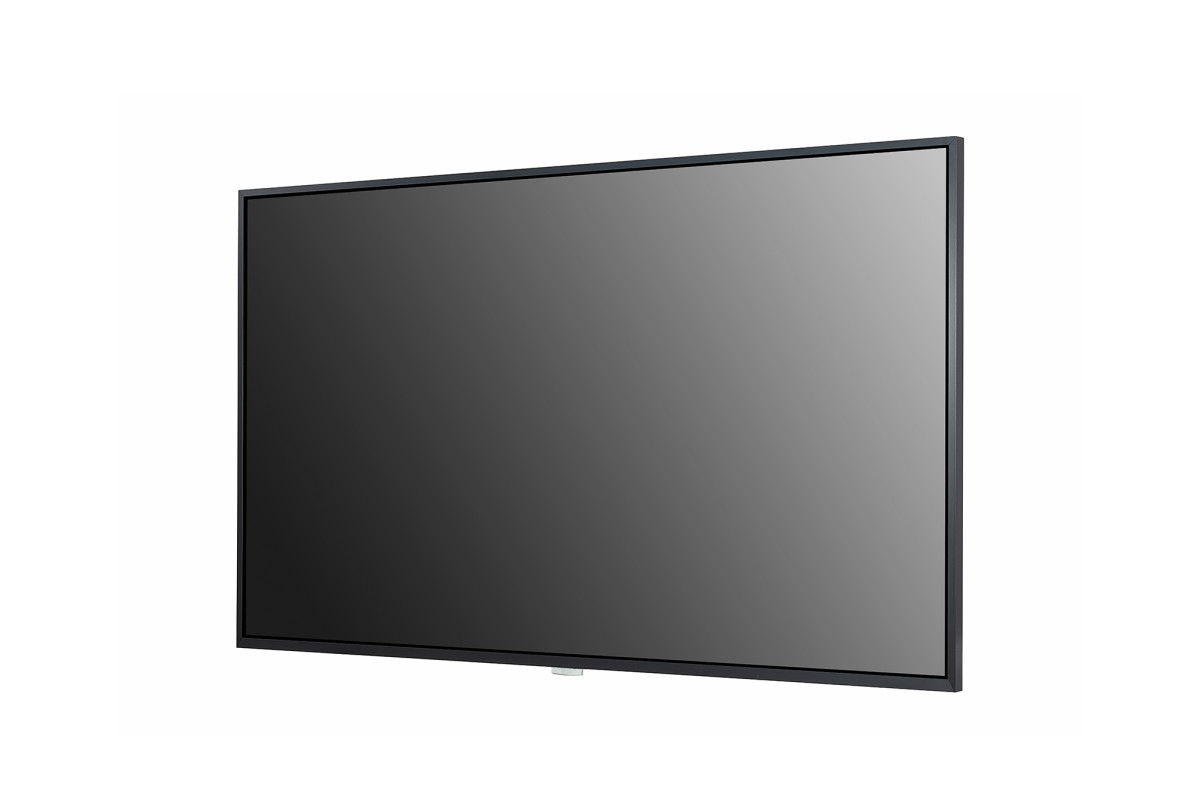

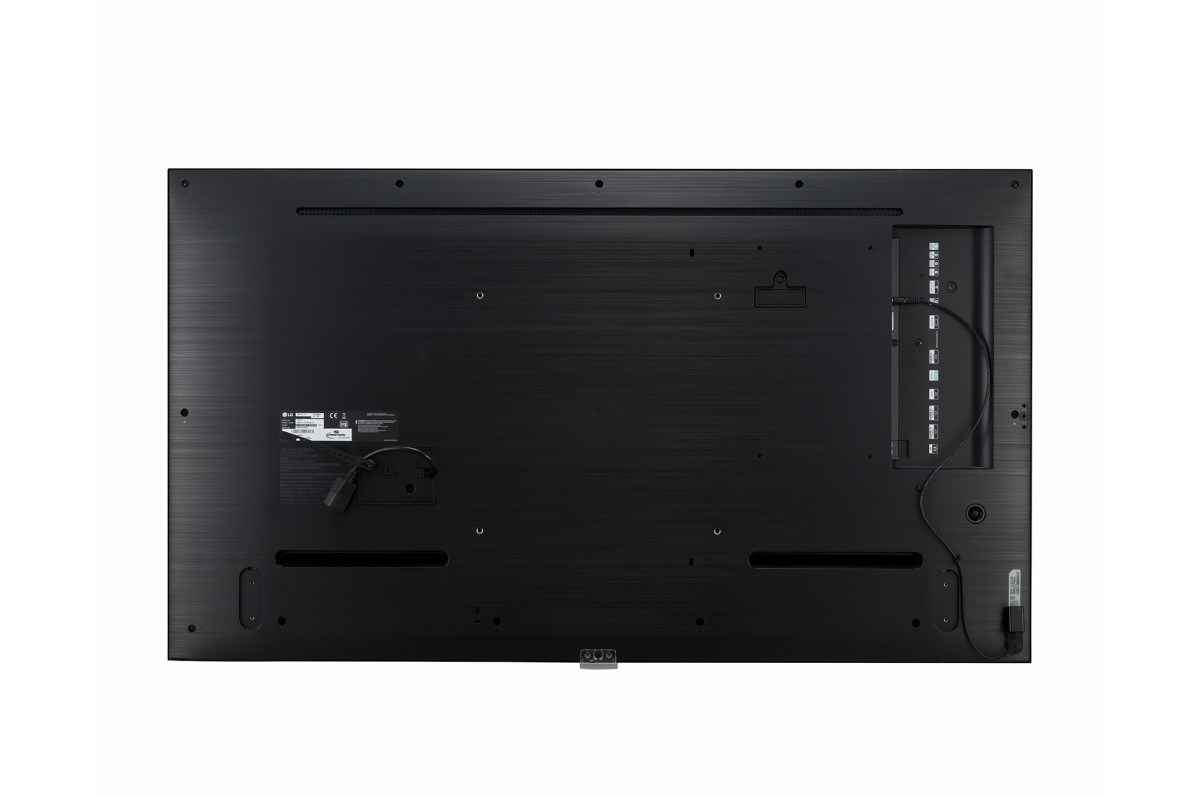

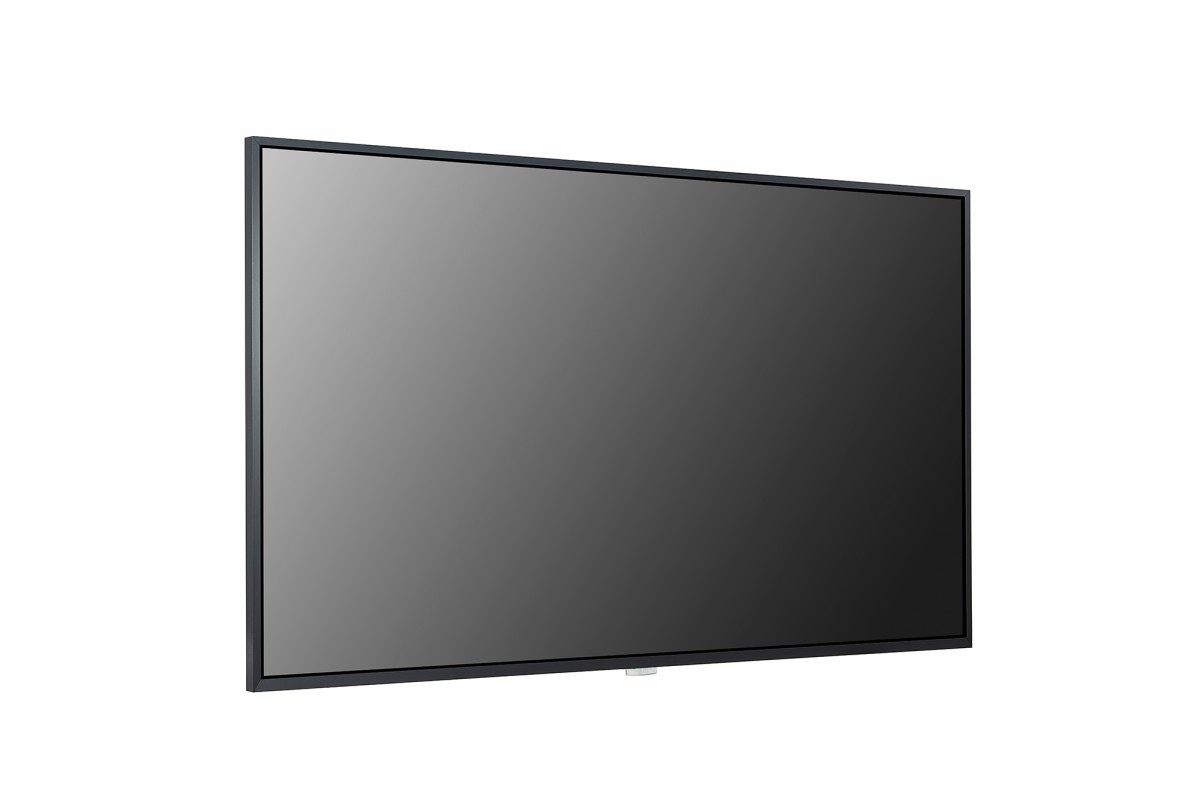

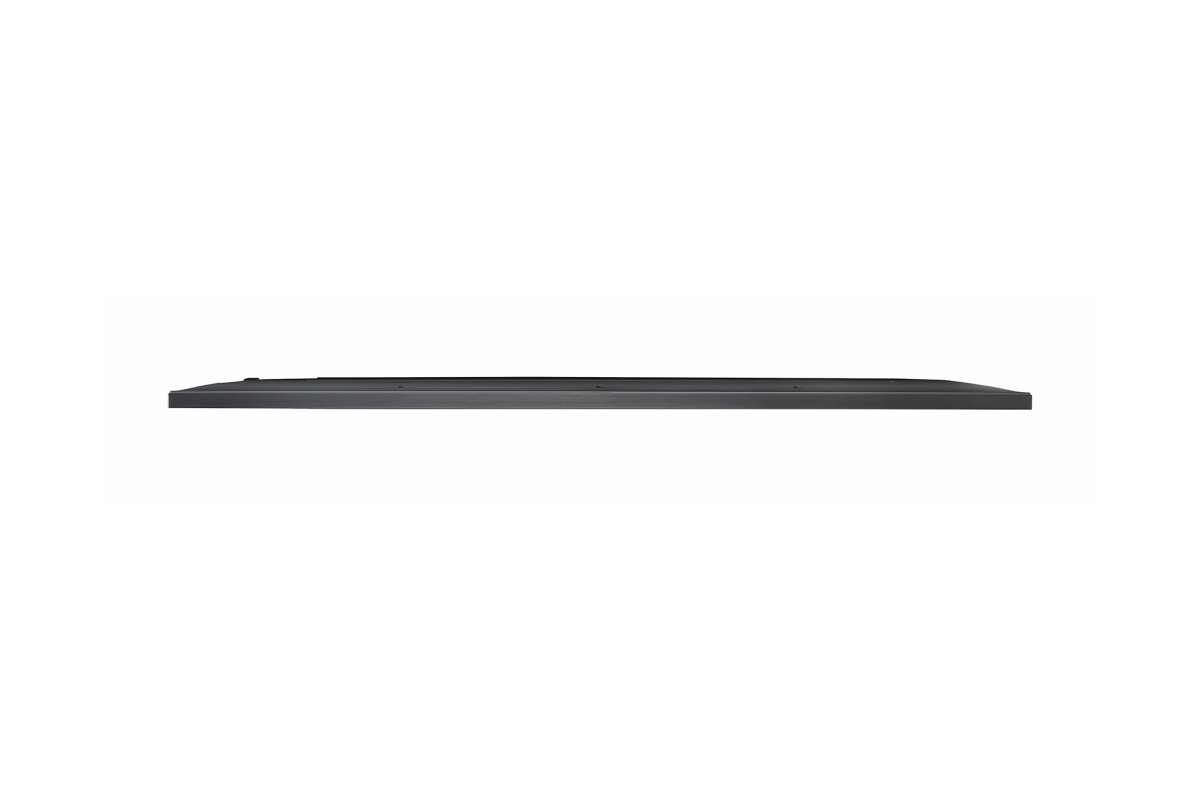

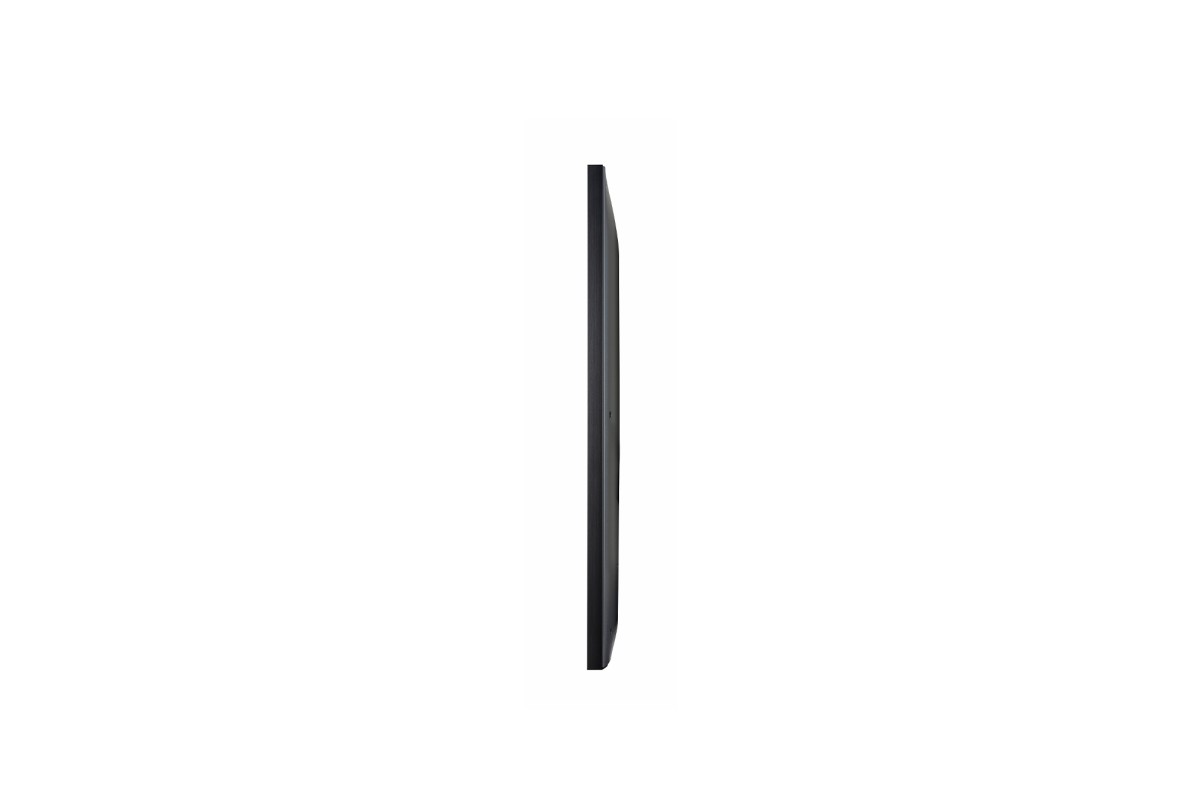

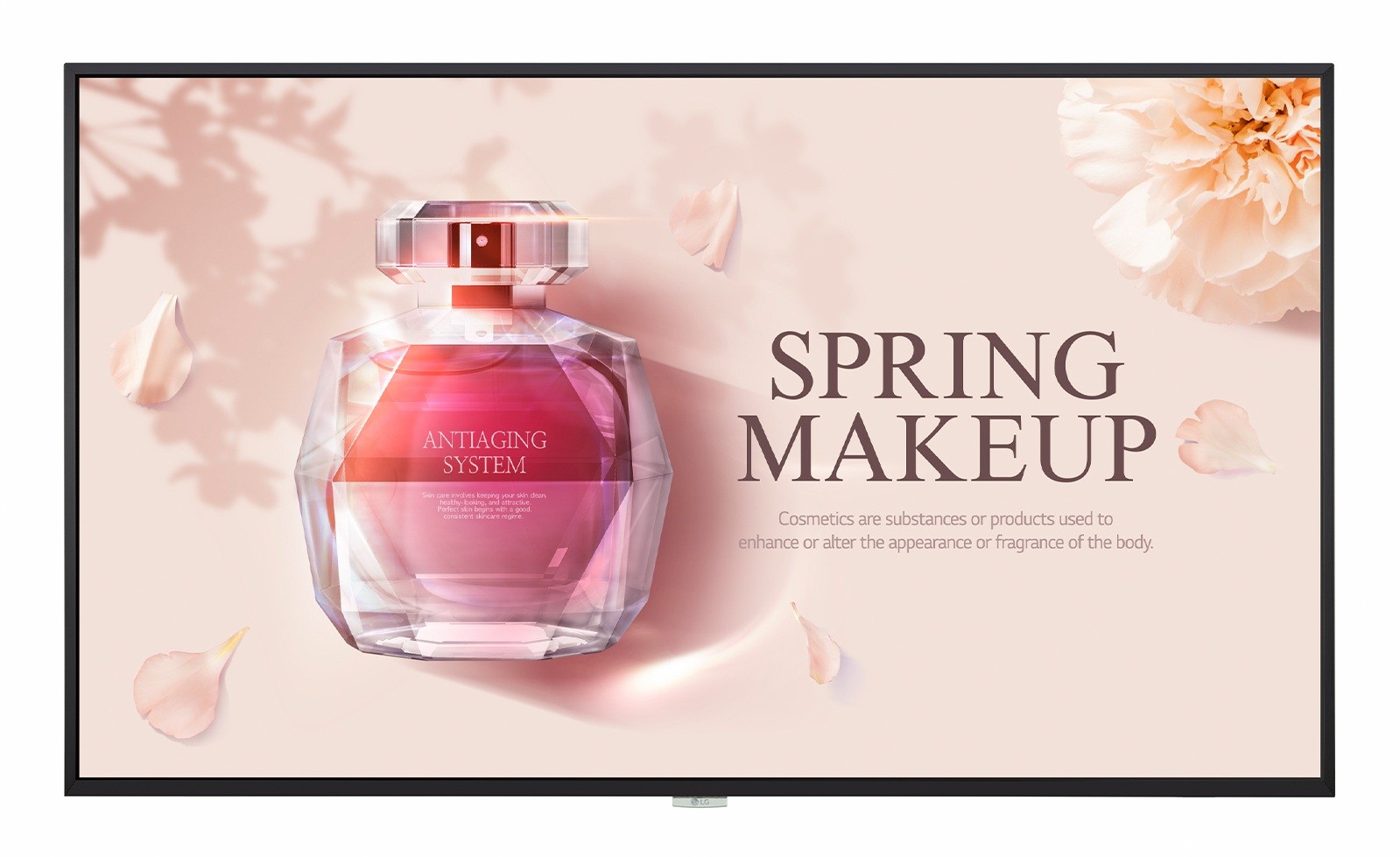

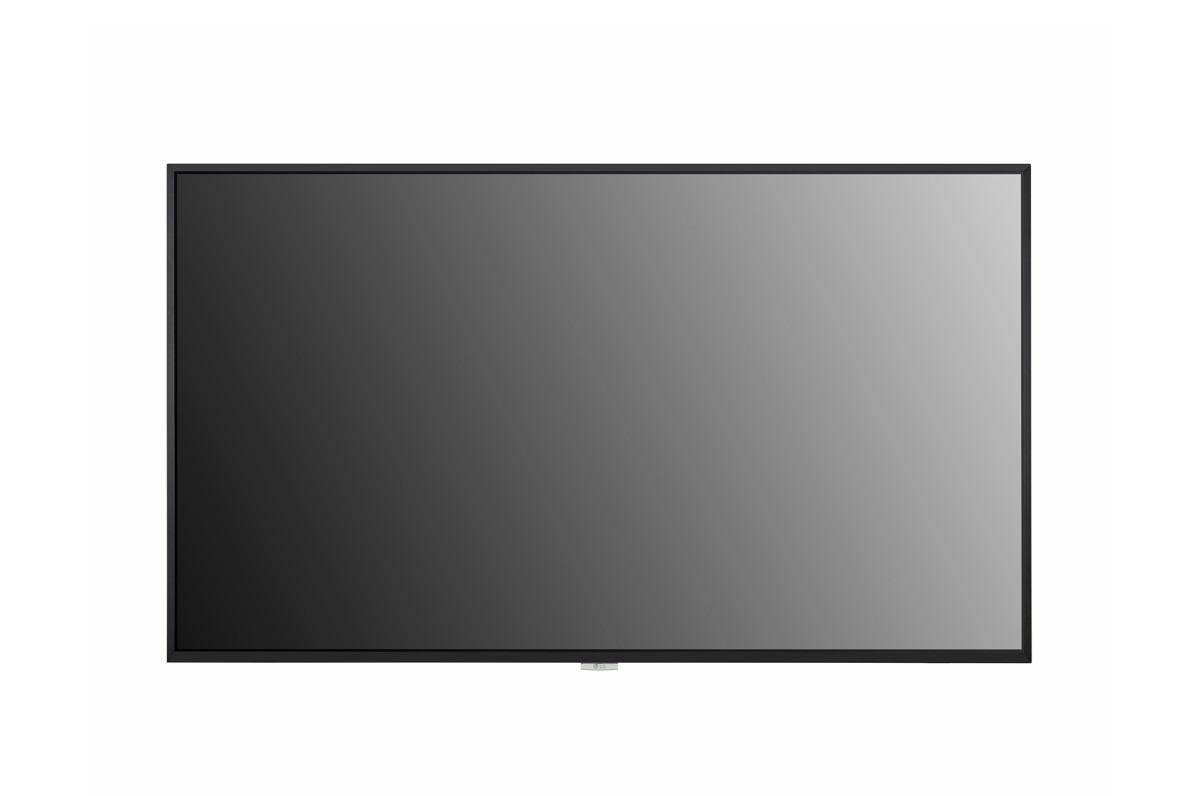

LG 43UH7J-H UHD Digital Signage Display
Product code:With a great brightness of 700 cd/m2, the UH7J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in airports, retail, shopping malls etc
Description
Panel
| Screen Size | 43" |
|---|---|
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Resolution | 3,840 X 2,160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 700 nit |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 |
| Color gamut | BT709 95% |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 8 bits + FRC, 1.07 Billion colors |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25 % |
| Life Time (Min.) | 50,000 Hrs |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 6.0 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | T/R/L: 8.4mm, B: 14.4mm |
| Weight (Head) | 11.2 Kg |
| Weight (Head+Stand) | 11.8 Kg |
| Monitor Dimensions (W × H × D) | 962.5 x 568.0 x 39.9 mm (with LG Logo) |

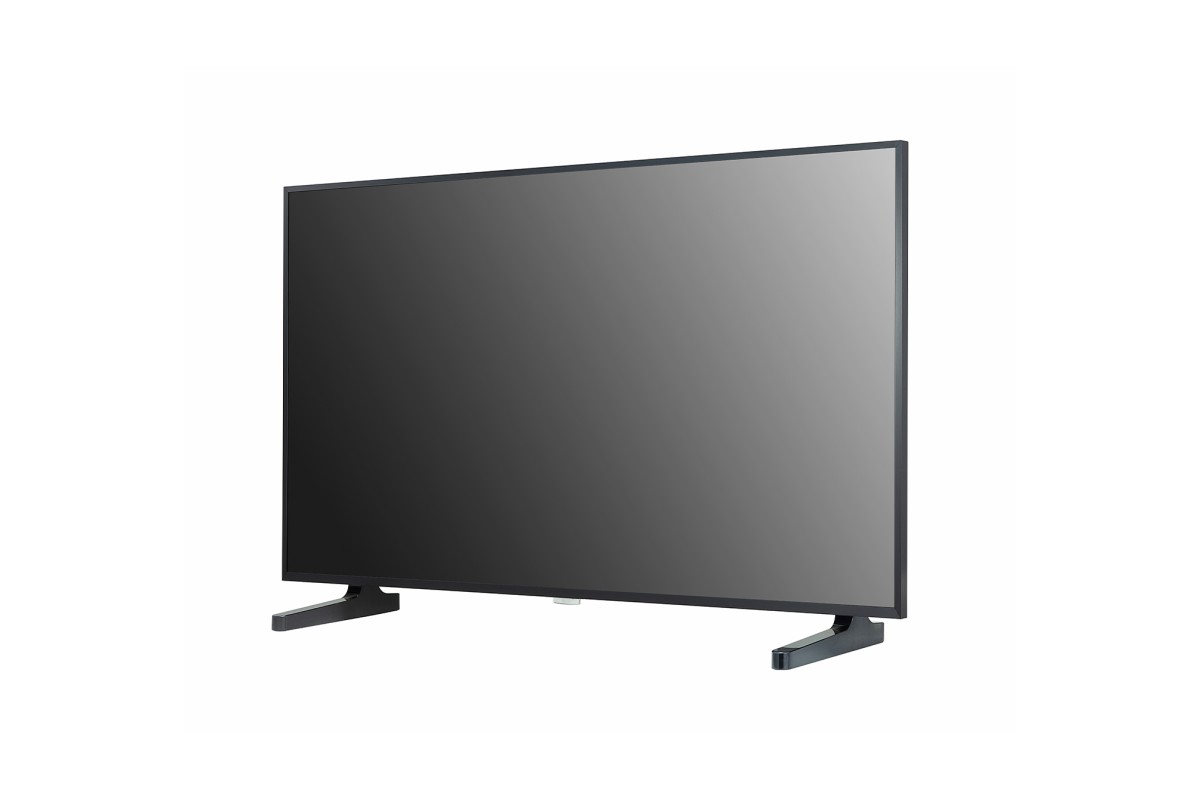

| Monitor Dimensions with Stand (W × H × D) | 962.5 x 613.1 x 290.0 mm |
| VESA™ Standard Mount Interface | 200 × 200 mm |
Special Feature
| Tilt (Facedown) | Yes (Max 15º degree, 30ºC temperature, humidity 50%) |
|---|---|
| IP Rating | IP5X |
Key Feature (Hardware)
| Internal Memory | 16 GB |
|---|---|
| Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration(Gyro) Sensor, Local Key Operation | Yes |
Key Feature (Software)
| webOS ver. | webOS 6.0 |
|---|---|
| Embedded CMS | Local Contents Scheduling, Group Manager |
| USB Plug & Play, Fail over | Yes |
| Multi-screen | PIP, PBP (4) |
| Screen Share | Yes |
| Background Image | Booting Logo Image, No Signal Image |
| Sync Mode | RS-232C Sync, Local Network Sync |
| Video Tag | Yes (4) |
| Play via URL | Yes |
| Rotation | Screen Rotation, External Input Rotation |
| Gapless Playback | Yes |
| Tile Mode Setting | Yes (Max. 15x15) |
| Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager | Yes |
| 3rd Party Compatibility | Crestron Connected |
| Beacon | Yes |
| Power | Smart Energy Saving, PM mode, Wake on LAN, Network Ready |
| HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom | Yes |
Connectivity
| Input | HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared), DVI-D, Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion) |
|---|---|
| Output | DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 80W / 120W |
|---|---|
| Smart Energy Saving | 56W |
| DPM | 0.5W |
| Power off | 0.5W |
| BTU (British Thermal Unit) | 273 BTU/Hr(Typ.), 410 BTU/Hr(Max.) |
OPS Compatibility
| OPS Type Compatible | Yes |
|---|
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare, Promota (Not available for EU/CIS), Mobile CMS |
Sound
| Speaker | Yes |
|---|
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (NewErP) |
Language
| OSD | English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic |
|---|
Accessory
| Basic | Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable |
|---|
