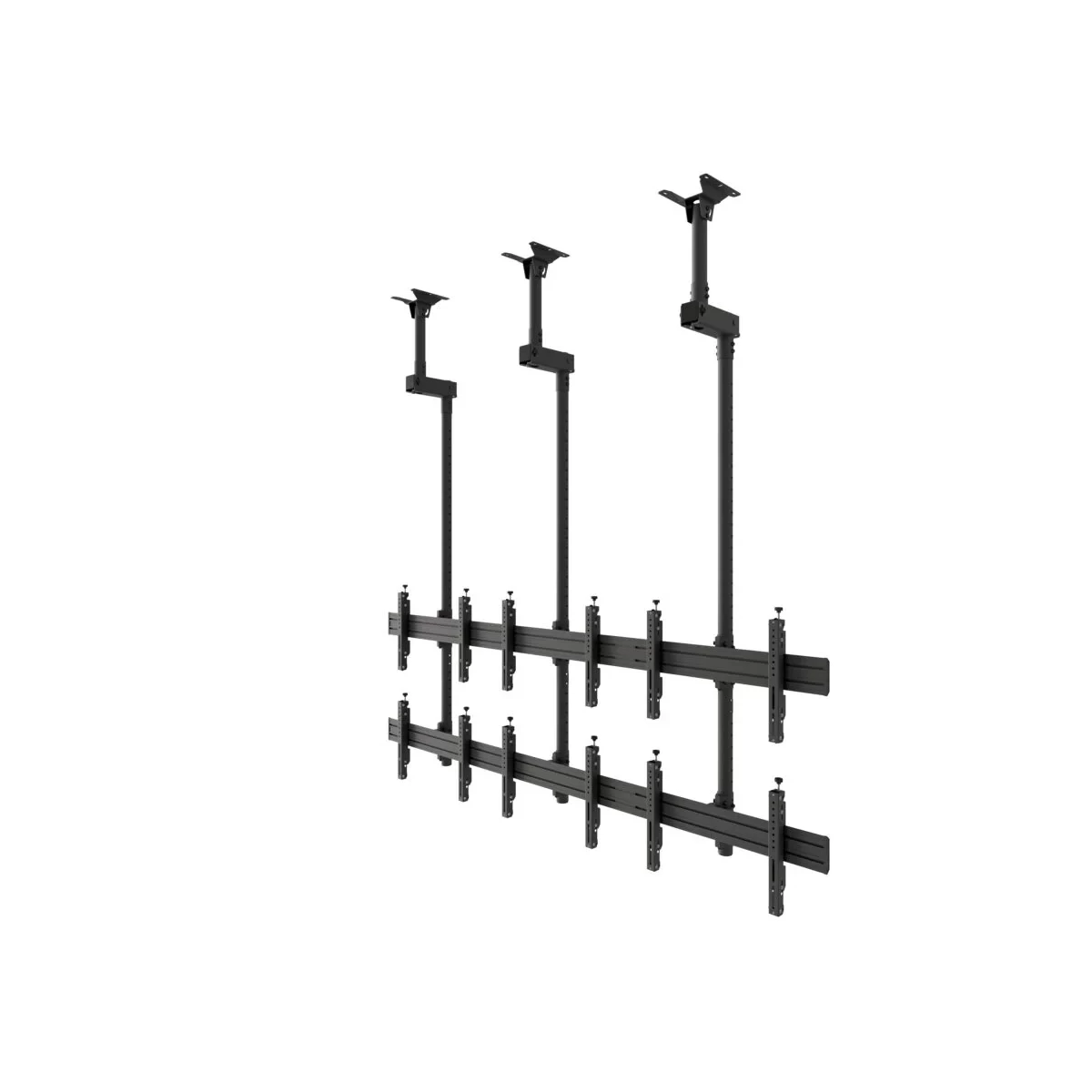

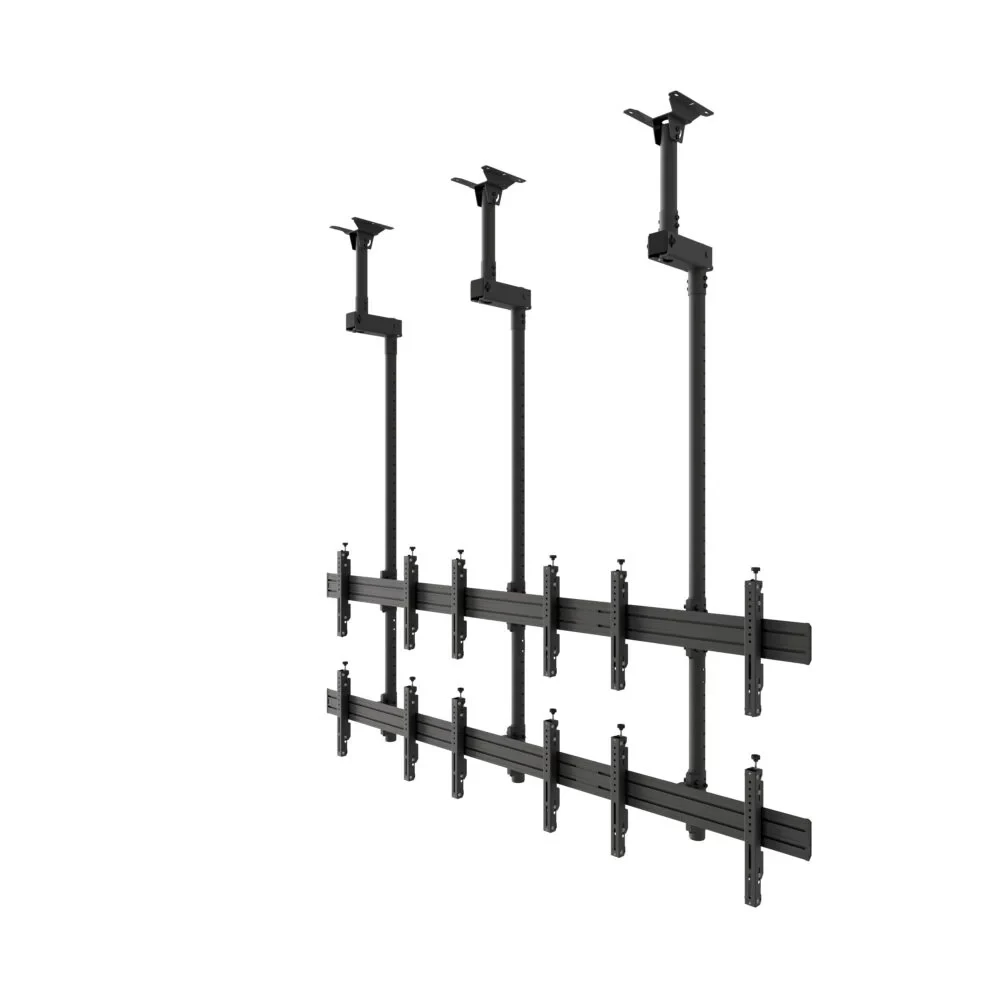

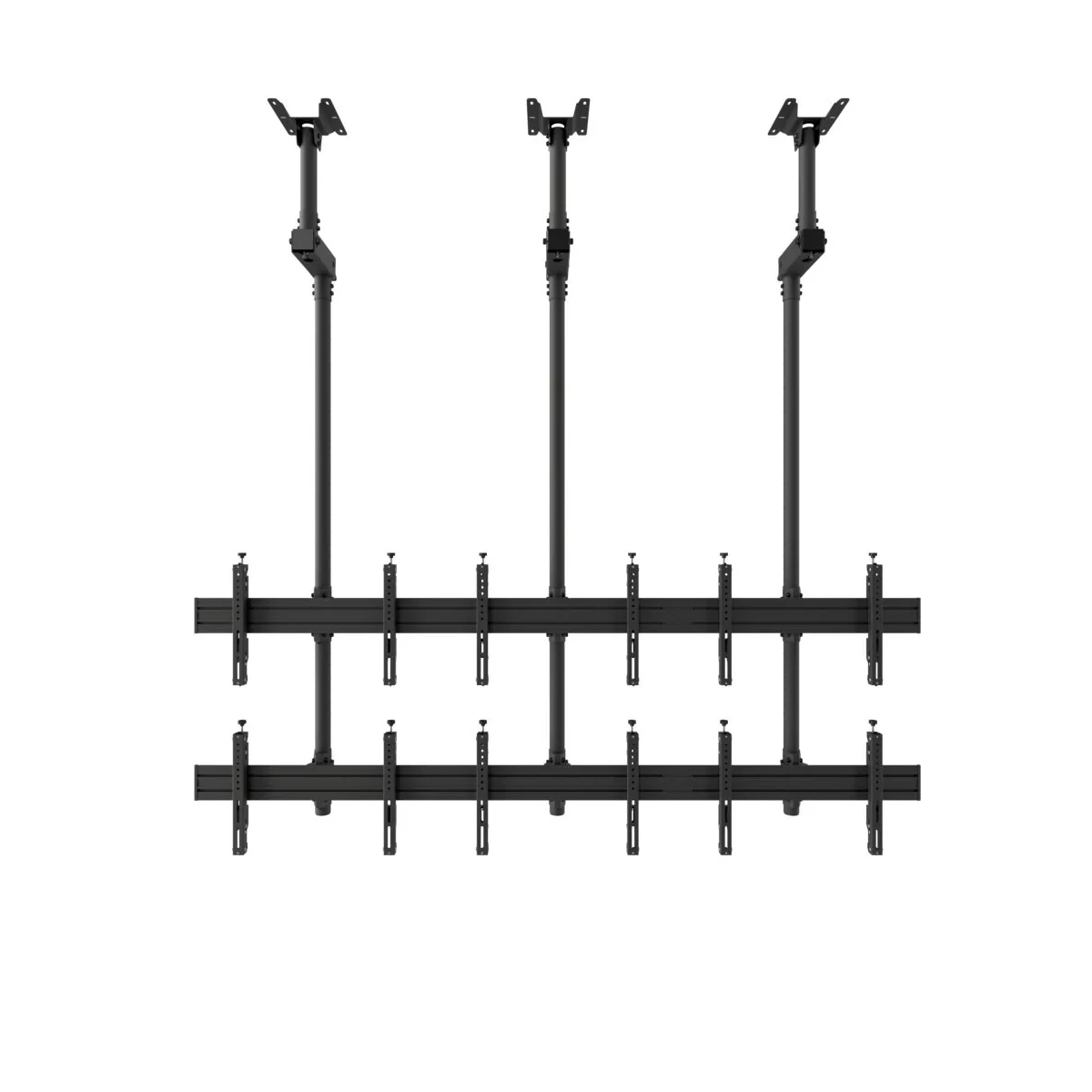

Edbak VWCA3247-L Video Wall Ceiling Mount, modular 3×2, for 42″-47″ Screens, landscape
Product code:With its modular design, VWSA3247-L allows the installation of six 42″-47″ screens in 3×2 landscape orientation. The design is characterised by durability, high quality and aesthetics. The video wall attached to the ceiling allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWSA3247-L is used in places where there is a need for dynamic and effective communication with the audience, while ensuring the maximum safety.
SEND AN ENQUIRYDescription
- High-end quality and aesthetics
- Durable design
- Screen load-carrying beams made of aluminium
- Up to 6 x 42″-47″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screen protected against being slid out accidentally
- Integrated cable management system for smart installation
- Screws protecting against accidental or unauthorised removal of the screen
- Seamless height adjustment
- Possibility of easy extension
Additional information
Product Specifications
| Index: | VWCA3247-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 4 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 47″ |
| Maximum load: | 200 kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 373 mm D: 2930 mm H: 2900 mm
(W: 14,69″ D: 115,35″ H: 114,17″) |
| Product weight: | 100 kg (220 lb) |
| Max. distance from mounting surface: | 2626,5 mm (103,41″) |
| Min. distance from mounting surface: | 951 mm (37,44″) |
| Max. mounting pattern: | 600 mm x 410 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WUSU-VWCA3247-L |
| EAN Code: | 5902841112384 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
Drawing Info
