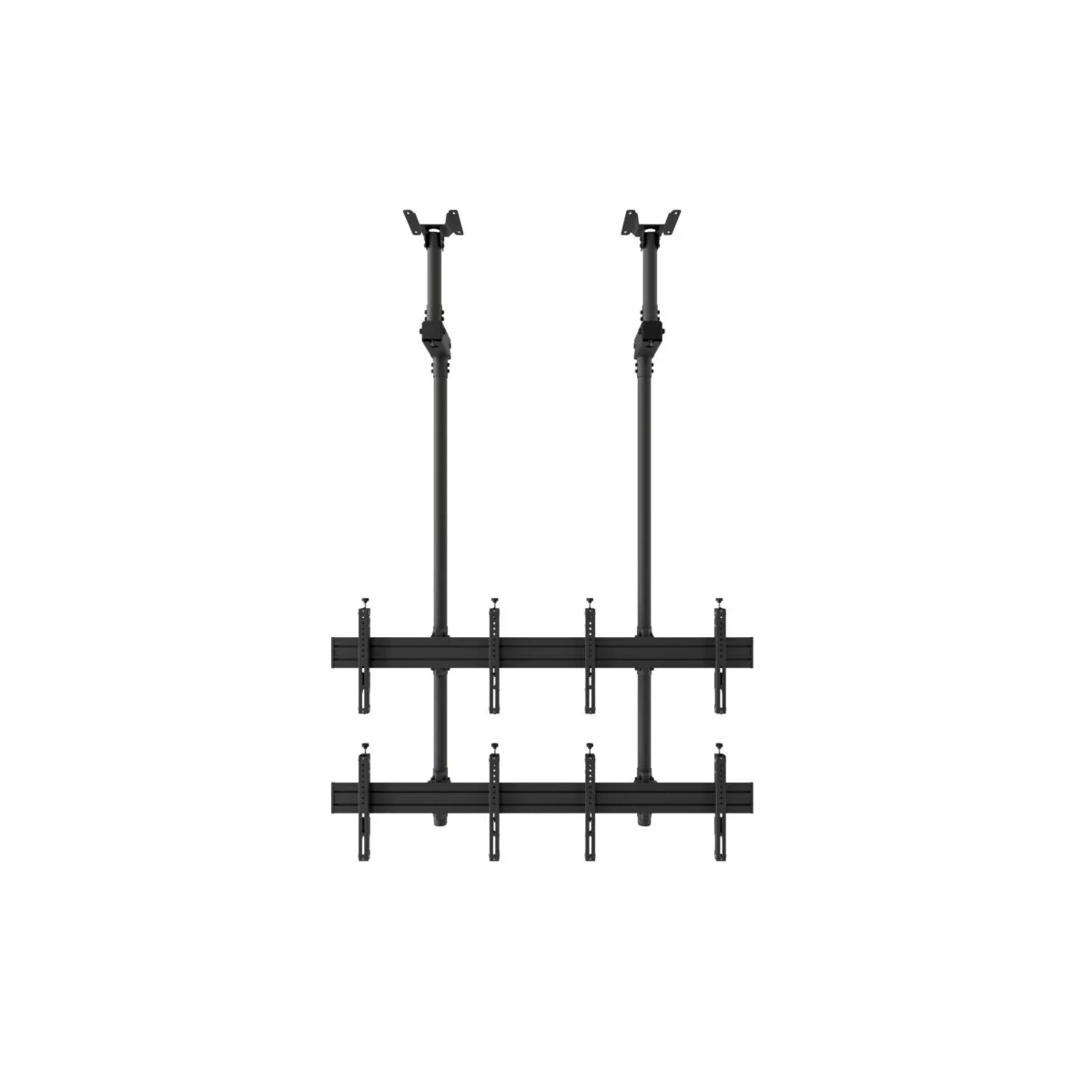

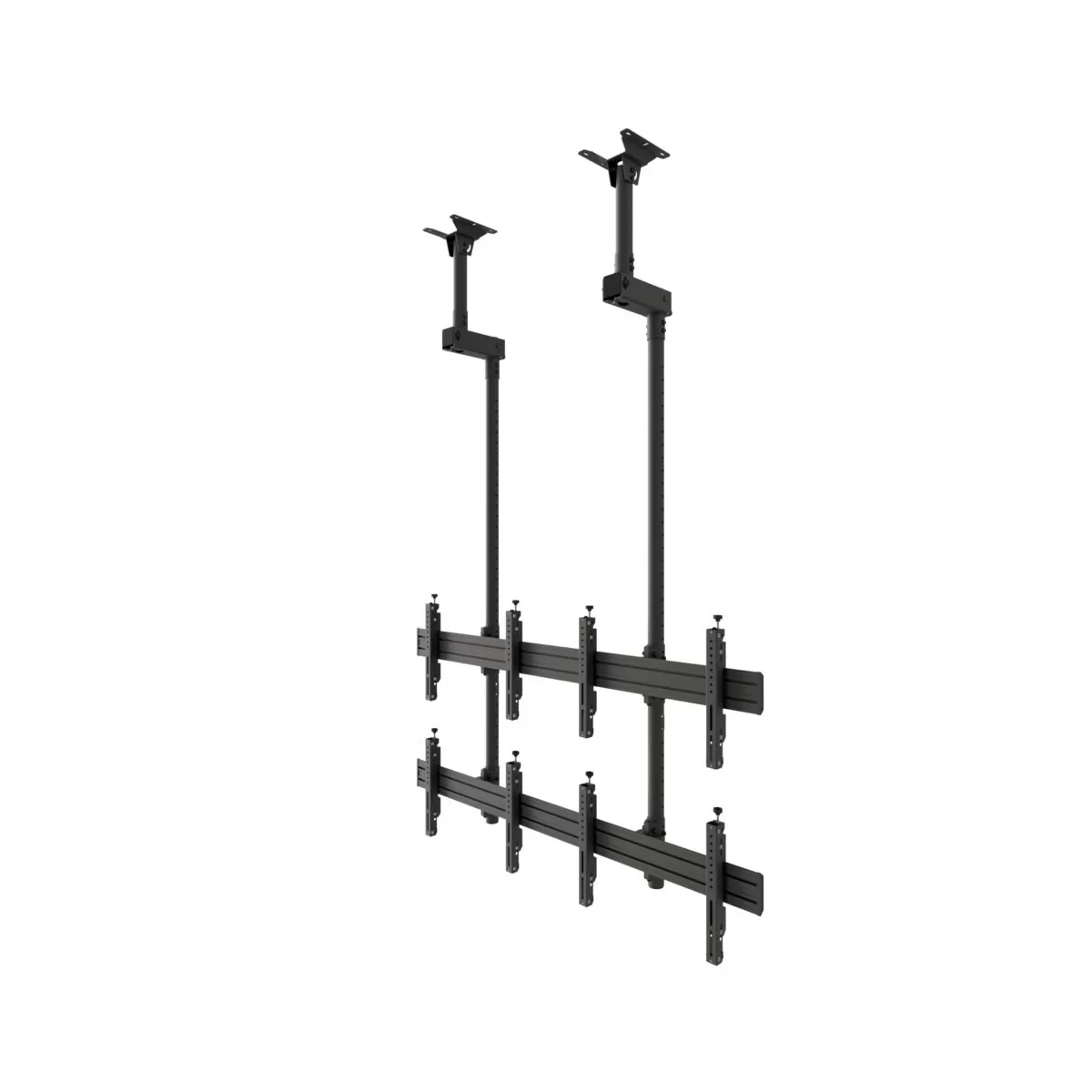

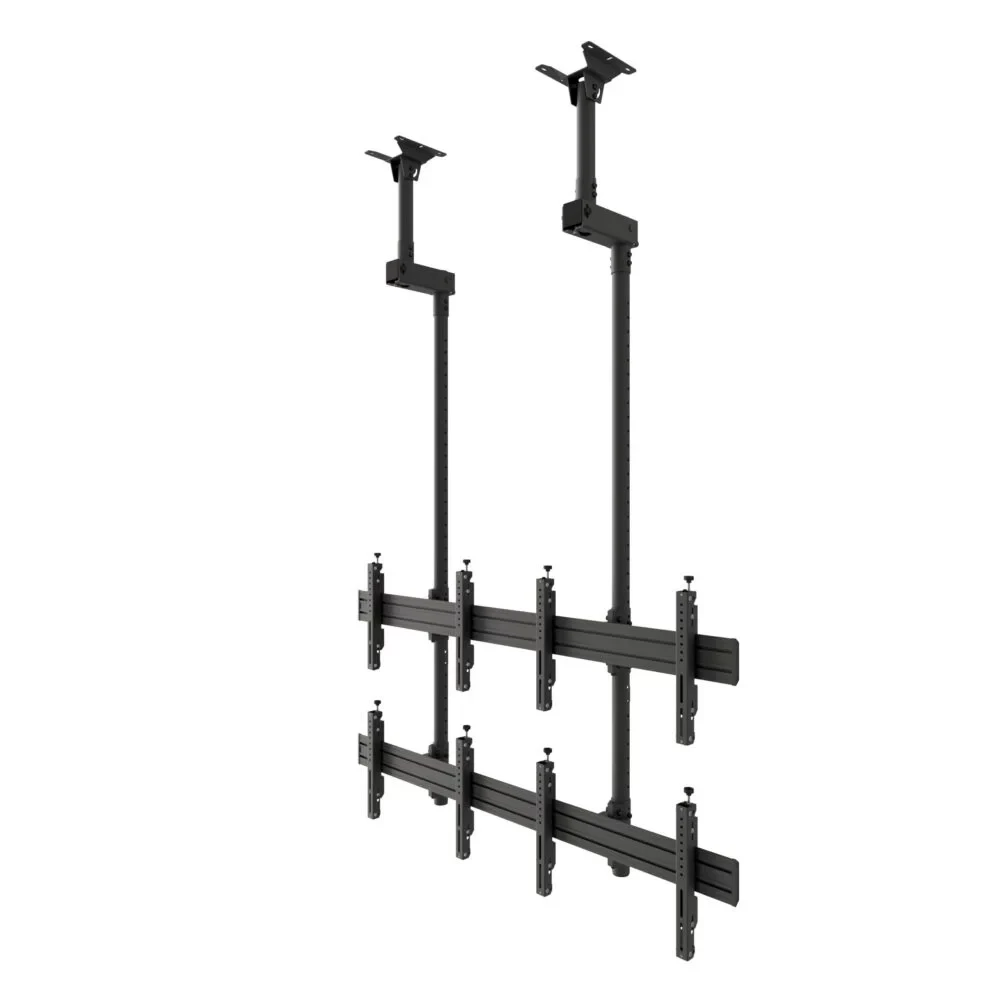

Edbak VWCA2247-L Video Wall Ceiling Mount, modular 2×2, for 42″-47″ Screens, landscape

Product code: VWCA2247-L

With its modular design, VWSA2247-L allows the installation of four 42″-47″ screens in 2×2 landscape orientation. The design is characterised by durability, high quality and aesthetics. The video wall attached to the ceiling allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWSA2247-L is used in places where there is a need for dynamic and effective communication with the audience, while ensuring the maximum safety.

    SEND AN ENQUIRY

    Description

    • High-end quality and aesthetics
    • Durable design
    • Screen load-carrying beams made of aluminium
    • Up to 4 x 42″-47″ screens
    • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
    • Screen protected against being slid out accidentally
    • Integrated cable management system for smart installation
    • Screws protecting against accidental or unauthorised removal of the screen
    • Seamless height adjustment
    • Possibility of easy extension

    Additional information

    Product Specifications

    Index:VWCA2247-L
    Color:Black
    Warranty:Limited 5-year’s
    Number of screens:4
    Minimum screen size:42″
    Maximum screen size:47″
    Maximum load:130 kg
    VESA Mounting Compatibility:100×100 up to 600×400

    Technical Specifications

    Product dimensions:W: 373 mm D: 1960 mm H: 2900 mm

    (W: 14,69″ D: 77,17″ H: 114,17″)

    Product weight:70 kg (154 lb)
    Max. distance from mounting surface:2626,5 mm (103,41″)
    Min. distance from mounting surface:951 mm (37,44″)
    Max. mounting pattern:600 mm x 410 mm
    Min. mounting pattern:50 mm x 50 mm

    Logistics Data

    SAP Index:WUSU-VWCA2247-L
    EAN Code:5902841112322
    HS Code (Harmonized System):732690
    HTS Code (Harmonized Tariff Schedule):7326909890
    Country of origin:Poland
