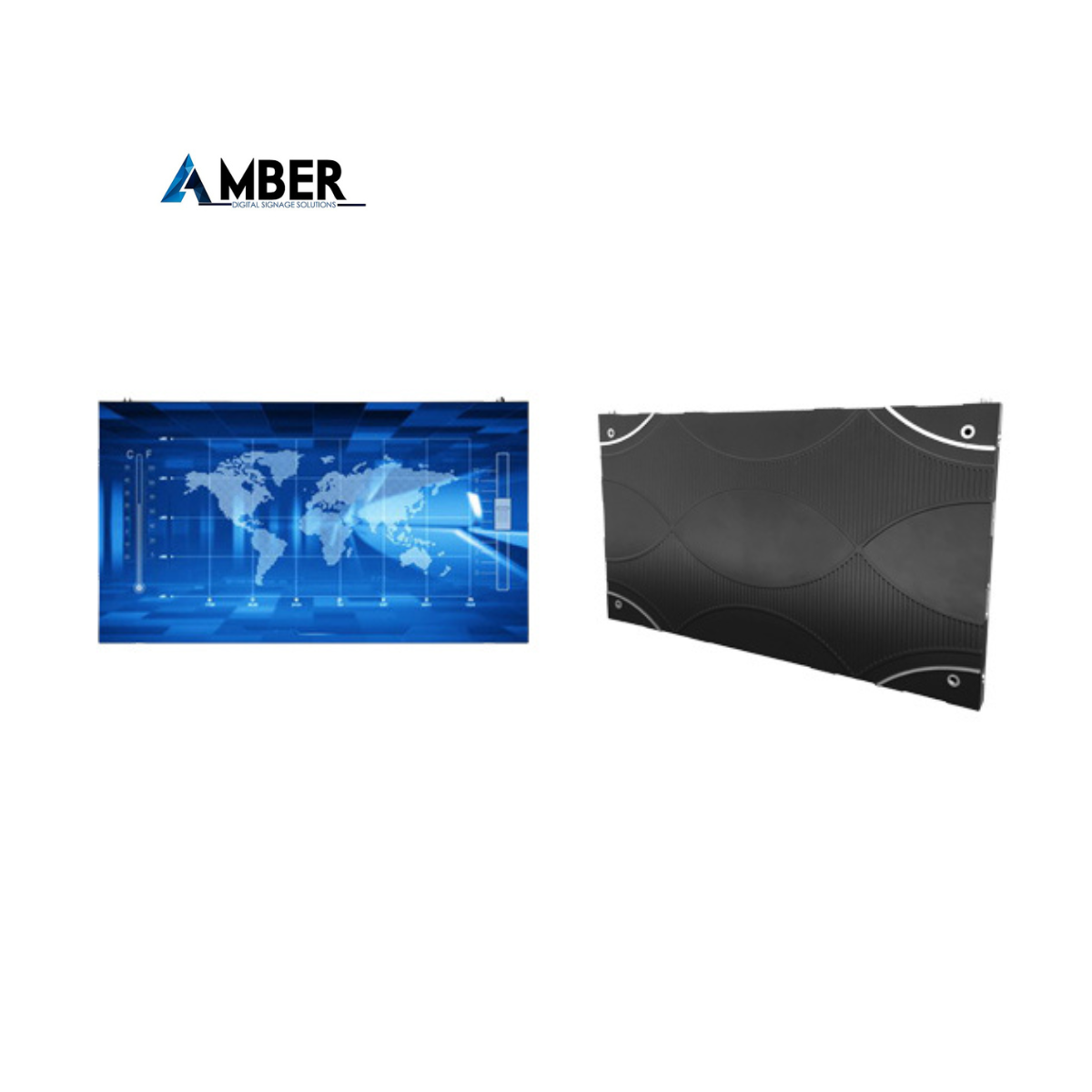

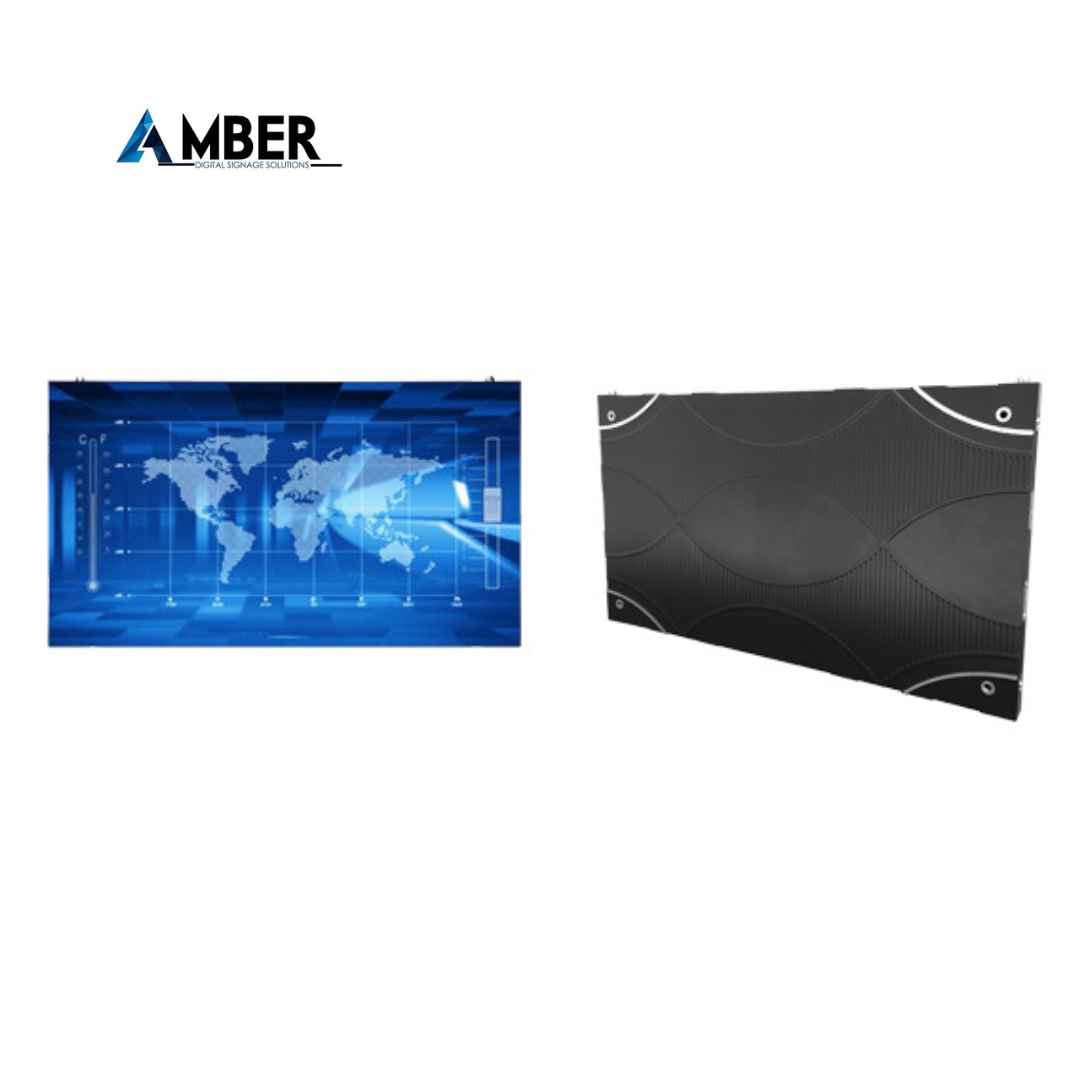

Amber BV-UHD-E Indoor LED Wall Fixed Install Series
Product code:Cost Effective, Fine Pitch
● Available from 1.2mm to 2.3mm
● 16:9 and 4:3 Easily Achieved
● Fully Front Access for Wall Mounting
● High Color Fidelity and High Contrast Ratio
SEND AN ENQUIRYDescription

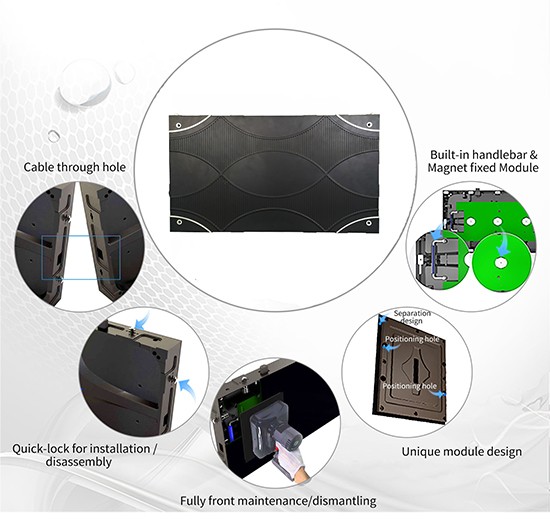

Fast Installation and Easy Maintenance
● Slim and lightweight, easy to install
● Cable-less between modules
● Fully Front Access
● Wall mounting avaliable
Unsurpassed Color Uniformity
● Unique color callibration process
● Wide viewing angle 160° / 140°
● Deep black levels, contrast ratio 4000:1

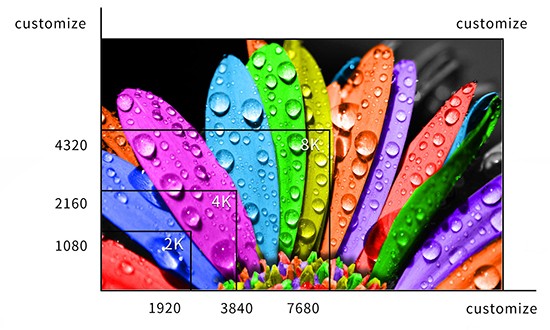

Aspect Ratio Friendly
● 600mmX337.5mm cabinet
● 16:9 and 4:3 easily achieved
● Truly reach to 2K, 4K, 8K
Additional information
BV-UHD-E-1.2 | BV-UHD-E-1.5 | BV-UHD-E-1.8 | BV-UHD-E-2.3 |
Physical Pitch | 1.25mm | 1.56mm | 1.87mm | 2.34mm |
Pixel Configuration | SMD 1010 | SMD 1010 | SMD 1010 | SMD2121 |
Pixel Density | 648,000 pixels/m² | 410,881 pixels/m² | 286,225 pixels/m² | 182,329 pixels/m² |
Module Dimensions (W × H) (mm) | 150 × 168.75 | 150 × 168.75 | 150 × 168.75 | 150 × 168.75 |
Panel Dimensions (mm) | 600 × 337.5 | 600 × 337.5 | 600 × 337.5 | 600 × 337.5 |
NO.of Modules Per Panel (W × H) | 4 × 2 | 4 × 2 | 4 × 2 | 4 × 2 |
Physical Resolution of Module (W × H) | 120 × 135 | 96 × 108 | 80 × 90 | 64 × 72 |
Physical Resolution of Panel (W × H) | 480 × 270 | 384 × 216 | 320 × 180 | 256 × 144 |
Panel Material | Die-casting | Die-casting | Die-casting | Die-casting |
Single Cabinet Weight | 4.5 kg/panel | 4.5 kg/panel | 4.5 kg/panel | 4.5 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 ：1 | 4,000 ：1 | 4,000 ：1 | 4,000 ：1 |
Average Power Consumption | ≤300 W/m² | ≤300 W/m² | ≤300 W/m² | ≤300 W/m² |
Max Power Consumption | ≤600 W/m² | ≤600 W/m² | ≤600 W/m² | ≤600 W/m² |
Brightness | 600~800 nits | 600~800 nits | 600~800 nits | 600~800 nits |
Refresh Rate | >2,880Hz | >2,880Hz | >2,880Hz | >2,880Hz |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs |
Operating Temp/Humidity | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% |
Storage Temp/Humidity | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% |
IP Rating (Front/Rear) | IP 40/ IP 21 | IP 40/ IP 21 | IP 40/ IP 21 | IP 40/ IP 21 |
Scan Method | 1/45 1/27 Scan | 1/27 Scan | 1/30 Scan | 1/24 Scan |
