Amber BV-S Flexible Soft Rubber LED Series
Product code:Soft Rubber LED Series
● Flexible Rubber Module, Creative Solutions
● Convex, Concave or Twisted Available Module
● For Any Creative Shape and Size, For Unique
● Installations
● Ultra Thin and Lightweight
● Magnetic Connection for Easy Maintenance
SEND AN ENQUIRYDescription
Soft Ribbon Rubber
● Durable soft rubber module, anti-static electricity
● Soft PCB and rubber material
● Integrated SMD, IC, Circuit for easy maintenance and
● heat dissipation
● Magnetic connection for easy maintenance
Slim and Lightweight and Quiet
● 5mm thickness, space efficiency
● 0.18kg per module, shipping cost and installation cost saving
● Fanless design

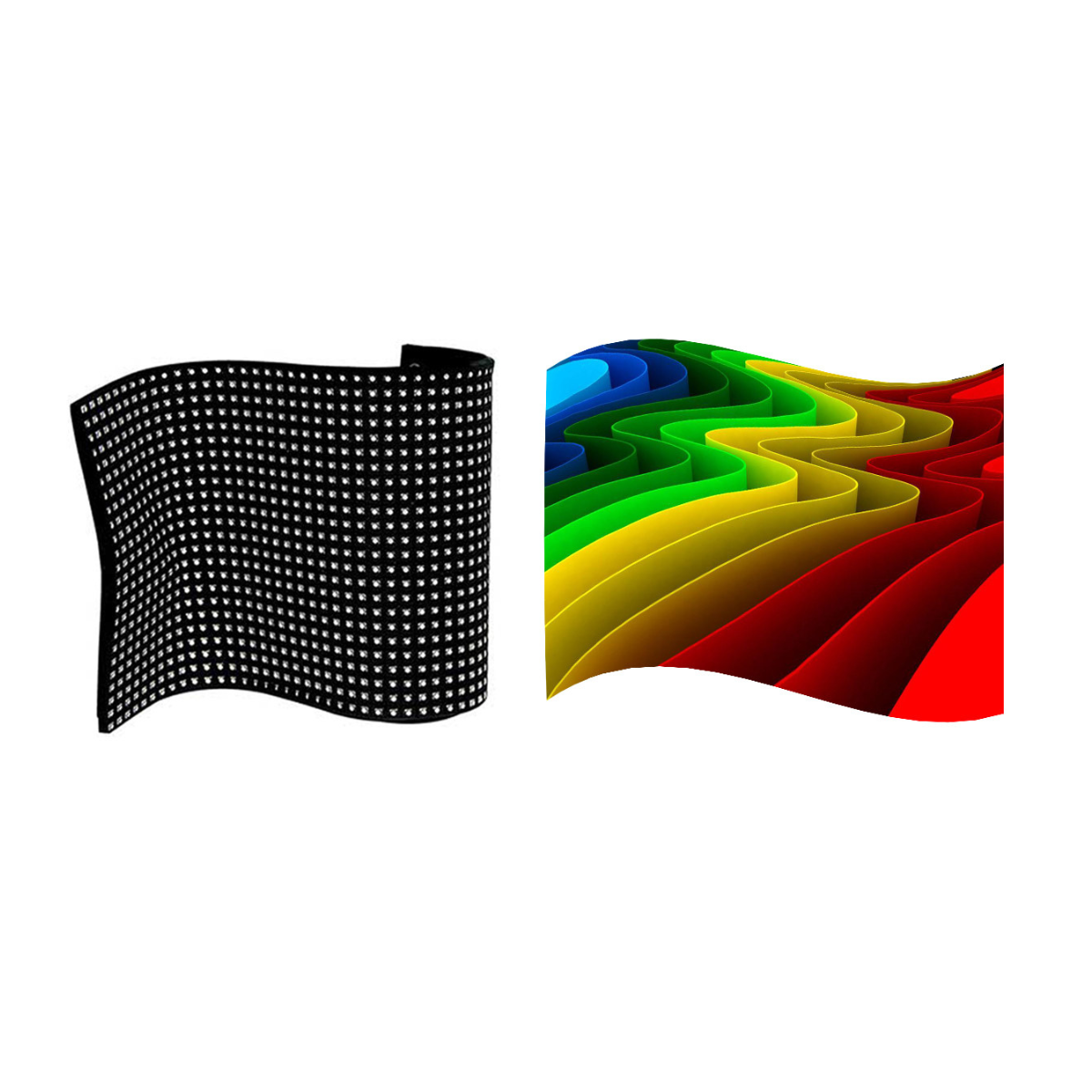

Creative and Customized Forms
● For any convex, concave or twisted installations
● Customized pixel pitches available for variable installations
Additional information
BV-S-2 | BV-S-2X | BV-S-3 | BV-S-4 |
Physicla Pitch | 2mm | 2.5 mm | 3 mm | 4 mm |
Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
Pixel Density | 250,000 pixels/m² | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
Module Dimensions (W*H)(mm) | 240*120 | 240*120 | 240*120 | 240*120 |
Panel Dimensions (mm) | customized | customized | customized | customized |
Physical Resoulution of Modules (W*H) | 120*60 | 96*48 | 80*40 | 60*30 |
Weight | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 9 W | 9 W | 10 W | 10 W |
Max Power Consumption | 12 W | 12 W | 13 W | 13 W |
Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,500 nits |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Scan Method | 1/40 | 1/40 | 1/40 | 1/8 |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
Srevicing | Front | Front | Front | Front |
IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 | IP 40 |
Operating Temp/Humidity | -20ºC-60ºC 10%-90% | -20ºC-60ºC 10%-90% | -20ºC-60ºC 10%-90% | -20ºC-60ºC 10%-90% |
Storage Temp/Humidity | -40ºC-80ºC 10%-90% | -40ºC-80ºC 10%-90% | -40ºC-80ºC 10%-90% | -40ºC-80ºC 10%-90% |
