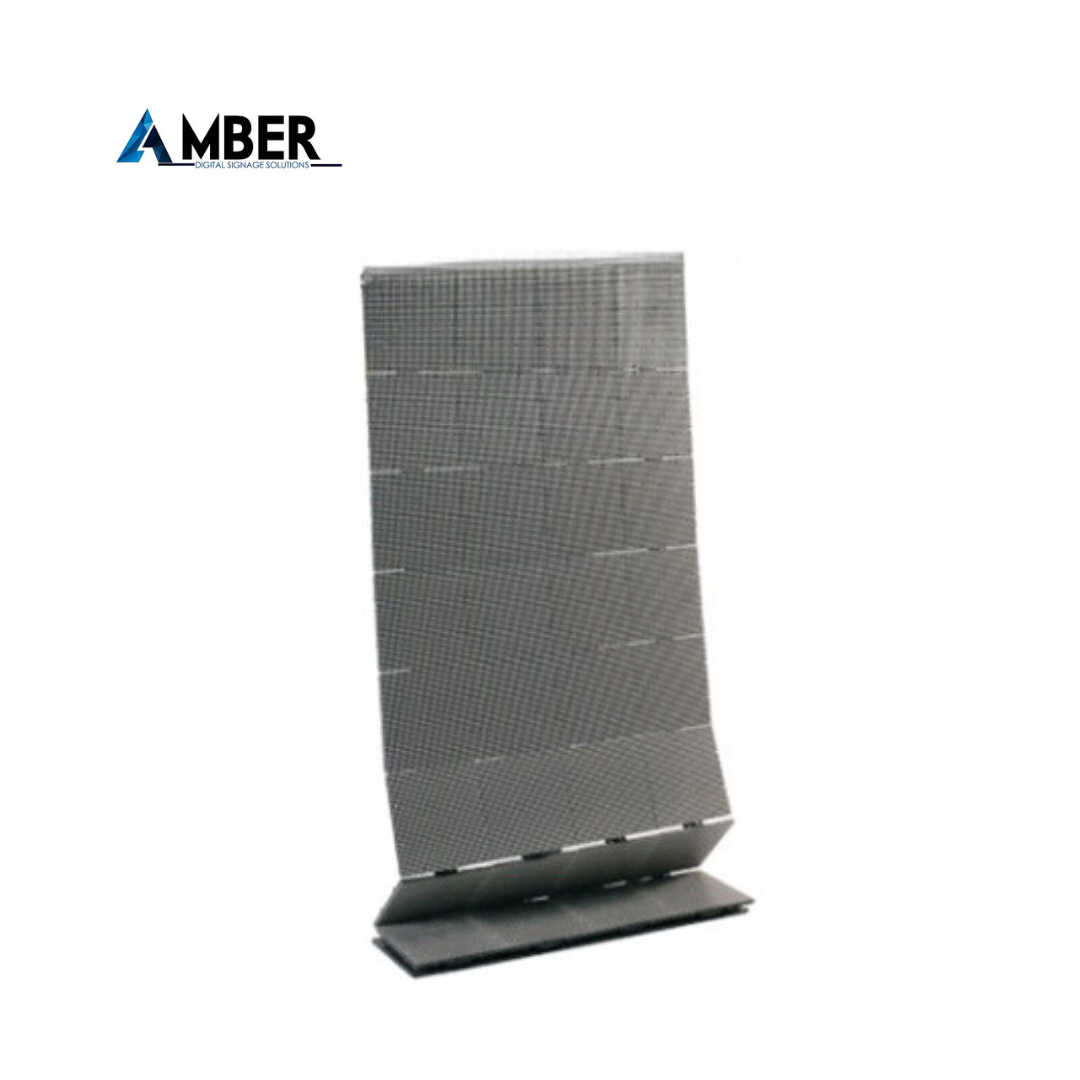

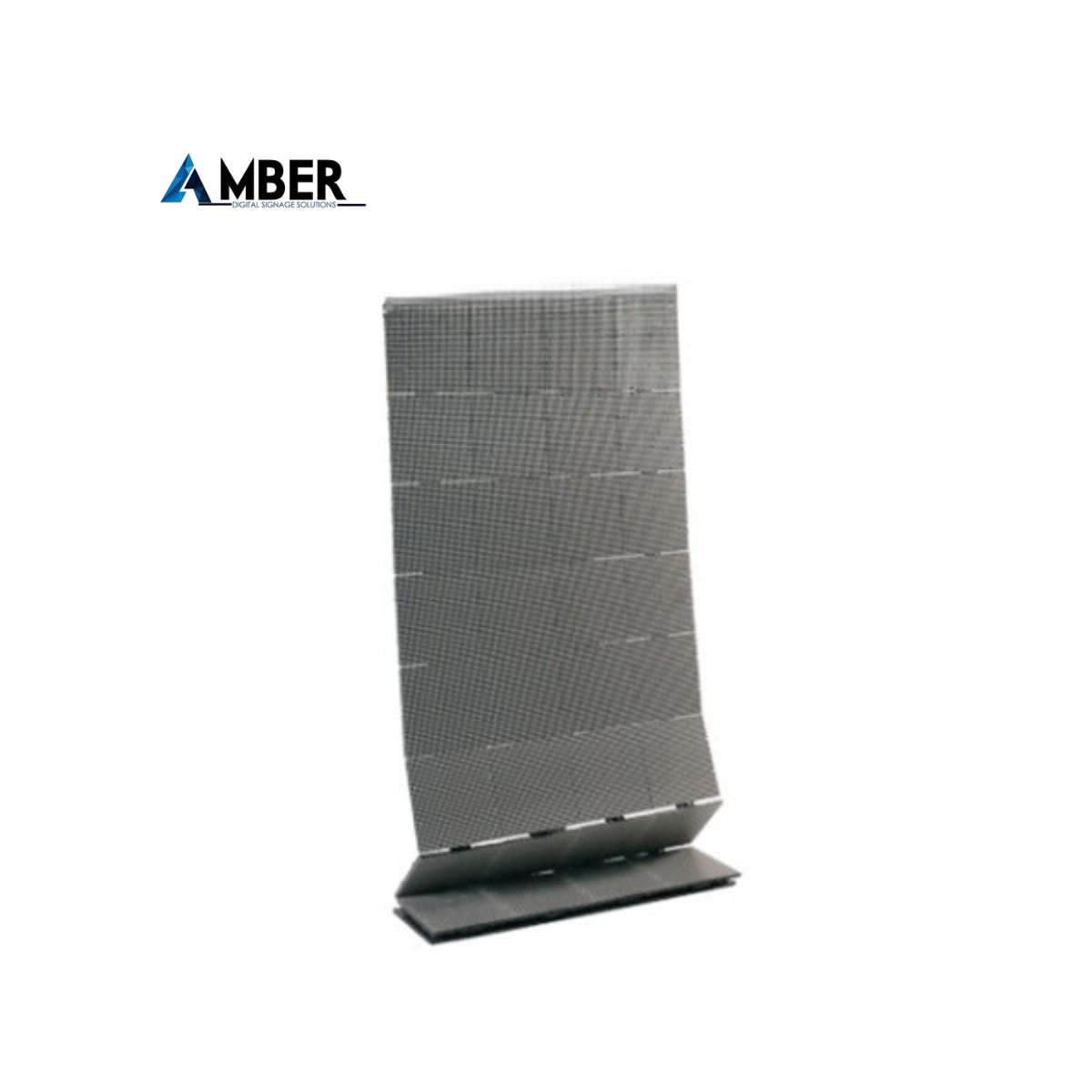

Amber BV-F Flexible Foldable LED Series
Product code:Foldable, Portable, Space Saving
● Foldable Modules,
● Save Space and Transportation Cost
● Slim and Lightweight
● Support Hanging, Stacking, and Attaching
SEND AN ENQUIRYDescription

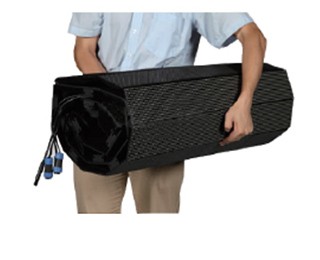

Variable Foldable Module
● 180 or 360 degree foldable

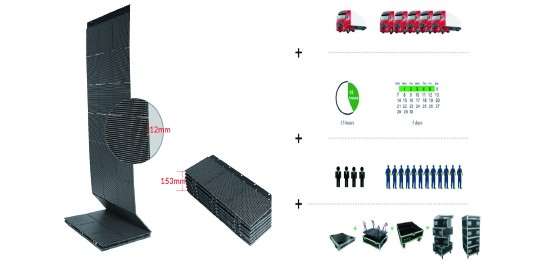

● Storage, transportation cost, space saving
● 8.5mm-15mm thickness
● <12kg per m2

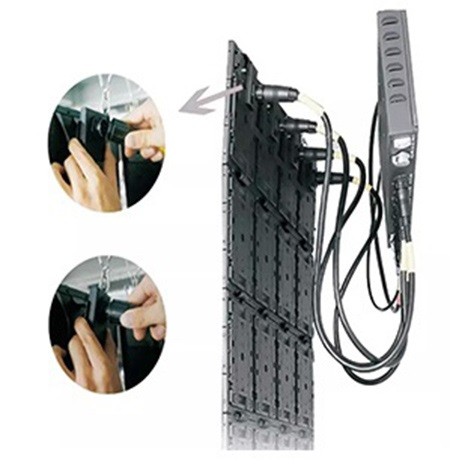

● Extended Data and Power Box, integrated unit.
● Max power cable distance 7m-10m
Easy and Fast Installation
● Available for both horizontal and vertical assembling
● Flat and curve options for any customized installation
● Easy connection design allows the fast set up and tear
down, save 80% labor cost
Additional information
BV-F-3.9 | BV-F-5.2 | BV-F-6 | BV-F-7 |
Physical Pitch | 3.91mm | 5.2mm | 6mm | 7.8mm |
Pixel Configuration | SMD 1010 | SMD 2020 | SMD 3528 | SMD 3528 / SMD 3535 |
Pixel Density | 65,536 pixels/m² | 36,982 pixels/m² | 27,556 pixels/m² | 16,384 pixels/m² |
United Size (mm) | 250 × 250 | 250 × 250 | 192 × 192 | 250 × 250 |
Physical Resolution of Unit (W× H) | 64 × 64 | 48 × 48 | 32 × 32 | 32 × 32 |
Weight（kg/m²） | ＜10 | ＜9 | ＜10 | ＜9 |
Gray Scale | 16bit | 16bit | 16bit | 16bit |
Colours | 281trillion | 281trillion | 281trillion | 281trillion |
Contrast Ratio | 2,000 : 1 4,000 : 1 | 2,000 : 1 4,000 : 1 | 2,000 : 1 4,000 : 1 | 2,000 : 1 4,000 : 1 |
Average Power Consumtion | 150 / 310 W/m² | 90 / 200 W/m² | 150 / 310 W/m² | 90 / 200 W/m² |
Max Power Consumption | 375 / 775 W/m² | 225 / 500 W/m² | 375 / 775 W/m² | 225 / 500 W/m² |
Operating Temp/Humidity | -10℃- 60℃ 10%-60% | -10℃- 60℃ 10%-60% | -10℃- 60℃ 10%-60% | -10℃-60℃ 10%-60% |
Storage Temp/Humidity | -30℃- 60℃ 10%-60% | -30℃- 60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃- 60℃ 10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | 1,200 nits | 1,200 nits | 2,000 / 4,000 nits | 1,500 / 6,000 nits |
Foldable Angle | 360° | 360° | 360° | 360° |
Max Length of Control Box | 6m | 8m | 6m | 8m |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front | Front | Front | Front |
IP Rating (Front/Rear) | IP 43 / IP 54 | IP 43 / IP 54 | IP 43 / IP 54 | IP 43 / IP 54 |
Scan Method | 1/16 Scan | 1/12 Scan | 1/16 Scan | 1/16 Scan |
BV-F10 | BV-F12 |
Physical Pitch | 10mm | 12mm | ||
Pixel Configuration | SMD 3528 | SMD 3528 | ||
Pixel Density | 10,000 pixels/m² | 6,889 pixels/m² | ||
United Size (mm) | 160 × 160 | 192 × 192 | ||
Physical Resolution of Unit (W× H) | 16 × 16 | 16 × 16 | ||
Weight（kg/m²） | ＜9 | ＜9 | ||
Gray Scale | 16bit | 16bit | ||
Colours | 281trillion | 281trillion | ||
Contrast Ratio | 2,000 : 1 4,000 : 1 | 2,000 : 1 4,000 : 1 | ||
Average Power Consumtion | 110 W/m² | 75 W/m² | ||
Max Power Consumption | 275 W/m² | 187 W/m² | ||
Operating Temp/Humidity | -10℃- 60℃ 10%-60% | -10℃- 60℃ 10%-60% | ||
Storage Temp/Humidity | -30℃- 60℃ 10%-60% | -30℃-60℃ 10%-60% | ||
Refresh Rate | >1,920 Hz | >1,920 Hz | ||
Brightness | 1,500 nits | 1,500 nits | ||
Foldable Angle | 360° | 360° | ||
Max Length of Control Box | 4m | 12m | ||
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | ||
Servicing | Front | Front | ||
IP Rating (Front/Rear) | IP 43 / IP 54 | IP 43 / IP 54 | ||
Scan Method | 1/16 Scan | 1/16 Scan |
