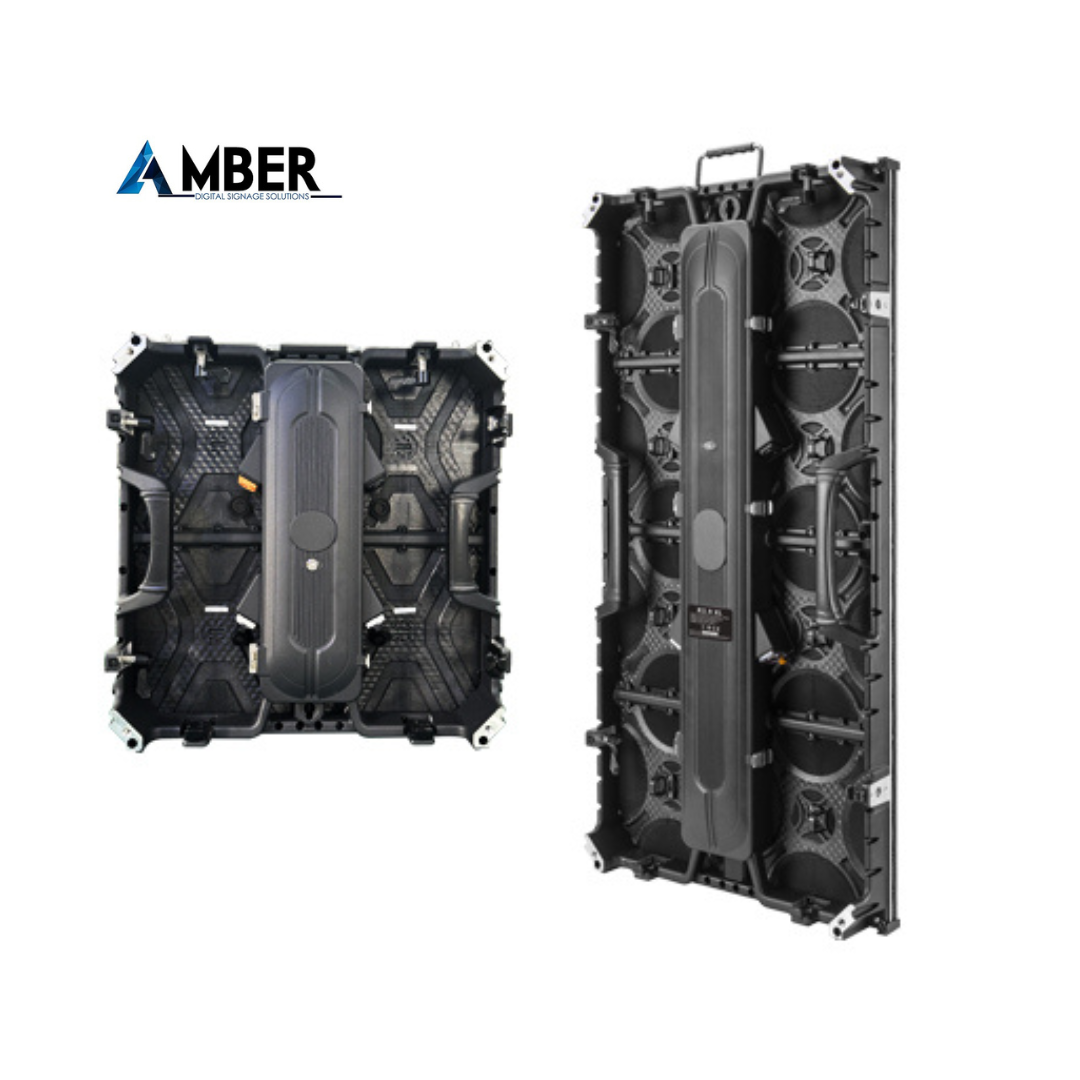

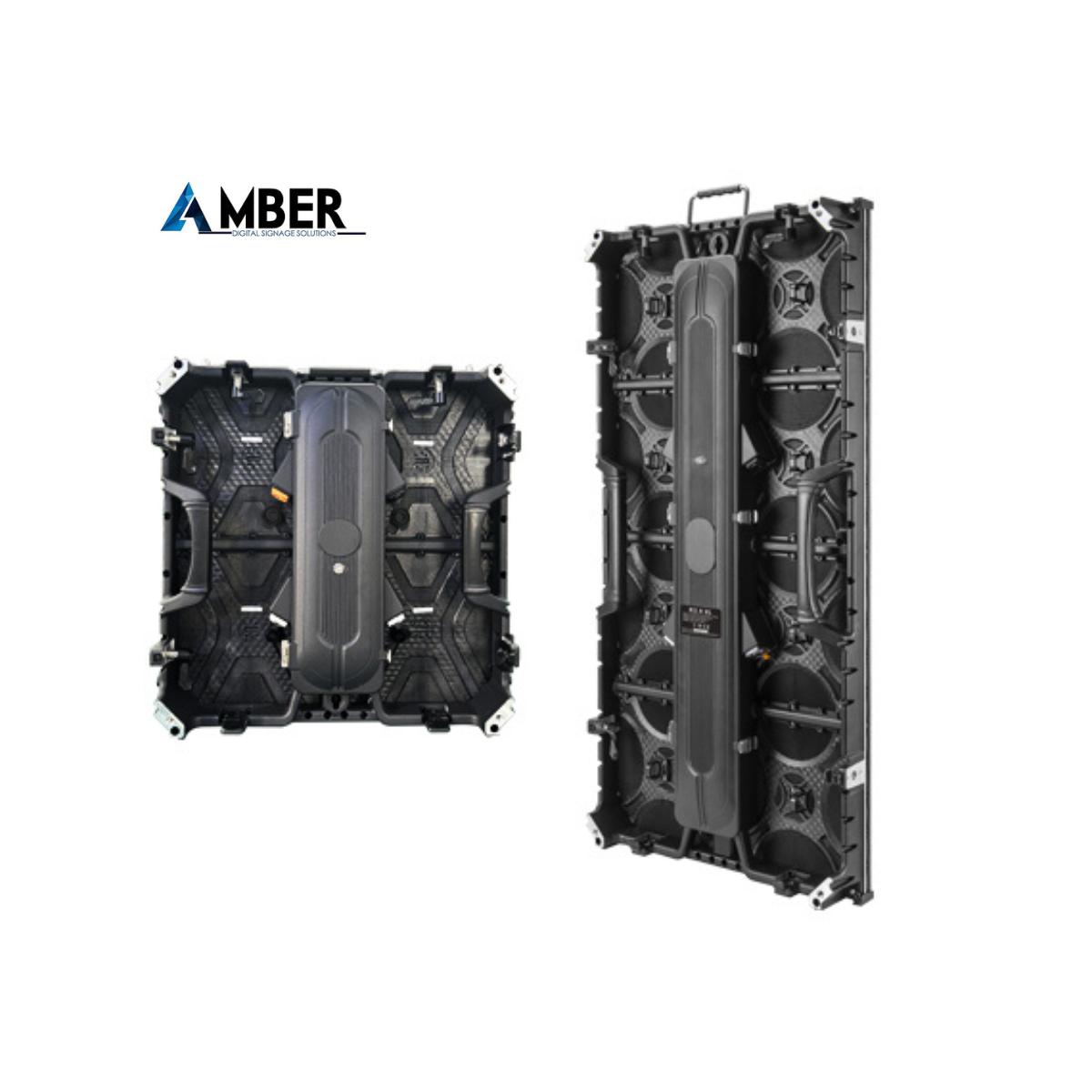

Amber BV-IR-III Indoor LED Wall Rental Series
Product code:Cost Efficient,
Indoor Rental LED Display
● High Color Deep & Greyscale
● High Refresh Rate & Contrast Ratio
● Fast Assemble and Easy Maintenance
SEND AN ENQUIRYDescription
Slim, Light Weight and Quiet
● 500mm x 500mm or 500mm x 1000mm cabinet
● 78mm thickness, 7kg per cabinet
● Work Quietly

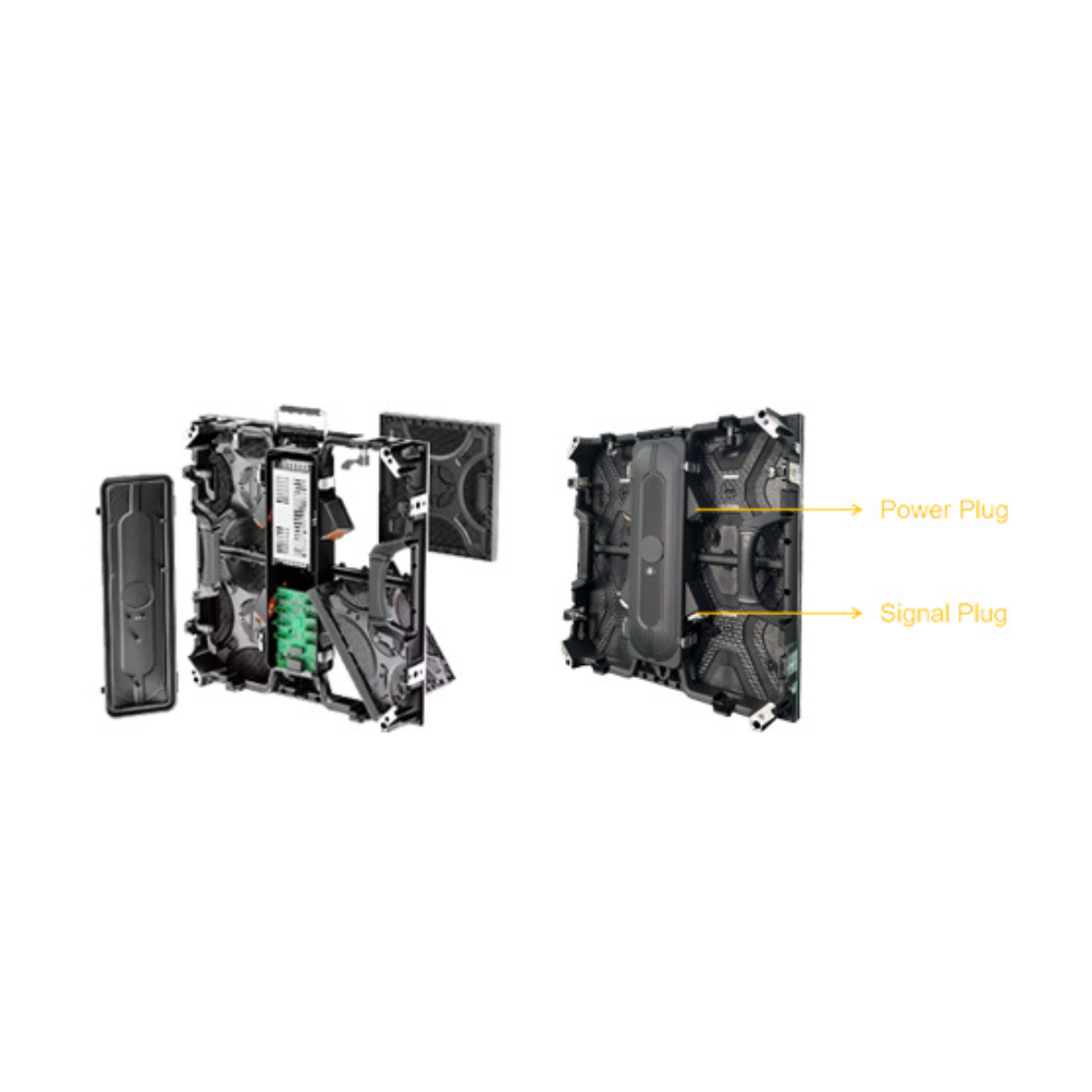

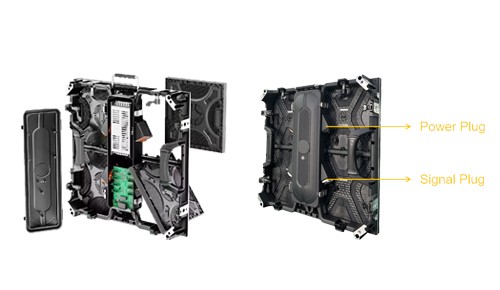

User Friendly and Fast Installation
● Both front or rear accessible
● Magnetic modules, Cable-less Connection
● Slant pocket for easier power & signal plug
Unsurpassed Color Uniformity
● Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1

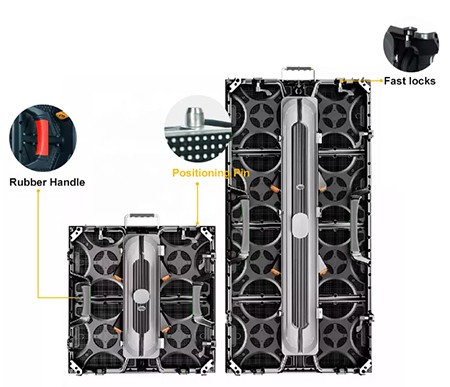

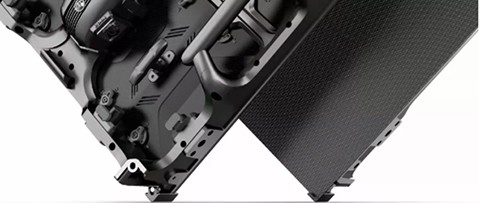

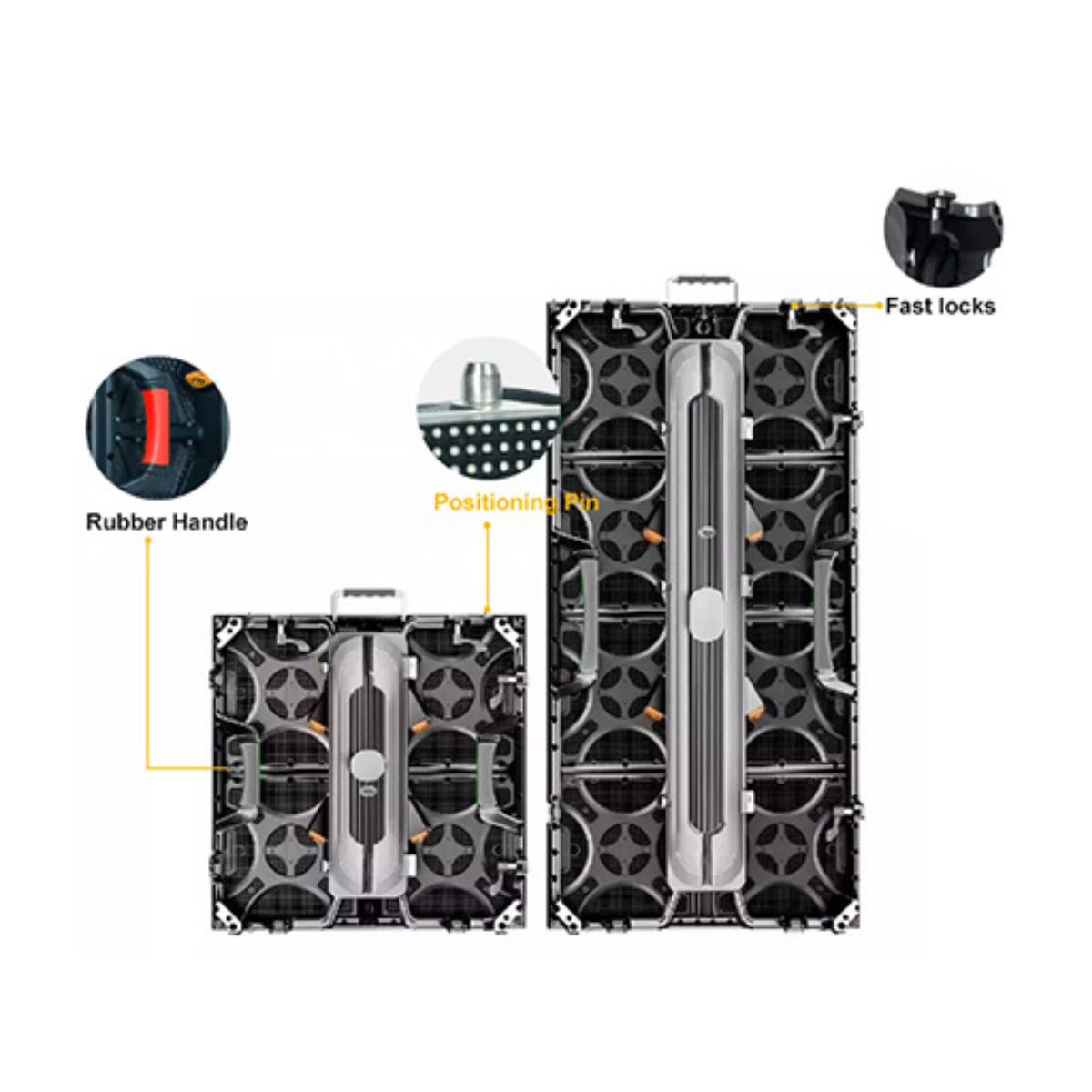

Crash Proof Design
● Corner Protection
● Avoid crashing when packing and assembling
● Easy to stand on ground or table for demonstration
Additional information
BV-IR-III2X | BV-IR-III2 | BV-IR-III3 |
Physical Pitch(mm) | 2.6mm | 2.97mm | 3.91mm |
Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65.536 pixels/㎡ |
Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 |
Panel Dimensions (mm) | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 |
No. of Modules Per Panel (W × H) | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 |
Physical Resolution of Module (W x H) | 96x96 | 84x84 | 64x64 |
Physical Resolution of Panel (W x H) | 192x192 192x384 | 168x168 168x336 | 128x128 128x256 |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Single Cabinet Weight | 7/14 kg / panel | 7/14 kg / panel | 7/14 kg / panel |
Gray Scale | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 400 W / ㎡ | 400 W / ㎡ | 325 W / ㎡ |
Max Power Consumption | 800 W / ㎡ | 800 W / ㎡ | 780 W / ㎡ |
Operating Temp/Humidity | -10°-60℃ 10%-60% | -10°-60℃ 10%-60% | -10°-60℃ 10%-60% |
Storage Temp/Humidity | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits |
Horizontal Viewing Angle | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear |
IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |
