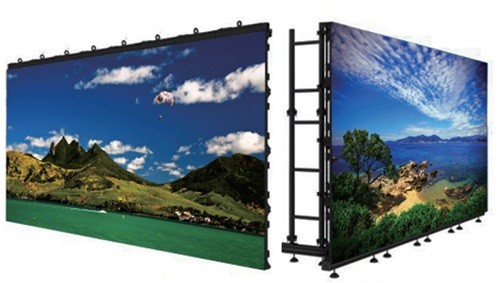

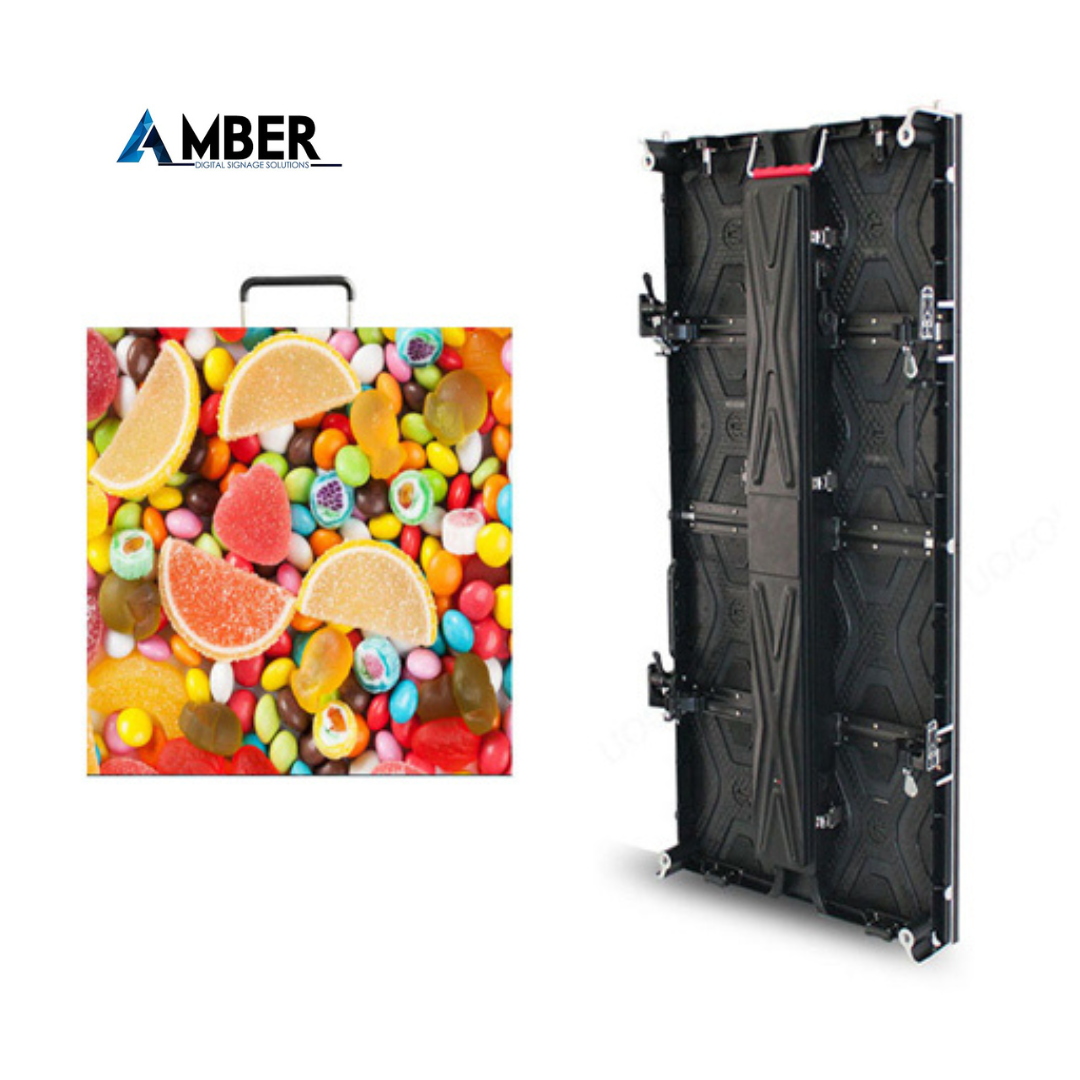

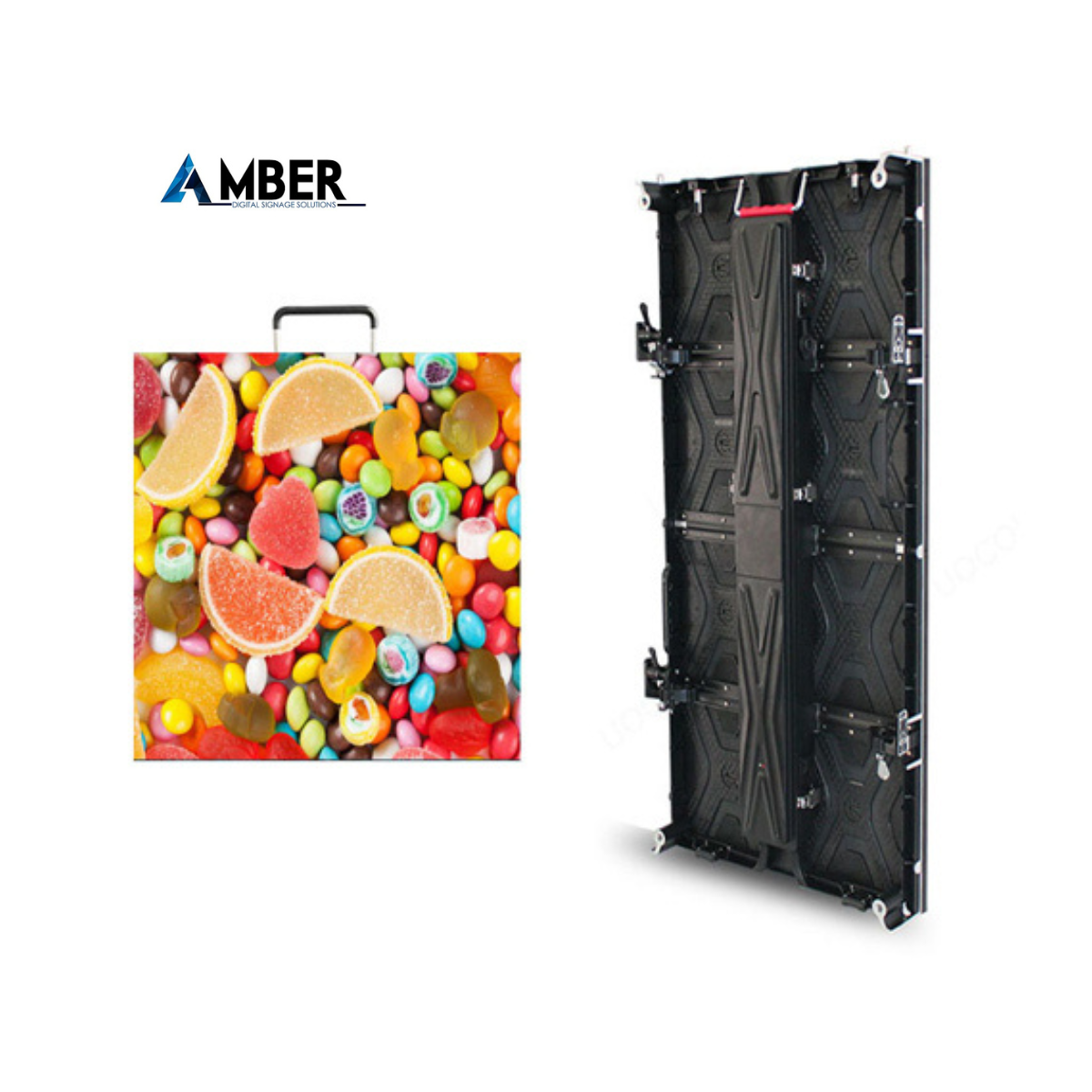

Amber BV-IR-II Indoor LED Wall Rental Series
Product code:User Friendly,
Indoor Rental LED Display
● Lightweight, Large Format Cabinet
● 500mmx500mm or 500mmx1000mm Cabinet
● High Definition Indoor Display
● Curvilinear, Concave, Convex

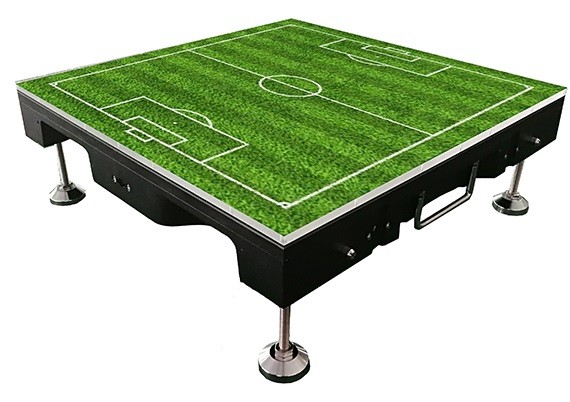

● Floor Screen Available
SEND AN ENQUIRYDescription
Unsurpassed Color Uniformity
● Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1
User Friendly and Fast Installation
● Truss hanging and ground support both available
● Fast Lock and handle designed user friendly
● Front and rear access
● Tools free installation
Slim, Light Weight and Quiet
● 500mmx500mm or 500mmx1000mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
● 1 person job

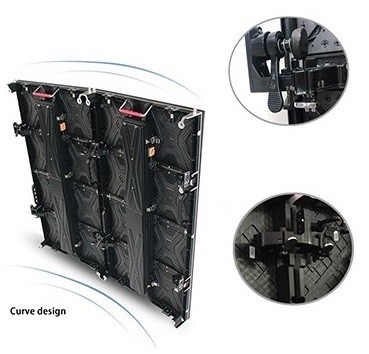

Smart Concave and Convex
● Both 500mmx500mm and 500mmx1000mm cabinets are
arc-able
● 0°-10° concave and convex degree
Additional information
BV-IR-II2X | BV-IR-II2 | BV-IR-II3 | BV-IR-II4 |
Physical Pitch(mm) | 2.6mm | 2.97mm | 3.91mm | 4.81 |
Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65.536 pixels/㎡ | 43.264 pixels/㎡ |
Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
Panel Dimensions (mm) | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 |
No. of Modules Per Panel (W × H) | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 |
Physical Resolution of Module (W x H) | 96x96 | 84x84 | 64x64 | 52x52 |
Physical Resolution of Panel (W x H) | 192x192 192x384 | 168x168 168x336 | 128x128 128x256 | 104x104 104x208 |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Single Cabinet Weight | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 400 W / ㎡ | 400 W / ㎡ | 325 W / ㎡ | 310 W / ㎡ |
Max Power Consumption | 800 W / ㎡ | 800 W / ㎡ | 780 W / ㎡ | 750 W / ㎡ |
Operating Temp/Humidity | -10°-60℃ 10%-60% | -10°-60℃ 10%-60% | -10°-60℃ 10%-60% | -10°-60℃ 10%-60% |
Storage Temp/Humidity | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits | ≥1,200nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
