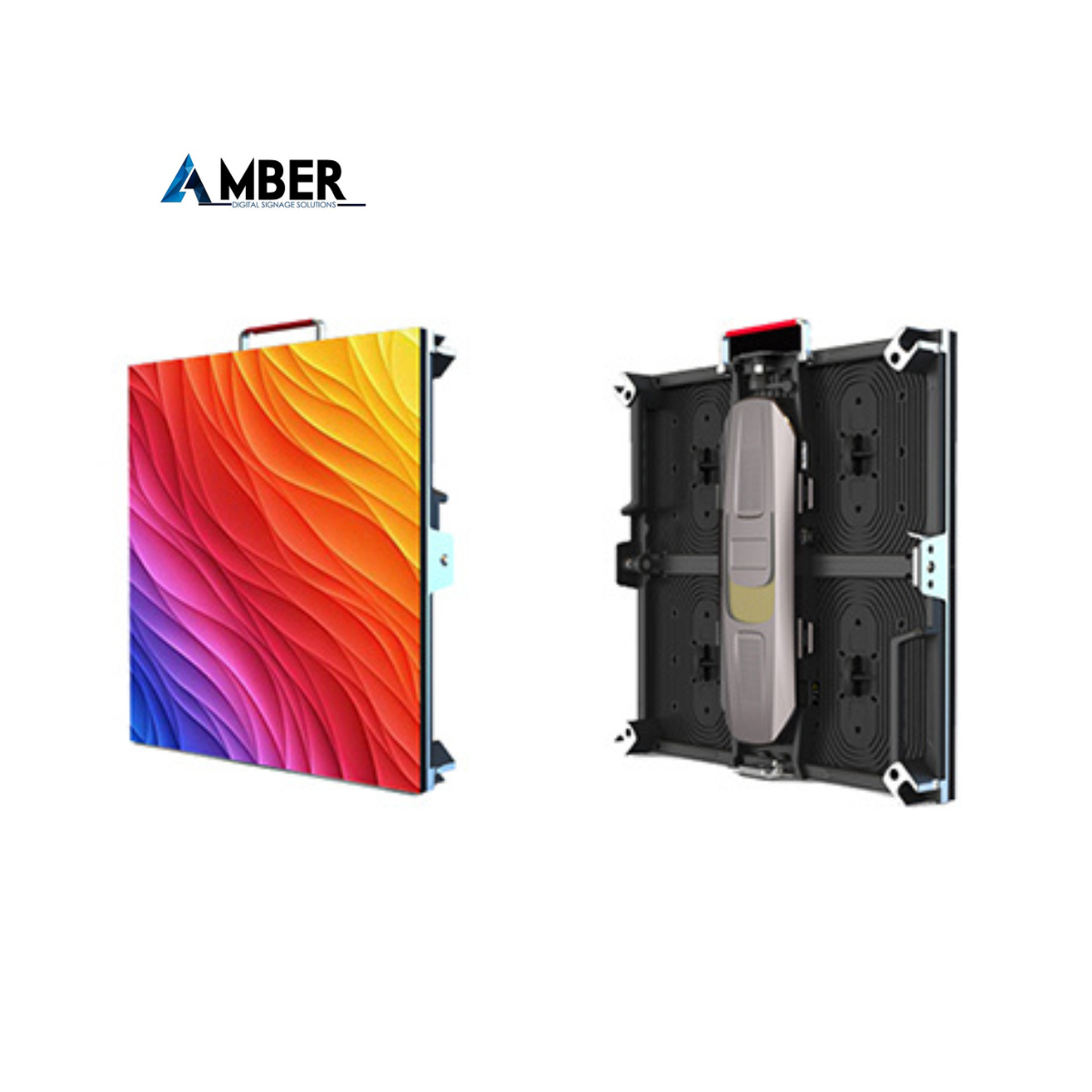

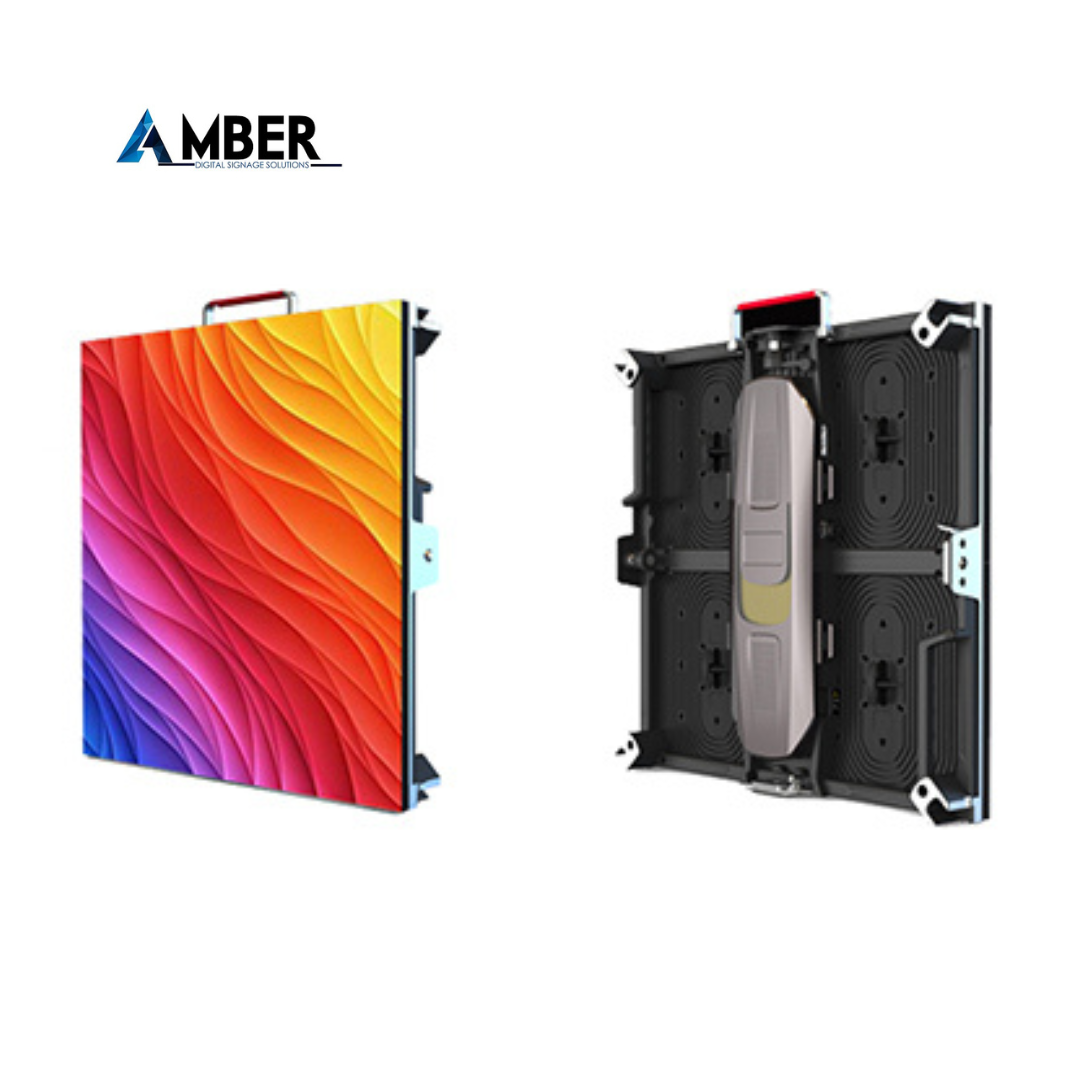

Amber BV-HD-L Indoor LED Wall Fixed Install Series
Product code:Lite Series, Ultra Light, Mudular Design
● Extreme Lightweright 4.5KG per Cabinet
● Cost Efficient
● Modular Power & Signal System
● Fine Pitch 1.579mm - 2.5mm
SEND AN ENQUIRYDescription

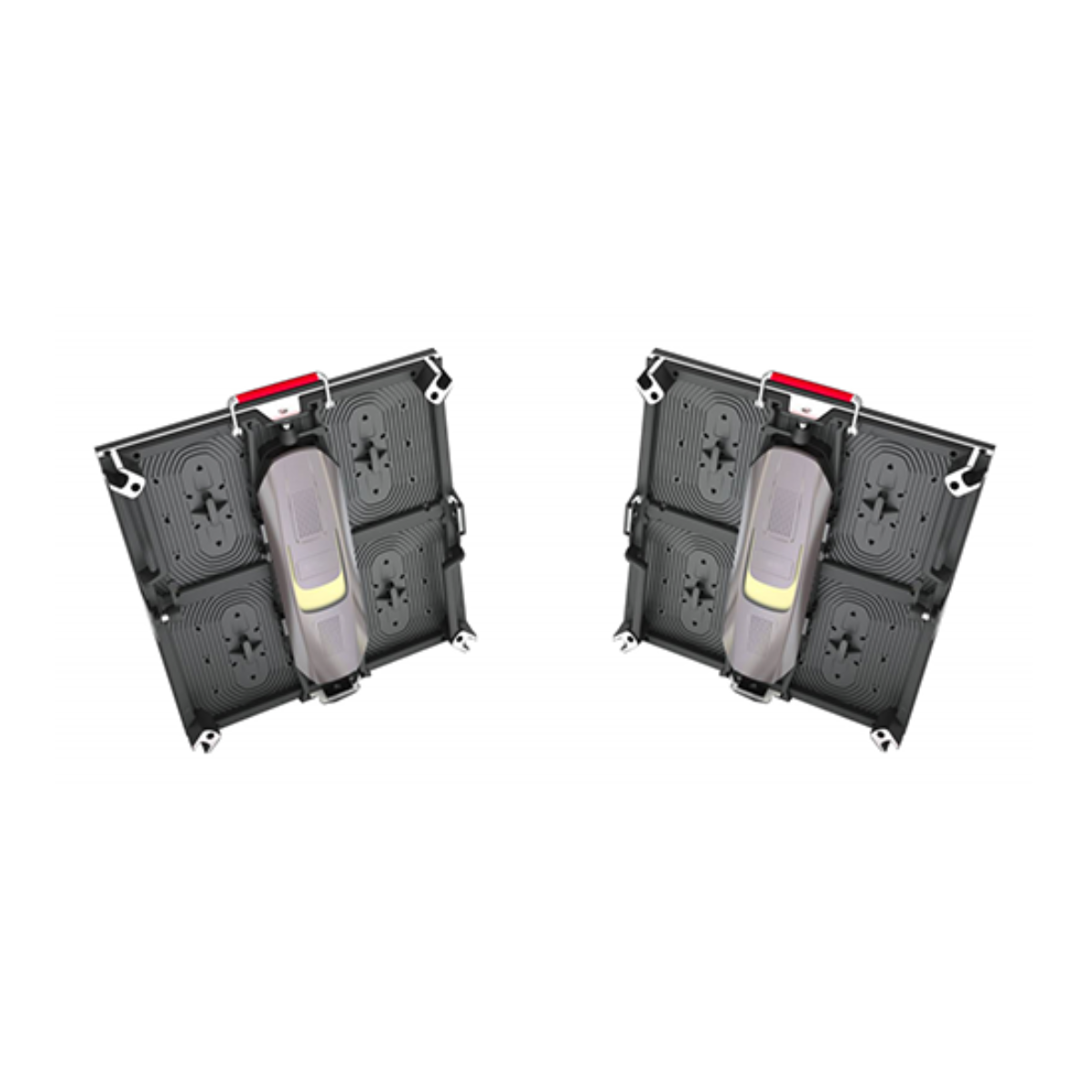

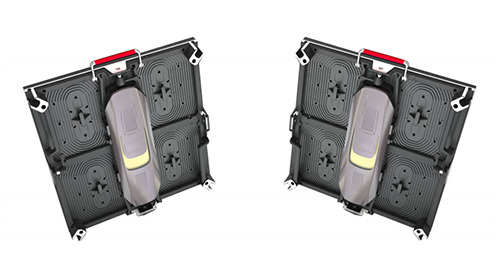

Ultra Light and Thin
● Only 4.5 KG per cabinet
● Cabinet Dimensions 480mm x 480mm x 63mm
● Precision machined high quality die-cast
● Easy to carry and install

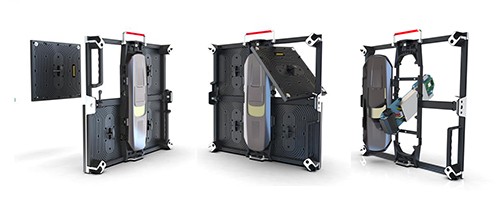

Fully Front or Rear Accessible
● Both fully front or rear service
● Magnetic modules, Cable-less Connection
● Tools-free installation and dismantling
● Easy maintenance

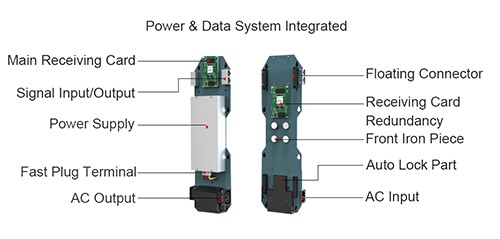

Modular Power and Signal Integration
● Modular power and signal box replaceable
● Power and signal redundancy
● Tools free replace and assemble
Superior Color Performance
● 16 bits high gray level, 3840Hz refresh rate
● Extra-wide viewing angle of 160°
● Phenomenal contrast ratio
Additional information
BV-HD-L-1.5 | BV-HD-L-1.8 | BV-HD-L-2.5 | BV-HD-L-3 |
Physical Pitch | 1.579 mm | 1.875 mm | 2.5 mm | 3 mm |
Pixel Configuration | SMD 1010 | SMD 1515 | SMD 2121 | SMD 2121 |
Pixel Density | 401,956 pixels/m² | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 |
Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
Physical Resolution of Module (W × H) | 152 × 152 | 128 × 128 | 96 × 96 | 96 × 96 |
Physical Resolution of Panel (W × H) | 304 × 304 | 256 × 256 | 192 × 192 | 160 × 160 |
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
Average Power Consumption | 258 W /m² | 260 W /m² | 215 W /m² | 235 W /m² |
Max Power Consumptionx | 715 W/m² | 690 W/m² | 640 W/m² | 670 W/m² |
Operating Temp/Humidity | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% |
Storage Temp/Humidity | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% |
Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
Brightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
Scan Method | 1/38 Scan | 1/38 Scan | 1/32 Scan | 1/20 Scan |
