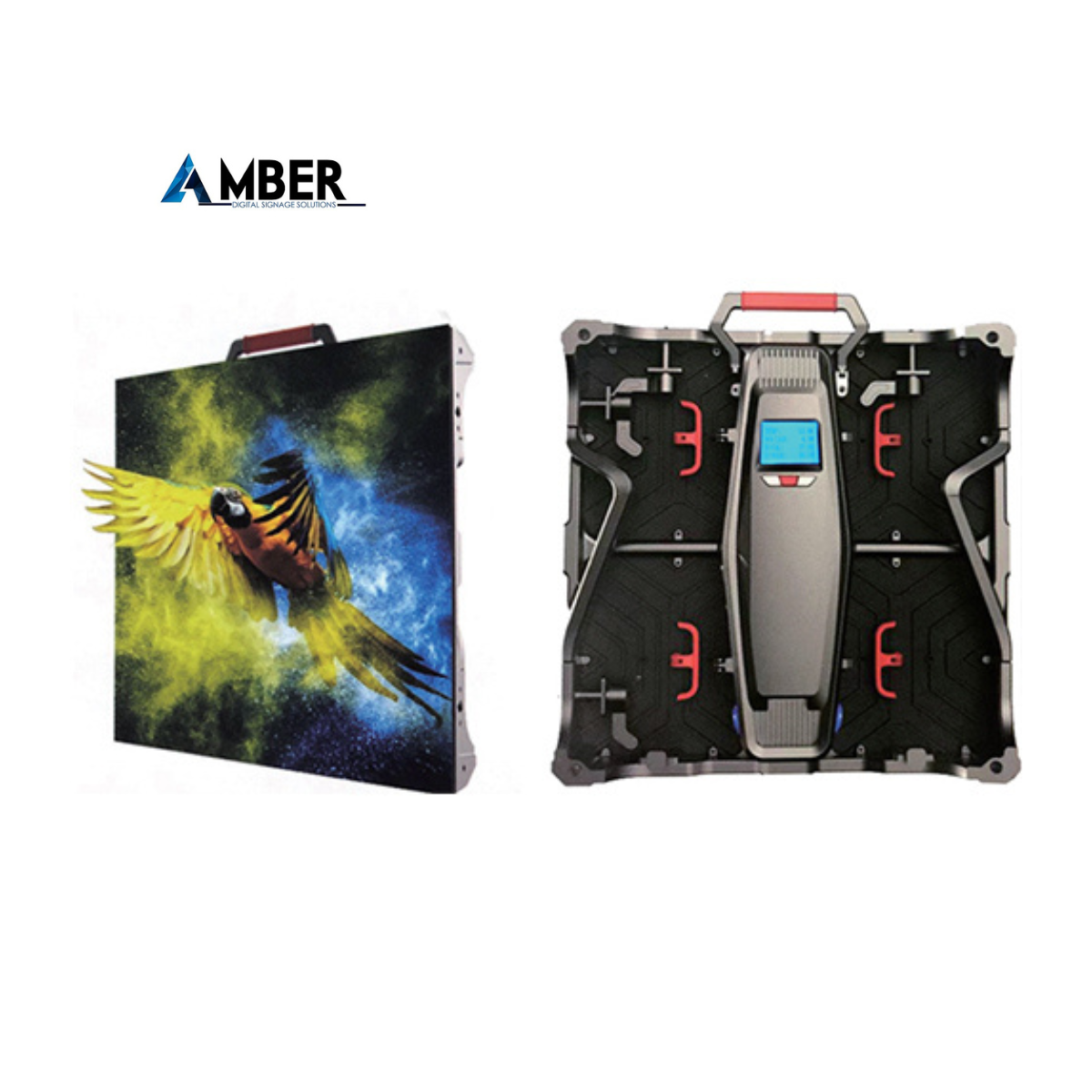

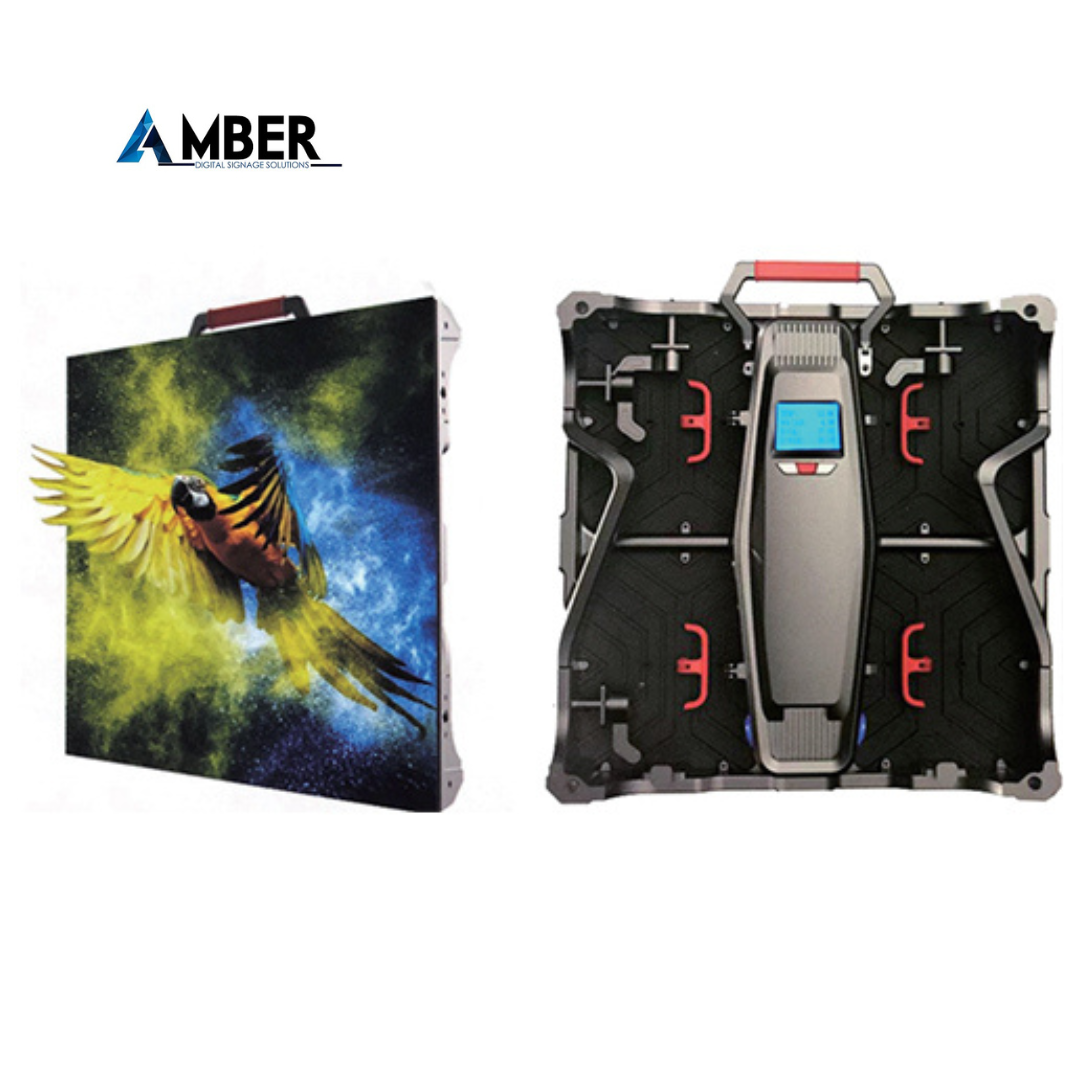

Amber BV-HD Indoor LED Wall Rental & Fixed Install Series

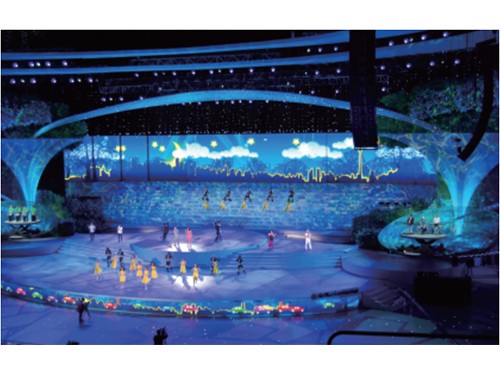

Product code:HD Pixels for Stage
and Fixed Install
● TUV EMC Certificated
● Both Front and Rear Service Available
● High Definition Indoor Display
● 480mm X 480mm Chassis
SEND AN ENQUIRYDescription
Unsurpassed Color Uniformity
● Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules

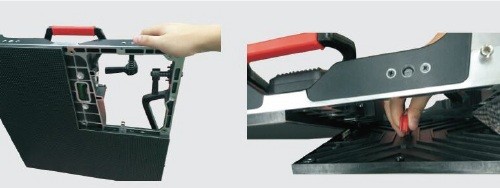

● Front and rear access
● Tools free installation
Superior Electrical Features
● Dural signal backup port

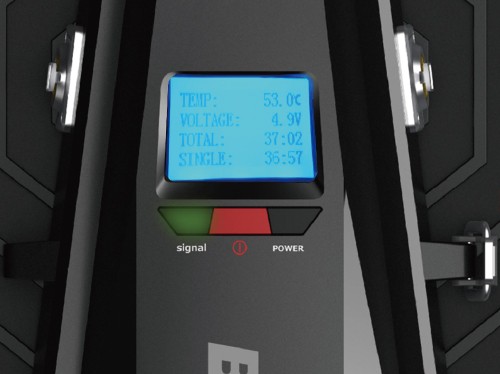

● UI LCD monitoring display indicates the status
Slim, Light Weight and Quiet

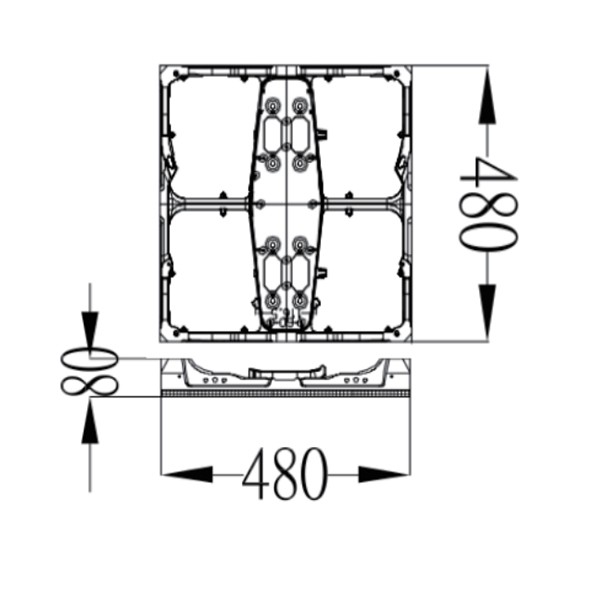

● 480mmx480mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
Additional information
Rental & Fixed Series BV-HD1.5 | Only for Rental Series BV-HD1.6 | Rental & Fixed Series BV-HD1.8 | Rental & Fixed Series BV-HD2.5 | Rental & Fixed Series BV-HD3 |
Physical Pitch | 1.579 mm | 1.667 mm | 1.875 mm | 2.5 mm | 3 mm |
Pixel Configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 2121 | SMD 2121 |
Pixel Density | 401,956 pixels/m² | 360,000 pixels/m² | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 |
Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
Physical Resolution of Module (W × H) | 152 × 152 | 144 × 144 | 128 × 128 | 96 × 96 | 96 × 96 |
Physical Resolution of Panel (W × H) | 304 × 304 | 288 × 288 | 256 × 256 | 192 × 192 | 160 × 160 |
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
Average Power Consumption | 258 W /m² | 264 W /m² | 260 W /m² | 215 W /m² | 235 W /m² |
Max Power Consumptionx | 715 W/m² | 680 W/m² | 690 W/m² | 640 W/m² | 670 W/m² |
Operating Temp/Humidity | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% | -10℃-60℃ 10% -60% |
Storage Temp/Humidity | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% | -30℃-60℃ 10%-60% |
Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
Brightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
Scan Method | 1/38 Scan | 1/32 Scan | 1/38 Scan | 1/32 Scan | 1/20 Scan |
