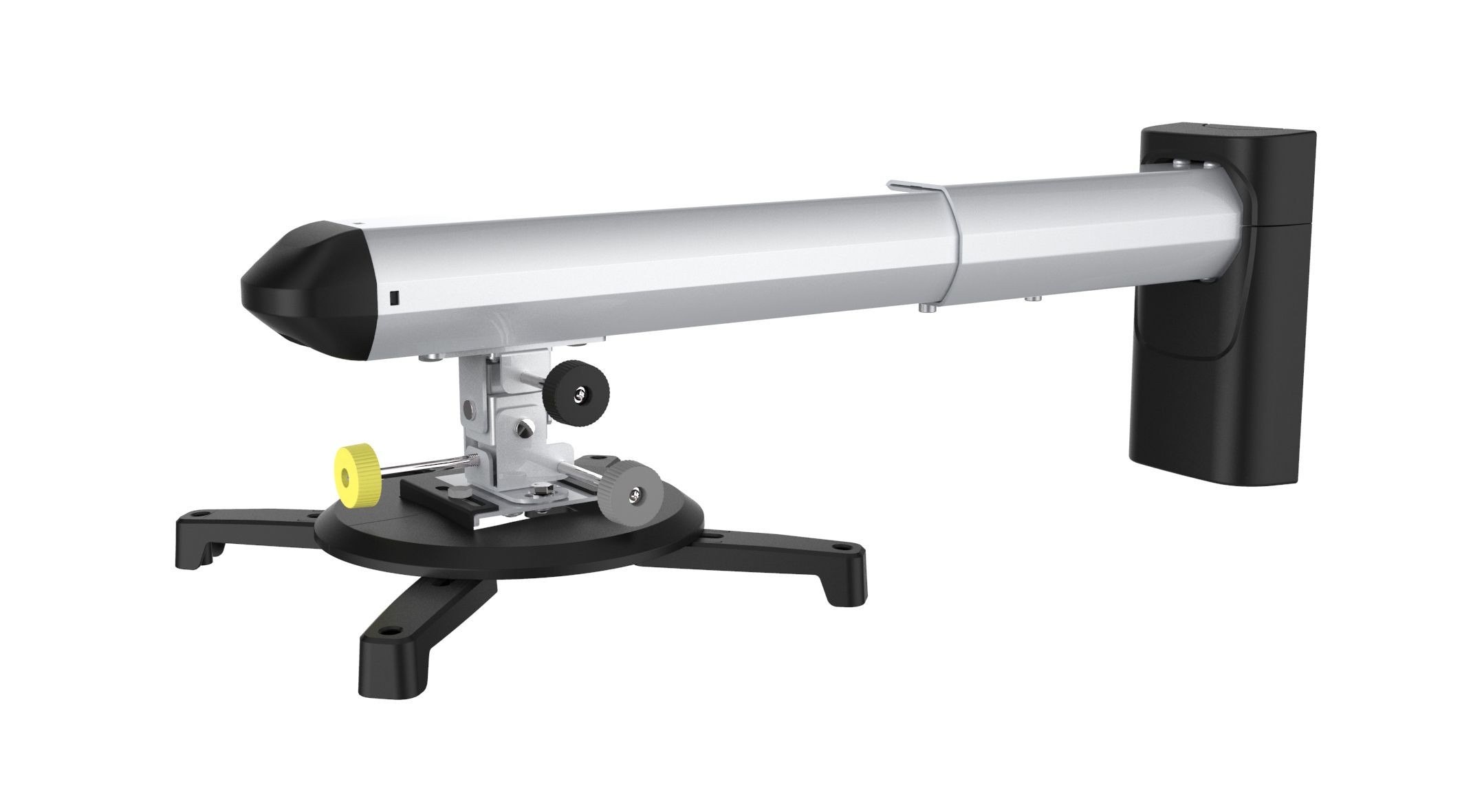

Aavara PB053 Short Throw Projector Mount - Wall Boom Type

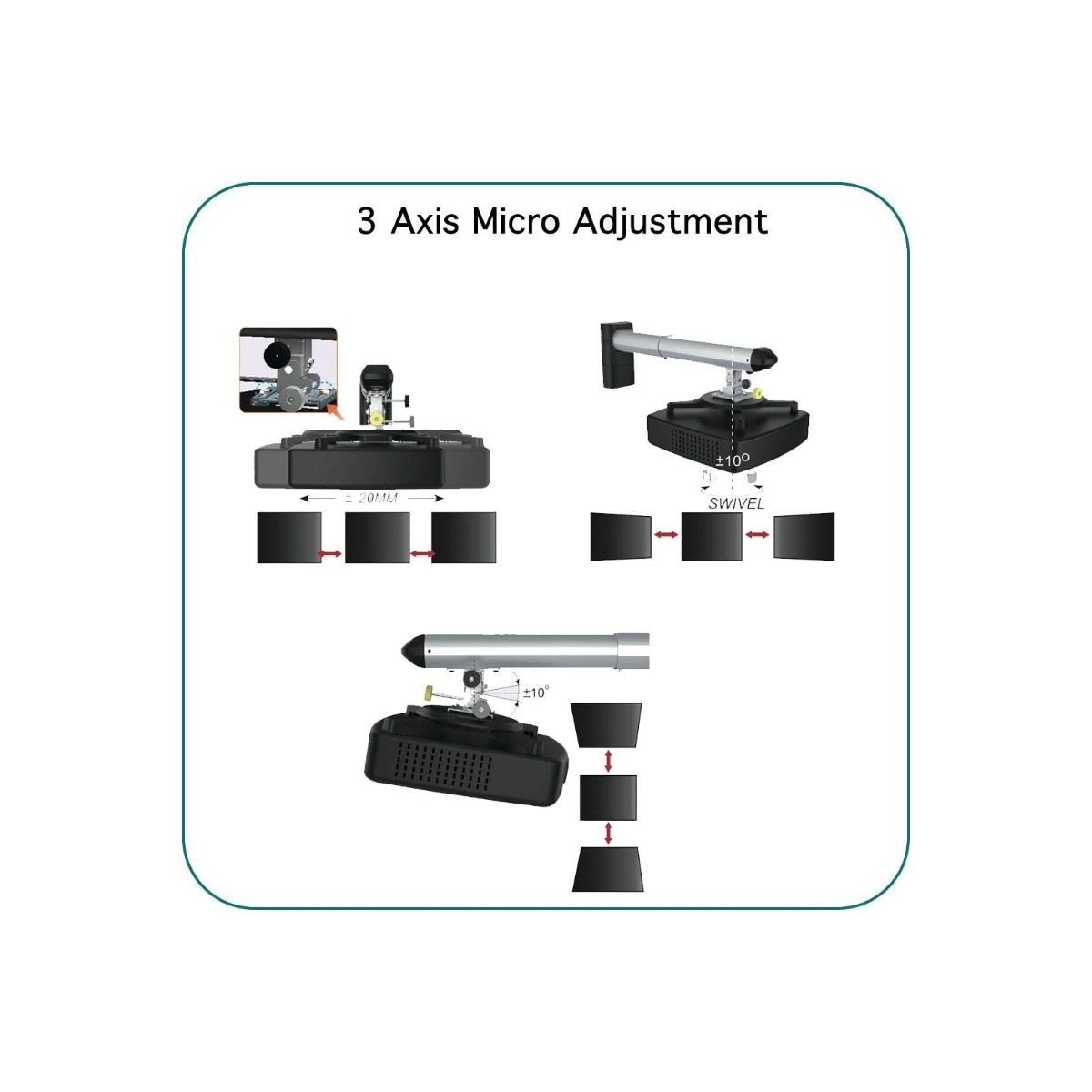

Product code:Aavara PB053 is a Short Throw Projector Mount, featuring focusing for 0.3 - 0.35 Short ratio with distance from the wall max. to 525 mm and fine tune solution. Micro adjustment for Tilt, Swivel, Horizontal movement for best alignment of required distance.
In-Tube Management available, Aluminium Structure and universal mounting diameter to meet most short throw projects brands in the market.
SEND AN ENQUIRYDescription
FEATURES
• Designed for Wall Boom Short Throw Projector

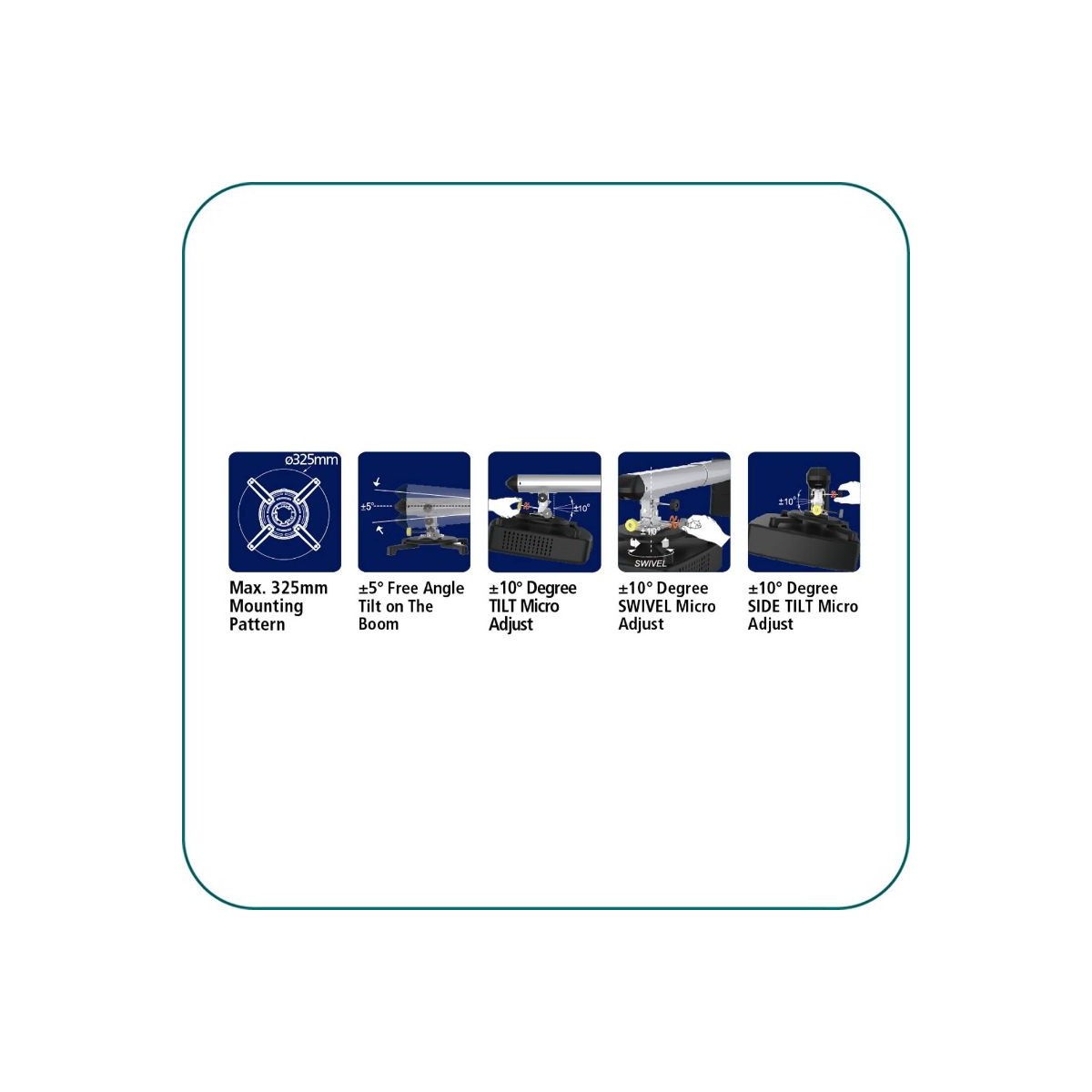

• Horizontal Lateral Movement +/-20 mm /0.79"
• Projector Vertical & Horizontal Tilt & Swivel +/-10°
• Wall Mount Tilt +/-5°
• Compatible with Diameter Ø325 mm
• Easy to Install
• Max. Distance To the Wall 540mm /21.27"
• Smart Cable Management
Additional information
SPECS.
• Load Capacity: 15kg /33.1lbs
• Mounting Pattern: Diameter Ø325 mm

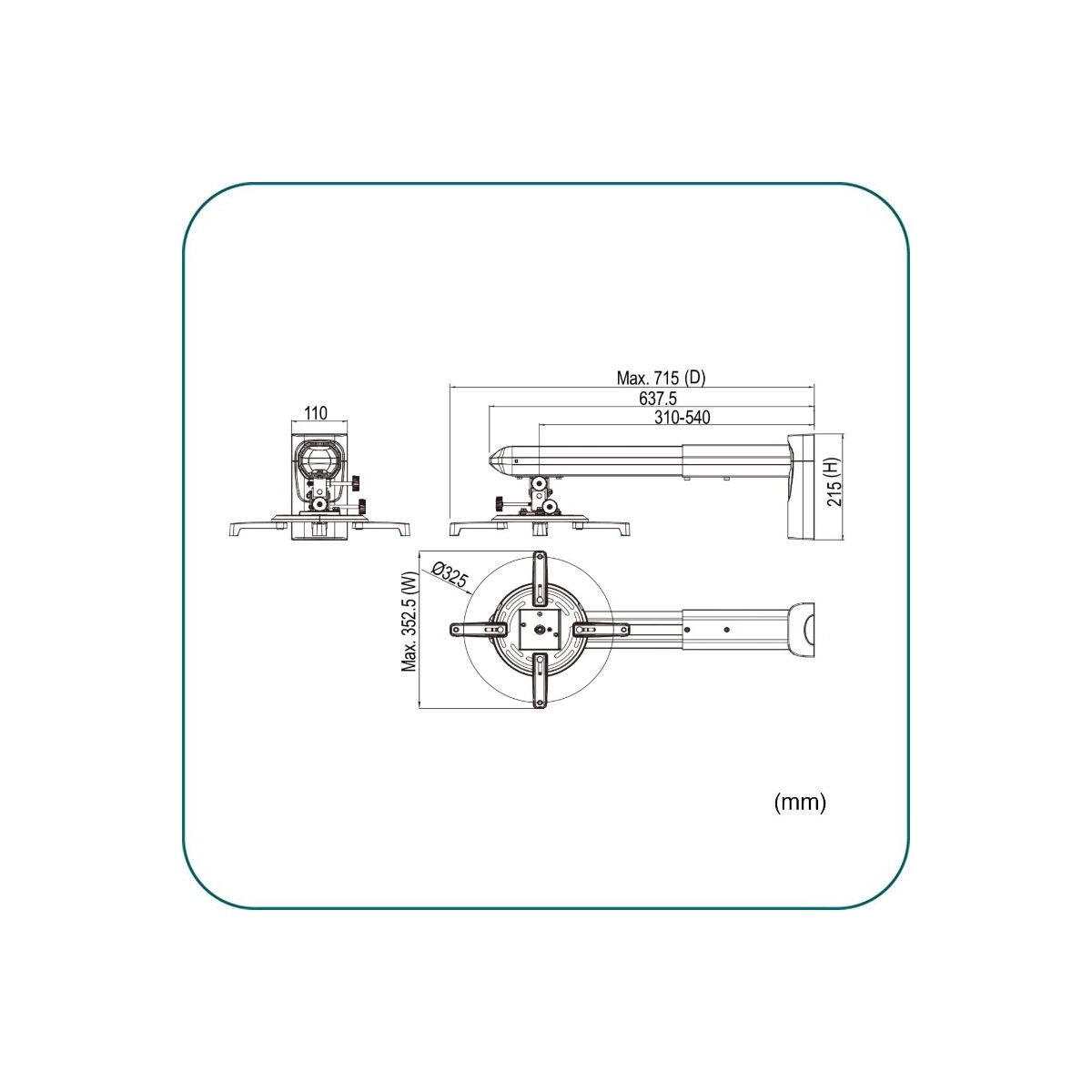

• Dimension: 352.5 x 215 x 715 mm / 13.88" x 8.47" x 28.15"
• Material: Steel/Aluminum Alloy/Plastic
• Gross Weight: 3.03 kg /6.68lbs
• Screw Type: M3,M4,M5,M6
• Projector Tilt & Swivel: +/-10°
• Wall Mount Tilt: +/-5°
• Max. Distance To the Wall: 540mm /21.27"
• Min. Distance To the Wall: 310mm /12.2"
• Smart Cable Management: Yes
