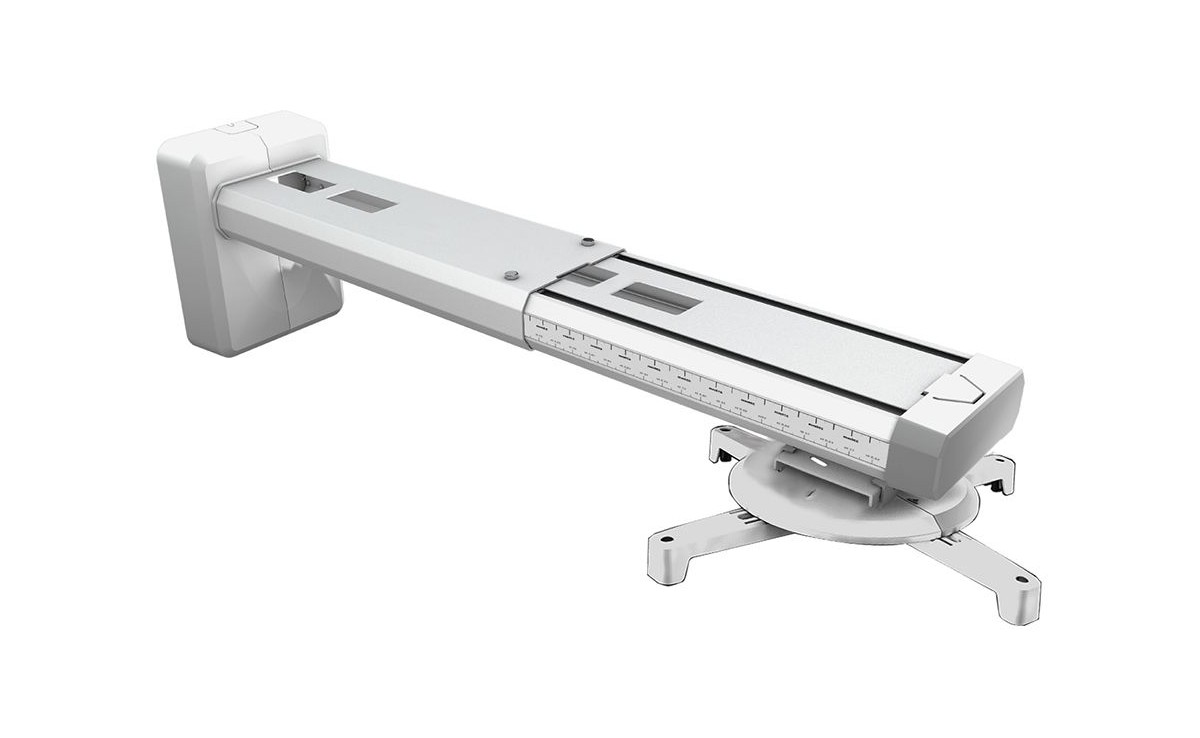

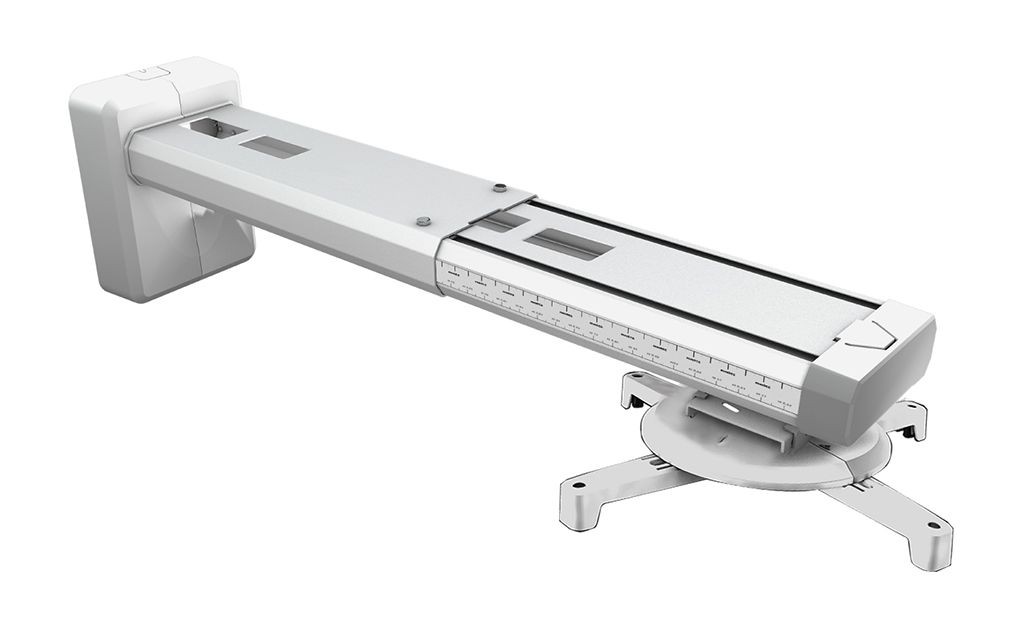

Aavara PA600 Short Throw Projector Mount -3-axs Adjustable Mechanism
Product code:PA600 is a professional short throw projector mount specially designed with Auxiliary Measured cursors for professional projectors in the application of education, corporate, simulation and institution.

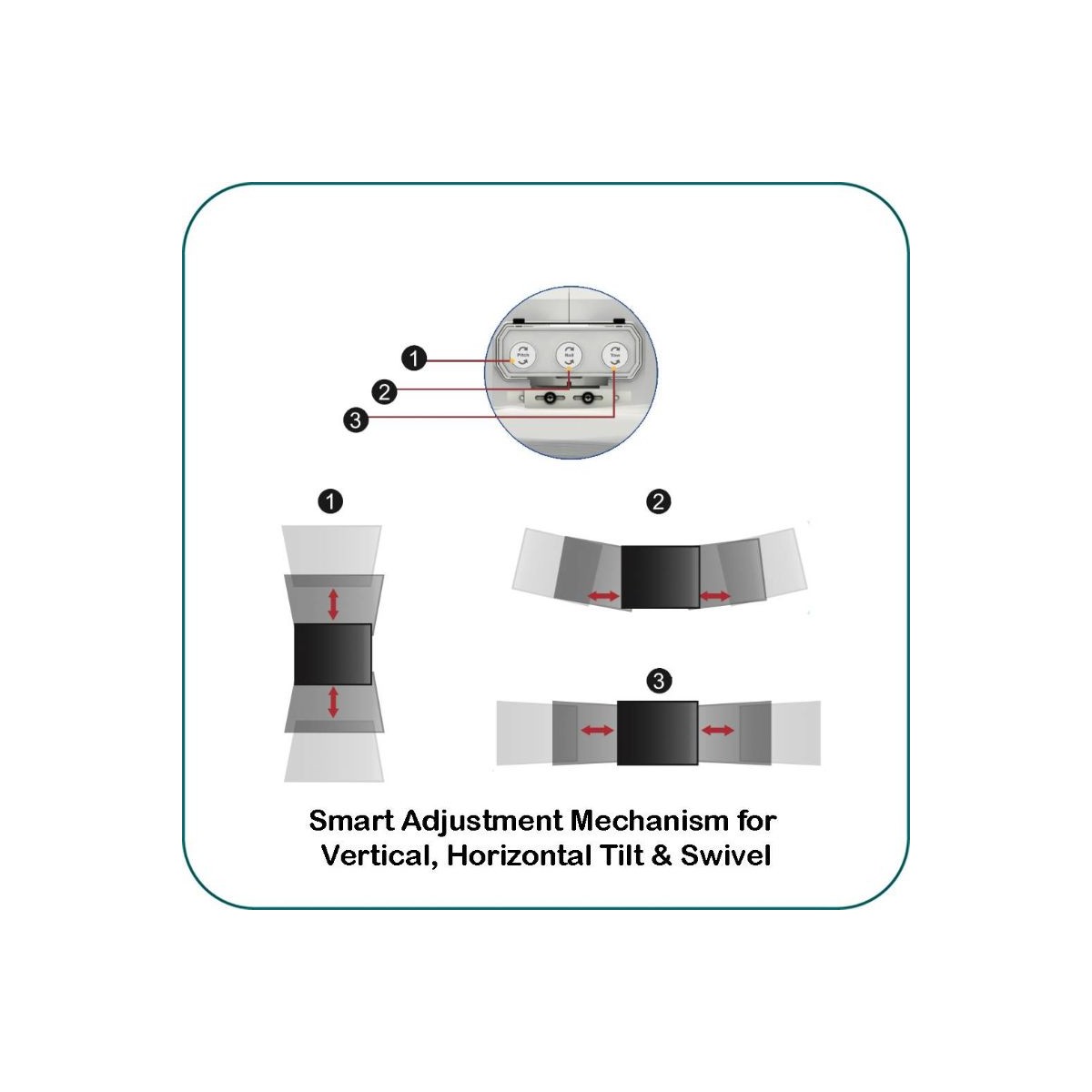

It features a 3-axs adjustable Mechanism that makes it easy for a tilt of vertical/ horizontal +/-5° and lateral movement +/- 30mm by fine tuning effortlessly and accurately. Also it comes with smart In-Tube Cable management system which fulfills the commercial installation demand, tiny and professional.
PA600 supports the mounting Diameter Ø325 mm/12.8", and features safety luck and the organized and concealable telescope arm with the max. length 600mm for the high demand of short throw projector environment.
SEND AN ENQUIRYDescription
FEATURES
• Professional Short Throw Projector Mount with Arm length 600mm
• 3-axs Adjustable Mechanism with Auxiliary Measured Cursors Telescope Arm

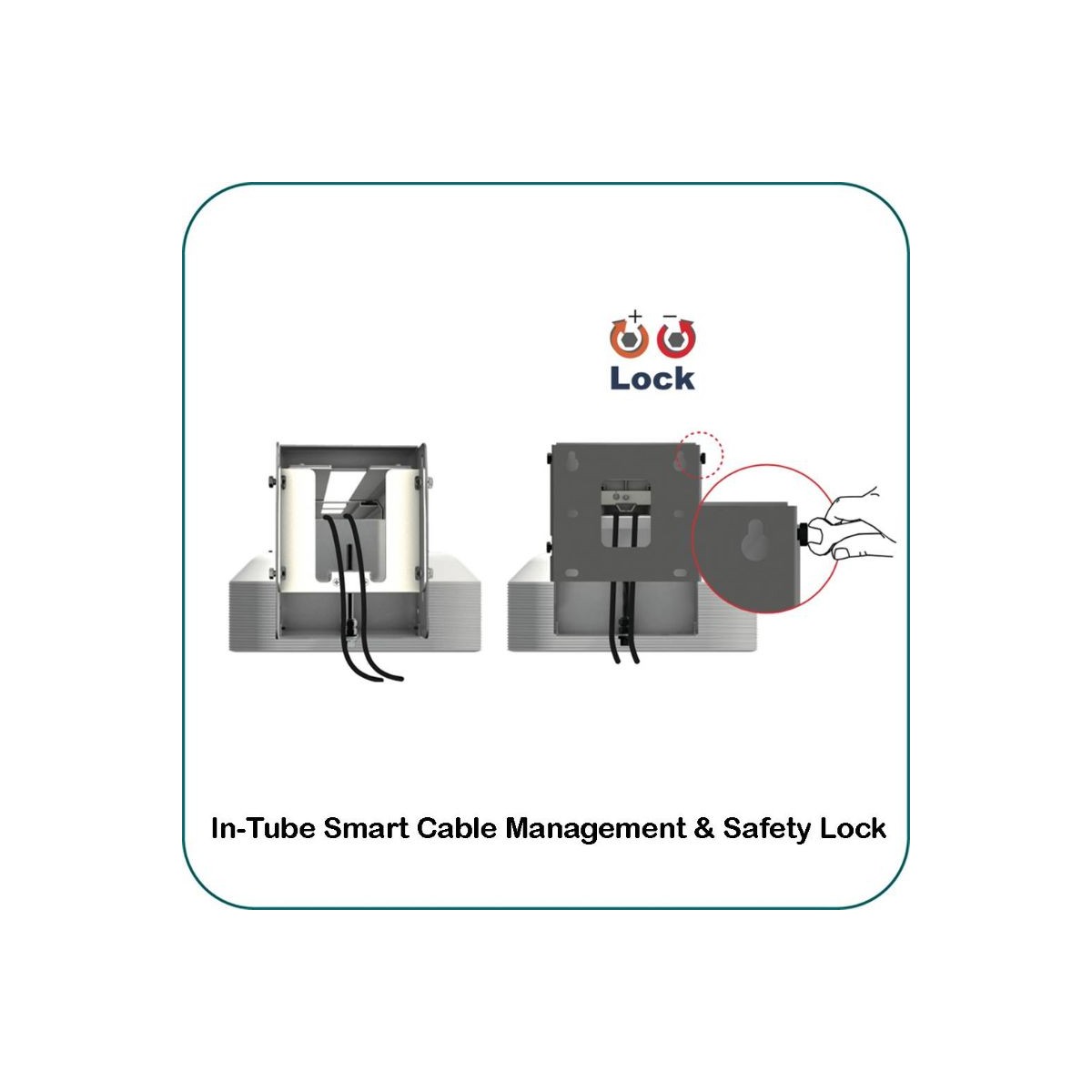

• In-Tube Smart Cable Management System
• Horizontal tilt +/-5°
• Vertical tilt +/-5°
• Swivel +/-5°
• Horizontal Lateral Move +/-30 mm
• Height Adjustment +/-38 mm
• Compatible with mounting diameter Ø325 mm /12.8"
• Max. Distance to Ceiling 600mm /23.62"
• Min. Distance to Wall 344 mm/13.54"
• Safety Lock
• Easy to Install
Additional information
SPECS.
• Load Capacity: 10kg /22.1lbs
• Mounting Pattern: Diameter Ø325 mm /12.8"

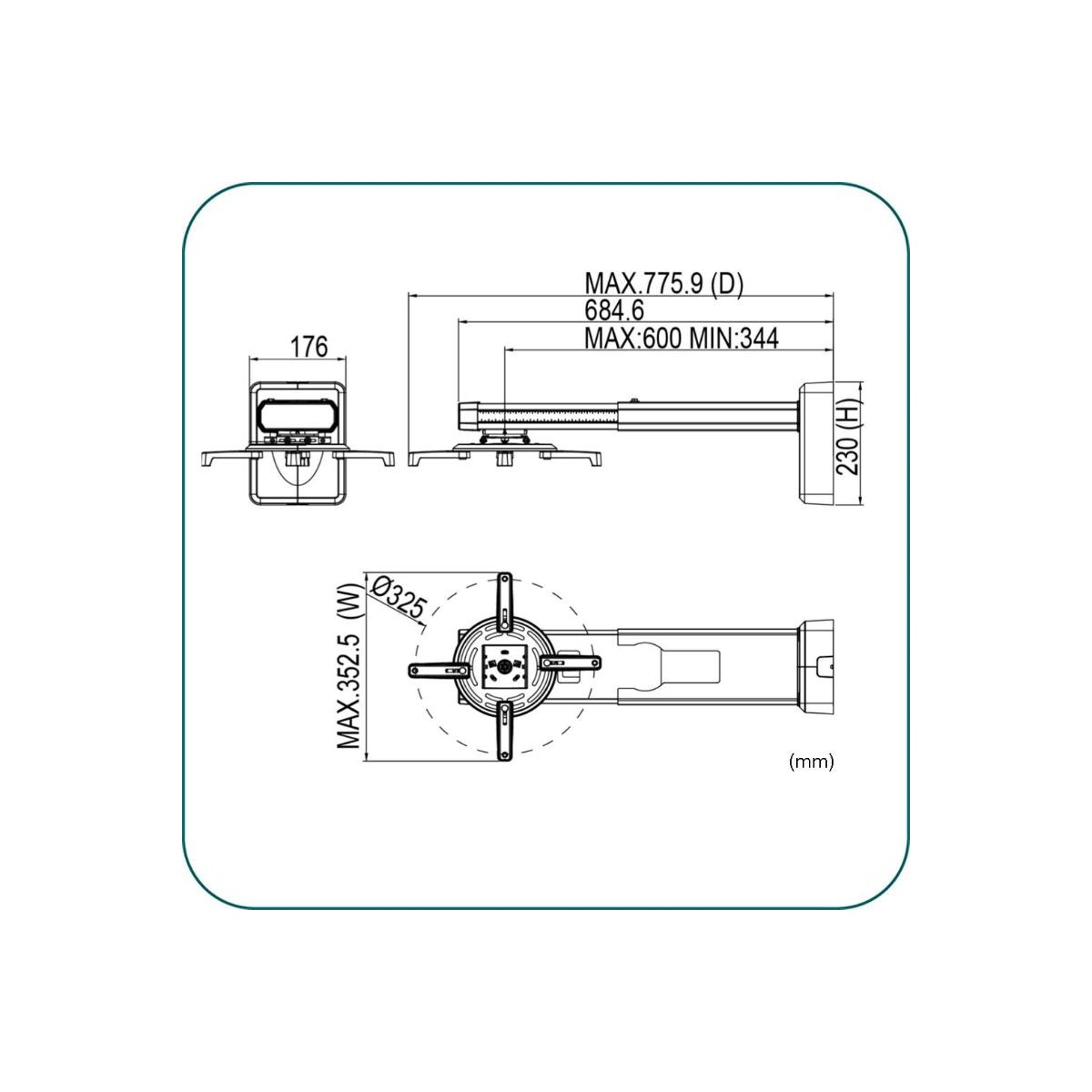

• Dimension: 352.5 x 230 x 755.9 mm
• Safety lock: Yes
• Material: Steel/Aluminum Alloy/Plastic
• Gross Weight: 4.3 kg /9.48 lbs
• Screw Type: M3,M4,M5,M6
• Vertical Tilt: +/-5°
• Horizontal Tilt: +/-5°
• Swivel: +/-5°
• Max. Distance To Ceiling: 600mm /23.62"
• Horizontal Lateral Move: +/-30 mm
• Height Adjustment: +/-38 mm
• In-Tube Smart Cable Management System: Yes
