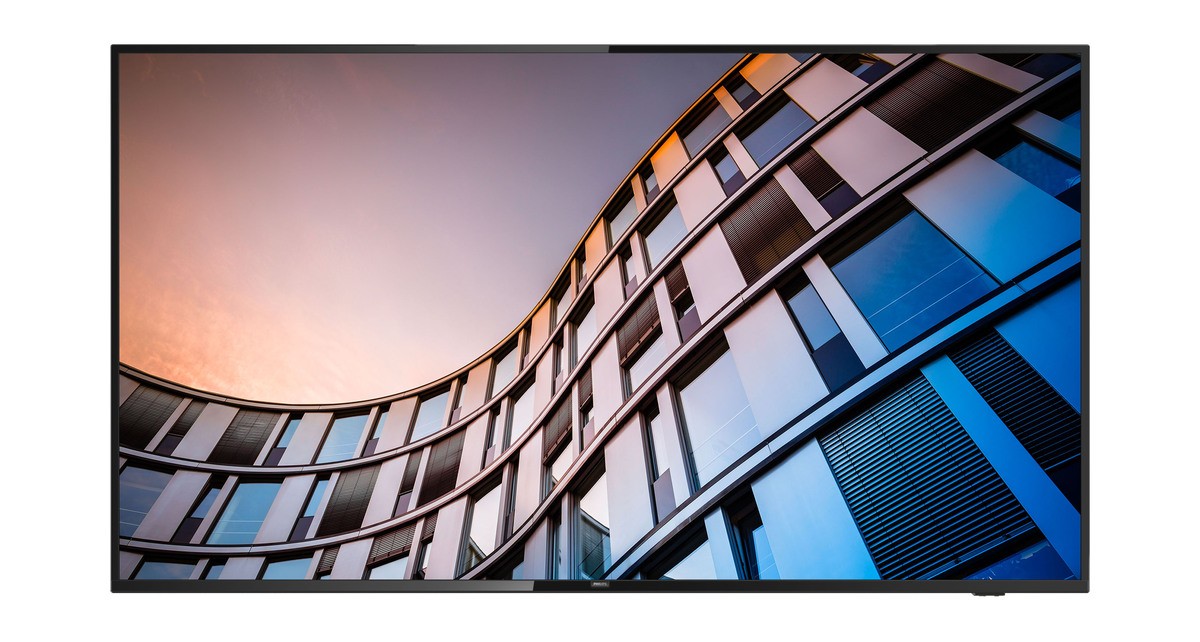

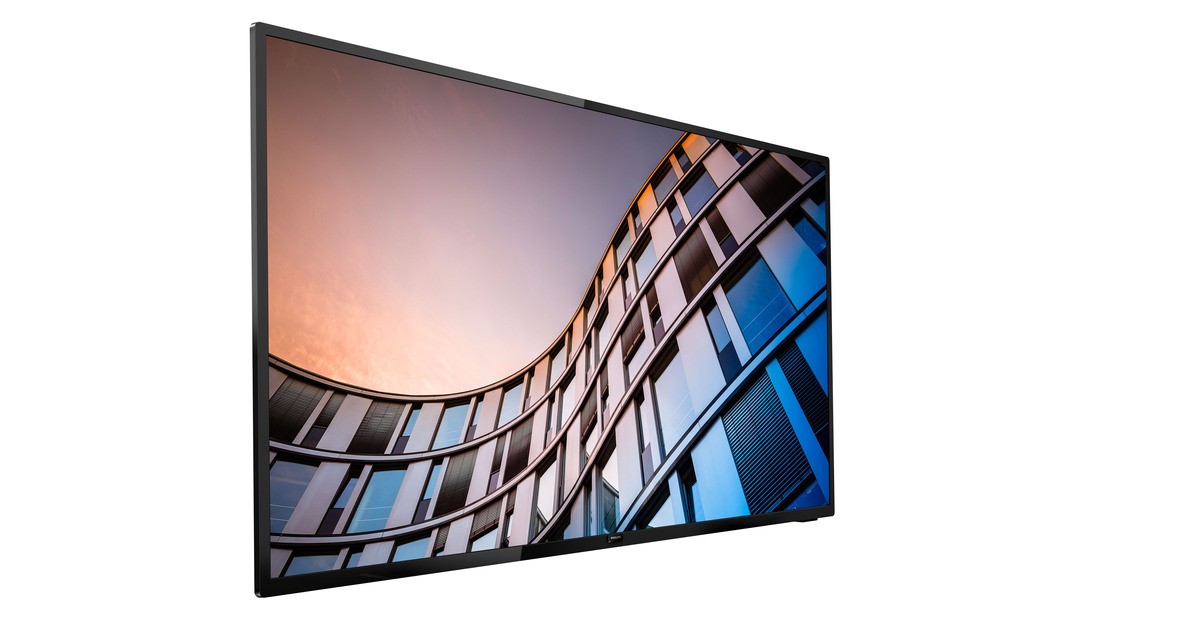

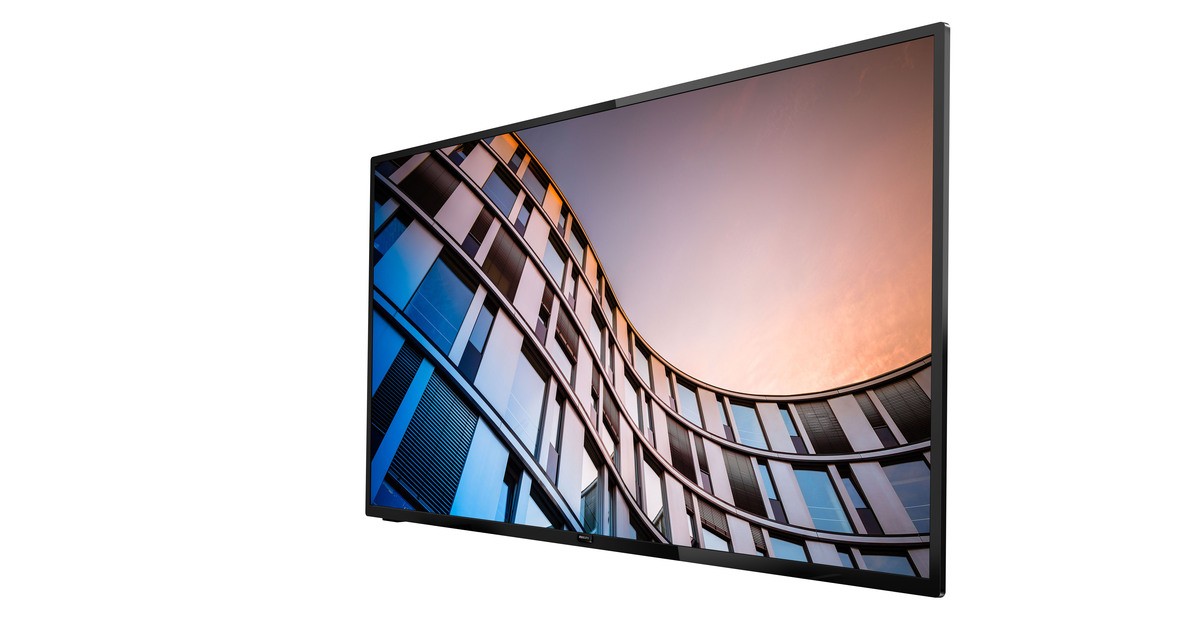

Philips B-Line 65BFL2114/12 Digital Signage
Product code:Boost productivity. Philips B-Line seamlessly integrates into corporate systems for efficient control. Chromecast built-in ensures that presentations run smoothly with instant wireless media sharing from Windows, Apple and Android™ devices.
SEND AN ENQUIRYDescription
Picture/Display
| Display | 4K Ultra HD LED |
|---|---|
| Diagonal screen size (metric) | 164 |
| Diagonal screen size (inch) | 65 |
| Panel resolution | 3840 x 2160p |
| Brightness | 350 |
| Contrast ratio (typical) | 1200:1 |
| Operation Mode | Landscape, 16/7 |
Additional information
Audio
| Sound output Power | 20 (2x10) |
|---|---|
| Speakers | 2.0, Down Firing |
| Sound Features | DTS-HD, Dolby Atmos Compatible, Dolby MS12D, AC-4, DTS Studio Sound |
| External speaker out | 1.5 W Mono 8 Ohm |
Design
| Colour | Black |
|---|
Android TV
| Memory size (Flash) | 16 GB* |
|---|---|
| OS | Android TV™ 9 (Pie) |
| Pre-installed apps | YouTube, Google Play Store*, Google Play Music, Google Play Movies, Google Play Games |
Tuner/Reception/Transmission
| Digital TV | DVB-T/T2/C, HEVC UHD (up to 2160p60) |
|---|---|
| Analogue TV | PAL |
| IP Playback | Multicast, Unicast, HLS, OTT App Channels |
Wireless Connectivity
| Wireless LAN | 802.11 ac, Wi-Fi-Direct |
|---|
Side Connectivity
| Common Interface Slot | CI+ 1.3.2 |
|---|---|
| USB1 | USB 3.0 |
| Headphone out | Mini-Jack |
| HDMI1 | HDMI 2.0 with HDCP 2.2 |
Connectivity Bottom
| External power | 12 V, max 1.5 A |
|---|---|
| Ethernet (LAN) | RJ-45 |
| Antenna | IEC-75 |
| External speaker out | Mini-Jack |
| External Control | RJ-48 |
| USB 2 | USB 2.0 |
| HDMI 2 | HDMI 2.0 with HDCP 2.2 |
Connectivity Enhancements
| HDMI | ARC (all ports), Auto Input Selection |
|---|---|
| EasyLink (HDMI CEC) | One touch play, System Standby, RC pass through, system audio control |
| RJ48 | IR-In/Out, Serial Xpress interface |
Corporate Features
| Wired Presentations | Auto Input Selection, Auto Power ON, Auto Power OFF |
|---|---|
| Wireless Presentations | Chromecast built in, Secure Sharing, Network-managed Sharing |
| Signage Functions | CMND&Create, Scheduler, Banners |
| Control | Crestron Connected (v2), Extron, Neets |
| Customisable | Home Screen, Location Name, Device Name |
Professional TV Features
| Professional Mode | Switch-ON Settings Control, Installation Menu Lock, Menu Lock, Volume Limitation |
|---|---|
| Control | CMND IP Remote Management, JEDI Android API Control, JAPIT HTML5 Control, AppControl |
| Convenience | Google Assistant*, Google Account Login, >40 Supported Menu Languages, Weather Forecast |
| Safety | Double Isolation Class II, Flame Retardant |
Multimedia
| Video playback supported | Formats: H.264/MPEG4 AVC, MPEG1, MPEG2, MPEG4, WMV9/VC1, HEVC Containers: AVI, MKV, VP9 |
|---|---|
| Subtitle formats supported | SRT/SMI/TXT |
| Music formats supported | MP3/AAC/WAV/WMA (v2 up to v9.2)/WMA-PRO (v9 and v10) |
| Picture formats supported | JPG/PNG/BMP/GIF |
Supported Display Resolution
| HDMI 1/2 | Up to 3840 x 2160p @60 Hz |
|---|---|
| Tuner | Others: up to 1920 x 1080p@60 Hz T2 HEVC: up to 3840 x 2160@60 Hz |
| USB, LAN | HEVC: up to 3840 x 2160@60 Hz Others: up to 1920 x 1080p@60 Hz |
Accessories
| Included | Remote Control 22AV1905A/12, 2 x AAA batteries, Power Cord, RJ48 to DB9 adapter |
|---|---|
| Optional | Voice RC 22AV2025B/00, Digit RC 22AV2005B/00, Setup RC 22AV9574A/12 |
Power
| Mains power | AC 220-240 V; 50-60 Hz |
|---|---|
| Energy Label Class | F |
| EPREL registration number | 331905 |
| EU Energy Label power | 98 |
| Annual energy consumption | 145 |
| Standby power consumption | <0.3 W |
| Power Saving Features | Eco mode |
| Ambient temperature | 0 °C to 40 °C |
Dimensions
| Set Width | 1464 |
|---|---|
| Set Height | 849 |
| Set Depth | 55/87 |
| Product weight | 20.8 |
| VESA wall mount compatible | M6, 400 x 300 mm |
