Multibrackets 7350105213533 M Pro Series Video Wall Stand MBF3x3U
Product code:M Pro Series Video Wall Stand MBF3x3U - Stand for 9 displays - aluminum - black - screen size: 32" - 65" - mounting interface: 400 x 400 mm, micro adjustable - floor-standing - floorbased
SEND AN ENQUIRYDescription

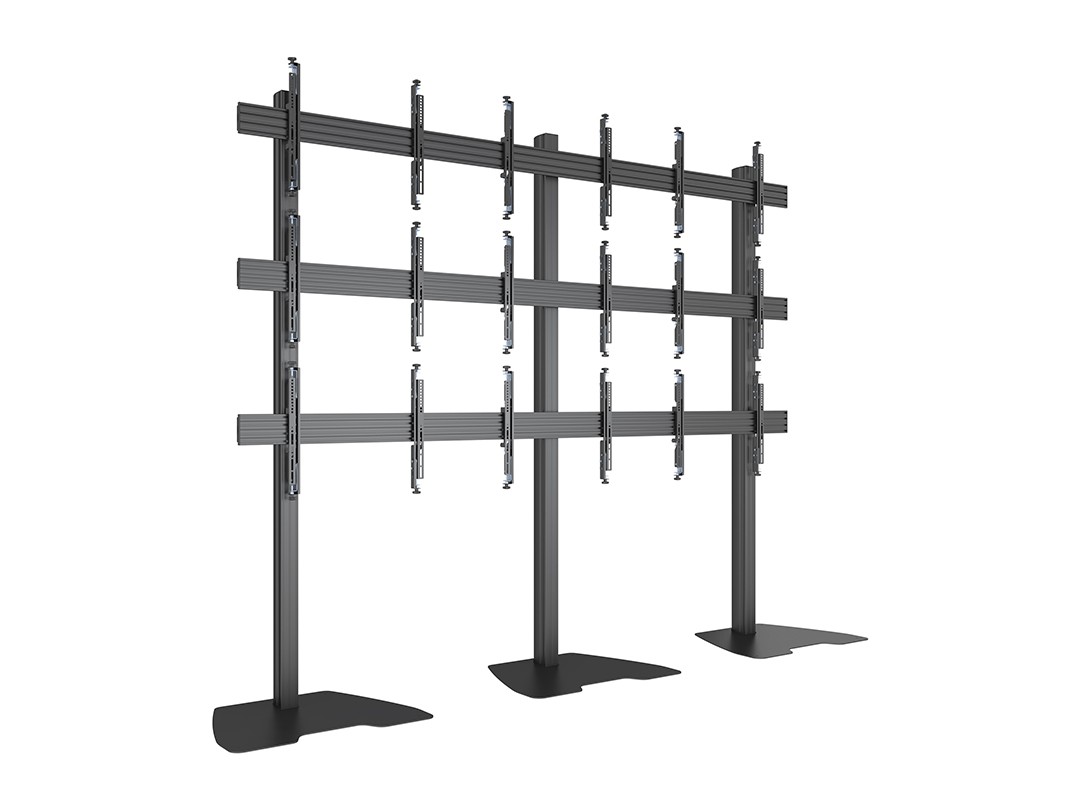

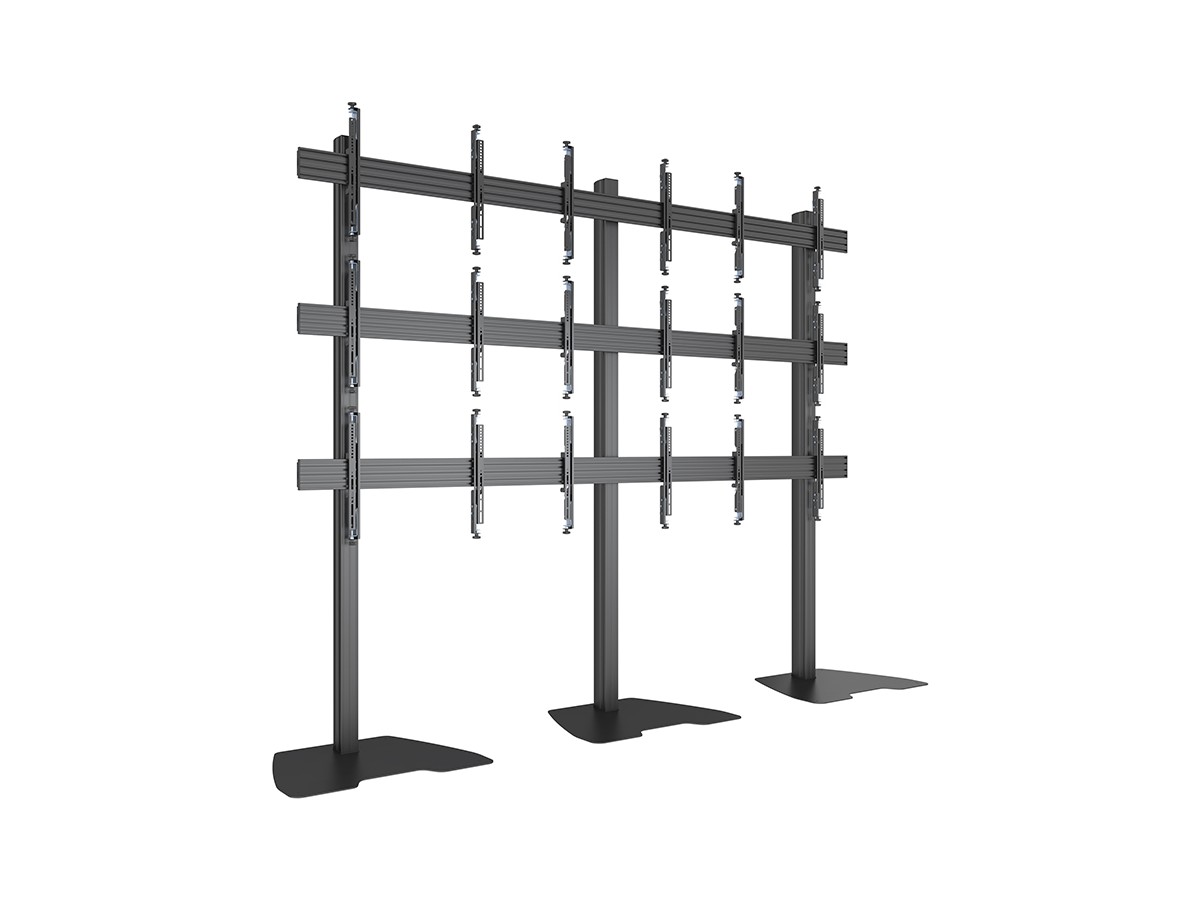

M Pro Series Video Wall Stand MBF3x3U 300 Micro Adjustable, 9 screen freestanding video wall stand makes it possible to construct video wall in prominent locations for temporary applications.

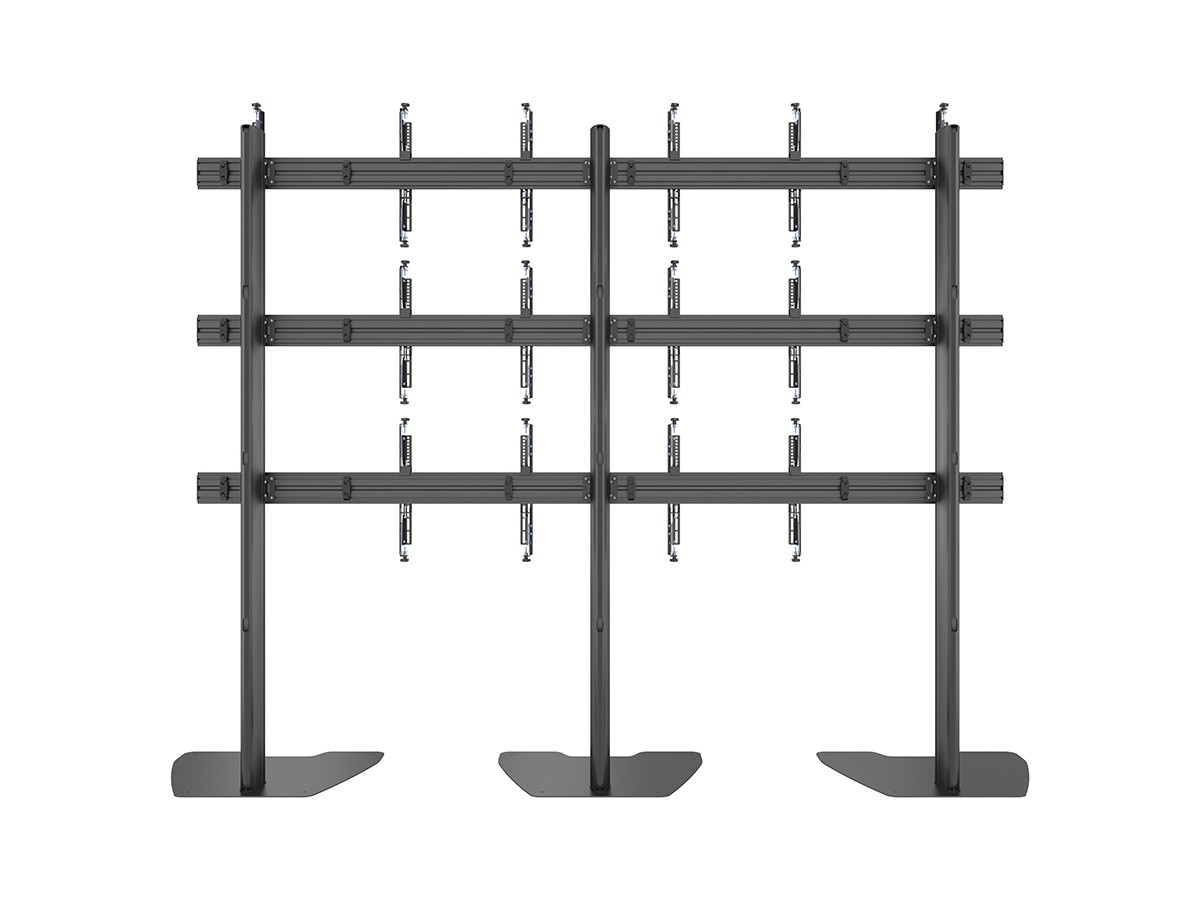

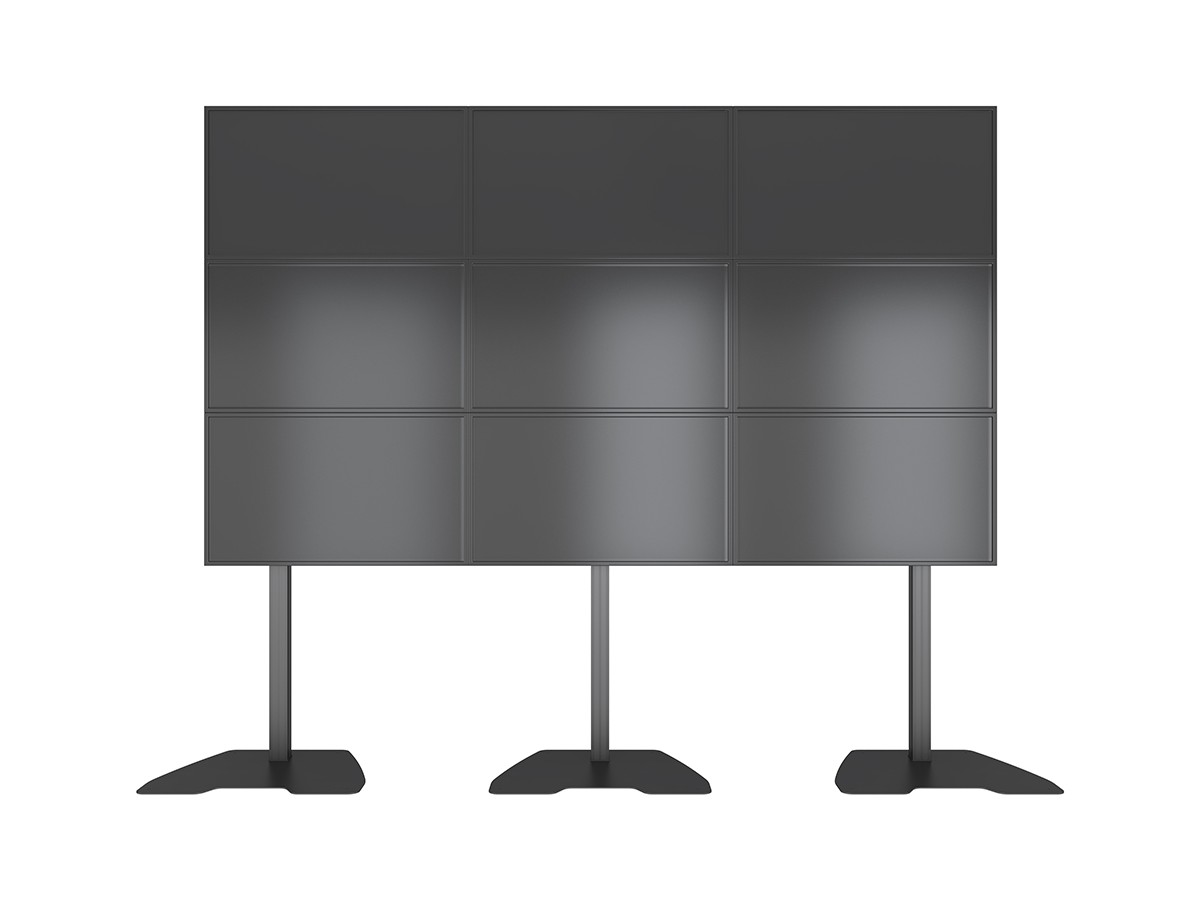

M Pro Series Video Wall Stand MBF3x3U, 9 Screens (3x3) screen array configuration is: 3 screens wide x 3 screens high.

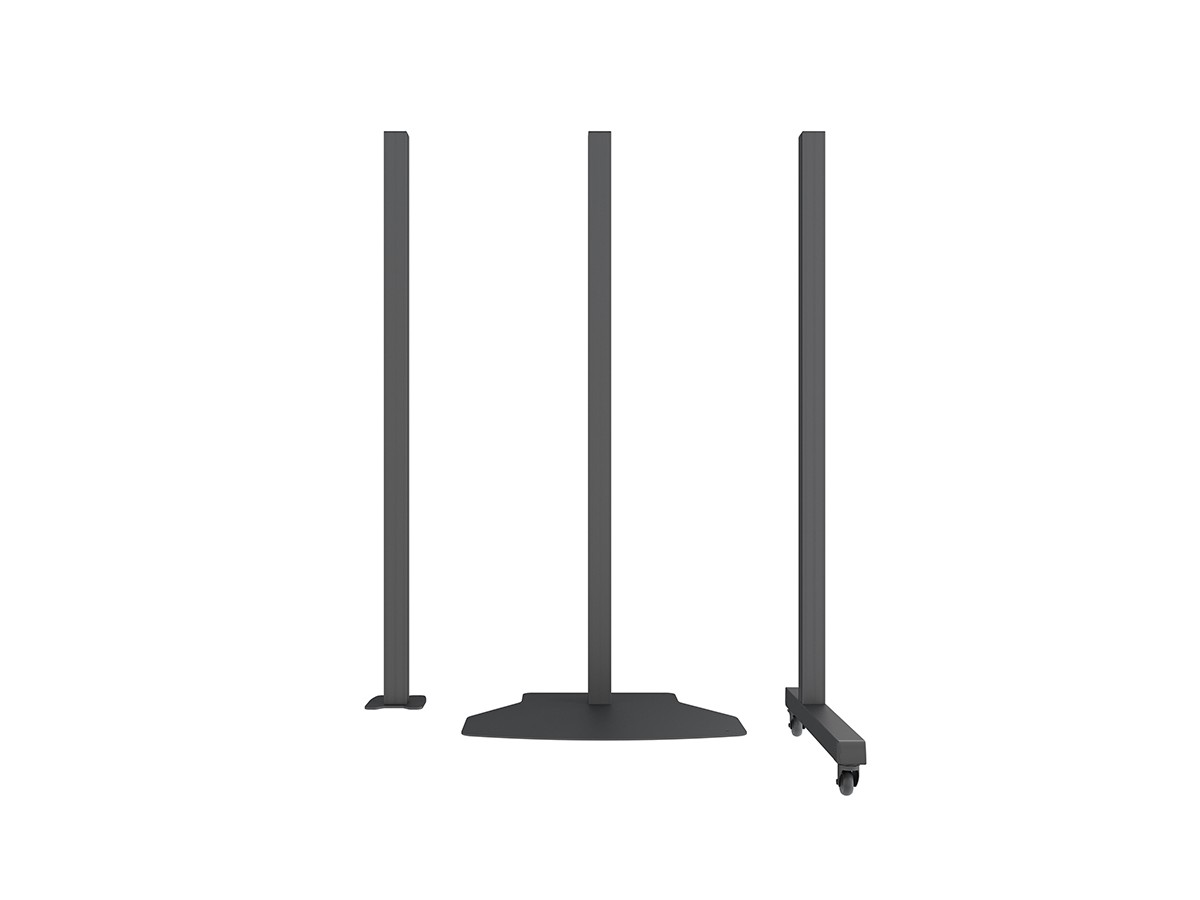

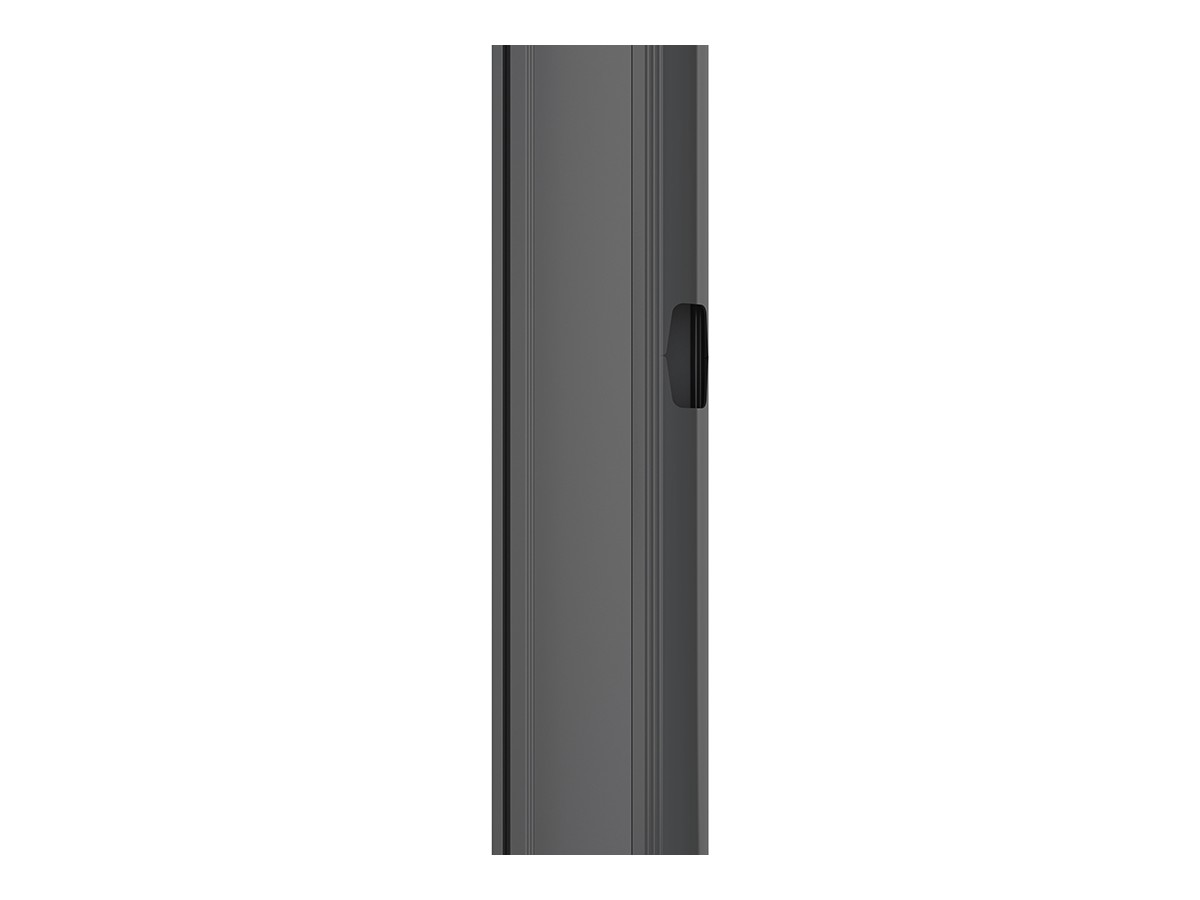

Based on 300cm high pillar made out of durable aluminum, the possibilities for height adjustments are very good and it is possible to provide perfect viewing angle for both a sitting and a standing audience. This movable video wall solution creates a solution that can be used for presentations, trade shows, store or office entrances.

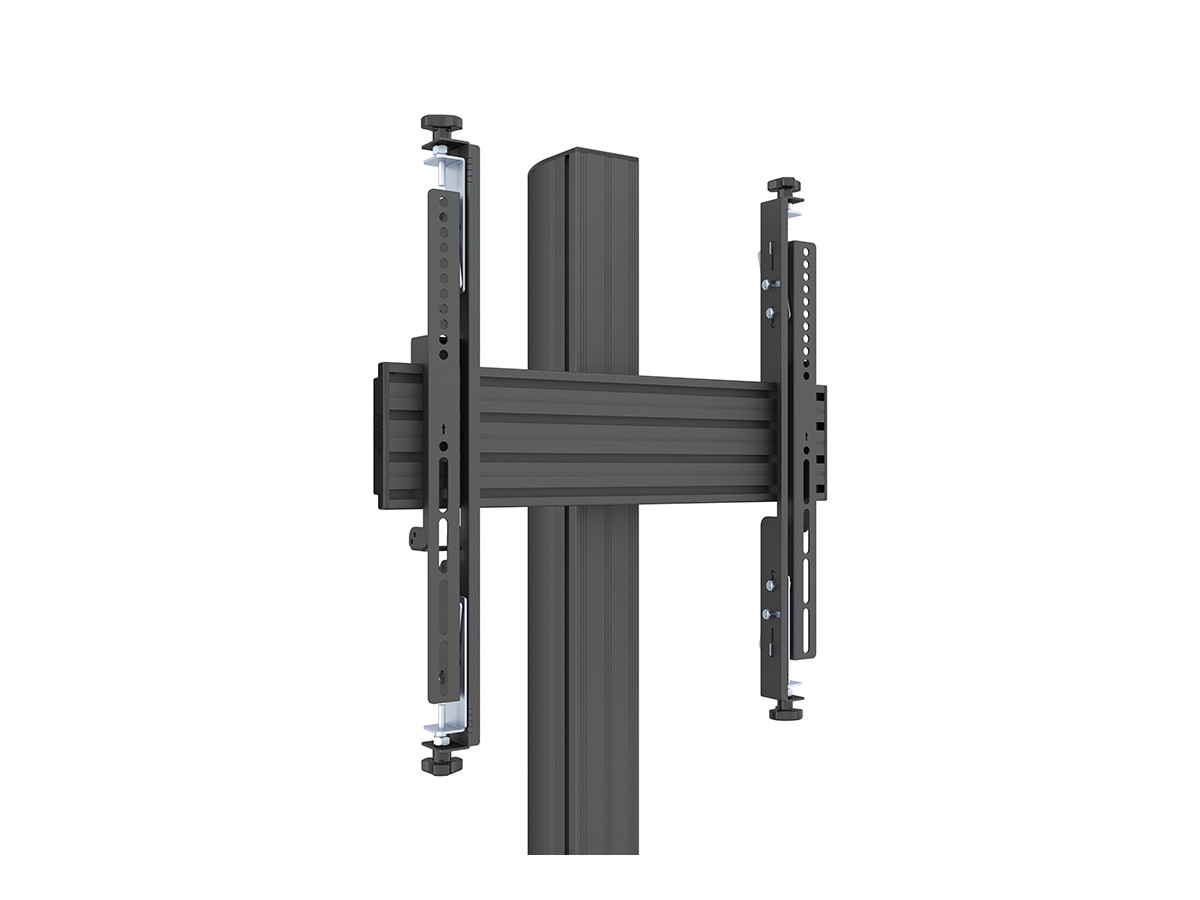

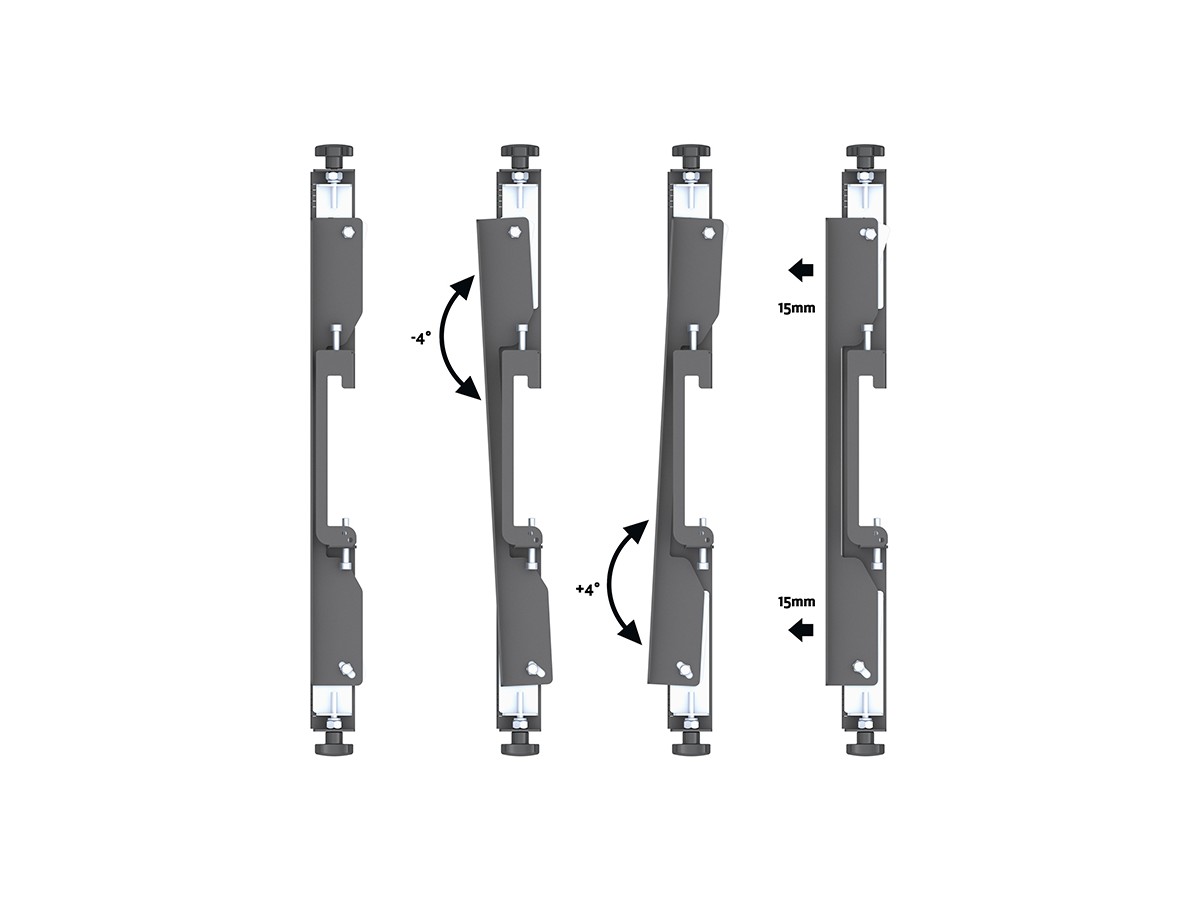

The Multibrackets Pro Series Video Wall Stands are suitable if you are after a videowall in a freestanding environment. As this is the Multibrackets Pro Series it’s all modular and could be rebuilt for any updated purpose after time. This video wall floor stand kit is suitable for screens up to 65” displays with a maximum weight of 30kg per display. The Pro Series modular system is quick and easy to install. Micro adjustable Fine Tune adjustment VESA brackets and interface plates helps you create a perfect video wall. With the fine tune functionality, you can easily align any screen on the X, Y and Z axis. Even after installation. All displays remain easily accessible for maintenance purpose.
Highlights
- Works with M Pro Series
- Smart and simple installation process
This is a perfect solution for customers who need a mobile presentation system for VTC, digital signage applications, and more.
With the right combination of durability and serviceability, we provide standardized and cost efficient solutions or even custom fabricated steel and aluminum video walls designed to fit most applications or environments.

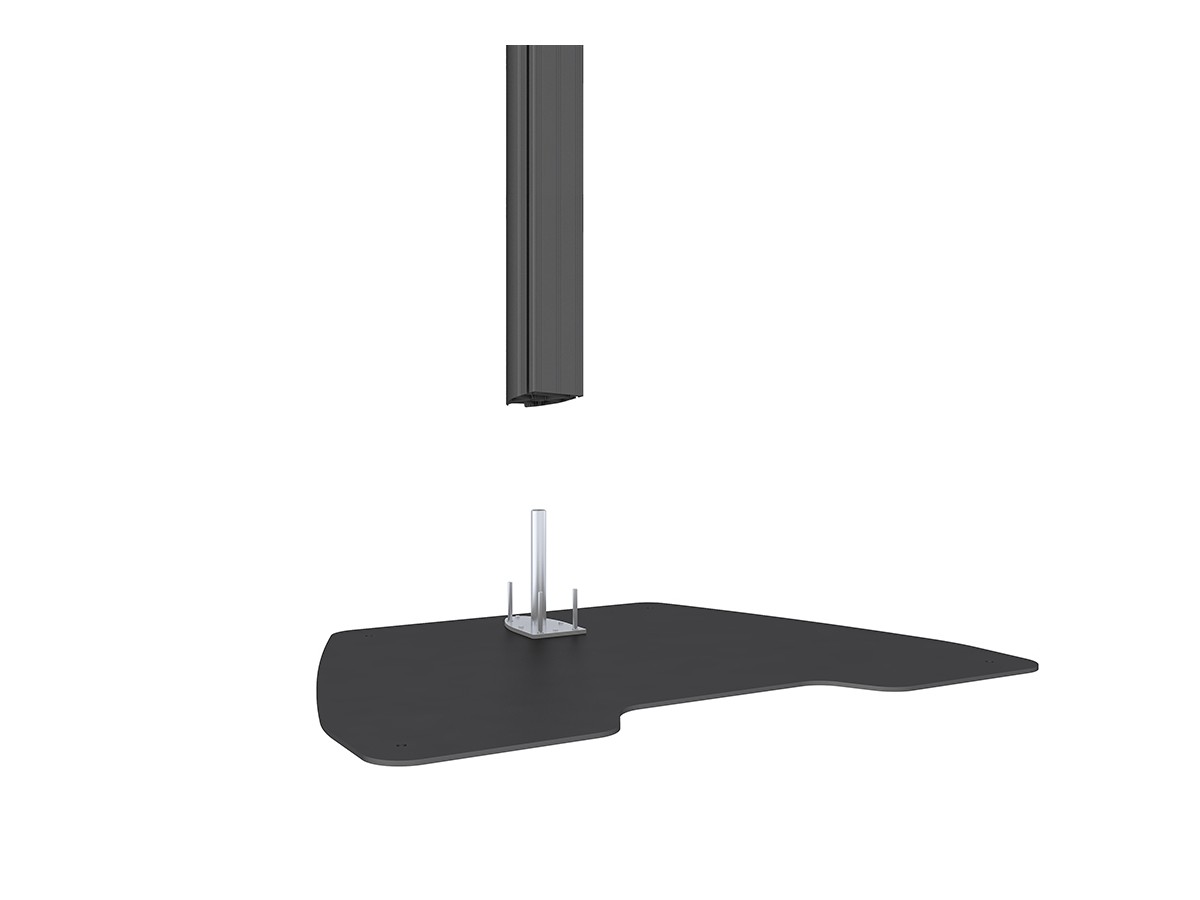

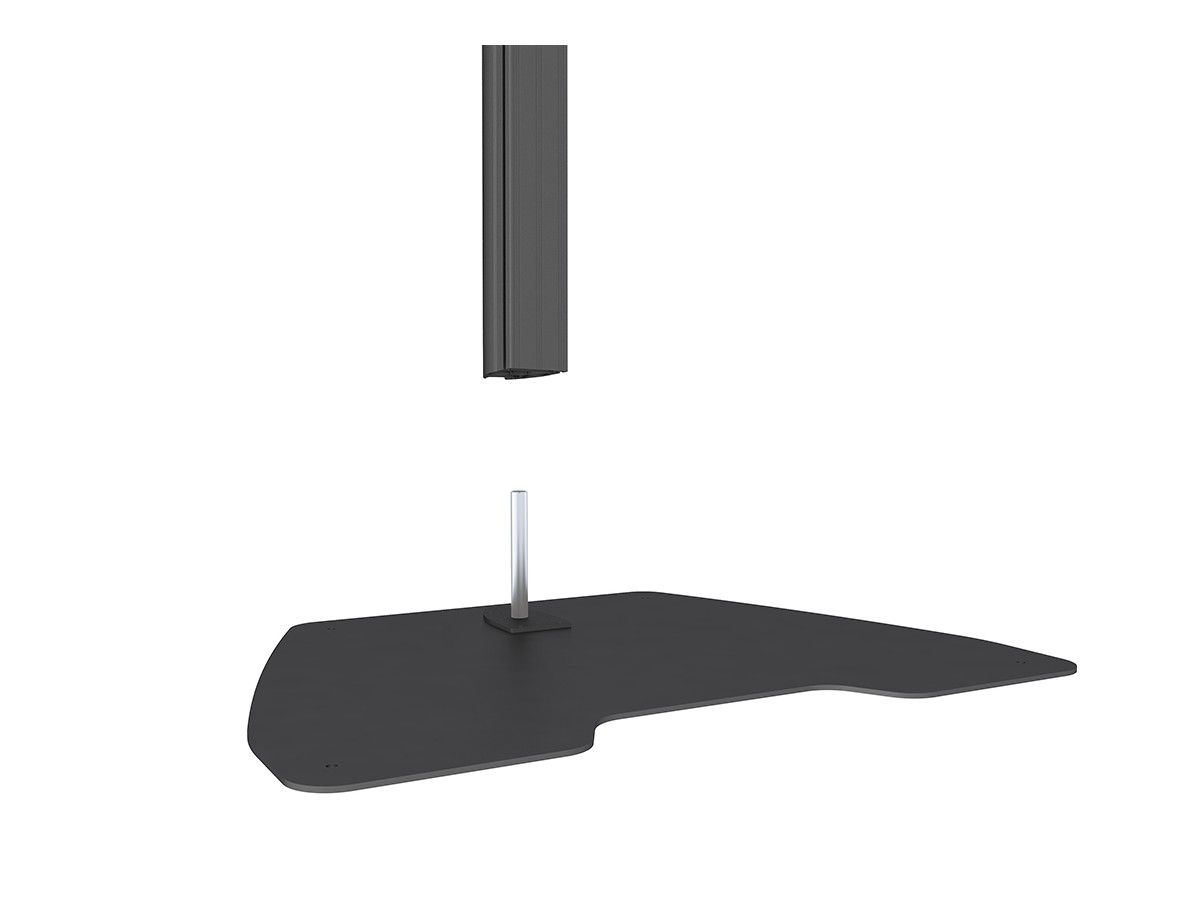

With the optional floor stand base you can stand or mount it to the floor and make the installation permanent.
Additional information
| For screen size: | 32"-65" - for each screen * |
| Feature: | 9 screen assembly |
| VESA standard: | 75x75, 100x100, 200x200, 300x300, 400x400 |
| Article No: | 7 350 105 213 533 |

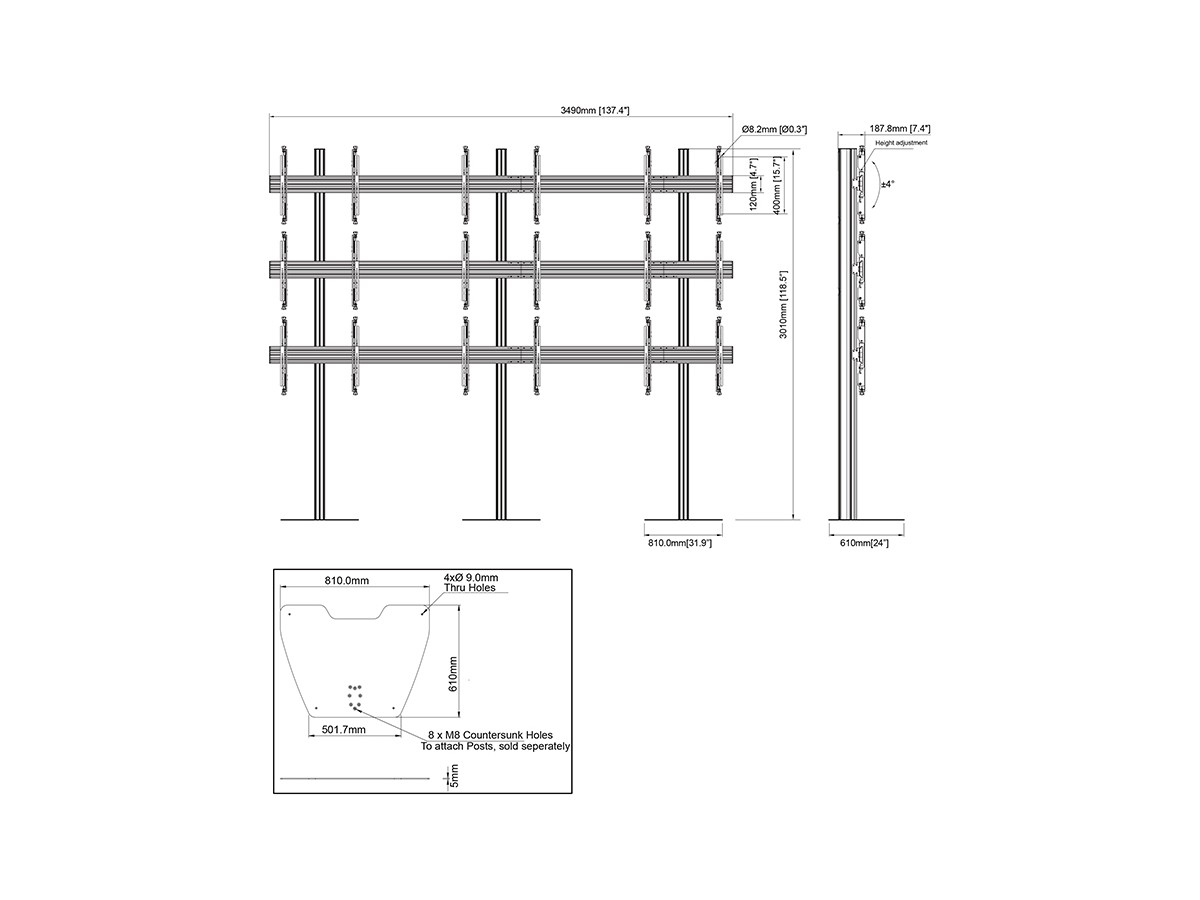

| Size in mm (WxDxH): | 830 x 630 x 55 mm + 595 x 400 x 195 mm + 2771 x 545 x 130 mm + 1045 x 321 x 155 mm |

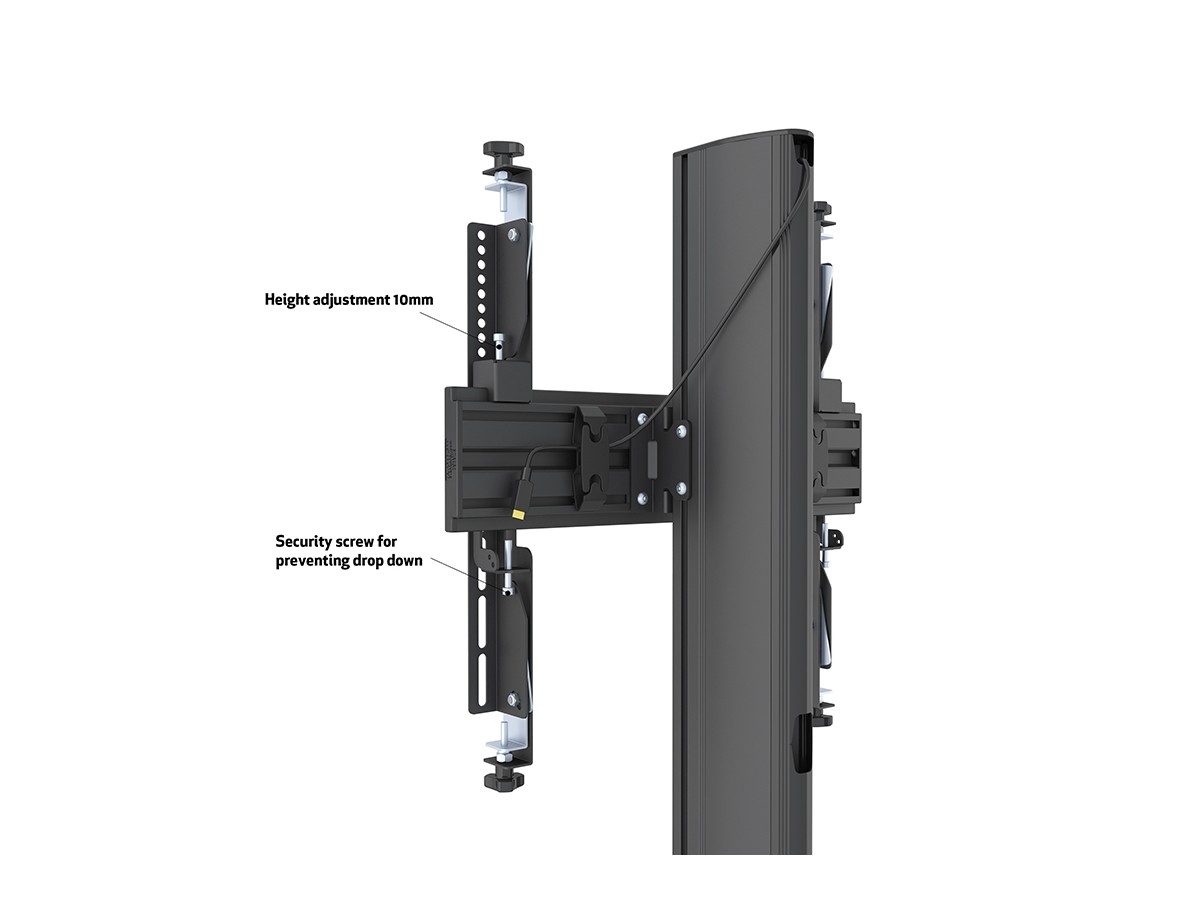

| Adjustable height: | 10 mm screen height adjustment |
| Weight: | 50 kg + 24 kg + 30.5 kg + 35.4 kg |
| Colour: | Black |
| Max load per screen: | 30 kg |
| Max load total: | 270 kg |
| Tilt: | ±4° |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Warranty: | 5 years |
