Multibrackets 7350105212031 M Floor to Ceiling Mount Pro MBFC3X4U-F100

Product code: 7350105212031

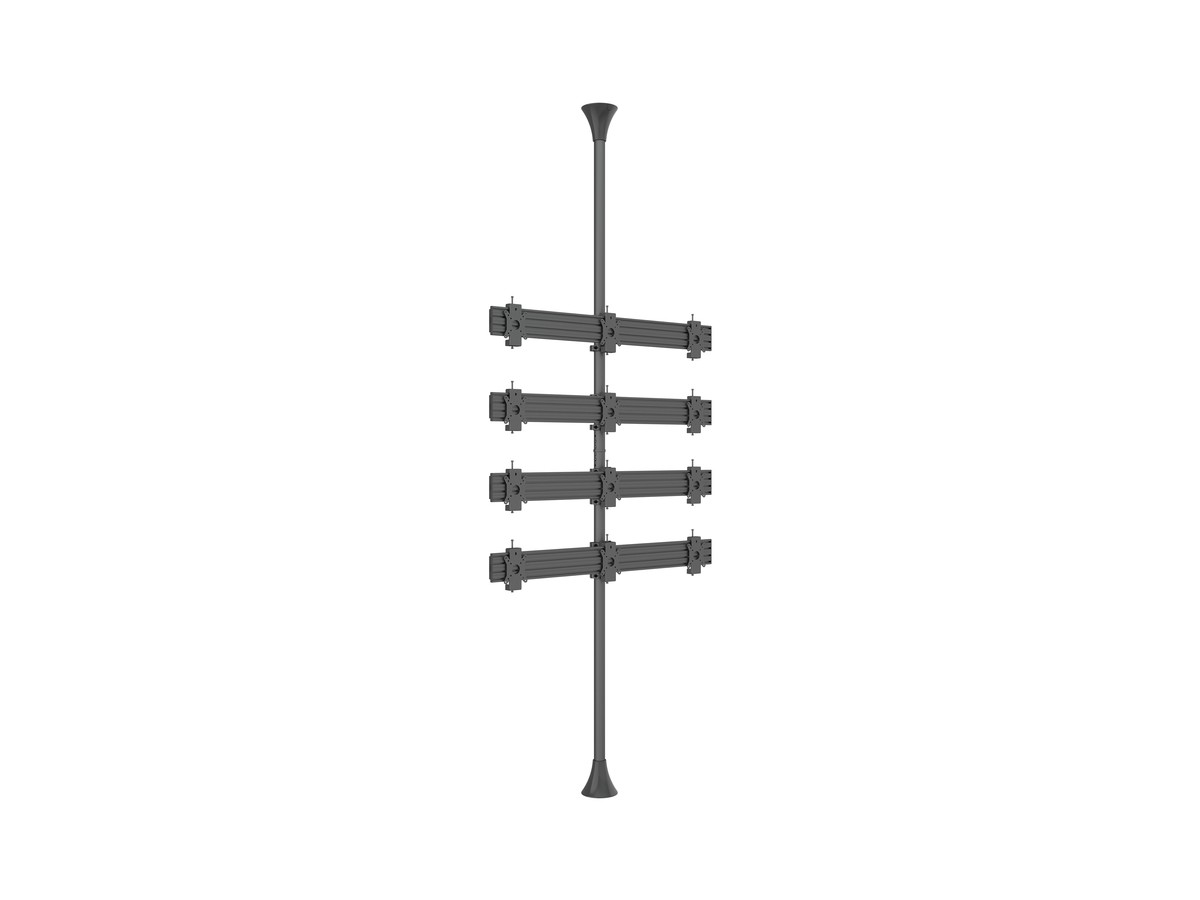

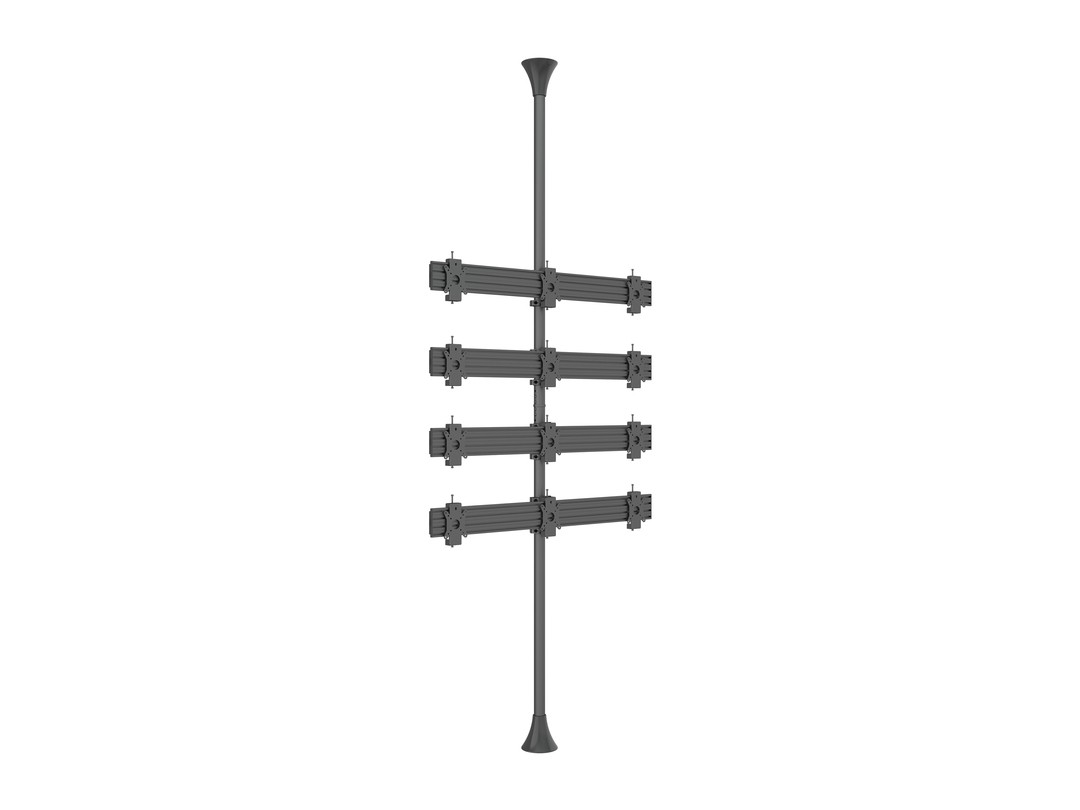

M Floor to Ceiling Mount Pro MBFC3X4U-F100 - Ceiling mount for LCD display, steel, 3m length, 12 screens, single side, fixed arms, VESA Max 100x100 - screen size: 15"-32" - black

SEND AN ENQUIRY

Description

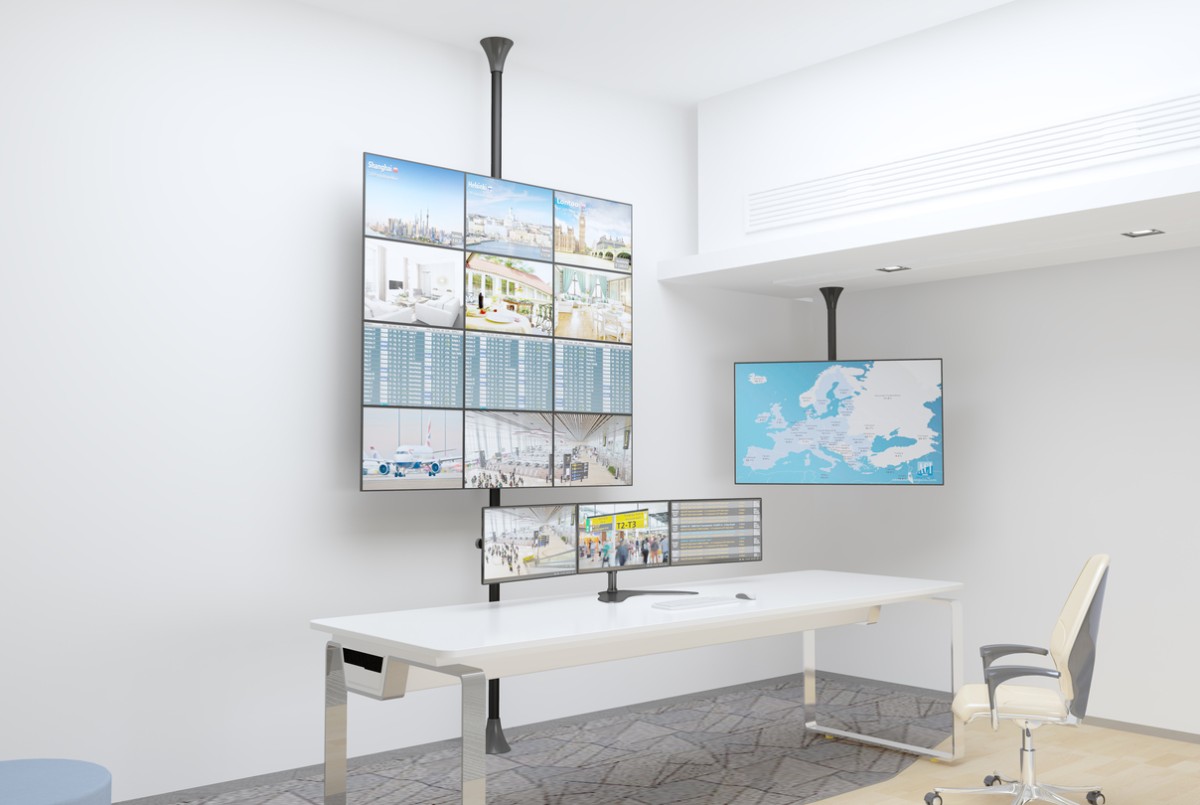

Multibrackets M Floor to Ceiling Mount Pro MBFC3X4U-F100 is a signage solution composed from Pro Series Parts - ready to be installed.

Multibrackets Pro Series line includes a small and easily manageable number of components to fulfill a vast majority of end-user requirements. Designed around a 50mm diameter pole, the line is ideal for new projects as well as upgrading existing installations. As part of the Multibrackets Pro Series, the M Floor to Ceiling Mount Pro MBFC3X4U-F100 Includes all components required to mount your displays. This kit can be expanded with Modular accessories to accommodate additional displays or alternative configurations to achieve the perfect custom mounting solution

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

Highlights

  • A modular Floor to ceiling solution that includes simple monitor hook-on feature for multiple displays
  • Versatile display positioning at any point along the height of the 50mm diameter column
  • Universal display adaptor for most monitors with VESA mounting patterns 75x75 and 100x100

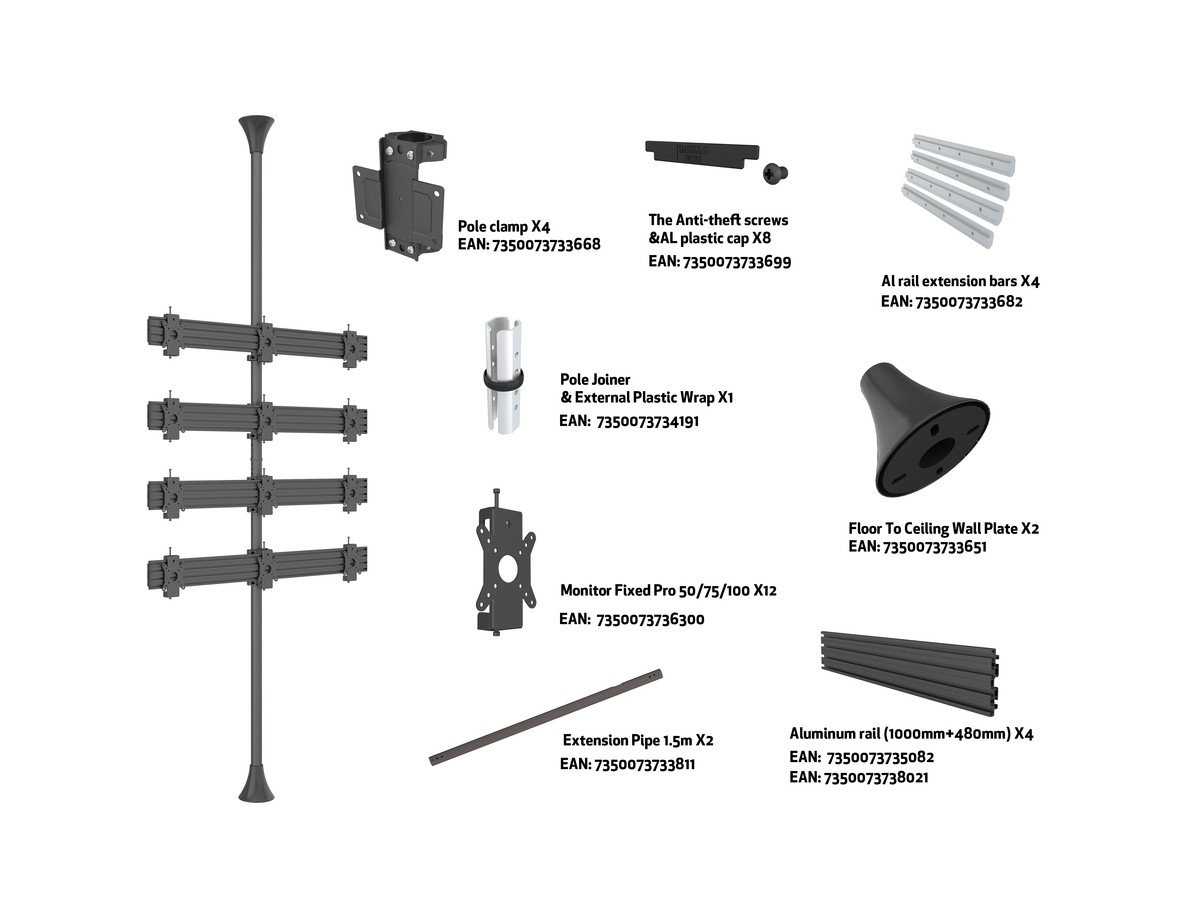

  • Complete hardware kit: Flat ceiling/floor plates, 3m extension column, Dual rails with mounts and space for four single displays
  • Heavy duty top and bottom plates fixes to wood or concrete ceiling and floor

Additional information

For screen size:15"-32"
Type:Single side MBFC3X4U-F100
Universal & VESA standard:50/75/100
Material:Steel, Aluminium
Color:Black
Surface Finish:Powder coating/Anodic Oxidation
Weight:Pole and mounts:10 kg
Rail and clamps: 2.2 kg
Screen mounts: 4x1 kg
Measurements:328x96x17 cm
Max Load:20 kg per screen
Pillar length:Min: 1550 mm to Max: 3000 mm
Extension pipes: 3m (1500mm*2pcs) included
Cable Management:Yes
Options:Extension pipes : 0.8m, 1.5m, 3.0m
Certifications:CE
Warranty:5 years
