Multibrackets 7350105212017 M Floor to Ceiling Mount Pro MBFC3X2U-F100
Product code:M Floor to Ceiling Mount Pro MBFC3X2U-F100 - Ceiling mount for LCD display, steel, 3m length, 6 screens, single side, fixed arms, VESA Max 100x100 - screen size: 15"-32" - black
SEND AN ENQUIRYDescription

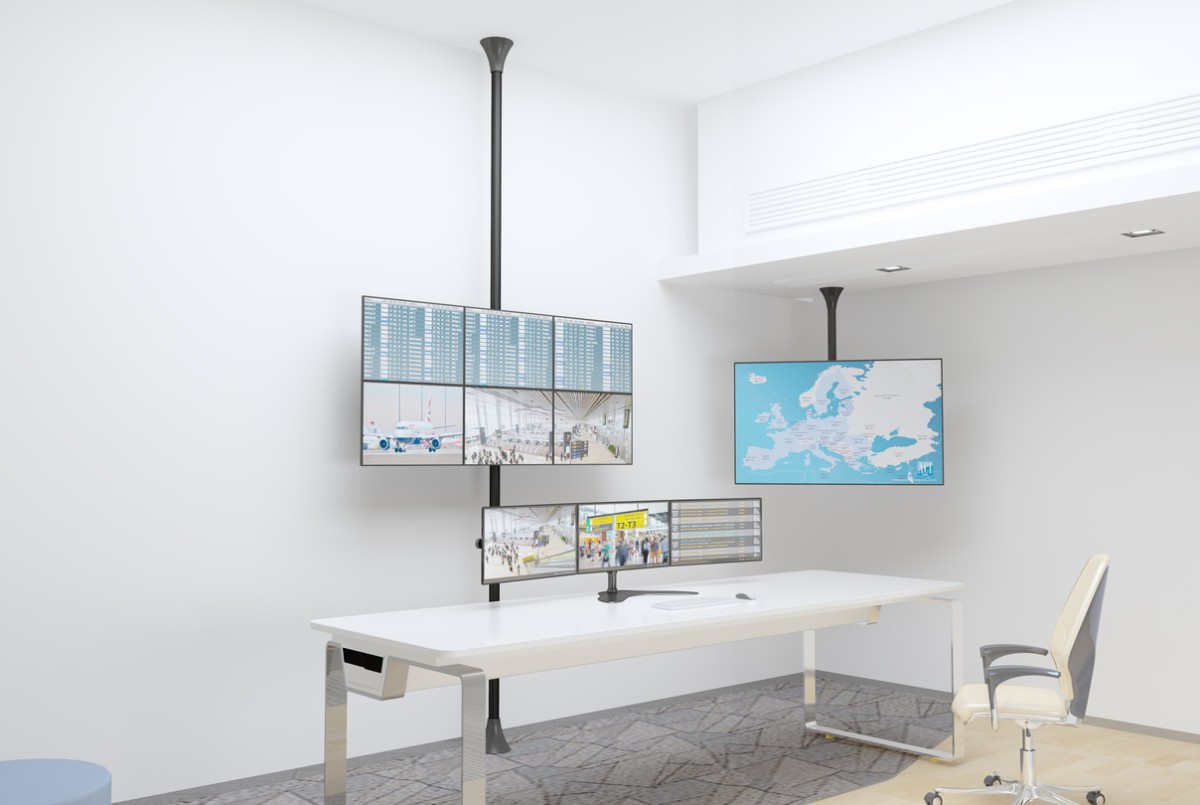

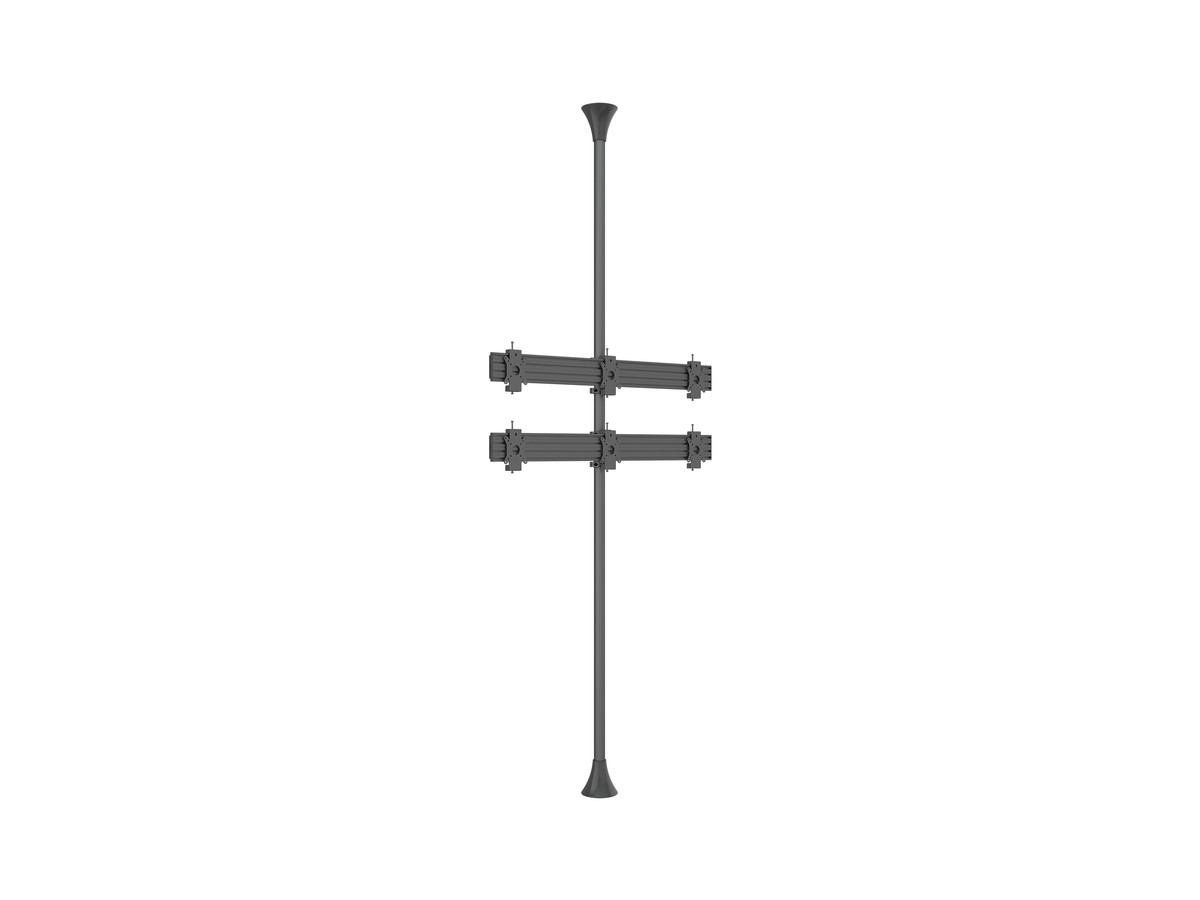

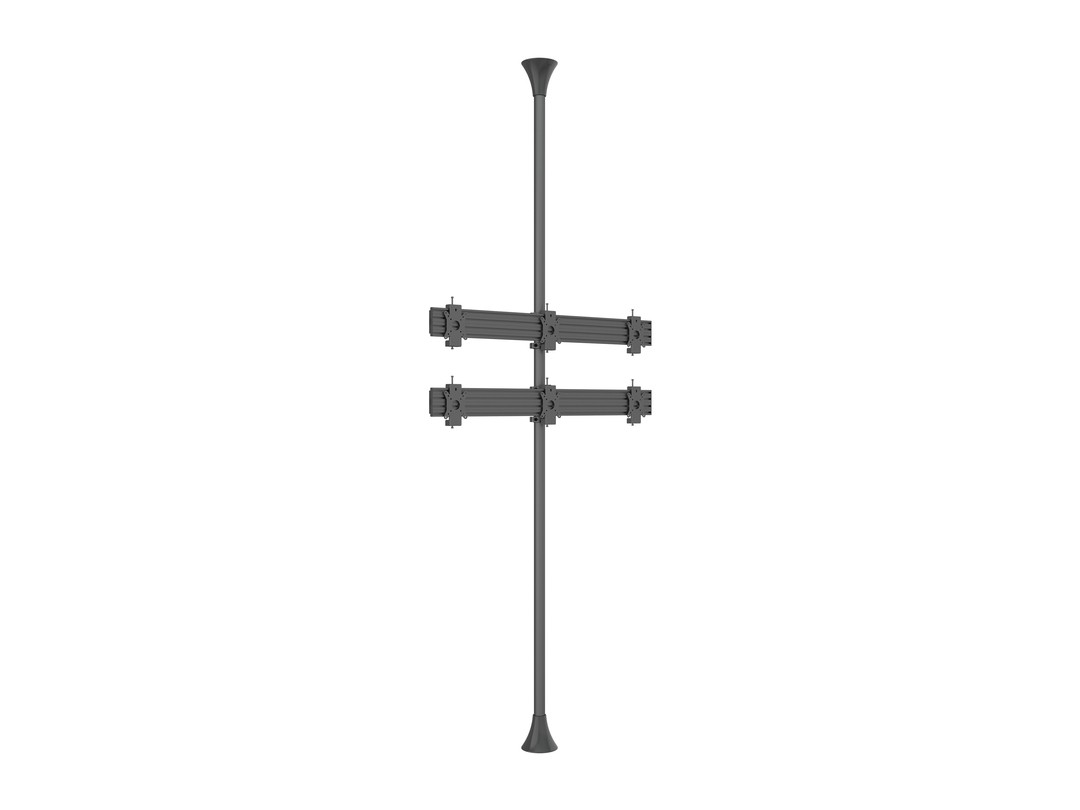

Multibrackets M Floor to Ceiling Mount Pro MBFC3X2U-F100 is a signage solution composed from Pro Series Parts - ready to be installed.
Multibrackets Pro Series line includes a small and easily manageable number of components to fulfill a vast majority of end-user requirements. Designed around a 50mm diameter pole, the line is ideal for new projects as well as upgrading existing installations. As part of the Multibrackets Pro Series, the M Floor to Ceiling Mount Pro MBFC3X2U-F100 Includes all components required to mount your displays. This kit can be expanded with Modular accessories to accommodate additional displays or alternative configurations to achieve the perfect custom mounting solution
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
Highlights
- A modular Floor to ceiling solution that includes simple monitor hook-on feature for multiple displays
- Versatile display positioning at any point along the height of the 50mm diameter column
- Universal display adaptor for most monitors with VESA mounting patterns 75x75 and 100x100

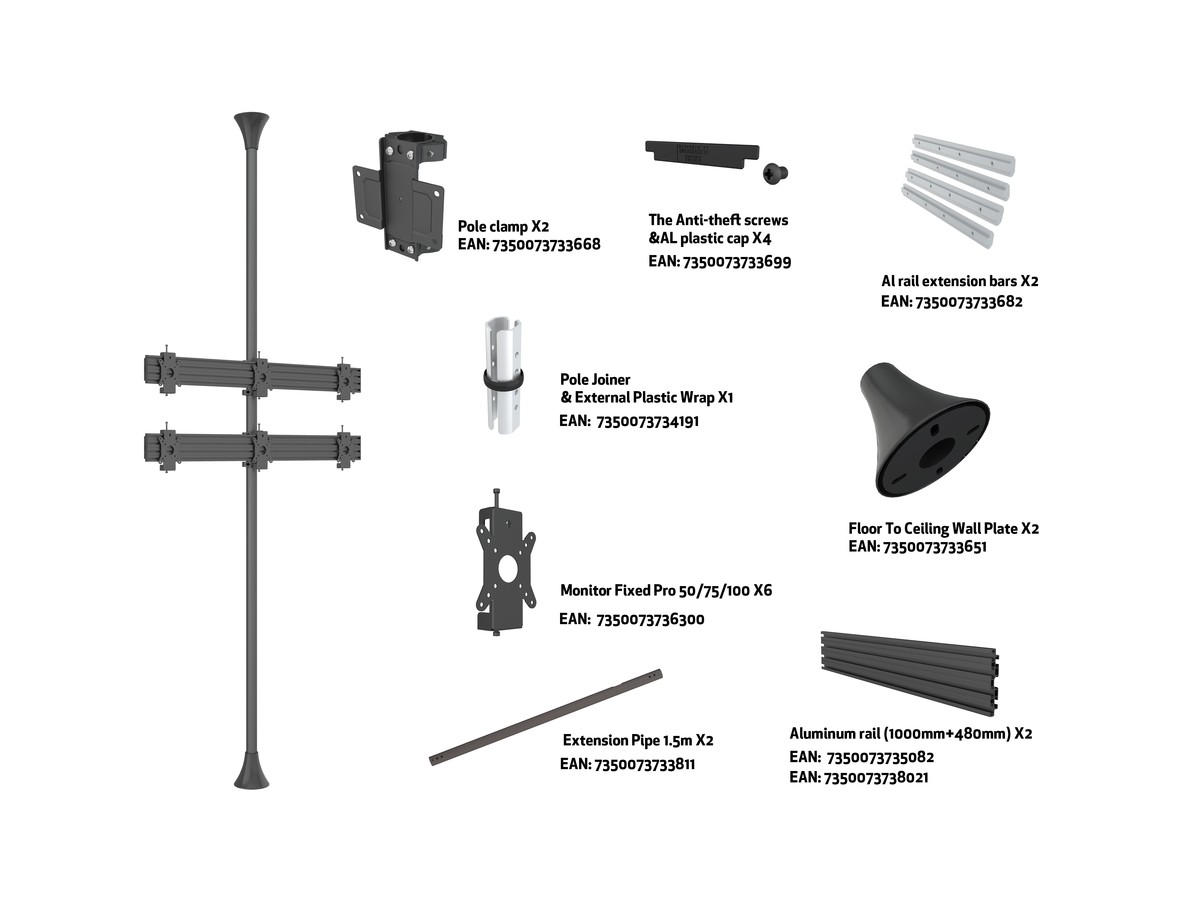

- Complete hardware kit: Flat ceiling/floor plates, 3m extension column, Dual rails with mounts and space for four single displays
- Heavy duty top and bottom plates fixes to wood or concrete ceiling and floor
Additional information
For screen size: | 15"-32" |
Type: | Single side MBFC3X2U-F100 |
Universal & VESA standard: | 50/75/100 |
Material: | Steel, Aluminium |
Color: | Black |
Surface Finish: | Powder coating/Anodic Oxidation |
Weight: | Pole and mounts:10 kg Rail and clamps: 2.2 kg Screen mounts: 4x1 kg |
Measurements: | 328x96x17 cm |
Max Load: | 20 kg per screen |
Pillar length: | Min: 1550 mm to Max: 3000 mm Extension pipes: 3m (1500mm*2pcs) included |
Cable Management: | Yes |
Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
Certifications: | CE |
Warranty: | 5 years |
