Multibrackets 7350105216022 M Floor to Wall Mount Pro MBFW2P1UPHD
Product code:M Floor to Wall Mount Pro MBFW2P1UPHD - Ceiling mount for LCD display, steel; 3m length, dual pole, 1 screen, single side, fixed arms, VESA max 600x900 - Maxload: 125 kg - Screen size: 65"-100" - black
SEND AN ENQUIRYDescription

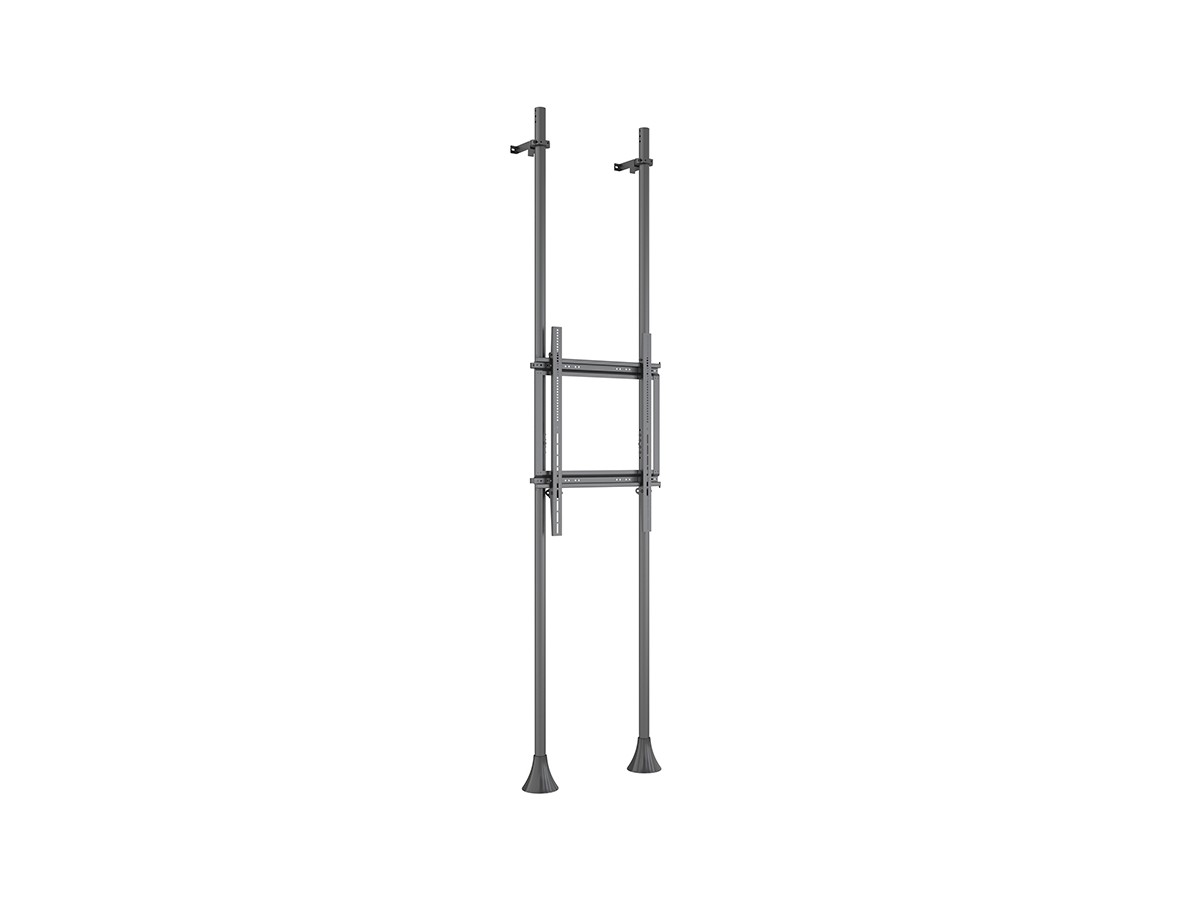

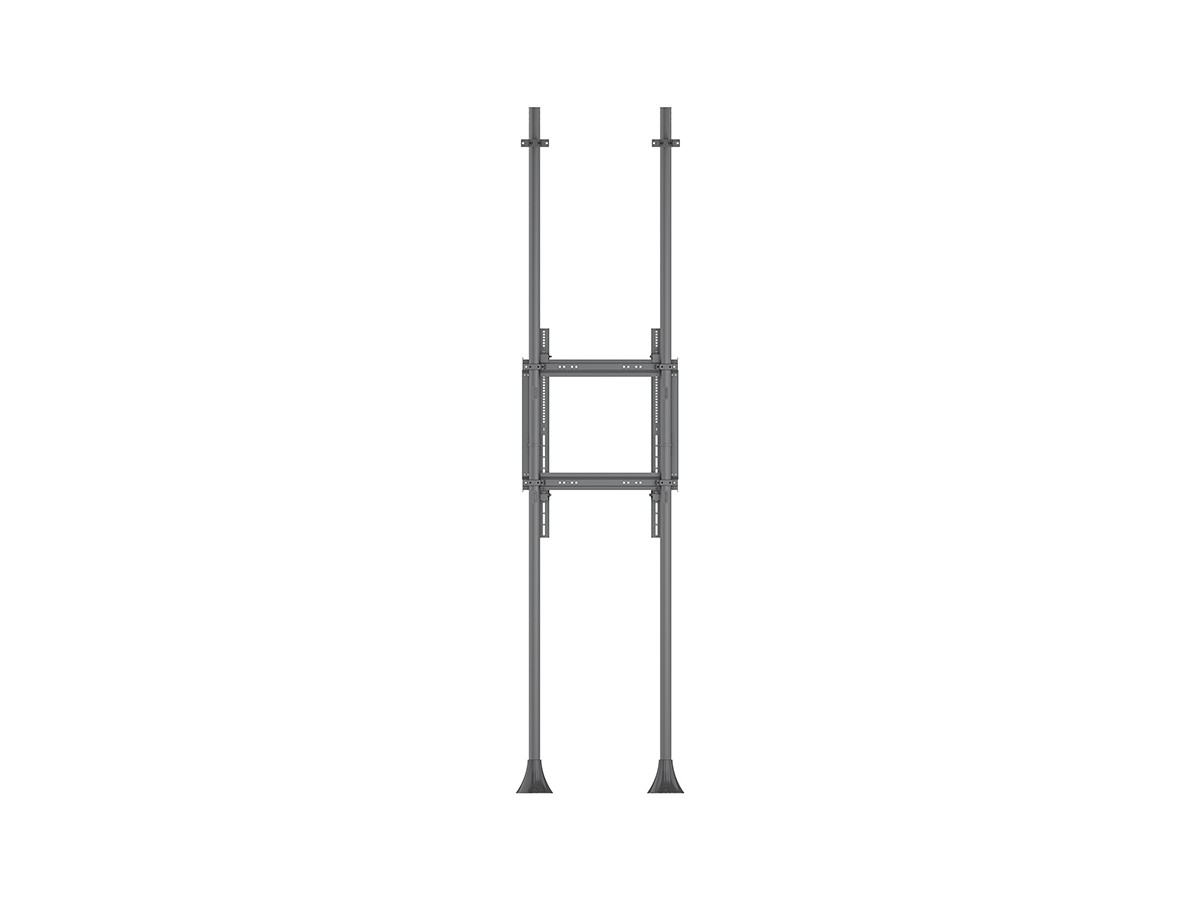

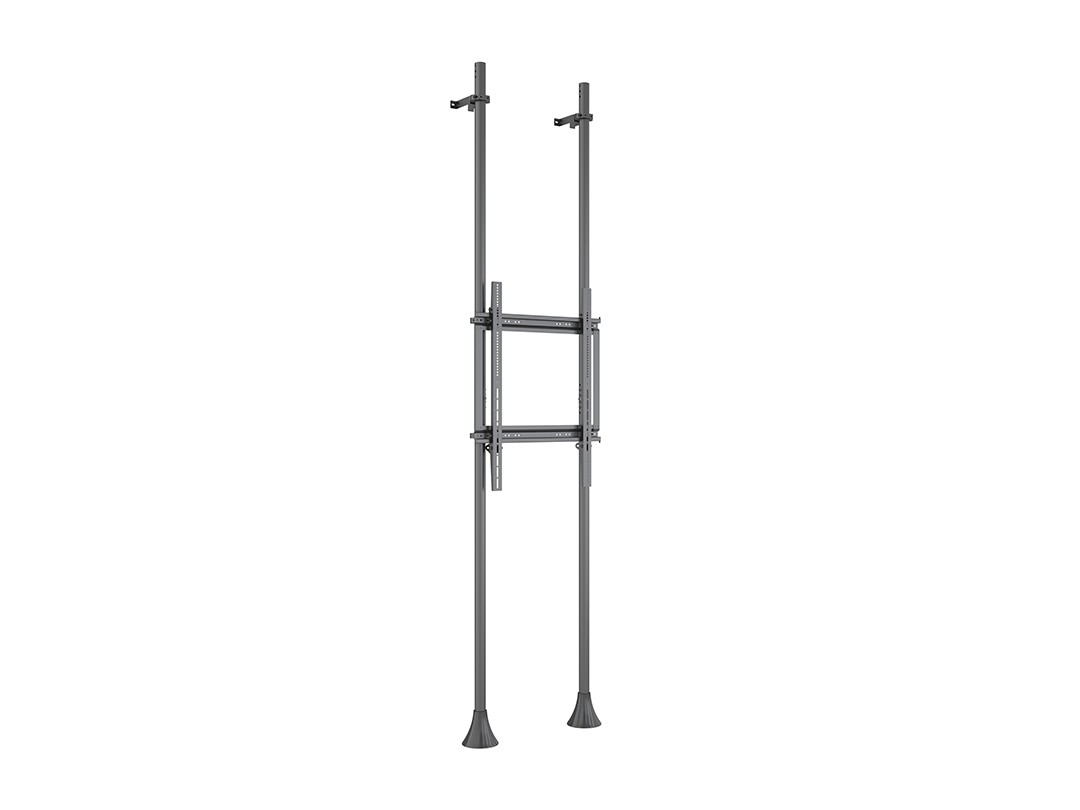

Multibrackets Pro Series M Floor to Wall Mount Pro MBFW2P1UPHD is a signage solution - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the product with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

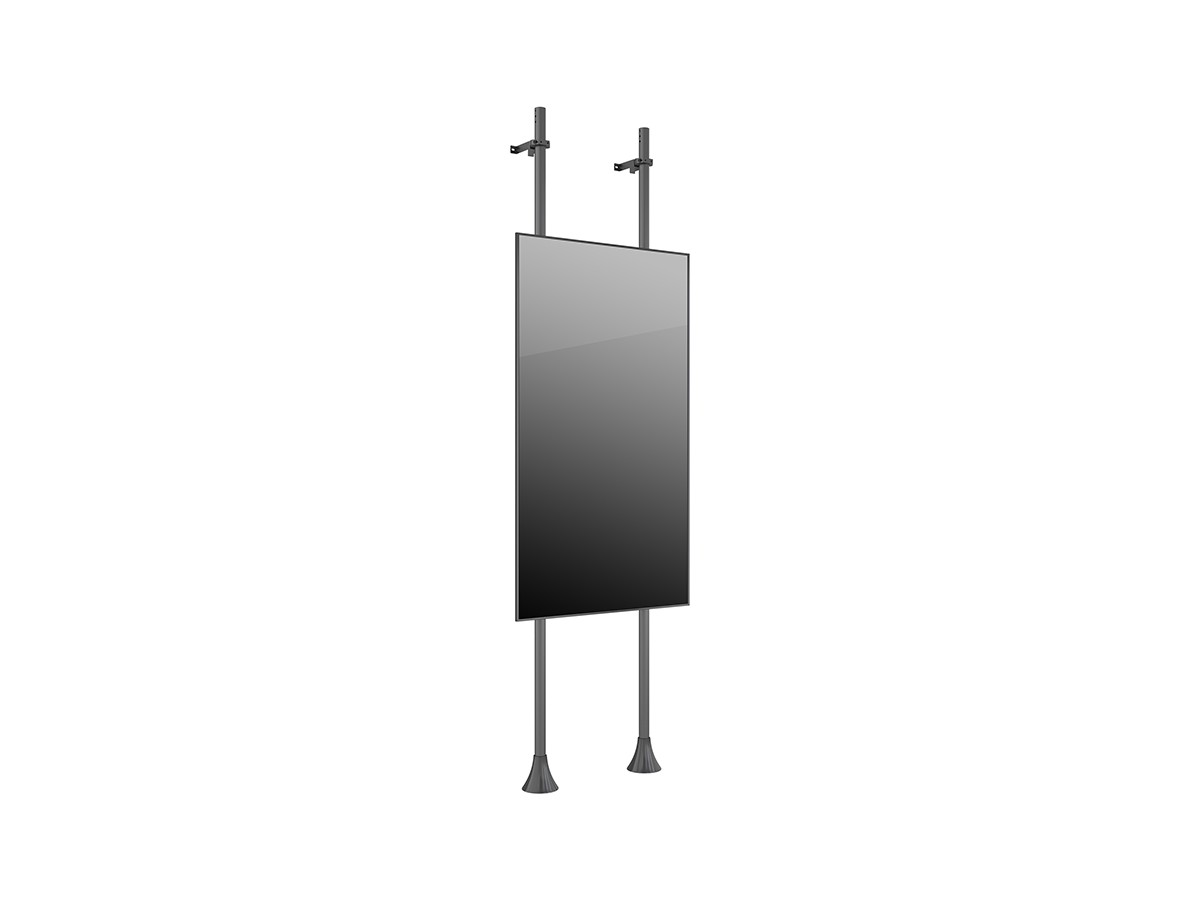

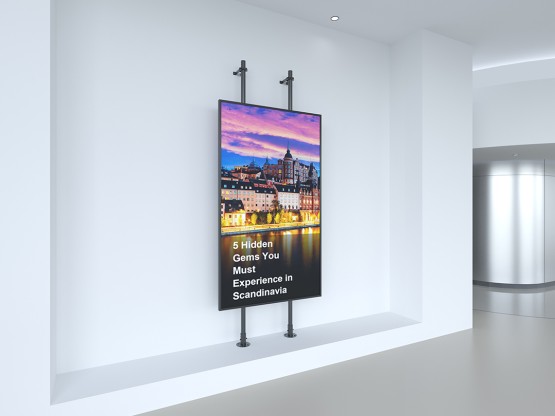

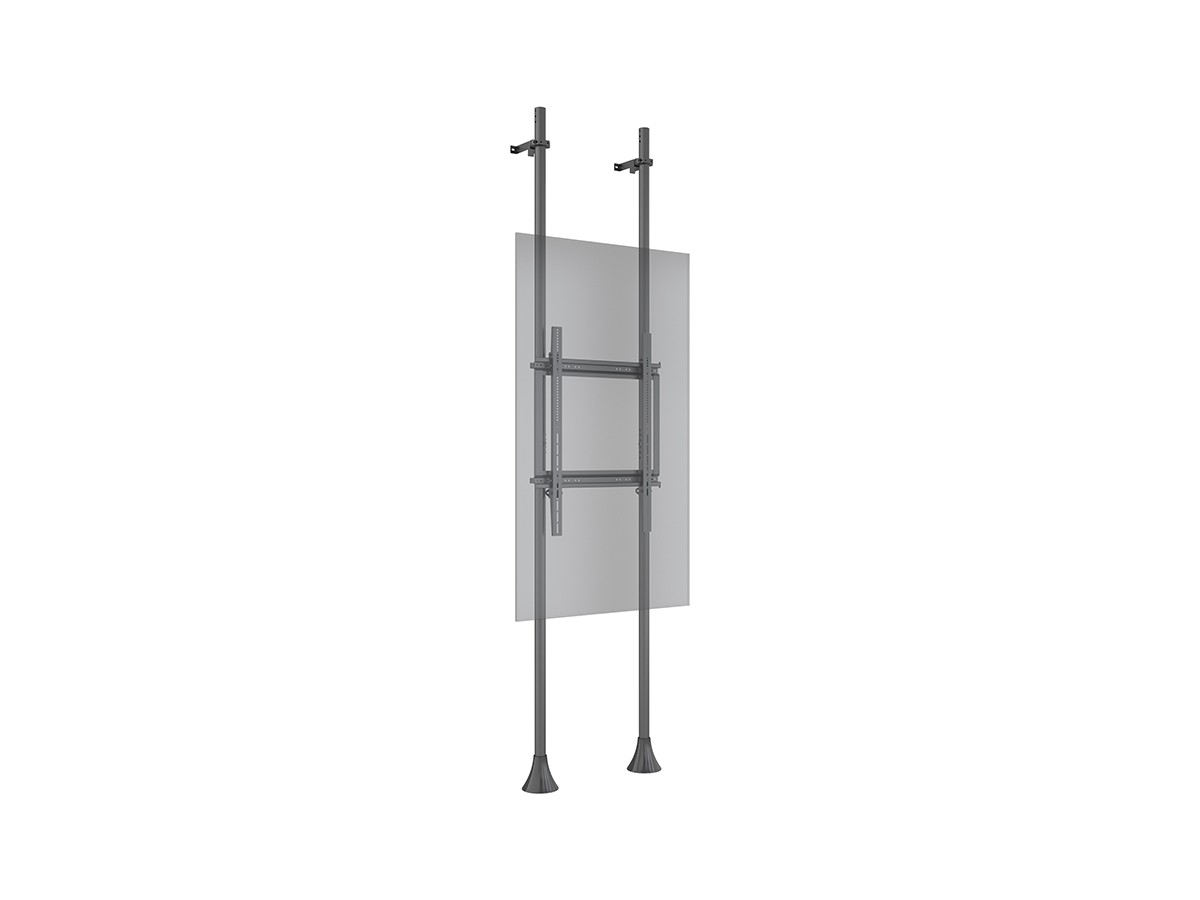

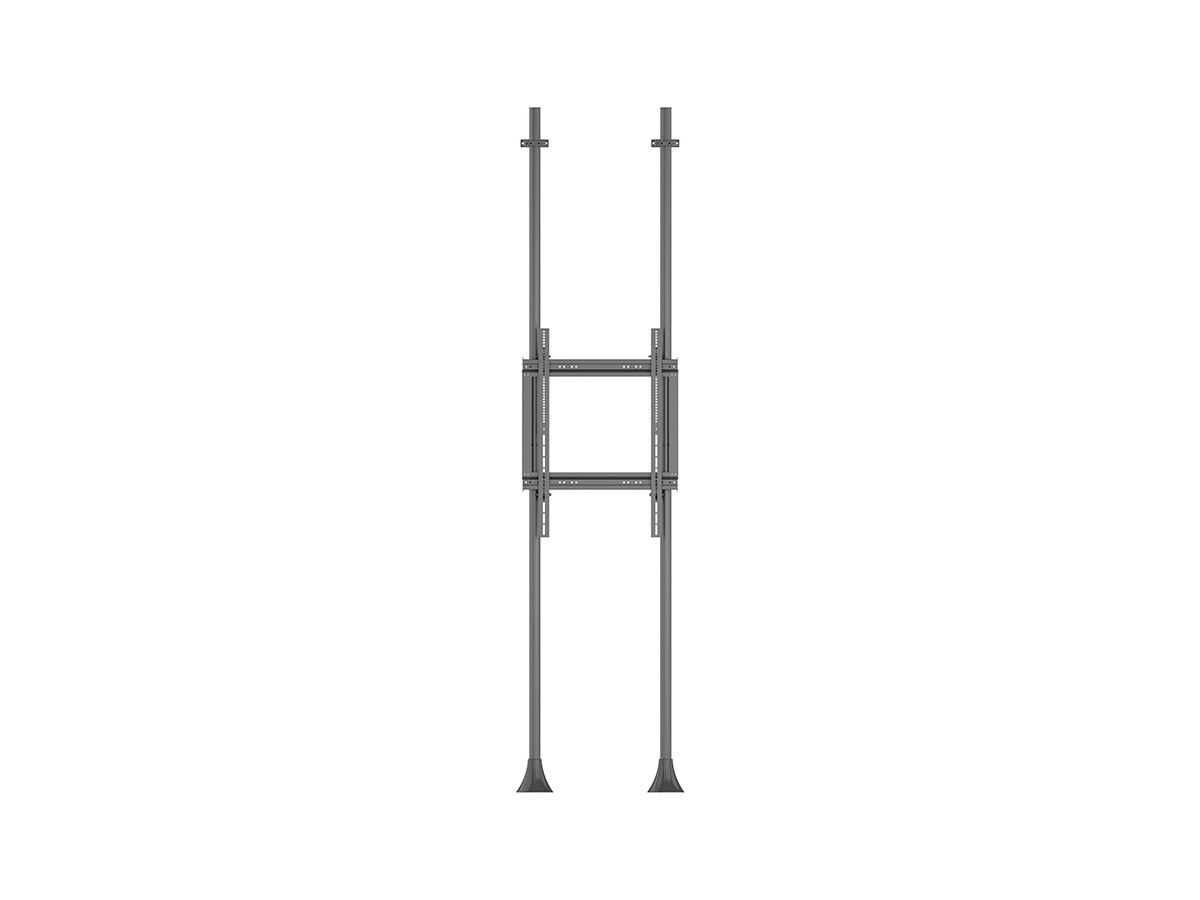

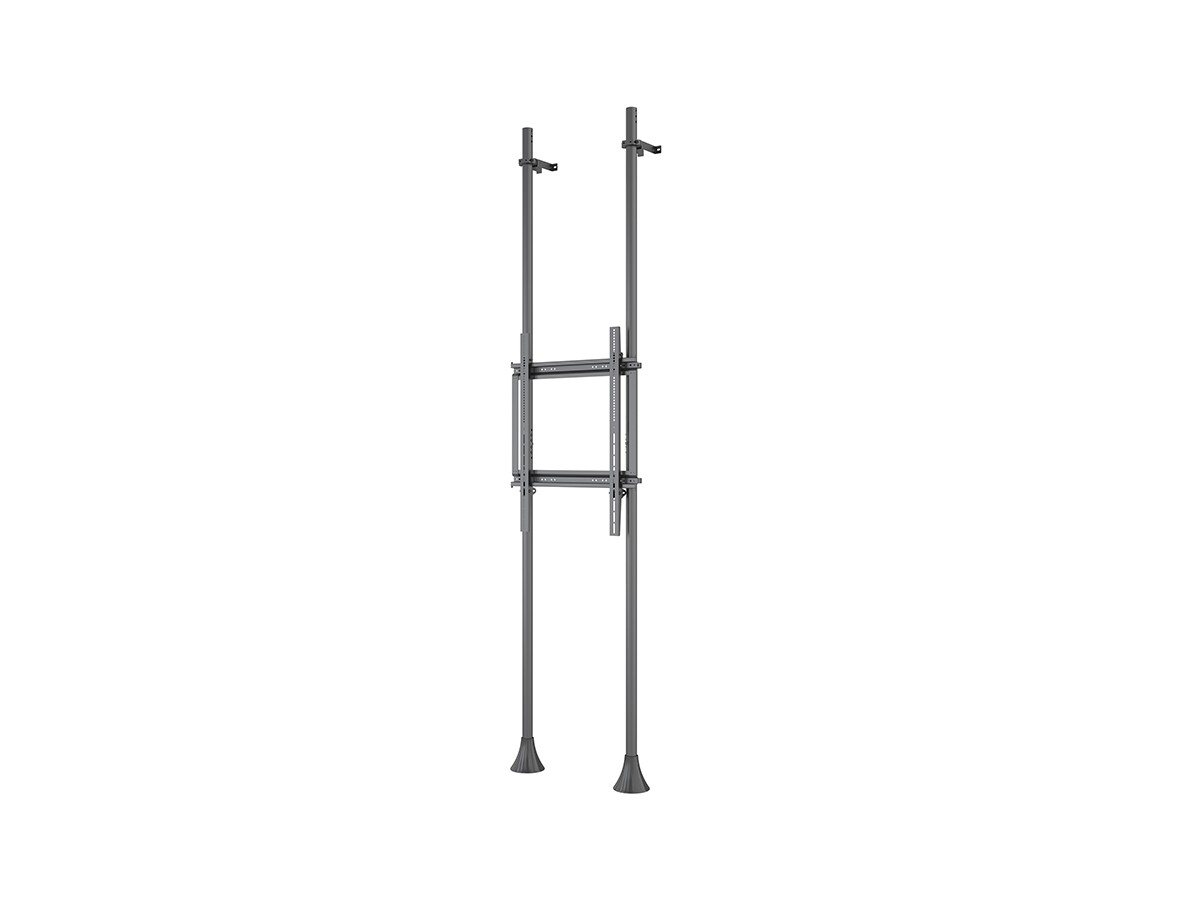

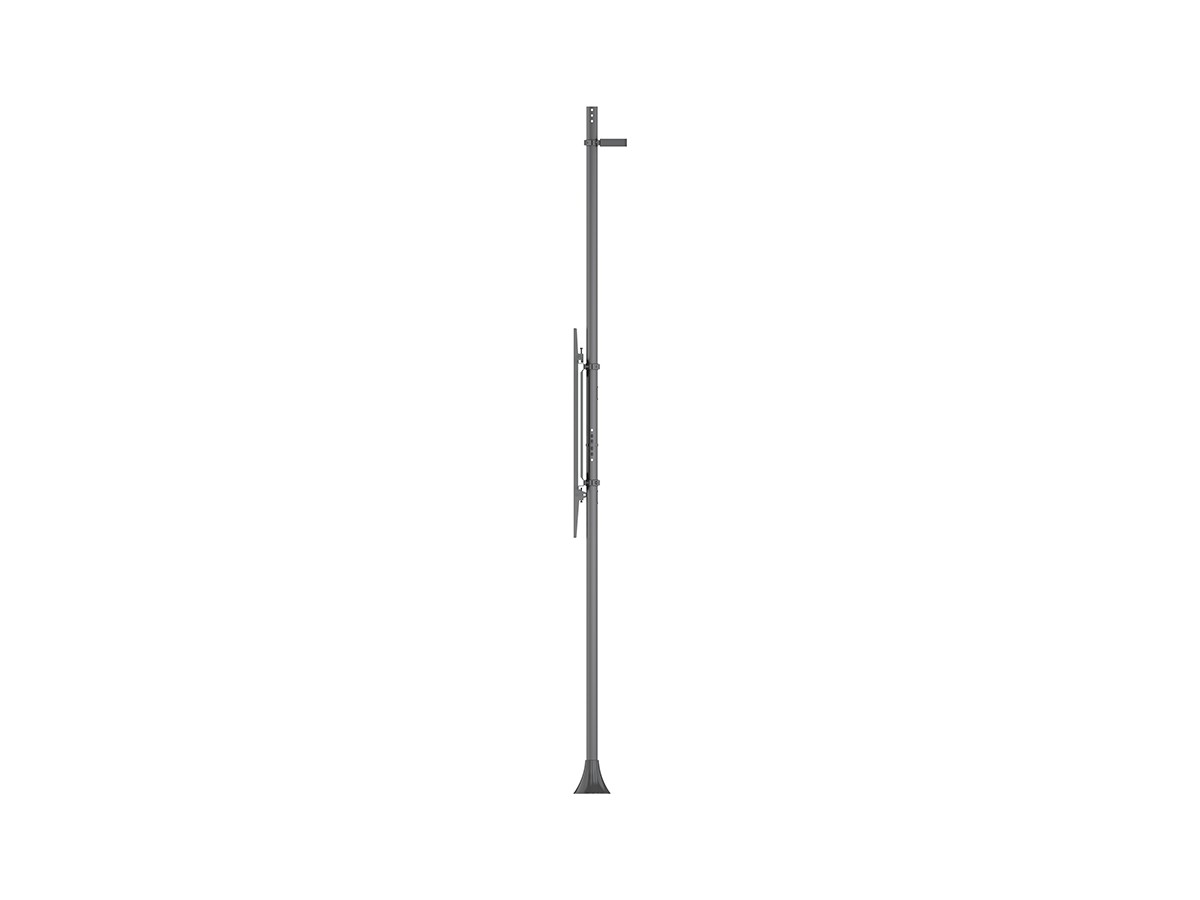

The M Floor to Wall Mount Pro MBFW2P1UPHD creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

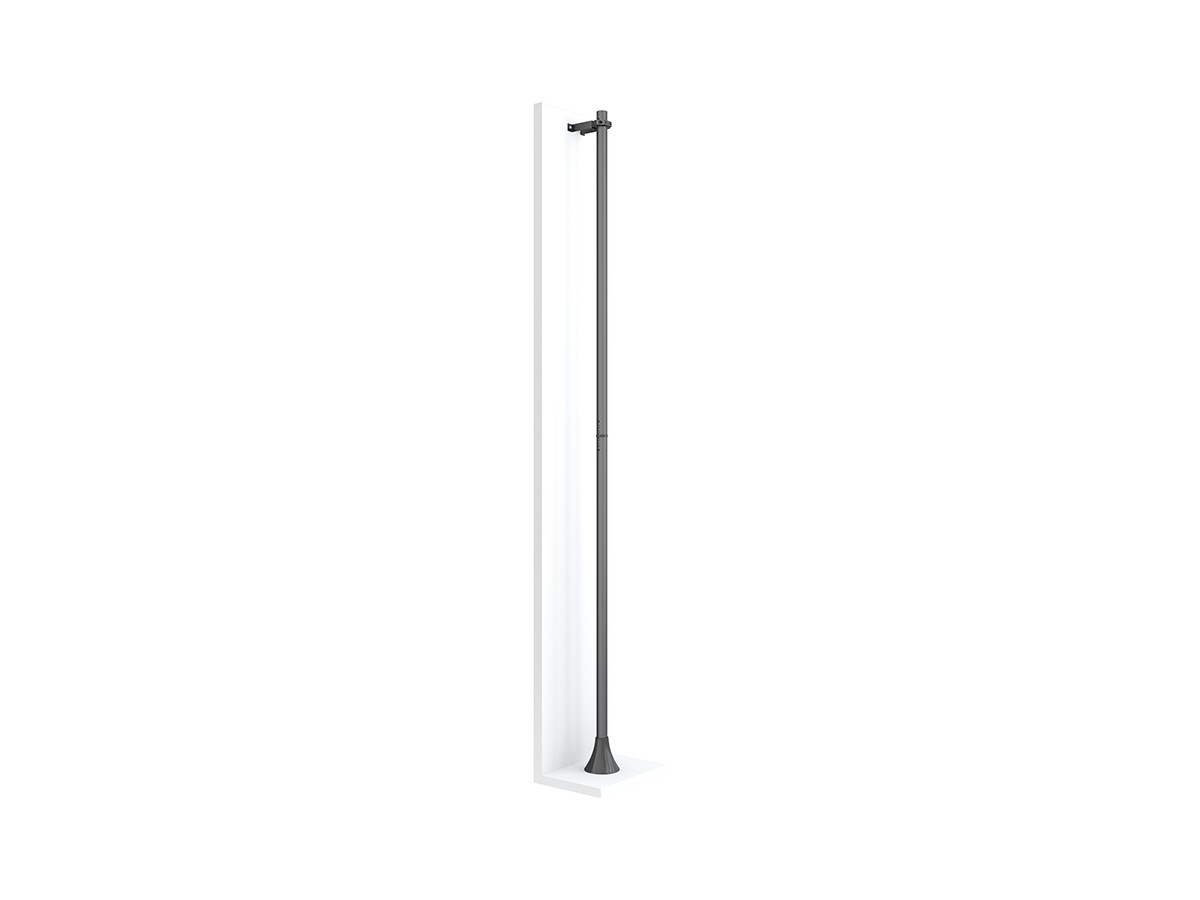

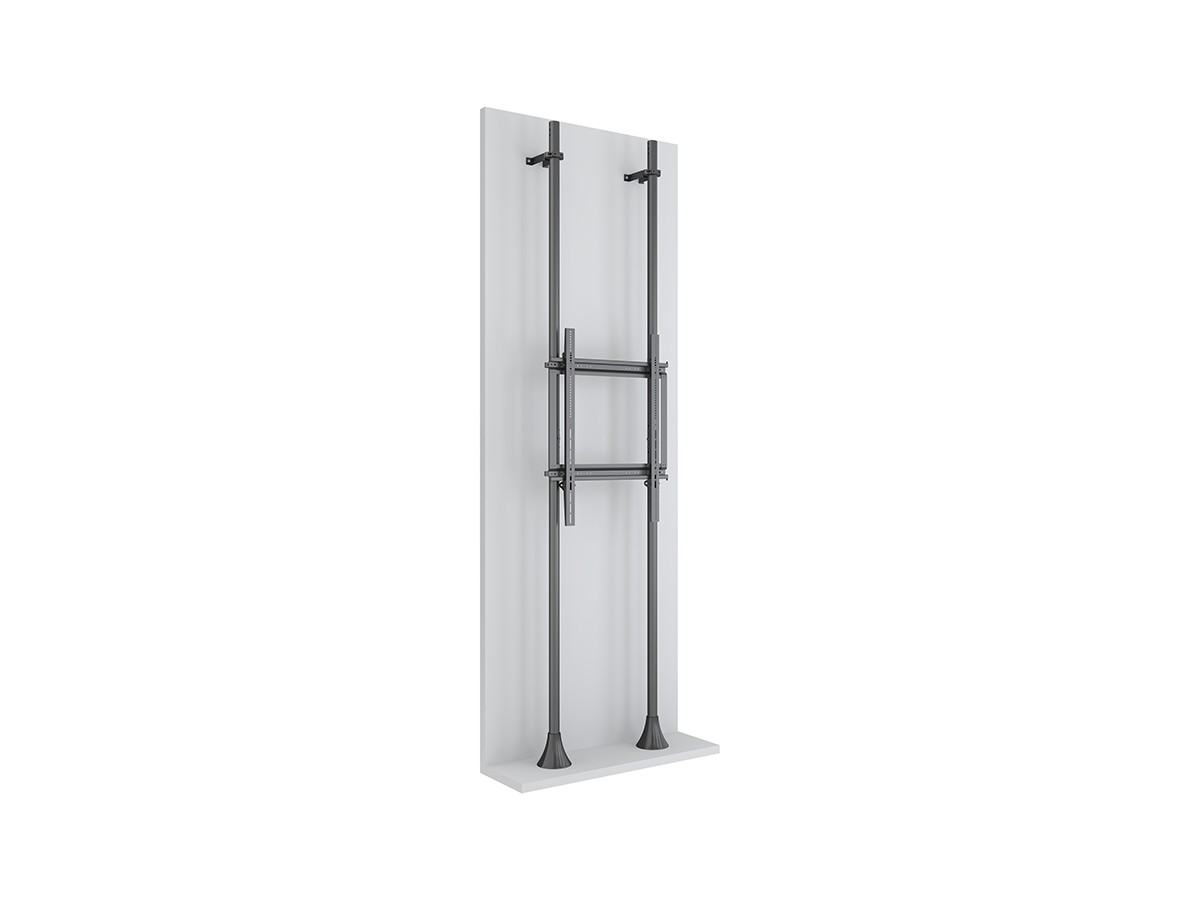

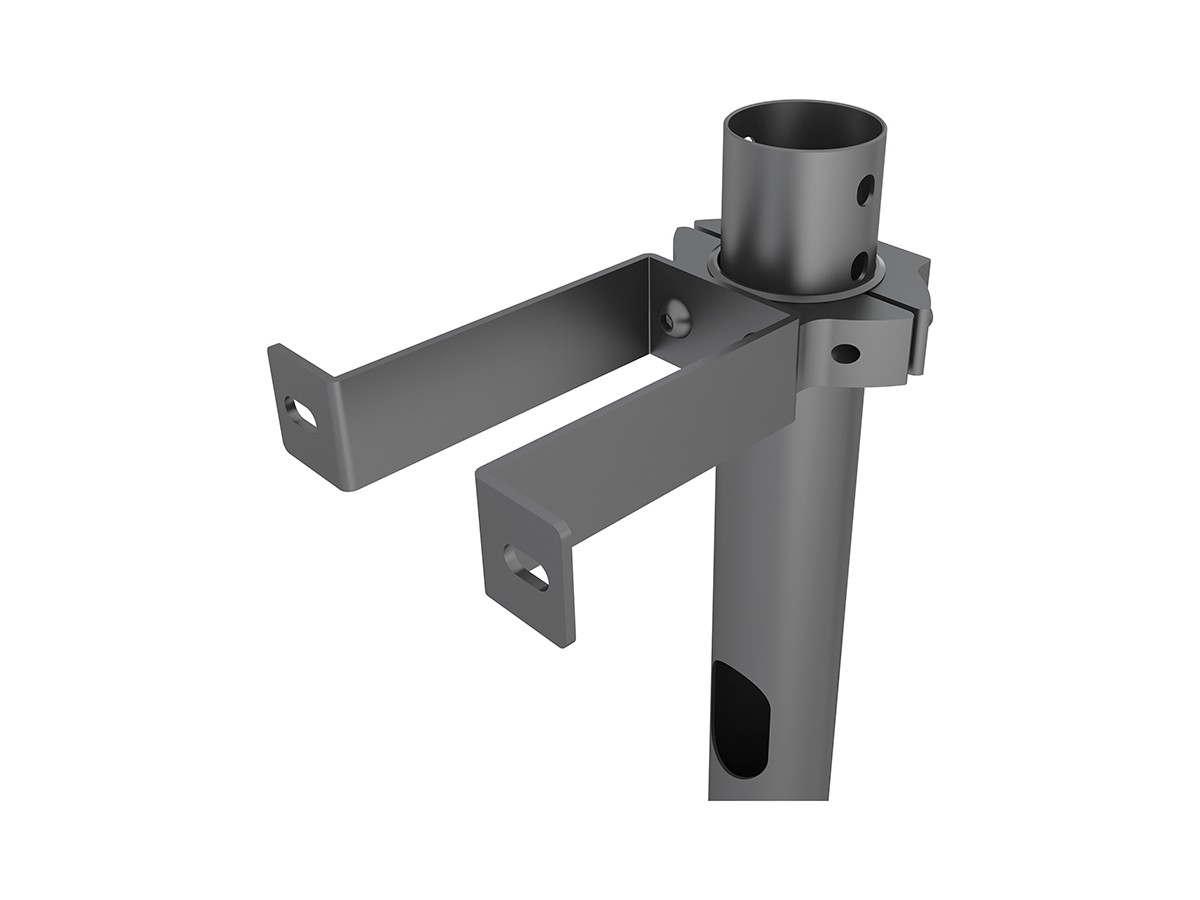

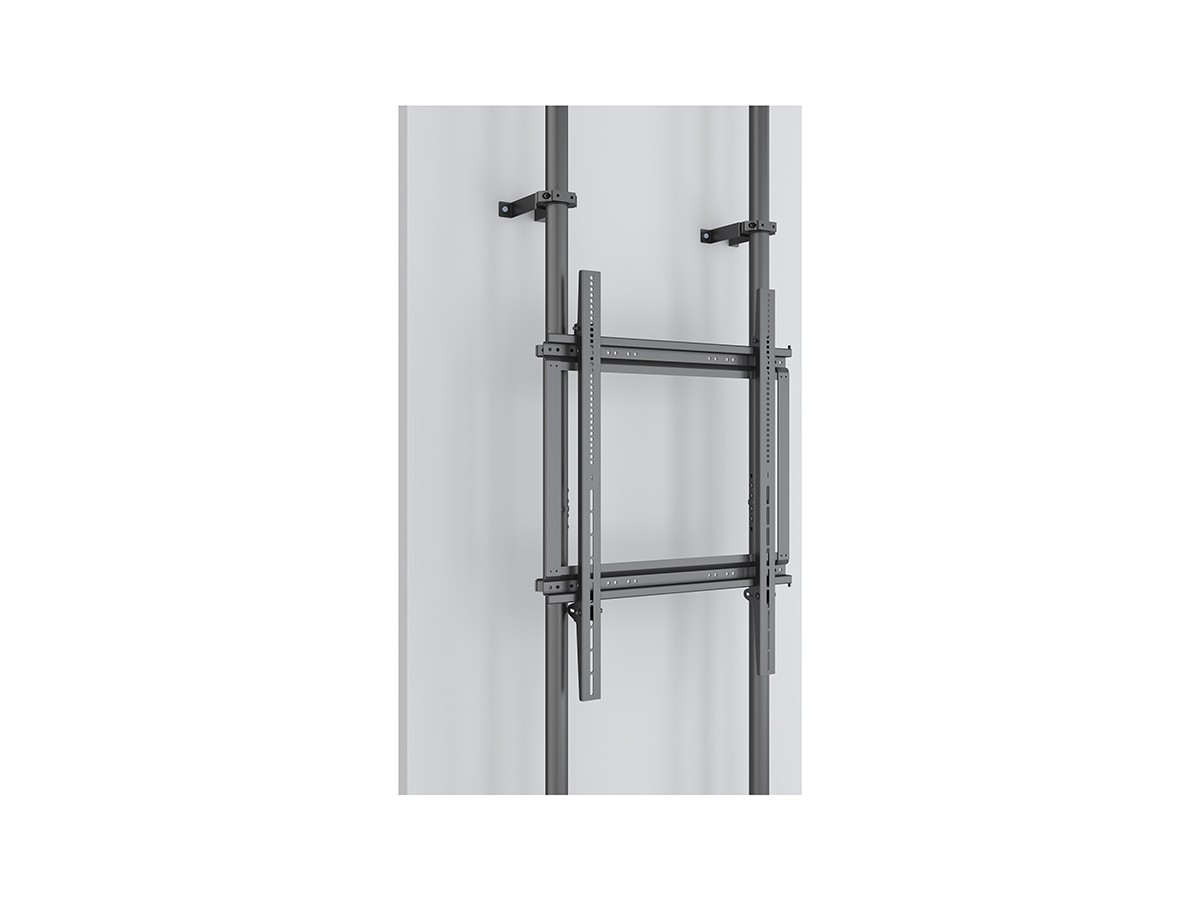

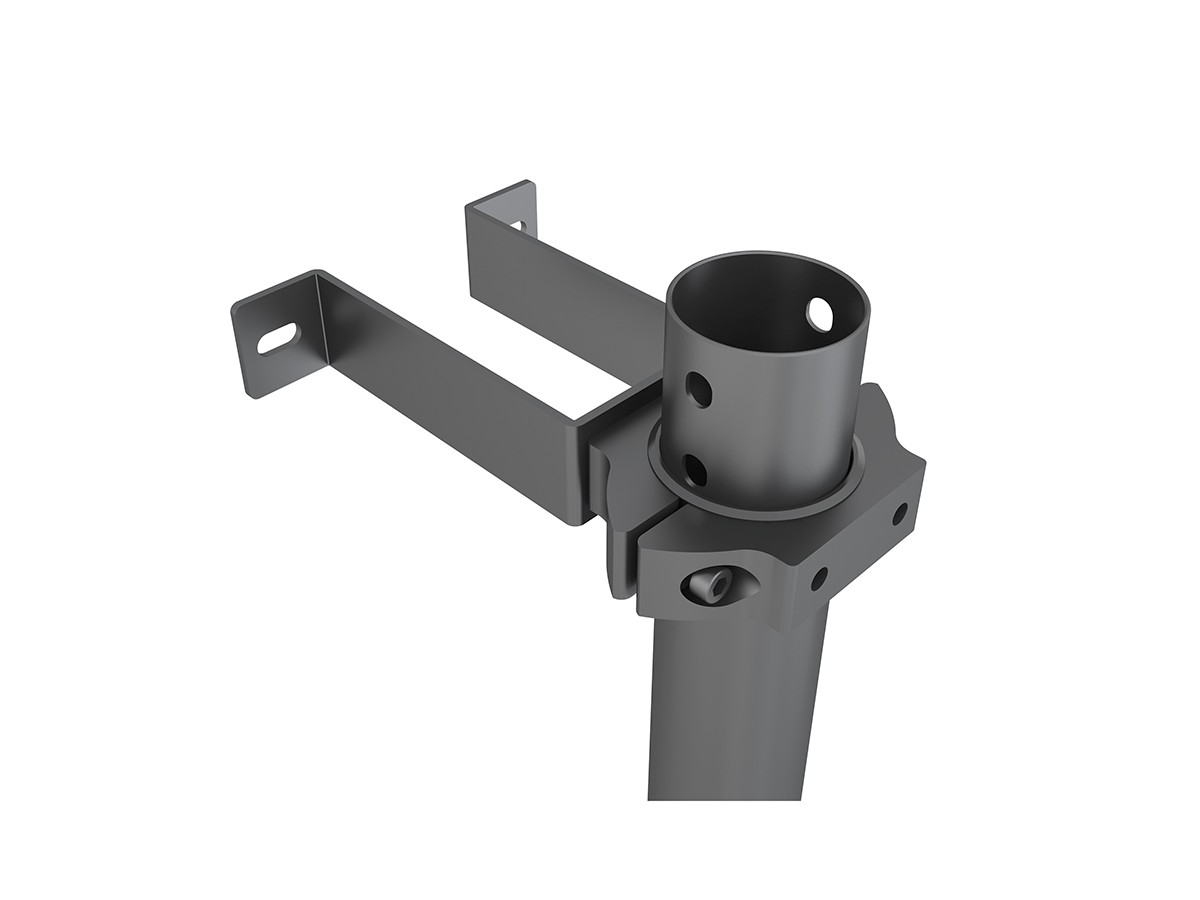

This M Floor to Ceiling Mount series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.
Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function.
Multibrackets Pro Series Public Floor to Ceiling Mount ideal for any large screen digital signage application
Highlights
- A professional, flexible and modular product
- Includes VESA adapters for compatibility up to VESA 600x900
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation

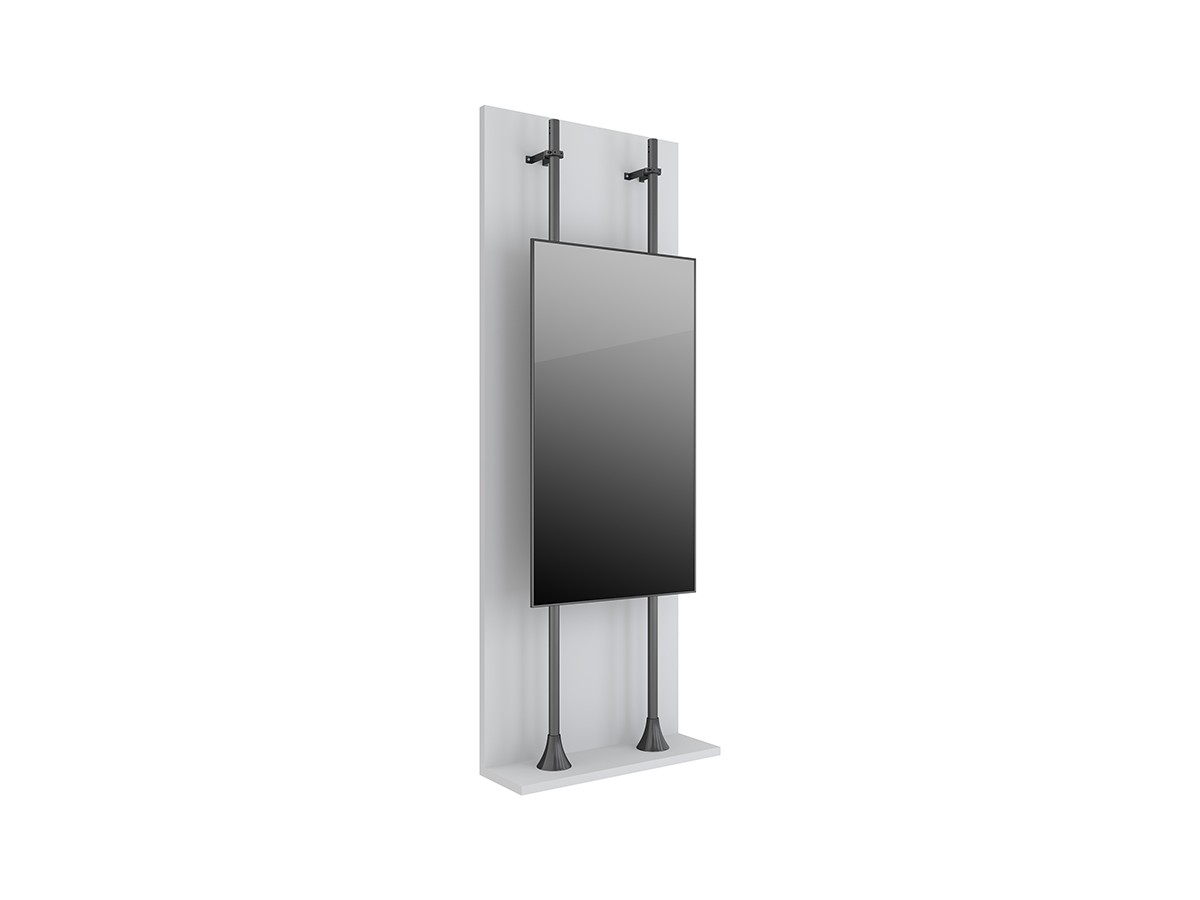

- Portrait or landscape position of screen possible

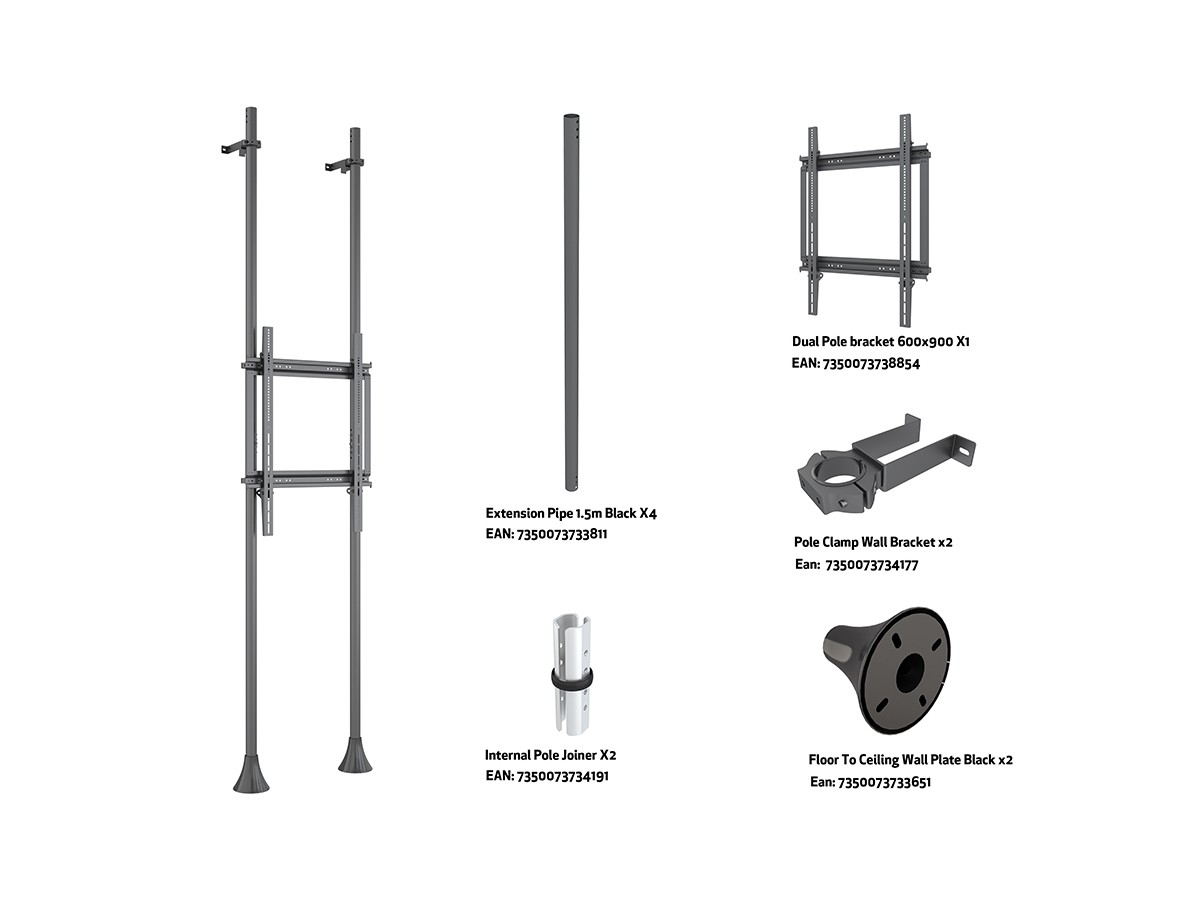

- 3 meter poles included (2x1500mm)
- Full hardware kit included
Selected models are TÜV approved.
MB Pro Series is design protected by Multibrackets
Additional information
| Article No: | 7 350 105 216 022 |
| For screen size: | 65"-100" |
| Type: | Single Side MBFW2P1UPHD |
| Universal & VESA standard: | 200x200, 300x300, 400x400, 400x600, 600x800, 600x900 mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 33 kg |
| Measurements | 161 x 16.2 x 14.5 cm |
| Max Load: | 125 kg per screen |
| Pillar length: | 3000mm, extension possible. Poles included: 3m (1500mm*2pcs per pole) |
| Tilt: | Yes, 0°-6° |
| Swivel: | No, 0° |
| Rotate: | No, 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |

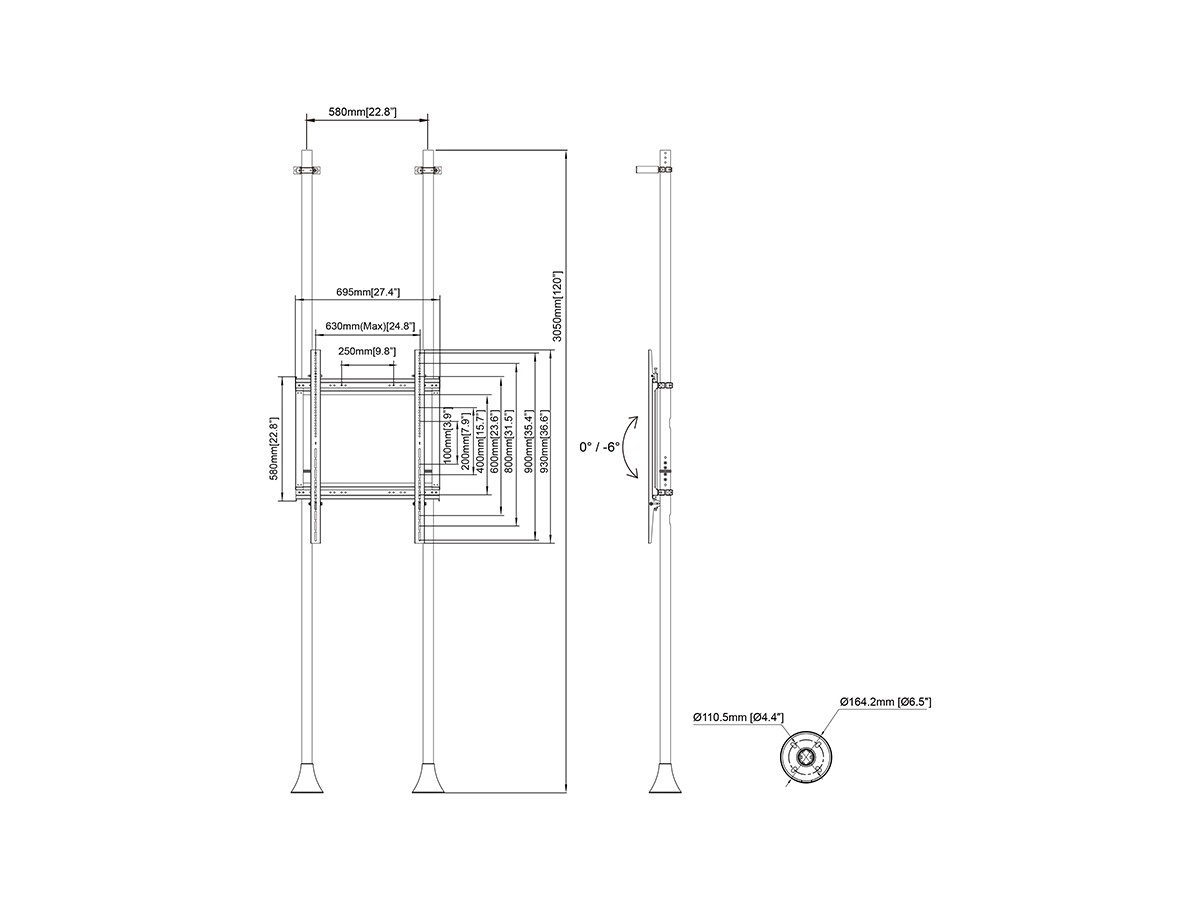

6022-drawing
