Multibrackets 7350105215506 M Motorized Ceilingmount Inverted Extensional w/lid 65
Product code:M Motorized Ceilingmount Inverted Extensional w/lid 65"-86" - mounting kit (tilt ceilingmount) for LCD TV - cold rolled steel - screen size: 65" - 86" - max 50 kg - VESA: 200x200 to 800x800 mm - white
SEND AN ENQUIRY DOWNLOAD FILES
Description

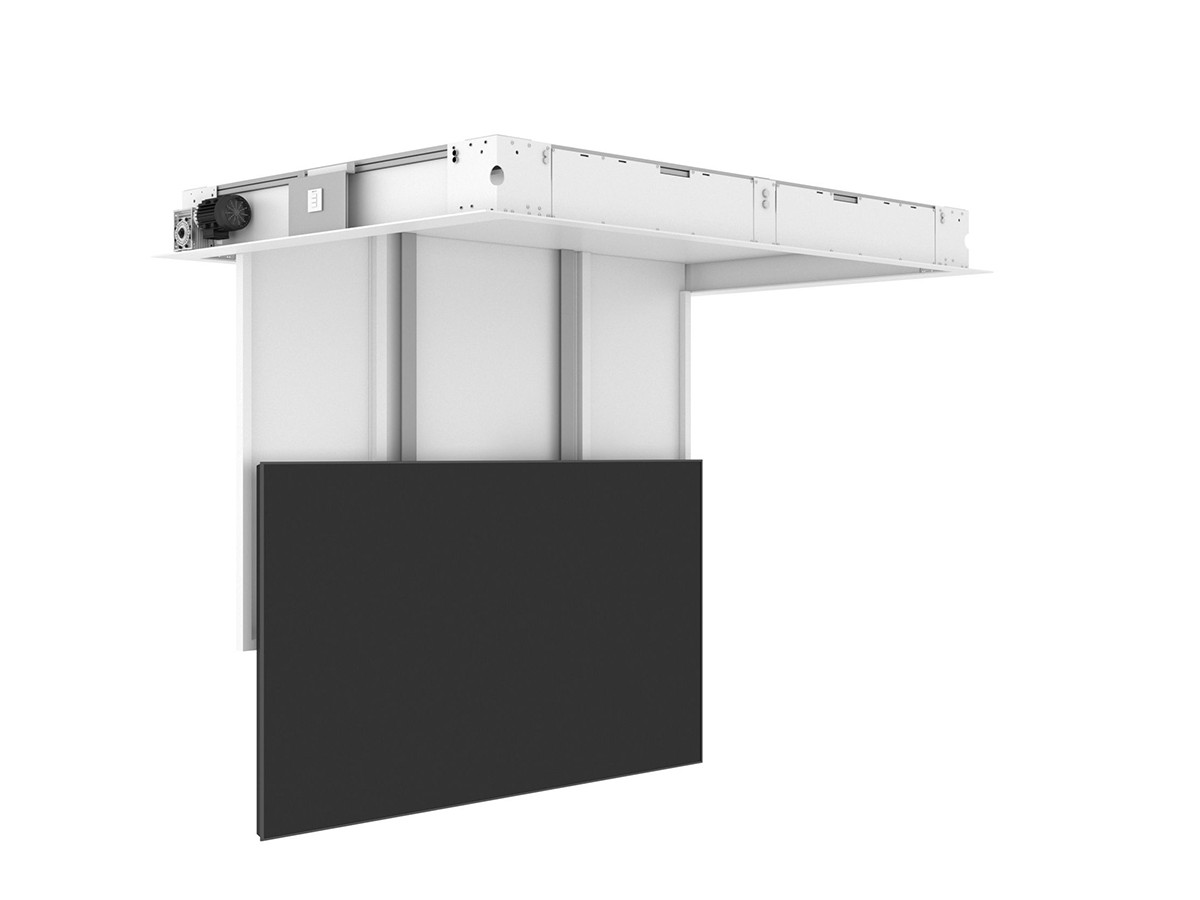

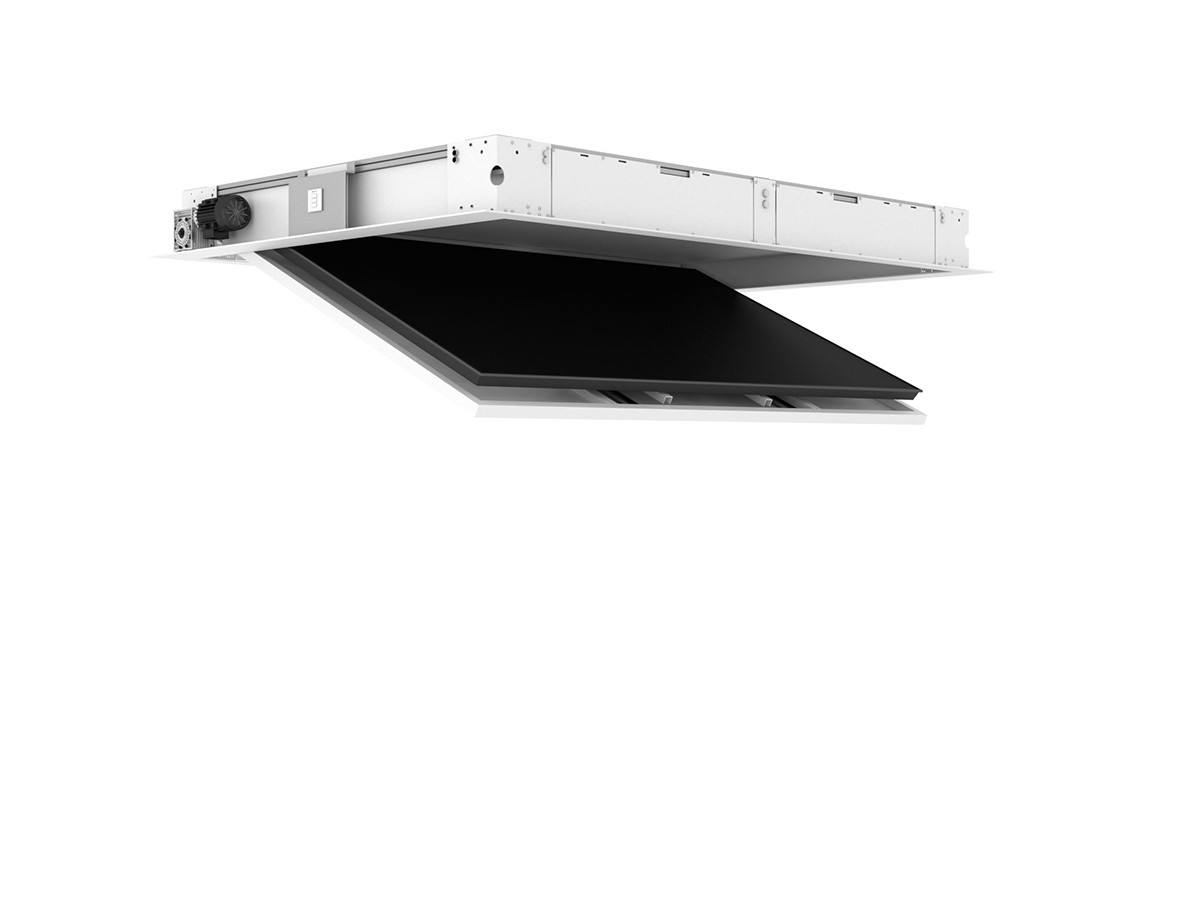

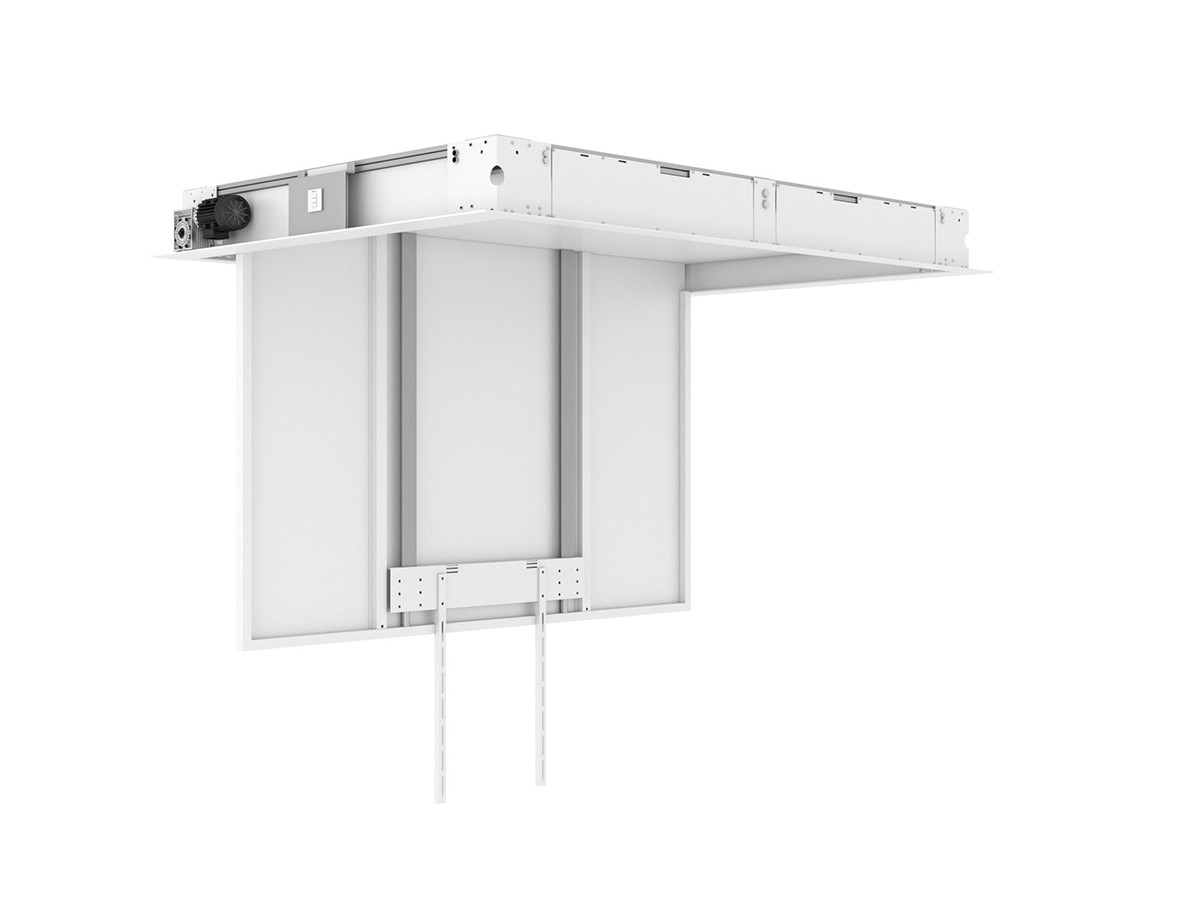

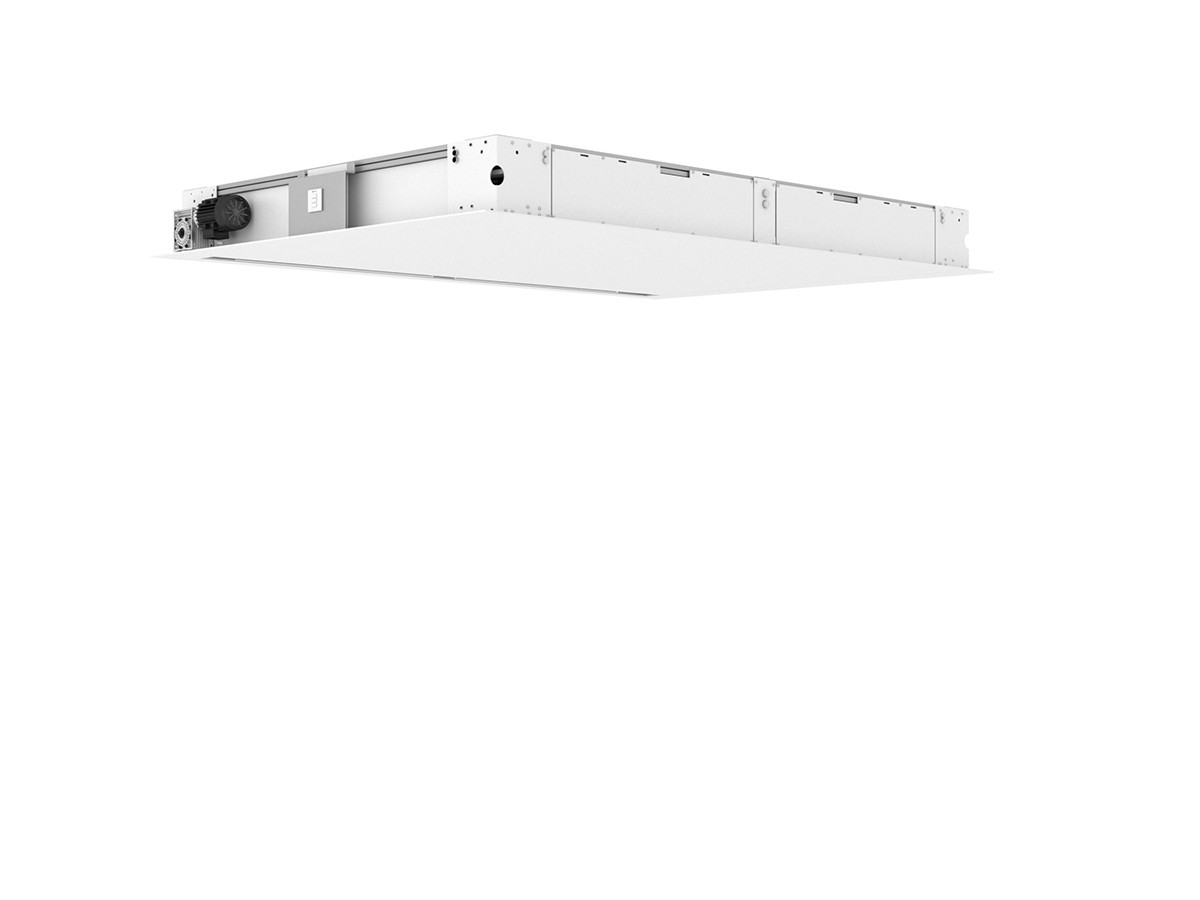

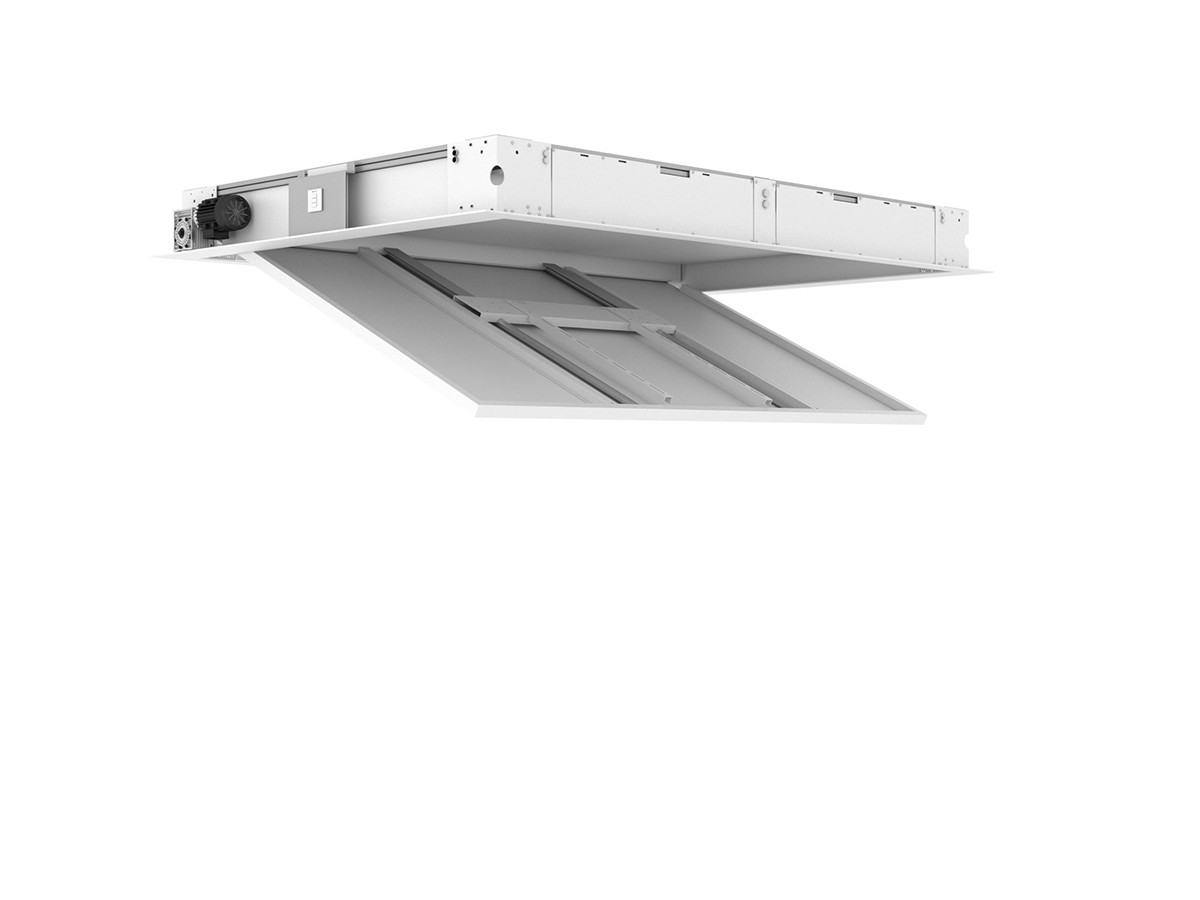

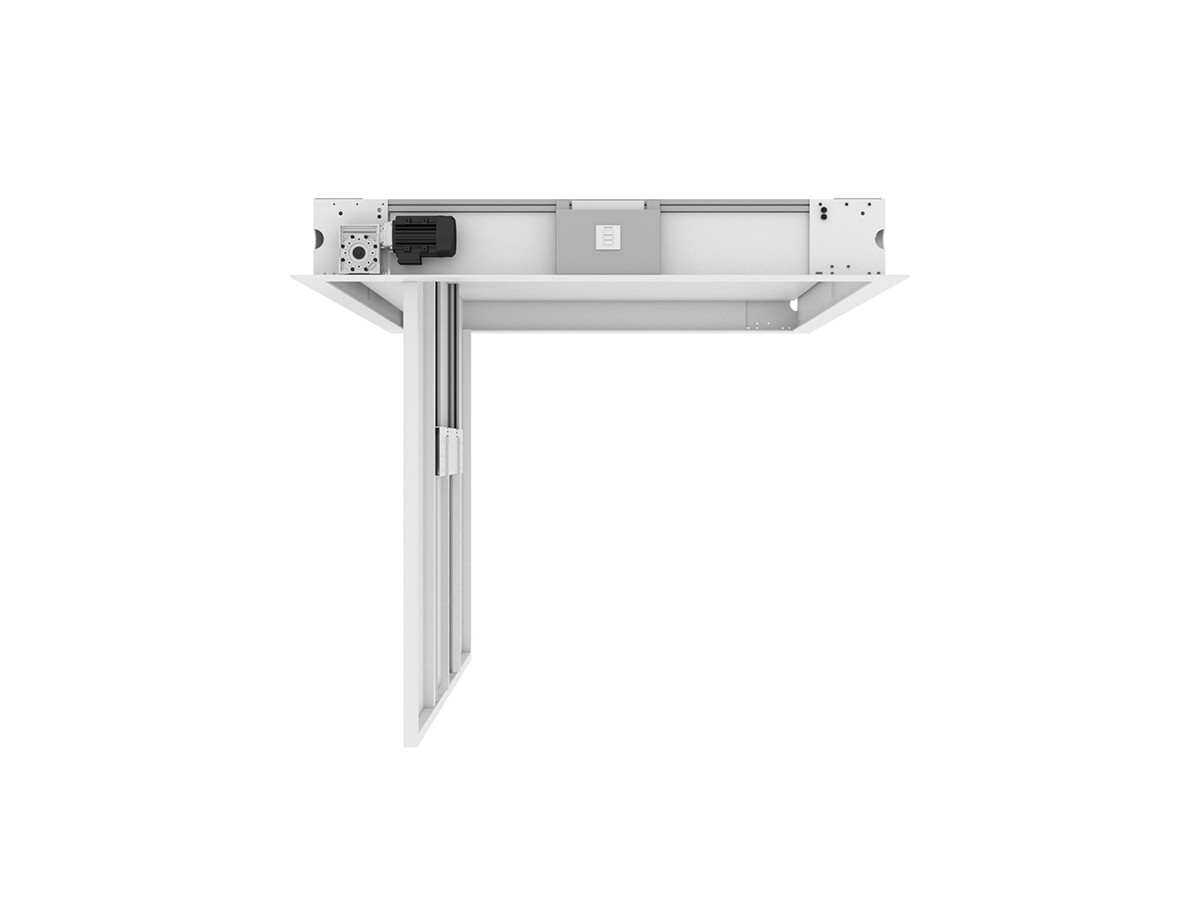

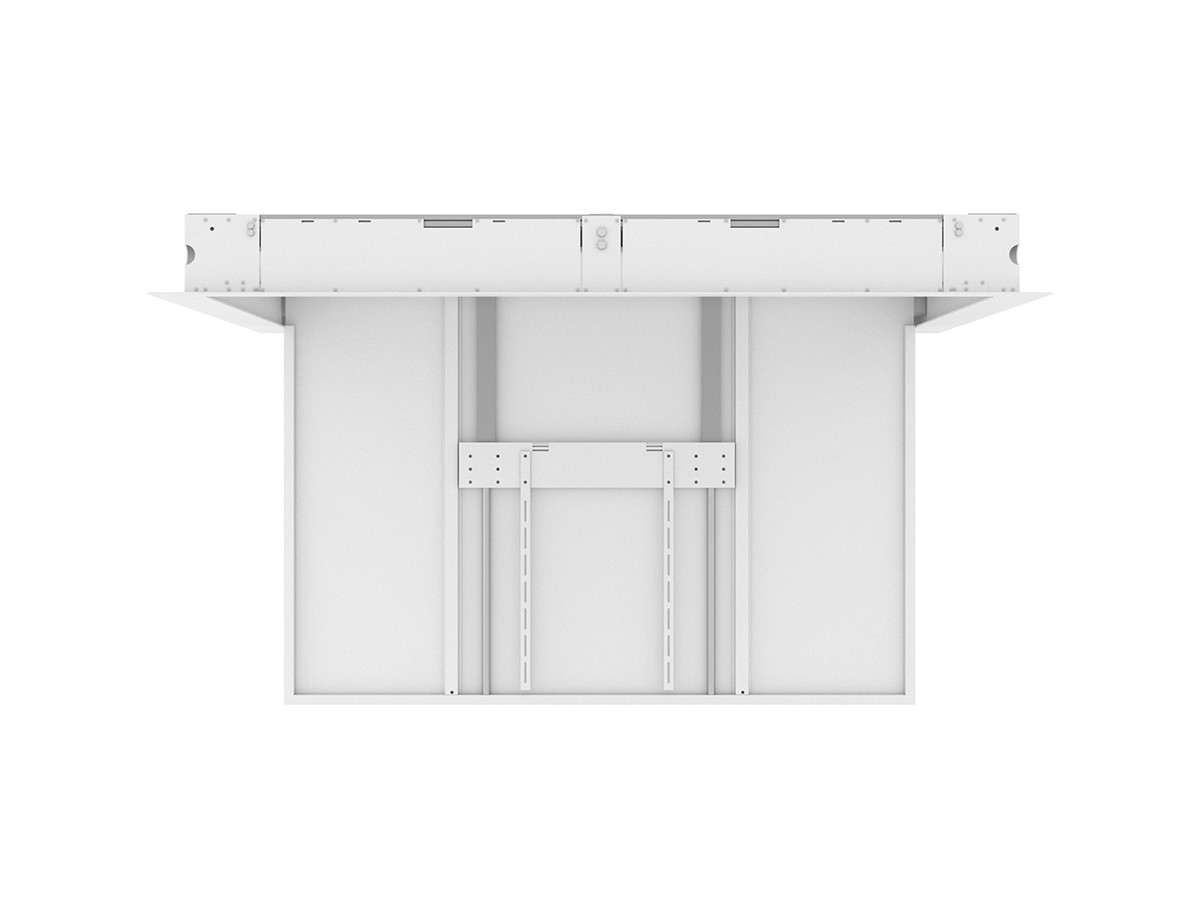

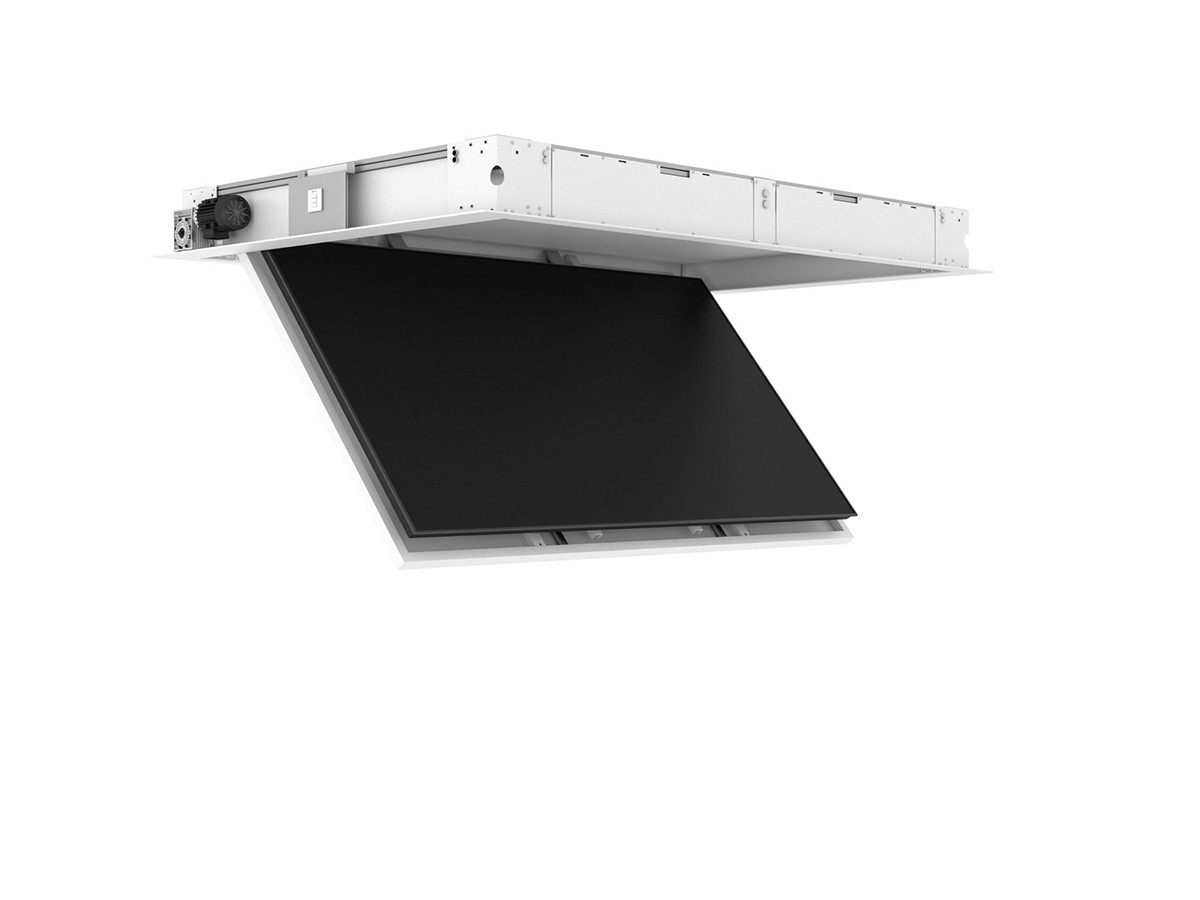

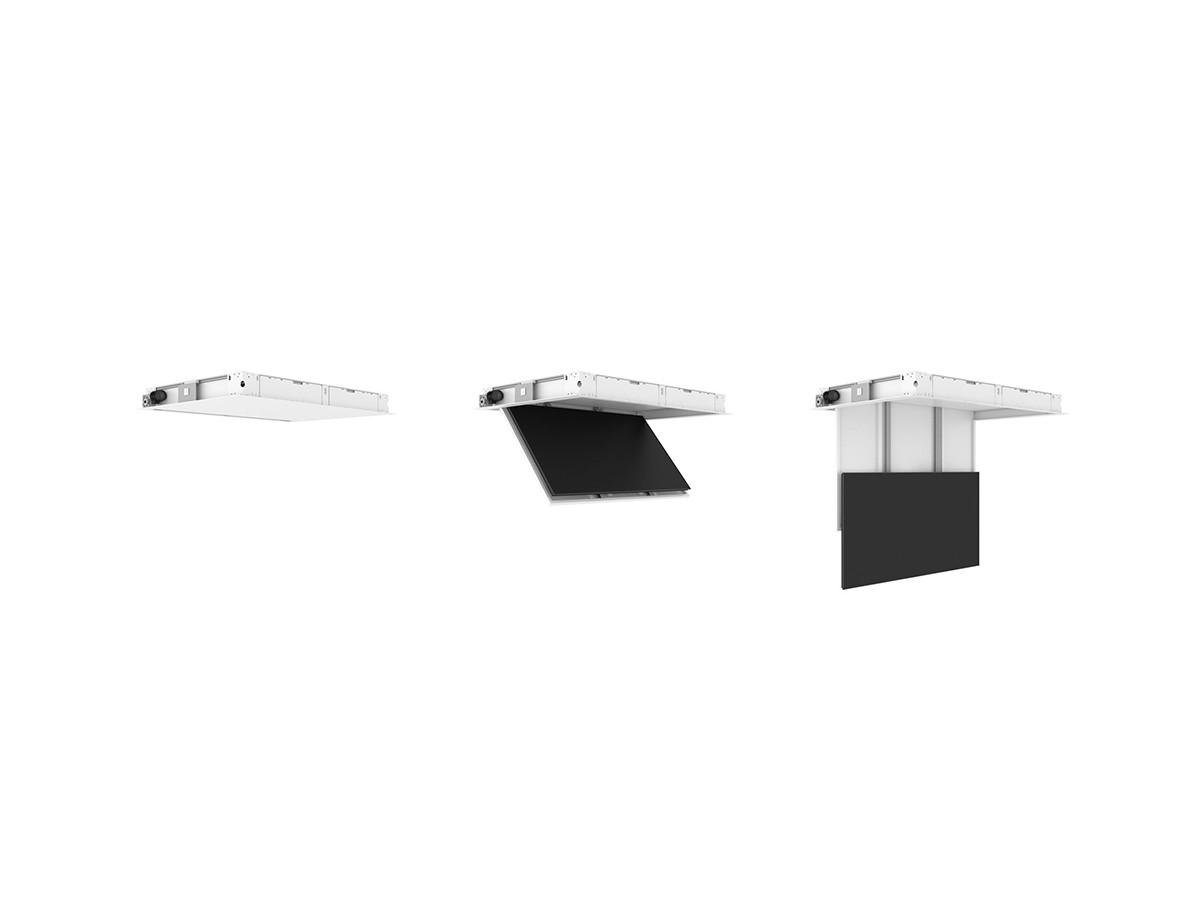

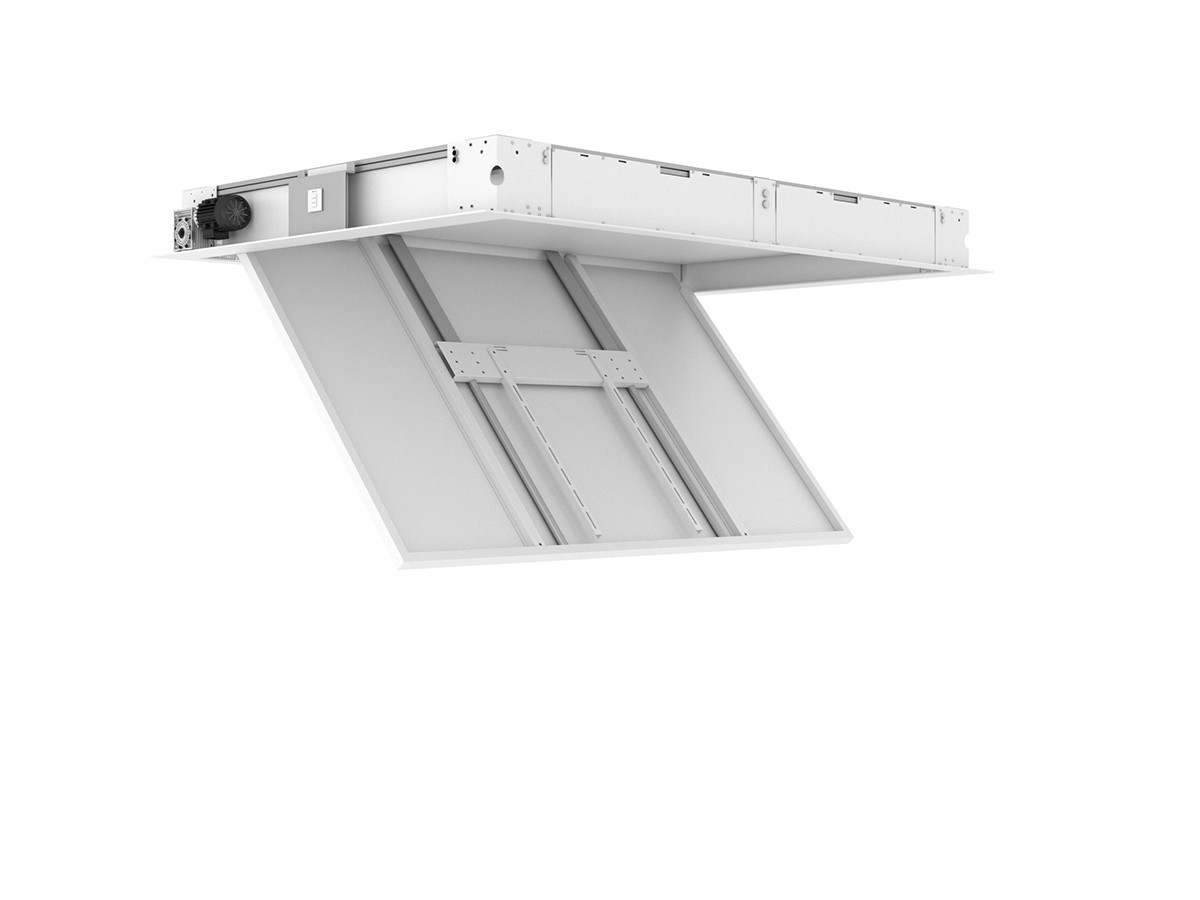

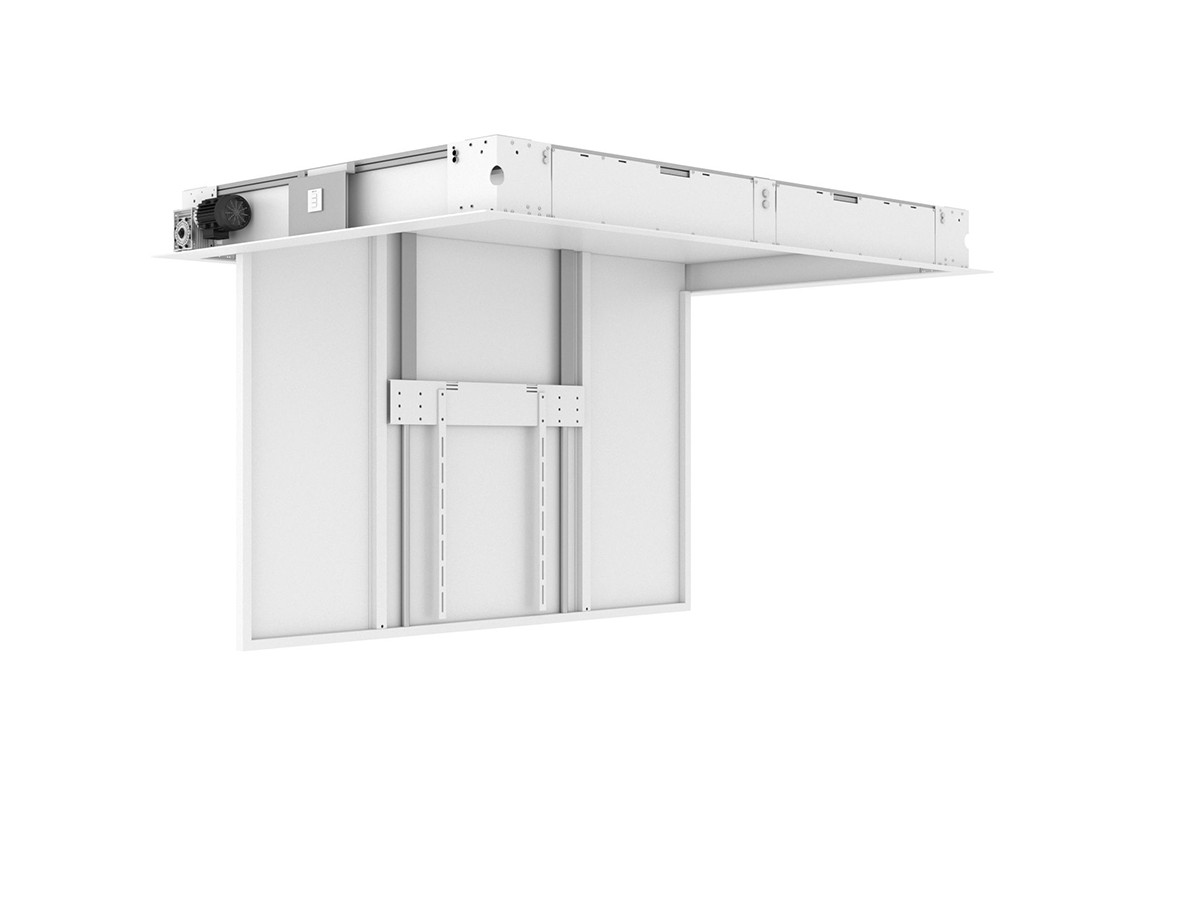

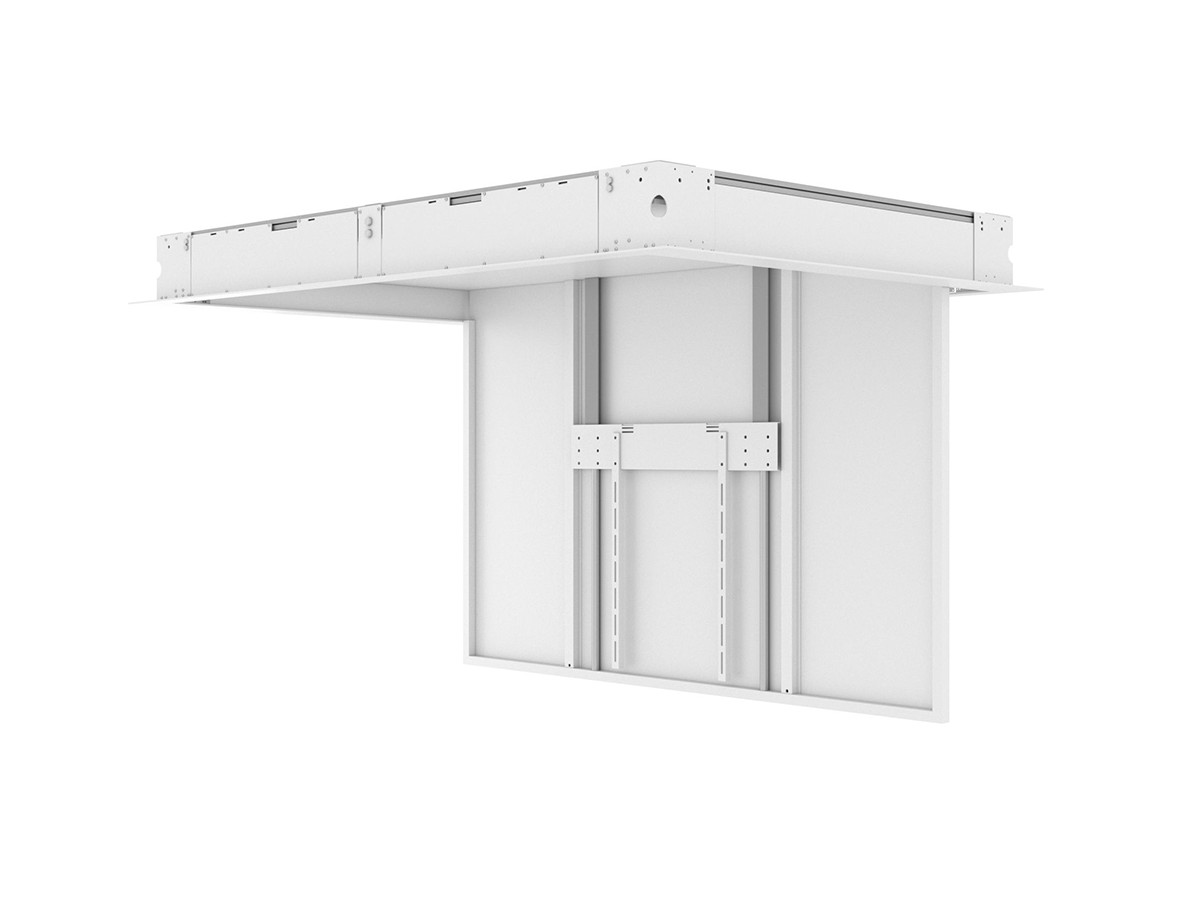

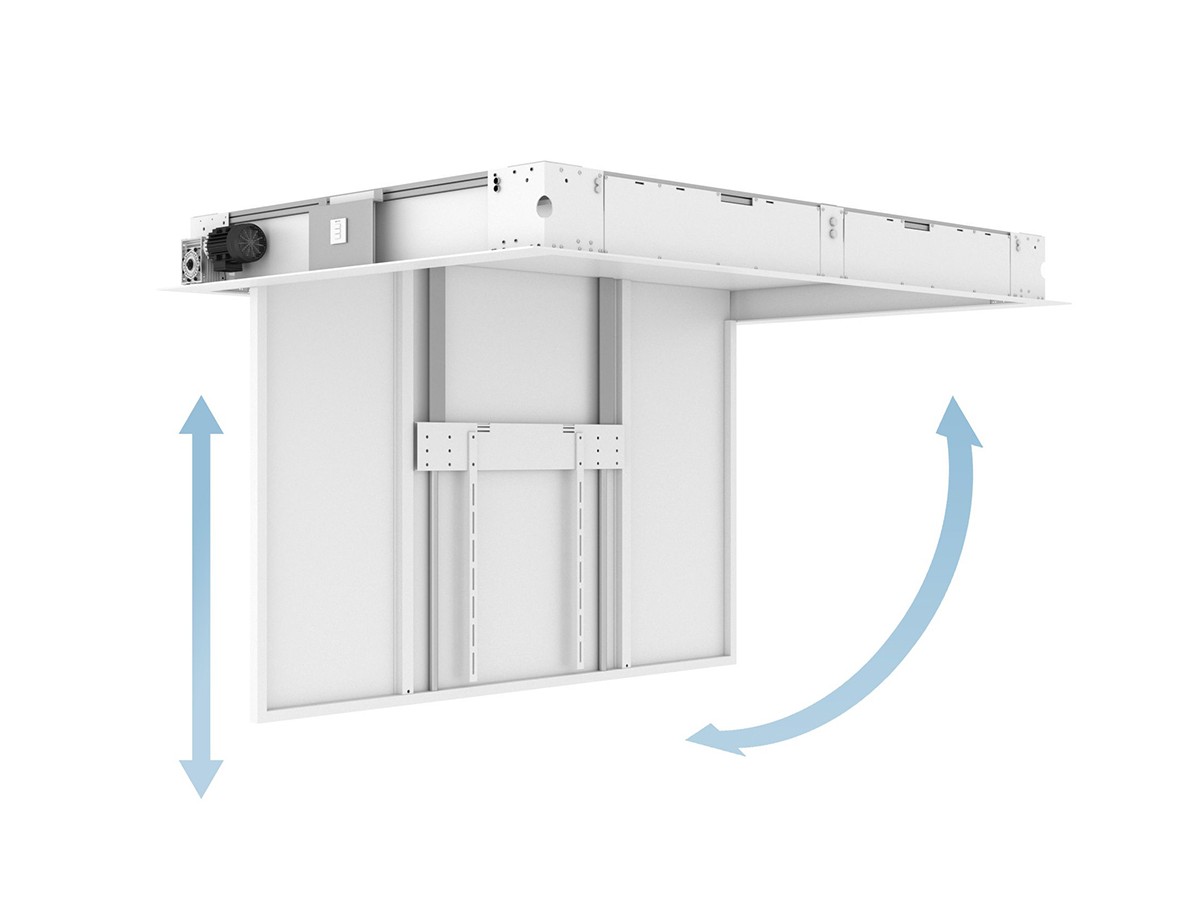

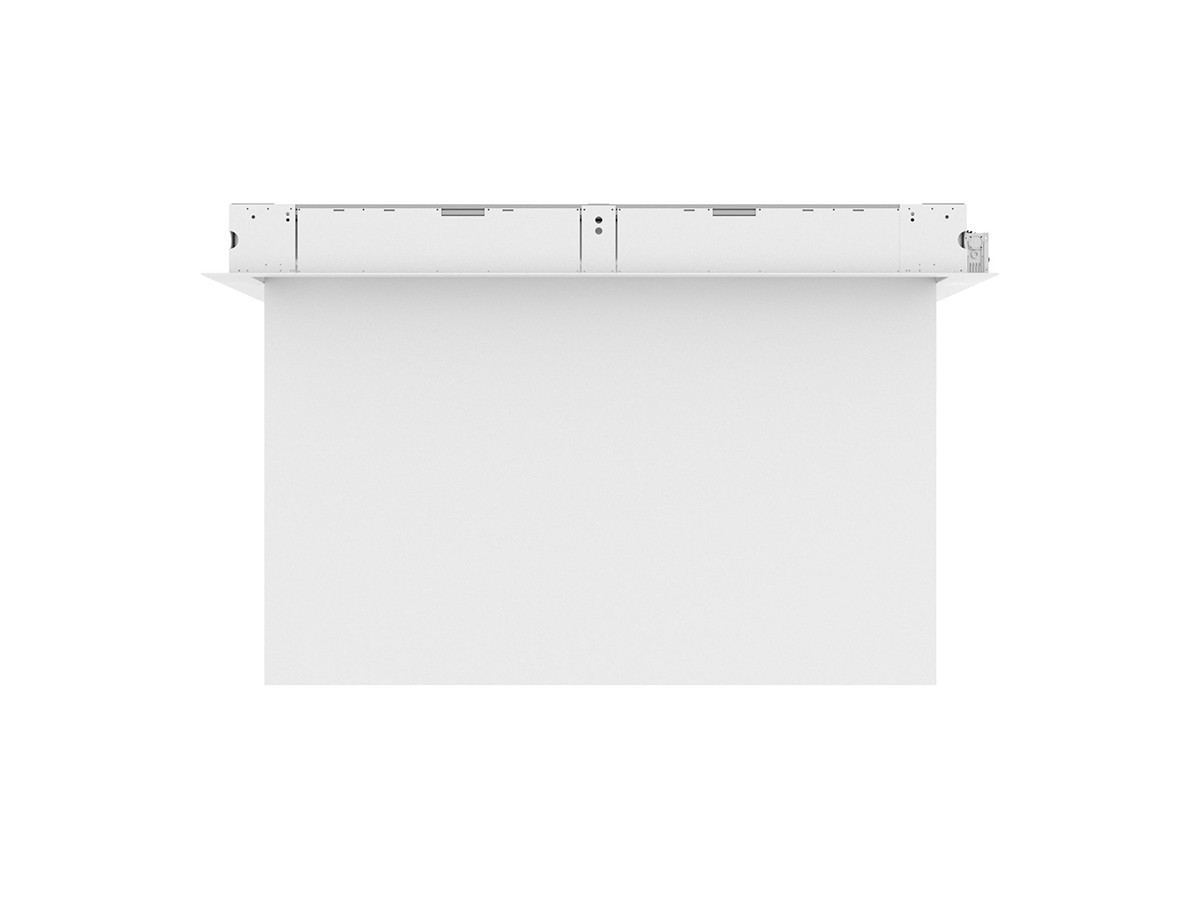

M Motorized Ceilingmount Inverted Extensional w/lid 65"-86" is a hidden motorized ceilingmount optimized for displays between 65" and 86” size. ideal mount for your TV installation when in need of the. Often placed in bedrooms, kitchens, offices, schools or stores it can fold your screen down or up -108° - 0°. This under the cabinet/ ceiling mount includes a locking system to keep the screen in position and is a very practical solution supporting screens both smaller and larger.

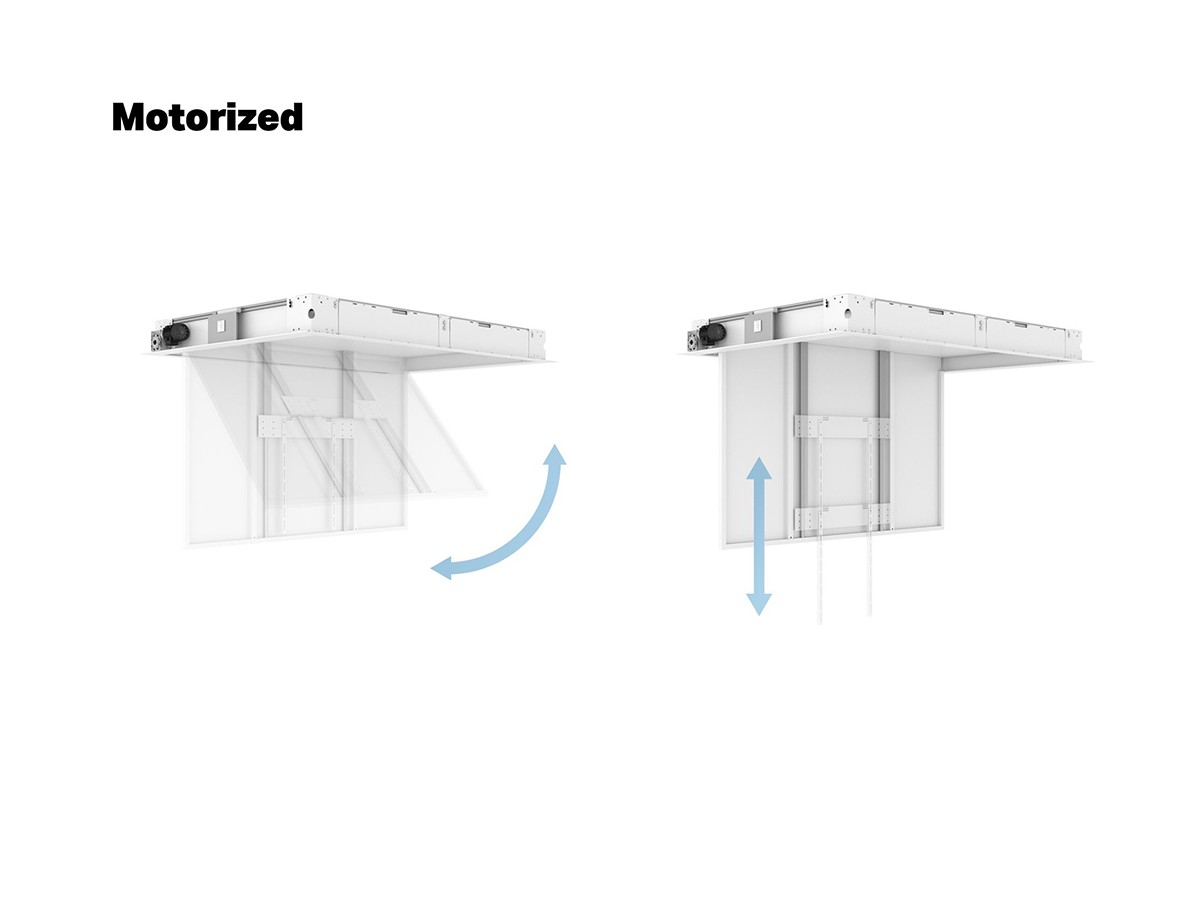

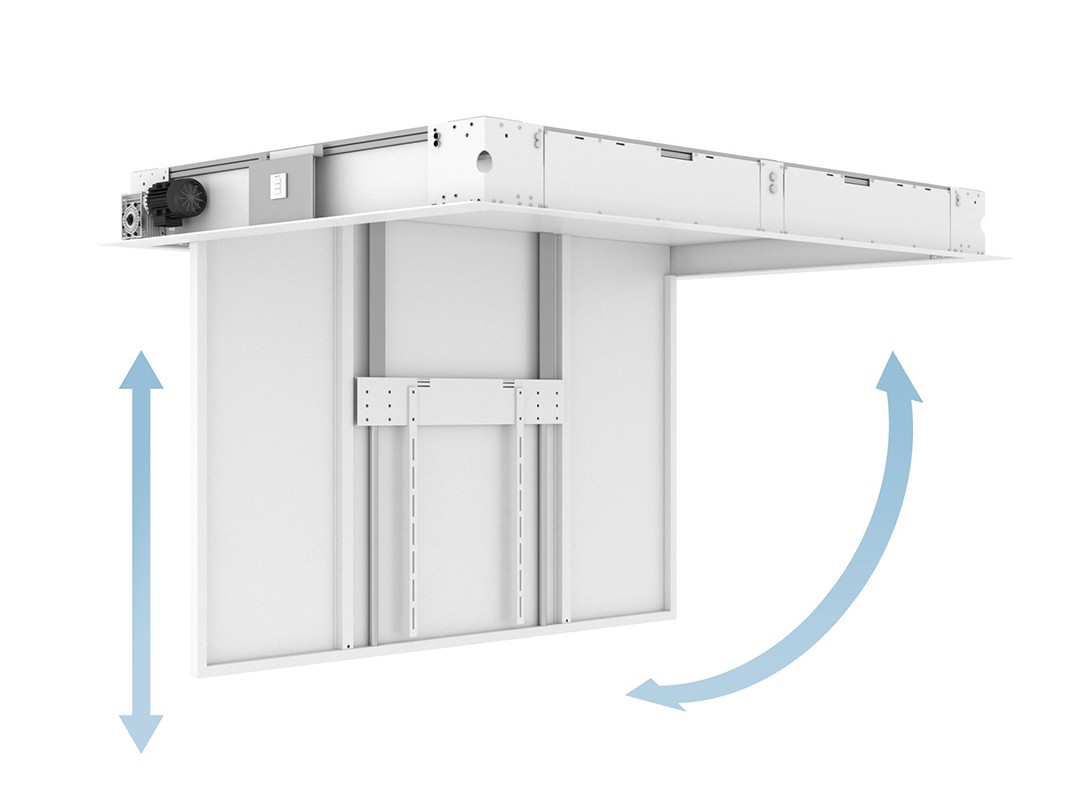

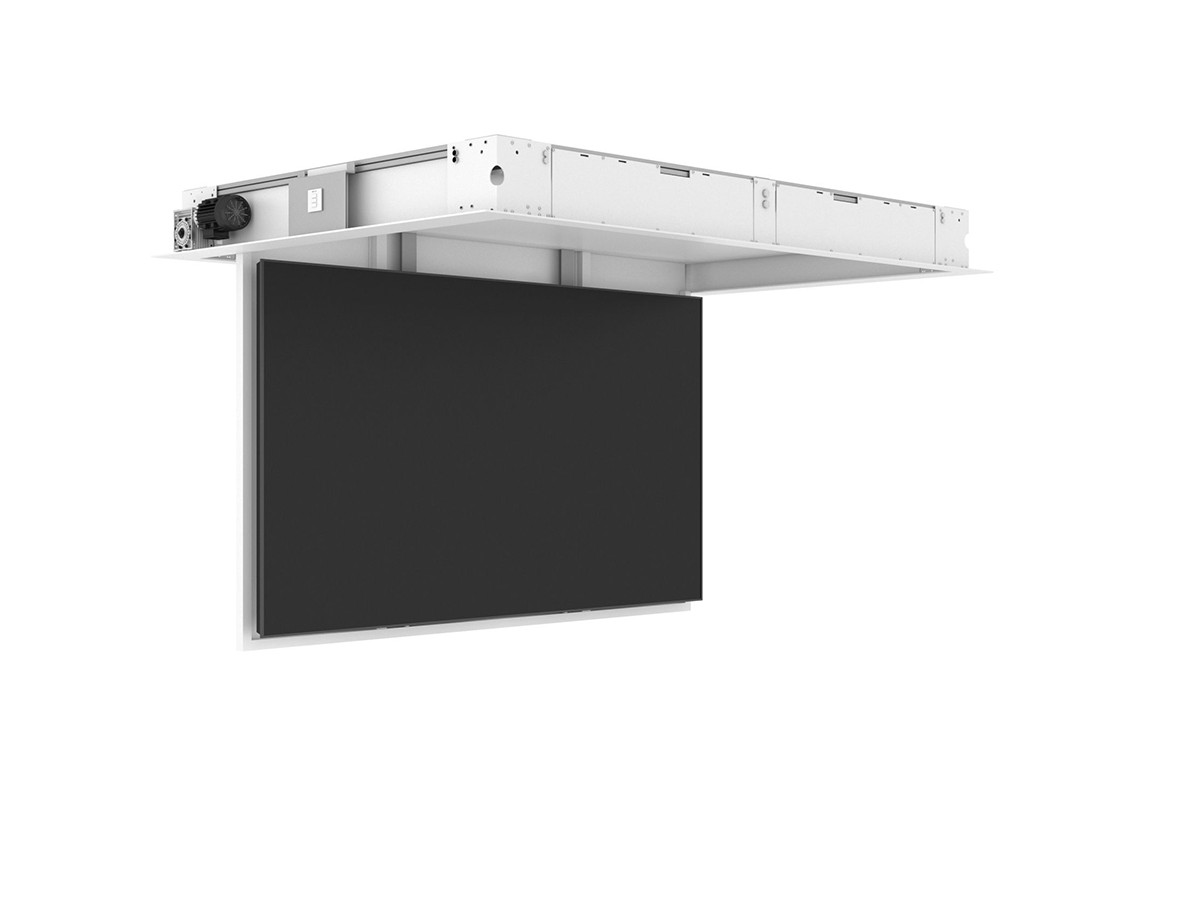

The M Motorized Ceilingmount Inverted Extensional w/lid 65"-86" uses a rapid motorized flip down transition technique with little noise. Use the included remote control to fold down or flip up the TV. Multiple ceiling mounts can be controlled with one remote control, if the sensors of the ceilingmounts are close.
Maximum height of screen is 393mm, measured from the upper VESA hole to ceiling,
Highlights
- The ideal solution for a ceiling motorized flip down of your TV
- Rapid motorized transition up and down folded position
- Max screen weight capacity: 50 kg
- Remote control included
- RS232 interface
- Remote control, multi-style operation, remote control / remote control / central control
Additional information
| For screen size: | 65"-86" |
| VESA standard: | 200x200, 300x300, 400x400, 600x600, 800x800mm |
| Article No: | 7 350 105 215 506 |
| Colour: | White |
| Max load: | 50 kg |
| Tilt angle: | 0-105° |
| Certification: | CE |
| Power: | 220V 50/60Hz 4.0uF 0.65A 1300/1600r/min (open-close time 70 sec) Cable length: 2m |
| Remote control: | RF intelligent remote control operation included. Batteries not included RS-232 interface availiable |
| Weight: | 160 kg |

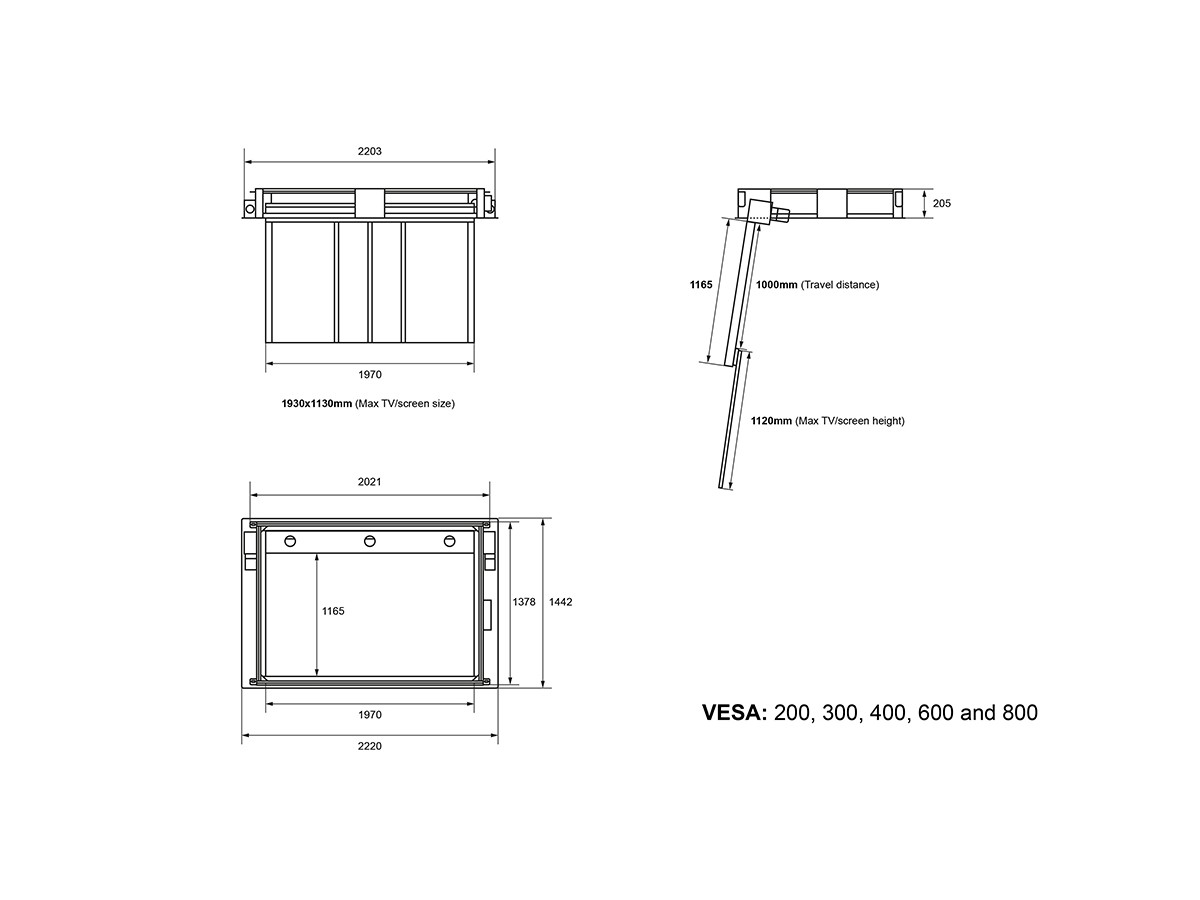

| Size in mm: | 2220 x 1442 x 1165 mm |
| Warranty: | 1 year |
