Multibrackets 7350105215360 M Menu Board Mount Pro MBC5X1U
Product code:M Menu Board Mount Pro MBC5X1U - Ceiling mount for LCD display, steel, 0.8m pole height, 5 screens, single side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black
SEND AN ENQUIRYDescription

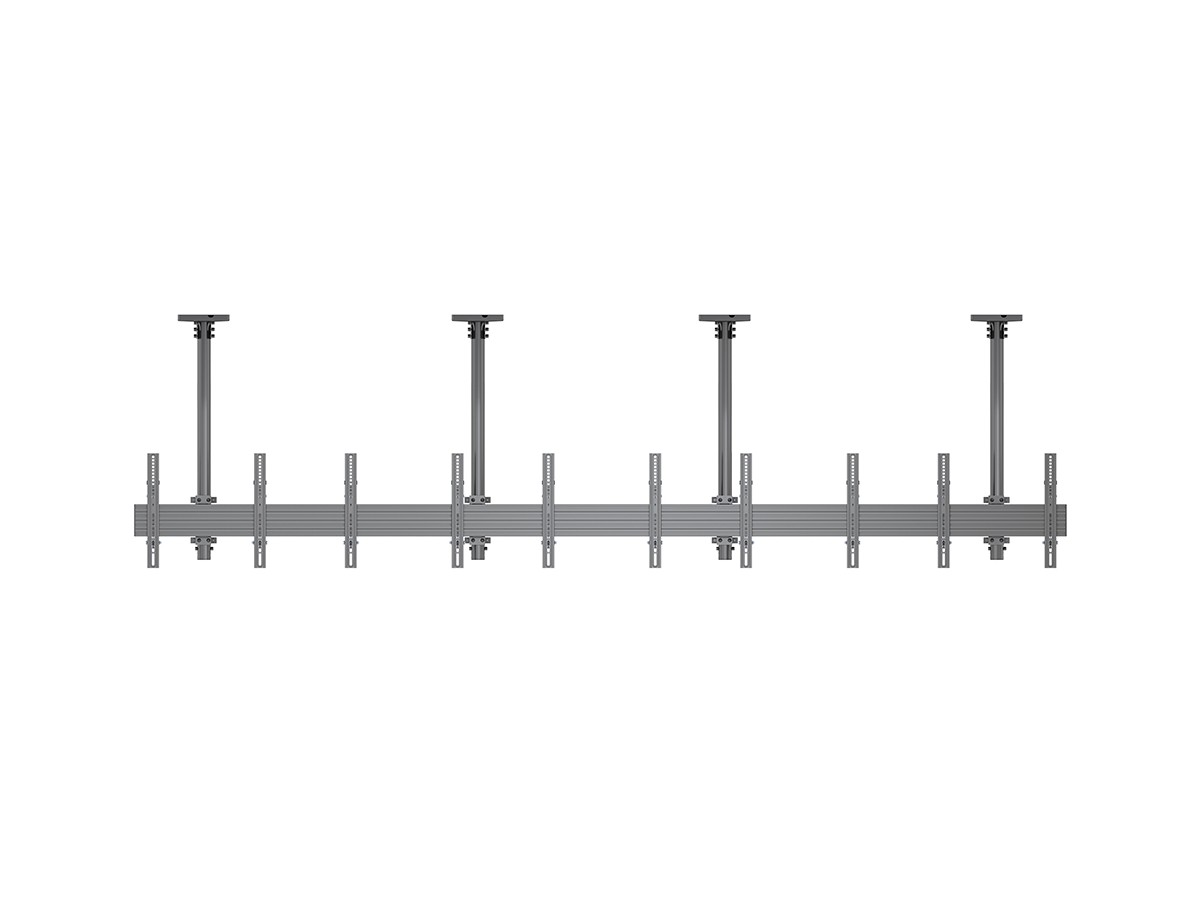

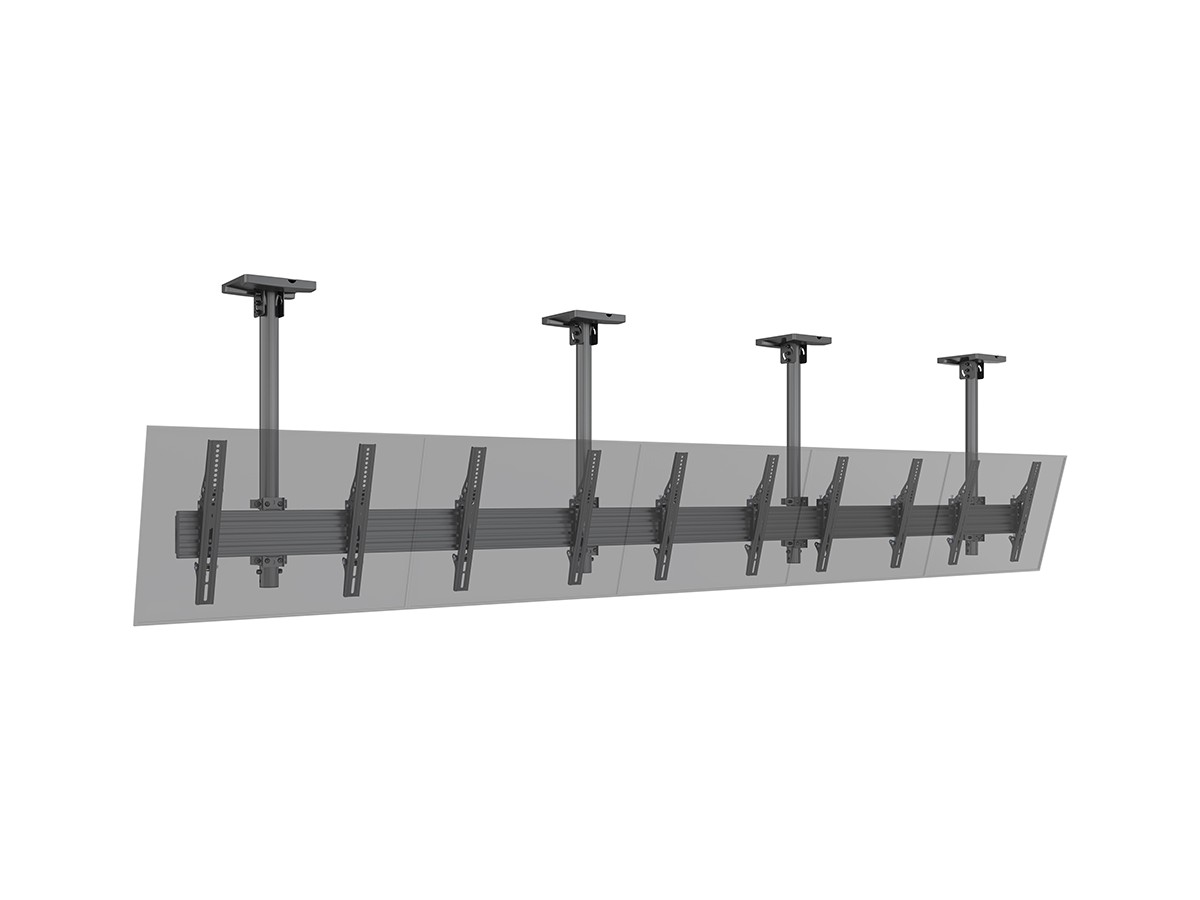

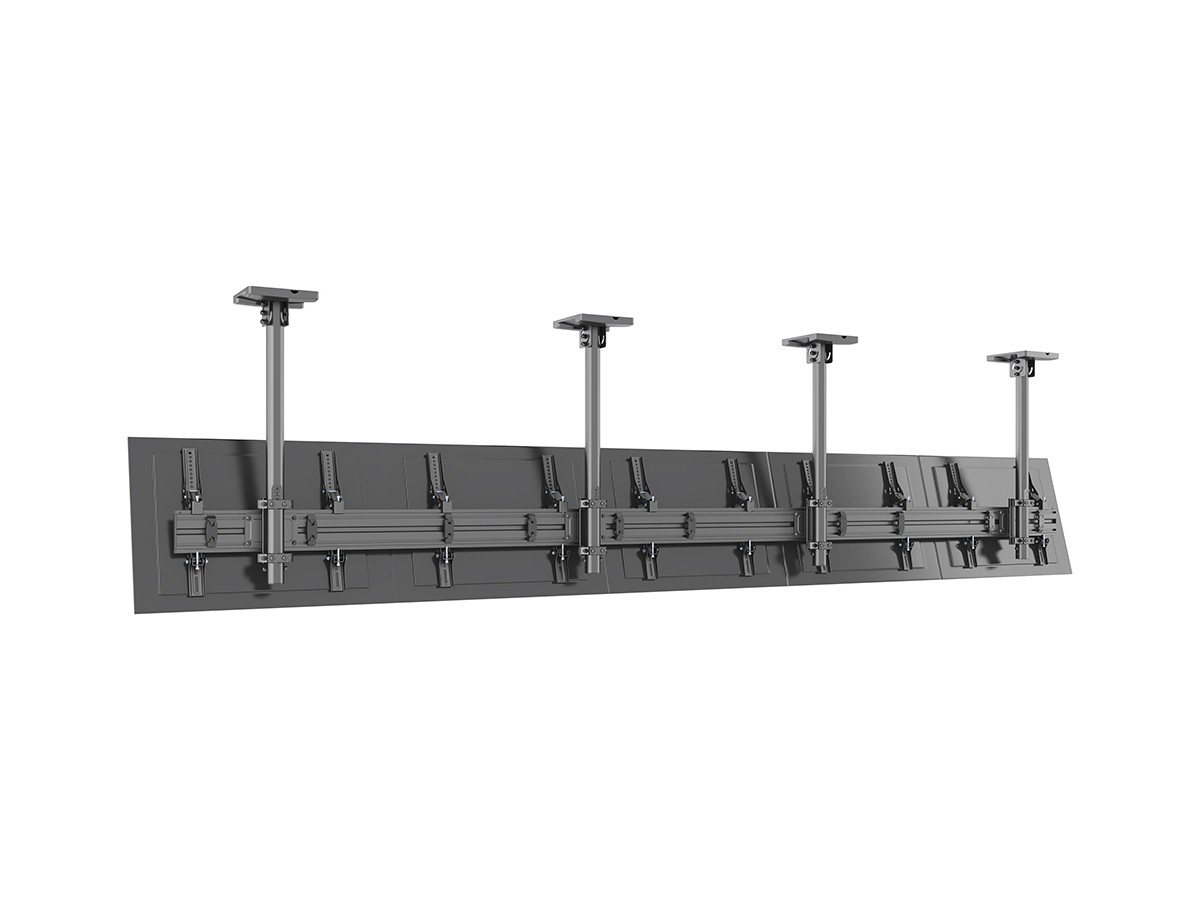

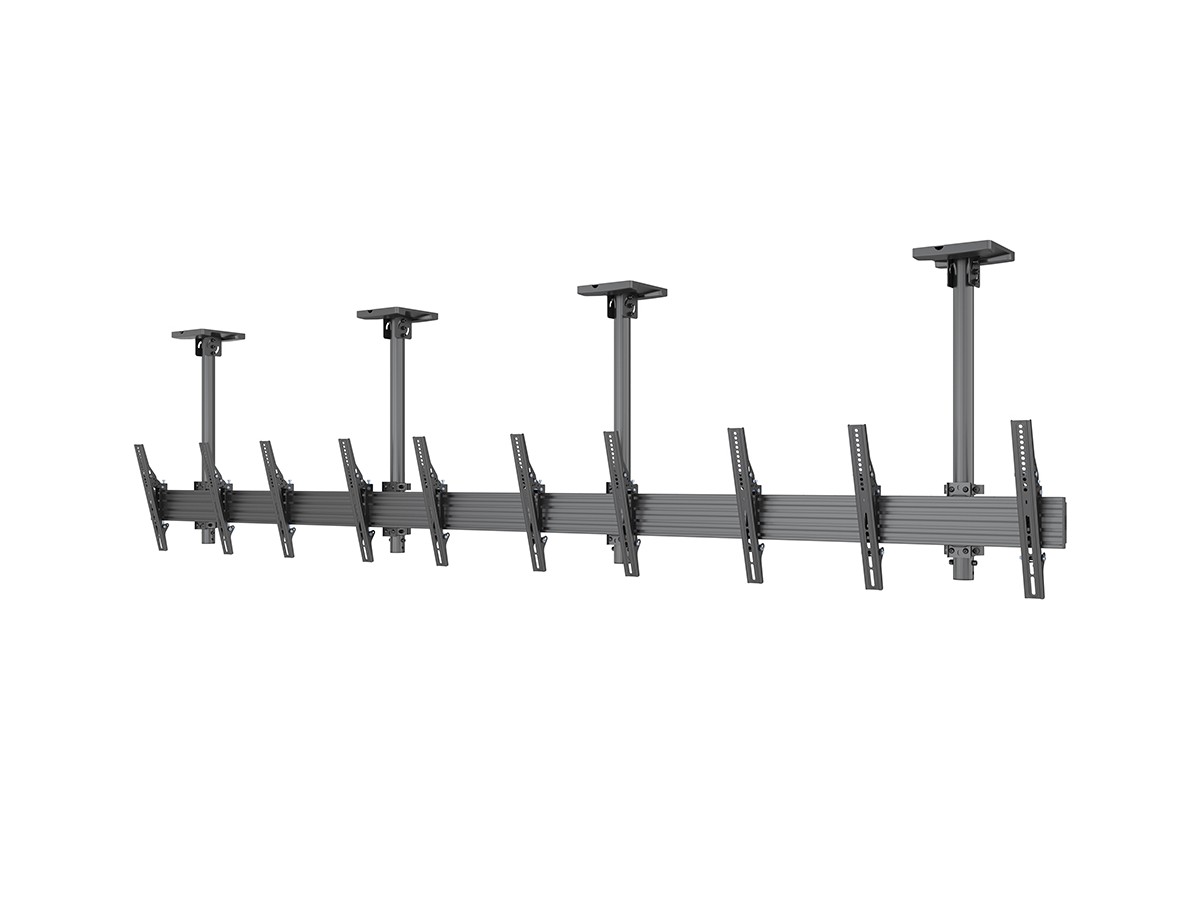

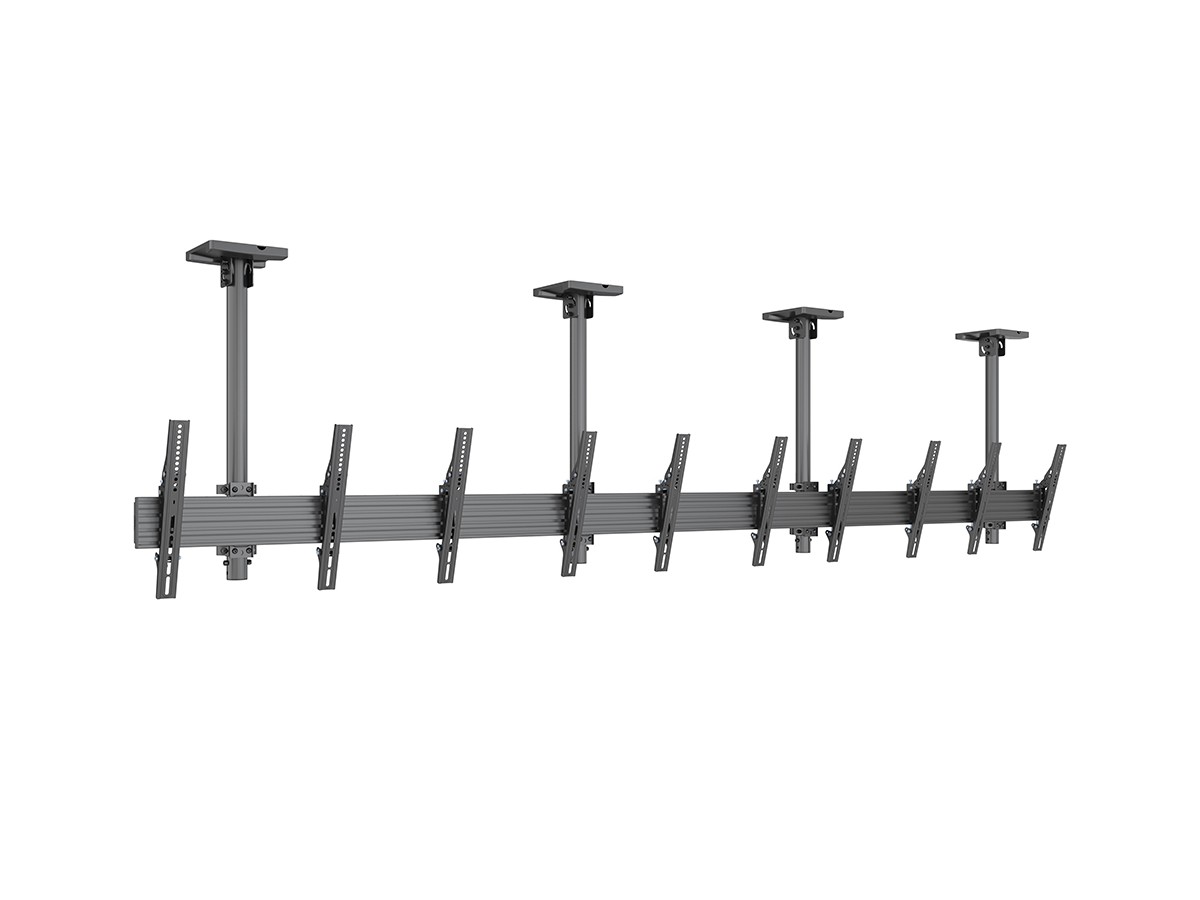

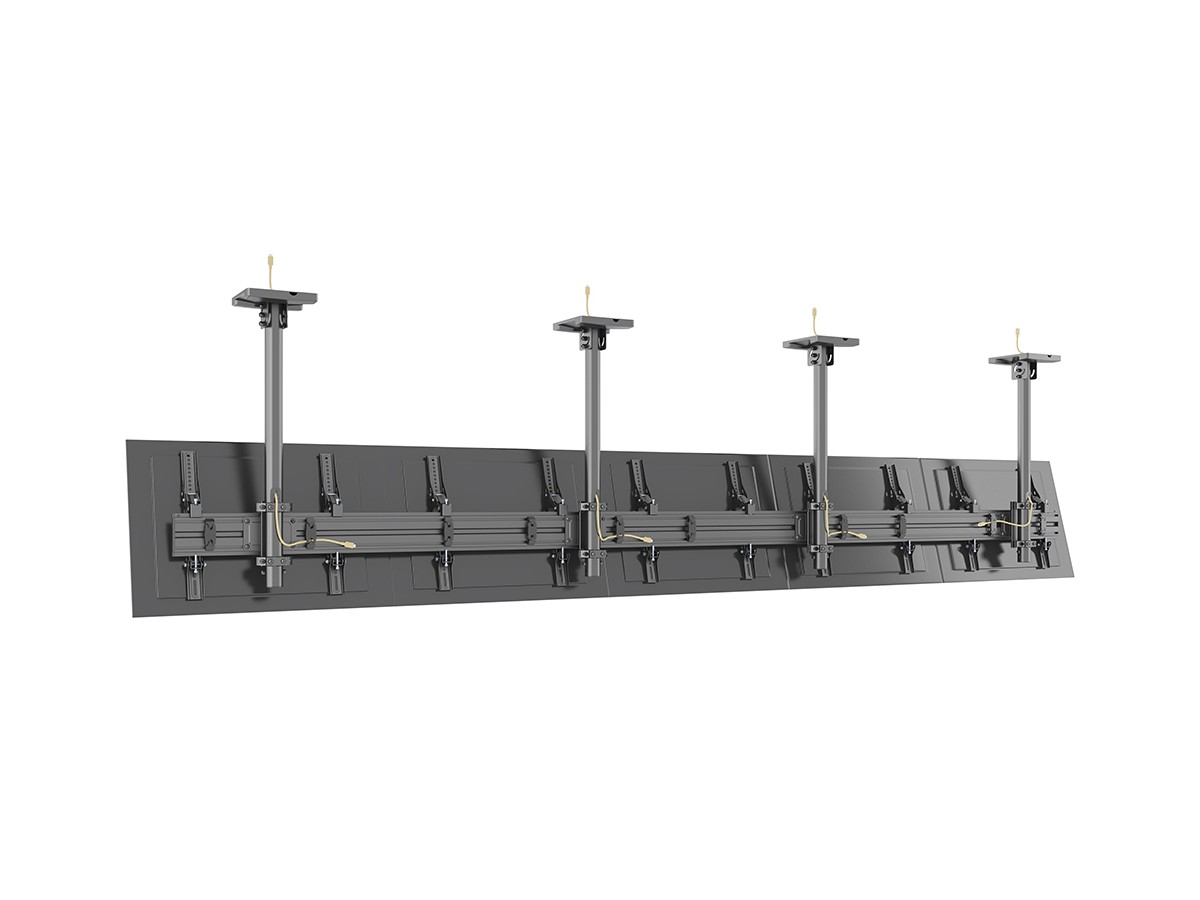

The M Menu Board Mount Pro MBC5X1U is our 5 screen side by side menuboard system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBC5X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
Pro Series Menu boards can be tailored to fit the exact needs of each installation.

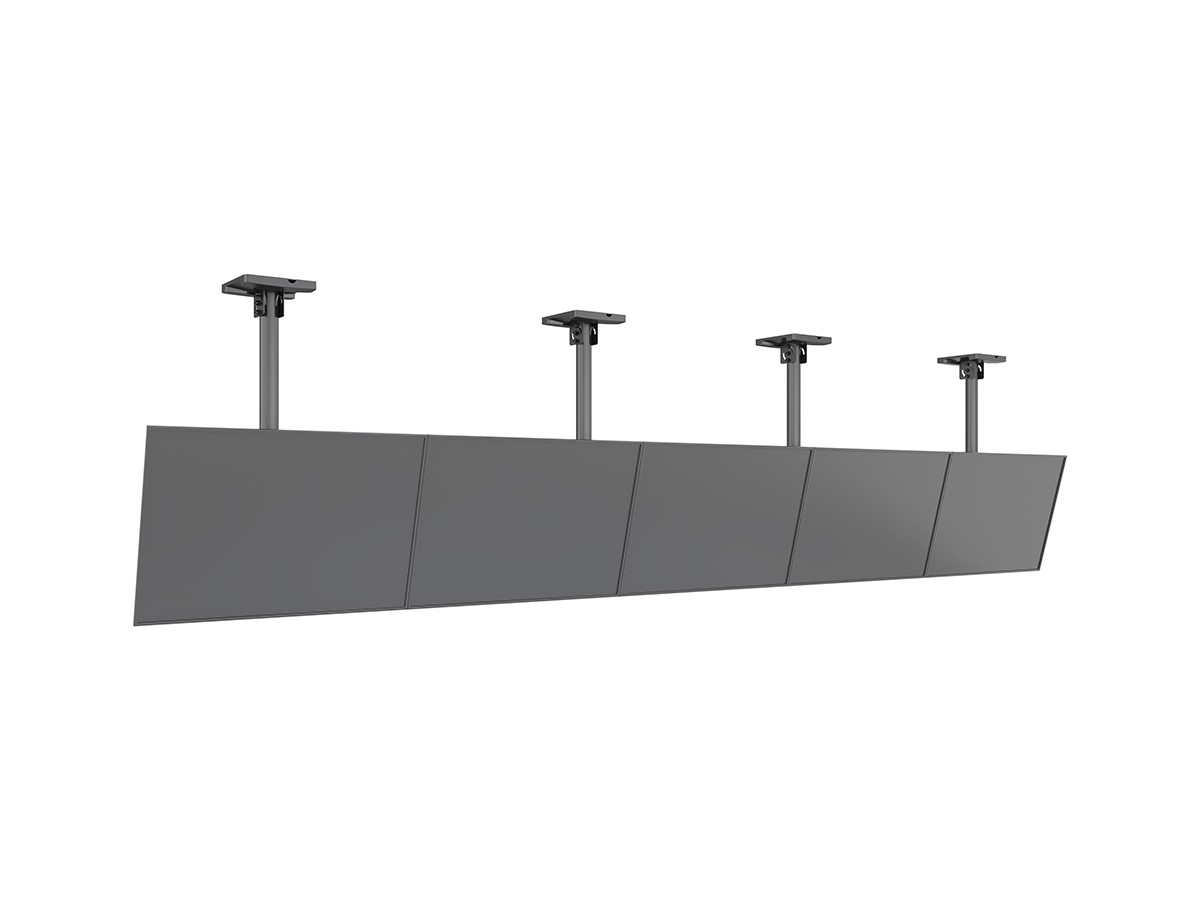

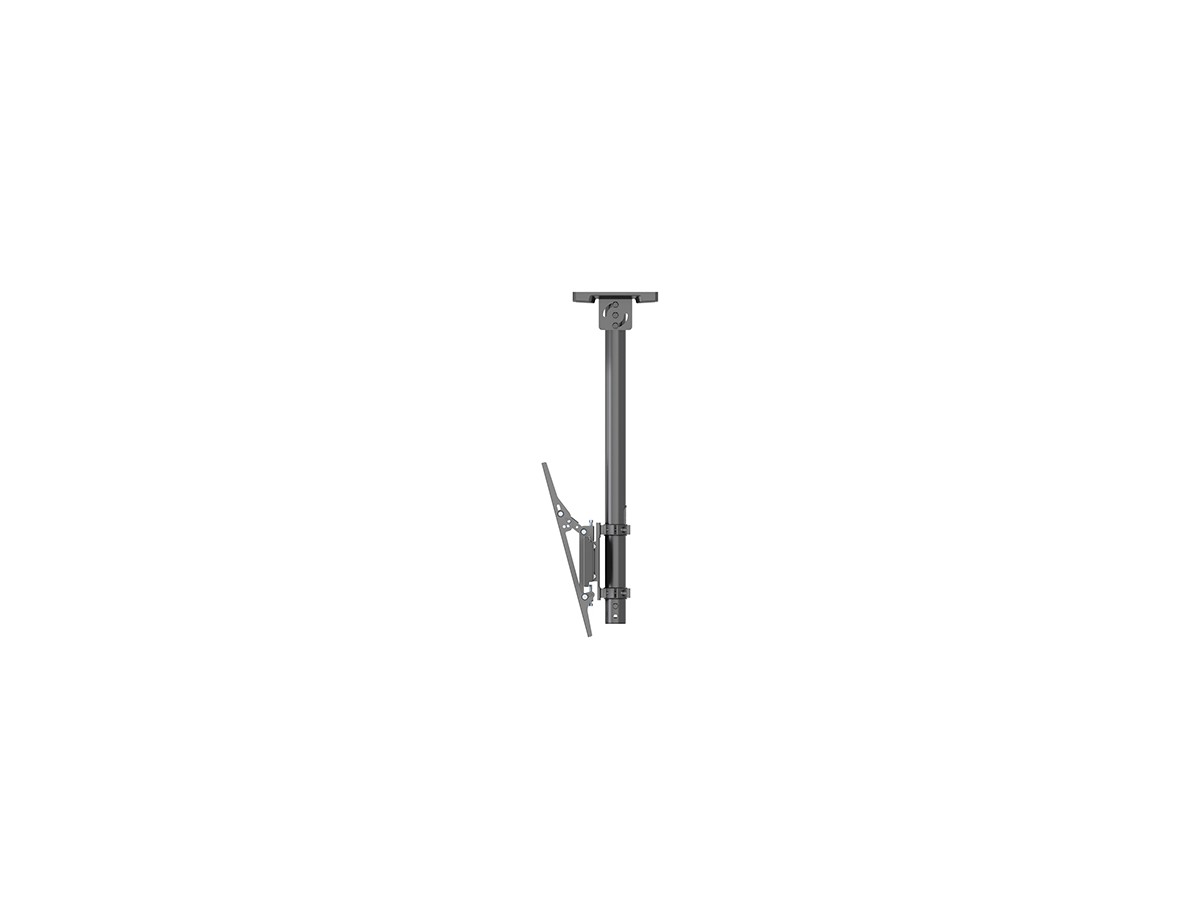

The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.
Highlights
- A professional, flexible and modular product
- Includes VESA adapters for compatibility up to VESA 600x400
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation
- Ceiling plate included
- Portrait or landscape position of screen possible

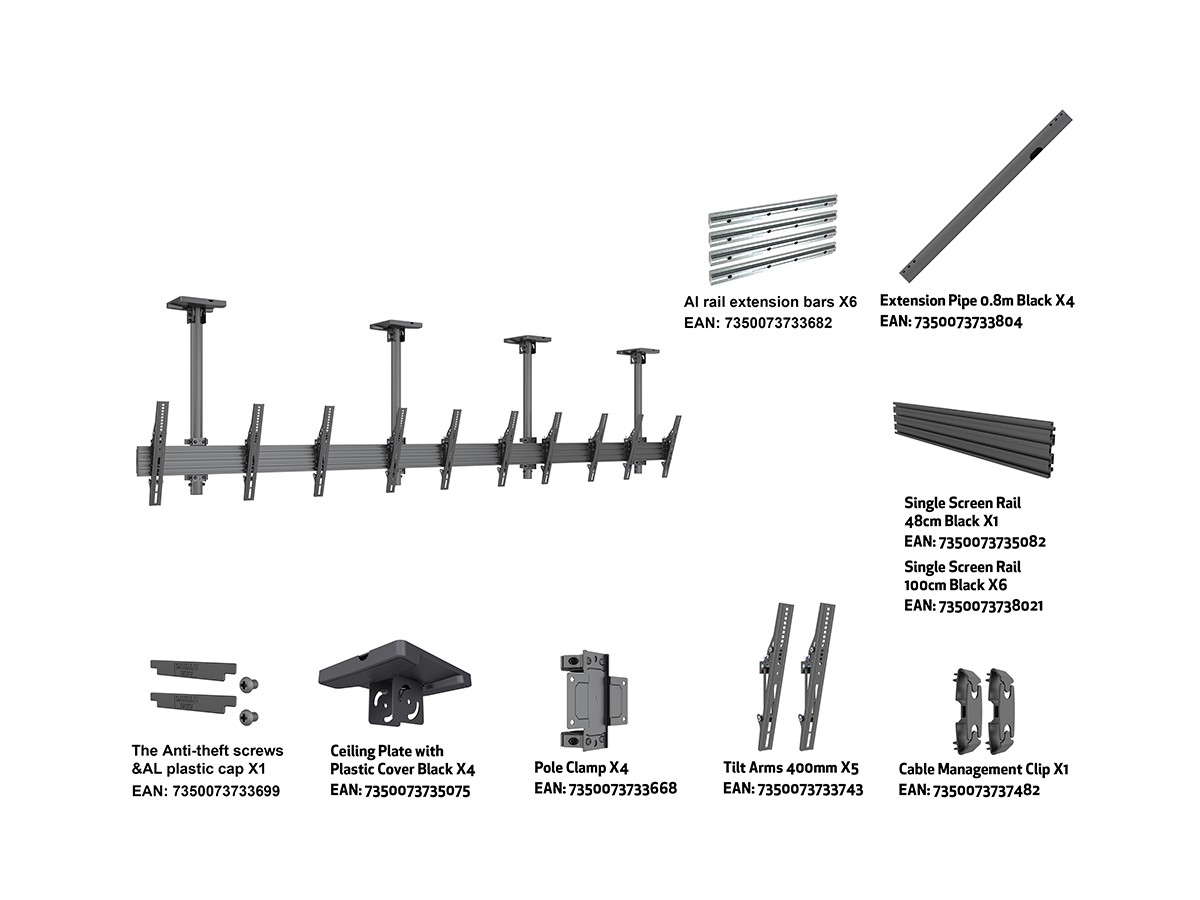

- Hardware kit included
Selected models are TÜV approved.
MB Pro Series is design protected by Multibrackets
Additional information
| Article No: | 7 350 105 215 360 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC5X1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 38 kg |
| Measurements | 104.5 x 16.5 x 13.5 cm + 92 x 26 x 17 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

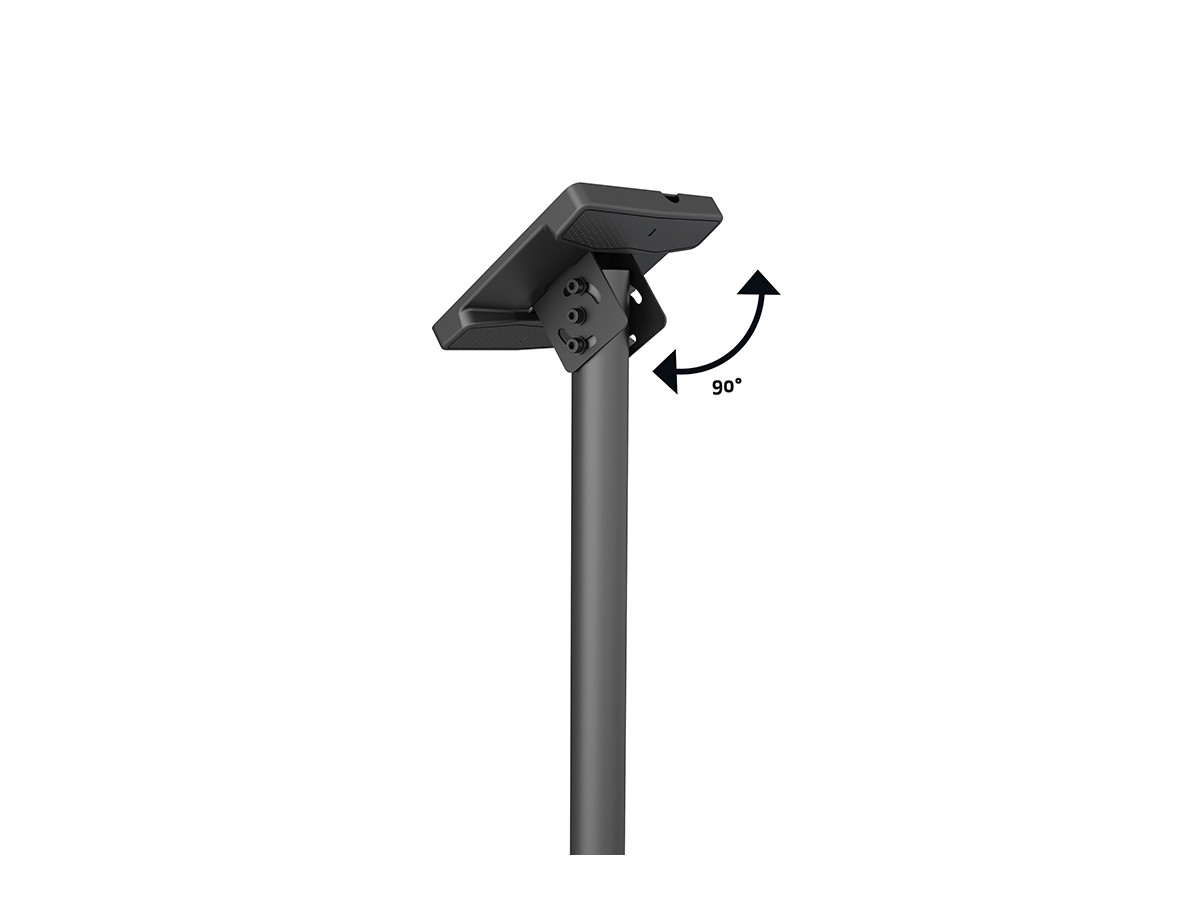

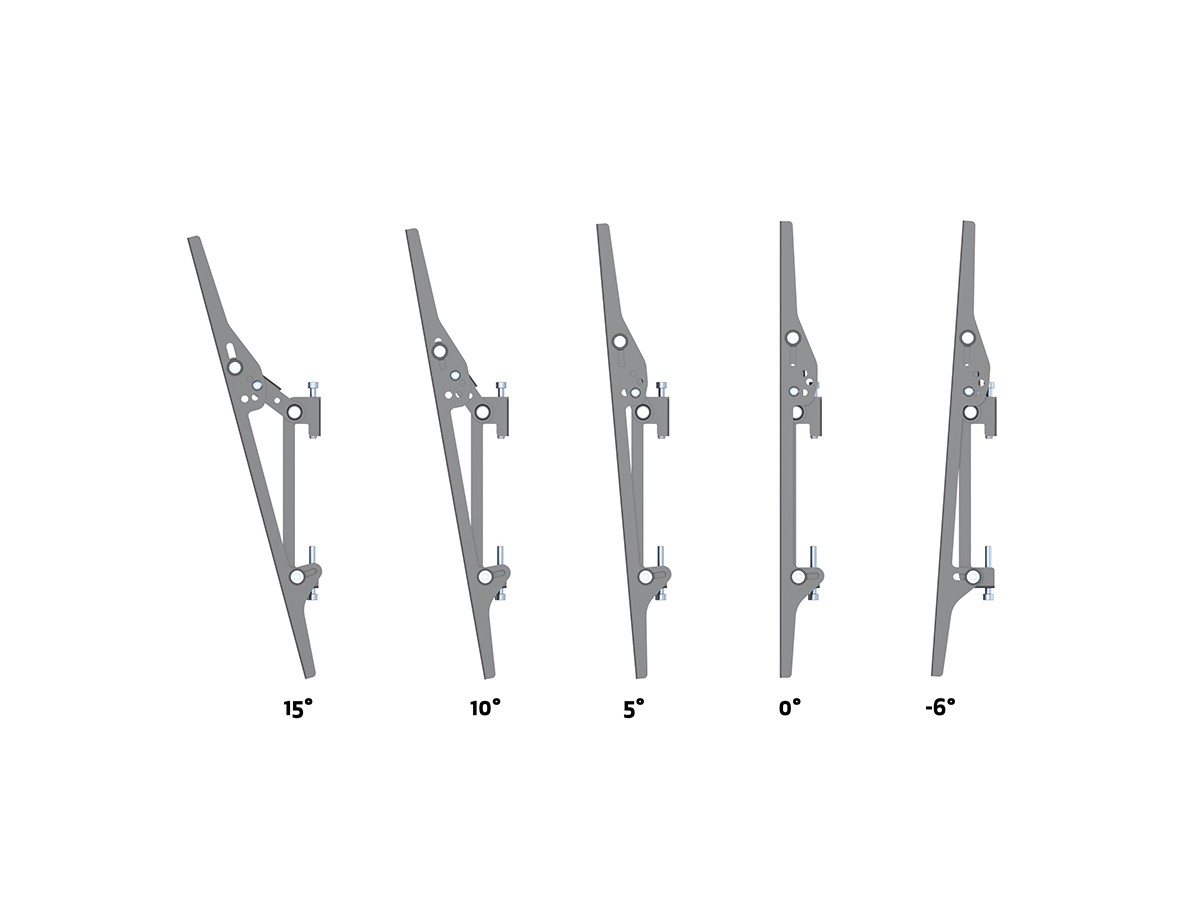

| Tilt: | Yes, -6~+15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |

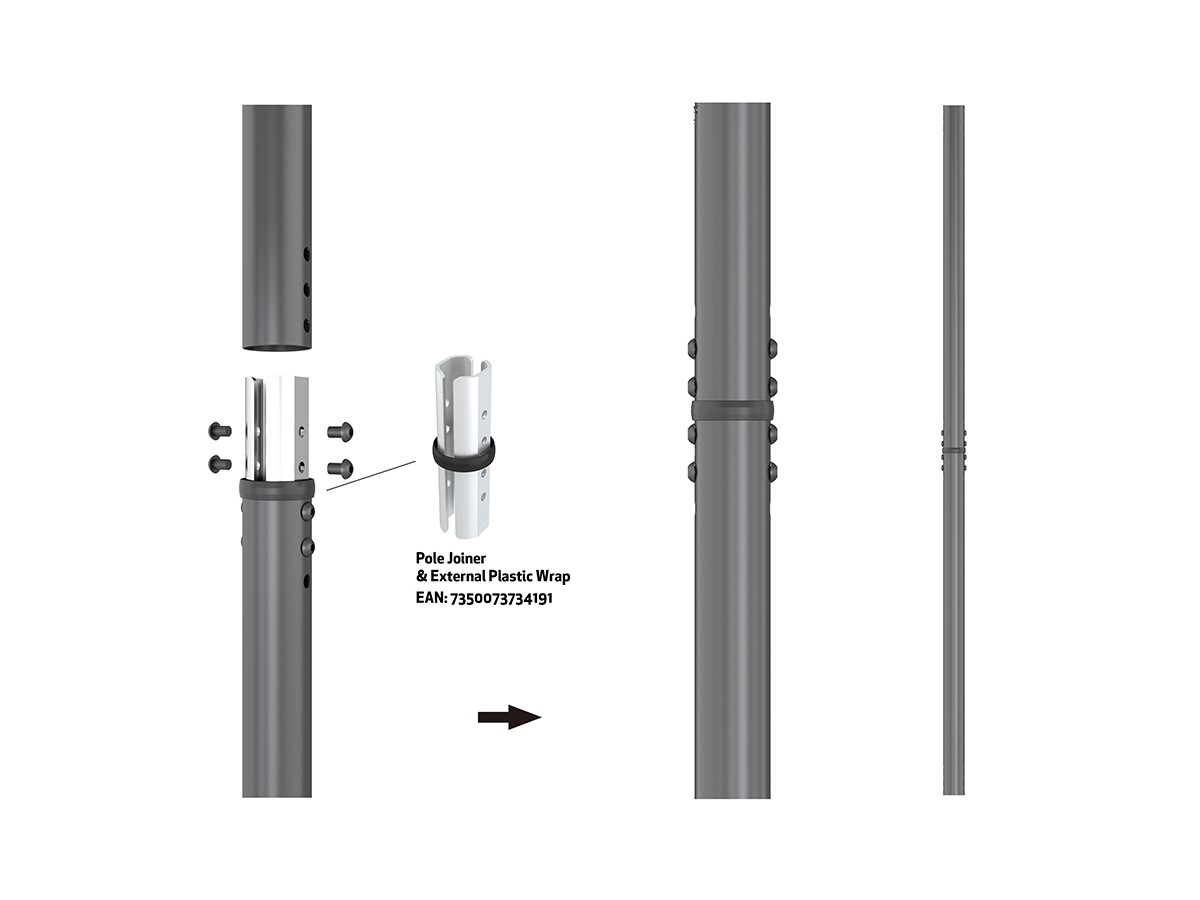

| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |

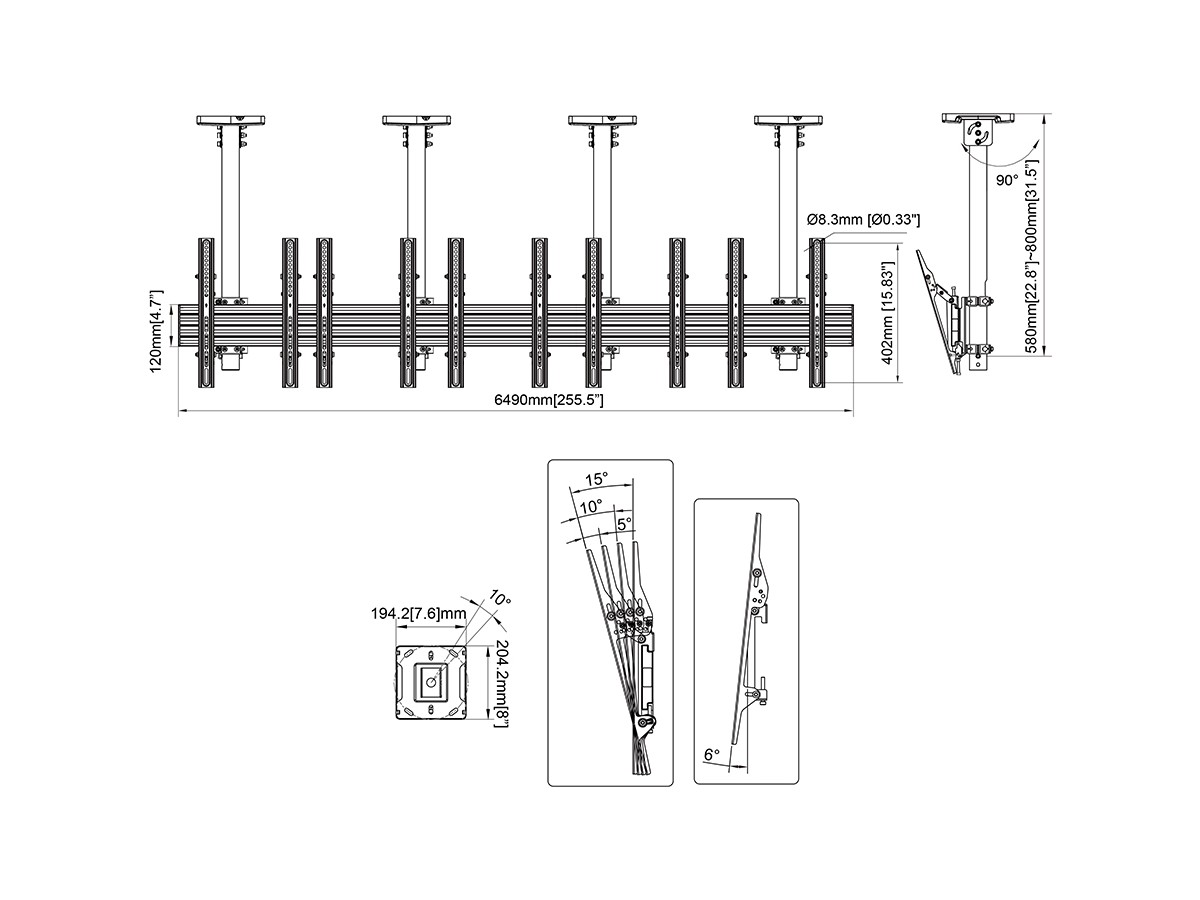

5360-drawing
