Multibrackets 7350105215070 M Menu Board Mount Pro MBC5X1UP
Product code:M Menu Board Mount Pro MBC5X1UP - Ceiling mount for LCD display, steel, 3m length, 5 screens, single side, portrait position, tilt arms - VESA max 400x400 - screen size: 32"-55" - black
SEND AN ENQUIRYDescription

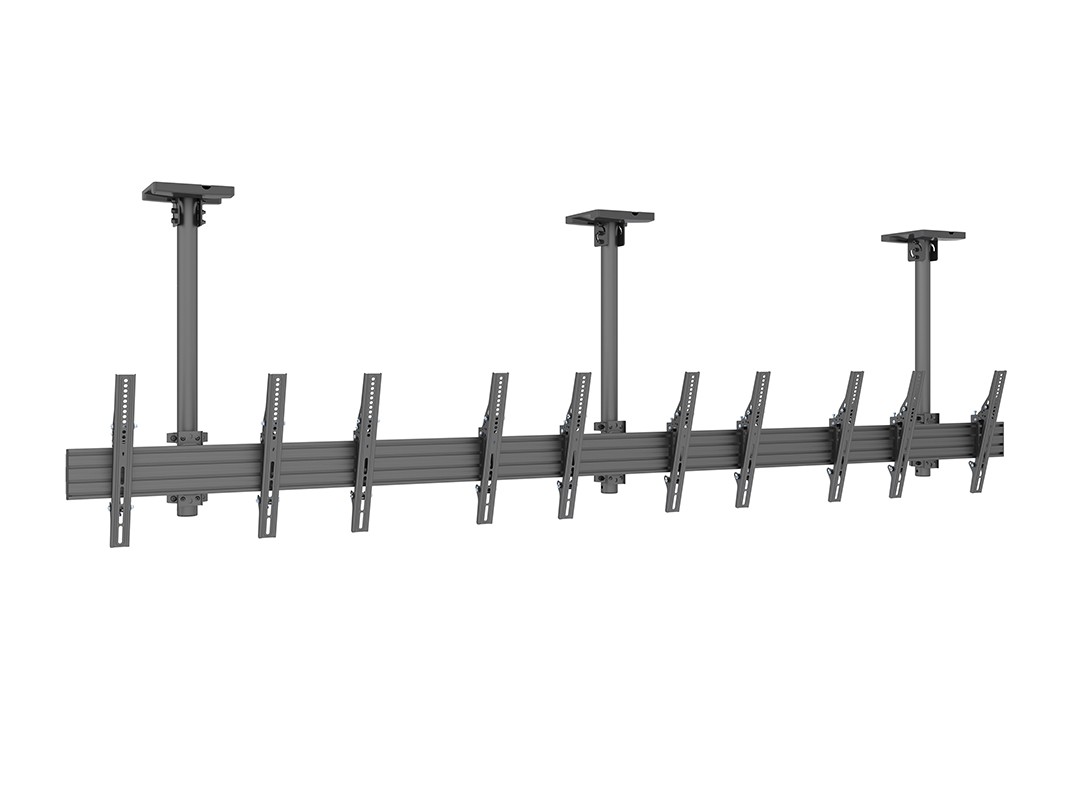

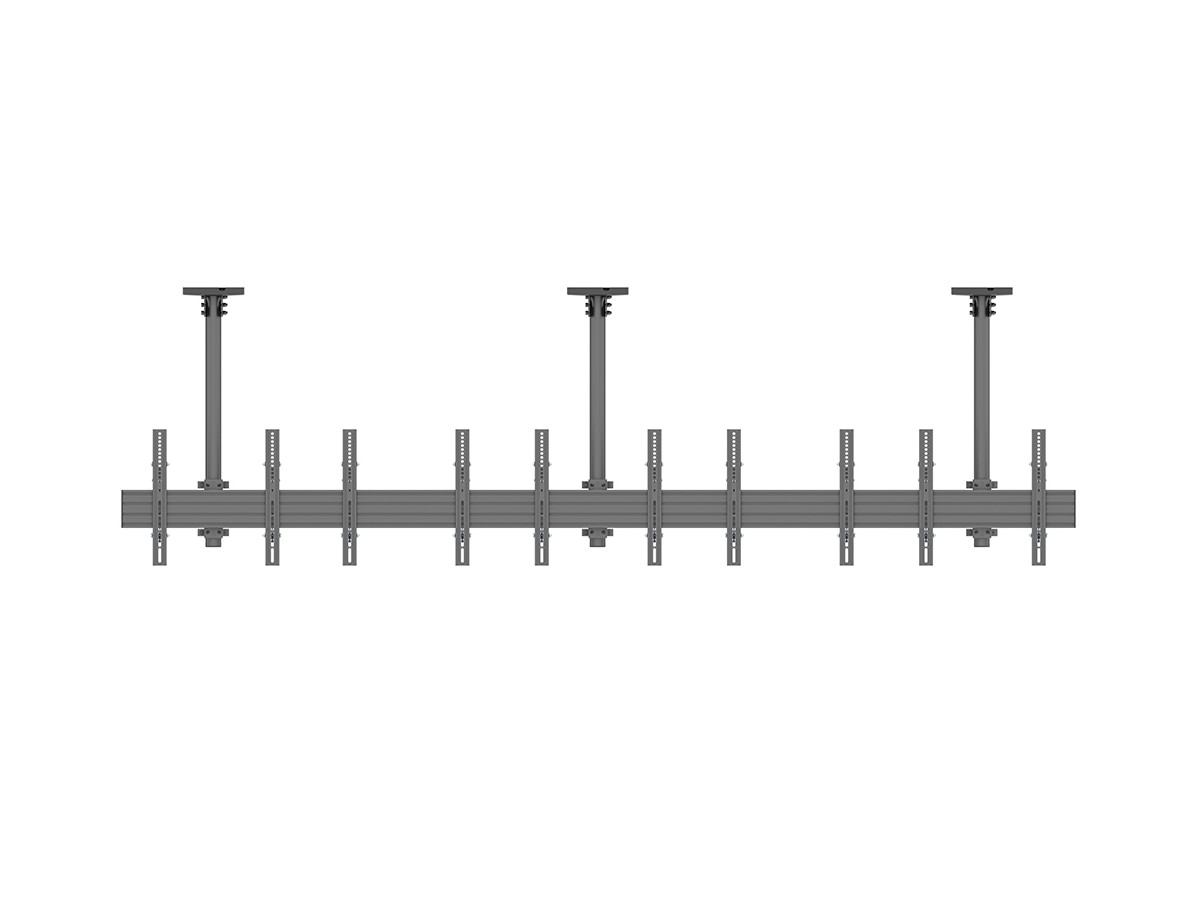

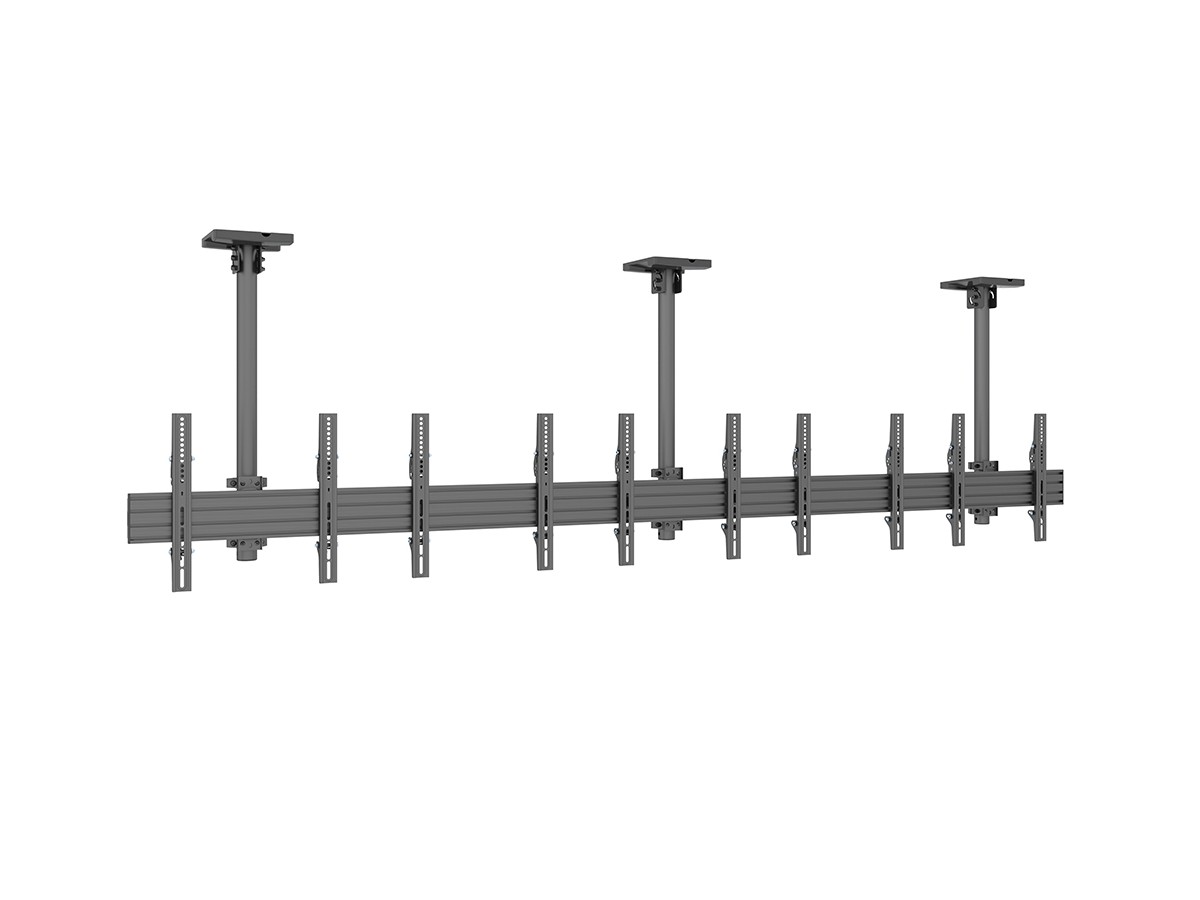

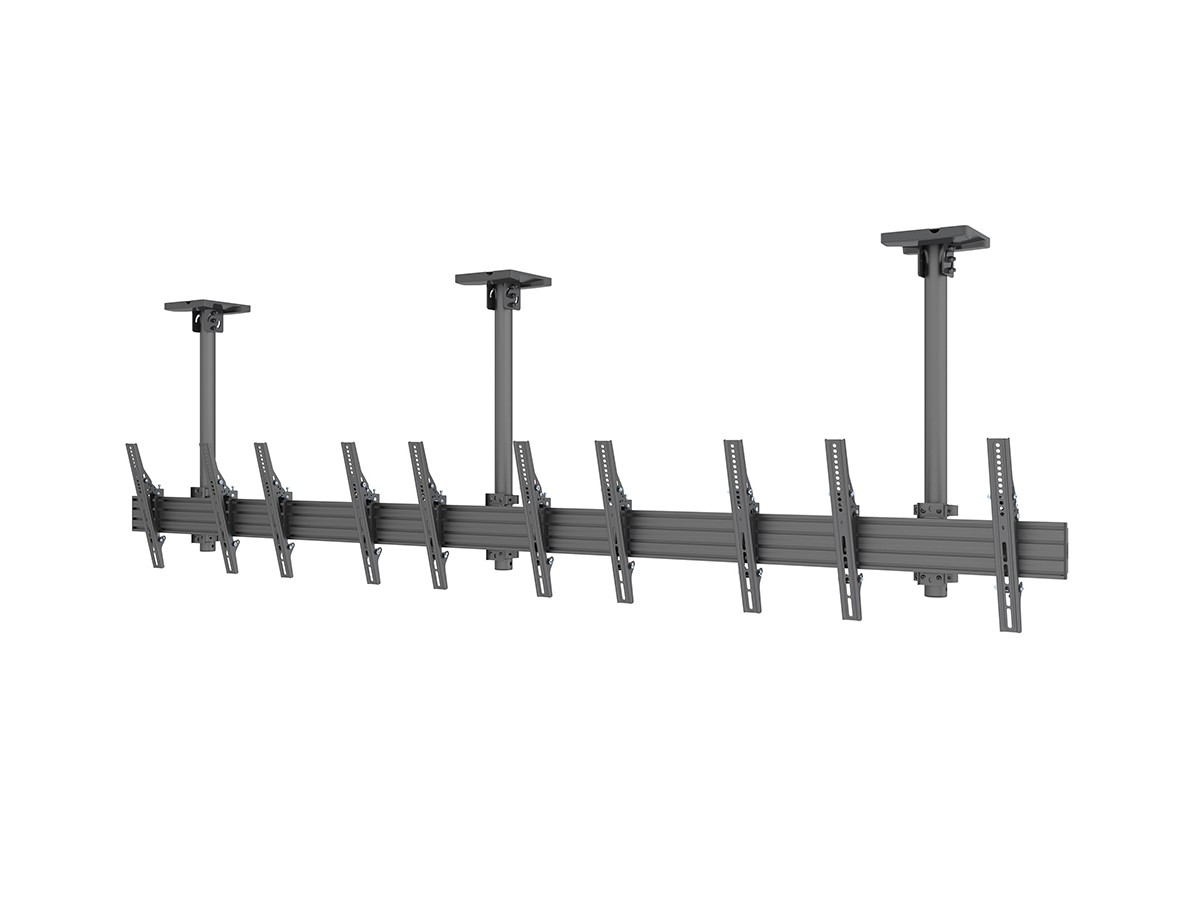

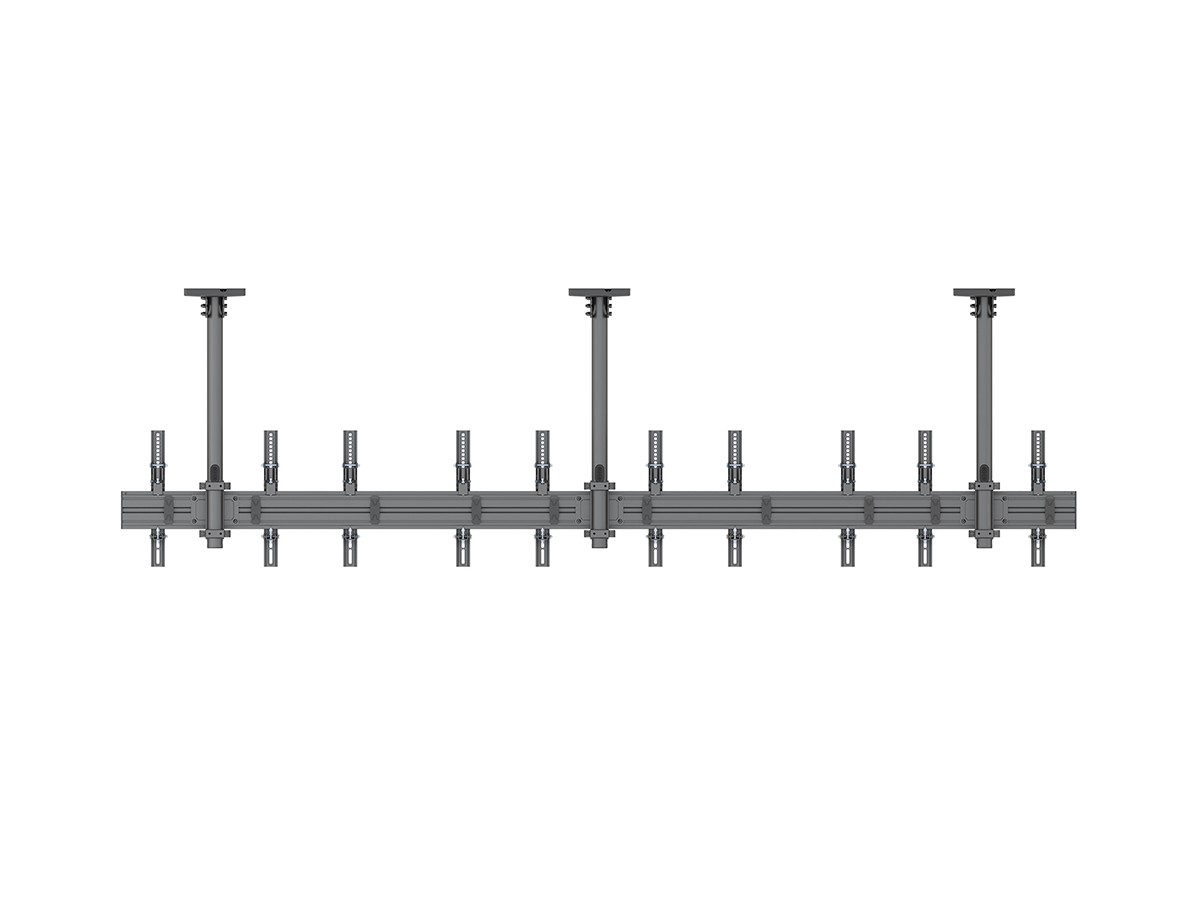

The M M Menu Board Mount Pro MBC5X1UP is our 5 screen side by side portrait menuboard system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

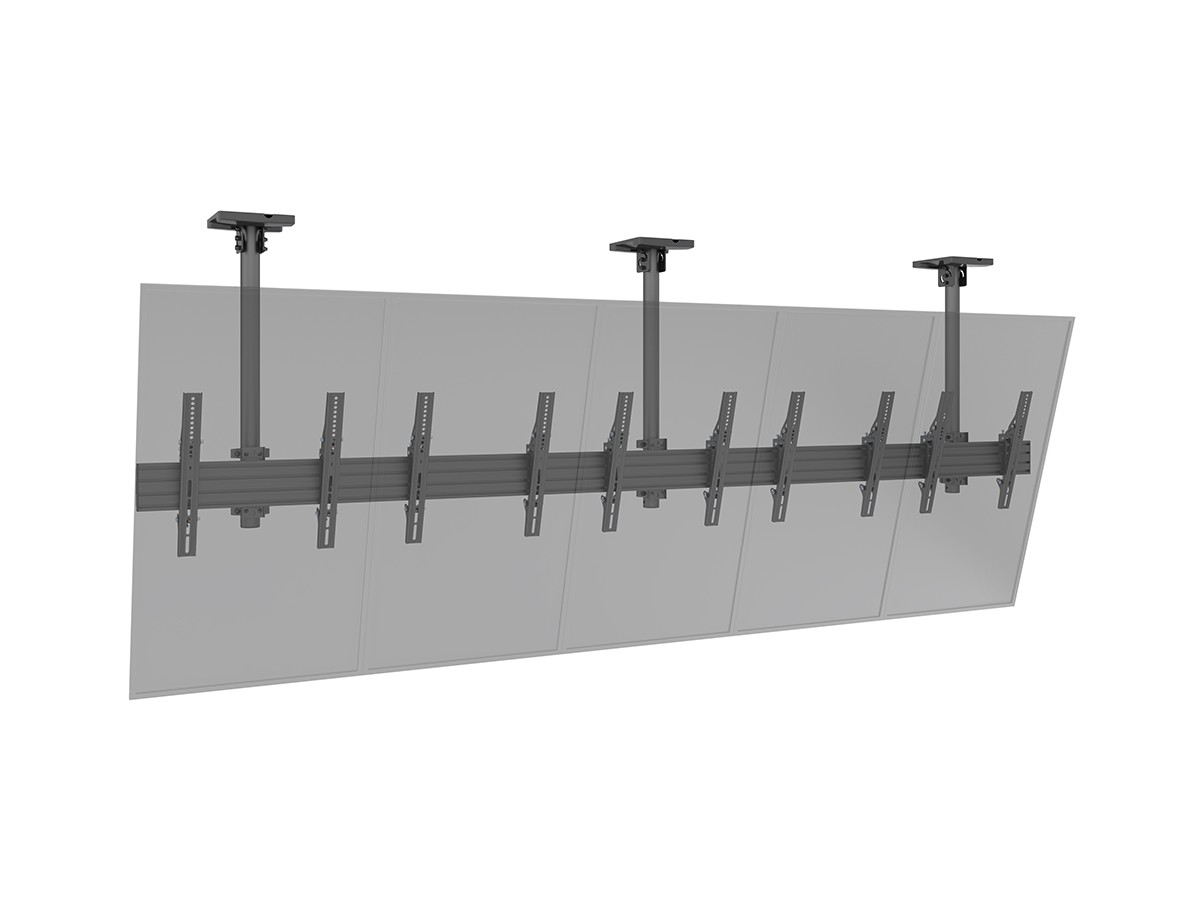

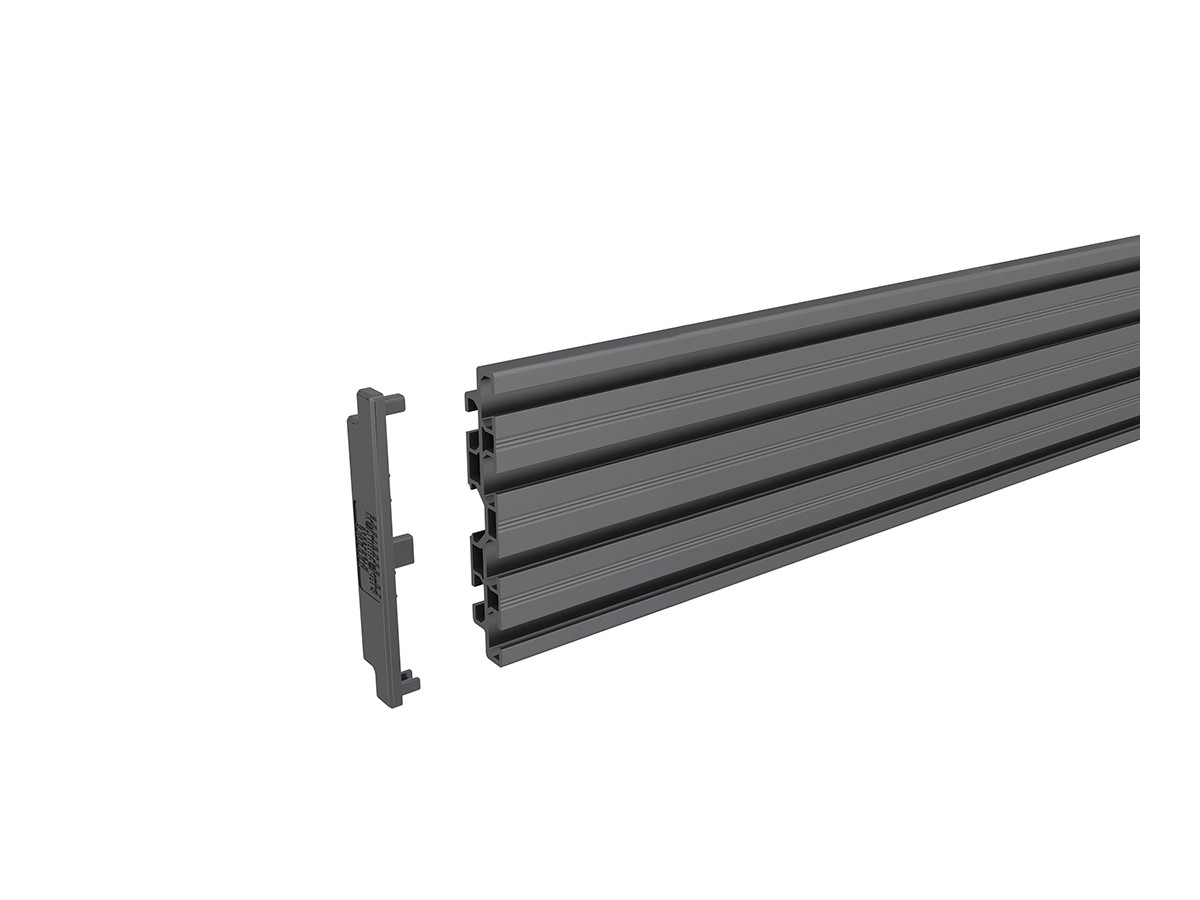

The M Menu Board Mount Pro MBC5X1UP creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side in a portrait position and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.
Highlights
- 5 displays in portait
- A professional, flexible and modular product

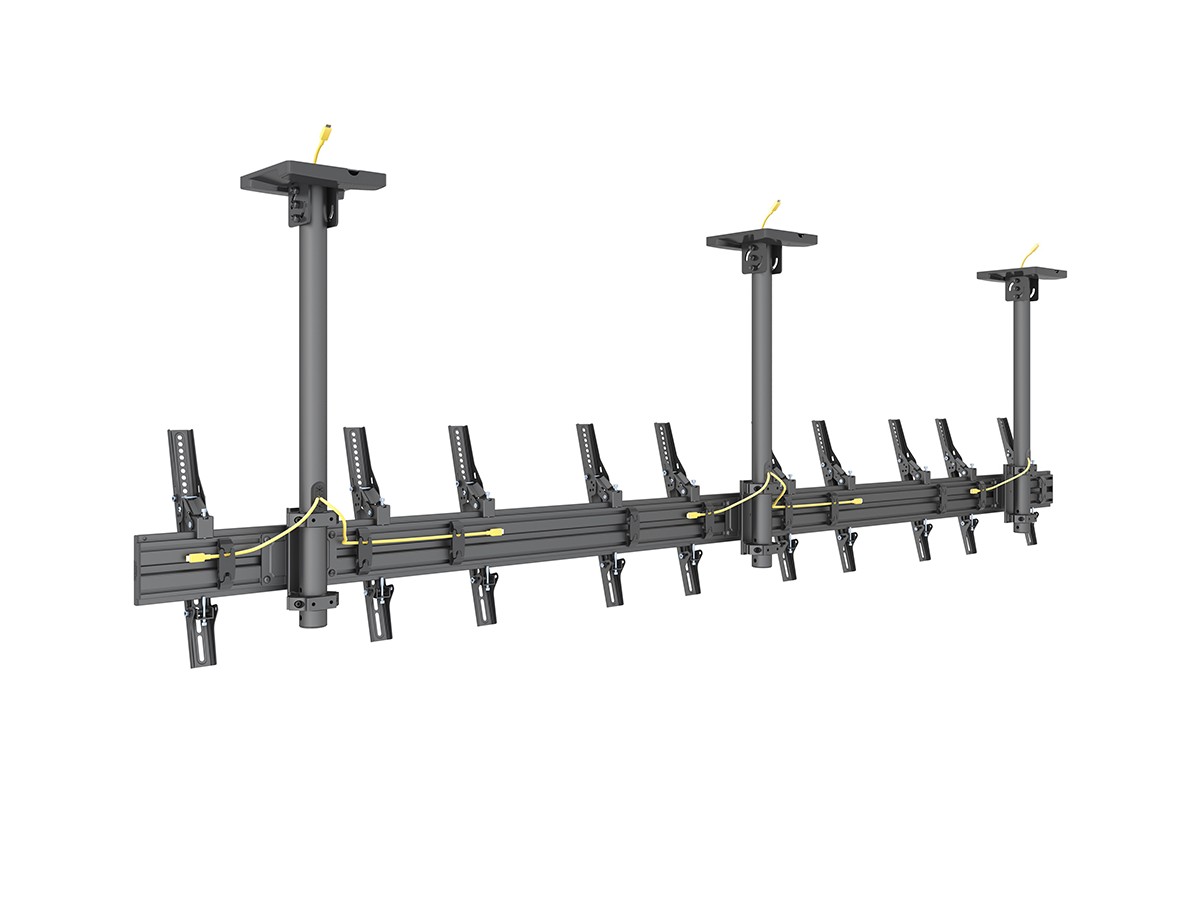

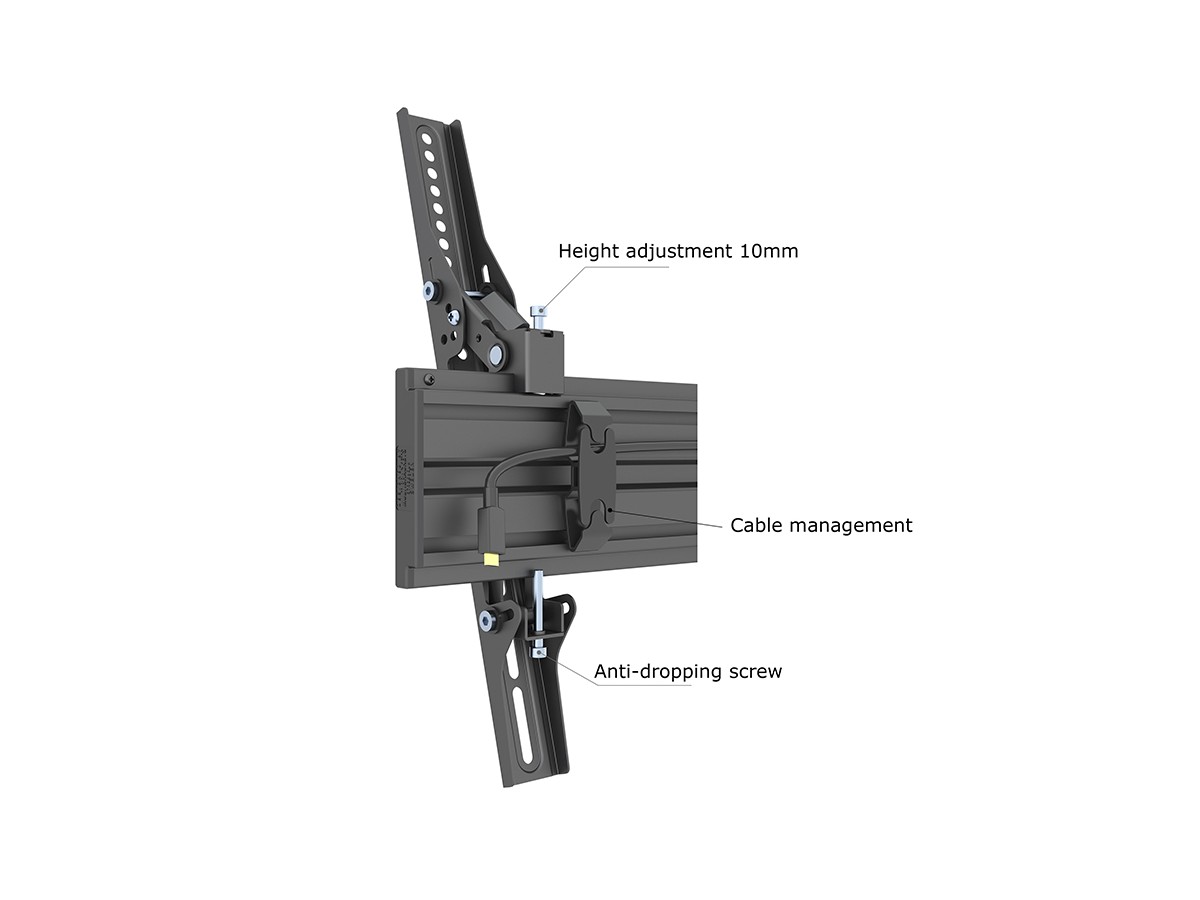

- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation

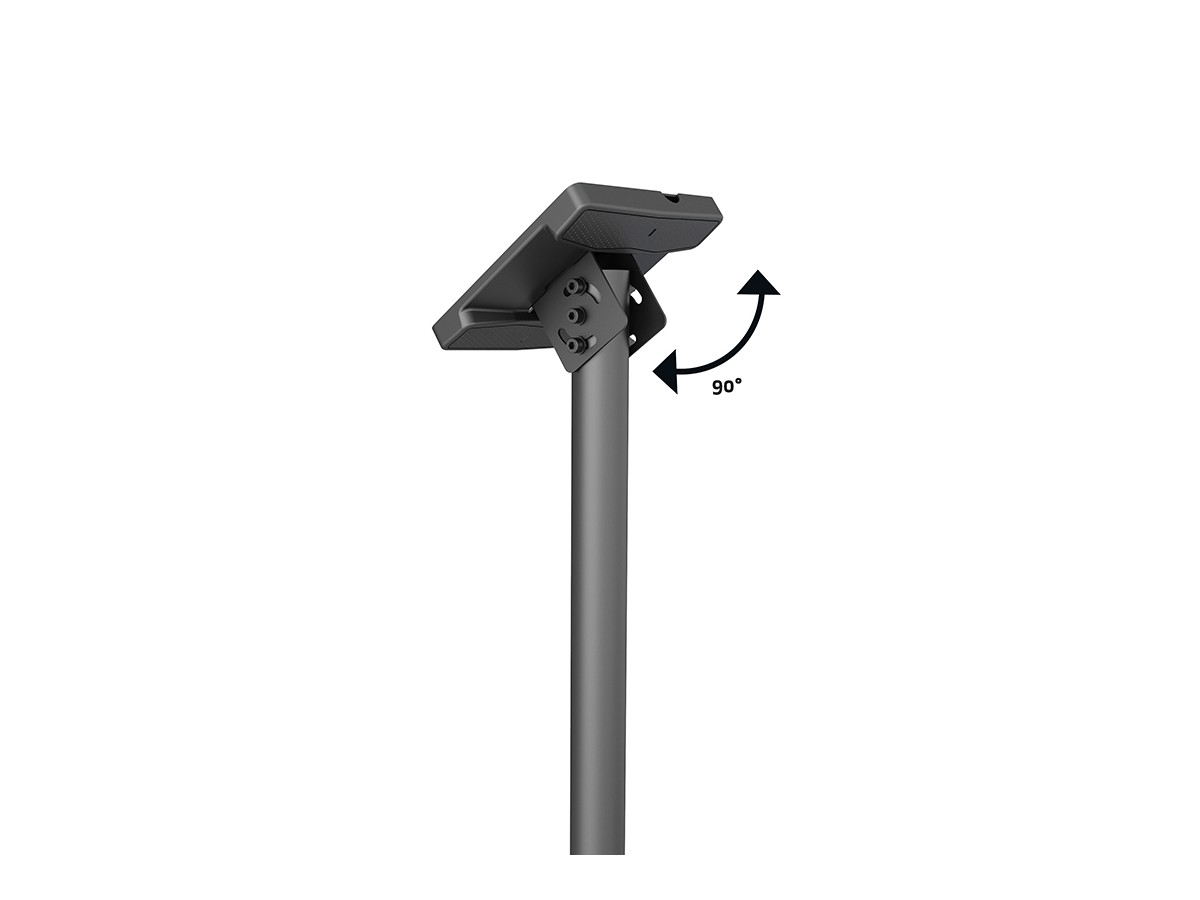

- Ceiling plate included
- Portrait position of screens

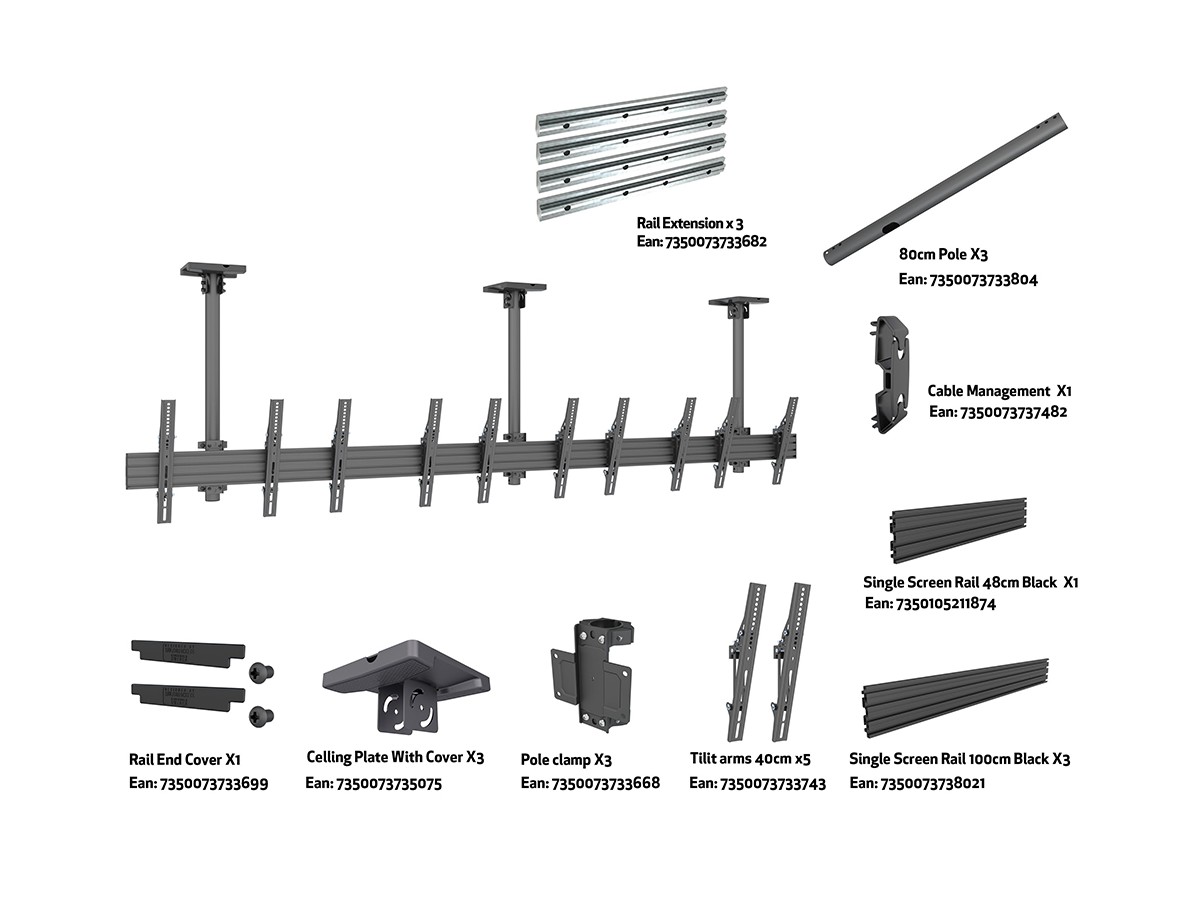

- Hardware kit included
Additional information
| Article No: | 7 350 105 215 070 |
| For screen size: | 32"-55" |
| Type: | Single Side MBC5X1UP |
| Universal & VESA standard: | Adjustable from 75x75, 100x100, 100x200, 200x100 to 400x400 max Optional VESA up to 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 35 kg |
| Measurements | 105 x 21 x 15 cm + 85 x 20 x 16.5 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 750 mm from ceiling to VESA plate center |

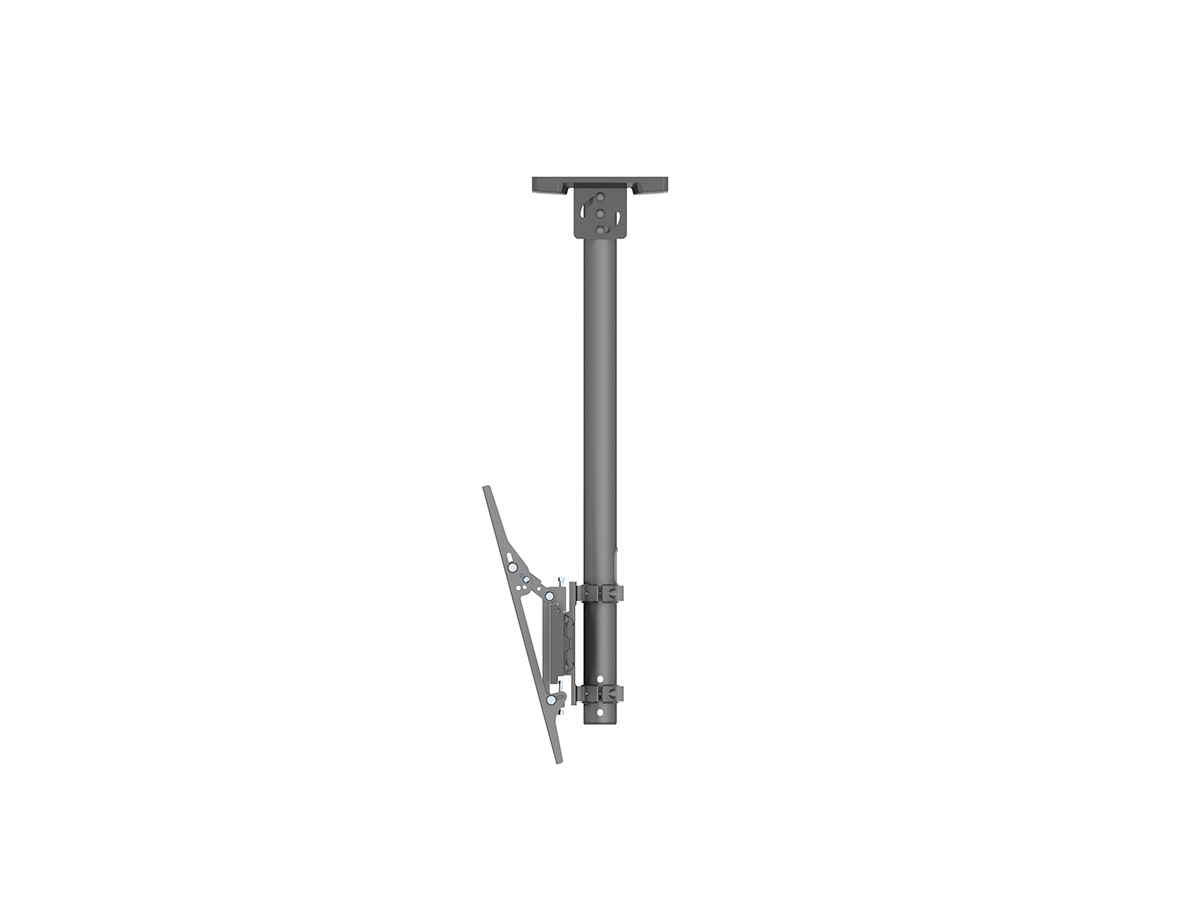

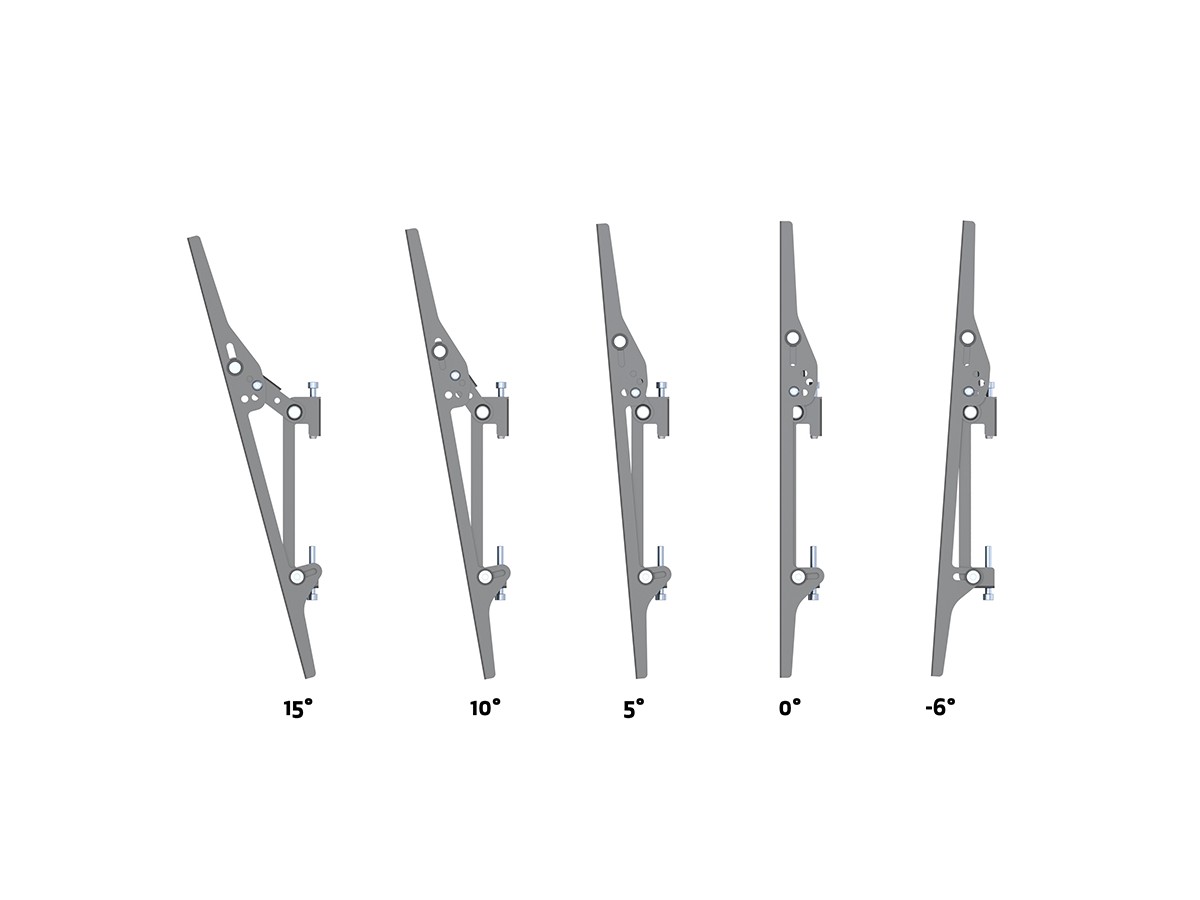

| Tilt: | Yes, 0~15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Warranty: | 5 years |
