Multibrackets 7350105215063 M Menu Board Mount Pro MBC5X1UP VESA 200
Product code:M Menu Board Mount Pro MBC5X1UP VESA 200 - Ceiling mount for LCD display, steel, 3m length, 5 screens, single sided portrait position, tilt arms, VESA Max 200x200 - screen size: 27"-32" - black
SEND AN ENQUIRYDescription

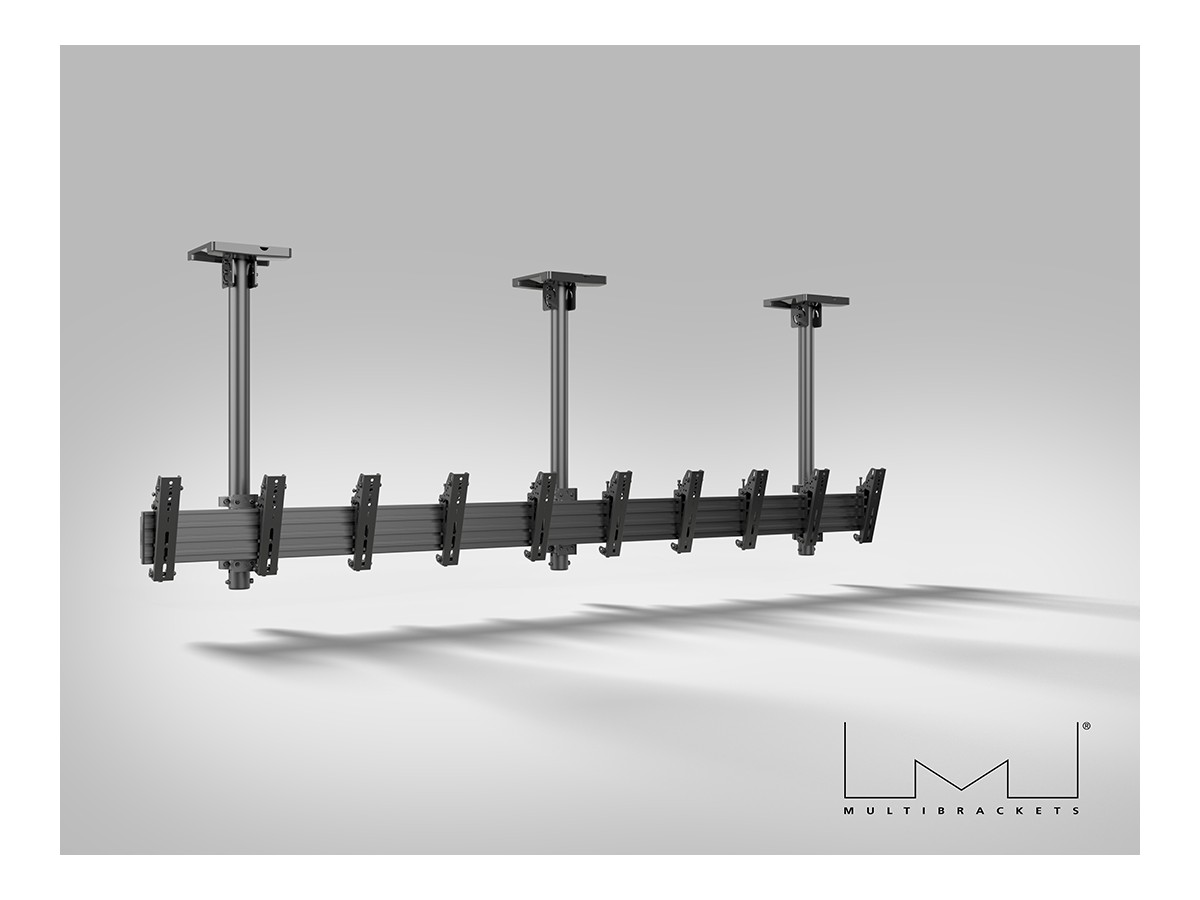

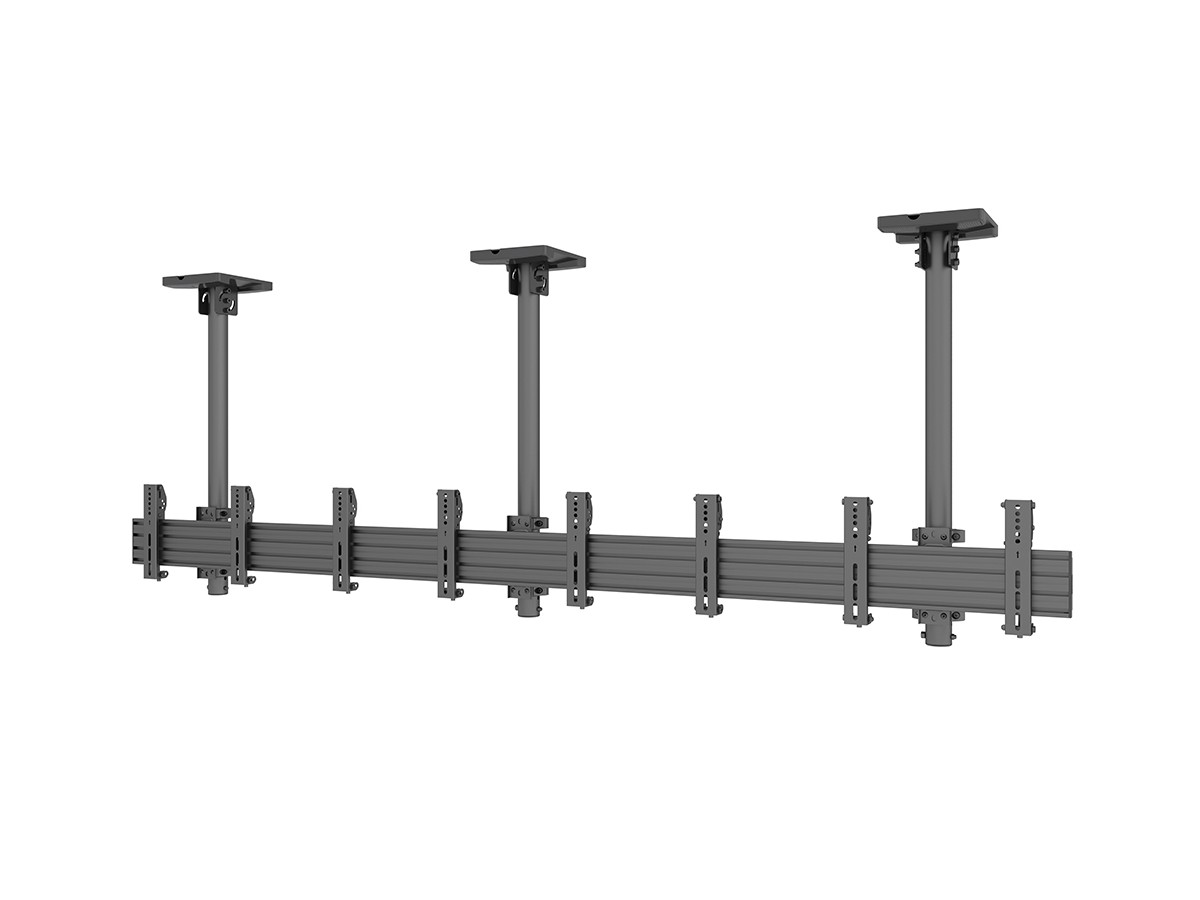

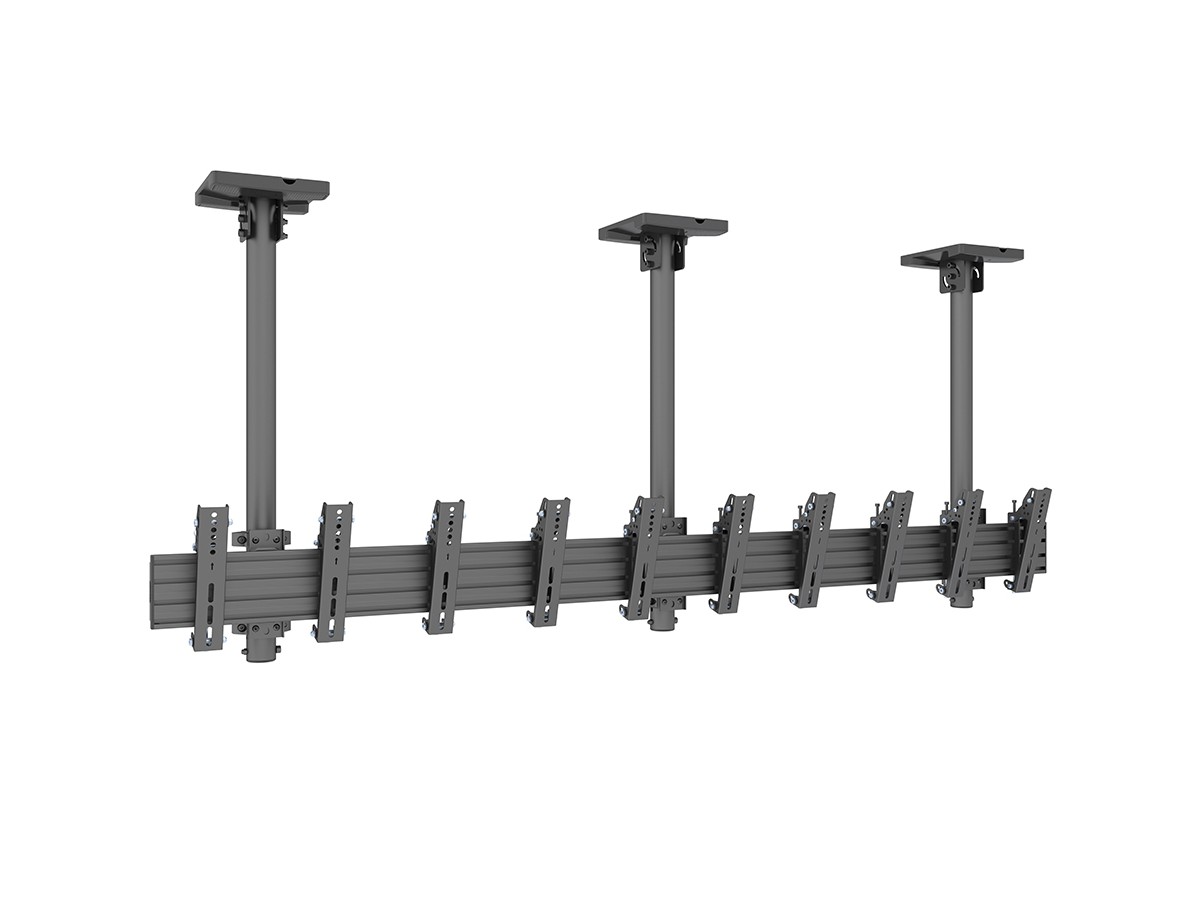

The M M Menu Board Mount Pro MBC5X1UP VESA 200 is our 5 screen side by side menuboard system - ready to be installed.

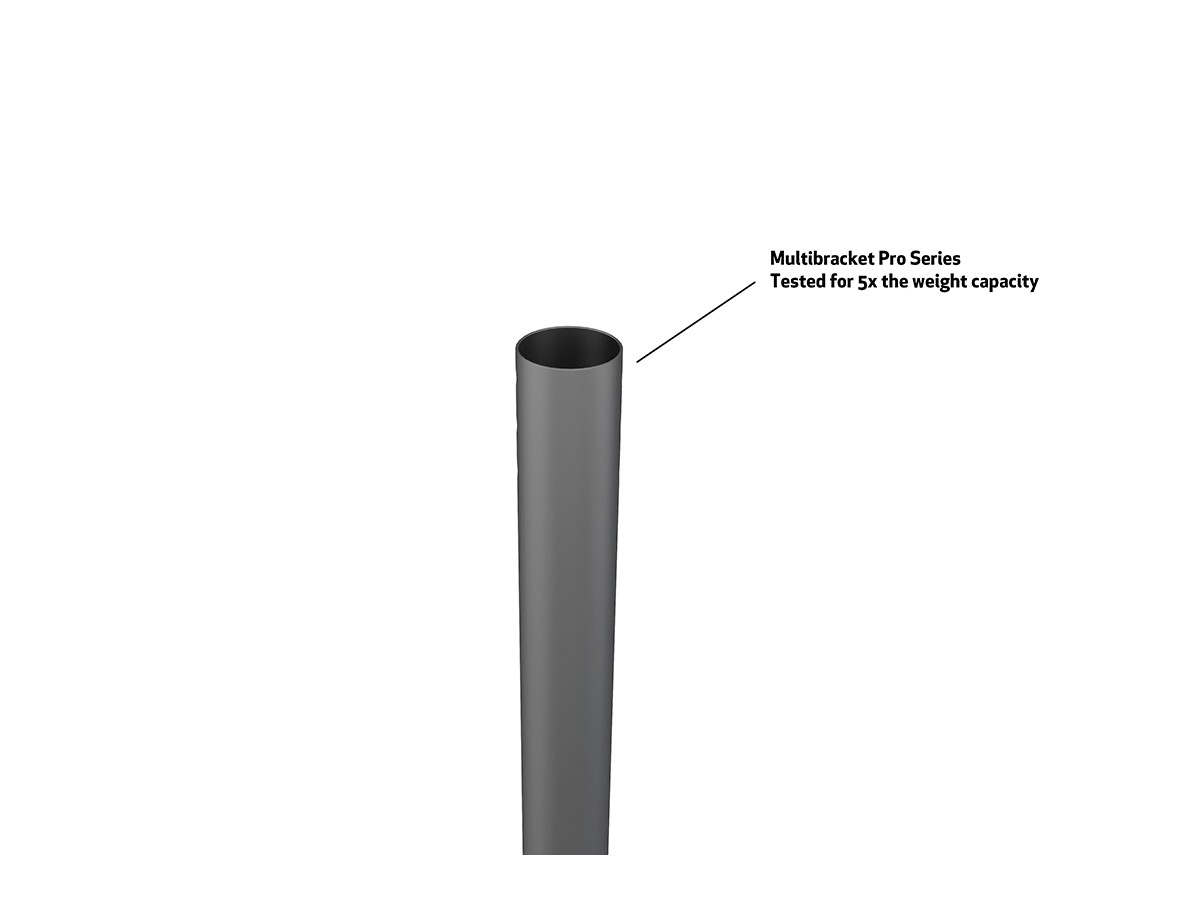

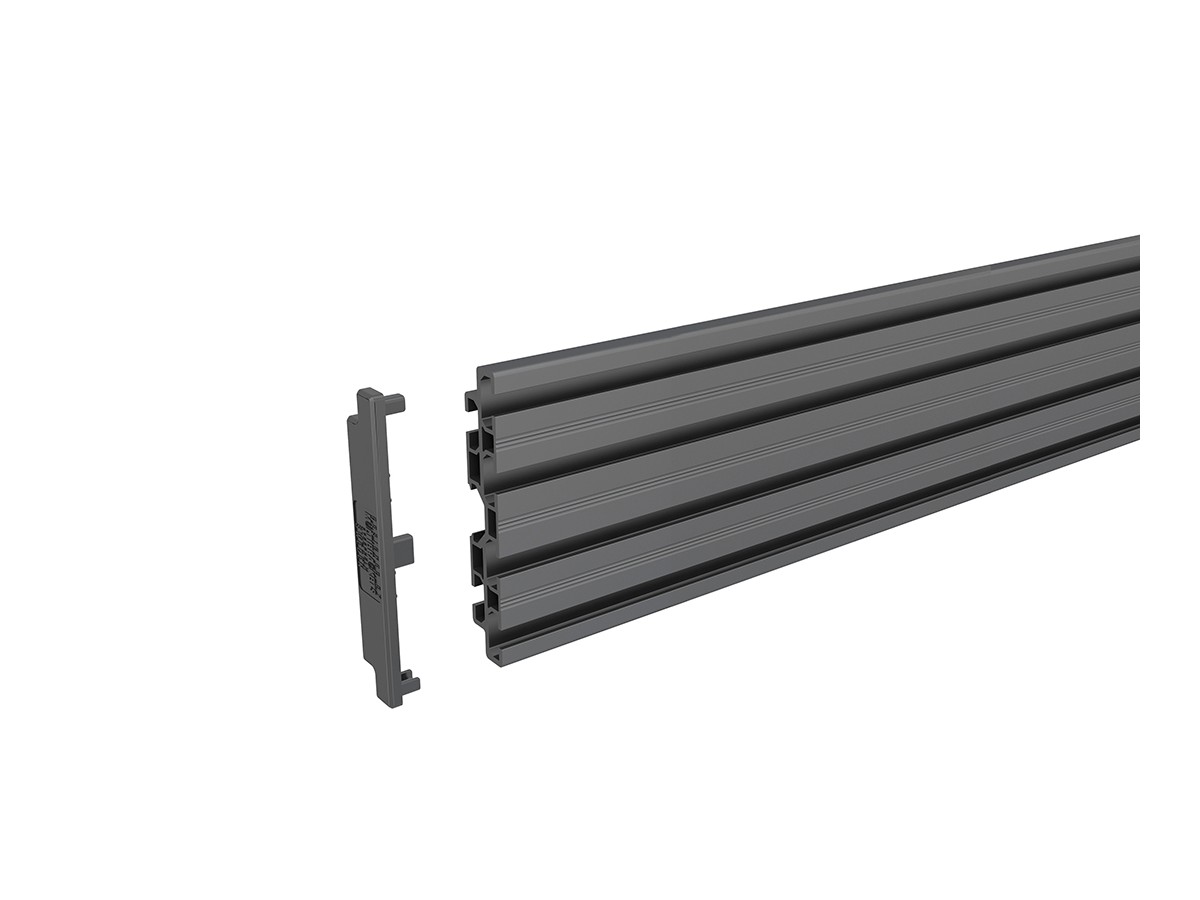

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

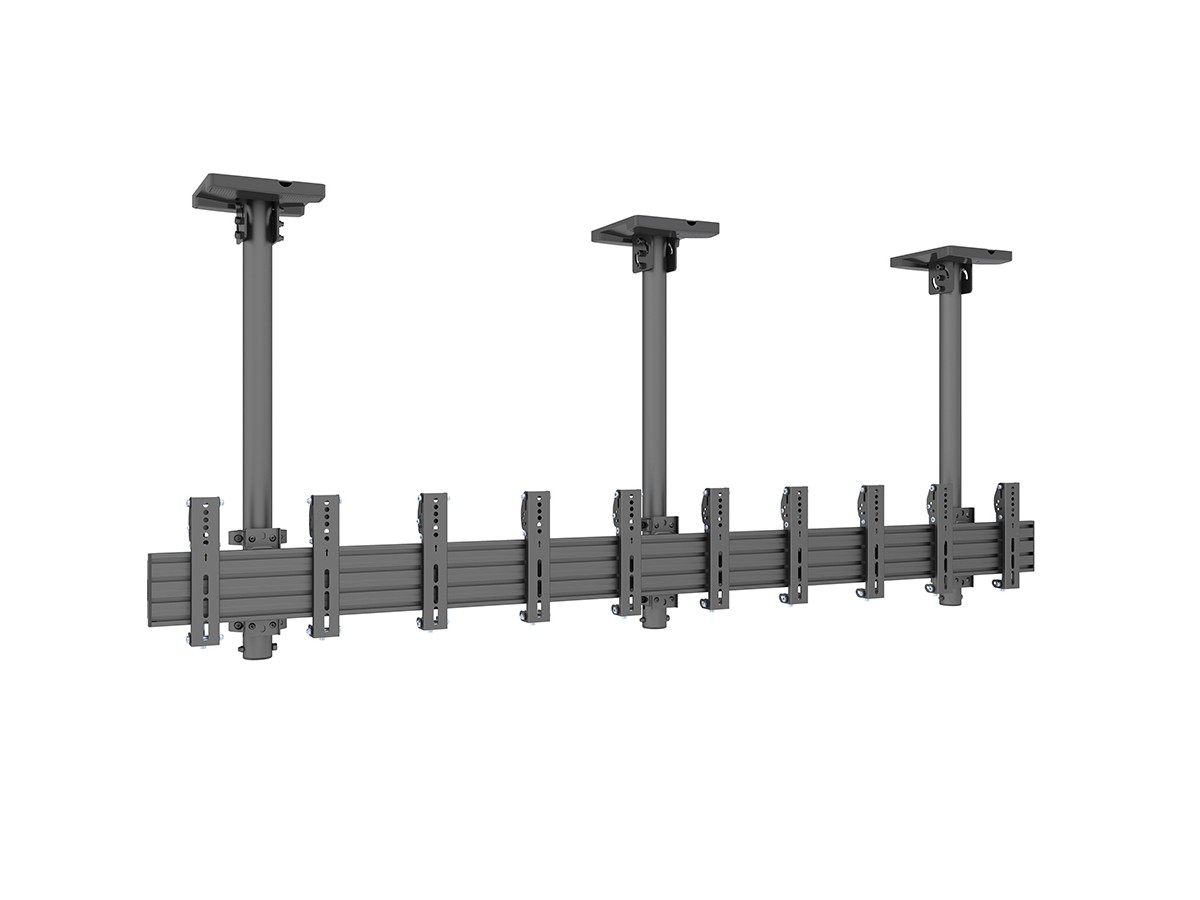

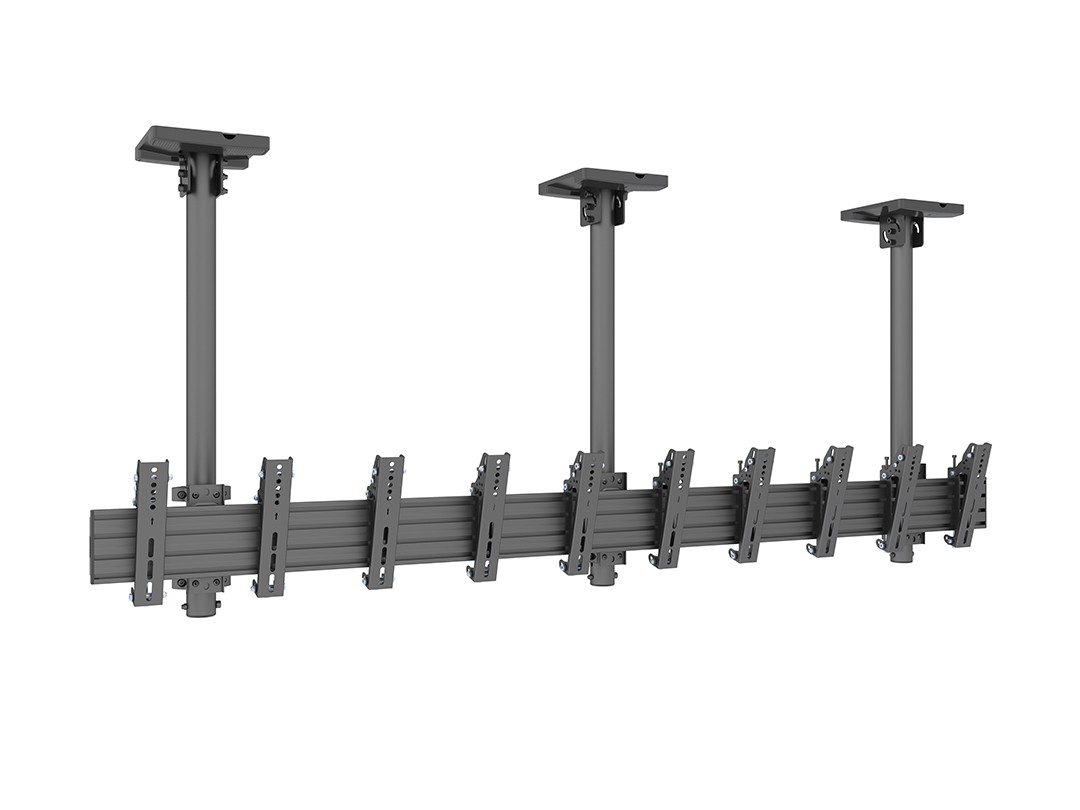

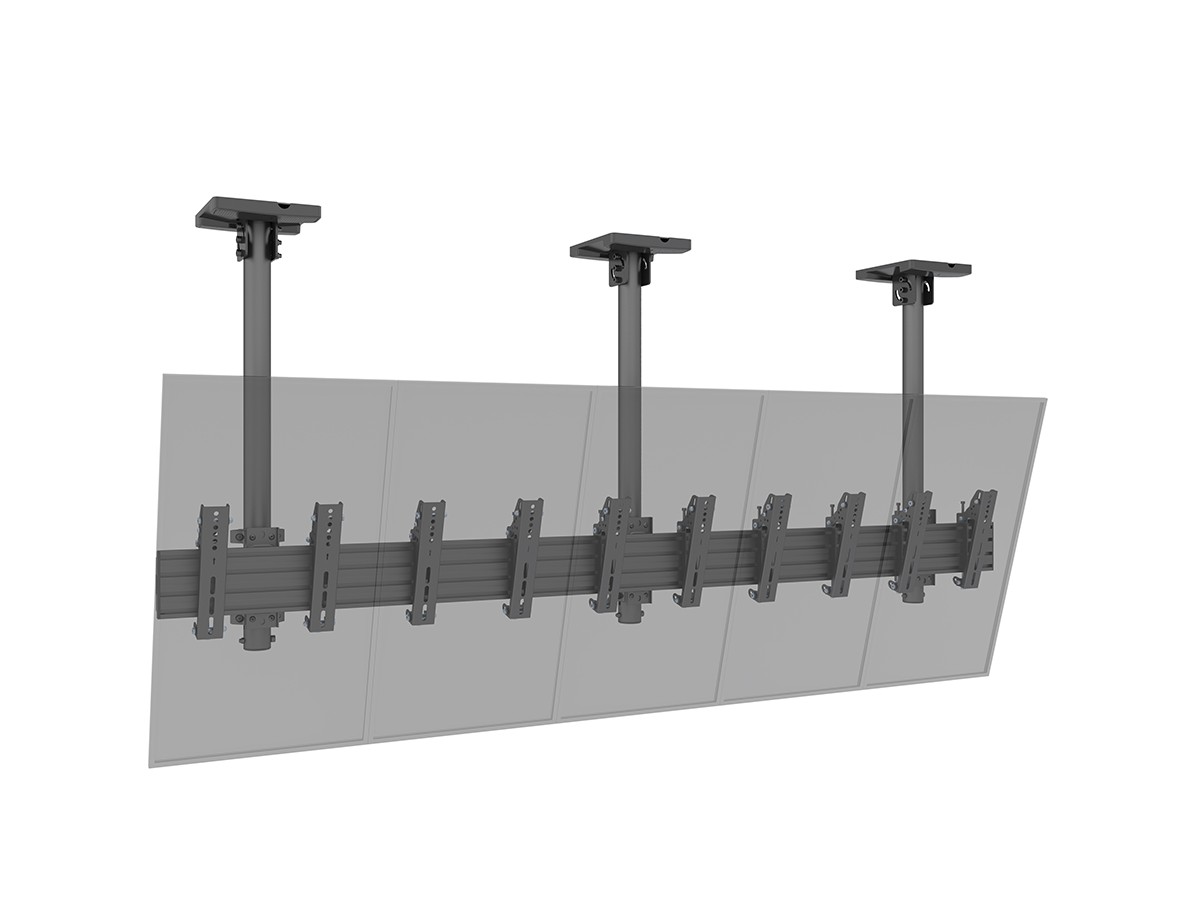

The M Menu Board Mount Pro MBC5X1UP VESA 200 creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all 5 displays to be placed side by side in portrait and tilted at the same angle with ease creating alignment and true menuboard perfection.
Pro Series Menu boards can be tailored to fit the exact needs of each installation.
Designed with Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.
Highlights
- 5 displays side by side in portait position
- Aprofessional, flexible and modular product
- Includes VESA adapters for compatibility up to VESA 200x200

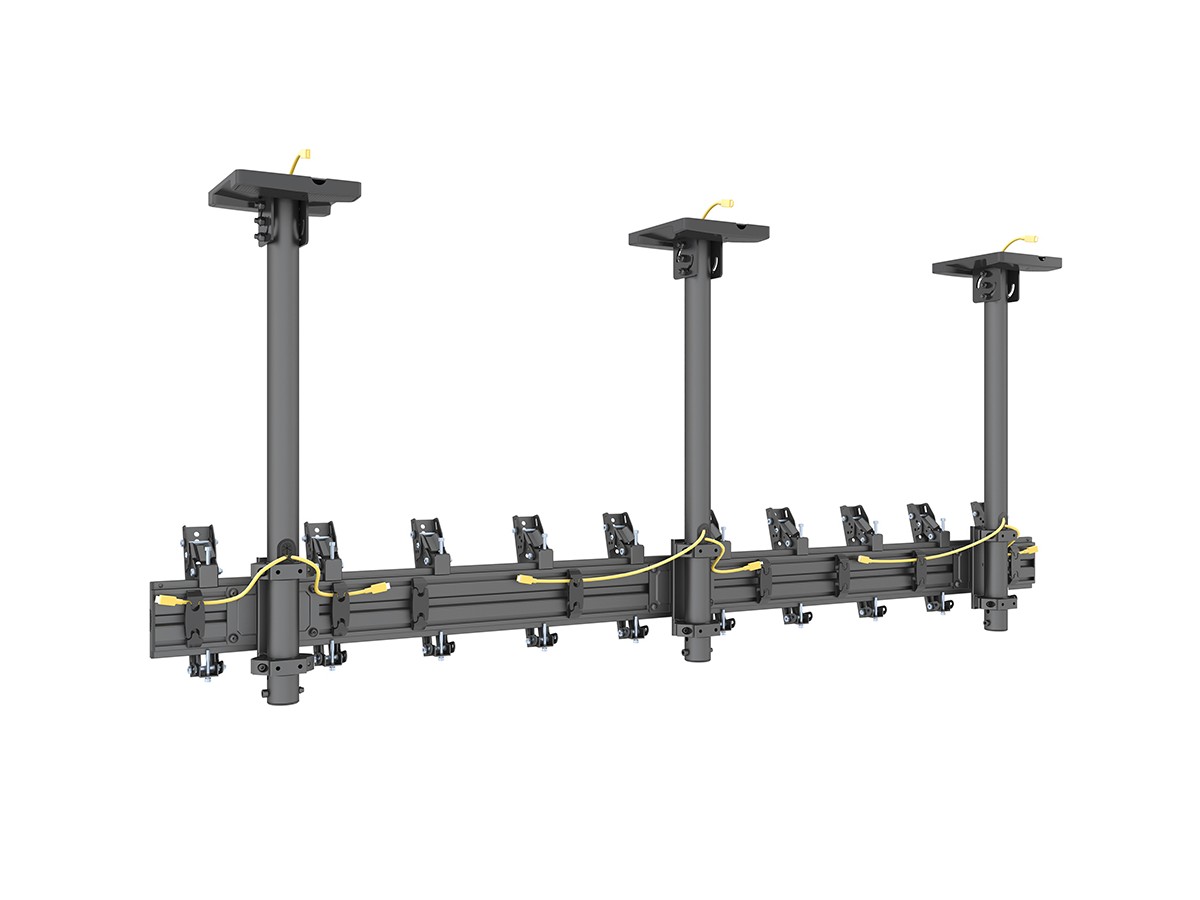

- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation

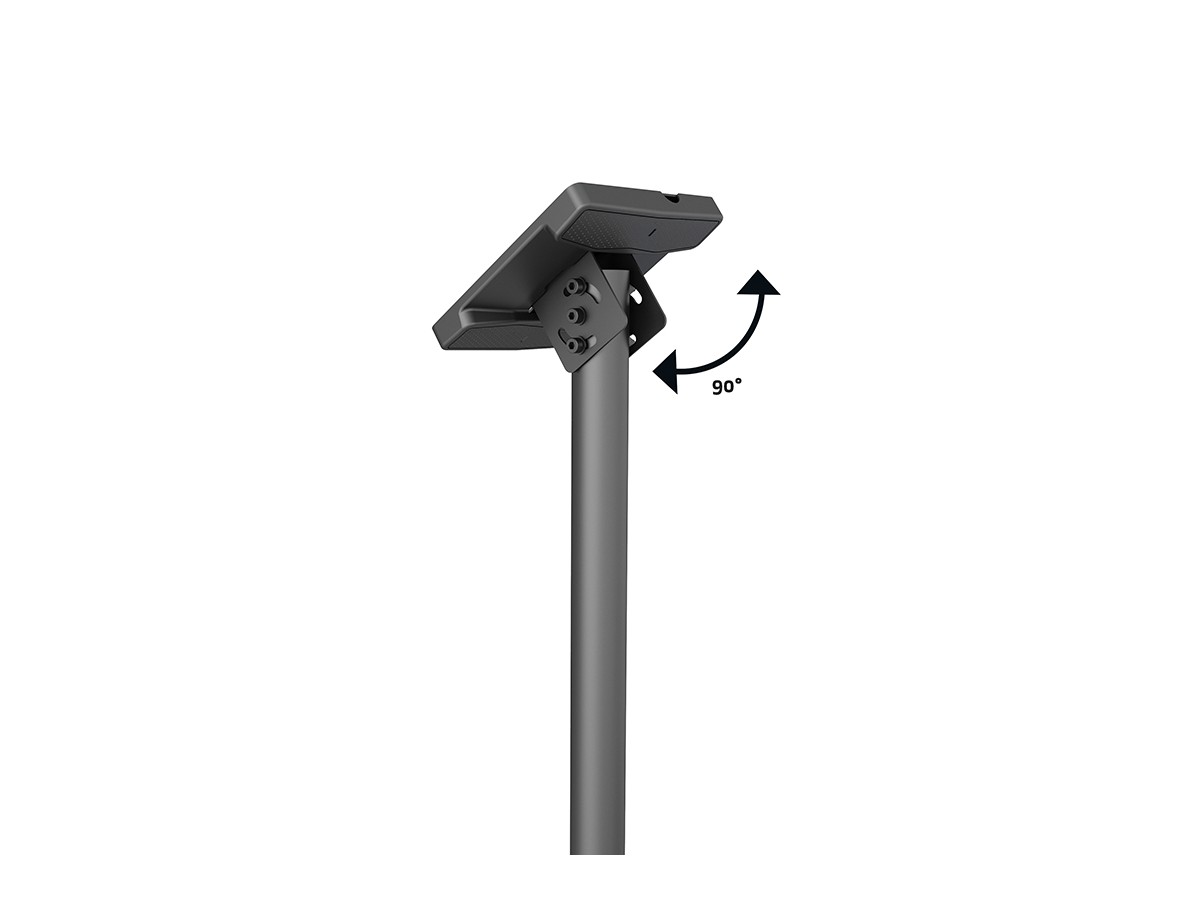

- Ceiling plate included
- Portrait position of screens

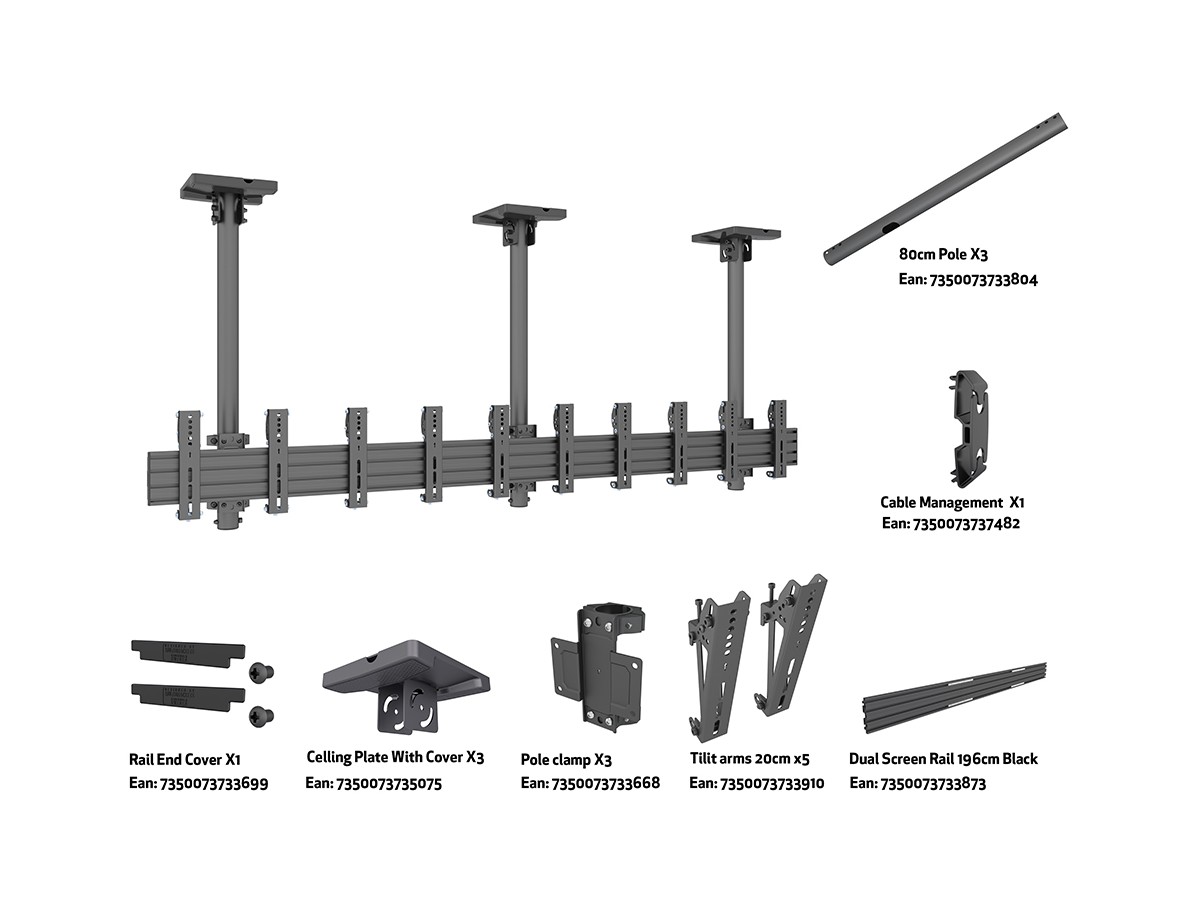

- Hardware kit included
Additional information
| Article No: | 7 350 105 215 063 |
| For screen size: | 27"-32" |
| Type: | Single Side MBC5X1UP |
| Universal & VESA standard: | Adjustable from 75x75, 100x100, 100x200, 200x100 to 200x200 max Optional VESA available |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 22 kg |
| Measurements | 110 x 23 x 15 cm |
| Max Load: | 30 kg per screen |

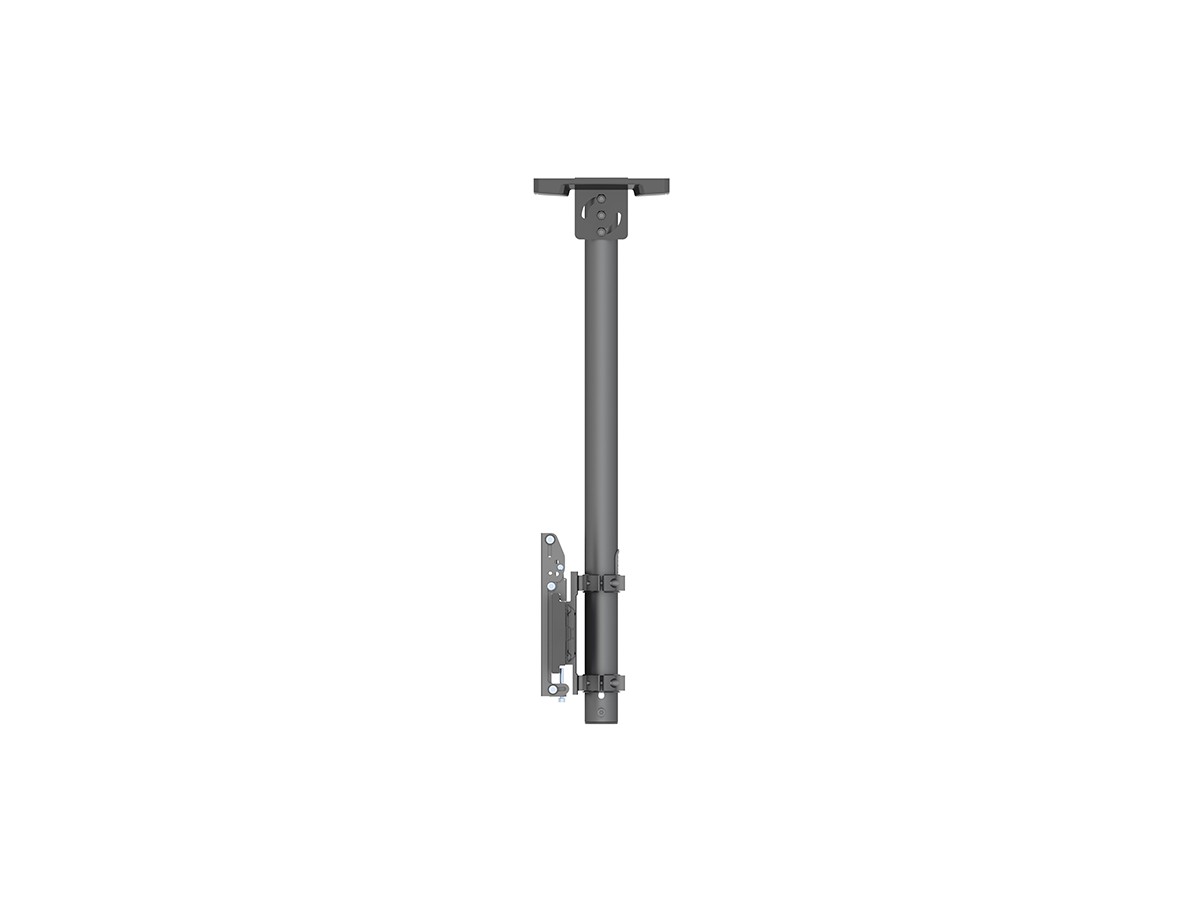

| Pillar length: | Min: 580mm to Max: 750 mm from ceiling to VESA plate center |

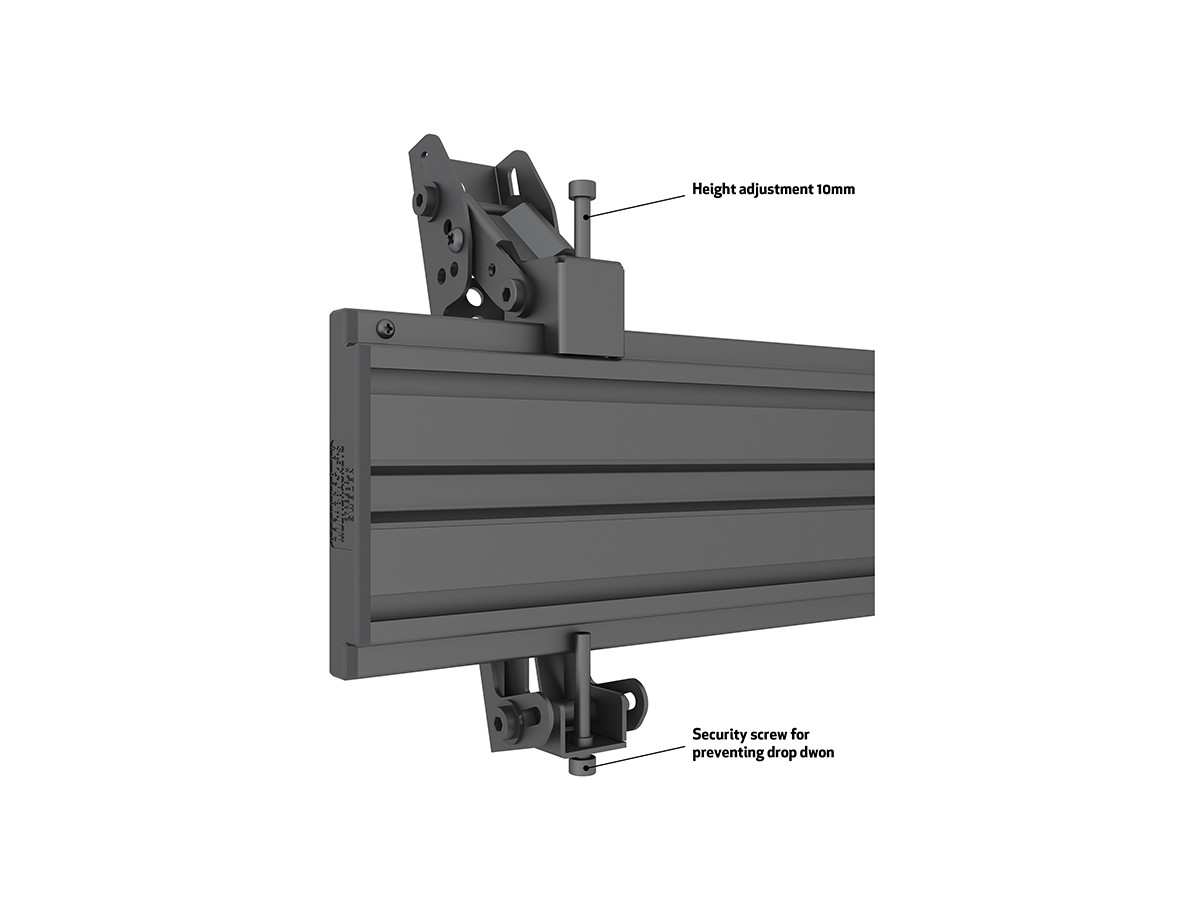

| Tilt: | Yes, 0~15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Warranty: | 5 years |
5063-drawing
