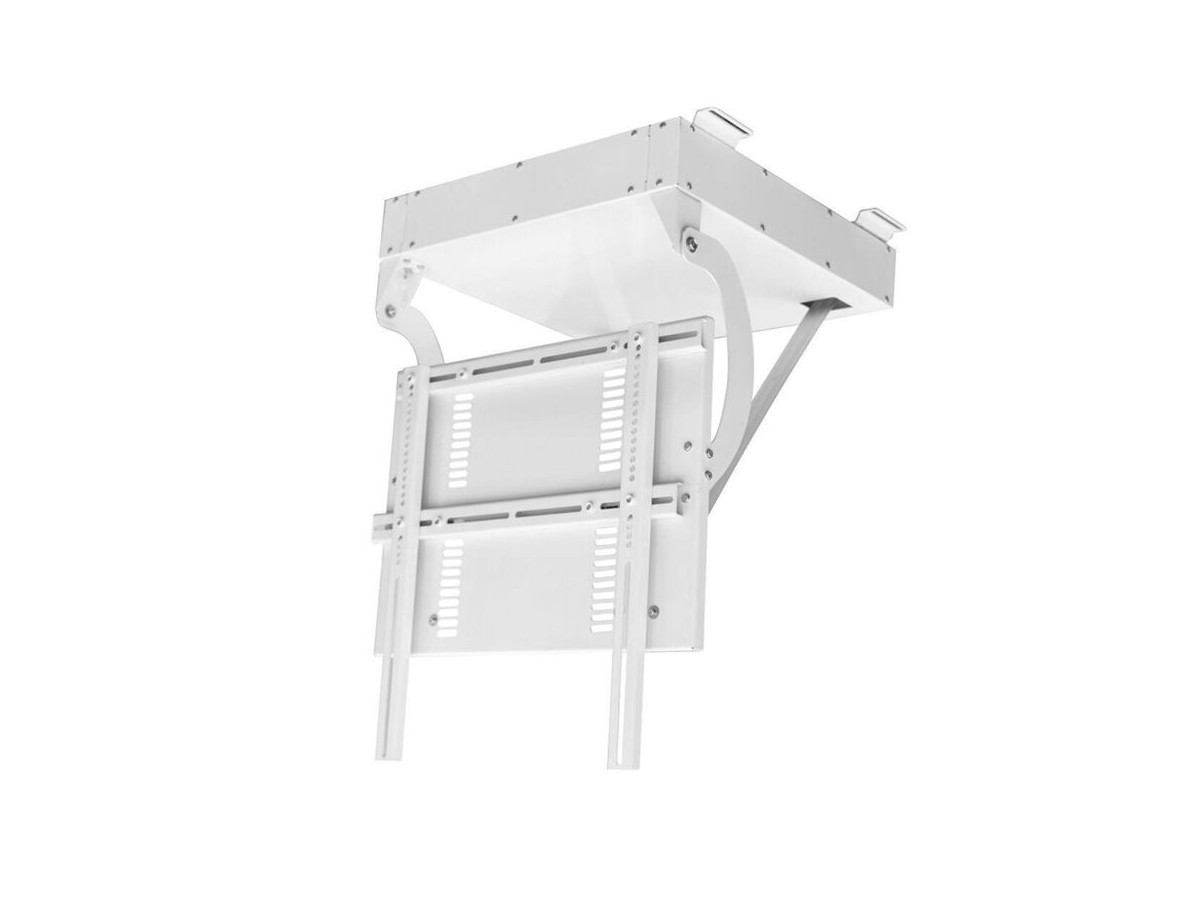

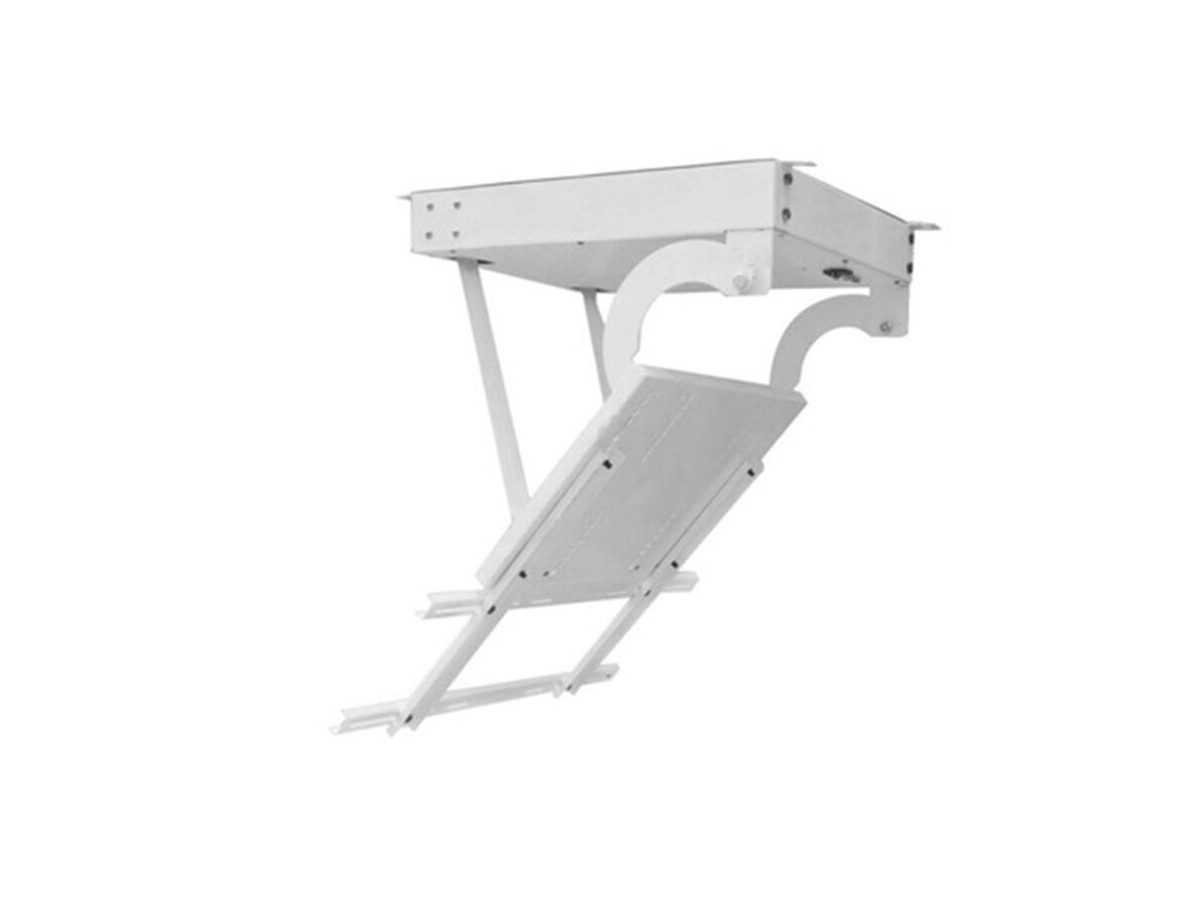

Multibrackets 7350073739592 M Motorized Ceiling Mount Pro SD
Product code:M Motorized Ceiling Mount Pro SD - mounting kit (tilt ceilingmount) for LCD TV - cold rolled steel - screen size: 32" - 100" - max 100 kg - VESA: 200x200 to 900x600 mm - white
Description
Highlights

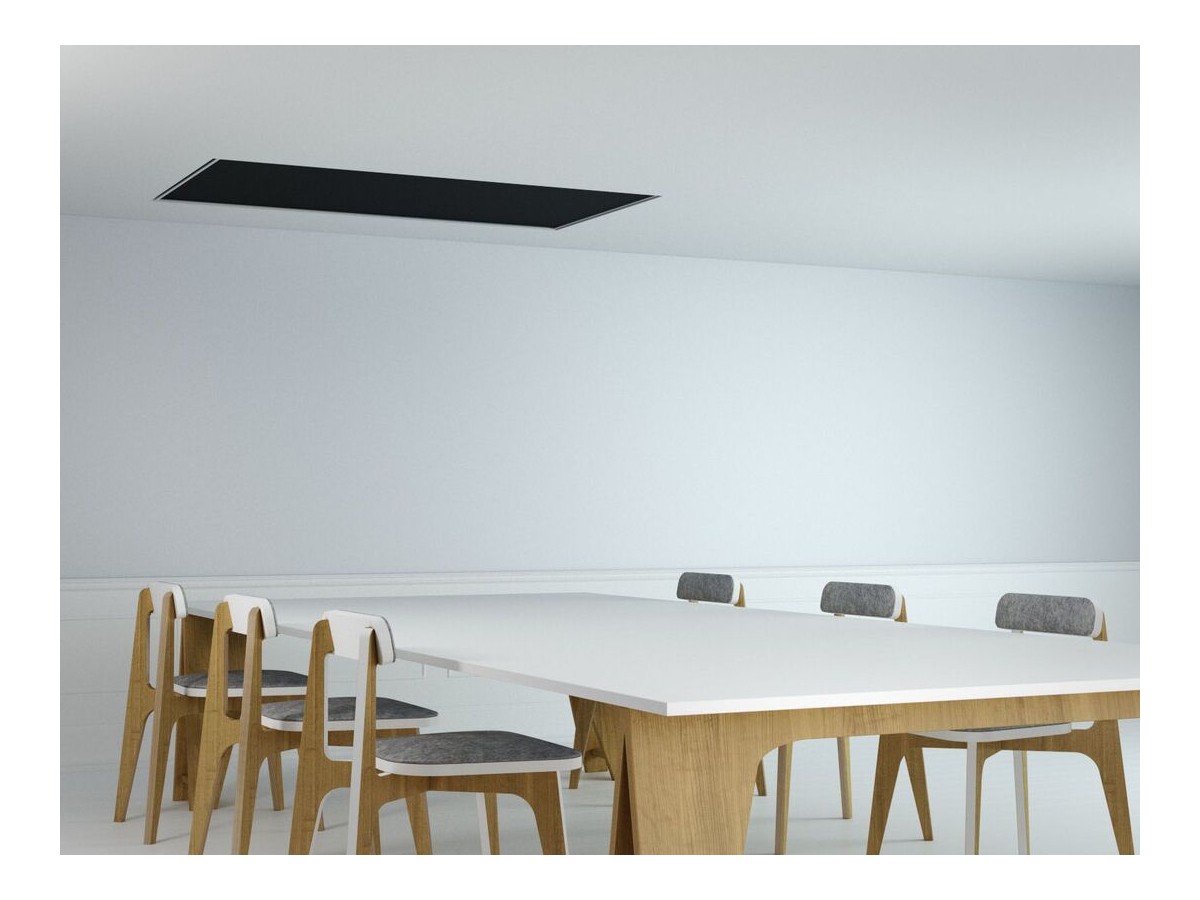

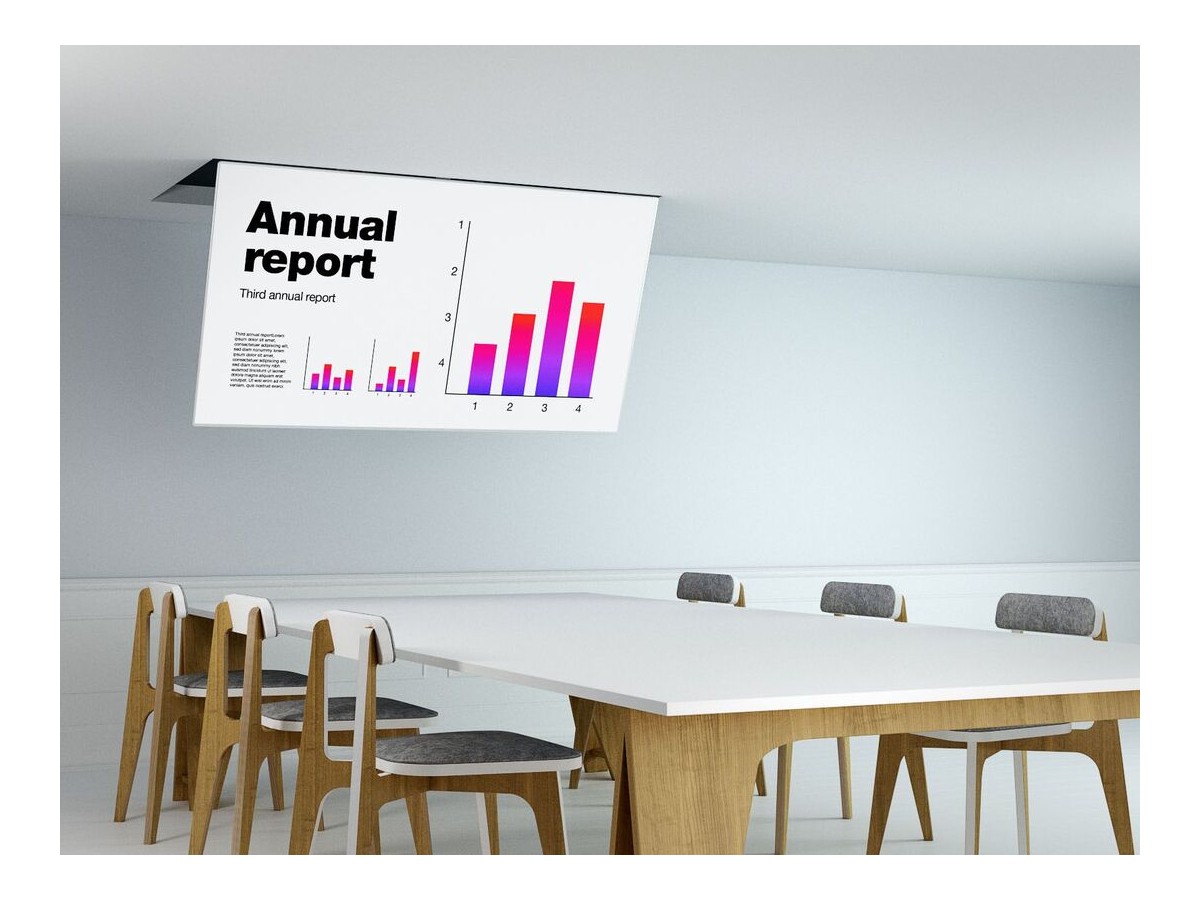

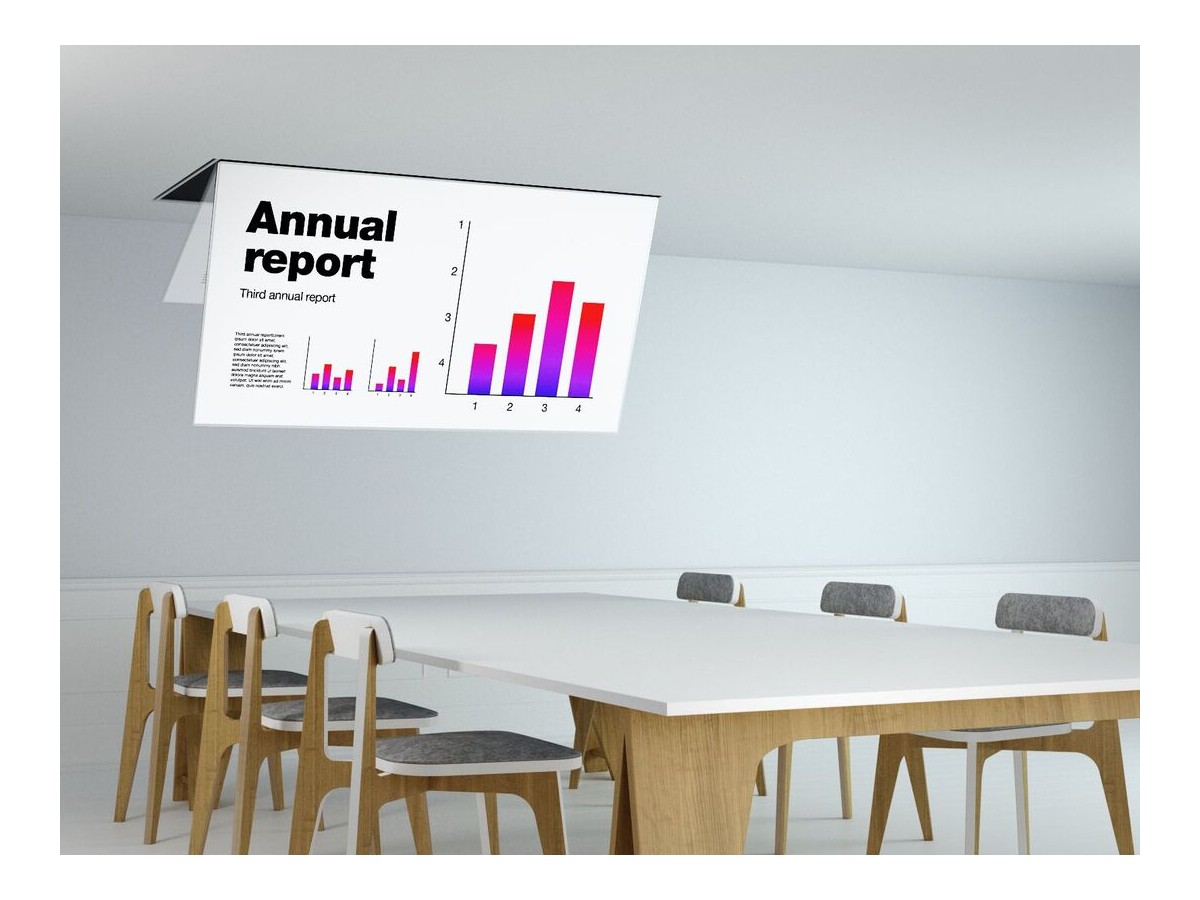

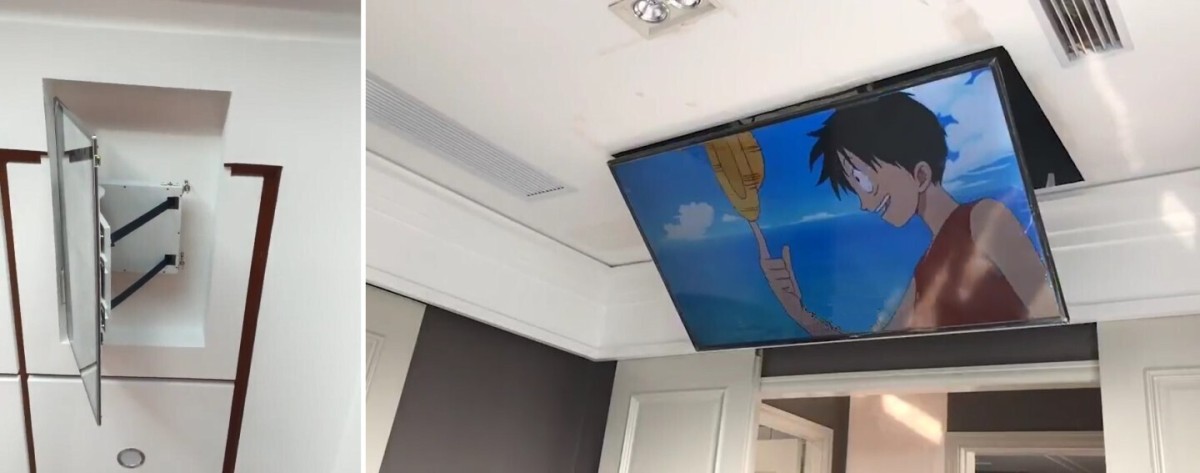

- The ideal solution for a ceiling motorized flip down of your TV
- Supporting 32" up to 100" flat panel displays

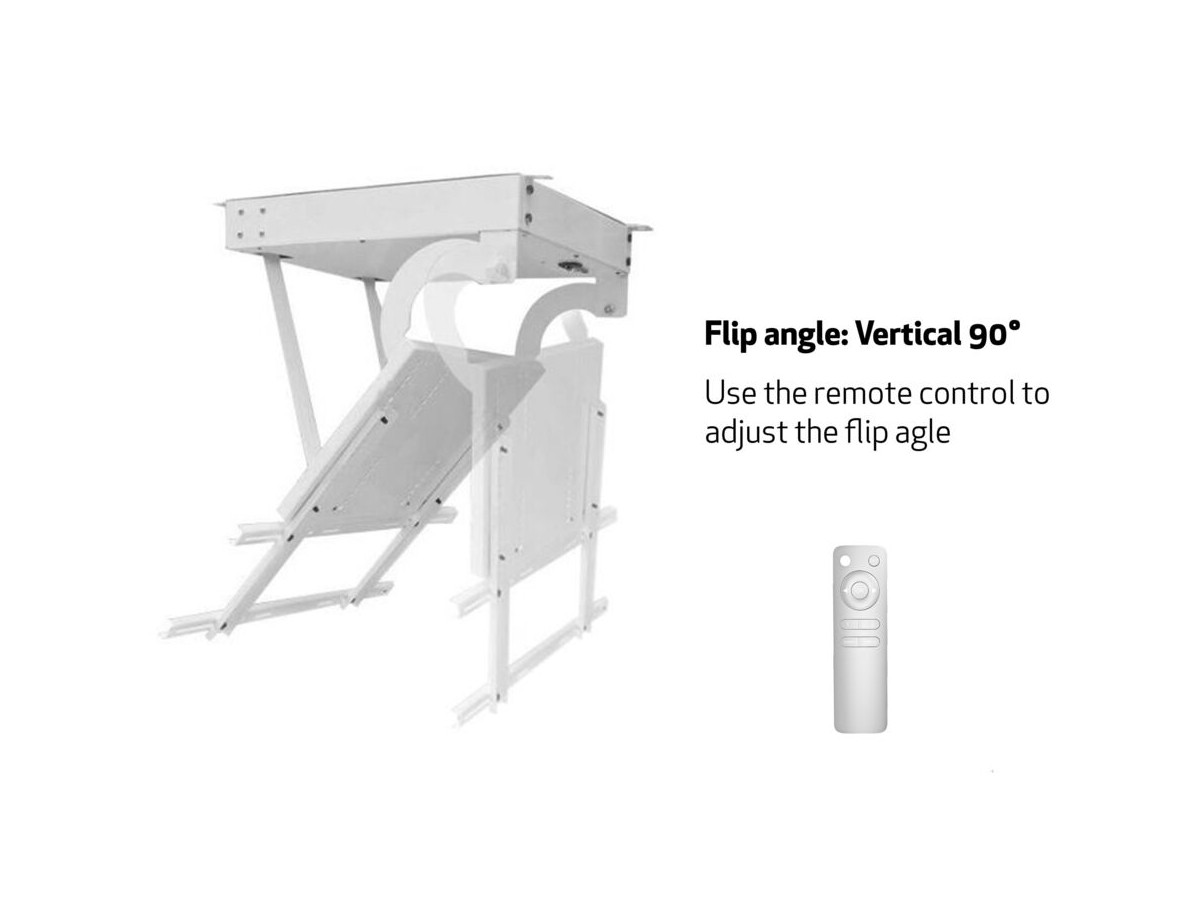

- Rapid motorized transition -90° - +0° up and down folded position
- Up and down, up 980mm down 770mm

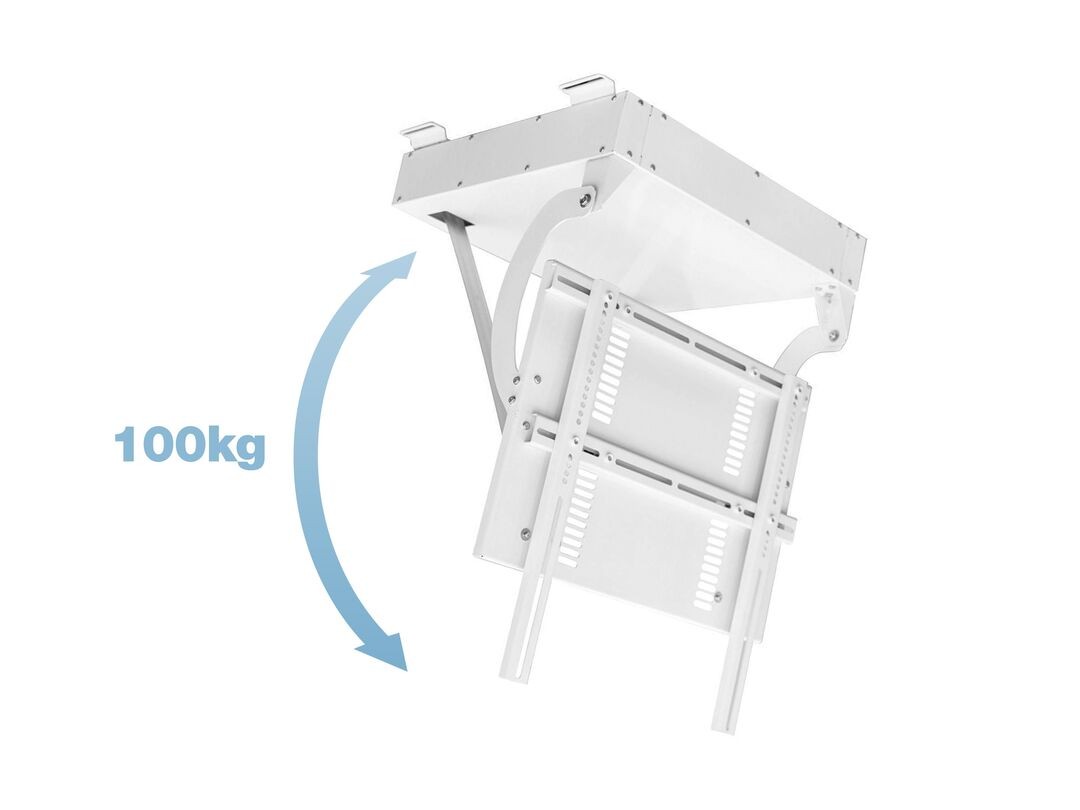

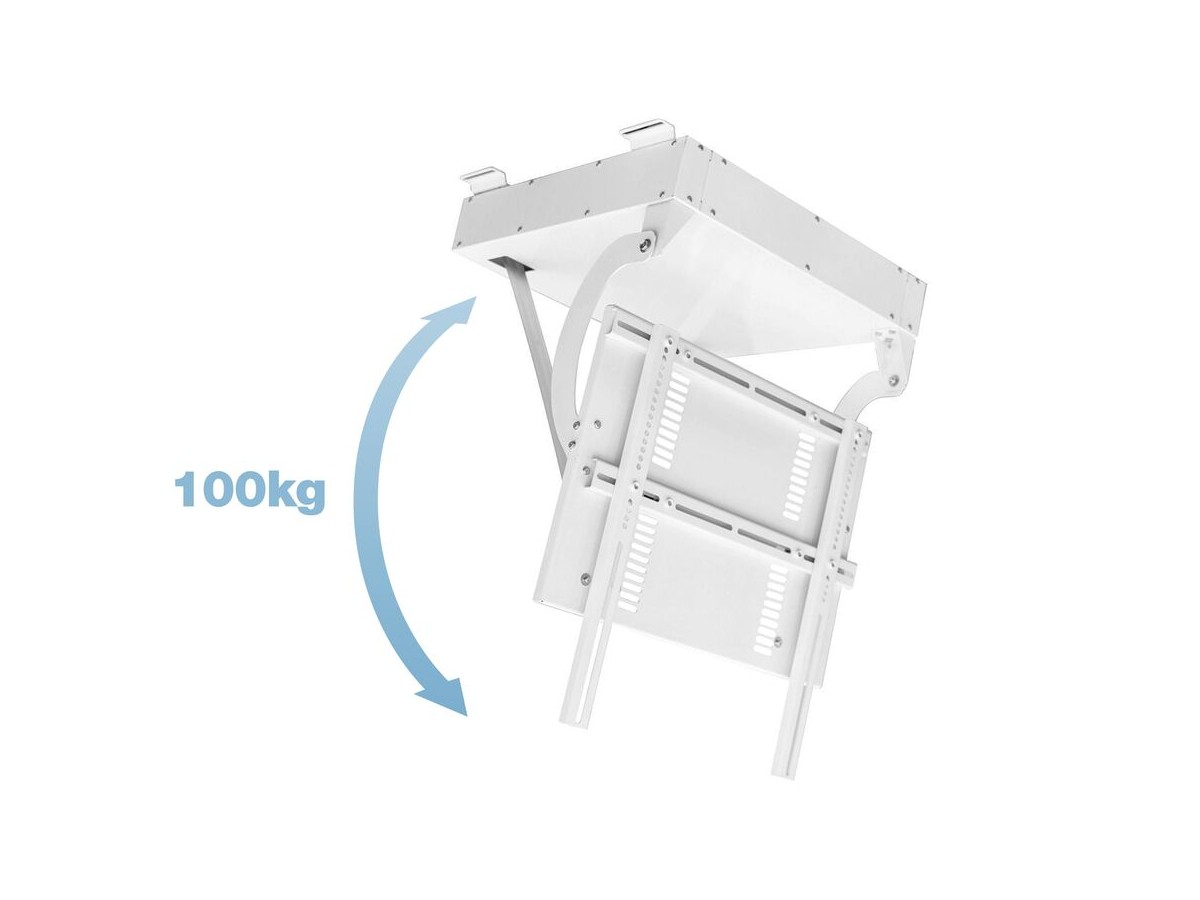

- Max screen weight capacity: 100 kg
- Remote control included
- Remote control, multi-style operation, remote control / remote control / central control
Remote control
Operation multi-style, remote / remote / central control
一Remote control learning code
1. Press and hold the red button on the main unit until you hear a "drop" sound
Only let go.
2. Press the pause button again, and hear the sound of two “drops”, indicating remote control.
Electronic setting operation method for upper and lower limits
1. Press the set button, and hear the sound of five “drops” to cancel the original setting.
Start setting (Note: you must hear five sounds, the other sounds are invalid)
2. Lower limit setting
Press the lower limit button to lower the hanger when the hanger has lowered to your desired position Press the pause button, the hanger stops to the position you want, then press the set button, listen Two “drip” sounds are sent to the host to indicate that the lower limit is set successfully (the lower limit is selected)The position can be repeated using the up and down keys)
3.limit setting
Ps: If the setting is unsuccessful, press the setting button to hear five “drops” and then reset
Additional information
| For screen size: | 32-100" |
| VESA standard: | 200x200, 300x300, 400x400, 600x600, 900x600mm |
| Article No: | 7 350 073 739 592 |
| Colour: | White |
| Max load: | 100 kg (with electromagnetic brake) |

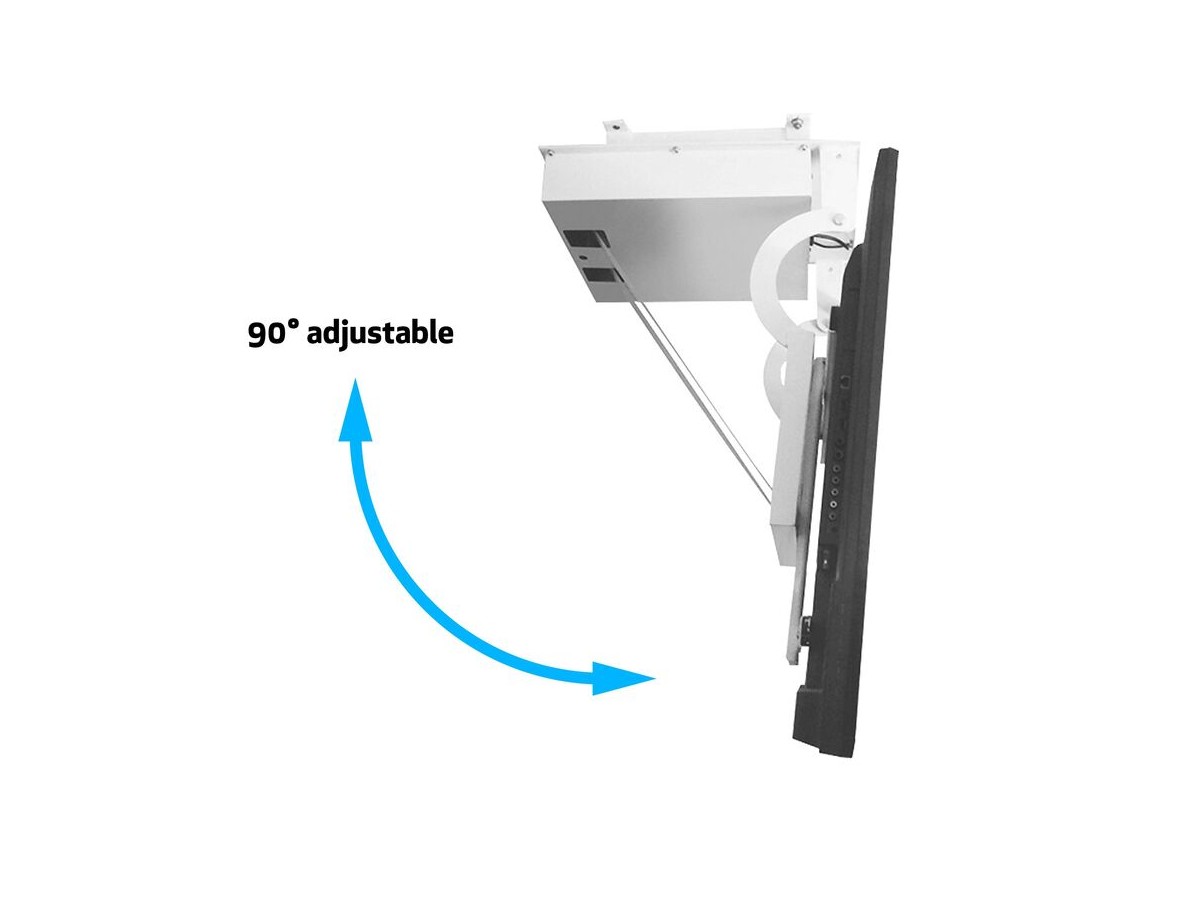

| Tilt angle: | 0-90° |
| Certification: | CE |
| Power: | 220V 50/60Hz 4.0uF 0.65A 1300/1600r/min (open-close time 70 sec) Cable length: 2m |

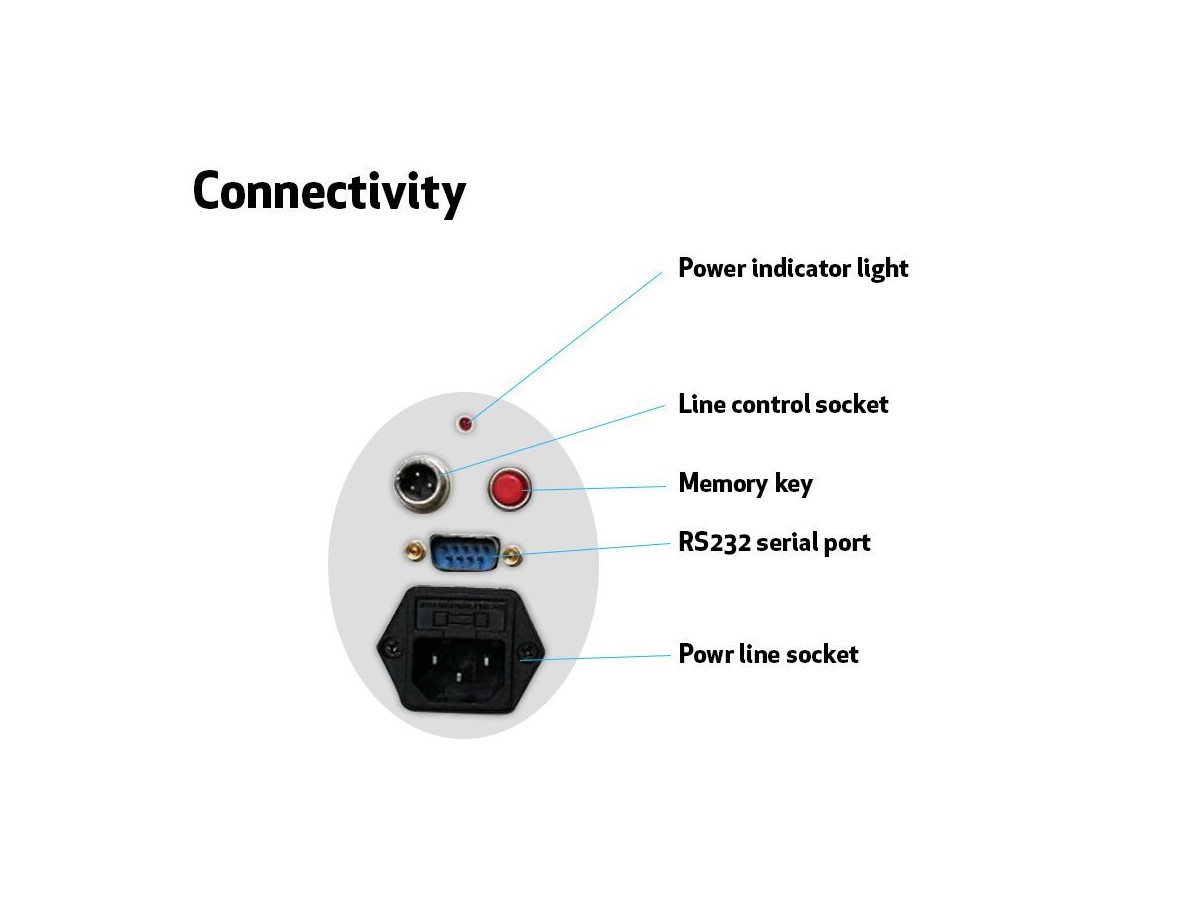

| Remote control: | RF intelligent remote control operation included. Batteries not included RS-232 interface availiable |
| Weight: | 40 kg |

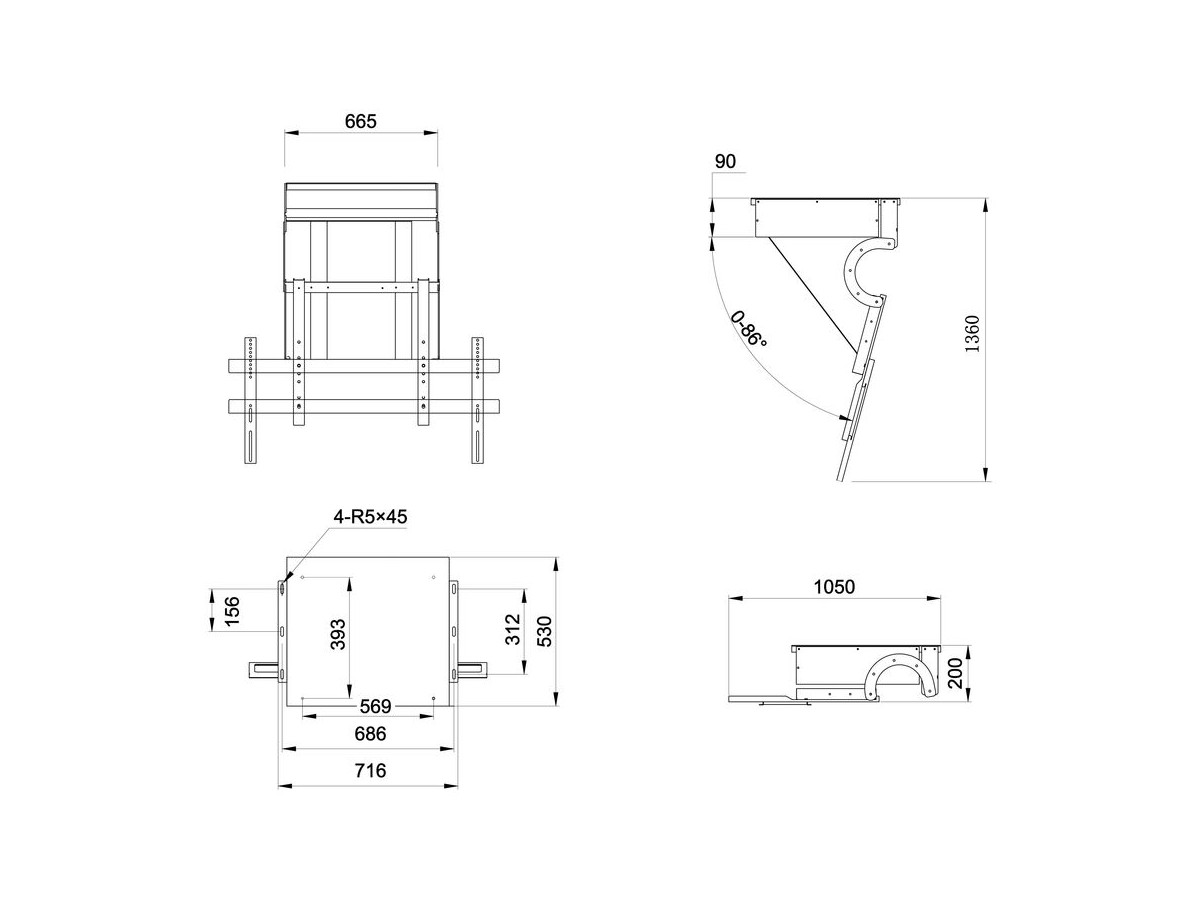

| Size in mm: | 557x435x108 mm |
| Warranty: | 1 year |
