Multibrackets 7350073736386 M Pro Series - I-Beam Clamp
Product code:M Pro Series - I-Beam Clamp - Part for Pro Series, steel, mounts to ceiling I-beam - adjustable from IPE 100 to IPE 500 - black
SEND AN ENQUIRYDescription

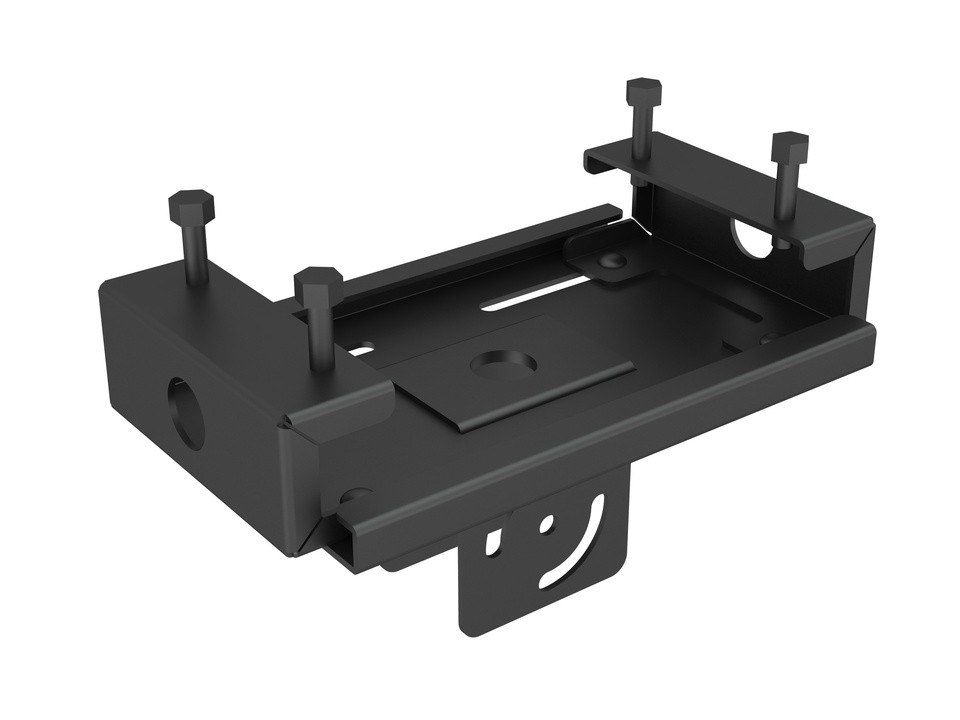

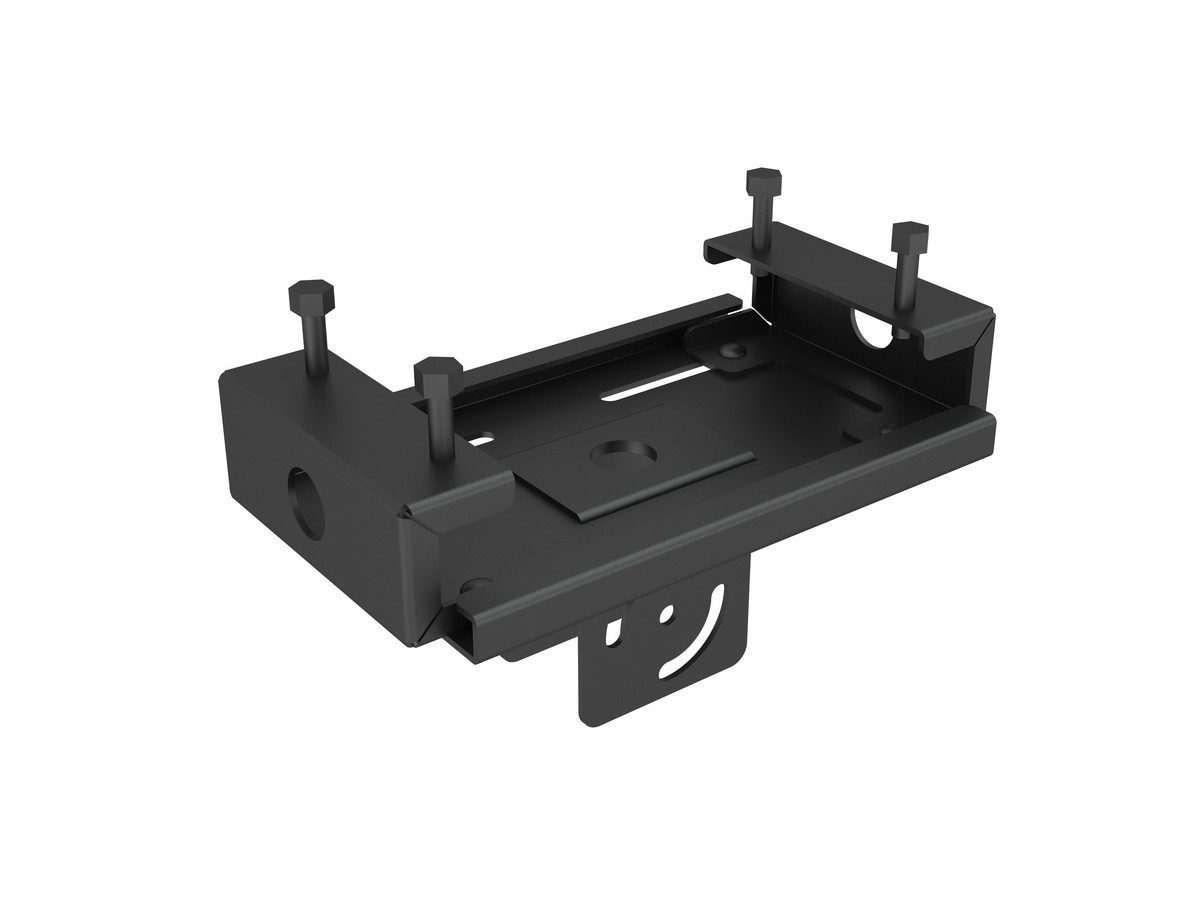

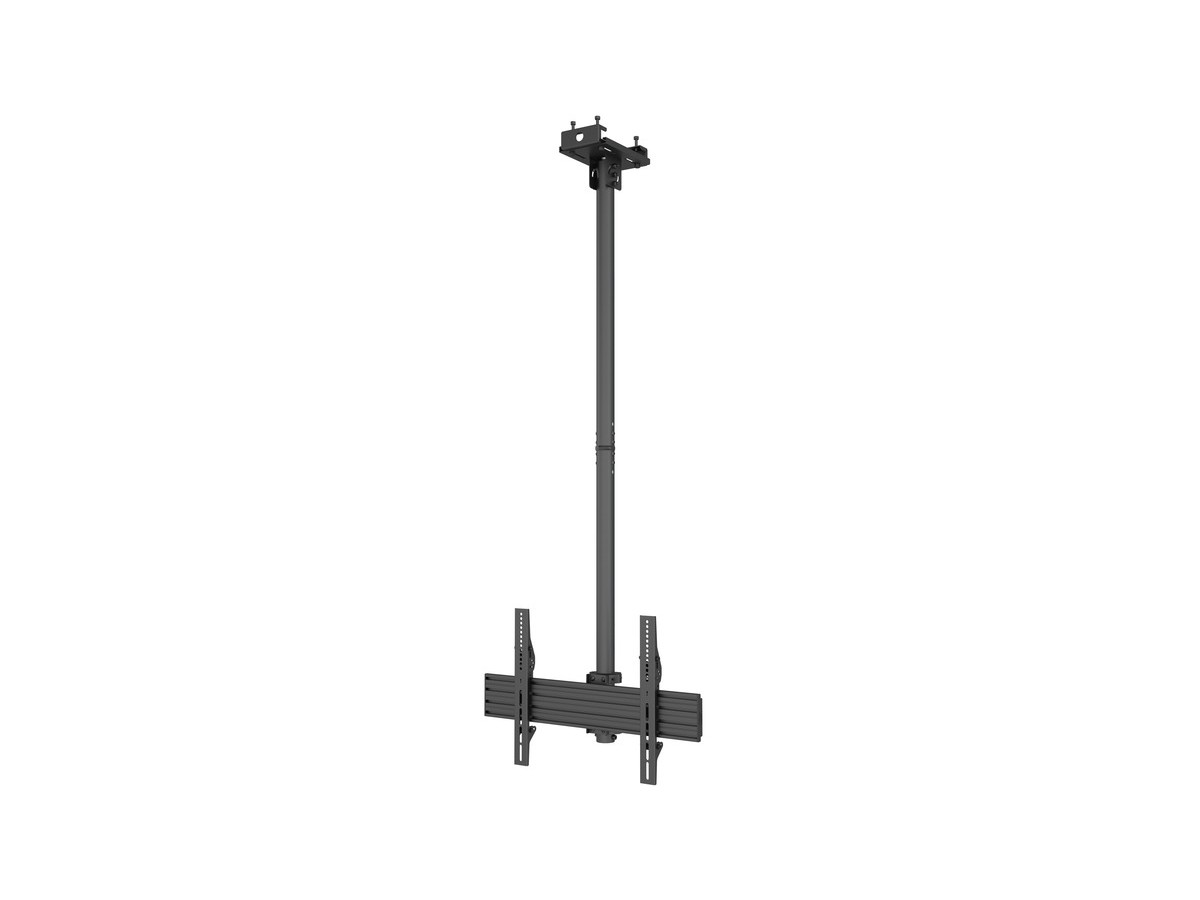

The Pro Series I Beam Clamp is designed to anchor a Multibrackets Pro Series ceiling mount to an overhead I Beam. The size ranges from 50mm to 180m width. The threaded fitting is compatible with Pro Series Ceiling mounts (multiple models available).

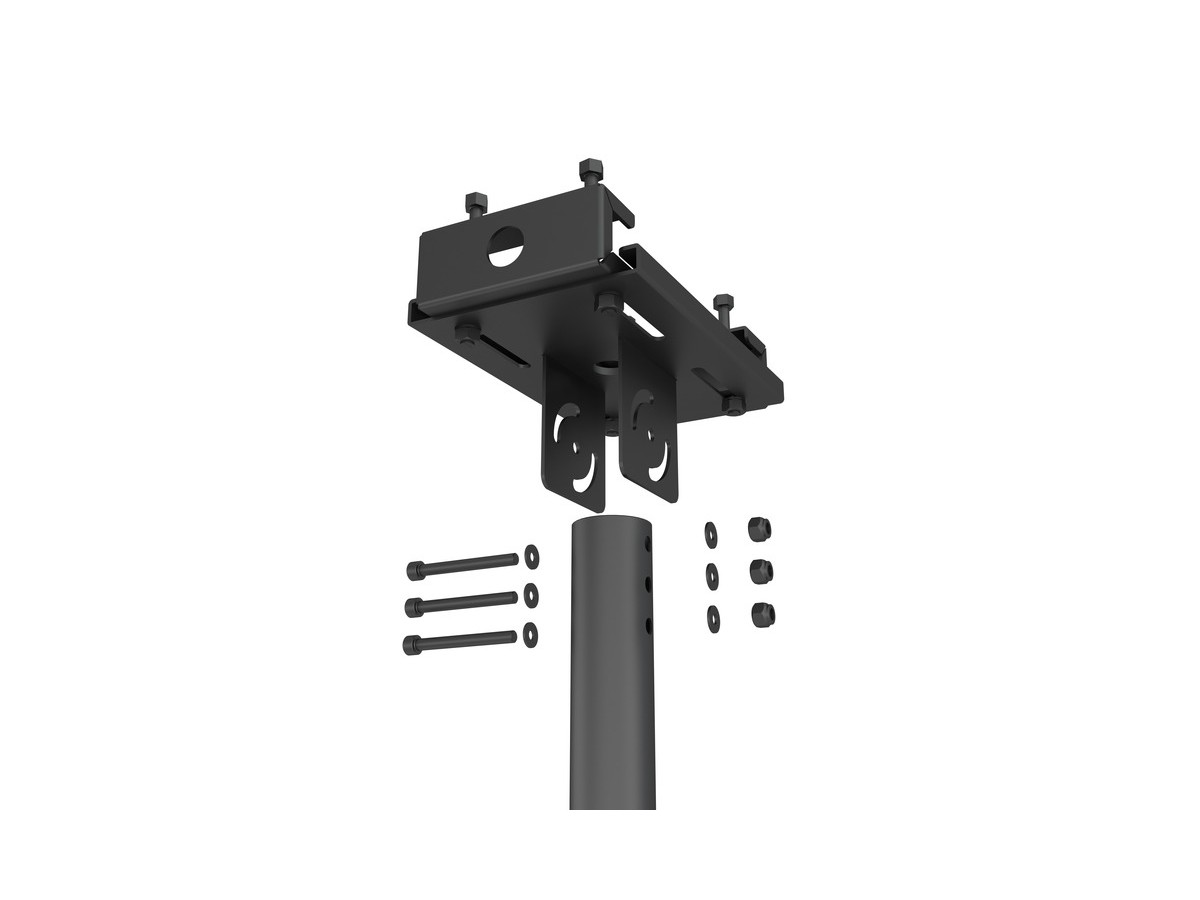

The Pro Series I Beam Clamp is a partially pre-assembled product that is highly flexible. As it work with the existing Pro Series ceilingmounts it is very fast to install. Also there is no need for welding or drilling of the existing I beam structure. The use of Pro Series I Beam Clamp is made to offer a high degree of adjustability and a guaranteed safe working load when mounted.

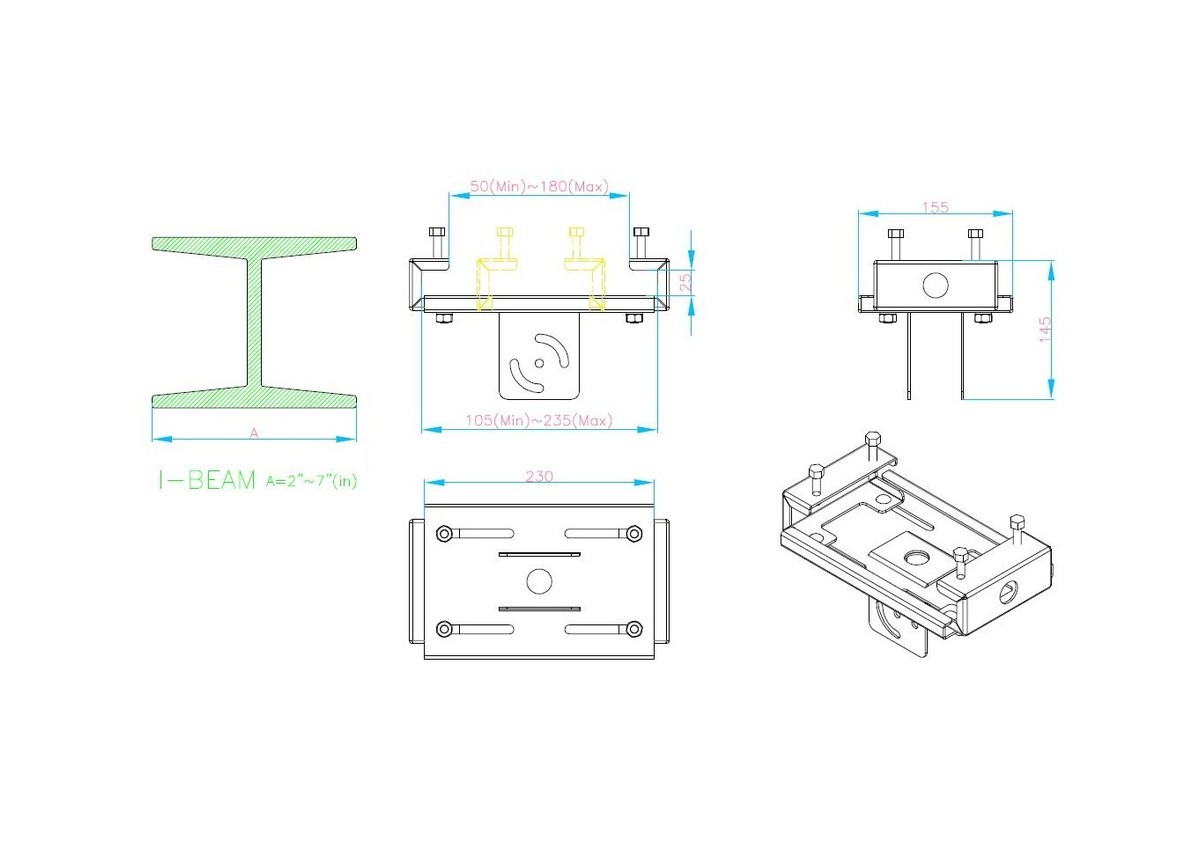

Dimensions of Steel Beams IPE NEN-EN 10025-1/2
Additional information
| Article No: | 7 350 073 736 386 |
| Type: | Part for M Pro Series |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 2.1 kg |
| Measurements | 230x155x145 mm (adjustable width) |
| Max Load: | 90 kg |
| Installation: | Mount to ceiling I-beam IPE 100-500 |
| Warranty: | 5 years |
6386-fact-sheet
