Multibrackets 7350073733798 M Pro Series - Micro-Adjustable Arms 400mm
Product code:Micro-Adjustable Arms 400mm - Micro adjustable Arms, Part for Pro Series, steel, length: 400mm, 30kg max weight capacity, adjustable y-axis 0-5mm, z-axis 0-15mm, 3° rotate, 2 pcs - black
SEND AN ENQUIRYDescription

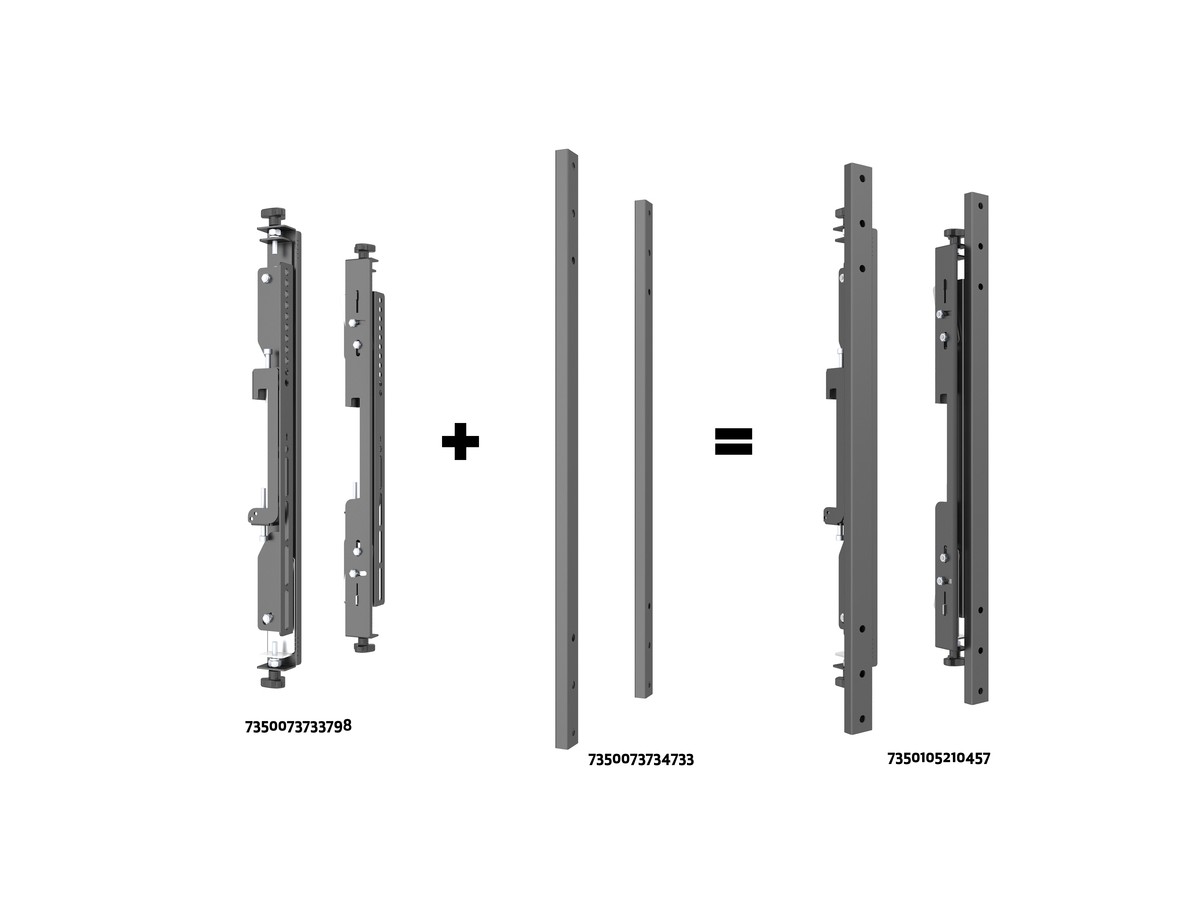

With its modular construction Pro Series parts have vast possibilities to change, update and reconfigure a Pro Series installation. Combine the parts with a Pro Series installation and create a new configuration.

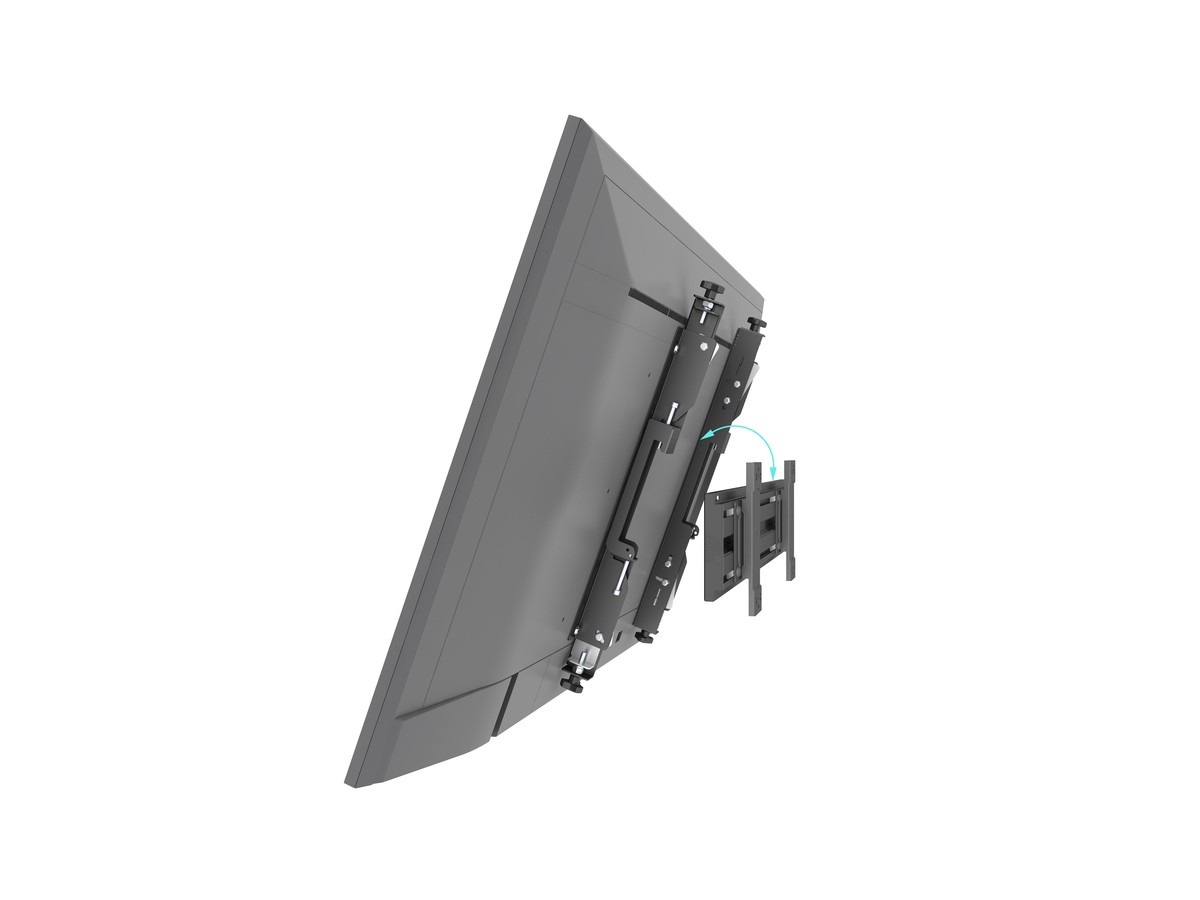

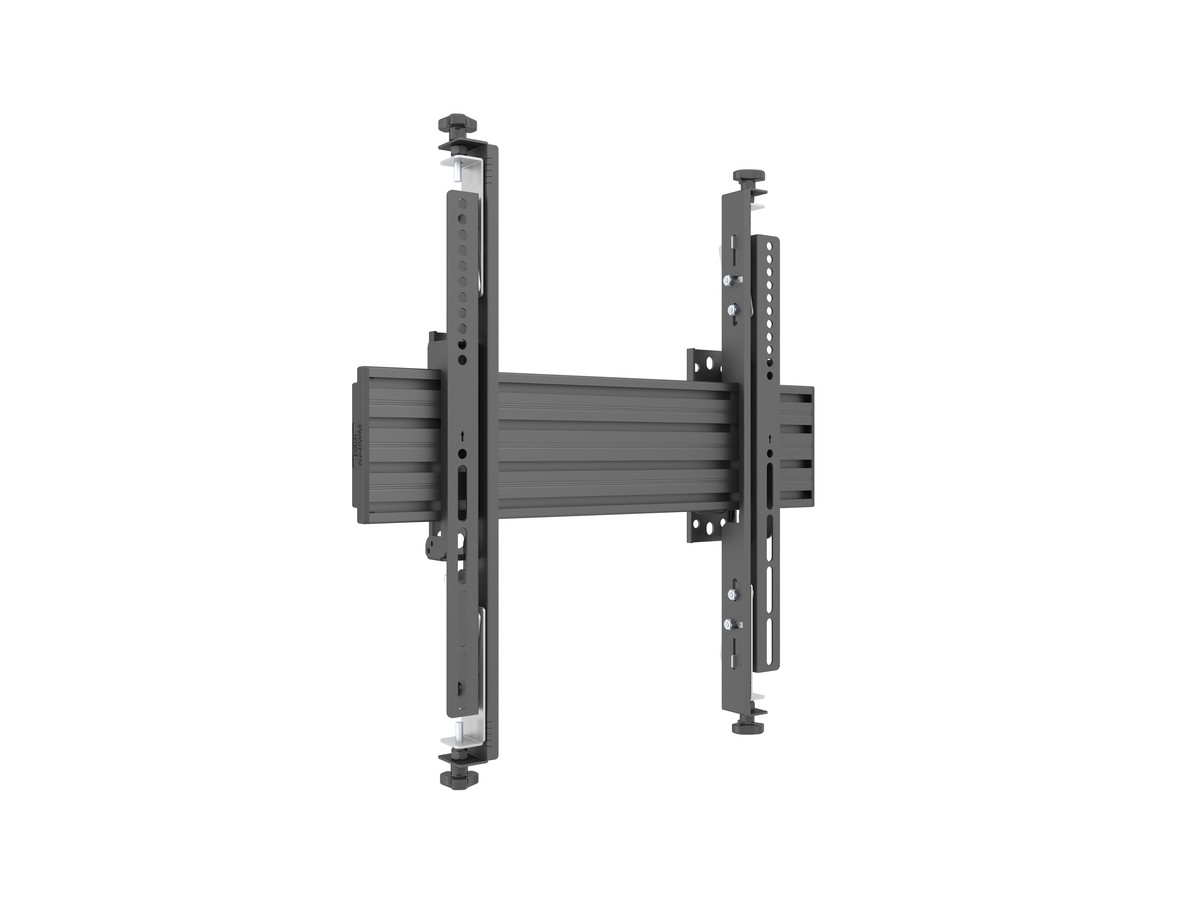

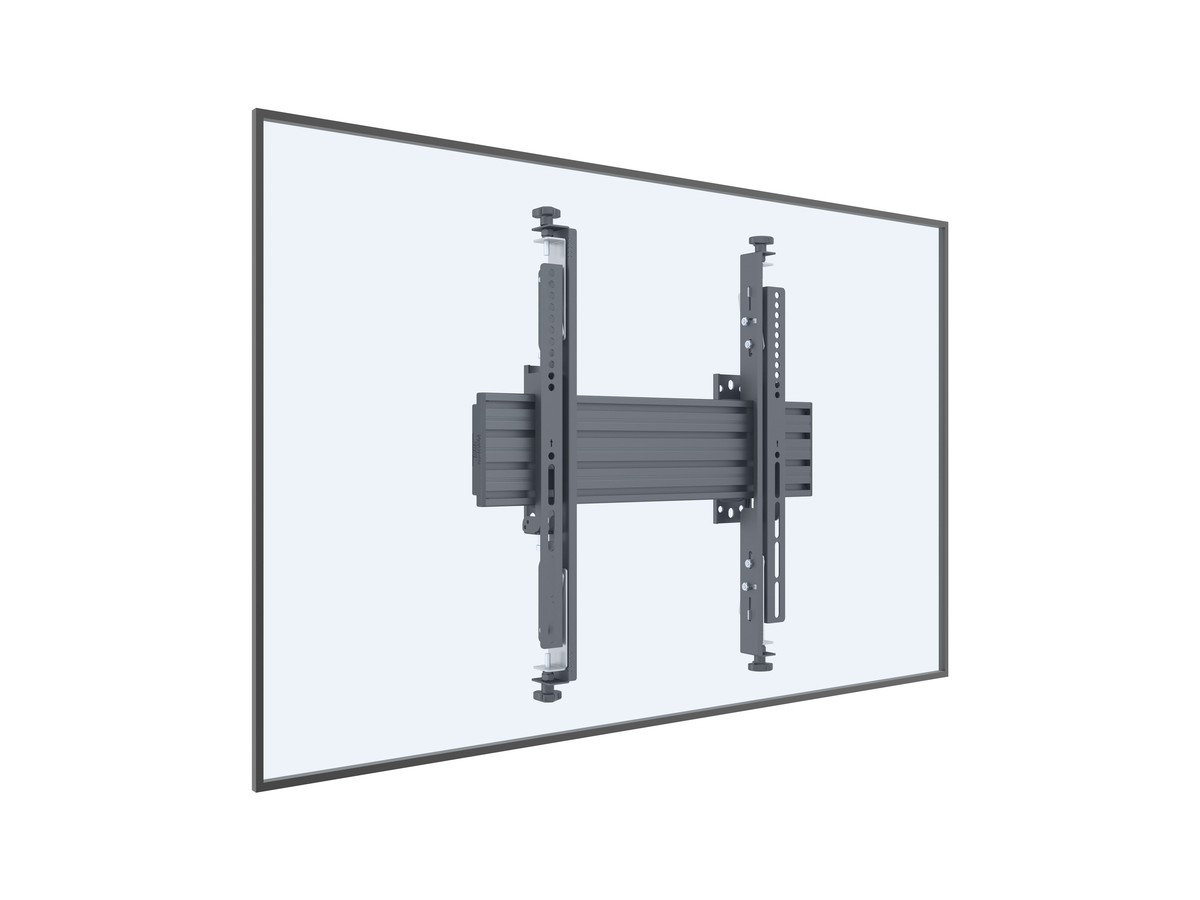

Micro-Adjustable Arms 400mm are ideal screen mounts when fine tuning screen of position is needed.
 Click to view larger images |

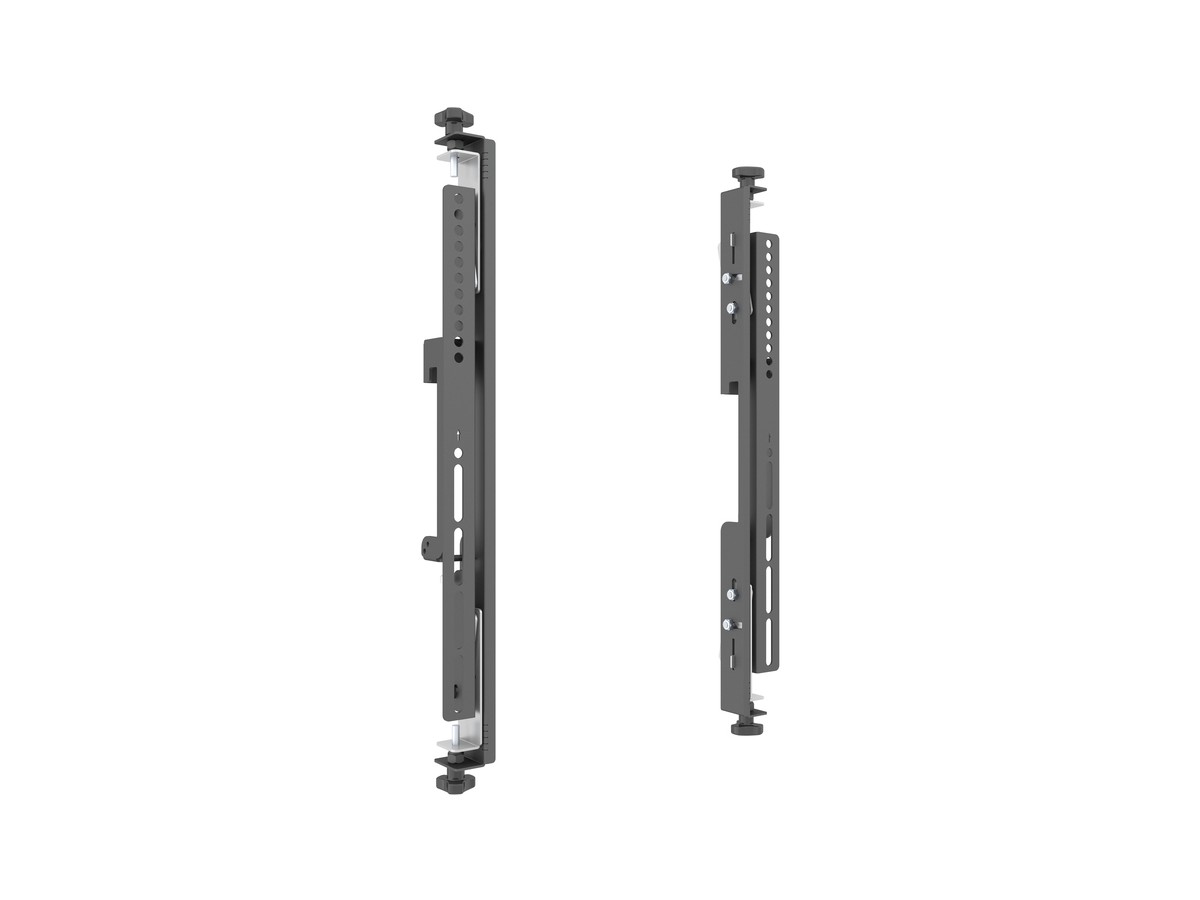

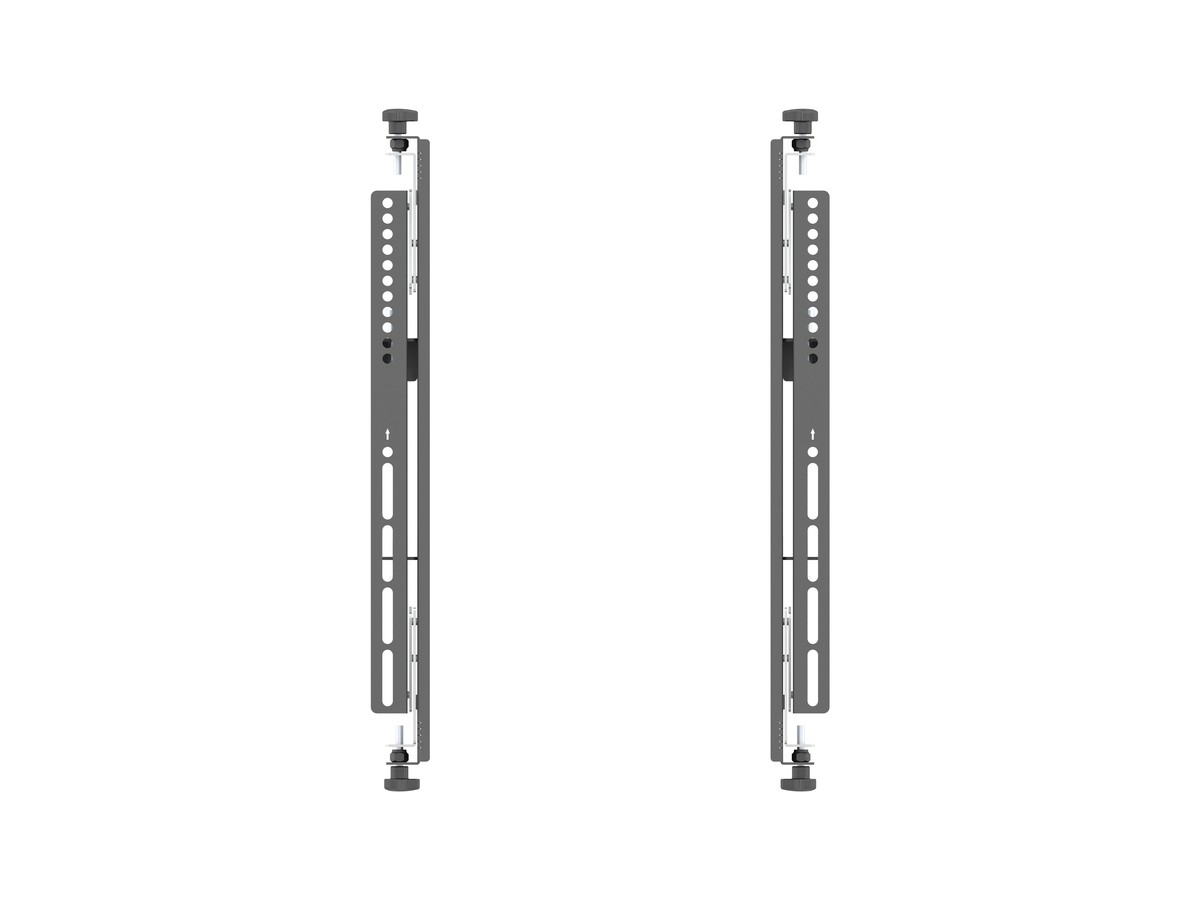

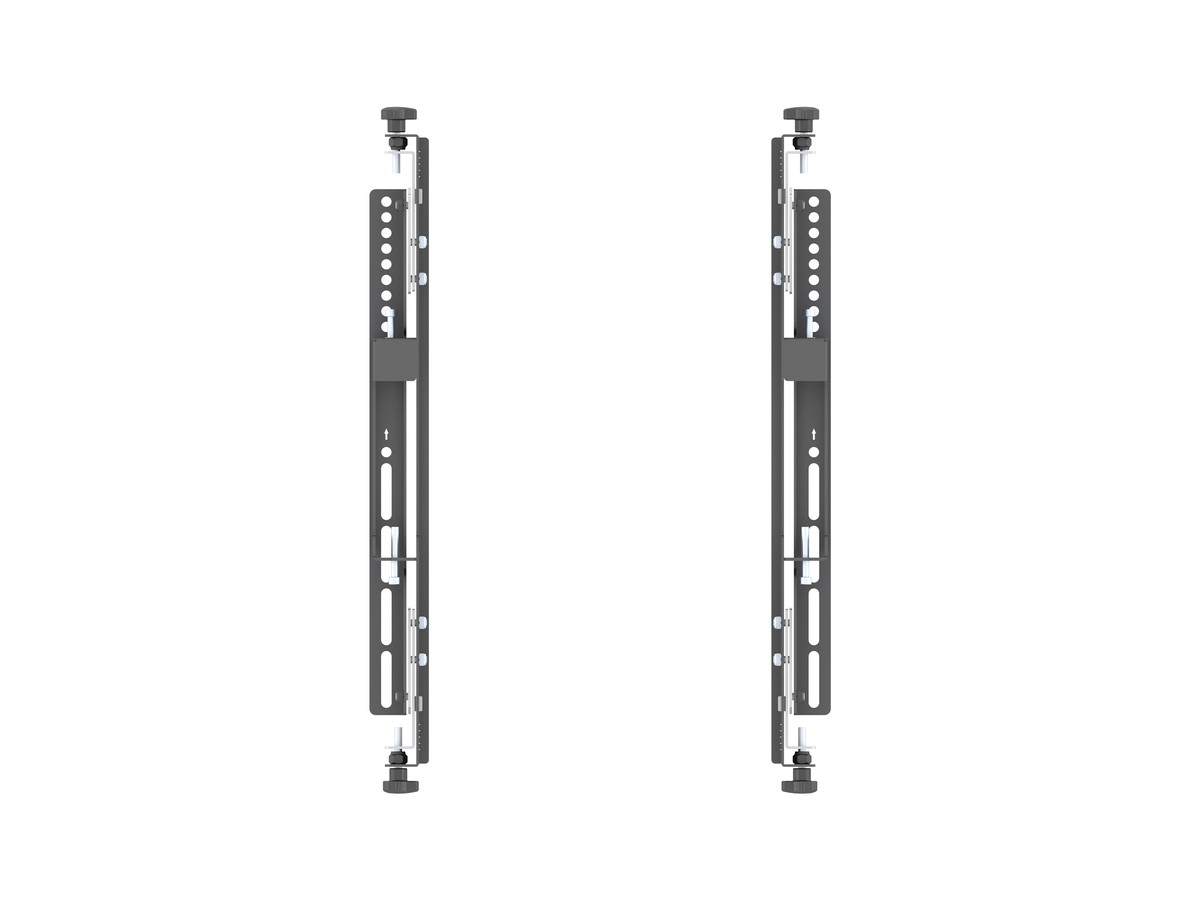

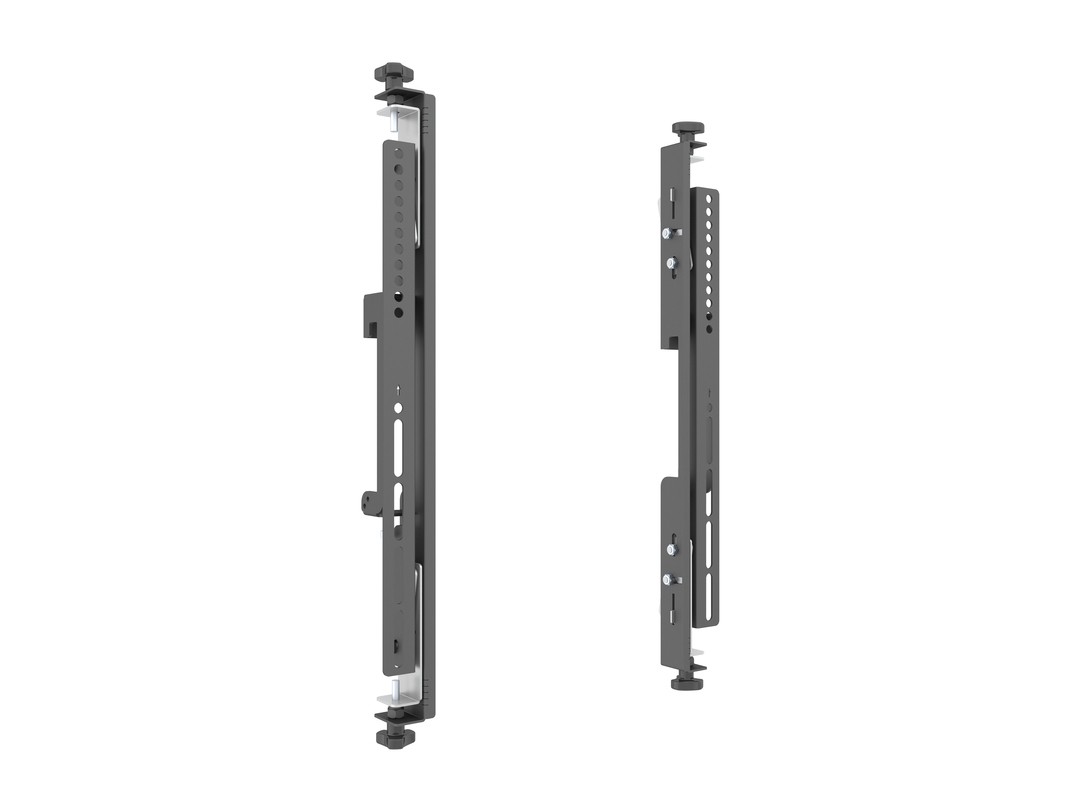

This Part for M Pro Series is made of steel and has a 30kg max weight capacity

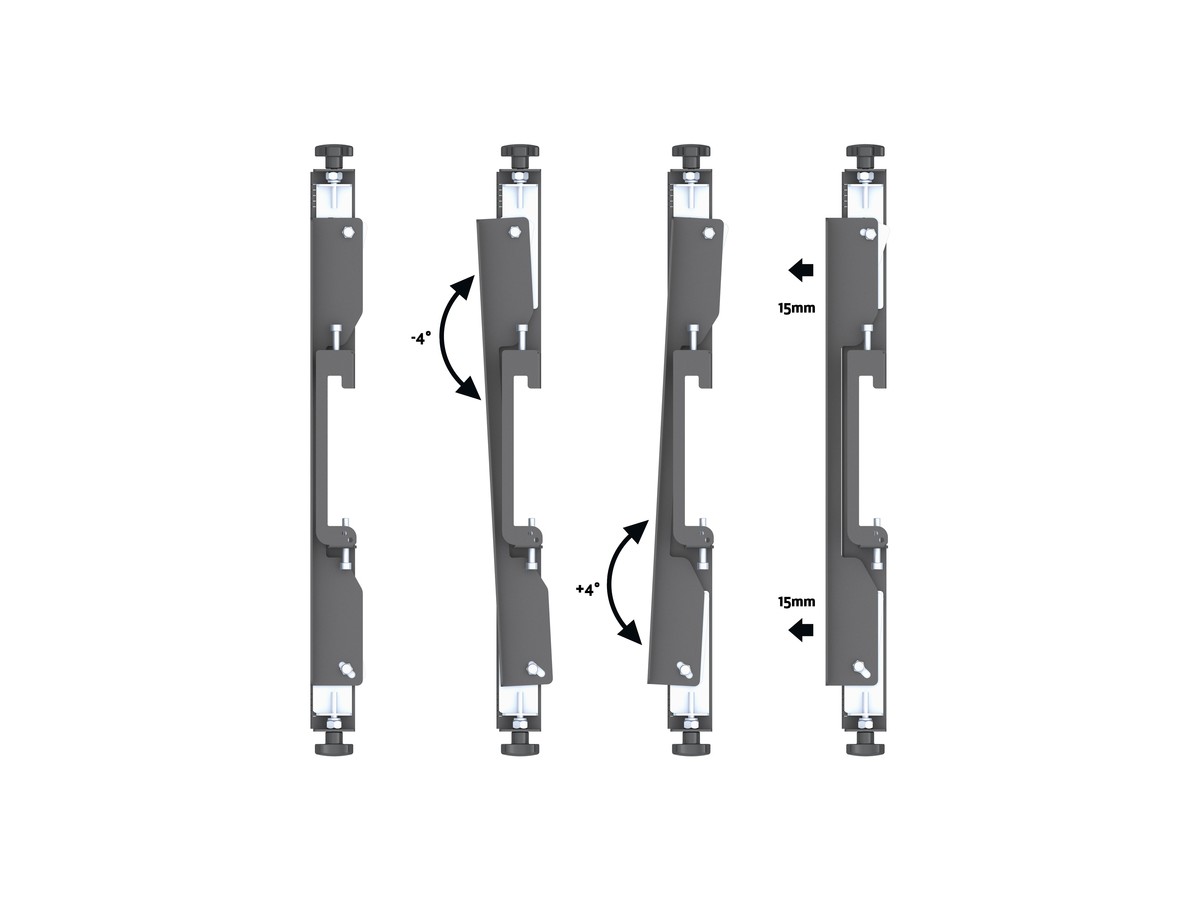

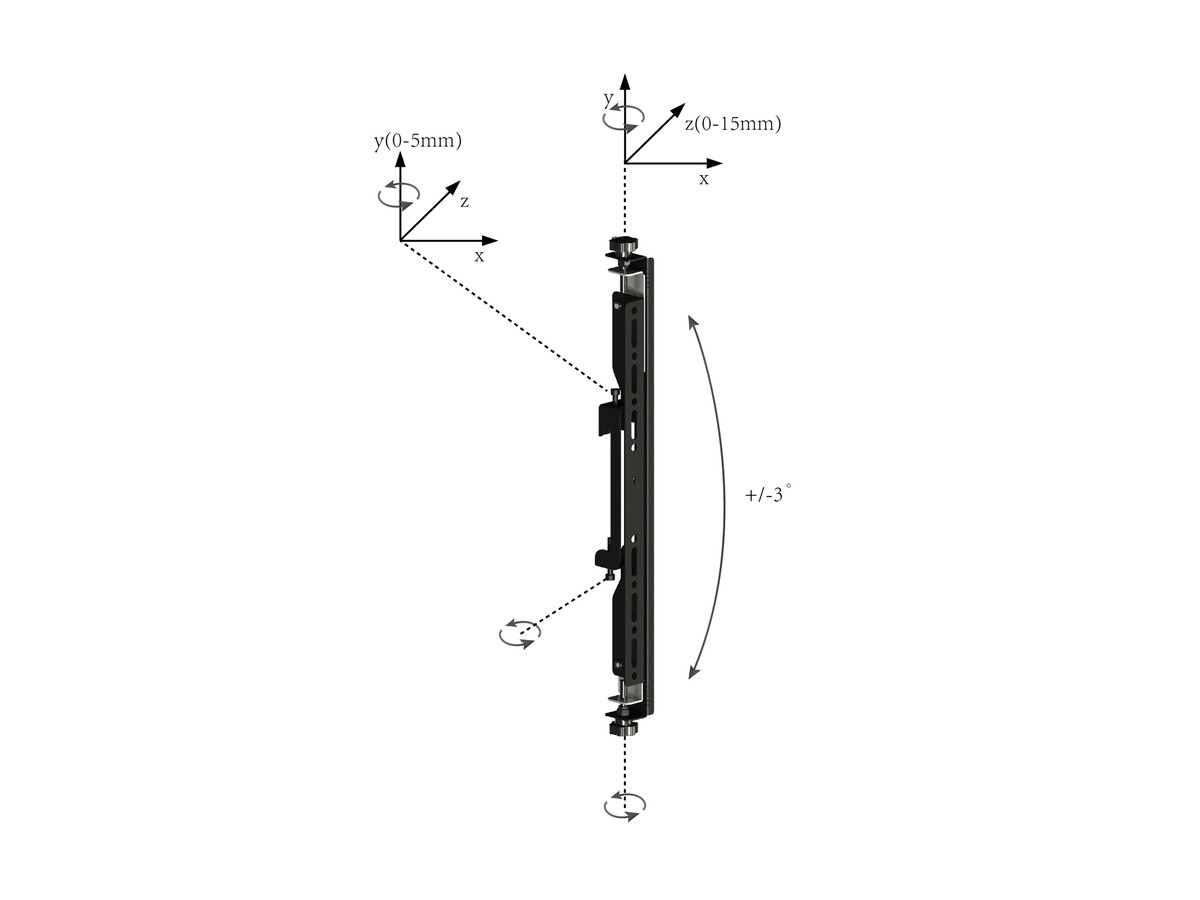

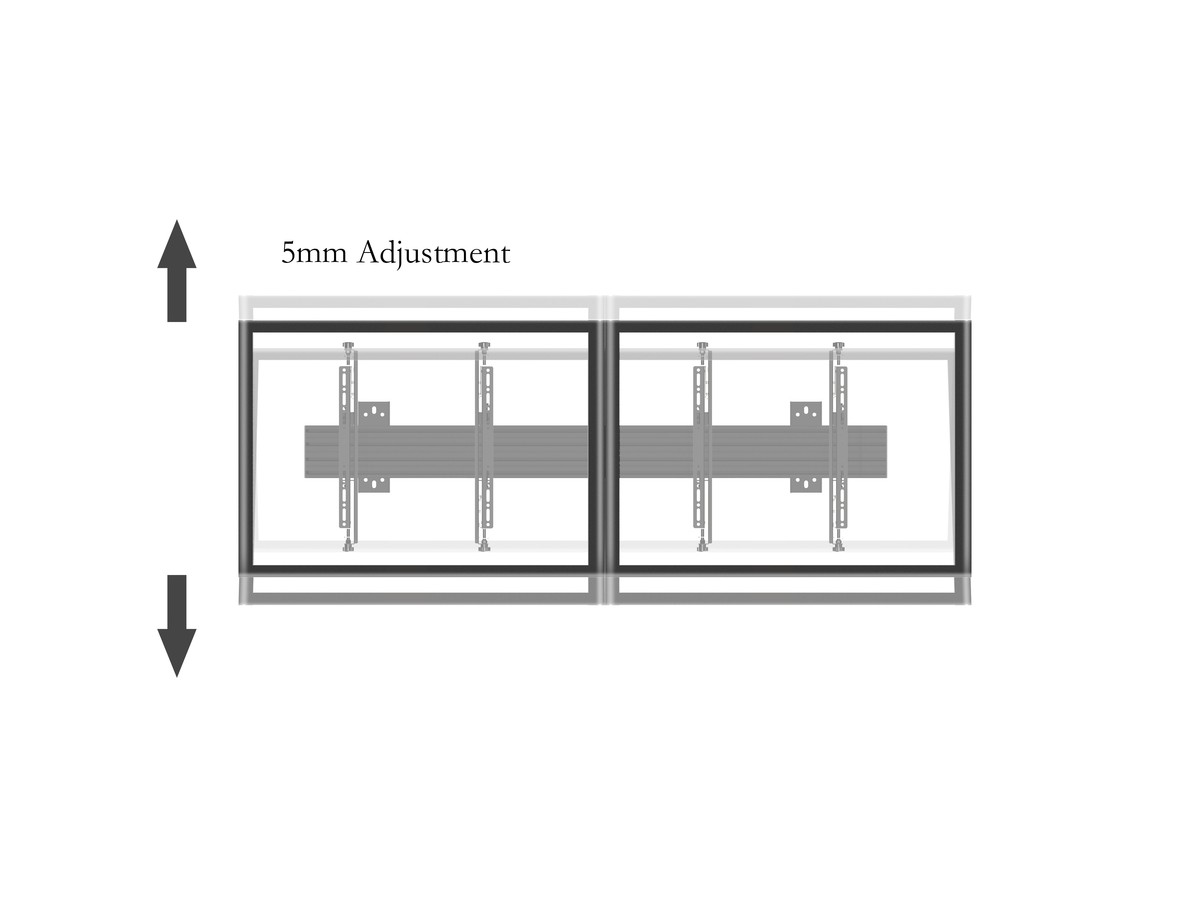

Adjustable y-axis 0-5mm
Adjustable z-axis 0-15mm

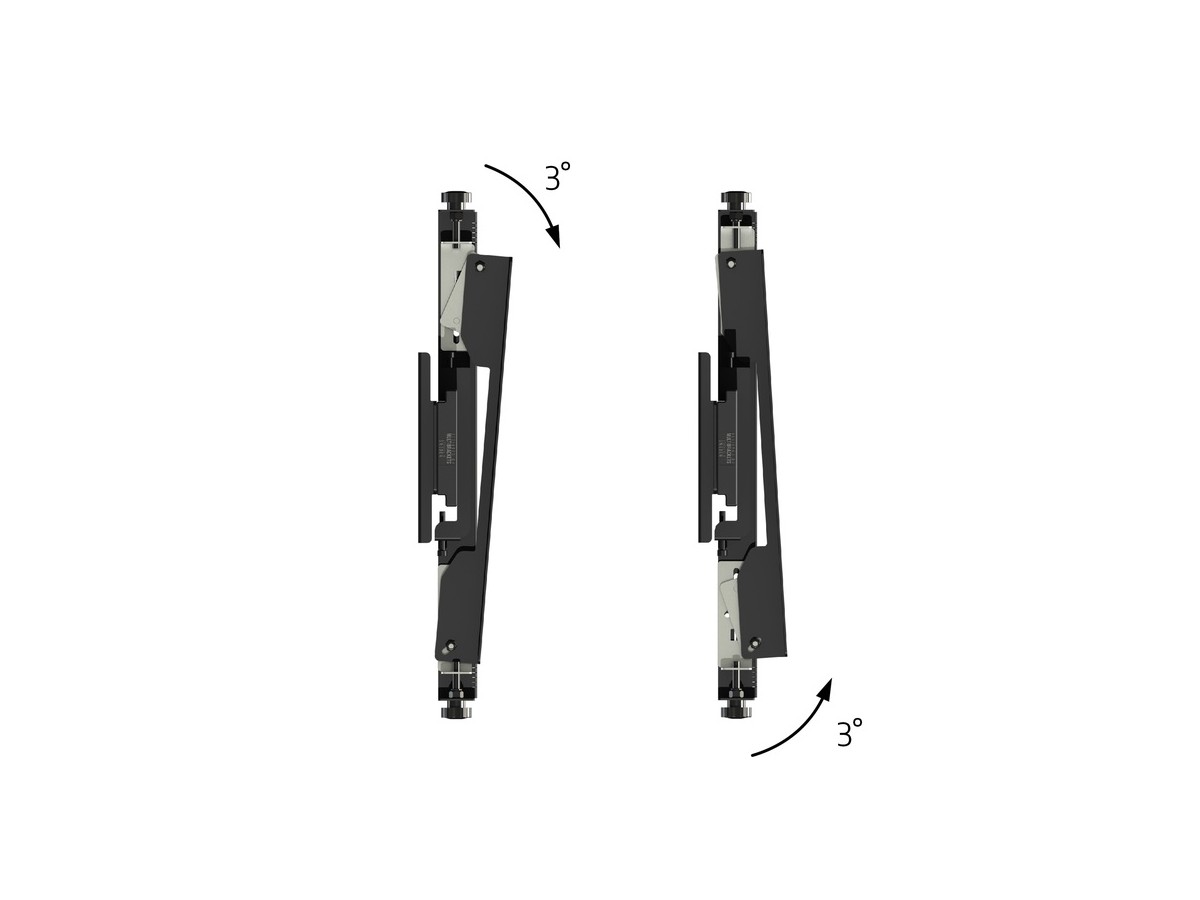

Adjustable ±3° rotate
 Click to view larger images |
Additional information
| Article No: | 7 350 073 733 798 |
| For screen size: | 40”-65" |
| Type: | Part for M Pro Series |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 5 kg (2 pcs) |
| Measurements | 543x49x47 mm |
| Max Load: | 30 kg per screen |
| Height adjustment: | Yes, 0-5mm |
| Depth adjustment: | Yes, 0-15mm |
| Tilt adjustment: | Yes, ±3° |
| Warranty: | 5 years |

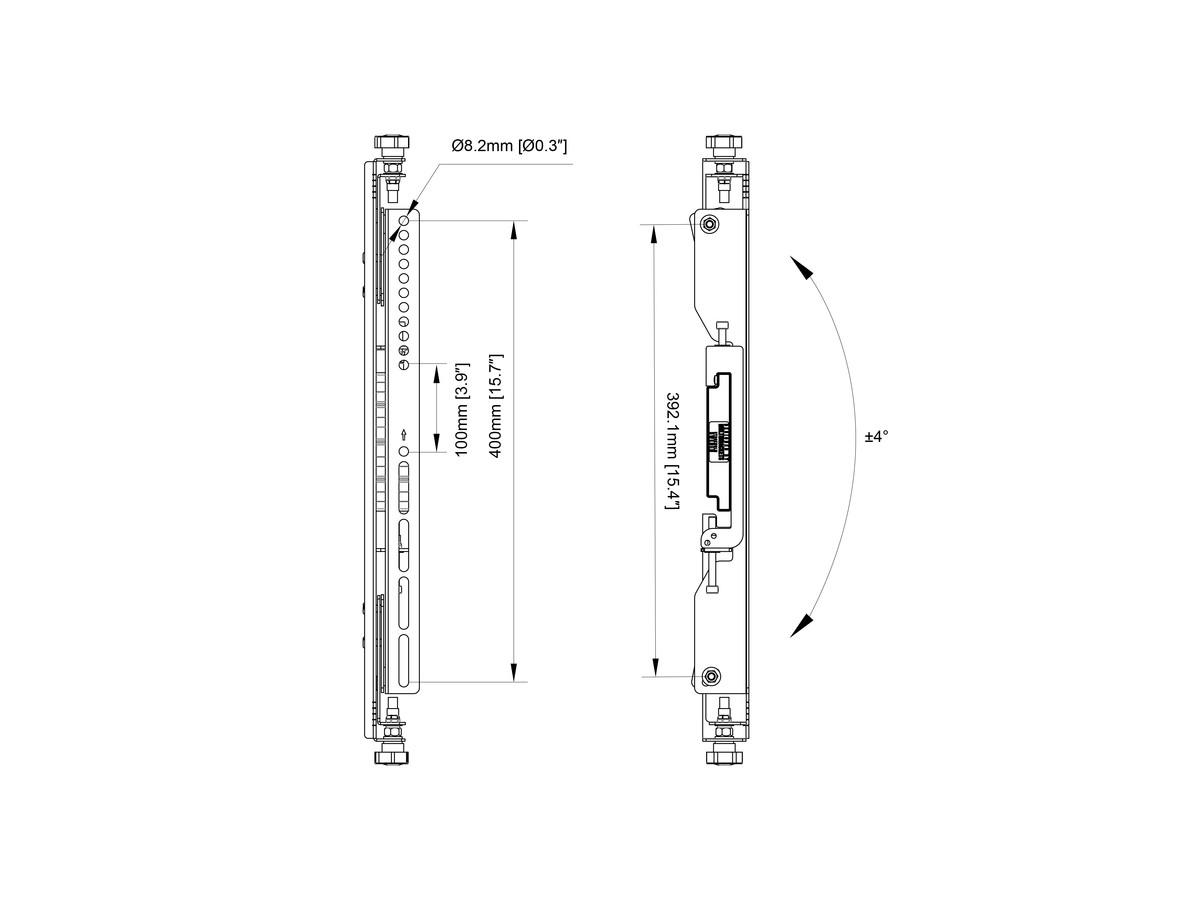

3798-drawing
