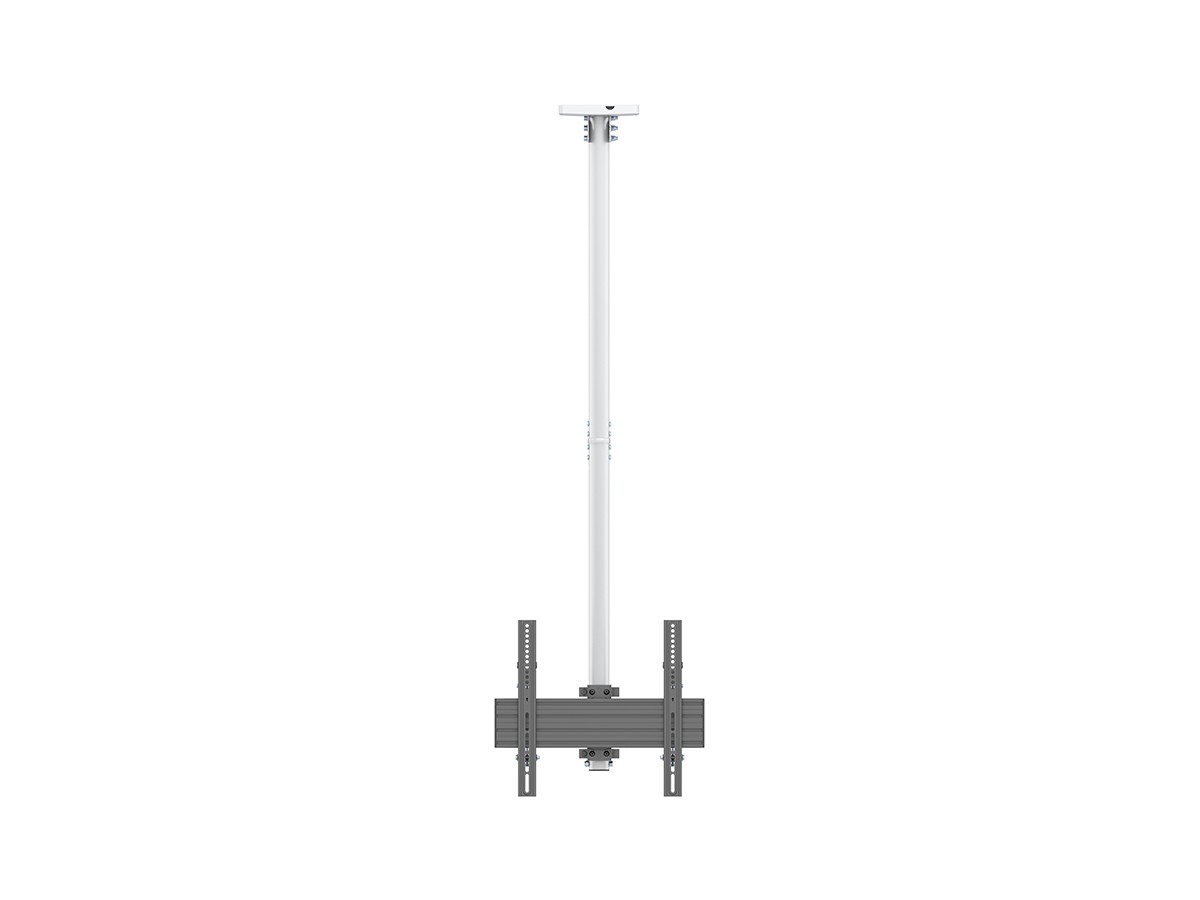

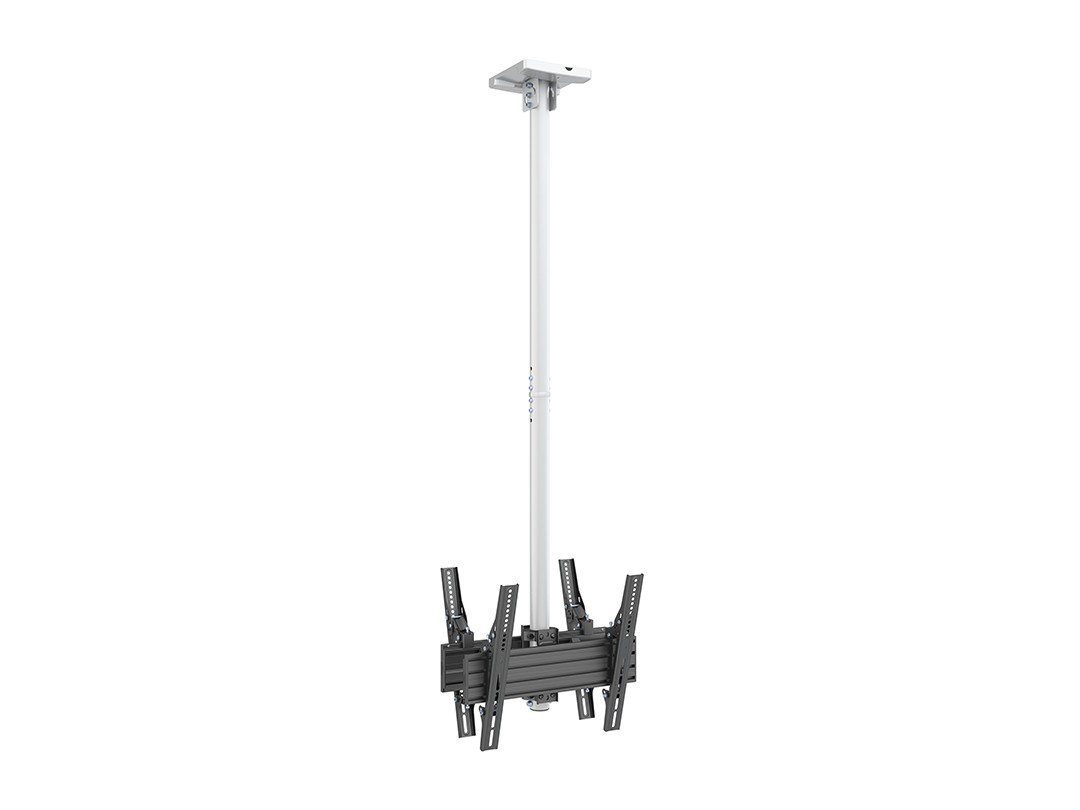

Multibrackets 7350022738652 M Ceiling Mount Pro MBC1UX2 White VESA 400
Product code:M Ceiling Mount Pro MBC1UX2 White VESA 400 - Ceiling mount for LCD display, steel, 1.5m length, 2 screens, dual side, tilt arms, VESA Max 400x400 - screen size: 32"-75" - white
SEND AN ENQUIRYDescription

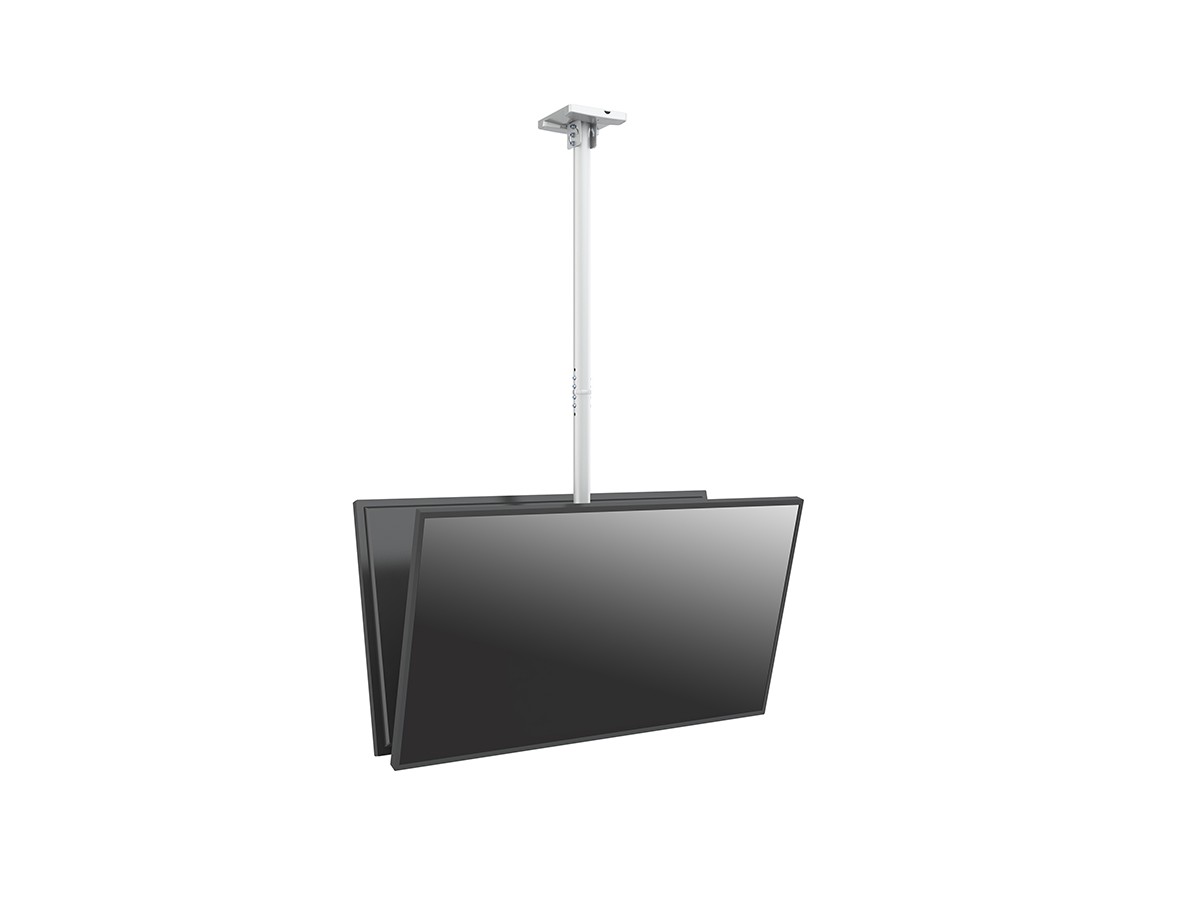

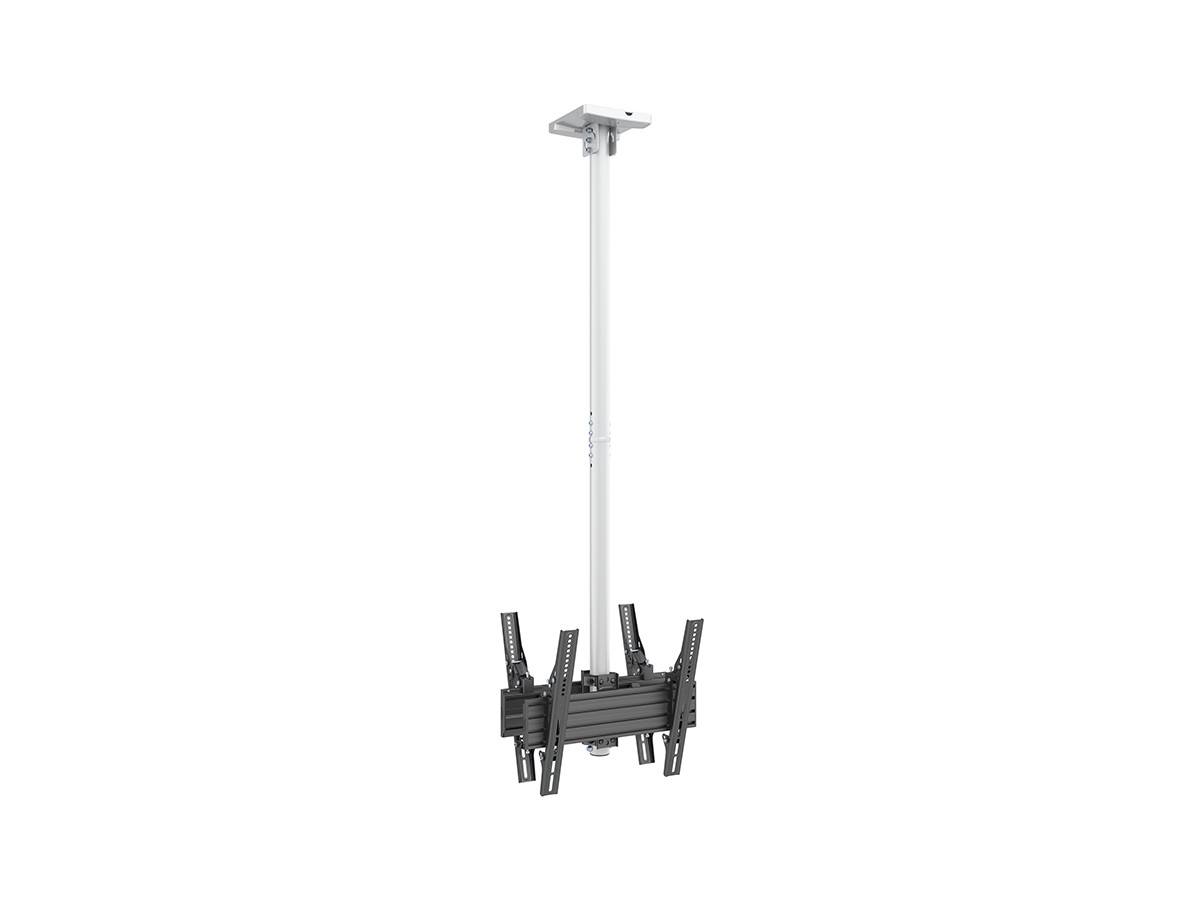

Multibrackets Pro Series M Ceiling Mount Pro MBC1UX2 White VESA 400 is our innovative - ready to be installed Dual Side-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1UX2 White VESA 400 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

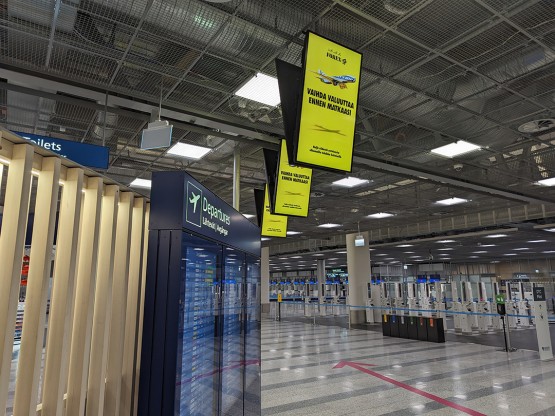

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Pro Series Configuration Guide
Highlights
- A professional, flexible and modular product

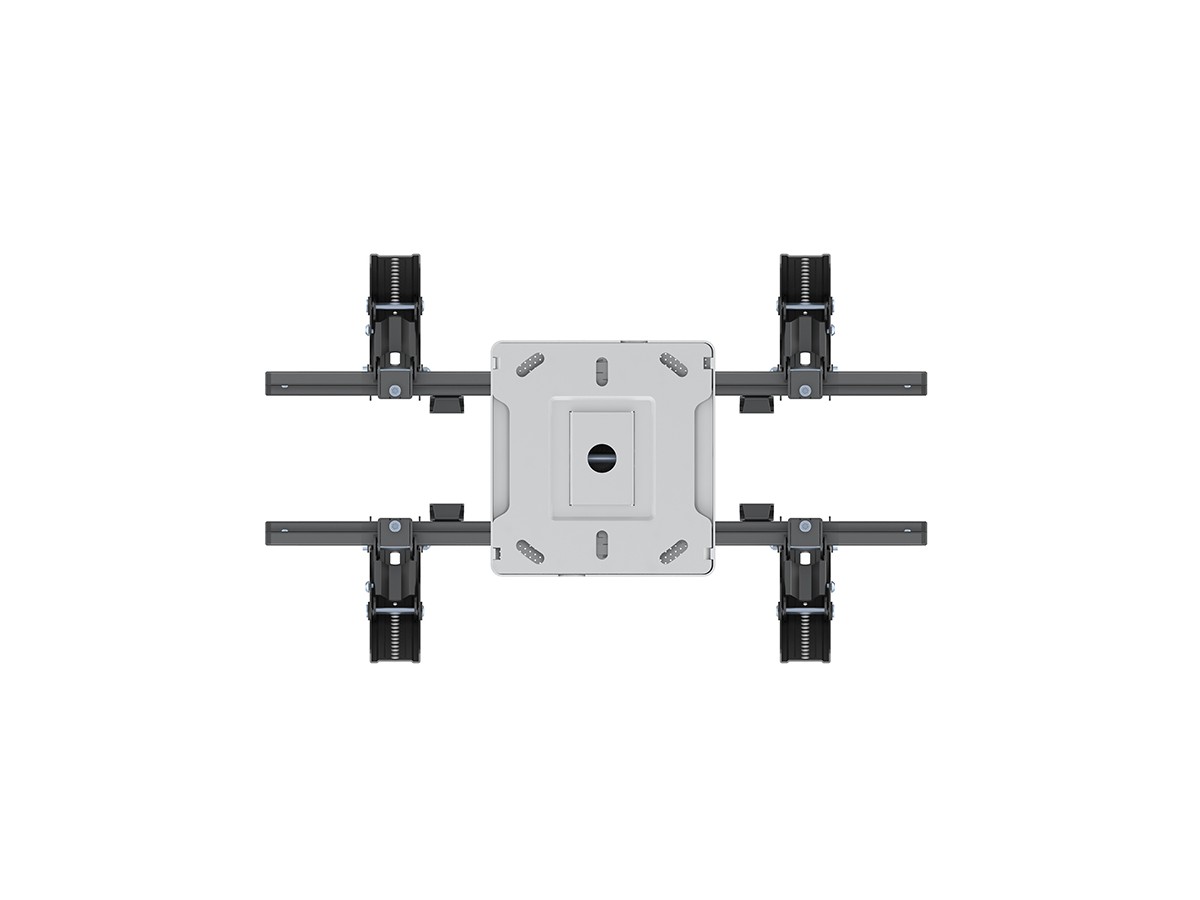

- Includes VESA adapters for compatibility up to VESA 400x400

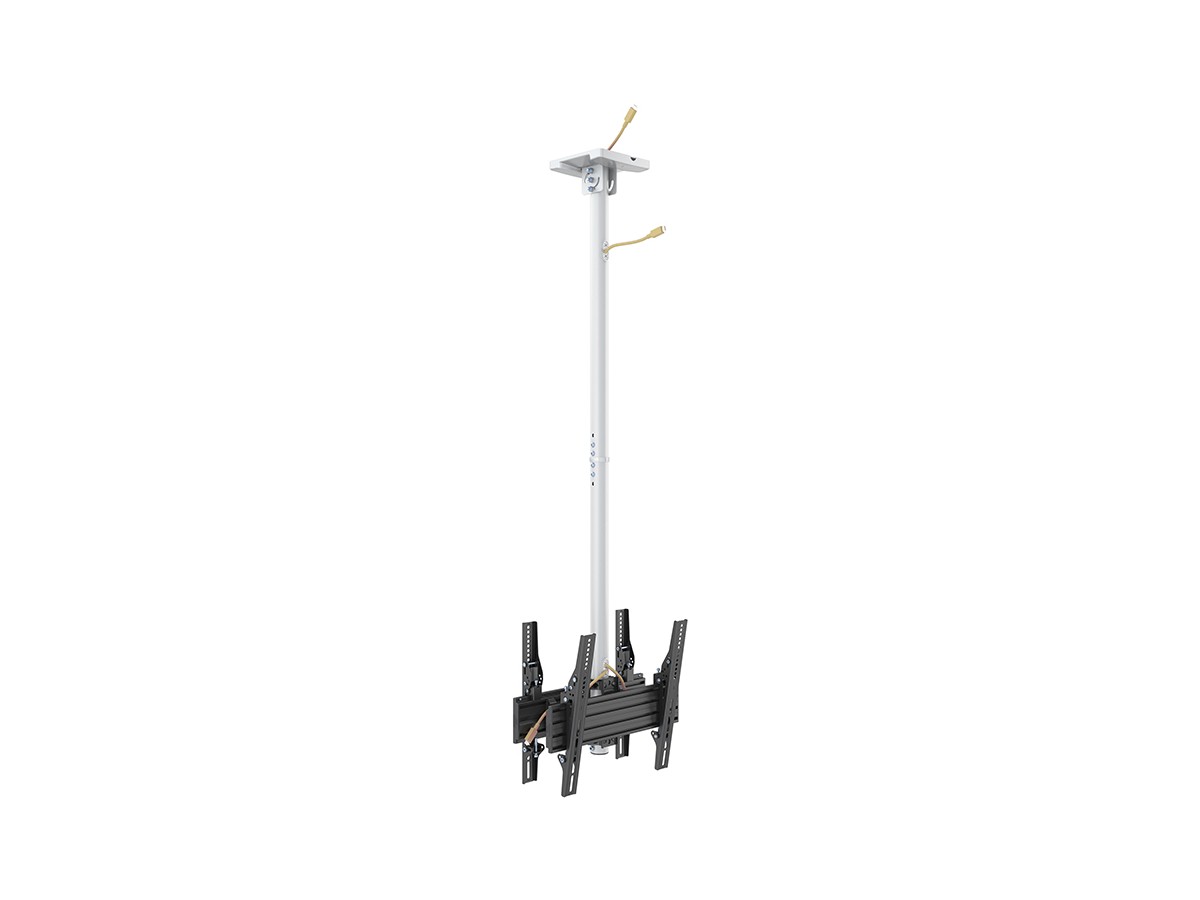

- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation
- Ceiling plate included

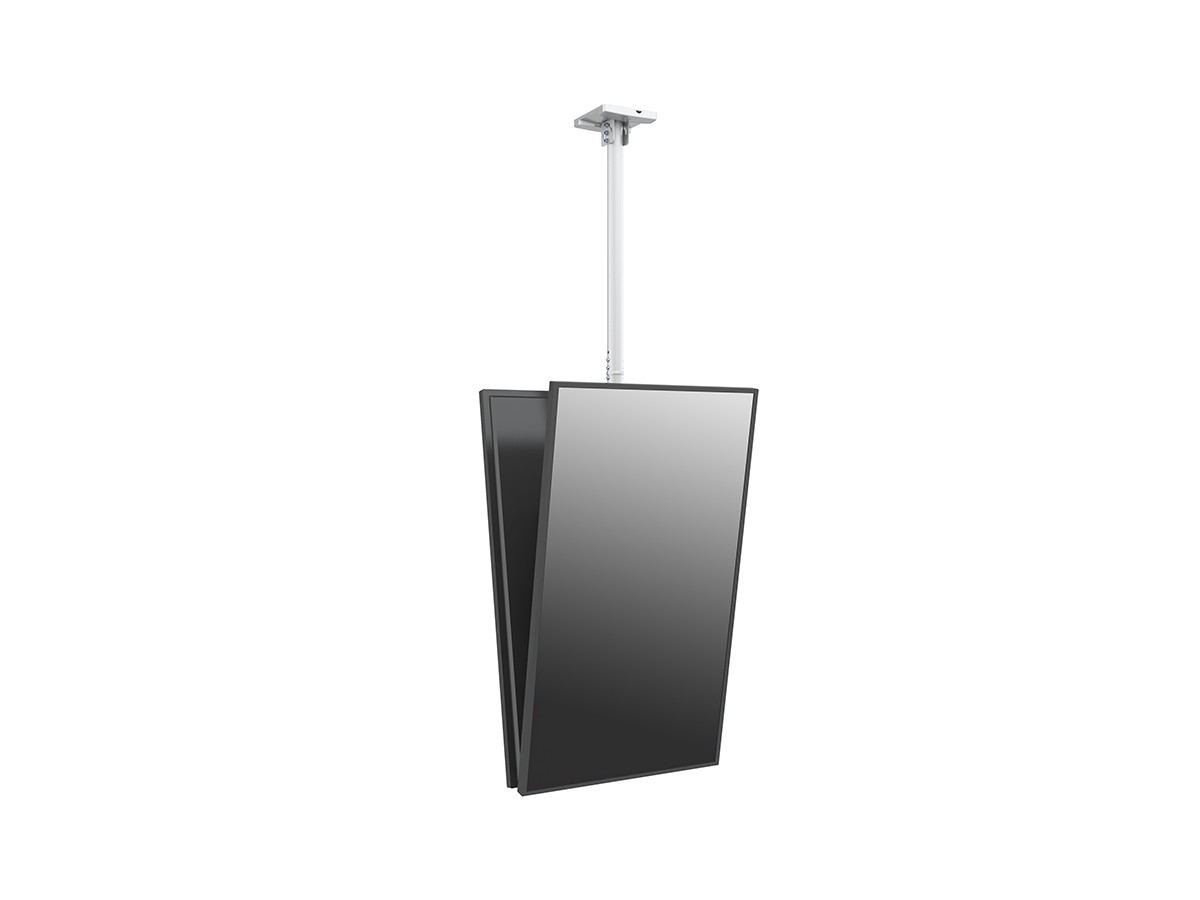

- Portrait or landscape position of screen possible
- Hardware kit included
Additional information
| Article No: | 7 350 022 738 652 |
| For screen size: | 32”-75" |
| Type: | Dual MBC1UX2 |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400 mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | White |
| Surface Finish: | Powder coating |
| Weight: | 11.8 kg |
| Measurements | 82x20x18.5cm |
| Max Load: | 45 kg per screen TUV approved 30kg per screen |

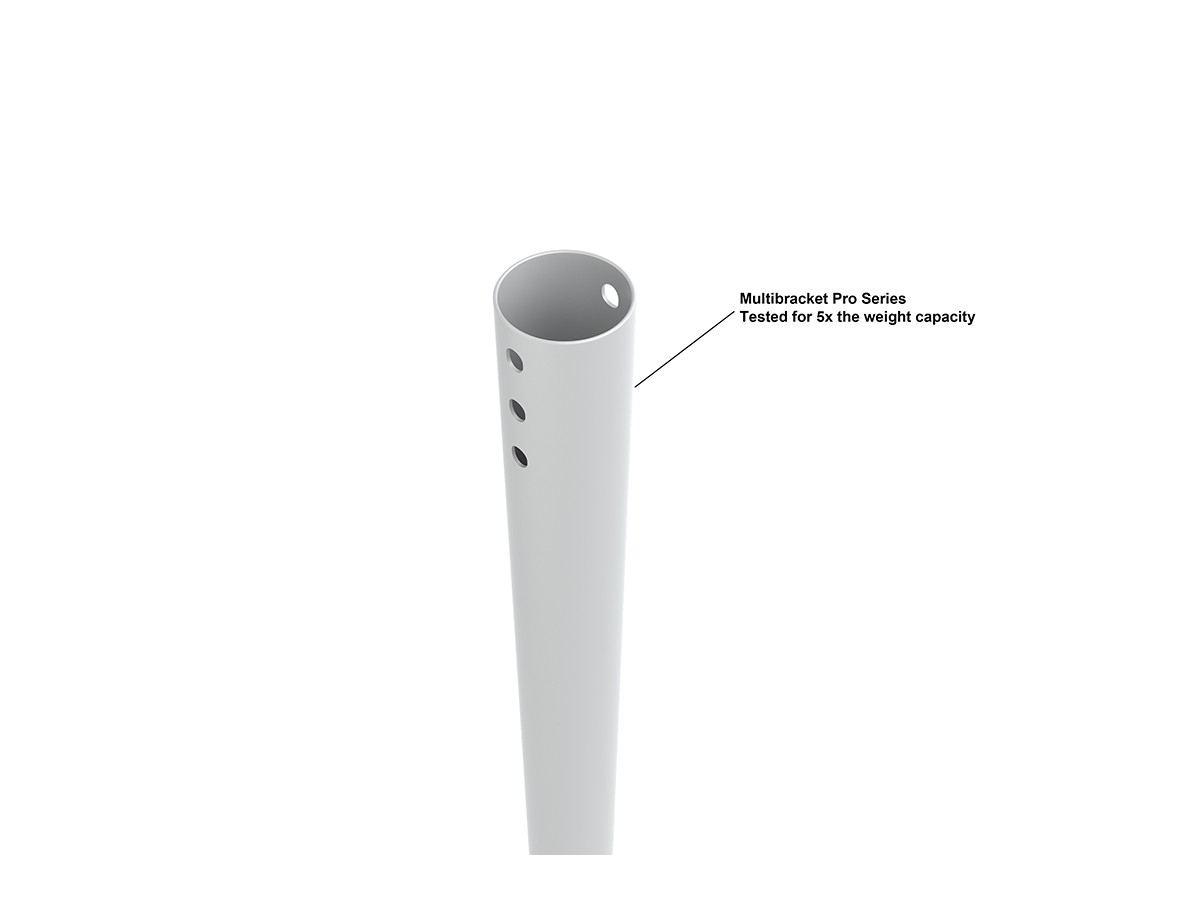

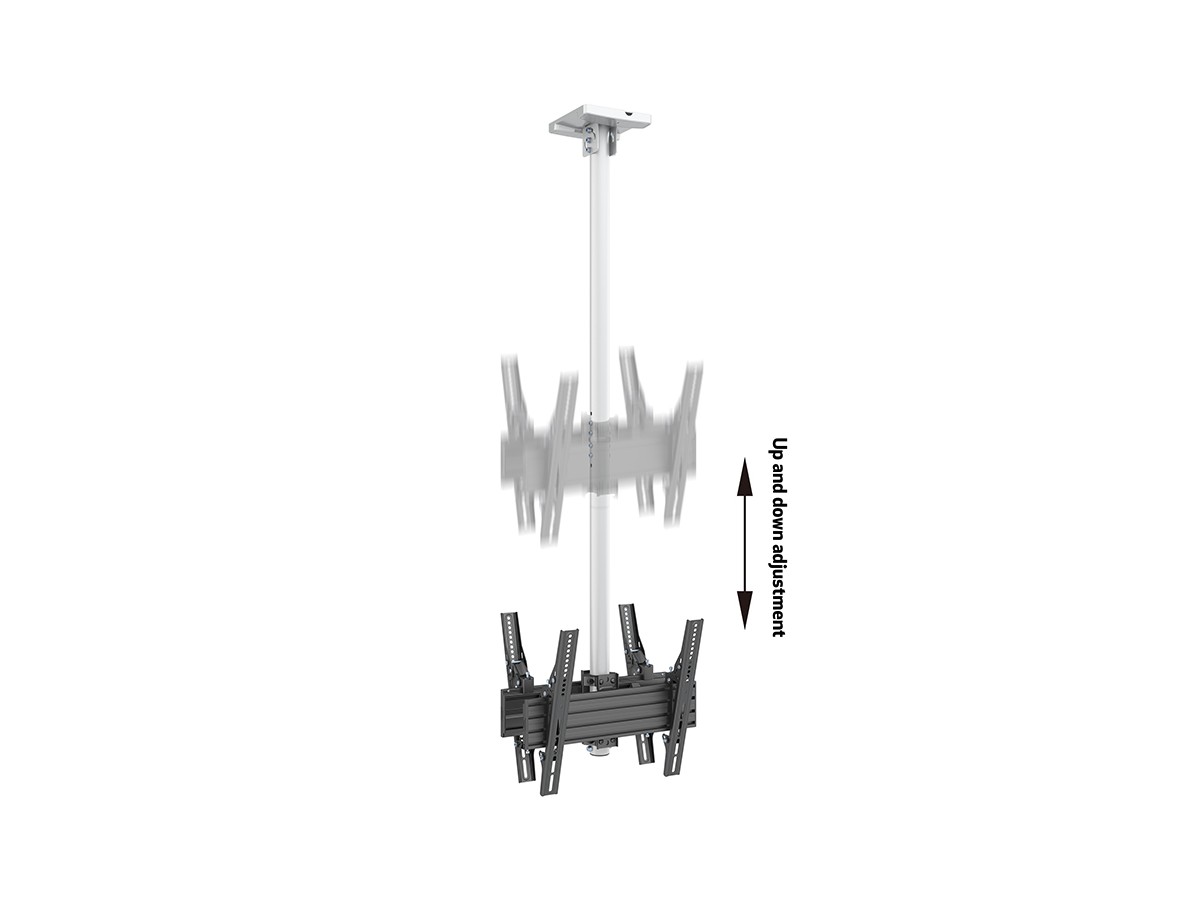

| Pillar length: | 580~1550 mm height adjustment from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

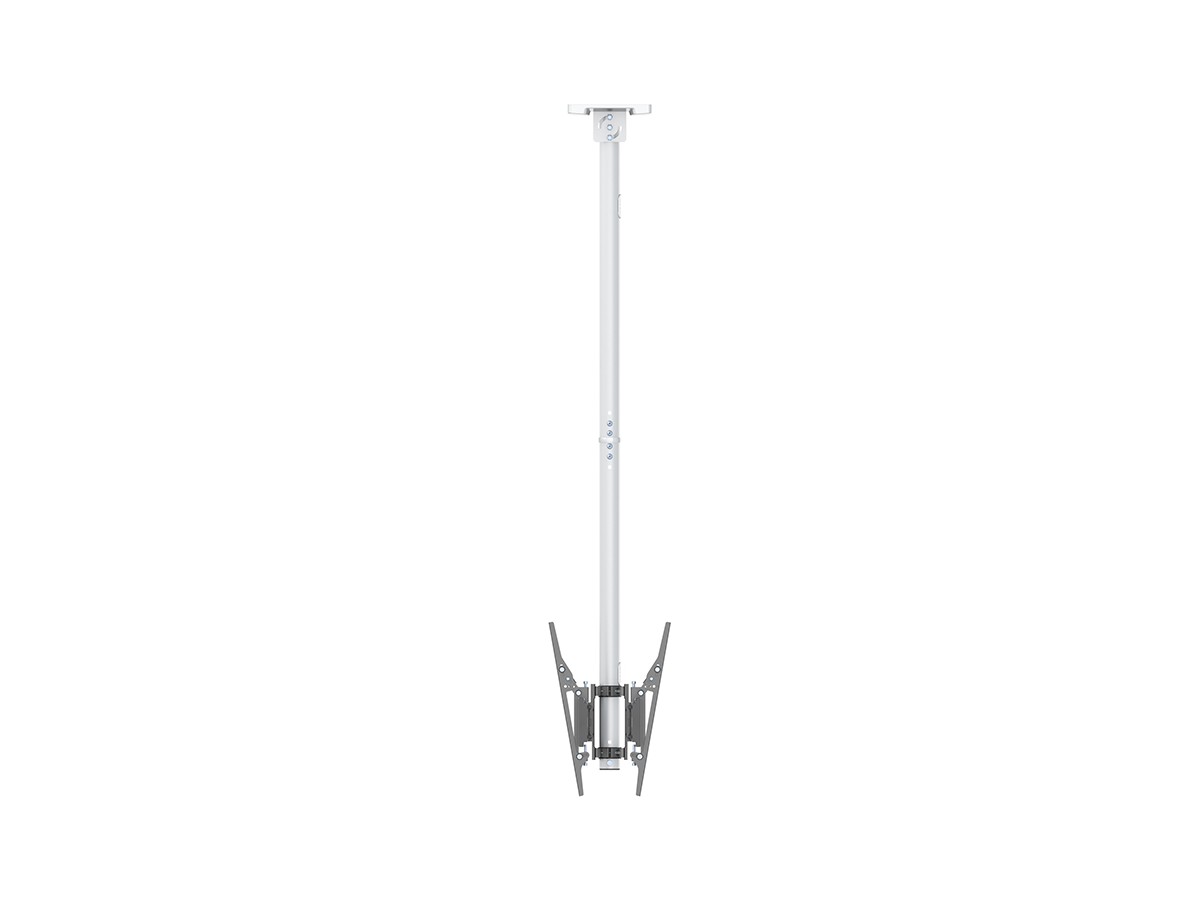

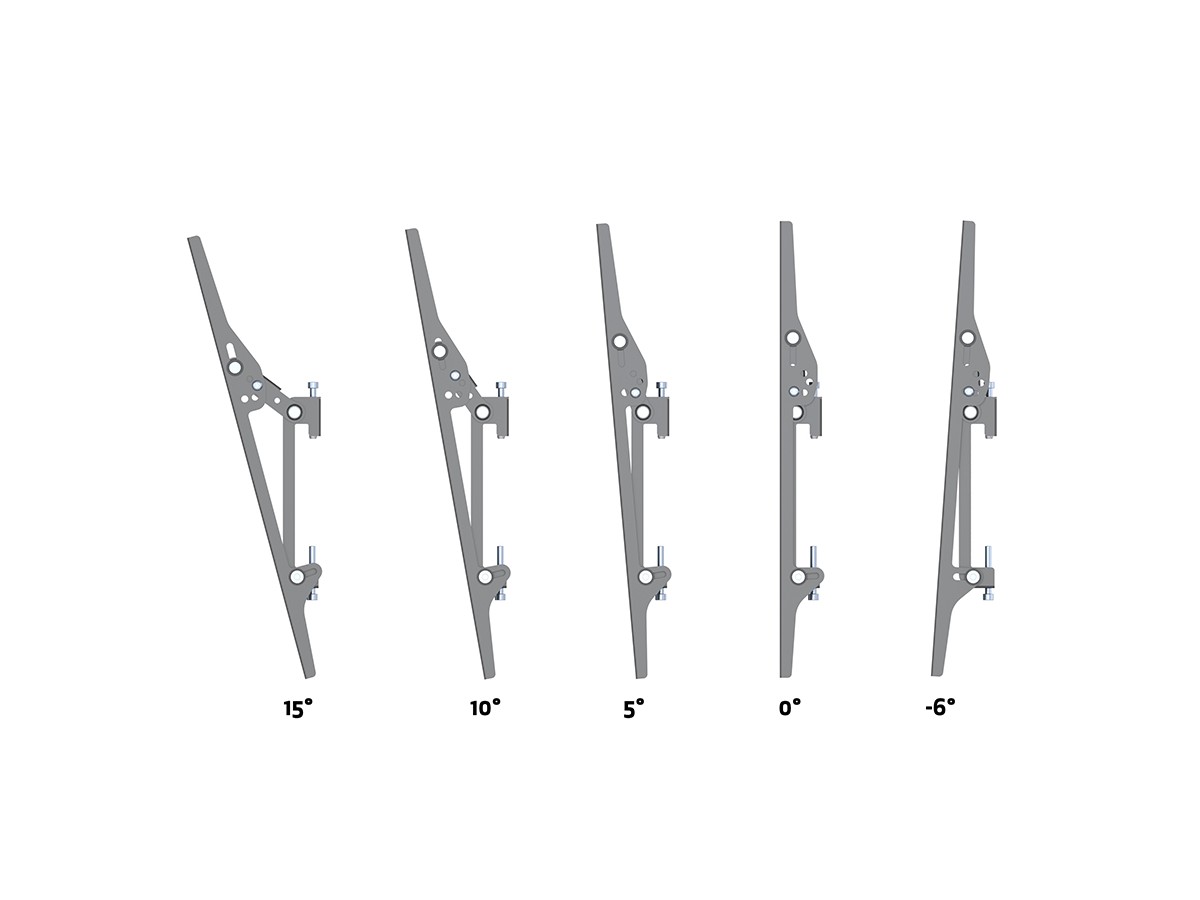

| Tilt: | Yes, -6°~+15° |

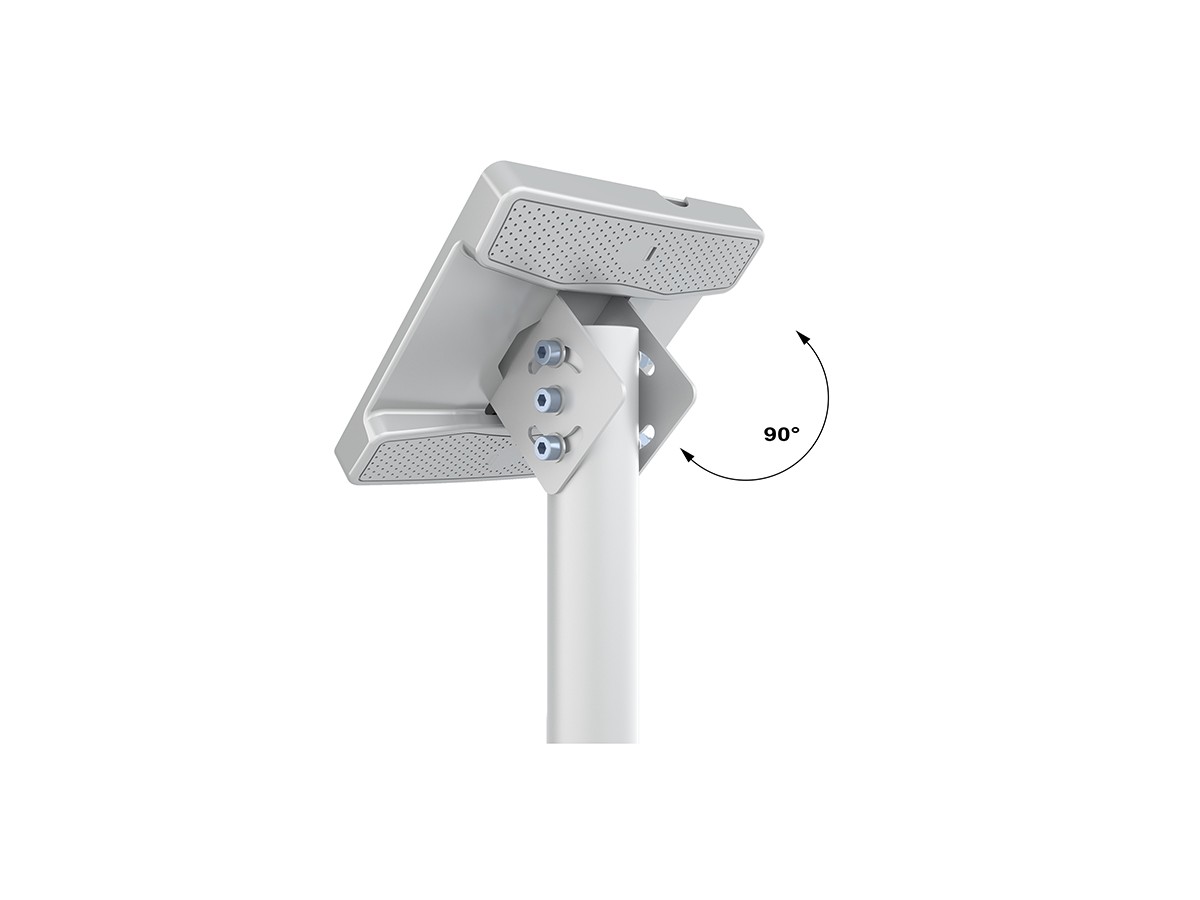

| Swivel: | Yes, 90° |
| Rotate: | Yes, 360° |
| Cable Management: | Yes |

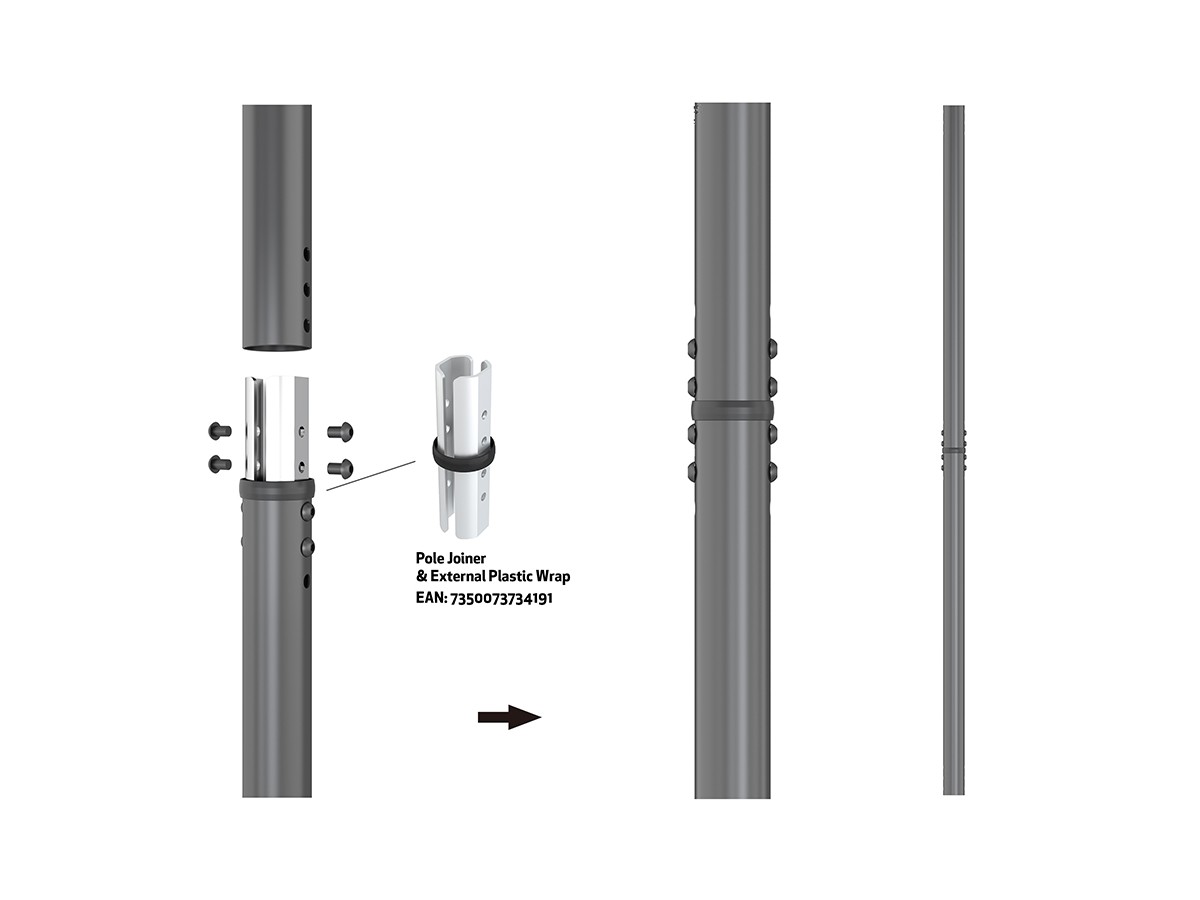

| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |

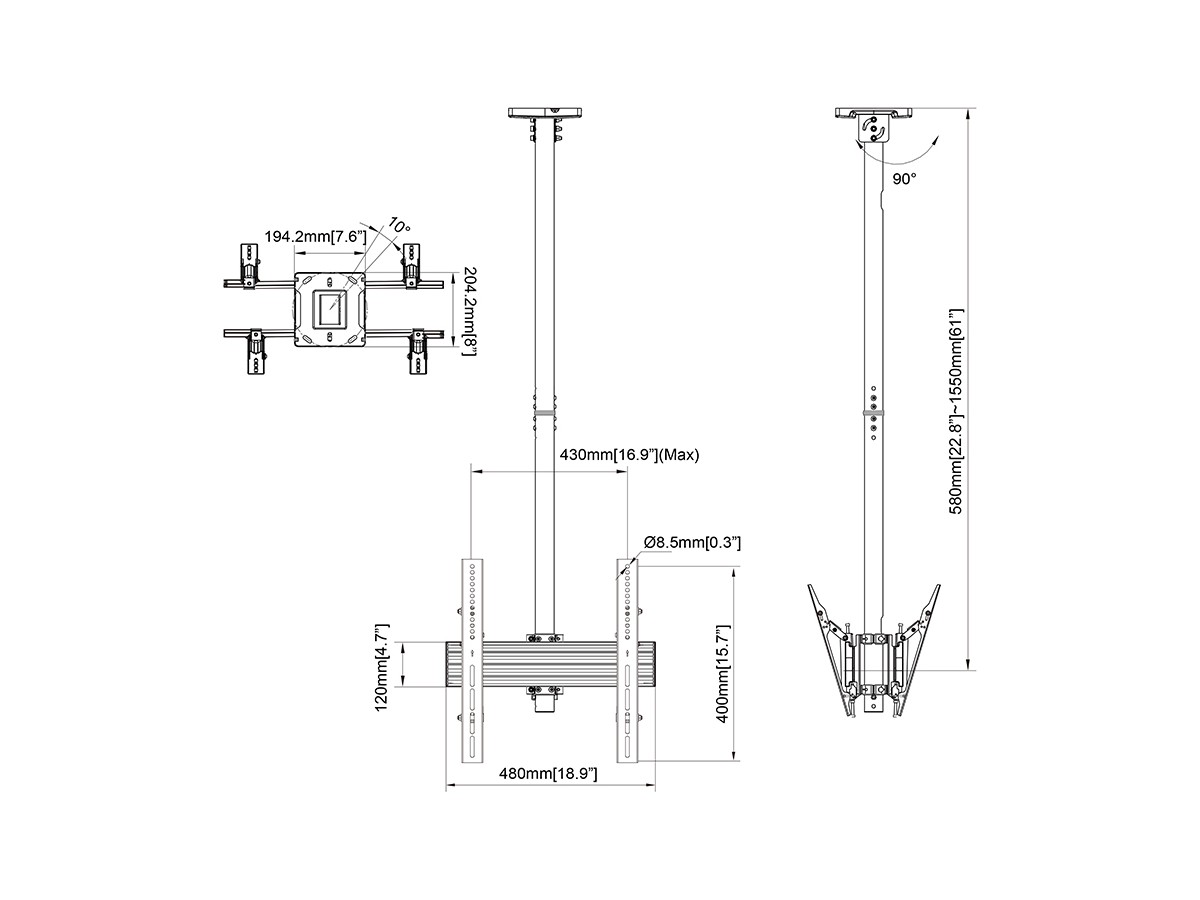

8652-drawing
