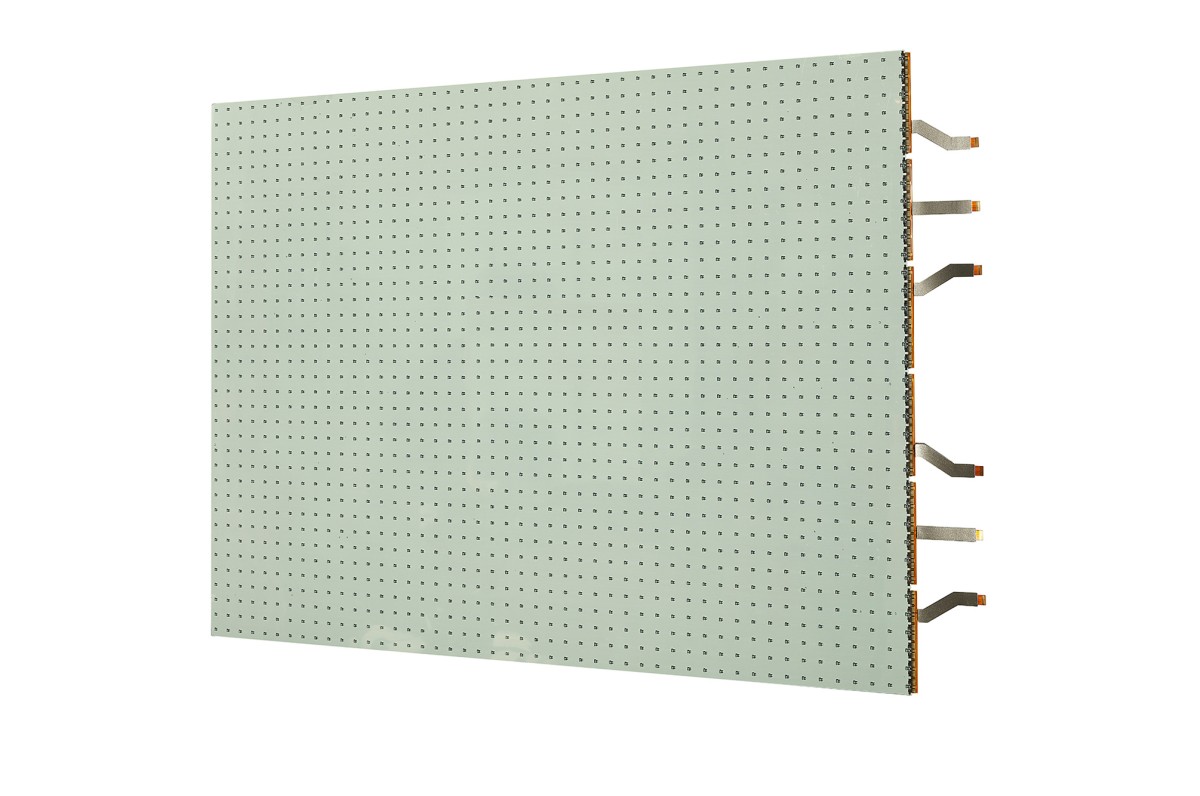

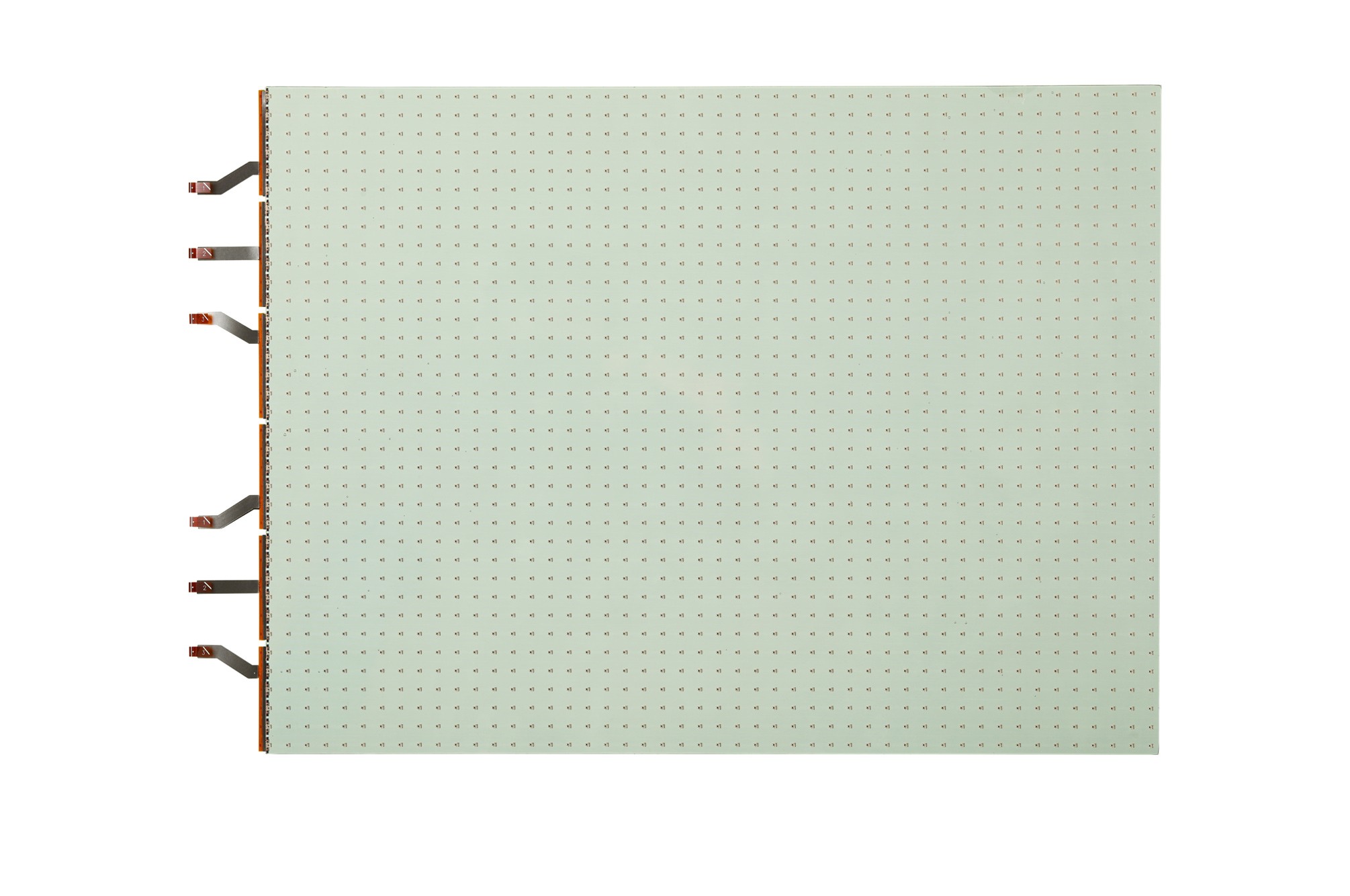

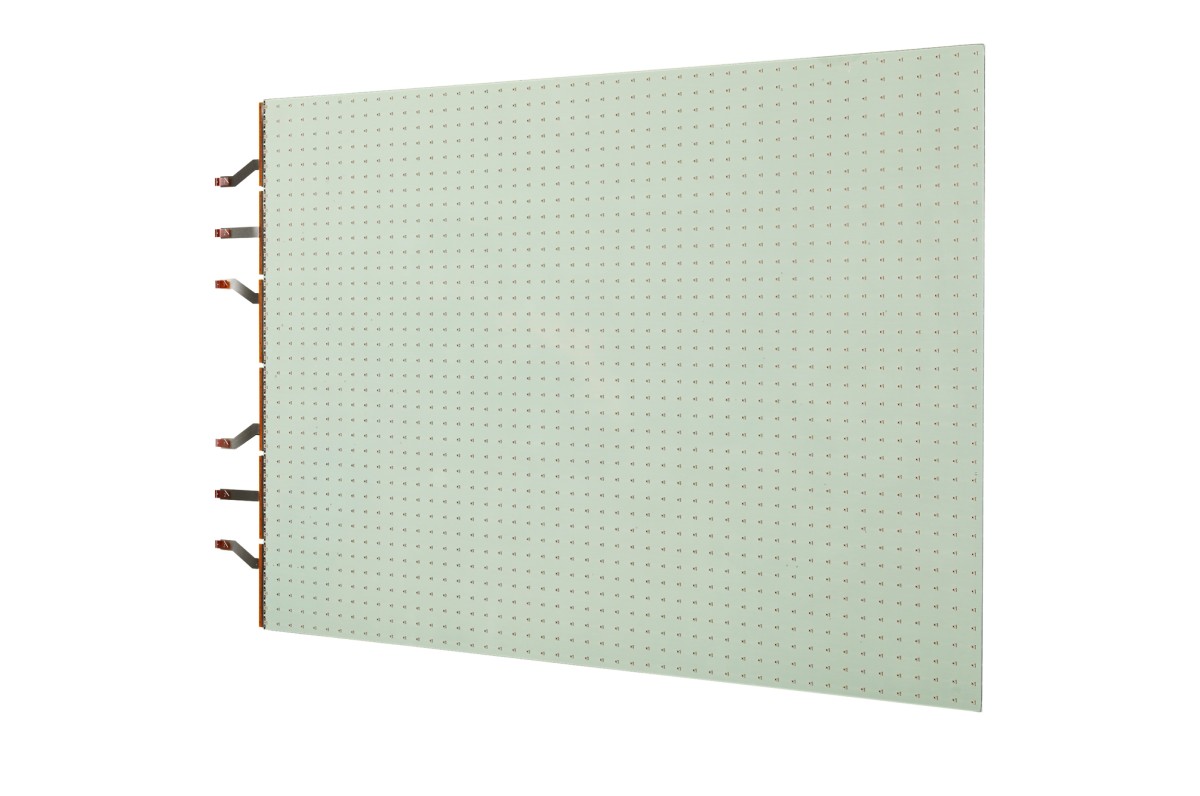

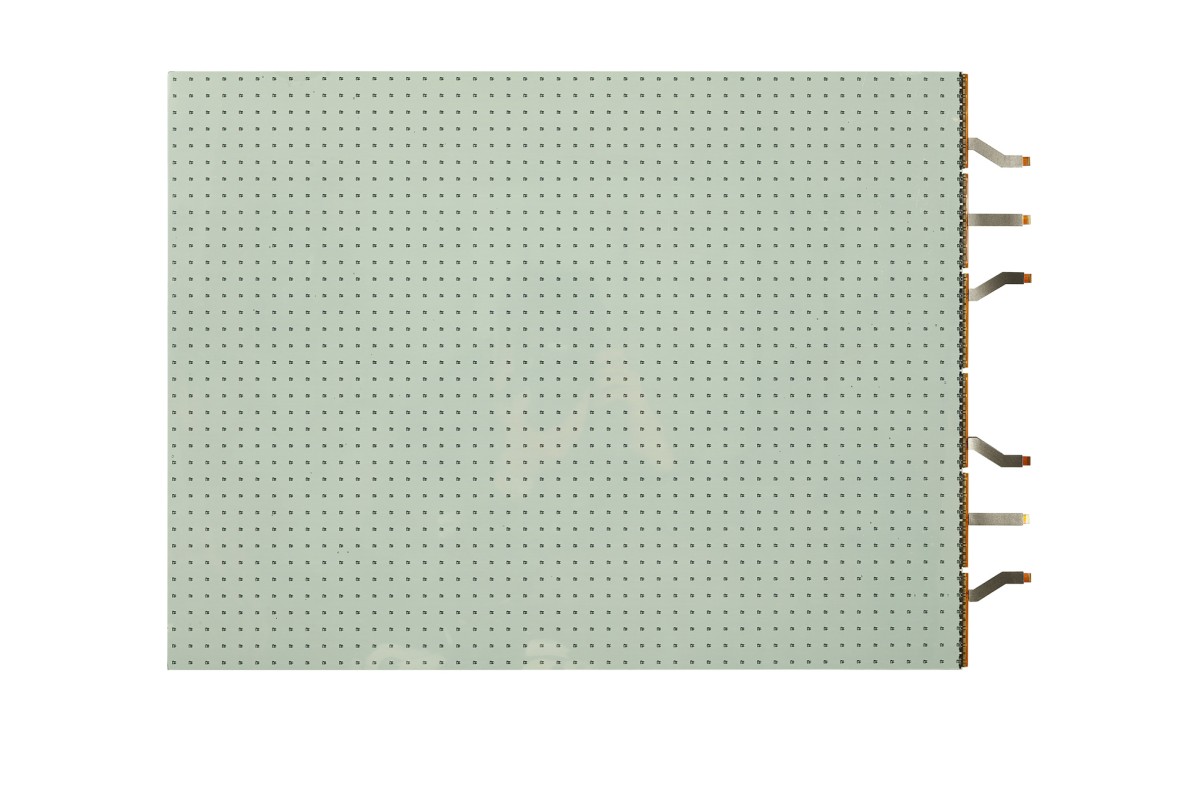

LG LAT140 Transparent LED Film 14 Pixel Pitch
Product code:- Pitch : 14mm
- LED Type: R,G,B 3in1 SMD
- Transmittance: 53%
- Curvature(concave and convex): 2,000R
- Self-adhesive Film
Description
LAT140GT81
| Pixel Pitch(mm) | 13.7±0.2 mm |
|---|---|
| LED Type | R, G, B 3in1 Color Package (SMD2020) |
| Resolution | 48 x 36 |
| Pixels per Panel | 1,728 |
| Pixel Density (point/㎡) | 5,102 |
| Brightness (cd/㎡) | Typ.2,100nit |
| Contrast Ratio | ≥ 100,000:1 |
| Luminance Uniformity | ≥ 70% |
| Viewing Angle (H x V) | 120 x 120 |
| Life Time (Duration of Half Brightness in Hours) | 50,000 Hrs |
| Daily Usage | 24h / 7days |
| Warranty | 2 years |
| Transparency | Typ 53% |
| Operating Temperature | 0℃ ~ 45℃ (Indoor Glass Installation Only) |
| Curved Installation | 2,000 R (Concave, Convex with Glass Only) |
| Film Trimming | Yes (Parallel to the Bezel Side Only) |
| Color Processing | (9bit) 500/500/500 Level (R, G, B) |
| Colors | 125,000,000 Colors |
| Color Chromaticity | Cx: 0.25±0.03, Cy : 0.34±0.03 |
| Dimension (W x H x D) | 655 x 492 x 2.9mm (with front & back protection film) |
| Weight | 1kg |
| Power Consumption | 37W (Transparent panel 1EA + Common Bezel kit 2EA) |
| Accessory | ESG, Regulation book, Warranty Card |
Additional information

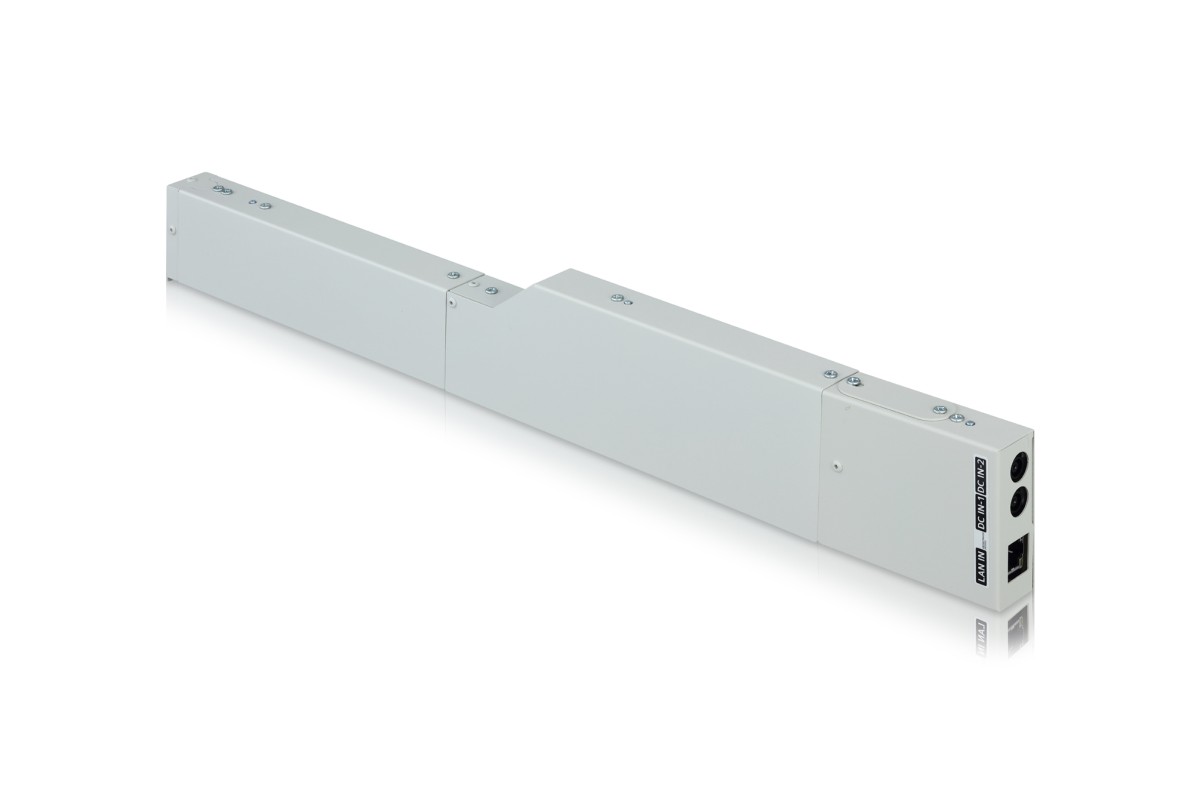

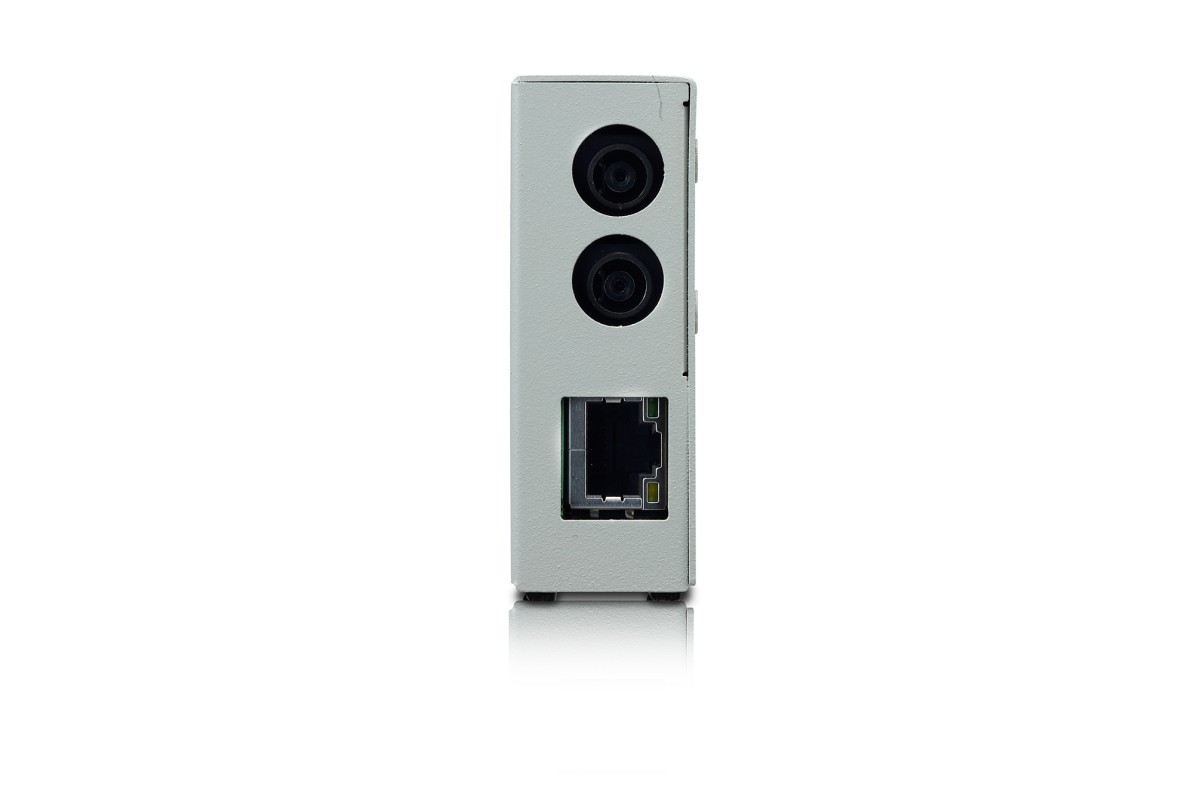

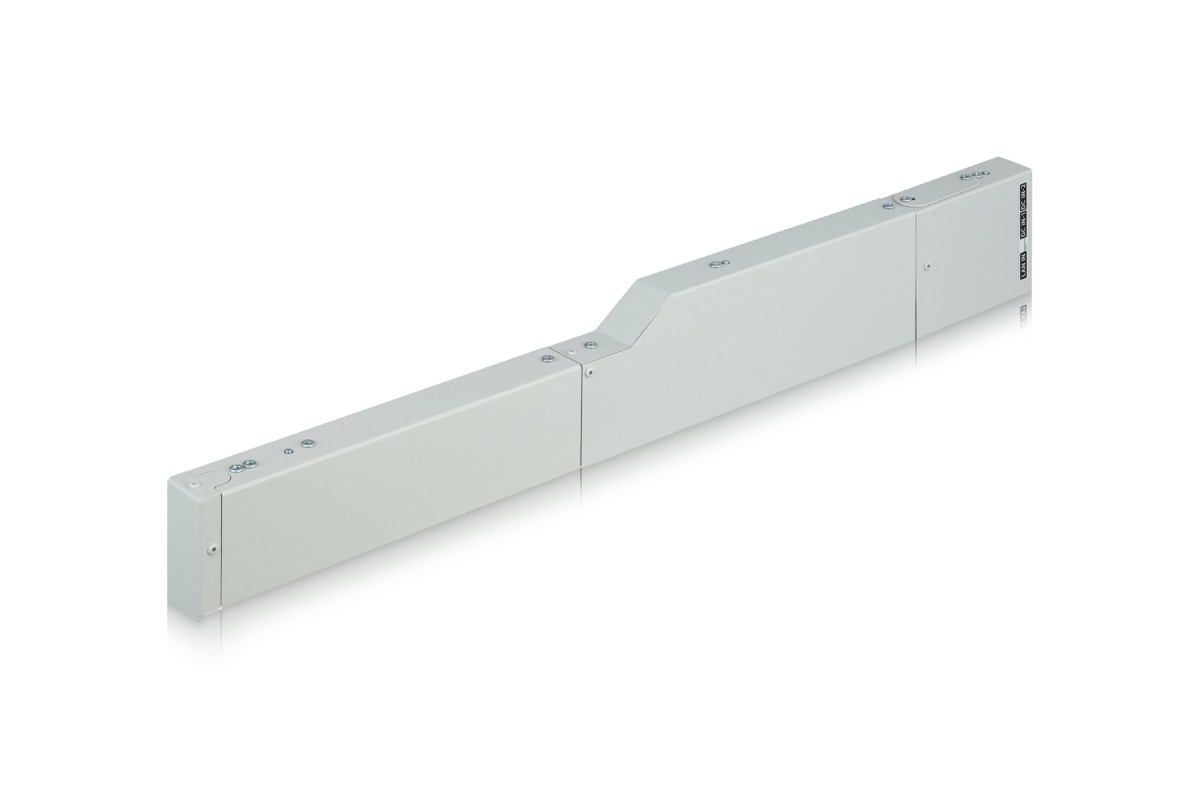

1st Bezel Kit
| Dimension (W x H x D) | 69.4 x 492 x 25mm (Cover) |
|---|---|
| Weight | 0.4Kg |

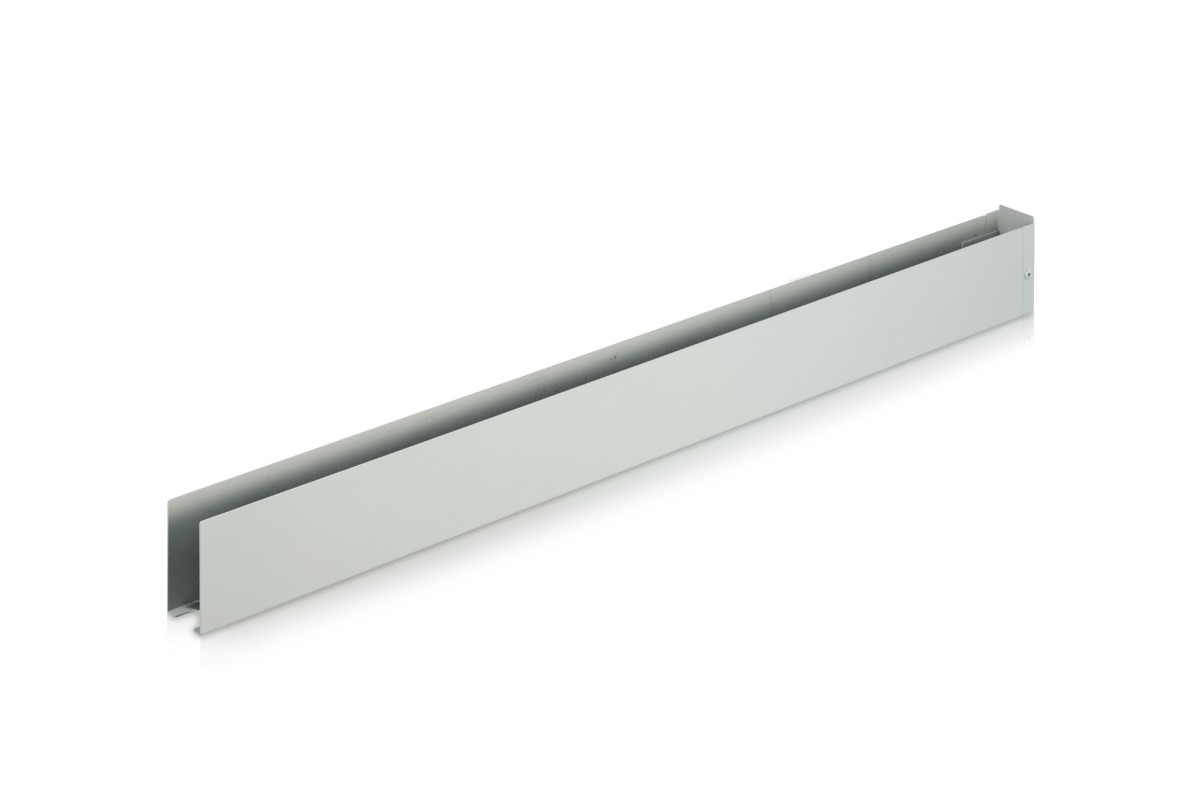

Common Bezel (ACC-14LATB2)
| Dimension (W x H x D) | 51.4 x 492 x 25mm (Cover) |
|---|---|
| Weight | 0.3Kg |
Unit Controller (LCLG140U)
| Resolution | 960x540 (1/4 FHD) |
|---|---|
| Interface | Input : LVDS Output : RJ45 x4EA |
| Maximum Transmission Length | 100m (Cable : CAT5E, CAT6) |
| Dimension (W x H x D) | 293 x 188.7 x 37mm |
| Weight | 1.5Kg |
| Temperature Sensor | Yes |
| Power Consumption | 20 W |
System Controller (LCLG002)
| Video (Max. Input Resolution) | DP : 1920x1080@60Hz HDMI : 1920x1080@60Hz DVI-D : 1920x1080@60Hz |
|---|---|
| Interface (Input) | HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0 |
| Interface (Output) | DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS |
| Dimension (W x H x D mm) | 293 x193.3 x 40.1mm |
| Weight (Head, Kg) | 1.6kg |
| Temperature Sensor | O |
| Light Sensor | O |
| Source Selection | HDMI, DVI-D, DP |
| Power Consumption | 17W |
| CMS S/W | Yes (2.9) |
| LG ConnectedCare | Yes (2.7) |
| Accessory | Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card |
One Box Controller (CTAA-140G)
| Video | HDMI : 1920x1080@60Hz |
|---|---|
| Input | HDMI, RS232C (Phone Jack Type), RJ45, IR Receiver, USB 3.0 |
| Output | RS232C (Phone Jack Type), RJ45 (2) |
| Dimension (W × H × D) | 333 x 186.8 x 40.1mm |
| Weight (Head) | 1.82 kg |
| Temperature Sensor / Light Sensor | O / O |
| TPC(Temporal Peak Luminance Control) | Yes |
| Power Consumption | 30 W |
| CMS S/W | SuperSign CMS |
| Accessory | Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card |
Power
| Dimension (W x H x D) | 183 x 86 x 28mm |
|---|---|
| Weight | 769g |
| Input | 100~240V, 50~60Hz |
| Output | 19.5V/10.8A (210W) |
| Color | White |
| DC Output Cable | 14AWG, 1.5m |
| Type | L Type |
