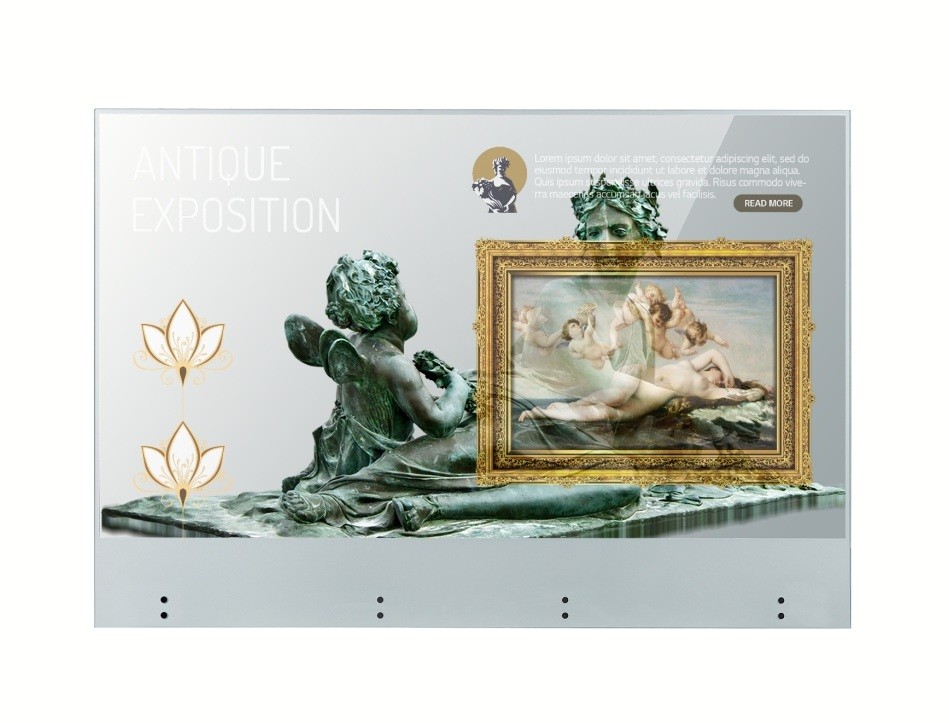

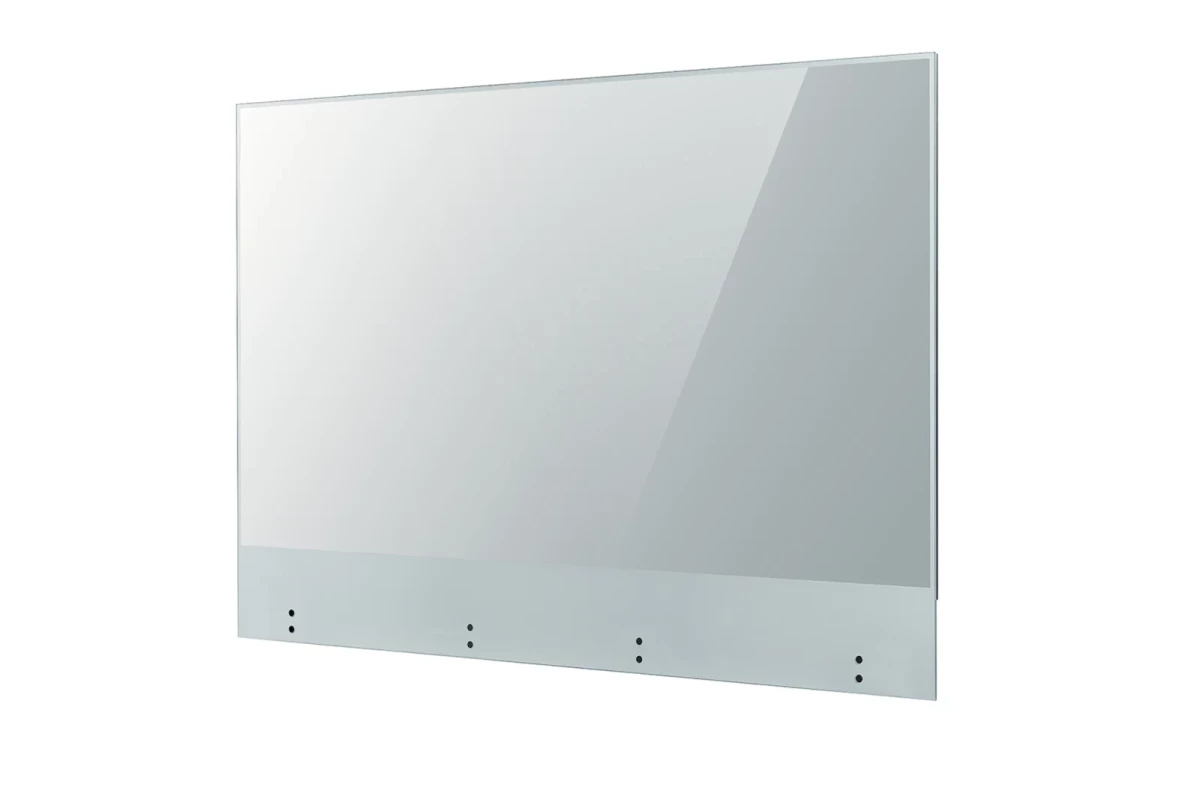

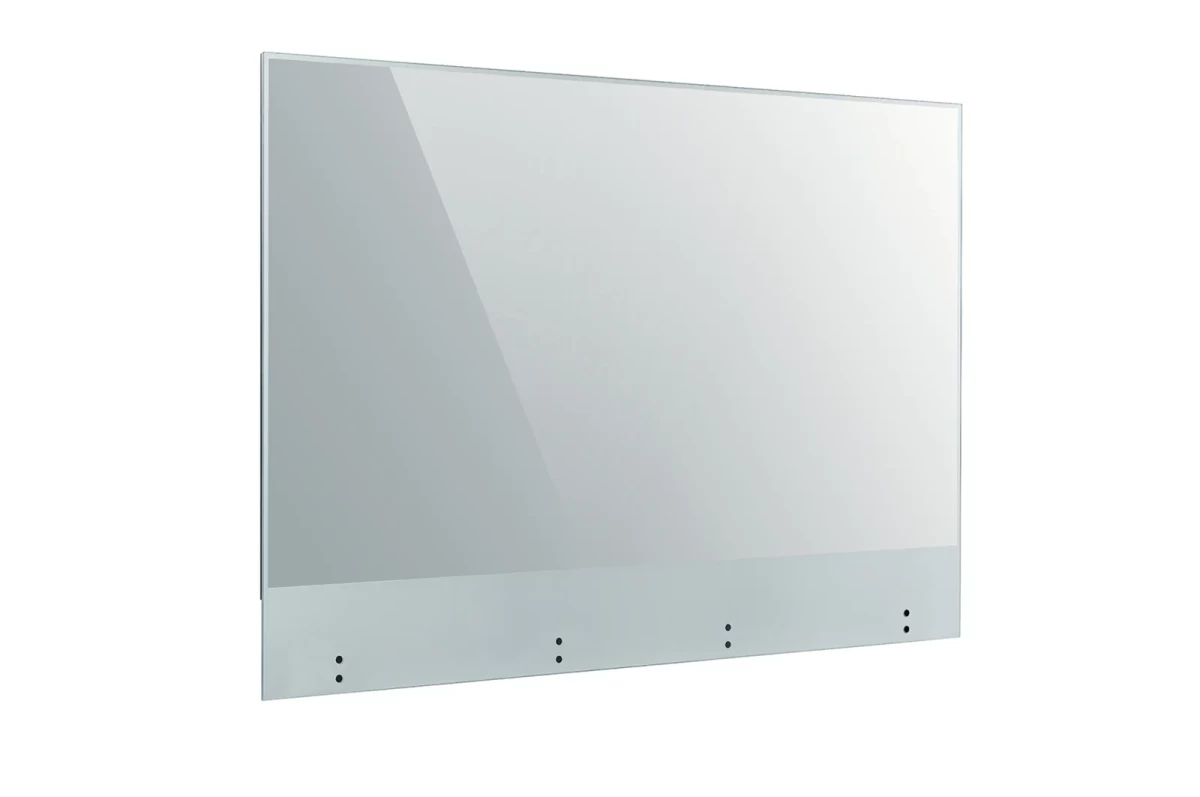

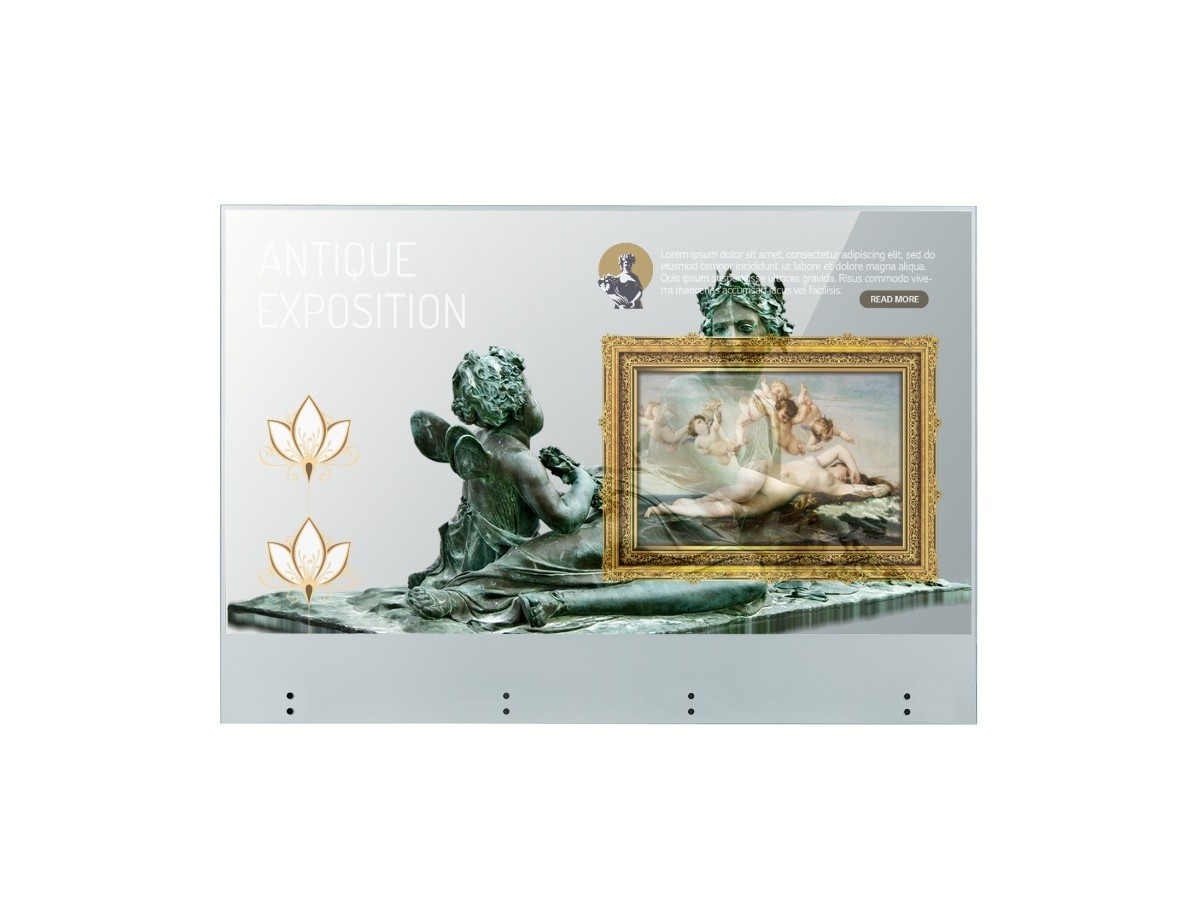

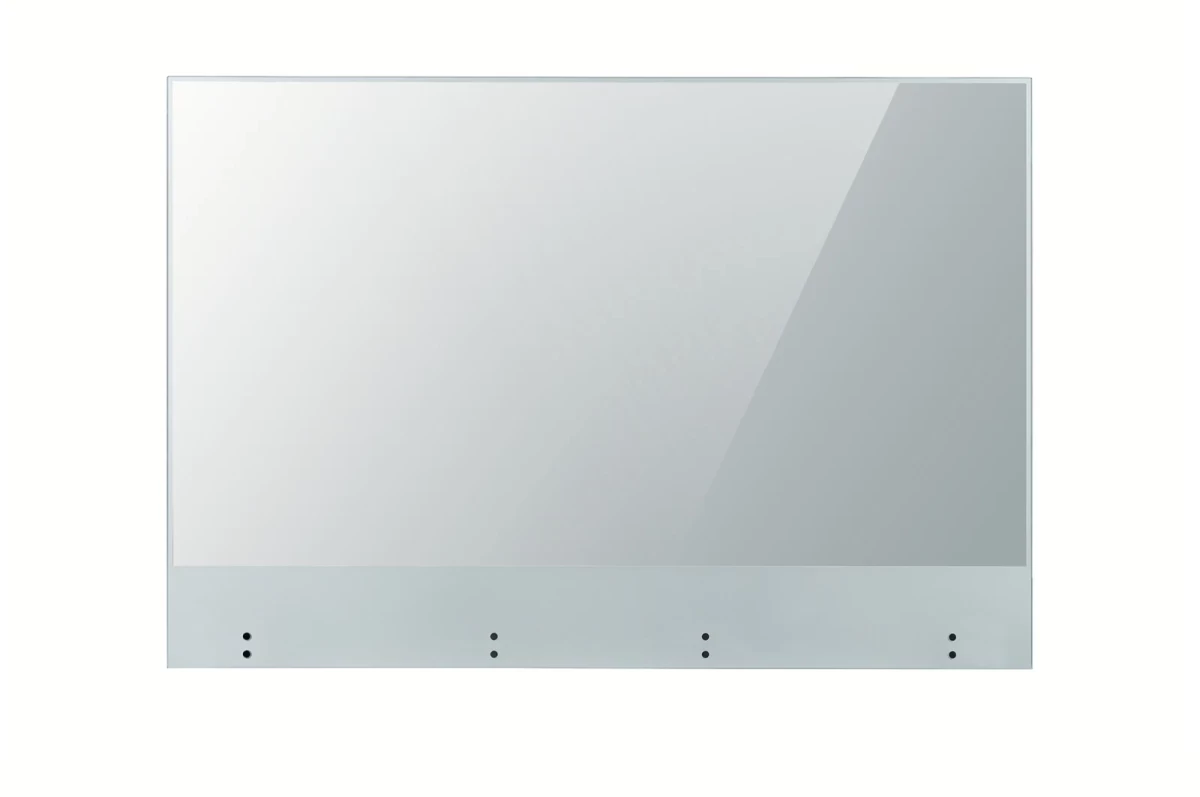

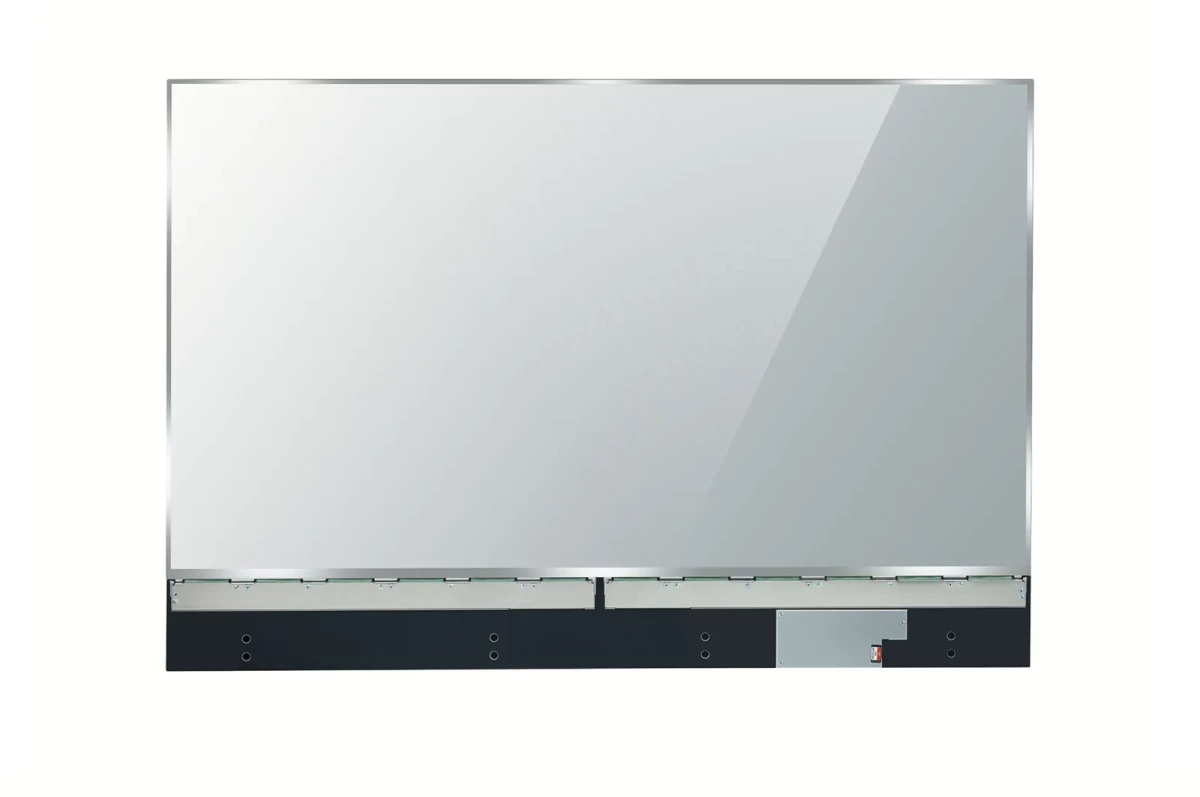

LG 55EW5TF-A Transparent OLED Touch Signage
Product code:LG Transparent OLED Touch Signage highlights surfaces that until now were hidden behind the screen, in full harmony with the surrounding space. It responds to viewers' touch, which proves especially useful for various applications where customer interaction is required.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | OLED |
| Back Light Type | OLED |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Refresh Rate | 120Hz |
| Brightness | 150/400nit (APL 100%/25%, Without Glass) |
| Contrast Ratio | 150,000 : 1 |
| Colour gamut | BT709 120% |
| Viewing Angle (H x V) | 178 × 178 |
| Colour Depth | 10BIT, 1.07 Billion |
| Response Time | 1 ms (G to G) |
| Life time | 30,000 Hrs (Typ.) |
| OS | webOS 4.0 |
| Operation Hours (Hours / Days) | 18 / 7 (Moving Content Only) |
| Portrait / Landscape | Yes / Yes |
| Transparency (Typ.) | 33% (Set) |
Additional information
Mechanical Specification
| Bezel Color | Matt Silver |
|---|---|
| Bezel Width | 7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B) |
| Weight (Head) | (Head) 14.6 kg, (Signage Box) 3.4 kg |
| Monitor Dimensions (W × H × D) | (Head) 1,225.5 x 832.9 x 7.0 mm, (Signage Box) 782.8 x 238.4 x 34.7 mm |
| Protection Glass (Depth) | Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof |
Connectivity
| Input | HDMI (HDCP 2.2), DP (HDCP 1.3), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only) |
|---|---|
| Output | DP, Audio, USB 2.0 Type B (Touch USB) |
| External Control | RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver) |
Key Feature
| Internal Memory(16GB), Temperature Sensor x 1, Fan, Embedded CMS(Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Video Tag(4), Screen Rotation, Gapless Playback, Setting Data Cloning, SNMP, ISM Mode (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, 3rd Party Control Compatibility, HDMI-CEC, SI Server Setting, Pro:Idiom |
Special Features
| Available object size for touch | Ø12 mm ↑ |
| Response Time | 120ms ↓ |
| Accuracy | 3.5mm |
| Interface | USB2.0 |
| Protection Glass Thickness | 3.0T (Anti-Glare / Anti-Finger print) |
| Protection Glass Transmission | 84% (Typ.) |
| Operating System Support | Windows 7 Professional, Windows 8.1, Windows 10 |
| Multi touch point | Max 10 Points |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 250 W / 280 W |
|---|---|
| BTU (British Thermal Unit) | 853 BTU/Hr (Typ.), 955 BTU/Hr (Max.) |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (EU Only) |
Software Compatibility
| SuperSign CMS | Yes |
|---|---|
| SuperSign Control / Control+ | Yes |
| SuperSign Media Editor | Yes |
| Signage365Care | Yes (The availability can differ by region.) |
Language
| OSD | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arabic |
Accessory
| Basic | Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables (1,600 mm × 4 ea for Connection Between Panel and Signage Box), HDMI Cable (3 M), Micro to A Type USB Cable (1.8 M for Connection Between Touch and Signage Box), A to B Type USB Cable (Touch Out), Tape (10 ea for Cabling / 10 ea EMI Gasket Tape), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Ass'y, Rubber Damper 4 ea, Touch Cable Holder 2 ea |
|---|
