Edbak XWM110 Flat Wall Mount for LG 110
Product code:It is designed for practical installation of large 110″-136″ screens.

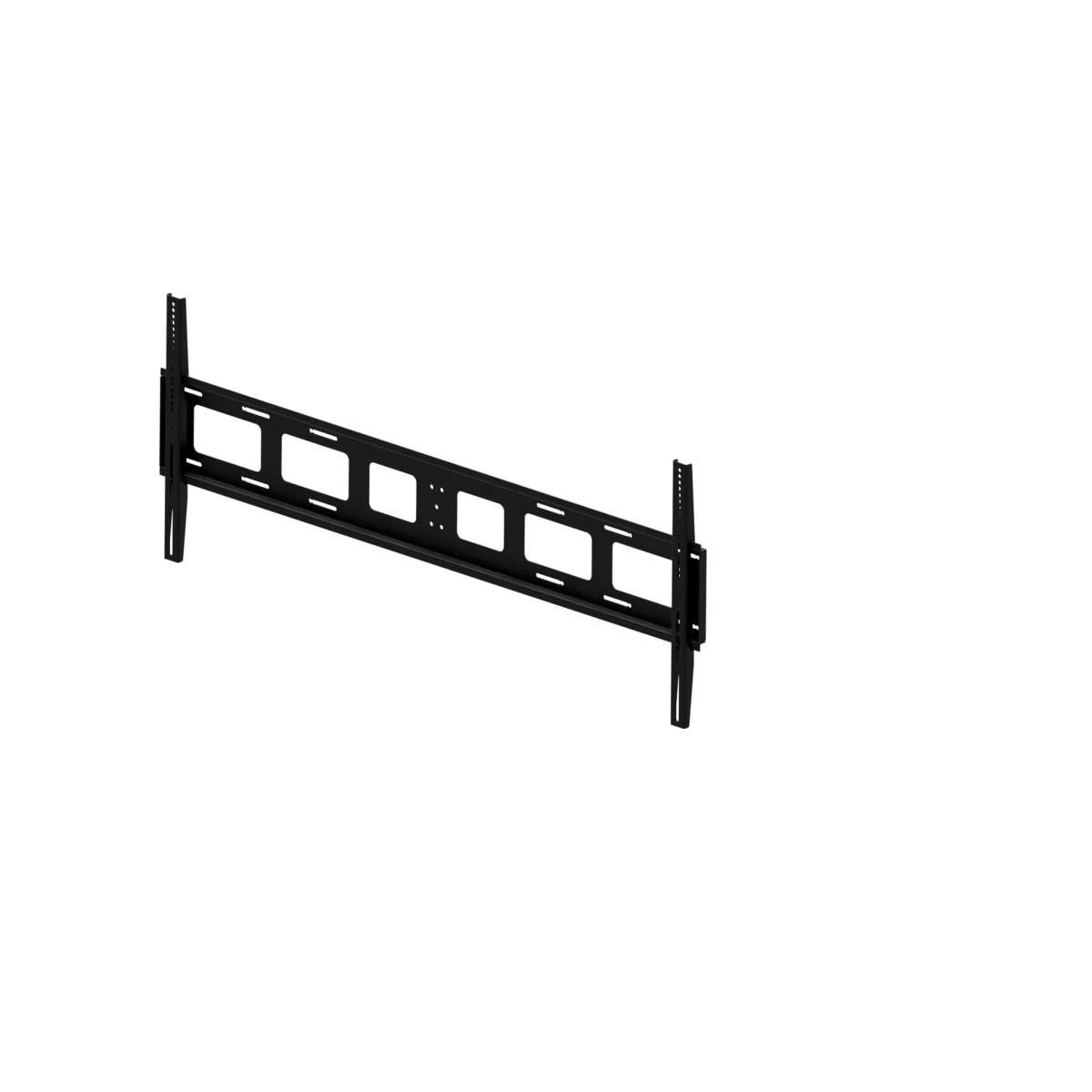

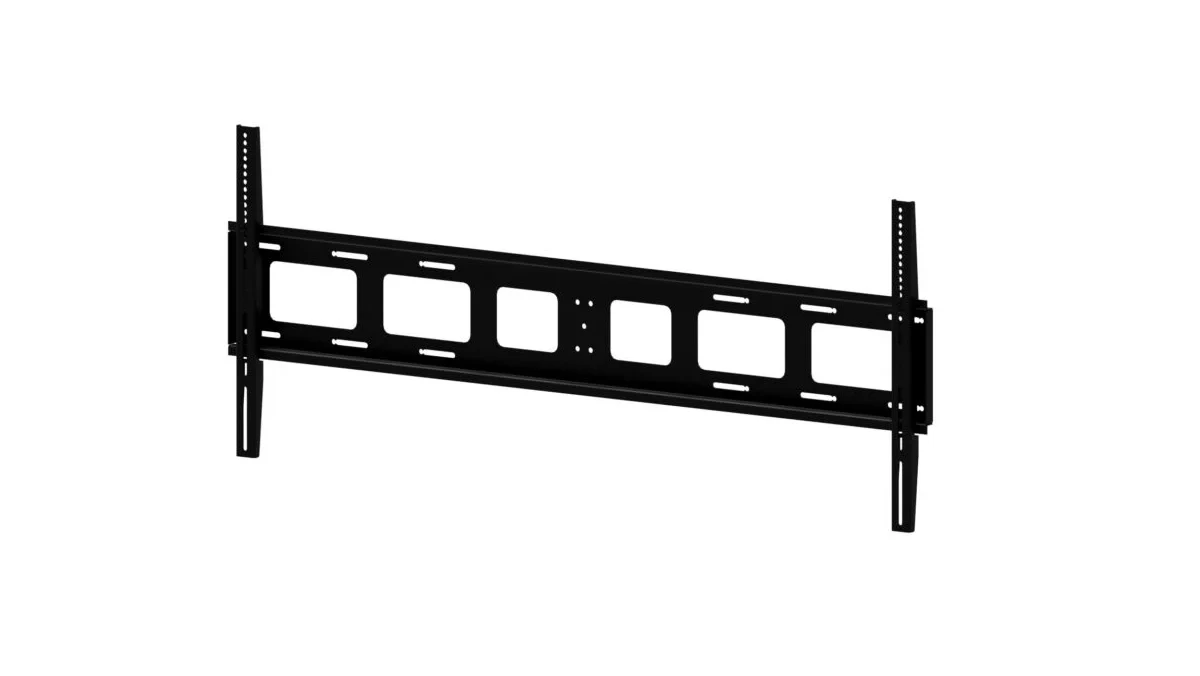

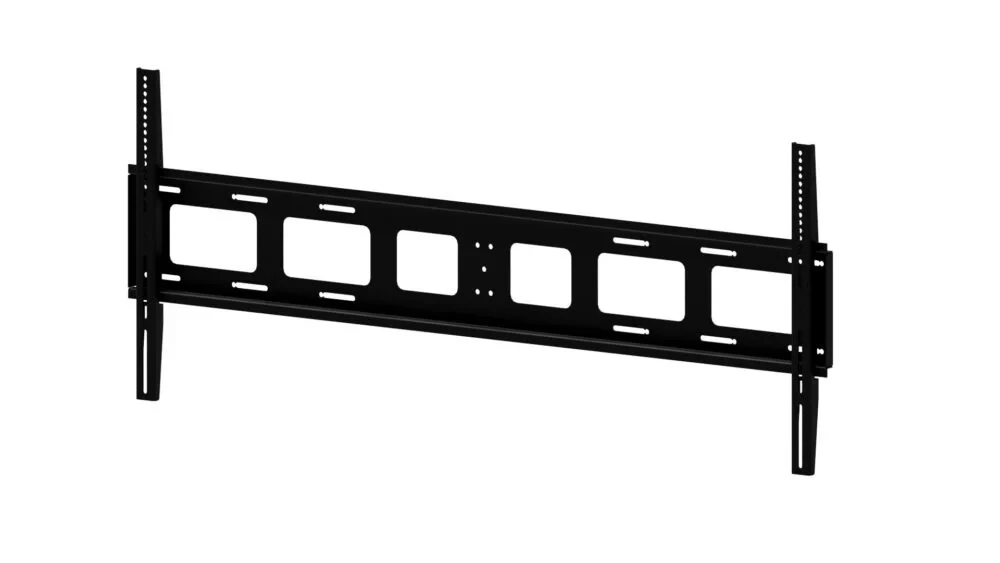

XWM110 is a universal fixed wall mount for larger and heavier screens, providing a maximum lifting capacity of up to 135 kg.
Its simple installation makes it very easy to use on all types of surfaces.
The XWM110 is equipped with locking screws that prevent, among other things unauthorized disassembly of the screen.
The distance from the wall, which is only 42 mm, ensures an aesthetically pleasing installation.
The XWM110 is perfect for large conference rooms, lobbies and waiting rooms.
Description
- Screen protection against drops
- Robust design for a load capacity of up to 135 kg
- Screen mounting screws included
- Side adjustment of the screen after mounting on the wall plate
- Can be installed on concrete, gypsum and wooden walls
- Minimalist design and functionality
- Simple and fast installation
- Modern design
Additional information
Product Specifications
| Index: | XWM110 |
| Color: | Black |
| Warranty: | Limited 5-years |
| Number of screens: | 1 |
| Minimum screen size: | 110″ |
| Maximum screen size: | 136″ |
| Maximum load: | 135 kg |
| VESA Mounting Compatibility: | 100×100 to 1500×600 |
Technical Specifications
| Product dimensions: | W: 16000 mm D: 42 mm H: 640 mm (W:62.99″ D:1.65″ H:25.19″) |
| Product weight: | 10.8 kg (2 3.80 lb) |
| Max. distance from mounting surface: | 42 mm (1,65″) |
| Min. distance from mounting surface: | 42 mm (1,65″) |
| Max. spacing of fixing screws of the device: | 1500 mm x 600 mm |
| Min. spacing of the device fixing screws: | 100 mm x 100 mm |
Logistics Data
| SAP Index: | WUSC-XWM110 |
| EAN Code: | 5902841139831 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
