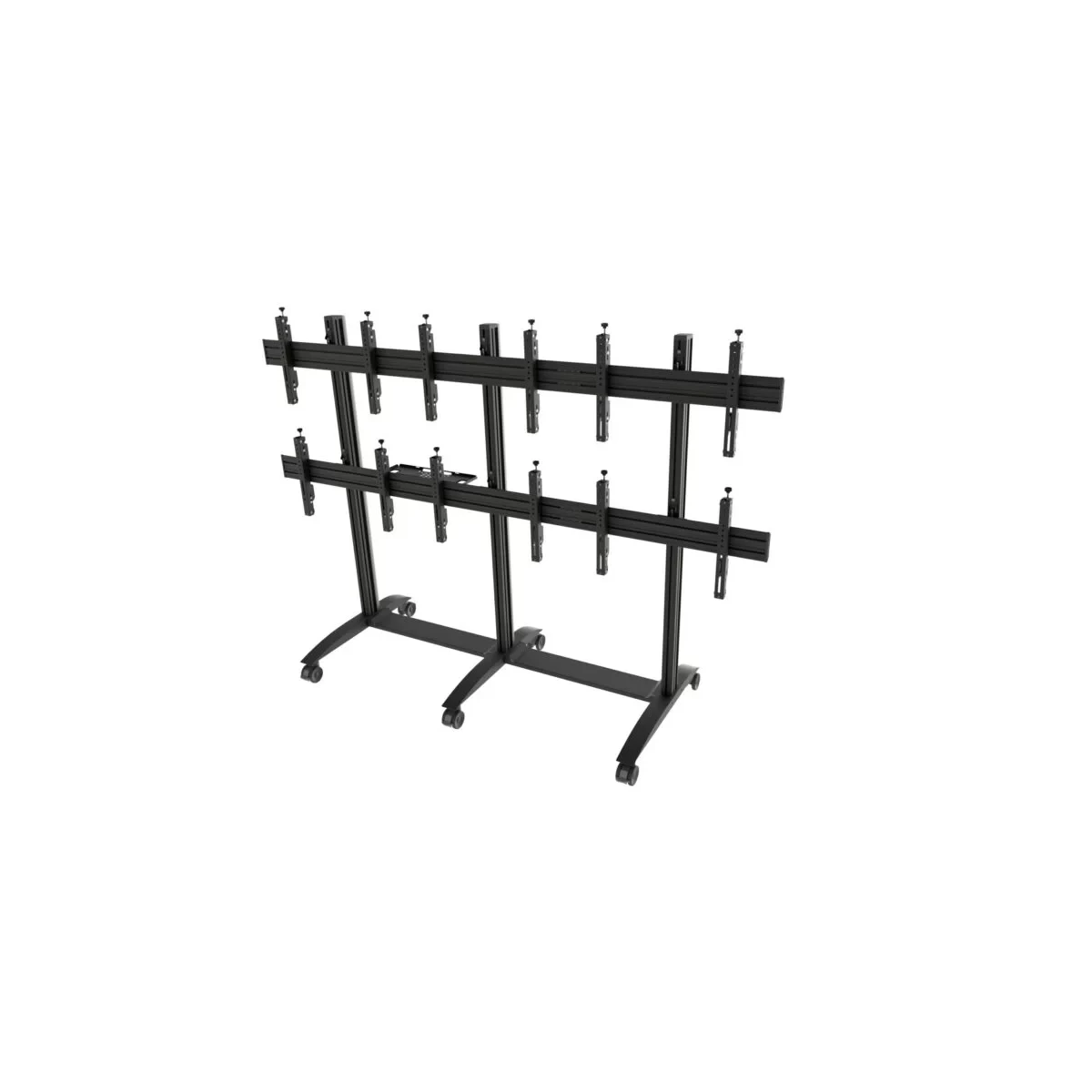

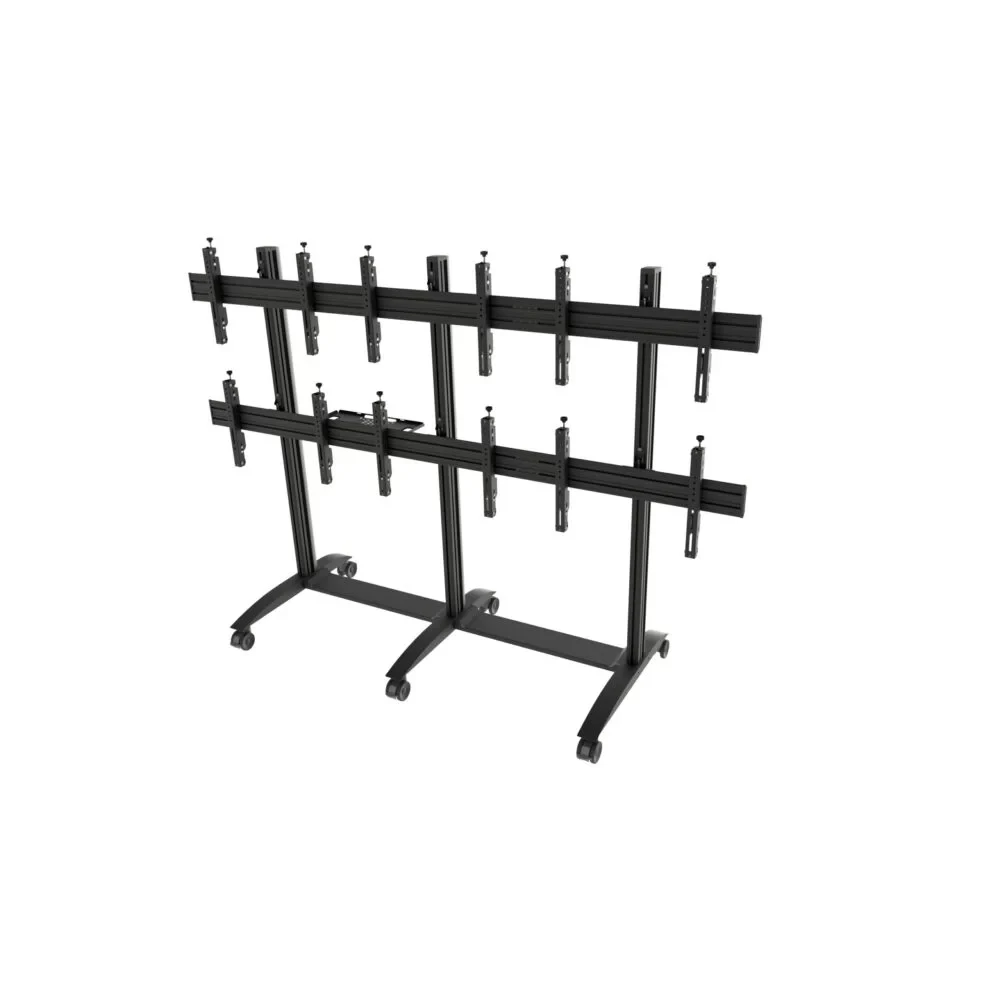

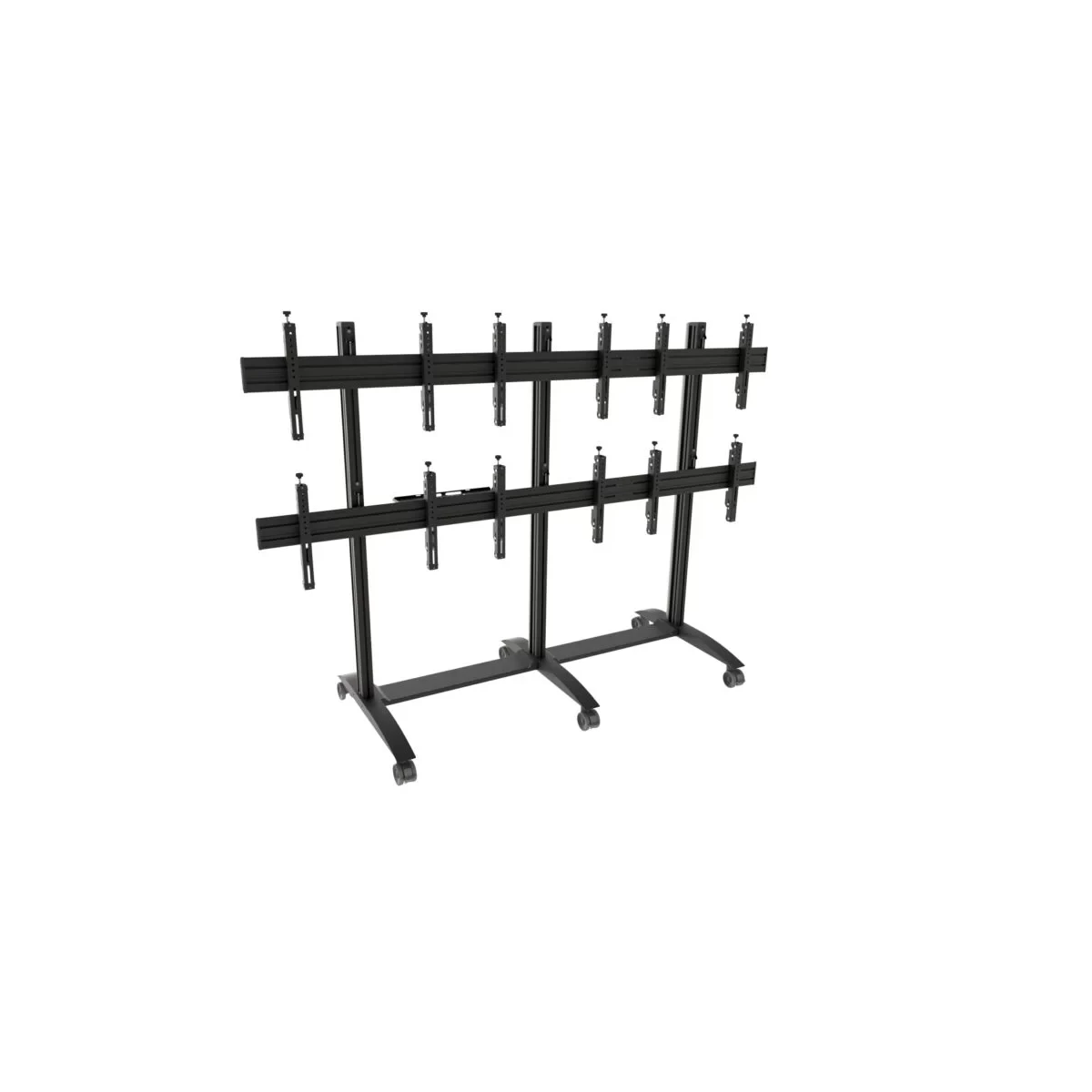

Edbak VWTA3247-L Mobile Video Wall Trolley, Modular 3×2 for 42″-49″ Screens, landscape

Product code: VWTA3247-L

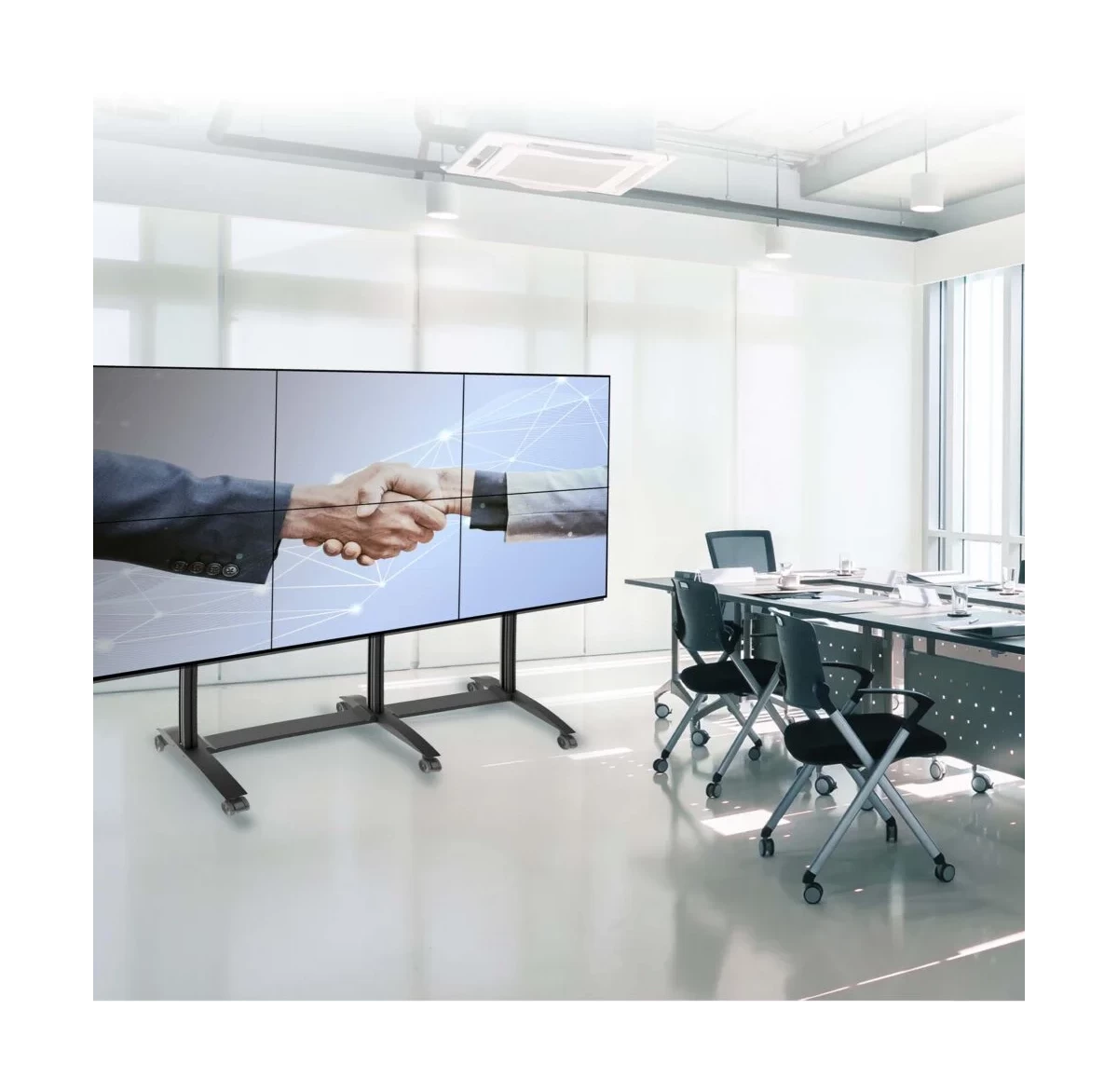

With its modular design, VWTA3247-L allows the installation of six 42″-49″ screens in 3×2 landscape orientation. VWTA3247-L is characterised by high-end quality and aesthetics.

SEND AN ENQUIRY

Description

  • High-end quality and aesthetics
  • Durable aluminium design
  • Up to 6 x 42″-49″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Computer shelf and mount featuring VESA 100×100 as standard
  • Braked castors
  • Screws protecting against accidental or unauthorised removal of the screen
  • Possibility of mounting other accessories (e.g. shelves) on aluminium profile guides

Additional information

Product Specifications

Index:VWTA3247-L
Color:Black
Warranty:Limited 5-year’s
Number of screens:6
Minimum screen size:42″
Maximum screen size:49″
Maximum load:305 kg
VESA Mounting Compatibility:50×50 up to 600×400


Technical Specifications

Product dimensions:W: 2930 mm D: 964 mm H: 2017 mm

(W: 115,35″ D: 37,95″ H: 79,41″)

Product weight:105 kg (231 lb)
Max. distance from mounting surface:2477 mm (73,90″)
Min. distance from mounting surface:330 mm (12,99″)
Max. mounting pattern:600 mm x 410 mm
Min. mounting pattern:50 mm x 50 mm


Logistics Data

SAP Index:WWTR-VWTA3247-L
EAN Code:5902841112506
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
