Edbak VWPOPS55-L Ultra Thin Video Wall Pop-Out Mount with Quick Release for 42″-55″ Screens

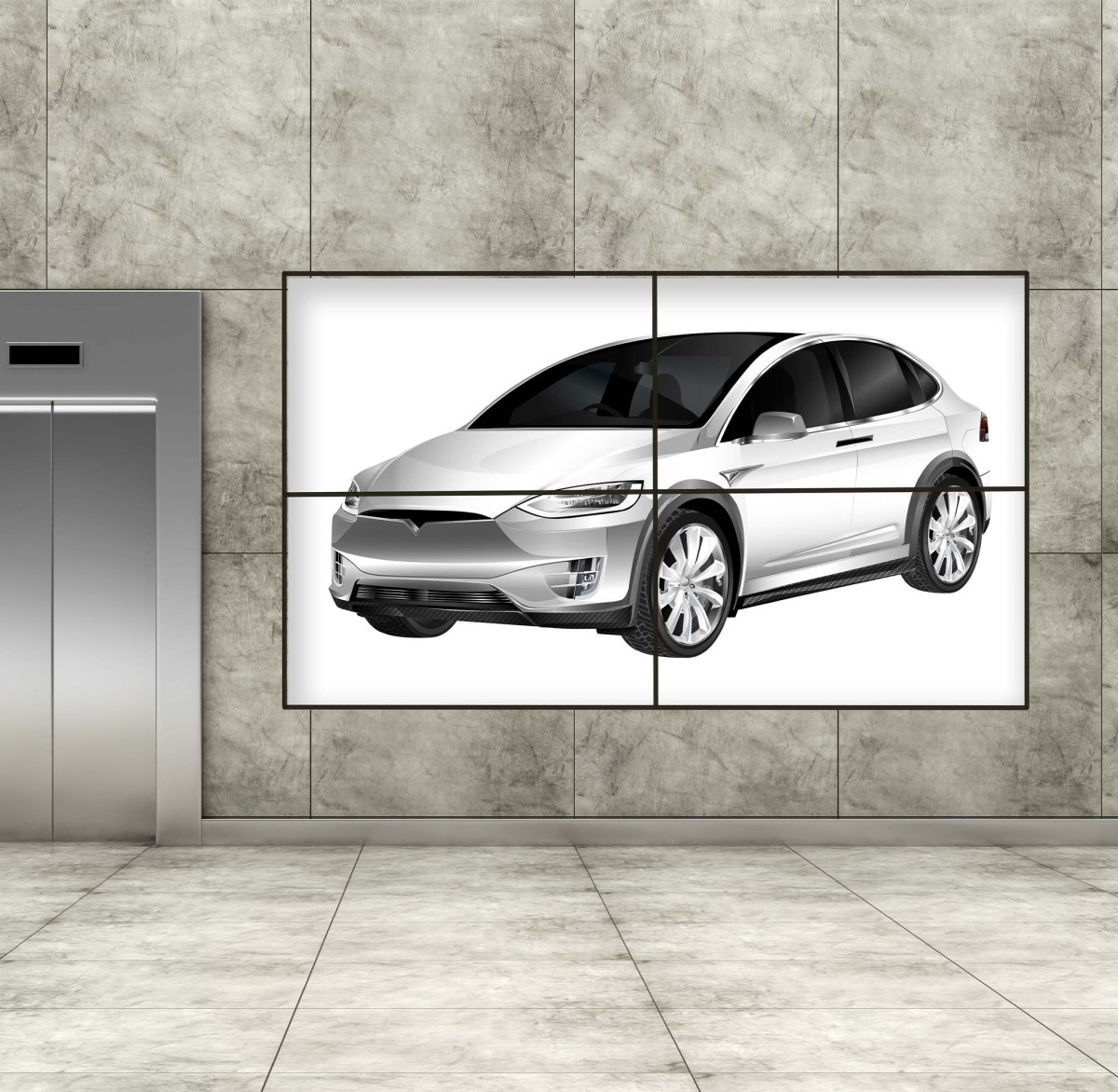

Product code:VWPOPS55-L allows easy and fast installation of video walls. Independent 8-point adjustment allows precise alignment of screens without the use of tools. Open design of VWPOPS55-L and a special retractable system for easy access for service purposes. The mount is equipped with a lock against uncontrolled structure opening, ensuring comfort of use and safety. VWPOPS55-L will meet the expectations of the most demanding customers. It will be perfect for an office, a shopping centre or car dealership.
SEND AN ENQUIRYDescription
- Possible landscape or portrait setup
- The thickness of the mount is only 60 mm
- +/-7.5 mm micro-adjustment ensures smooth alignment of screens
- Levelling screws allow adjustment of screen height

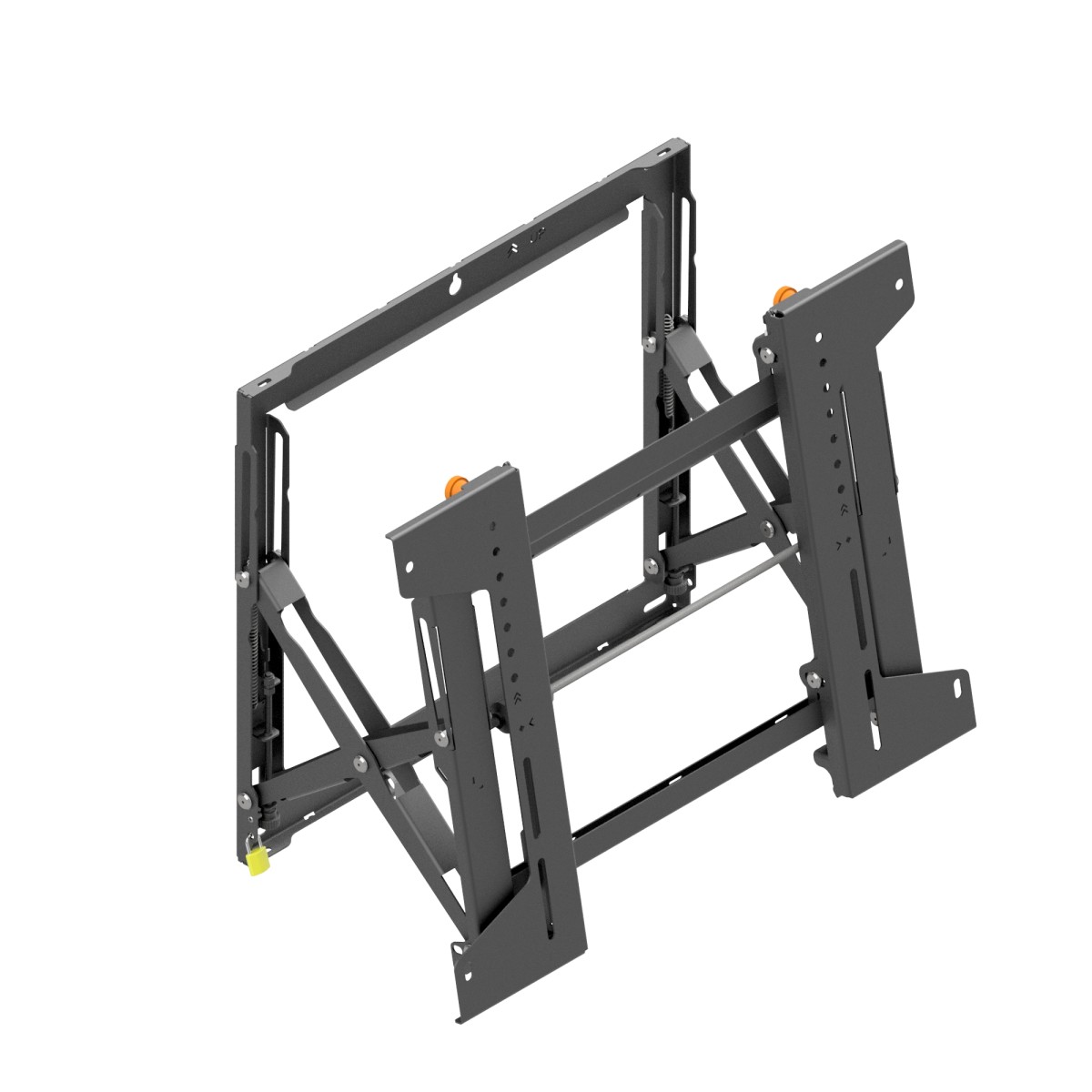

- Pop-out system for quick and easy access for installation and servicing purposes
- 10° tilt of the screen with the mount open increases access to the back of the screen from the bottom
- Integrated locking mechanism prevents the screen from being slid out accidentally
- Padlock protection against uncontrolled opening
Additional information
| Index | VWPOPS55-L |
| Category | Video Wall Mounts |
| Product group | Video Wall & Menu Board Mounts |
| Color | Black |
| Warranty | Limited 5-years |
| Minimum screen size | 42″ |
| Maximum screen size | 55″ |
| Maximum load | 42 kg |
| Forward tilting | +10° |
| VESA Mounting Compatibility | 100×100 to 600×400 |
| Product dimensions | W: 553mm D: 60 H: 500 mm |
| Product weight | 8 kg (18 lb) |
| Max. distance from mounting surface | 325 mm (12,80″) |
| Min. distance from mounting surface | 60 mm (2,36″) |
| Max. mounting pattern | 430 mm x 405 mm |
| Min. mounting pattern | 90 mm x 83 mm |
