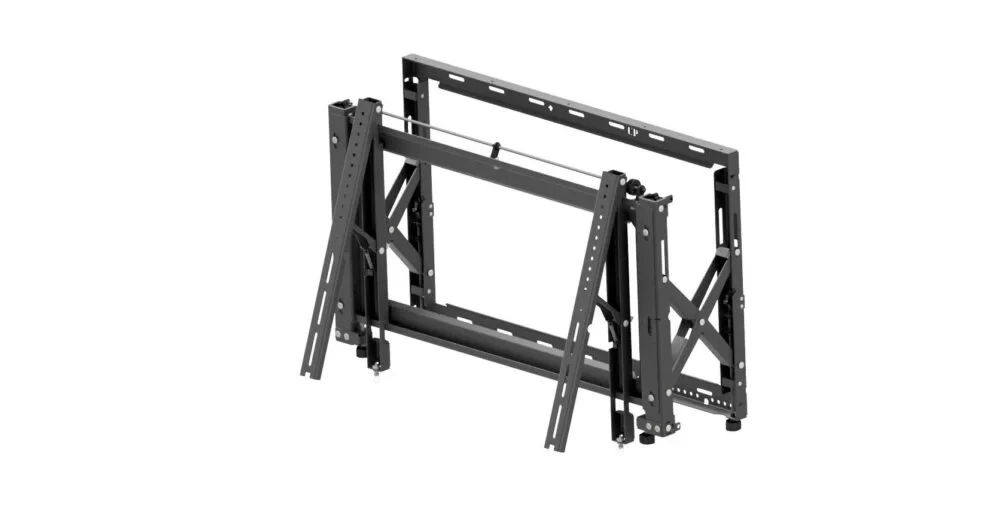

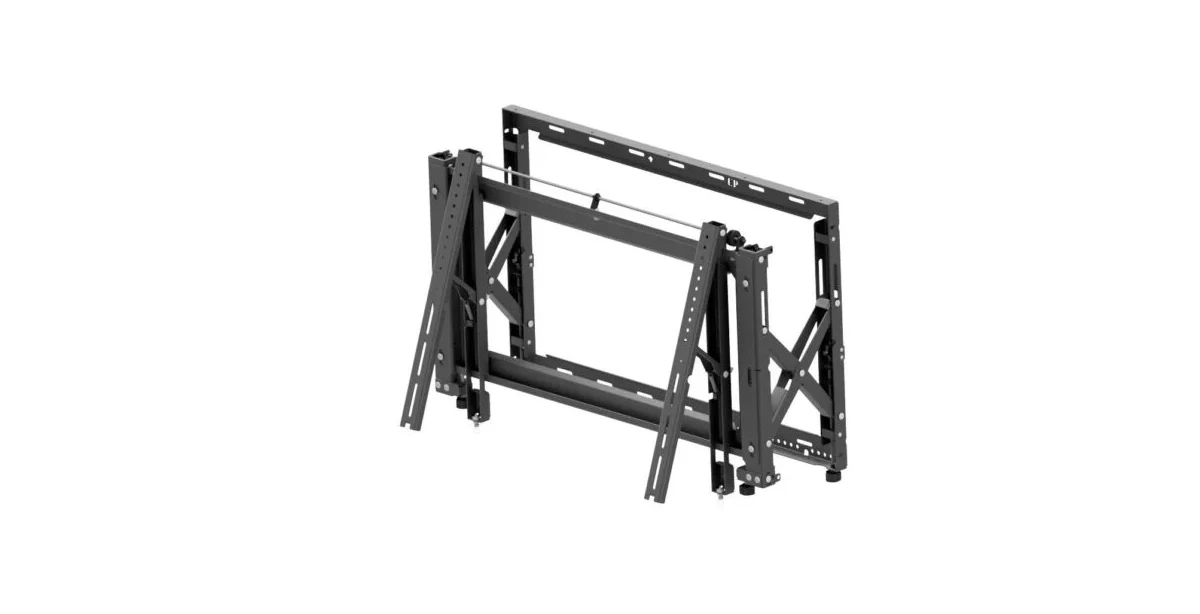

Edbak VWPOP95-L Video Wall Pop-Out Mount with Quick Release for 70″-98″ Screens, Landscape
Product code:VWPOP95-L is a professional pop-out mount designed to build a video wall in a comprehensive manner. Independent 8-point adjustment allows precise alignment of screens without the use of tools.
SEND AN ENQUIRYDescription
- Independent 8 position adjustment allows precise alignment of screens without the use of tools
- The retractable mechanism provides convenient service access to screens installed in recesses and places difficult to access for service purposes
- 20° tilt of the screen with the mount open increases access to the back of the screen from the bottom
- The retractable mechanism can be secured with a lock screw to prevent the screen from being accidentally extended
- The open design of the product provides full access to cabling, and the supplied ties facilitate cable management
- Mounting holes and carefully selected spacers eliminate the need for calculations on site
- Adjustment of the retractable mechanism spring enables proper adjustment for screens of different masses to obtain safe and controlled extension
Additional information
Product Specifications
| Index: | VWPOP95-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Minimum screen size: | 70″ |
| Maximum screen size: | 98″ |
| Maximum load: | 130 kg |
| Forward tilting: | +20 |
| VESA Mounting Compatibility: | 100×100 to 800×600 |
Technical Specifications
| Product dimensions: | W: 1083 mm D: 100 mm H: 701 mm
(W: 42,64″ D: 3,94″ H: 27,60″) |
| Product weight: | 32,5 kg (72 lb) |
| Max. distance from mounting surface: | 315 mm (12,40″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 800 mm x 606 mm |
| Min. mounting pattern: | 60 mm x 85 mm |
Logistics Data
| SAP Index: | WUSC-VWPOP95-L |
| EAN Code: | 5908252968176 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
