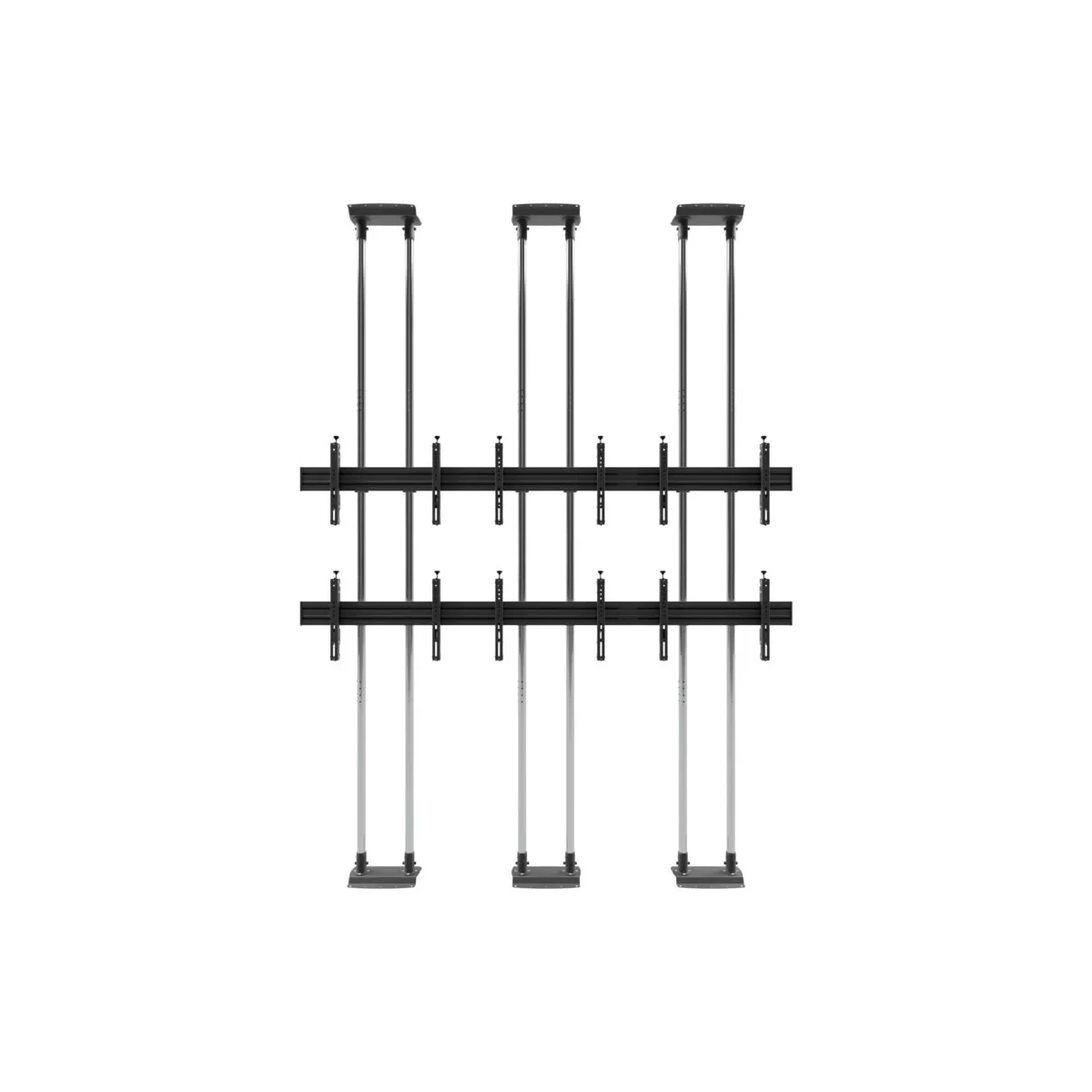

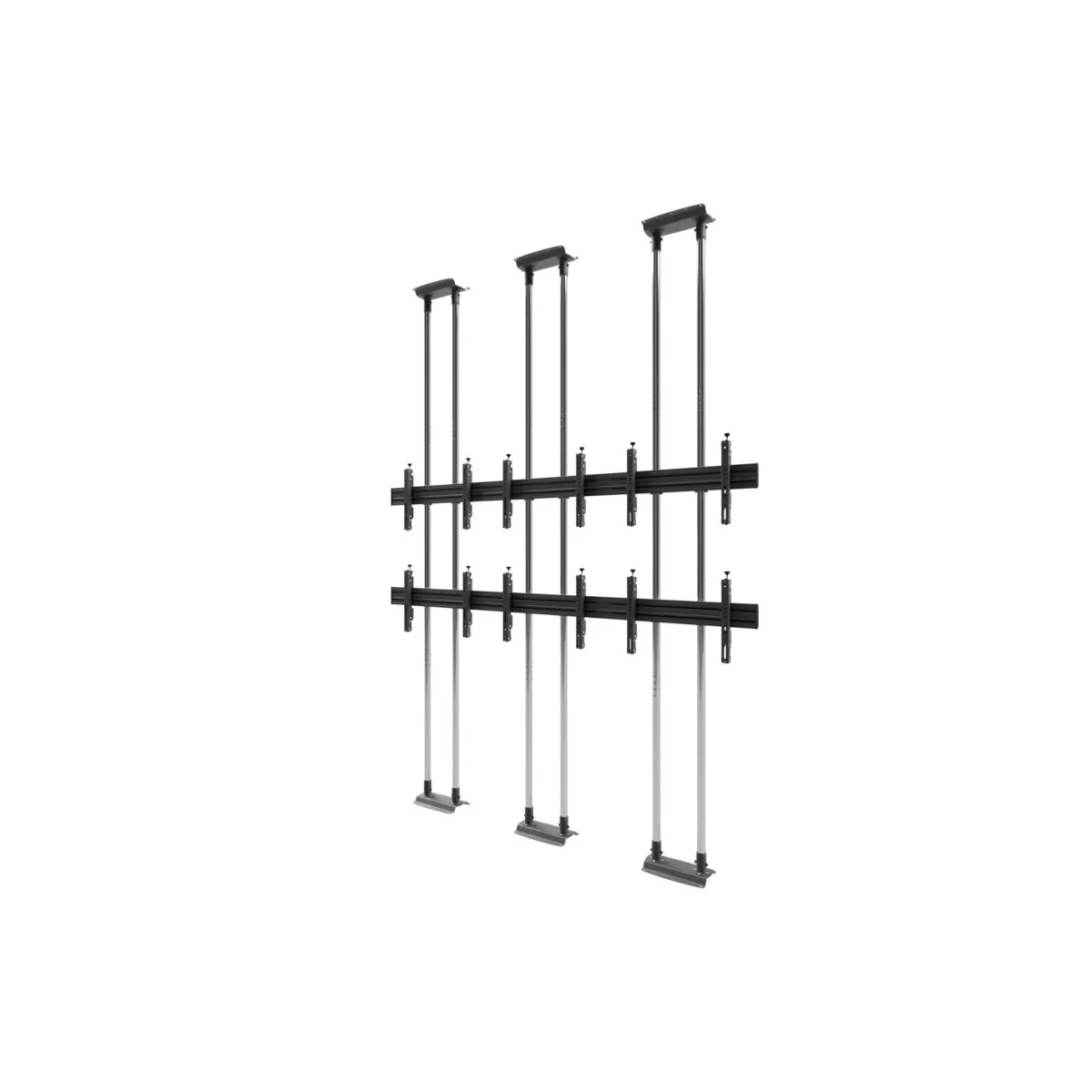

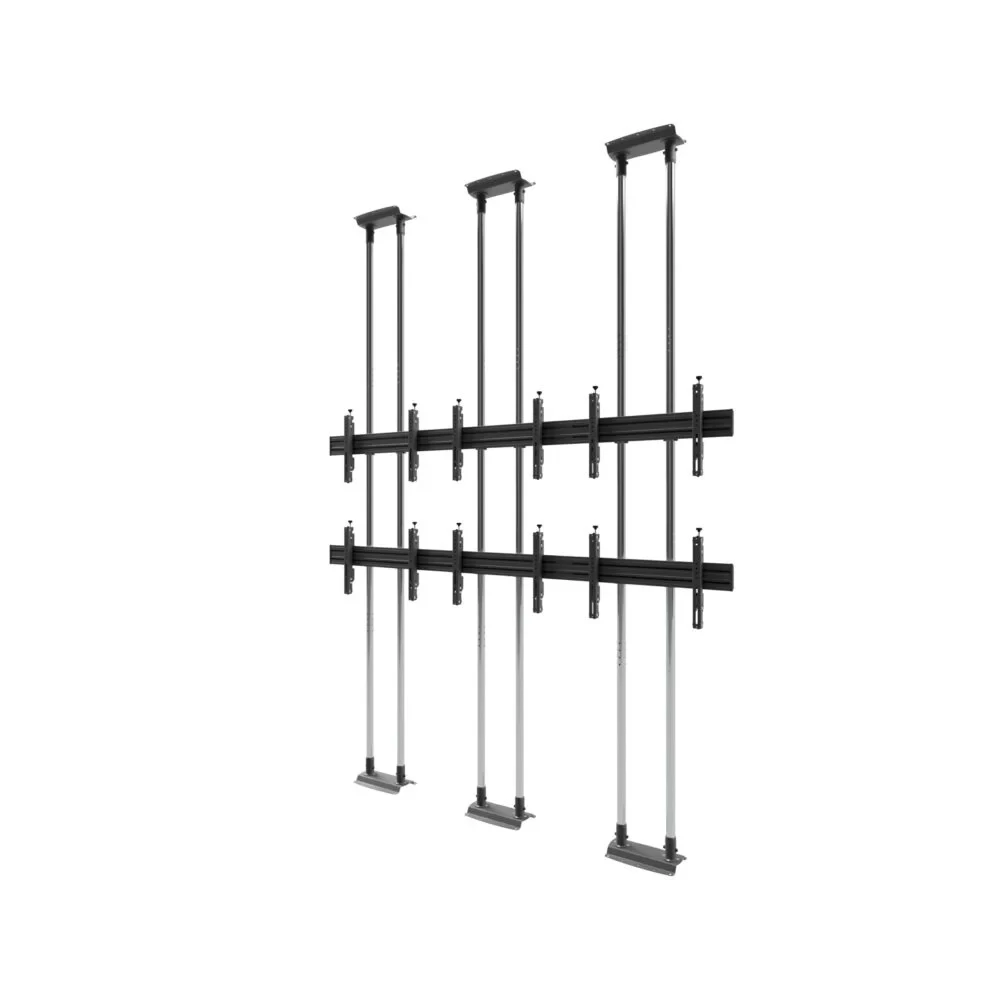

Edbak VWFCA3247-L Video Wall Bolt Down Floor-to-Ceiling Mount, modular 3×2, for 42″-49″ Screens, landscape
Product code:With its modular design, VWFCA3247-L allows the installation of six 42″-49″ screens in 3×2 landscape orientation. The design is characterised by durability, high quality and aesthetics.
SEND AN ENQUIRYDescription
- High-end quality and aesthetics
- Durable design
- Screen load-carrying beams made of aluminium
- Up to 6 x 42″-49″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screen protected against being slid out accidentally
- Integrated cable management system for smart installation
- Screws protecting against accidental or unauthorised removal of the screen
Additional information
Product Specifications
| Index: | VWFCA3247-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 6 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 49″ |
| Maximum load: | 330 kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 264 mm D: 2930 mm H: 4000 mm
(W: 10,39″ D: 115,35″ H: 157,48″) |
| Product weight: | 125 kg (276 lb) |
| Max. distance from mounting surface: | 3700 mm (145,67″) |
| Min. distance from mounting surface: | 300 mm (11,81″) |
| Max. mounting pattern: | 600 mm x 410,5 mm |
| Min. mounting pattern: | 55 mm x 50 mm |
Logistics Data
| SAP Index: | WUSU-VWFCA3247-L |
| EAN Code: | 5902841112742 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
