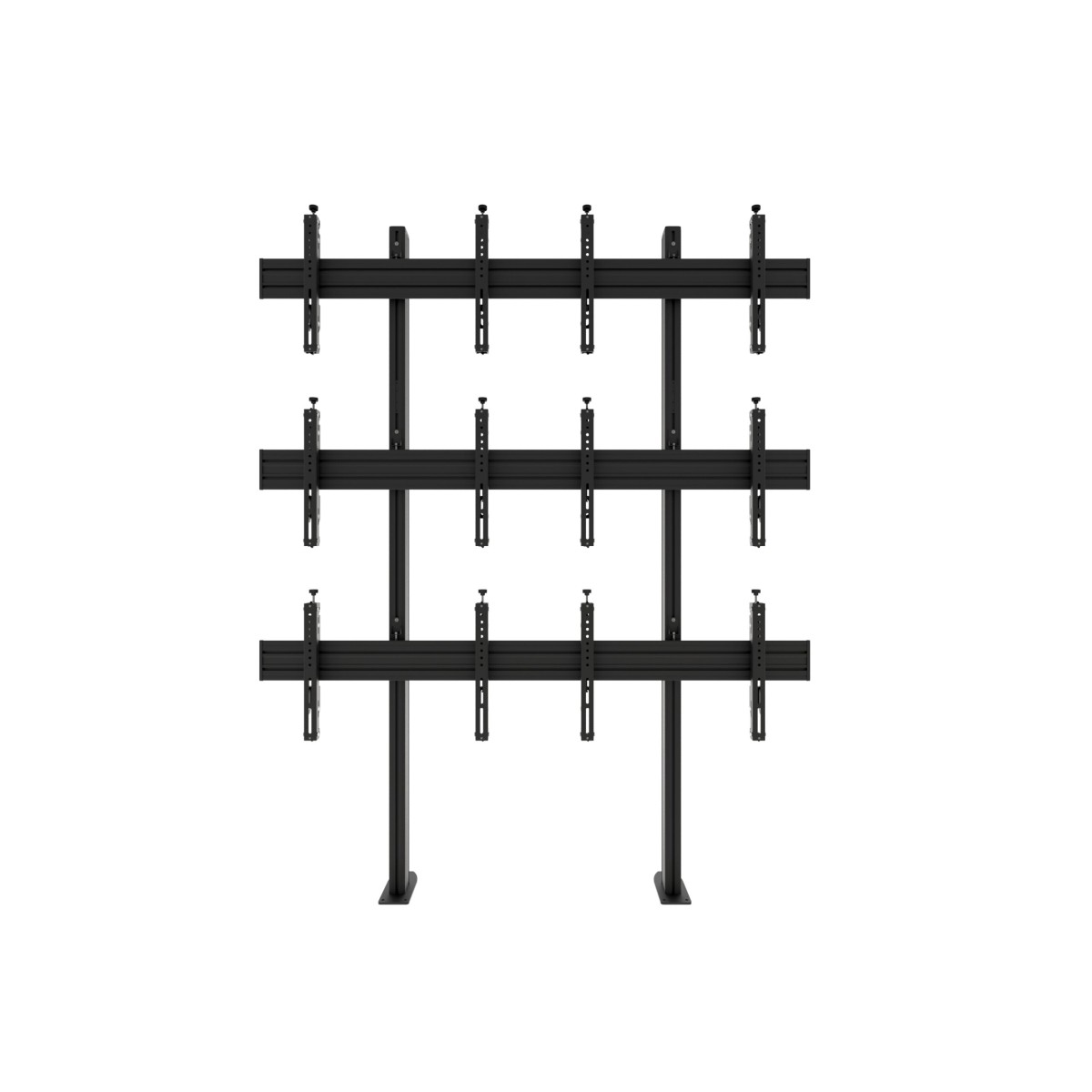

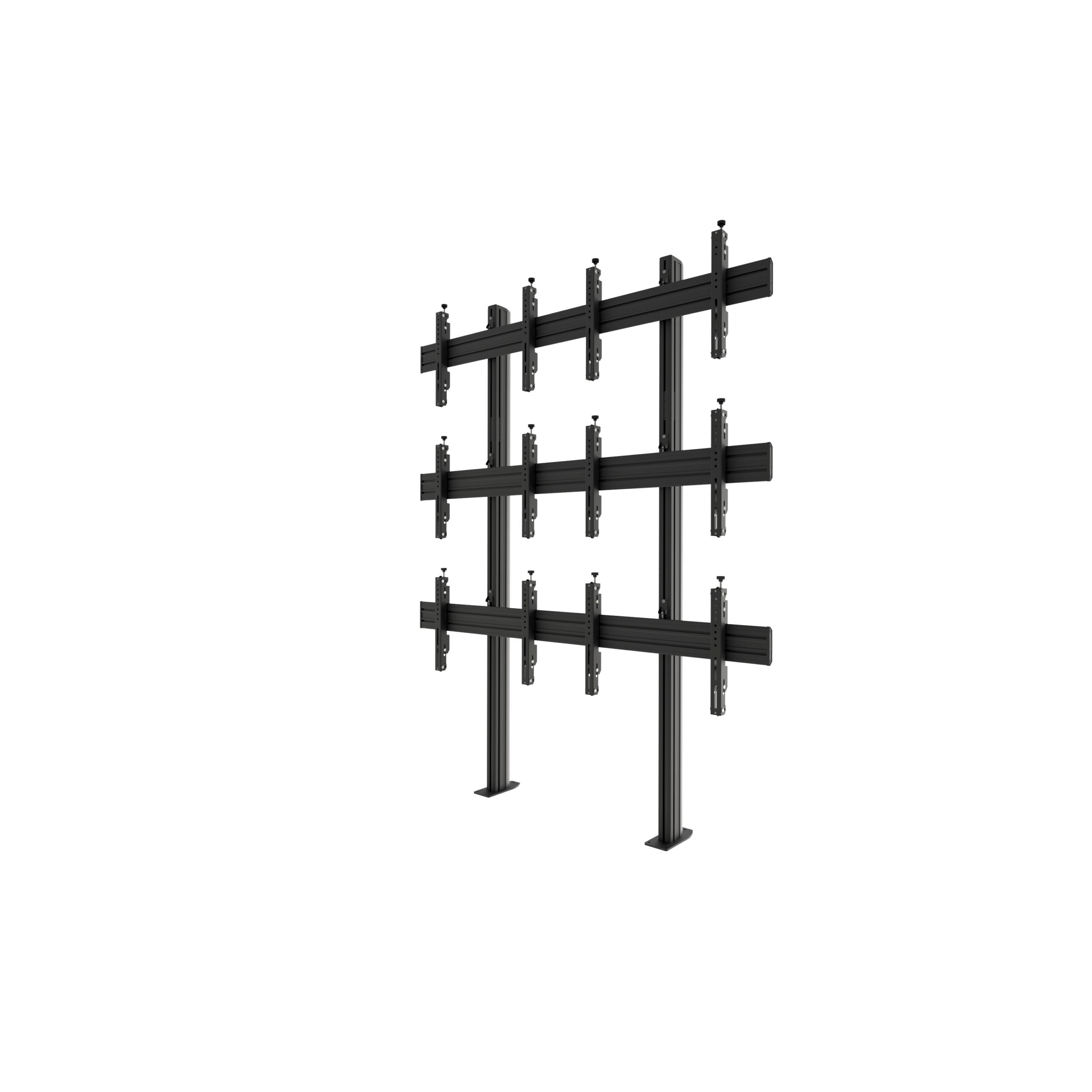

Edbak VWSA2357-L Video Wall Bolt Down Stand, modular 2×3, for 50″-57″ Screens, Landscape
Product code:With its modular design, VWSA2357-L allows the installation of six 50″-57″ screens in 2×3 landscape orientation. The design is characterised by durability, high quality and aesthetics. The video wall attached to the floor allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWSA2357-L is used in places where there is a need for dynamic and effective communication with the audience, while ensuring the maximum safety.
SEND AN ENQUIRYDescription
- High-end quality and aesthetics
- Durable design
- Screen load-carrying beams made of aluminium
- Up to 6 x 50″-57″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screen protected against being slid out accidentally
- Integrated cable management system for smart installation
- Screws protecting against accidental or unauthorised removal of the screen
Additional information
Product Specifications
| Index: | VWSA2357-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 6 |
| Minimum screen size: | 50″ |
| Maximum screen size: | 57″ |
| Maximum load: | 190 kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 2220 mm D: 289 mm H: 2429 mm
(W: 87,40″ D: 11,38″ H: 95,63″) |
| Product weight: | 85 kg (187 lb) |
| Max. distance from mounting surface: | 2250 mm (88,58″) |
| Min. distance from mounting surface: | 330 mm (12,99″) |
| Max. mounting pattern: | 600 mm x 410 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WSTD-VWSA2357-L |
| EAN Code: | 5902841112612 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
