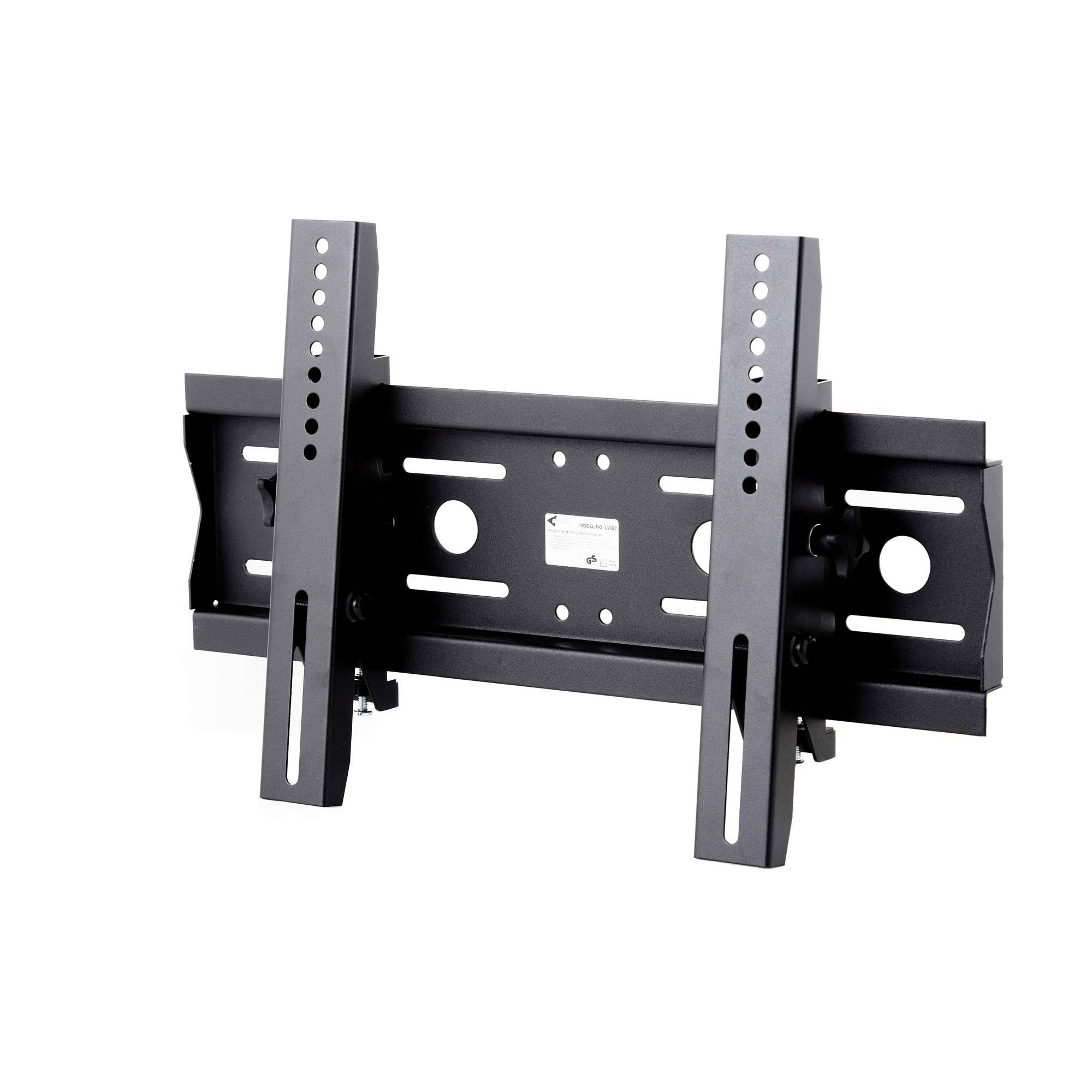

Edbak LWB2 Universal Tilt Wall Mount for 32-43″ Screens

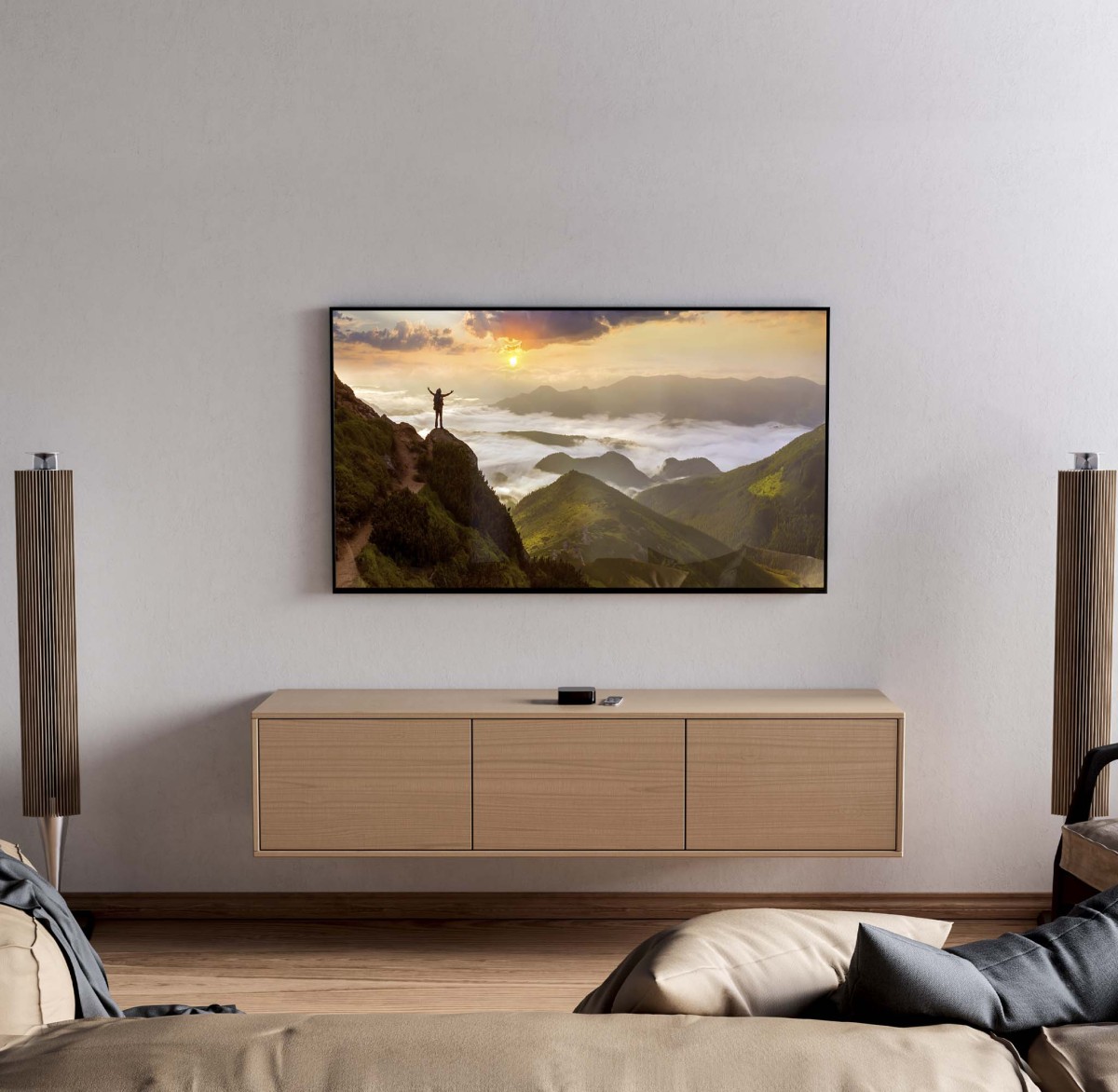

Product code:Designed for smaller screens up to 43″ and weighing up to 60 kg. With its numerous mounting holes in the support plate, it is possible to mount LWB2 on various types of wall surfaces, both concrete and wooden. Screen protection against falling, robust finish and, at the same time, modern design allow the use of LWB2 in various rooms. Installing the screen on the wall increases the amount of free space in the room, while the ability to tilt the screen by –12/+6º improves the user’s viewing comfort.
SEND AN ENQUIRYDescription
- Universal mount for screens of different brands
- Robust and durable, made of powder-coated metal pieces
- The support plate features numerous holes for installation on concrete and wooden surfaces

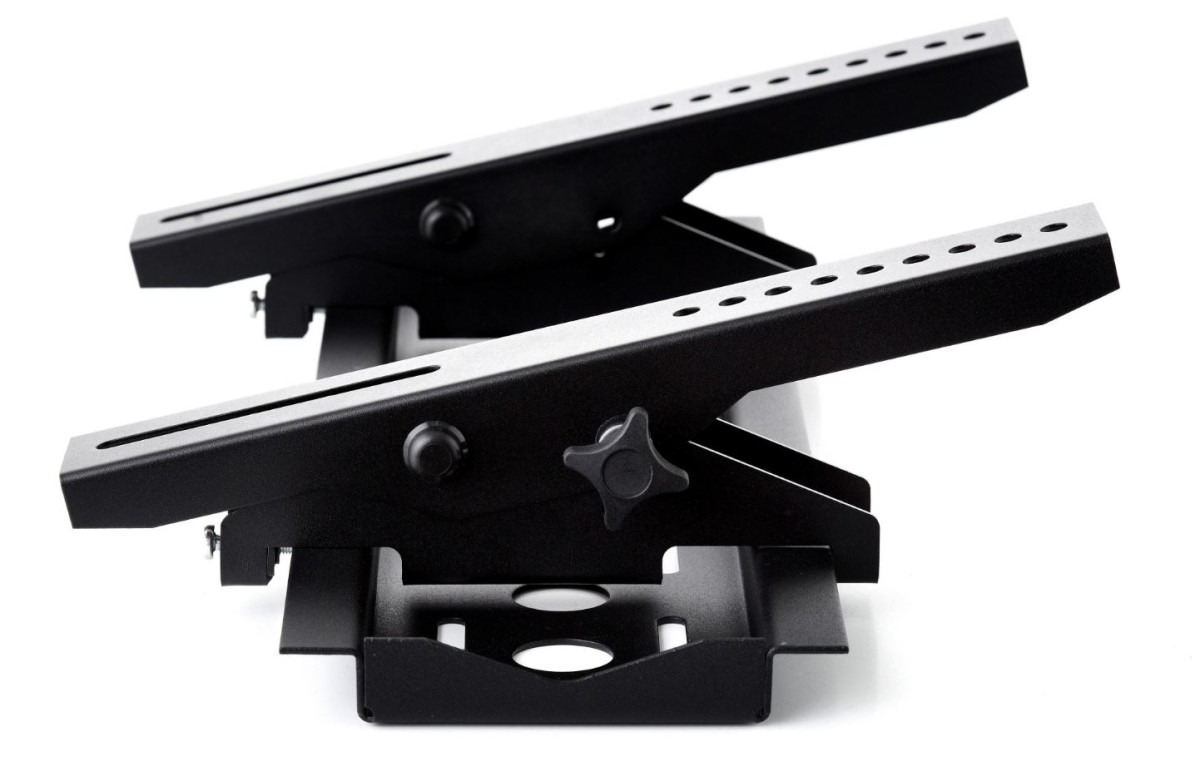

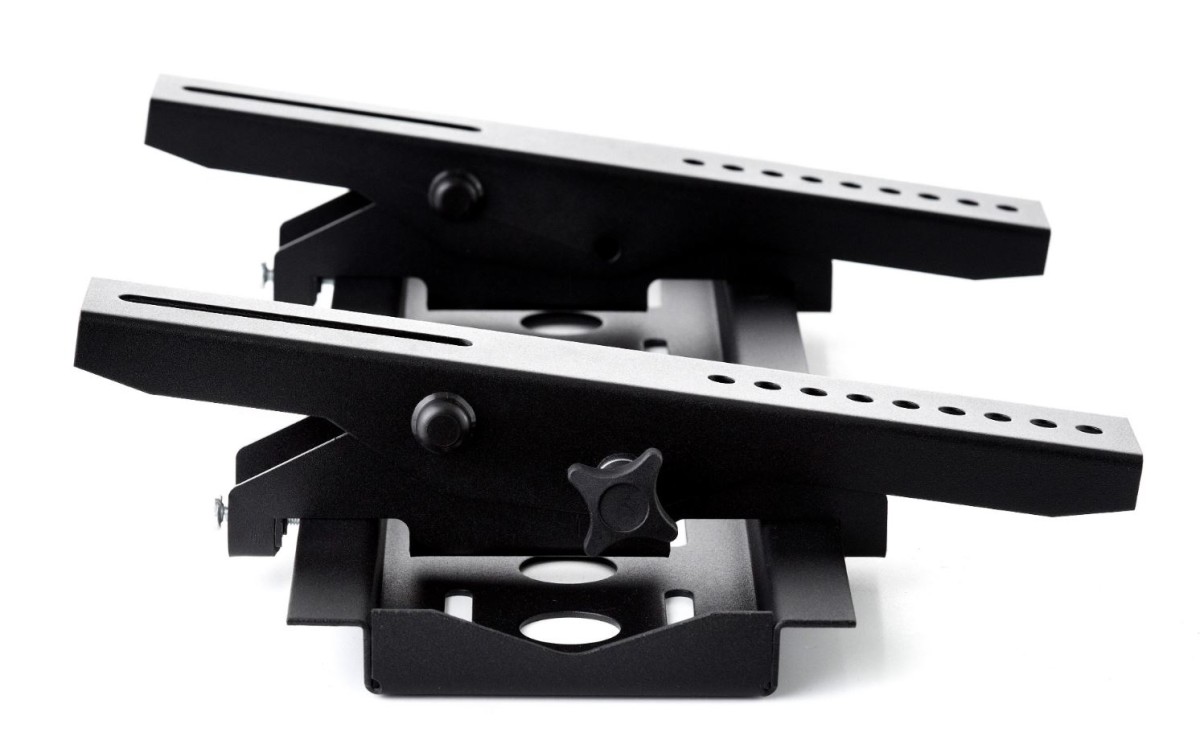

- Screen tilting from –12/+6º
- Screen protection against falling
- Screen mounting hardware included
- Quick and simple installation

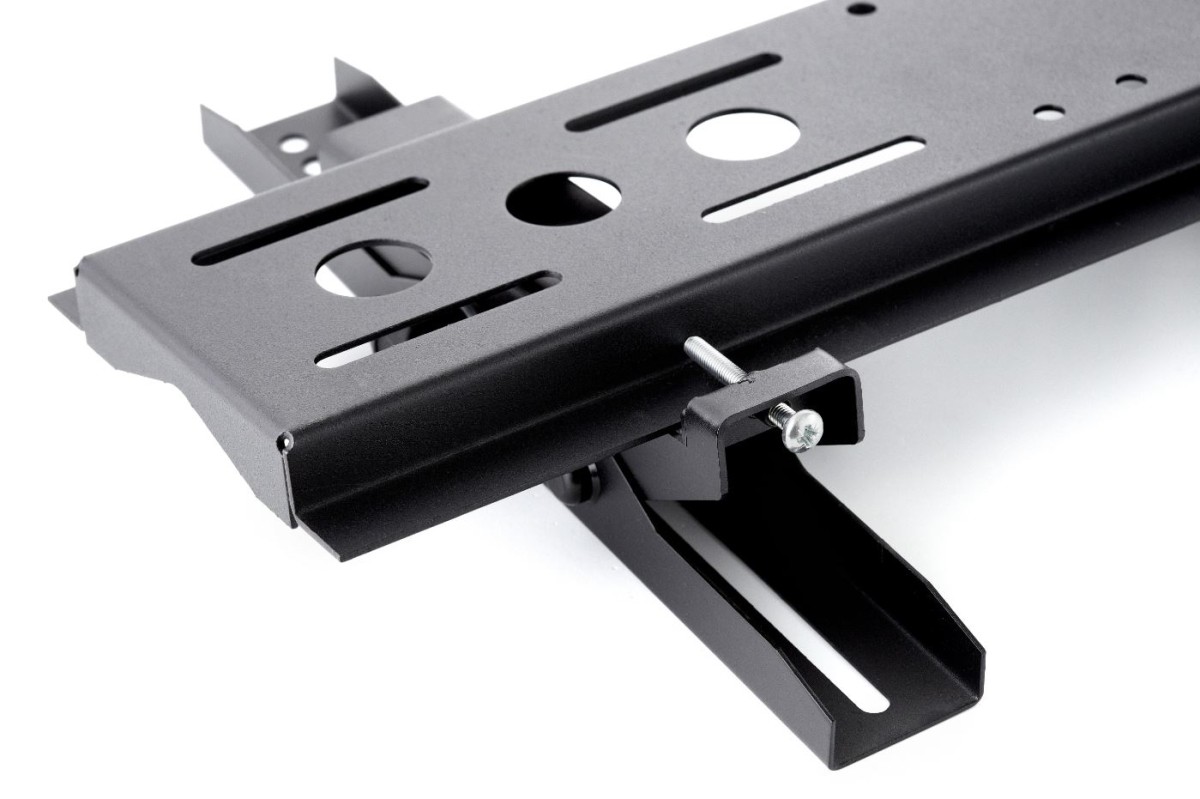

- Possibility of moving the lateral shift of the screen when mounted on the wall plate before tightening the lock screws
Additional information
Product Specifications
| Index: | LWB2 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 32″ |
| Maximum screen size: | 43″ |
| Forward tilting: | -12°/+6° |
| Maximum load: | 80 kg |
| VESA Mounting Compatibility: | 100×100 up to 400×300 |
Technical Specifications
| Product dimensions: | W: 541 mm D: 77 mm H: 340 mm (W: 21,30″ D: 3,03″ H: 13,39″) |
| Product weight: | 3,3 kg (7 lb) |
| Max. distance from mounting surface: | 77 mm (3,03″) |
| Min. distance from mounting surface: | 77 mm (3,03″) |
| Max. mounting pattern: | 480 mm x 310mm |
| Min. mounting pattern: | 50 mm x 85mm |
Logistics Data
| Index: | WUSC-LWB2c-B |
| EAN Code: | 5908252960217 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
