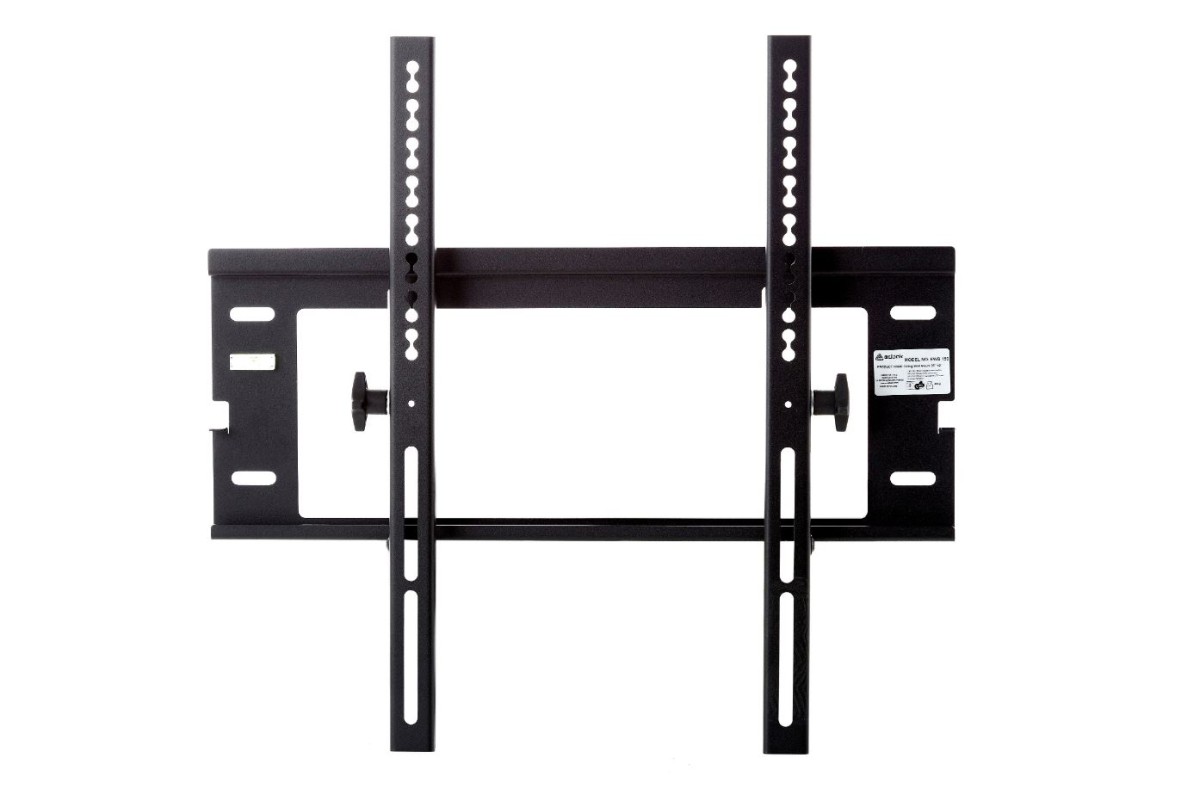

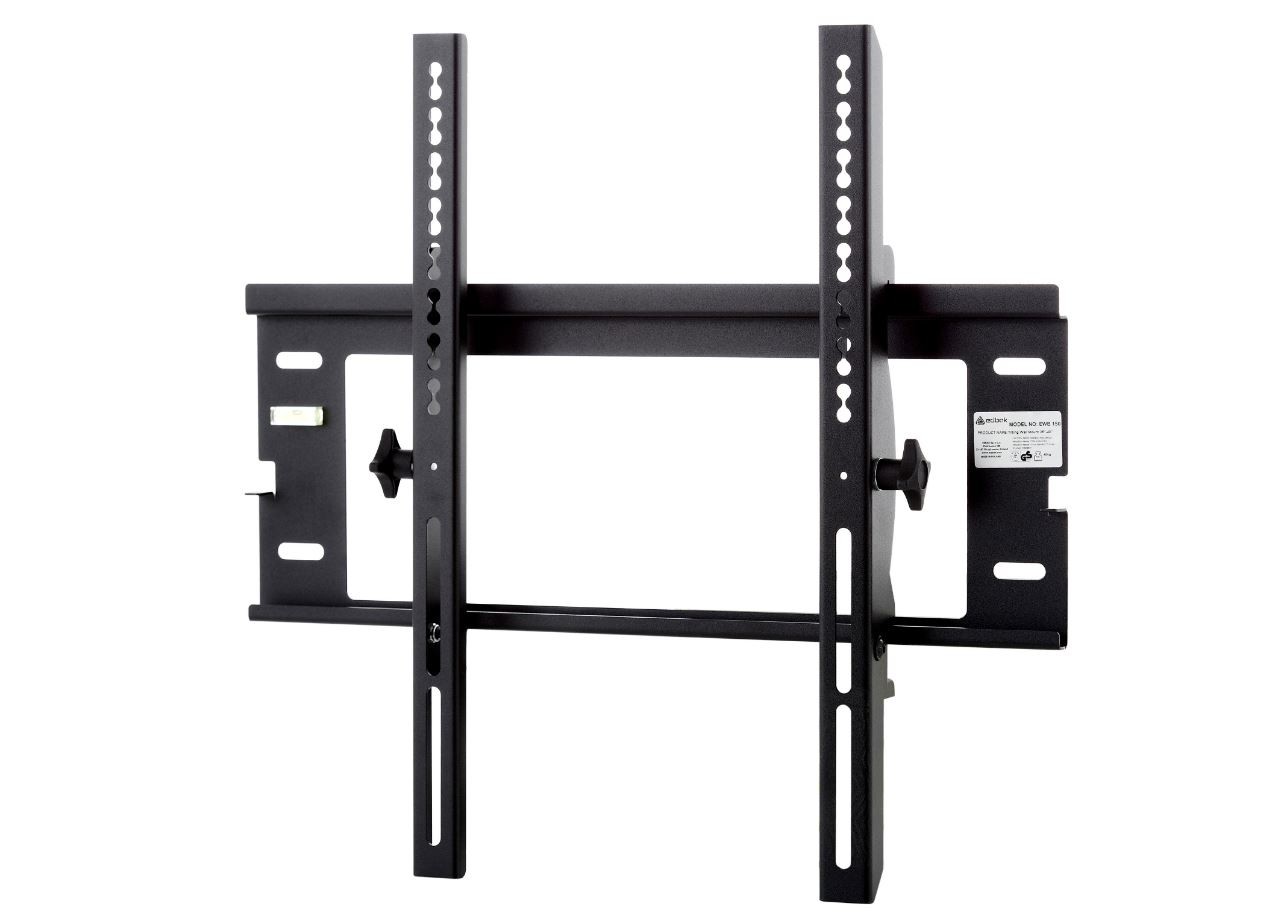

Edbak EWB150 Universal tilt wall mount for 32″-43″ screens
Product code:Designed to fit smaller 32″-43″ screens up to 30 kg. A wide range of VESA mounting holes and the level for simple installation make the EWB150 mount extremely functional and easy to install. Screen protection against falling, robust finish and, at the same time, modern design allow the use of EWB150 in various rooms. Installing the screen on the wall increases the amount of free space in the room, while the option of tilting the screen by +12º improves the user’s viewing comfort.
SEND AN ENQUIRYDescription
- Option of tilting the screens to +12°
- Wide range of VESA mounting holes

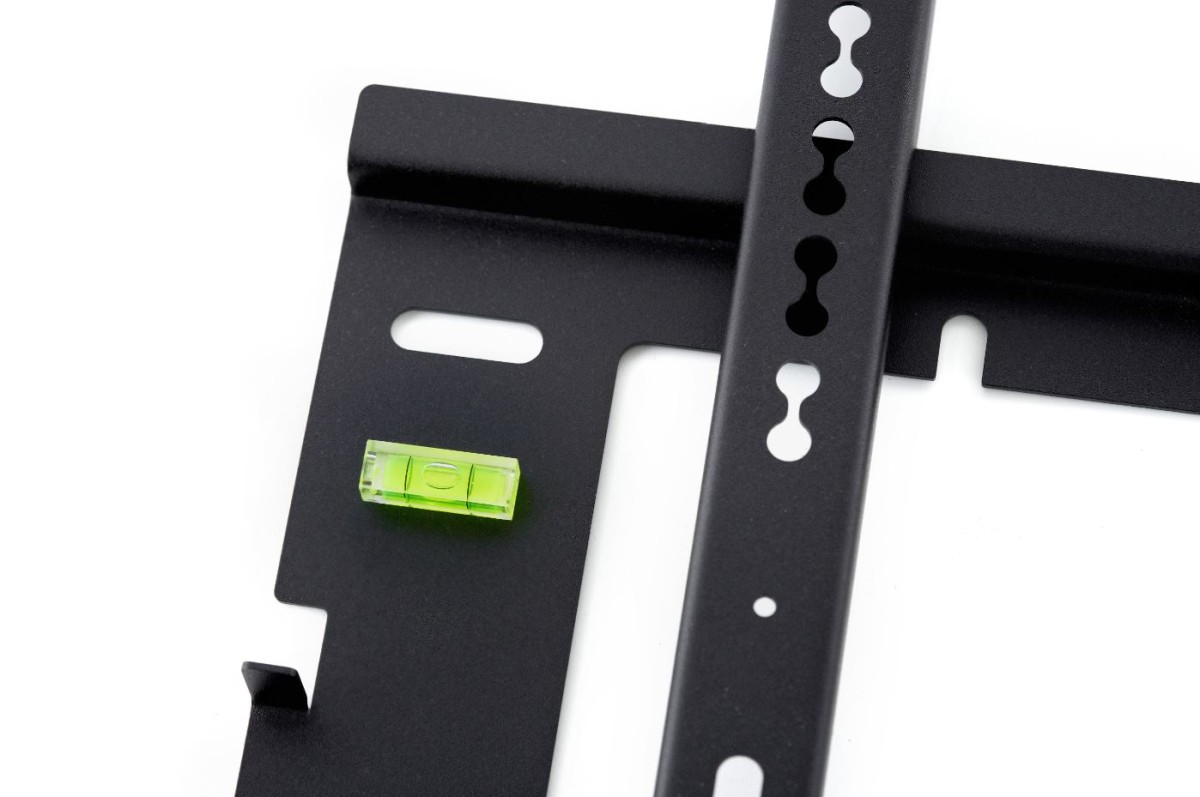

- Spirit level to facilitate installation
- Screen protection against falling
- Screen mounting screws included
- Lateral adjustment of the screen once mounted on the wall plate
- Minimalist design and functionality
- Modern design
- Simple and quick installation
Additional information
Product Specifications
| Index: | EWB150 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 32″ |
| Maximum screen size: | 43″ |

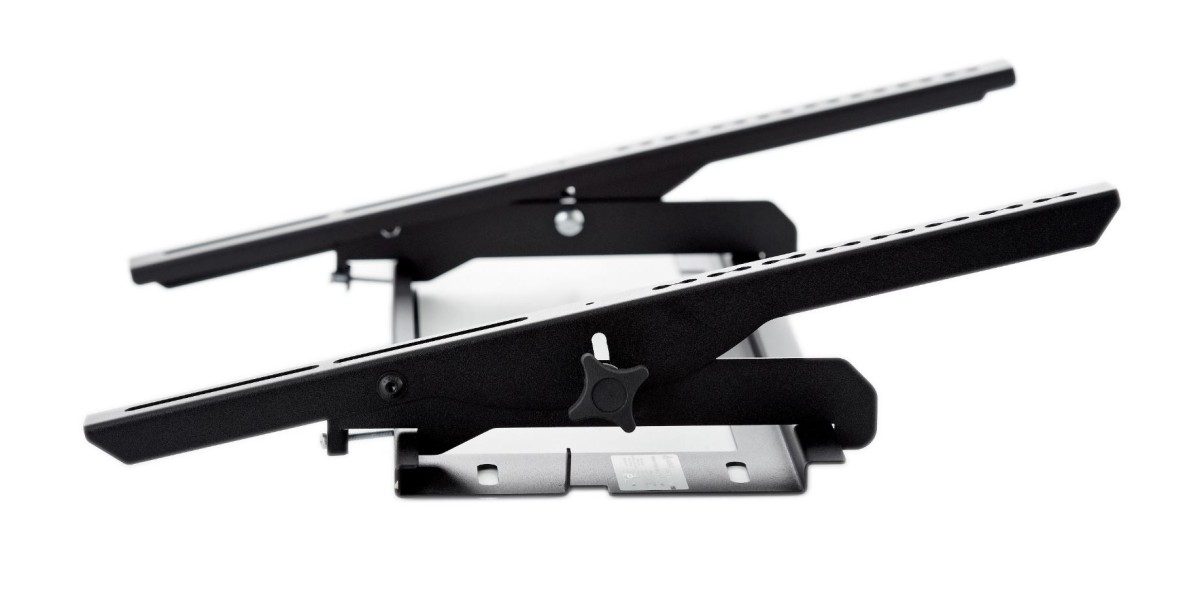

| Forward tilting: | +12° |
| Maximum load: | 30 kg |
| VESA Mounting Compatibility: | 100×100 to 400×400 |
Technical Specifications
| Product dimensions: | W: 495 mm D: 48,5 mm H: 470 mm (W: 19,49″ D: 1,91″ H: 18,50″) |
| Product weight: | 1,7 kg (4 lb) |
| Max. distance from mounting surface: | 48,5 mm (1,91″) |
| Min. distance from mounting surface: | 48,5 mm (1,91″) |
| Max. mounting pattern: | 440 mm x 427,5 mm |
| Min. mounting pattern: | 30 mm x 65 mm |
Logistics Data
| SAP Index: | WUSC-EWB150c-B |
| EAN Code: | 5908252963522 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
