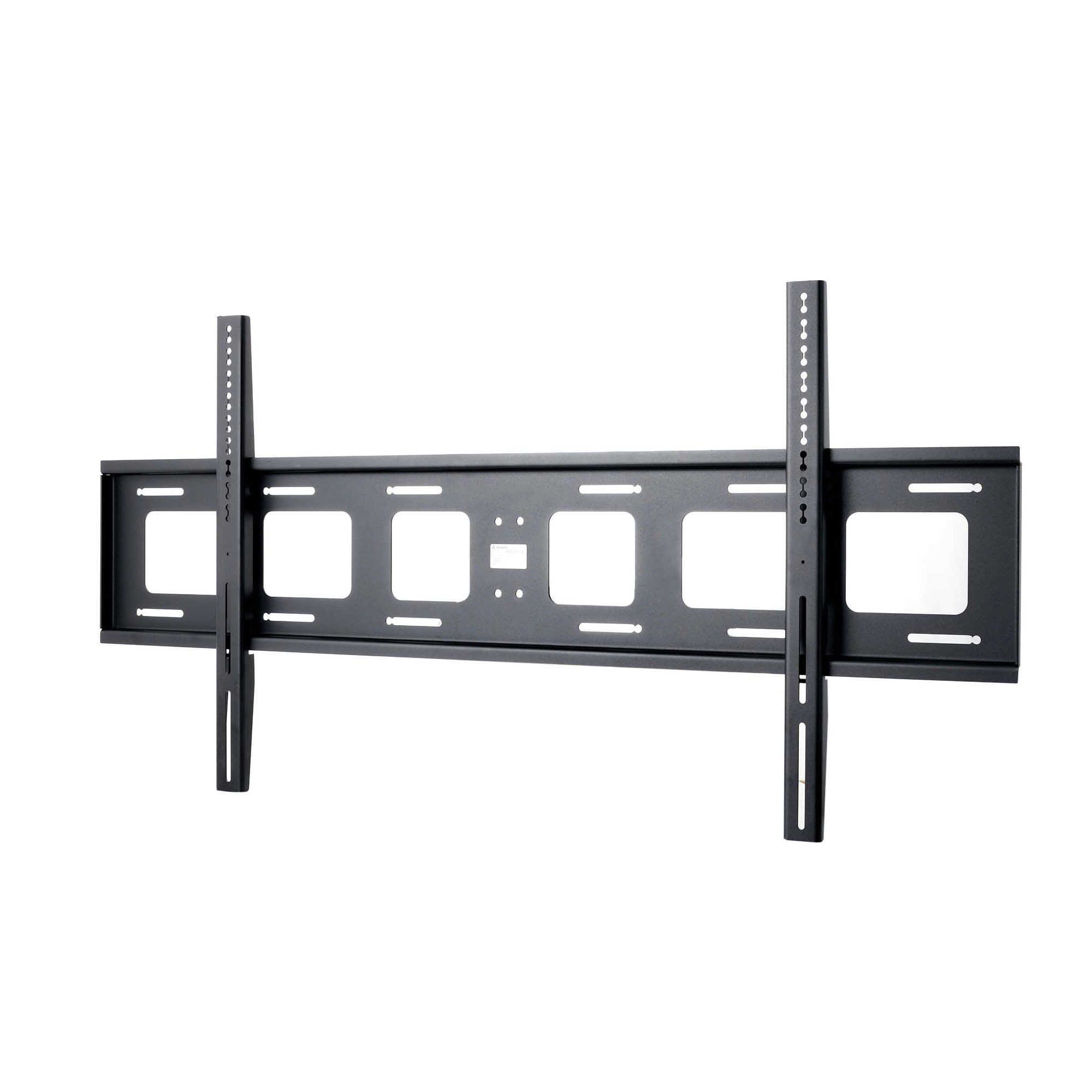

Edbak XWB1 Universal Flat Wall Mount for 75″-110″ Screens
Product code:It is designed for practical installation of 75″-110″ large screens. XWB1 is a universal fixed wall mount for larger and heavier screens, providing a maximum load capacity of up to 110 kg. The ease of installation makes it very simple to use on all types of wall surfaces. XWB1 is equipped with lock screws that prevent unauthorised removal of the screen. The short large screen distance from the wall, just 42 mm, ensures aesthetic installation. XWB1 is perfect for large conference rooms, lobbies and waiting rooms.
SEND AN ENQUIRYDescription
- Suitable for mounting large screens up to 110″
- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
- Minimalist design and functionality
- Wide range of VESA mounting holes
- Short screen distance from the wall: only 42 mm
- Screen protection against falling
- Screen mounting screws included
- Simple and quick installation
Additional information
Product Specifications
| Index: | XWB1 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 75″ |
| Maximum screen size: | 110″ |
| Maximum load: | 110 kg |
| VESA Mounting Compatibility: | 100×100 to 1200×600 |
Technical Specifications
| Product dimensions: | W: 1260 mm D: 42 mm H: 640 mm (W: 49,61″ D: 1,65″ H: 25,20″) |
| Product weight: | 9,3 kg (21 lb) |
| Max. distance from mounting surface: | 42 mm (1,65″) |
| Min. distance from mounting surface: | 42 mm (1,65″) |
| Max. mounting pattern: | 1200 mm x 605 mm |
| Min. mounting pattern: | 50 mm x 90 mm |
Logistics Data
| SAP Index: | WUSC-XWB1c-B |
| EAN Code: | 5908252960897 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
