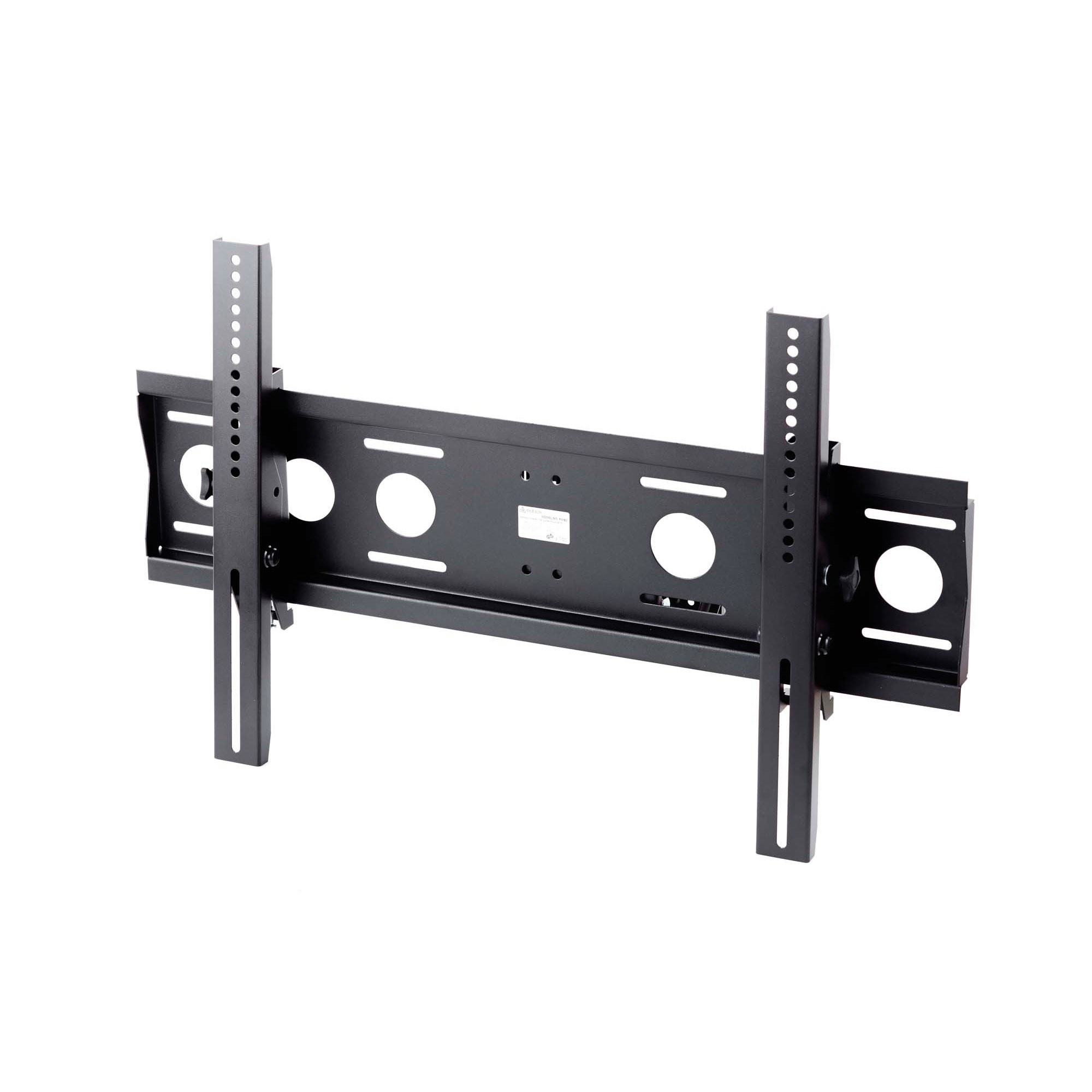

Edbak PWB2 Universal Flat Wall Mount for 42″- 75″ Screens
Product code:Designed for the installation of medium-sized screens. PWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB2 in conference rooms, waiting rooms or public areas.
SEND AN ENQUIRYDescription
- Robust design to ensure load capacity up to 80 kg
- Screen protection against falling
- Screen mounting screws included
- Simple and fast installation
- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
- Minimalist design and functionality
- Modern design
Additional information
Product Specifications
| Index: | PWB2 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 75″ |
| Maximum load: | 80 kg |
| Forward tilting: | -6,5° / +12° |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 800 mm D: 76 mm H: 500 mm (W: 31,50″ D: 2,99″ H: 19,69″) |
| Product weight: | 5,2 kg (11 lb) |
| Max. distance from mounting surface: | 76 mm (2,99″) |
| Min. distance from mounting surface: | 76 mm (2,99″) |
| Max. mounting pattern: | 740 mm x 460 mm |
| Min. mounting pattern: | 70 mm x 95 mm |
Logistics Data
| Index: | WUSC-PWB2c-B |
| EAN Code: | 5902841103672 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
