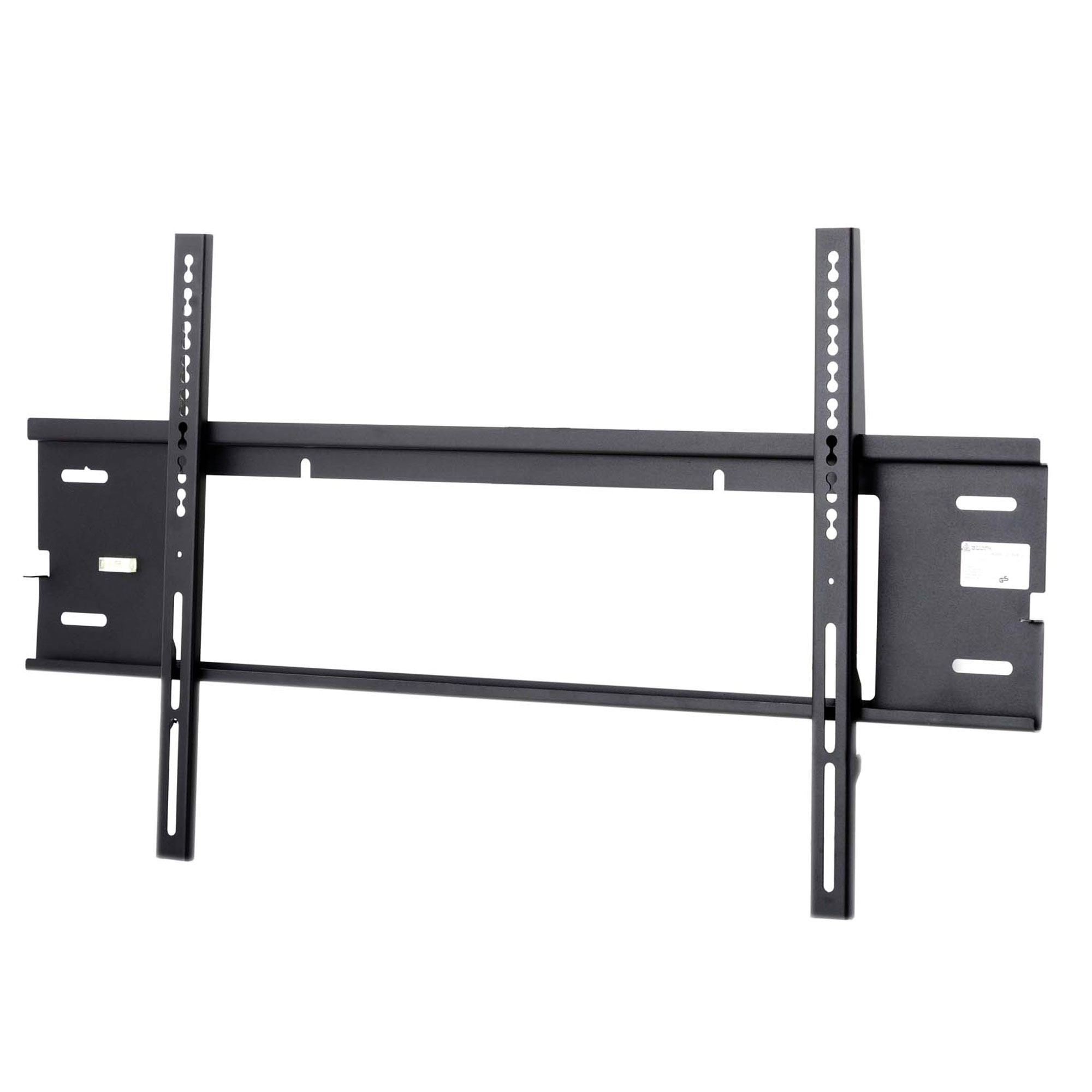

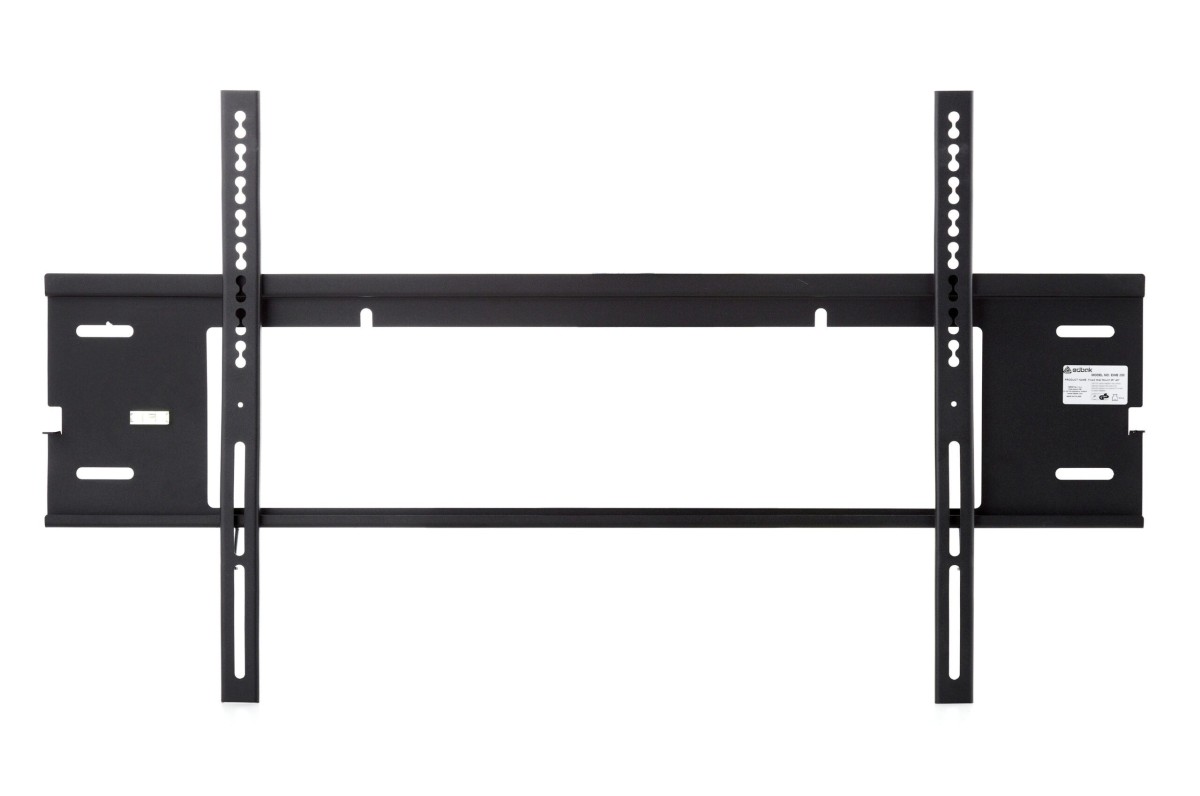

Edbak EWB200 Universal Flat Wall Mount for 40″-75” Screens
Product code:Designed for practical wall mounting of the screen. With its slim design, EWB200 ensures a very short distance between the screen and the wall, only 26 mm. The ease of mount installation and the built-in spirit level make it extremely simple to install the mount on various types of wall surfaces. With the protection against unauthorised screen removal, EWB200 can be used in public areas or waiting rooms. Robust finish, modern and functional design will meet demanding users’ expectations.
SEND AN ENQUIRYDescription
- Distance from the wall: 26 mm
- Simple and quick installation

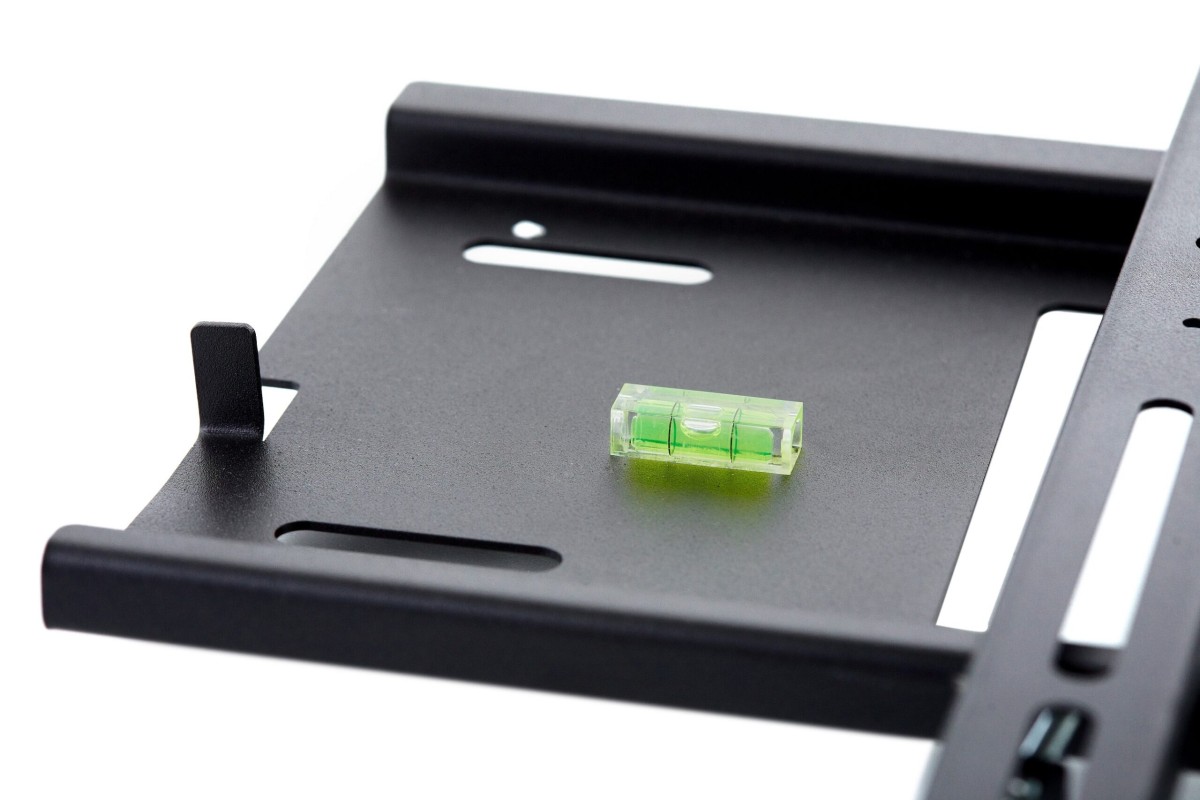

- Spirit level to facilitate installation
- Modern design

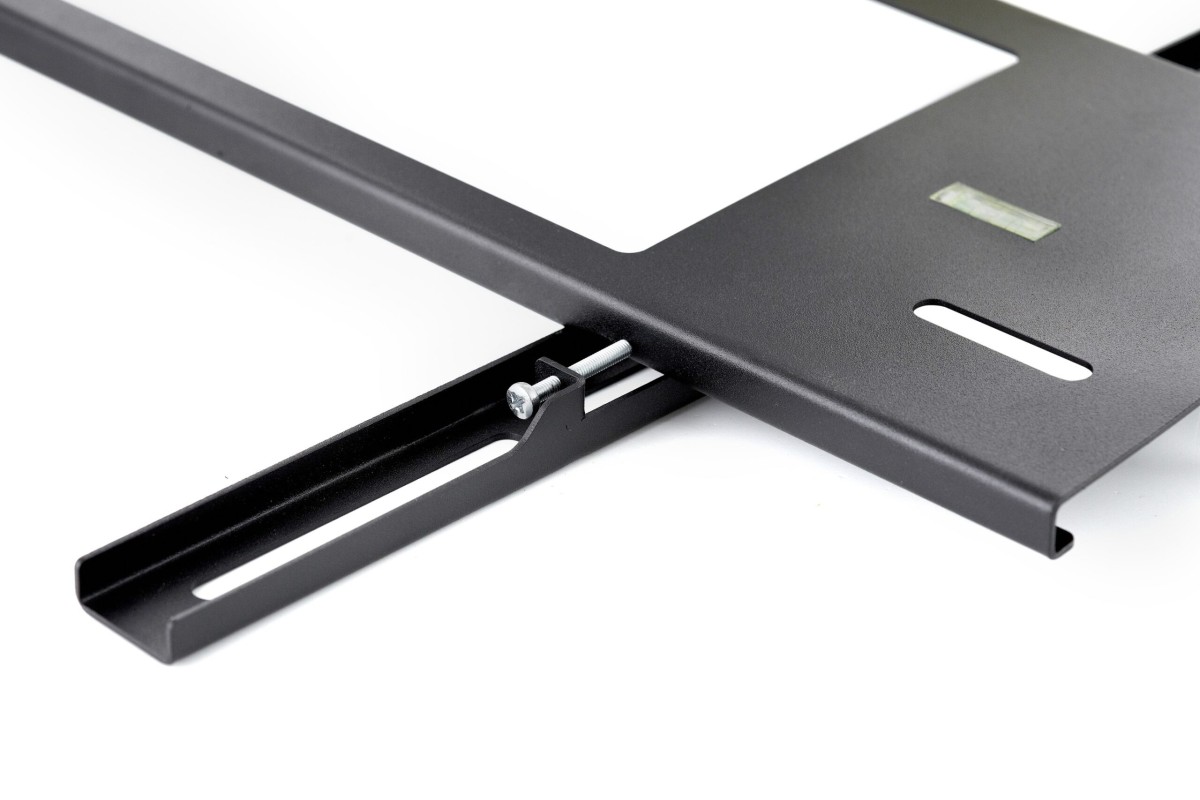

- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
Additional information
Product Specifications
| Index: | EWB200 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 40″ |
| Maximum screen size: | 75″ |
| Maximum load: | 40 kg |
| VESA Mounting Compatibility: | 100×100 up to 800×400 |
Technical Specifications
| Product dimensions: | W: 850 mm, D: 26 mm, H: 470 mm (W: 33,46″ x D: 1,02″ x H: 18,50″) |
| Product weight: | 1,7 kg (4 lb) |
| Max. distance from mounting surface: | 26 mm (1,02″) |
| Min. distance from mounting surface: | 26 mm (1,02″) |
| Max. mounting pattern: | 825 mm x 427 mm |
| Min. mounting pattern: | 60 mm x 65 mm |
Logistics Data
| Index: | WUSC-EWB200c-B |
| EAN Code: | 5908252963508 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
