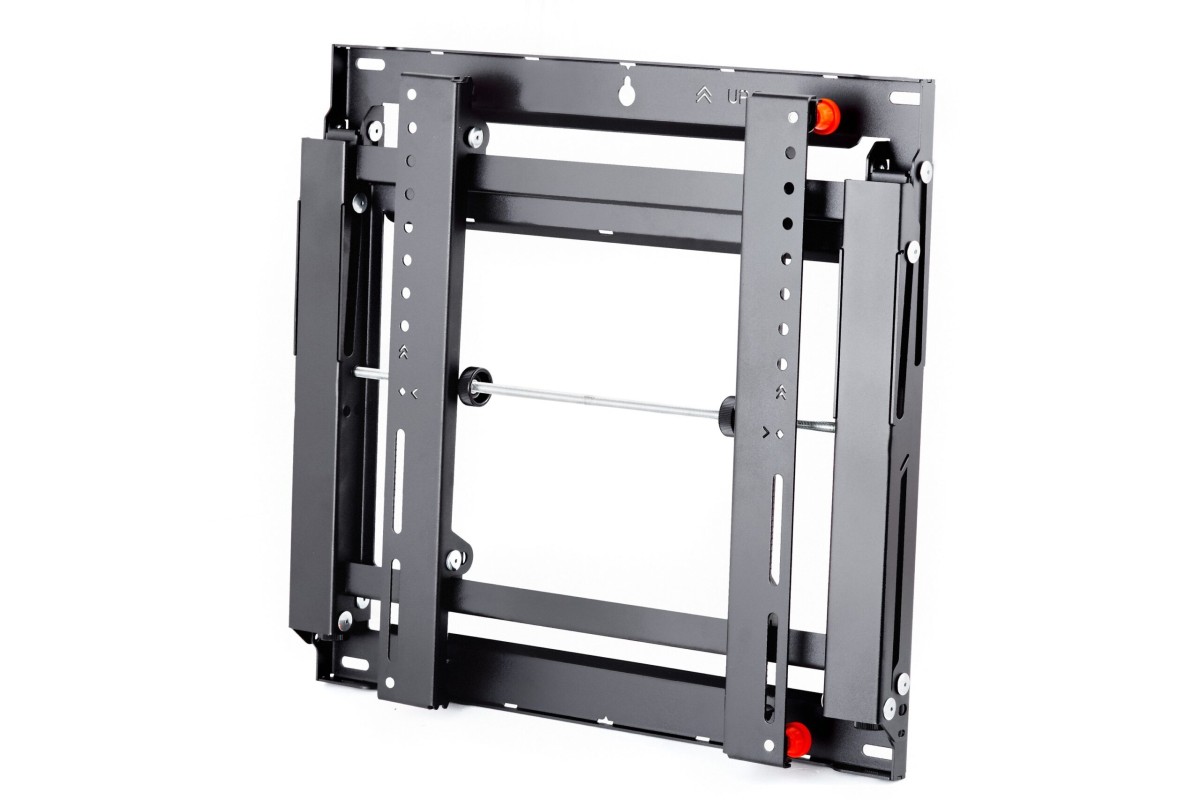

Edbak VWPOPT65-L Ultra Thin Video Wall Pop-Out Mount with Quick Release for 42″-65″ Screens
Product code:VWPOPT65-L allows easy and fast installation of video walls. Independent 8-point adjustment allows precise alignment of screens without the use of tools. Open design of VWPOPT65-L and a special retractable system for easy access for service purposes. The mount is equipped with a lock against uncontrolled structure opening, ensuring comfort of use and safety. VWPOPT65-L will meet the expectations of the most demanding customers. It will be perfect for an office, a shopping centre or car dealership.
SEND AN ENQUIRYDescription

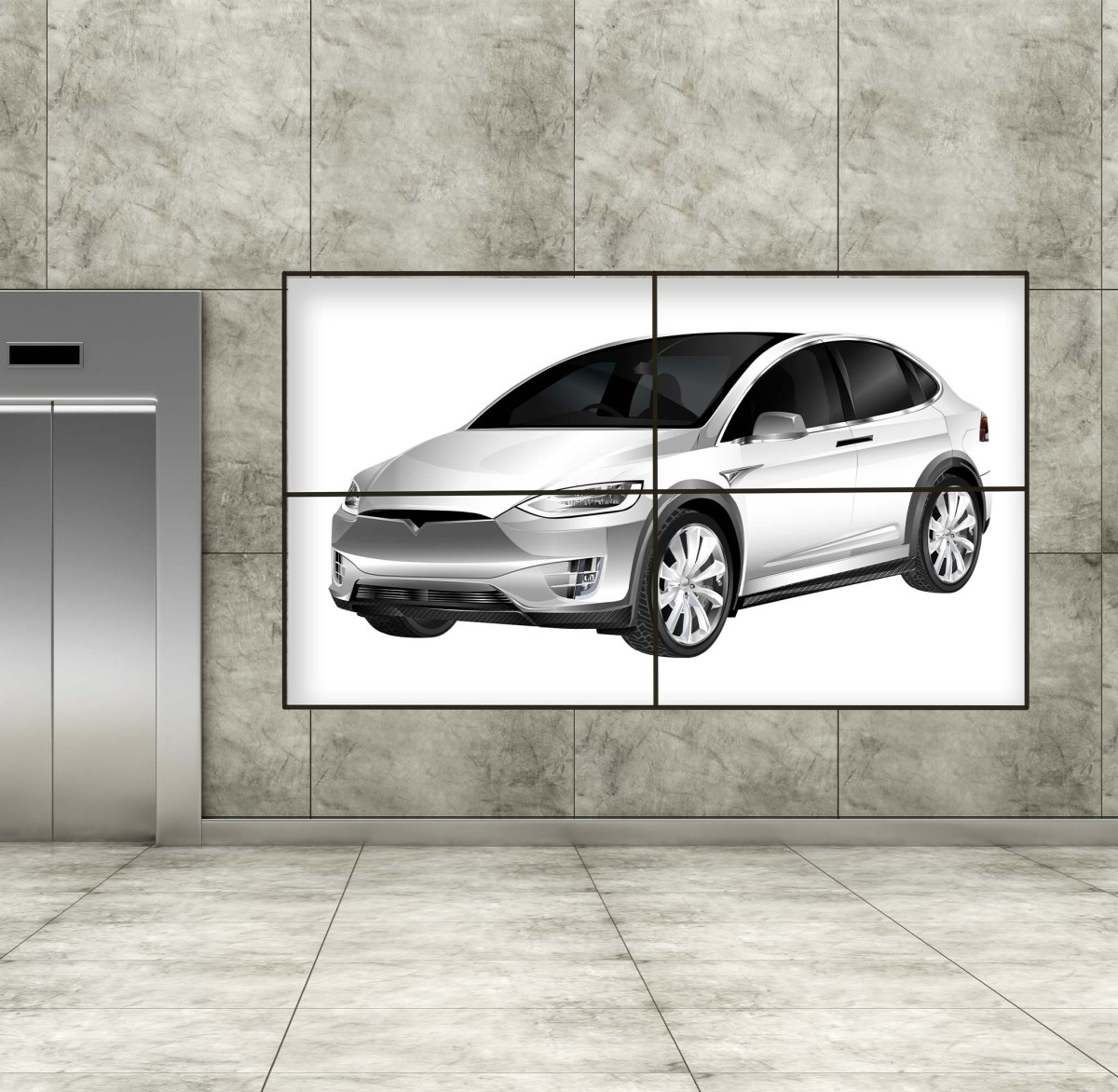

- Possible landscape or portrait setup
- The thickness of the mount is only 60 mm
- +/-7.5 mm micro-adjustment ensures smooth alignment of screens

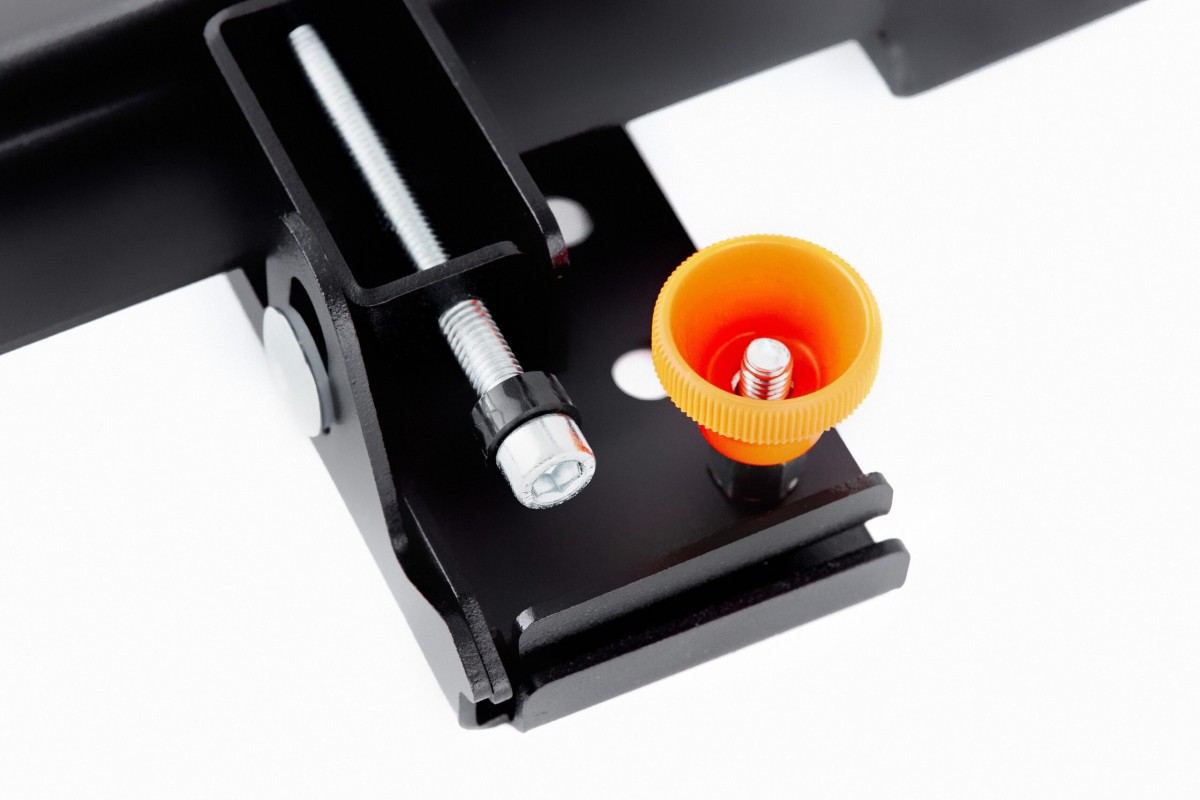

- Levelling screws allow adjustment of screen height

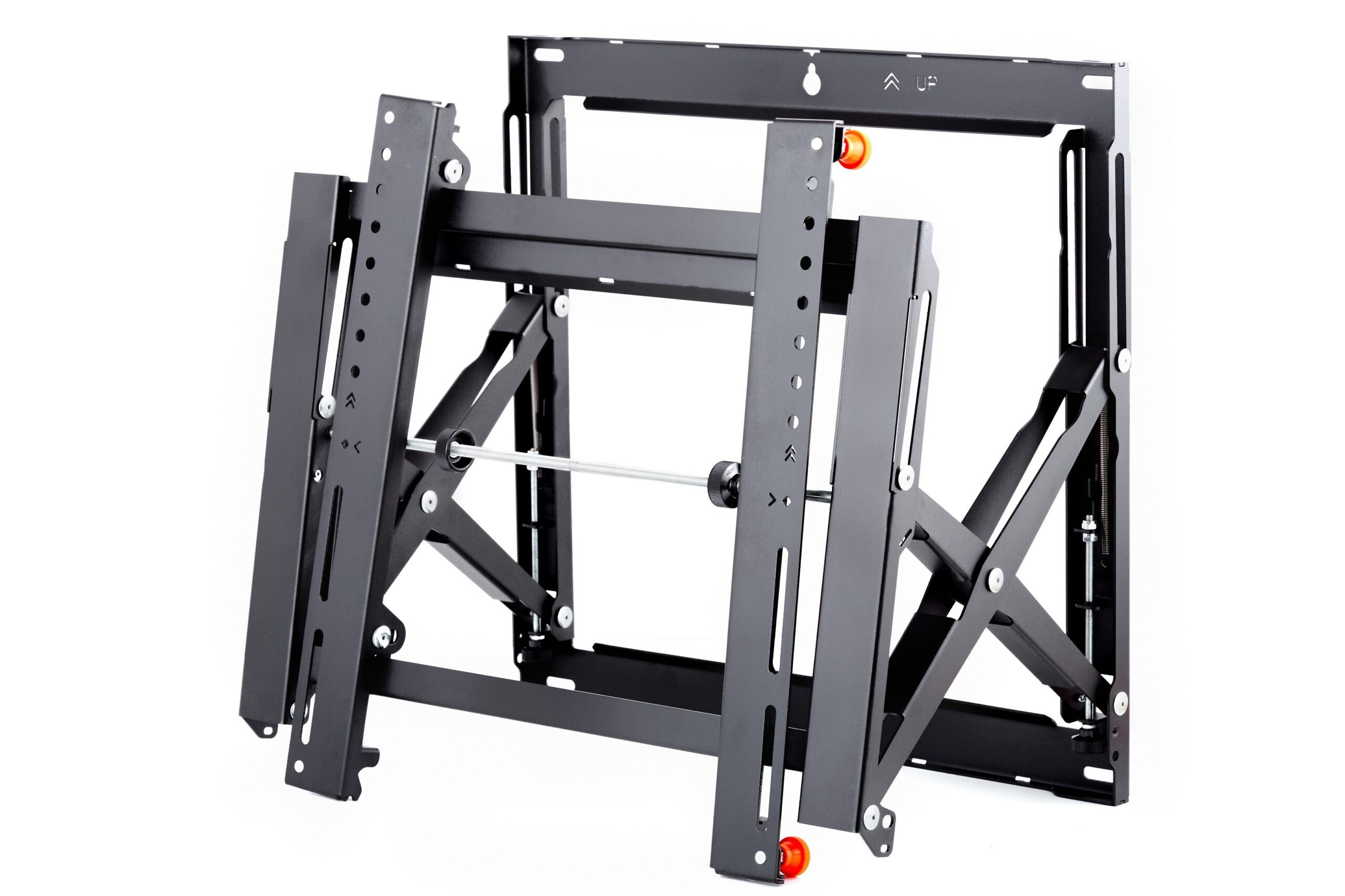

- Pop-out system for quick and easy access for installation and servicing purposes
- 10° tilt of the screen with the mount open increases access to the back of the screen from the bottom
- Integrated locking mechanism prevents the screen from being slid out accidentally
- Padlock protection against uncontrolled opening
Additional information
Product Specifications
| Index: | VWPOPT65-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Minimum screen size: | 42″ |
| Maximum screen size: | 65″ |
| Maximum load: | 42 kg |
| Forward tilting: | +10° |
| VESA Mounting Compatibility: | 100×100 to 400×400 |
Technical Specifications
| Product dimensions: | W: 553mm D: 60 H: 500 mm
(W: 21,77″ D: 2,36″ H: 19,69″) |
| Product weight: | 8 kg (18 lb) |
| Max. distance from mounting surface: | 325 mm (12,80″) |
| Min. distance from mounting surface: | 60 mm (2,36″) |
| Max. mounting pattern: | 430 mm x 405 mm |
| Min. mounting pattern: | 90 mm x 83 mm |
Logistics Data
| SAP Index: | WUSC-VWPOPT65-L |
| EAN Code: | 5902841134690 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
