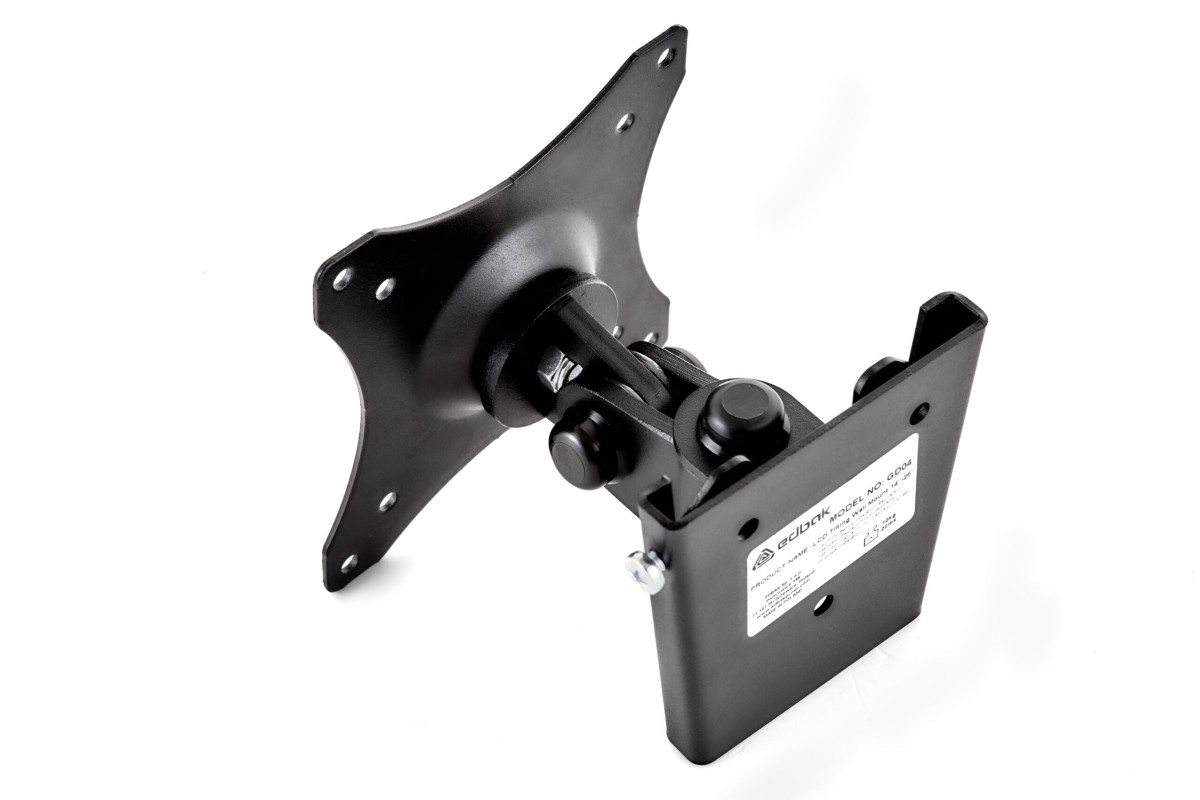

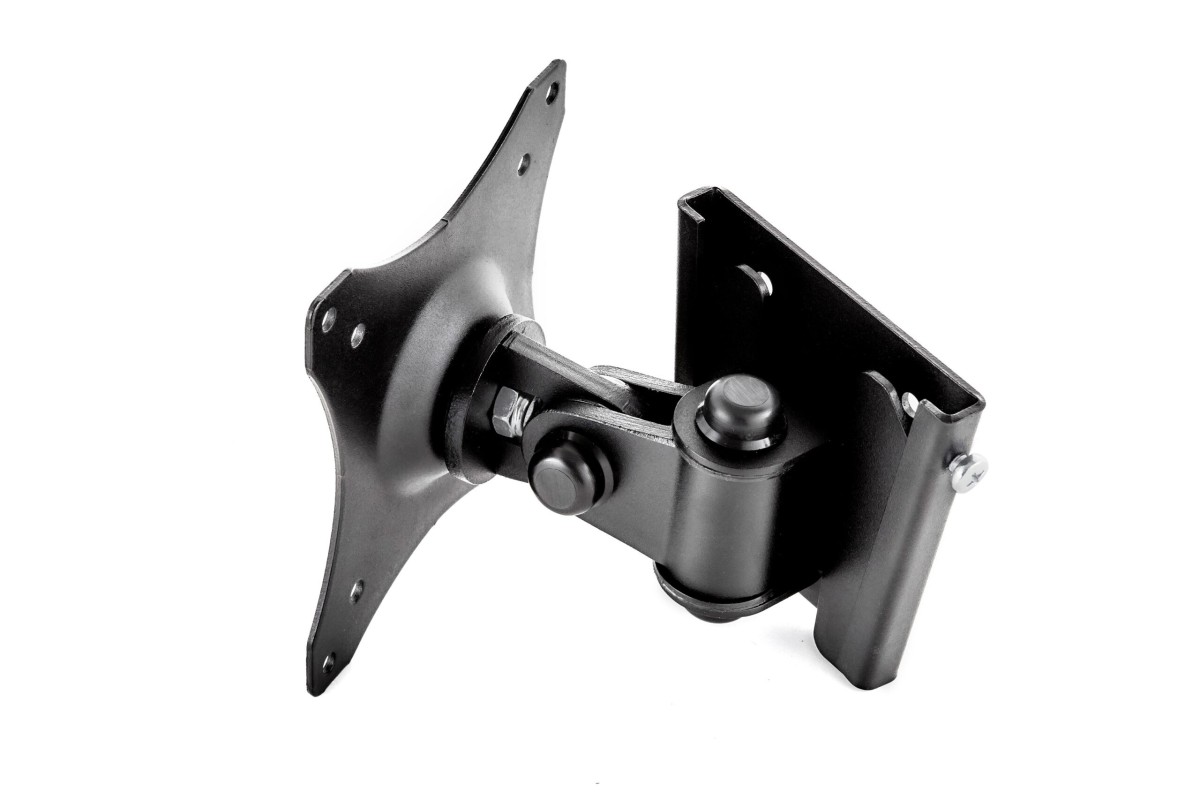

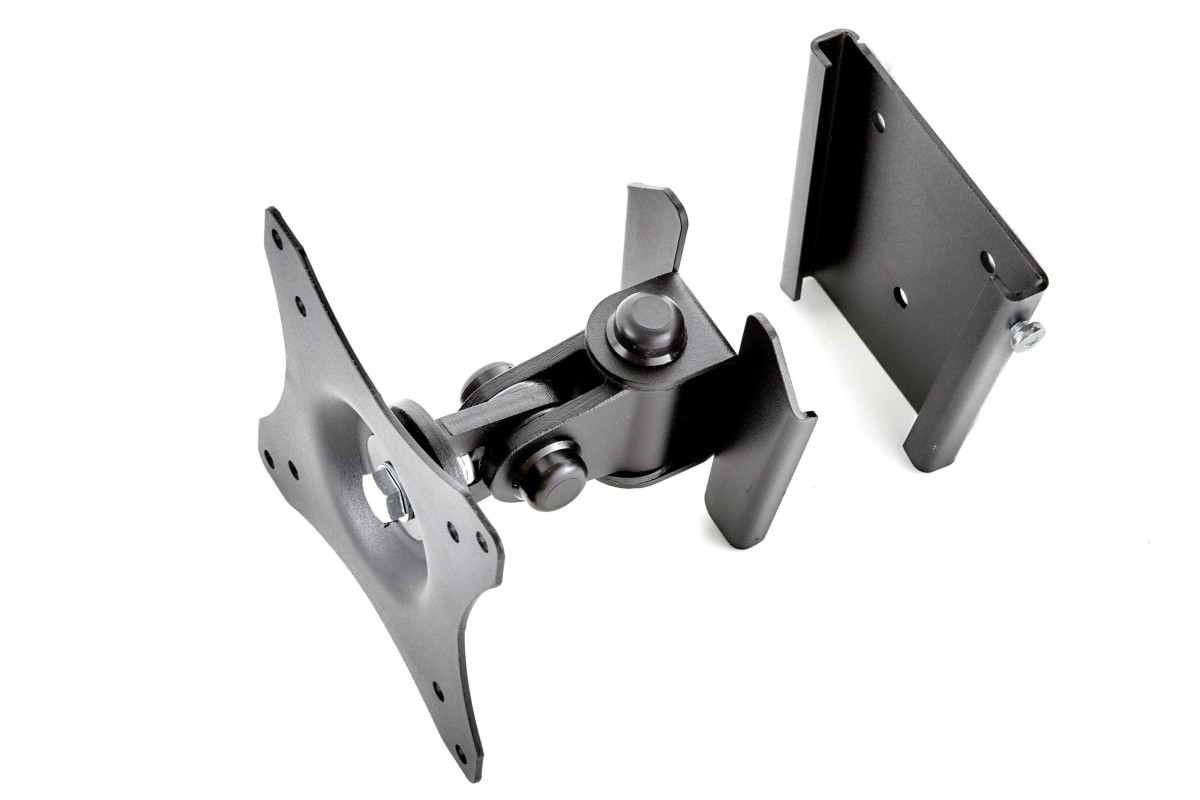

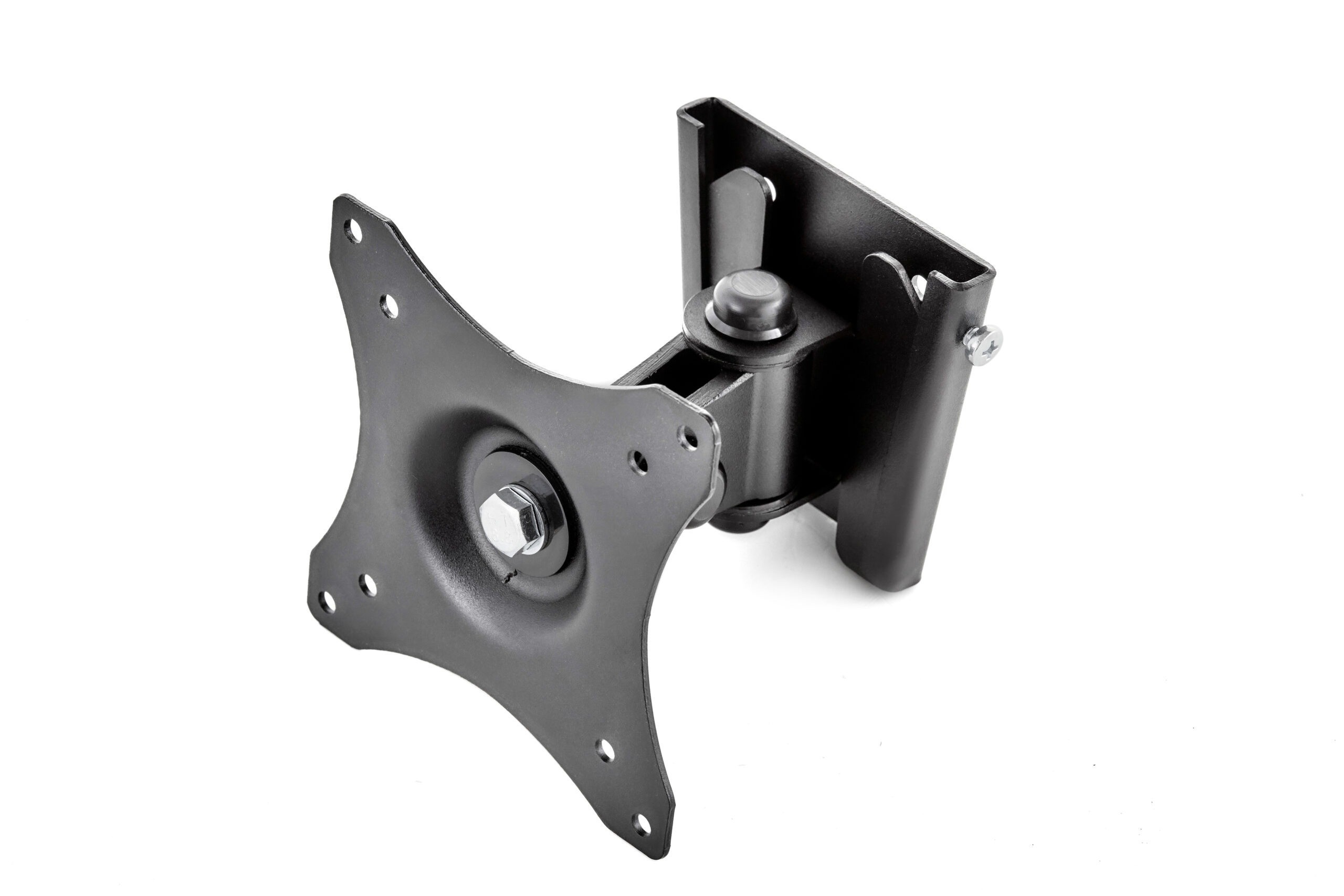

Edbak GD04 Tilt Wall Mount for 10″-29″ Screens
Product code:Designed for the most challenging spaces. With its flexible positioning adjustment, it is perfect for wall corners. Adjustment of the arm on the head allows lateral and tilt adjustment as well as precise positioning of the screen to ensure proper and a wide angle of view. 360° rotation on the head allows the screen to be oriented vertically or horizontally. . Slim design makes GD04 aesthetic and discreet, while protecting the screen against unauthorised removal to ensure safe use.
SEND AN ENQUIRYDescription
- Vertical and horizontal adjustment of screen
- 360° vertical-horizontal screen rotation
- 65°/65° right-left screen rotation
- Lock screw to prevent unauthorised screen removal
- Quick and simple installation of the product by one person
Additional information
Product Specifications
| Index: | GD04 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Maximum load: | 10 kg |
| Forward tilting: | +75° |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 115 mm D: 107 mm H: 115 mm (W: 4,53″ x D: 4,21″ H: 4,53″) |
| Product weight: | 0,7 kg (2 lb) |
| Max. distance from mounting surface: | 107 mm (4,21″) |
| Min. distance from mounting surface: | 107 mm (4,21″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| Index: | WUSC-GD04c-B |
| EAN Code: | 5902841103481 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
