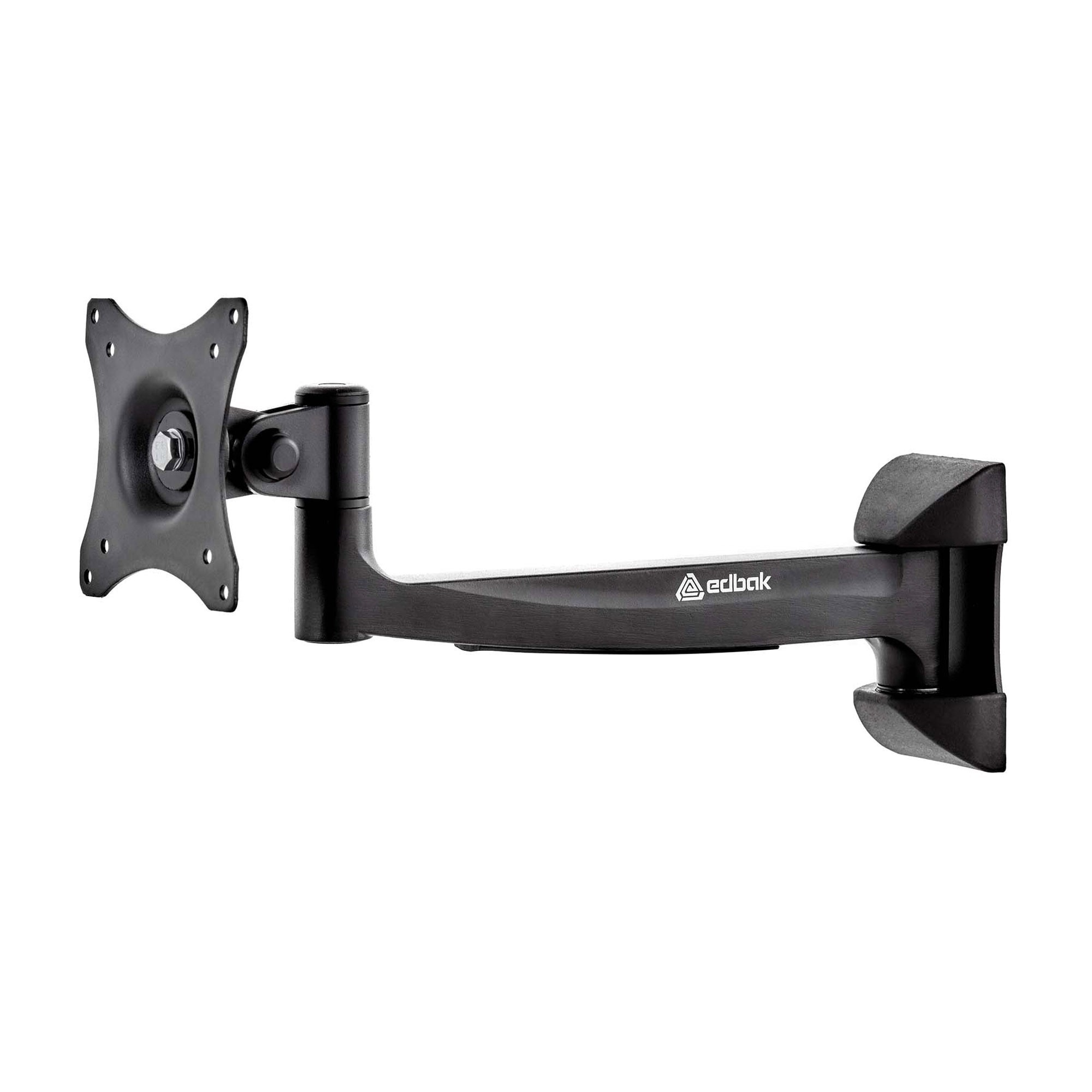

Edbak GDV101 Swing Arm Wall Mount for 10″-29″ Screens
Product code:Universal GDV101 wall mount is dedicated to small screens ranging from 10″ to 29″. Its simple design makes it quick and easy to install on walls of various structures. The possibility of adjusting the arm in the range of 180 degrees allows precise positioning of the display, which provides a wide viewing angle. The possibility of tilting the screen by -90°/+45° allows any adjustment of screen position and improves the comfort of use. The GDV101 design, suitable for frequent changes in the position of the display, works perfectly in wall corners.
SEND AN ENQUIRYDescription
- Modern design and high-end aesthetics
- Option of screen tilting by -90° to +45°
- 360° vertical-horizontal screen rotation
- 90°/90° right-left screen rotation
- VESA universal standard

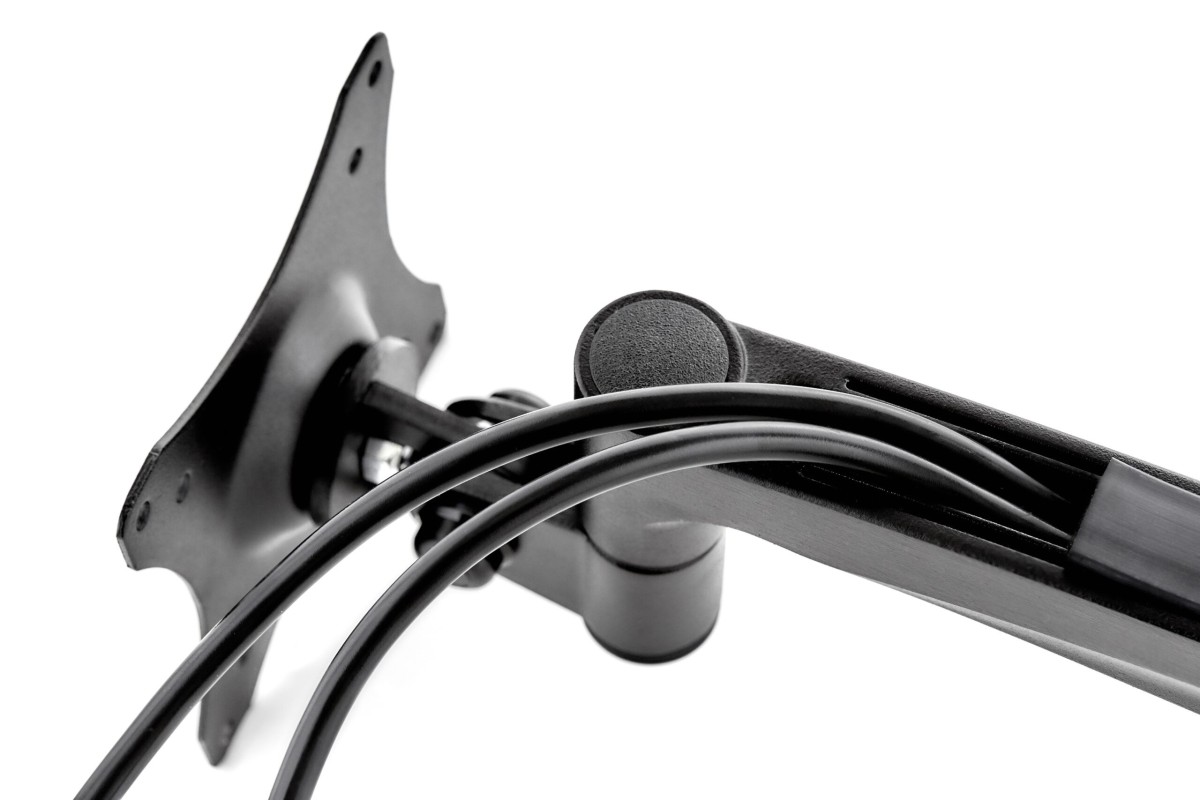

- Integrated cable management system
Additional information
Product Specifications
| Index: | GDV101 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Tilt: | -90° /+45° |
| Arm rotation: | 360° |
| Left-right rotation: | 90/90° |
| Maximum load: | 12 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 115 mm D: 373mm H: 201 mm
(W: 4,53″ D: 14,69″ H: 7,91″) |
| Product weight: | 2,6 kg (6 lb) |
| Max. distance from mounting surface: | 373 mm (14,69″) |
| Min. distance from mounting surface: | 95 mm (3,74″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUSC-GDV101 |
| EAN Code: | 5902841133242 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
Product Card
