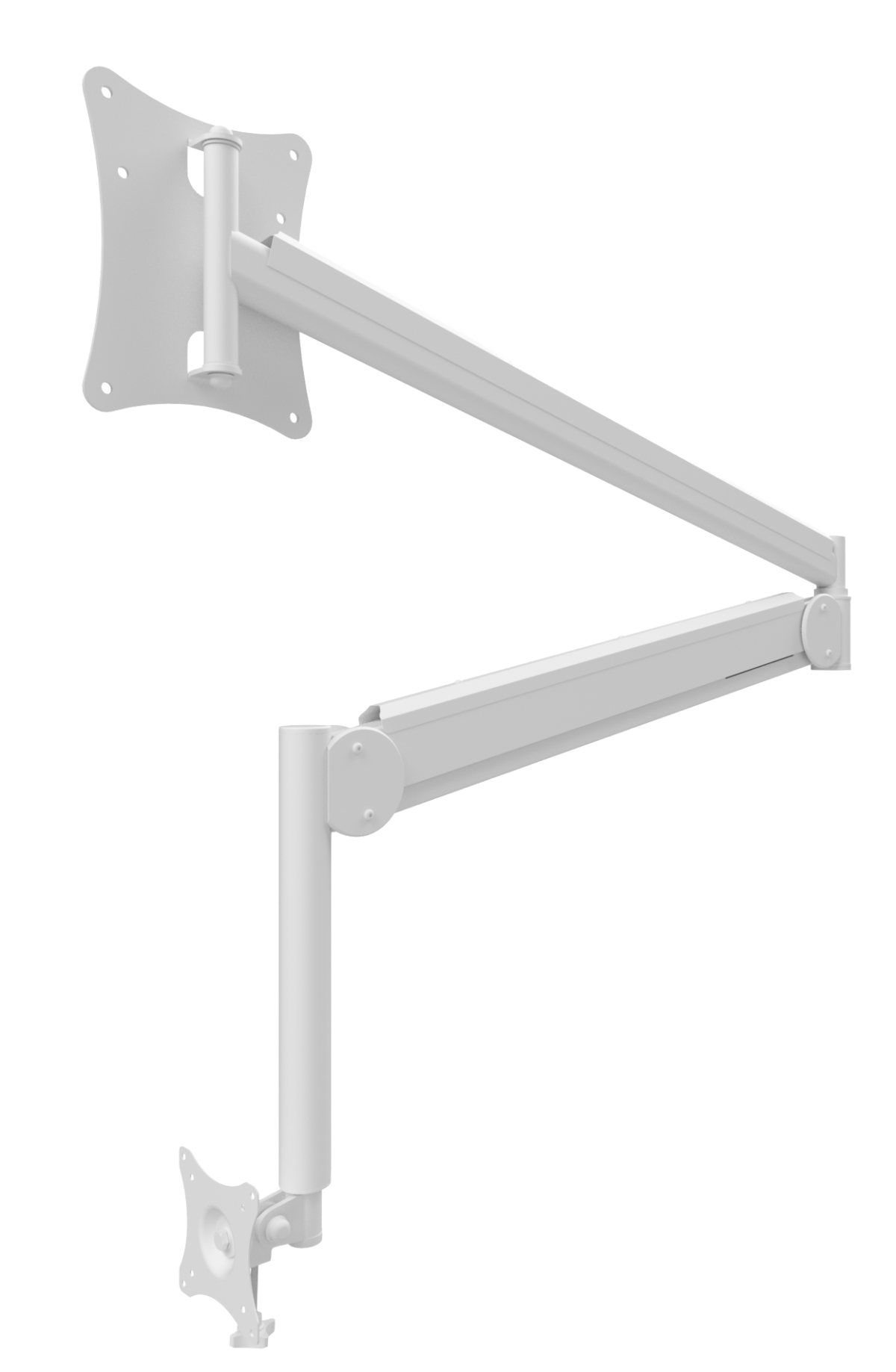

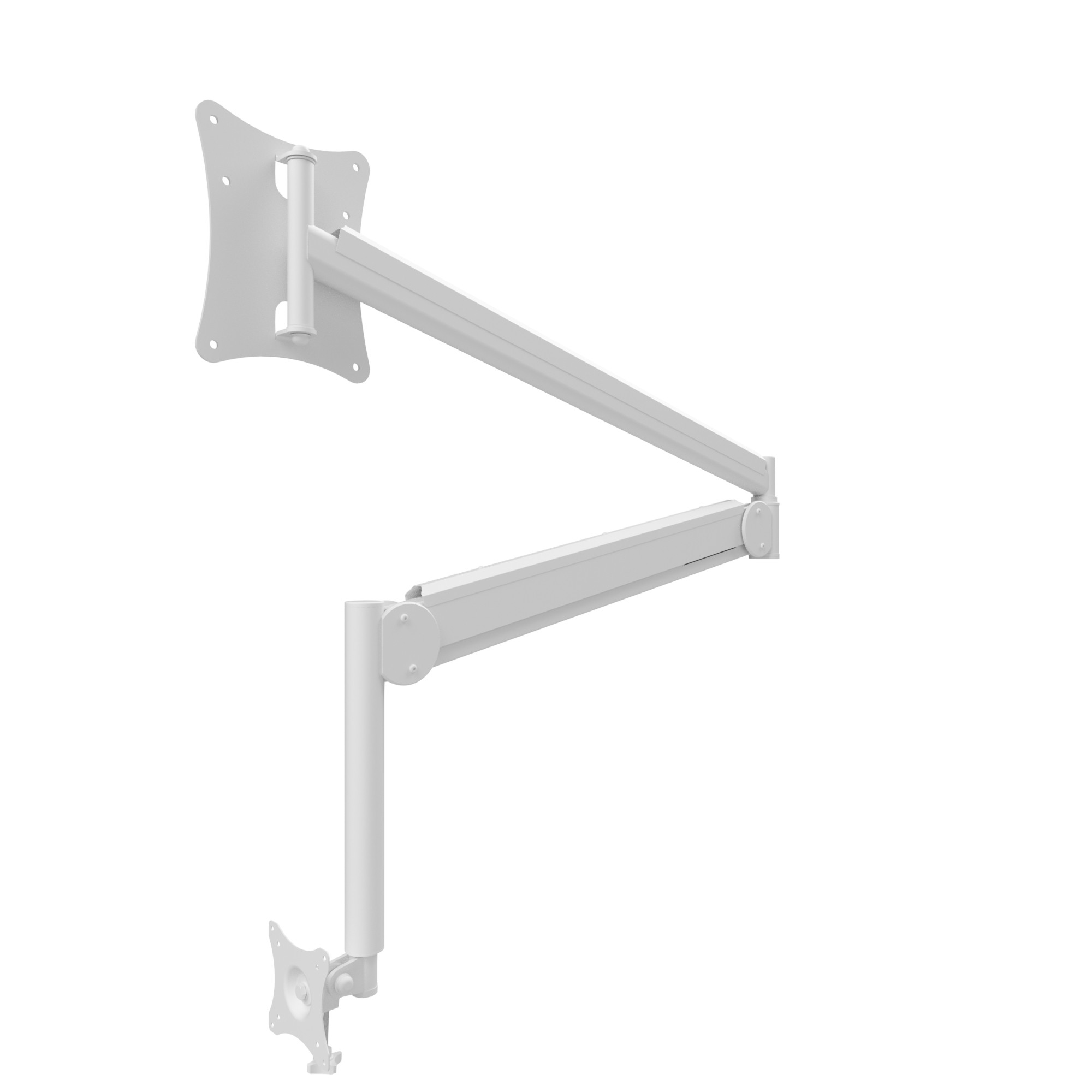

Edbak MSA02 Wall swivel arm for 10″-29″ screens
Product code:MSA02 is a high-end ceiling mount with gas spring and cable organization system designed for medical applications.
It was designed for monitors with screen diagonal from 10 to 29 inches.
The mount is adjustable in all planes, so you can choose the right viewing angle for your screen.
Description
- Works with monitors with screen diagonal from 10″ to 29″
- Fully adjustable
- Maximum VESA spacing – 100 x 100 mm
- Lifting capacity up to 10 kg
Additional information
| Index | MSA02 |
| Category | Swing Arms Wall Mounts |
| Product group | Display Mounts |
| Color | White |
| Warranty | Limited 5-years |
| Number of screens | 1 |
| Minimum screen size | 10″ |
| Maximum screen size | 29″ |
| Forward tilting | -22,5° |
| Forward tilting | +22,5° |
| Arm rotation | 90° |
| Left-right rotation | 360° |
| Maximum load | 10 kg |
| VESA Mounting Compatibility | 75×75 up to 100×100 |
| Product dimensions | W: 976 mm D: 104 mm H: 930 mm |
| Product weight | 10.5 kg (2 3.14 lb) |
| Max. distance from mounting surface | 1610 mm(63.38″) |
| Min. distance from mounting surface | 104 mm(4.09″) |
| Max.mounting pattern | 100 mm x 100 mm(3.93 x 3.93″) |
| Min. mounting pattern | 75 mm x 75 mm(2.95 x 2.95″) |
