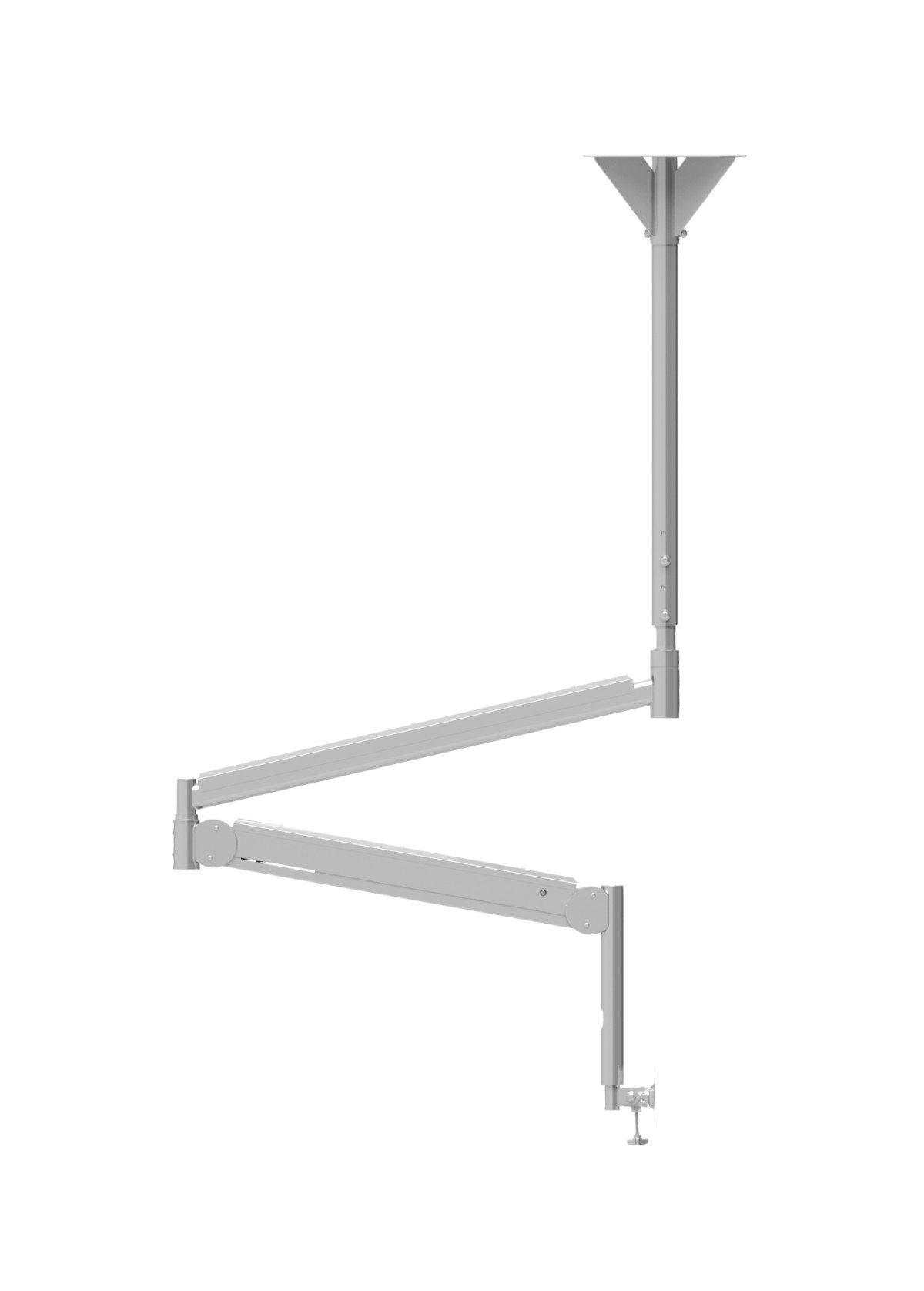

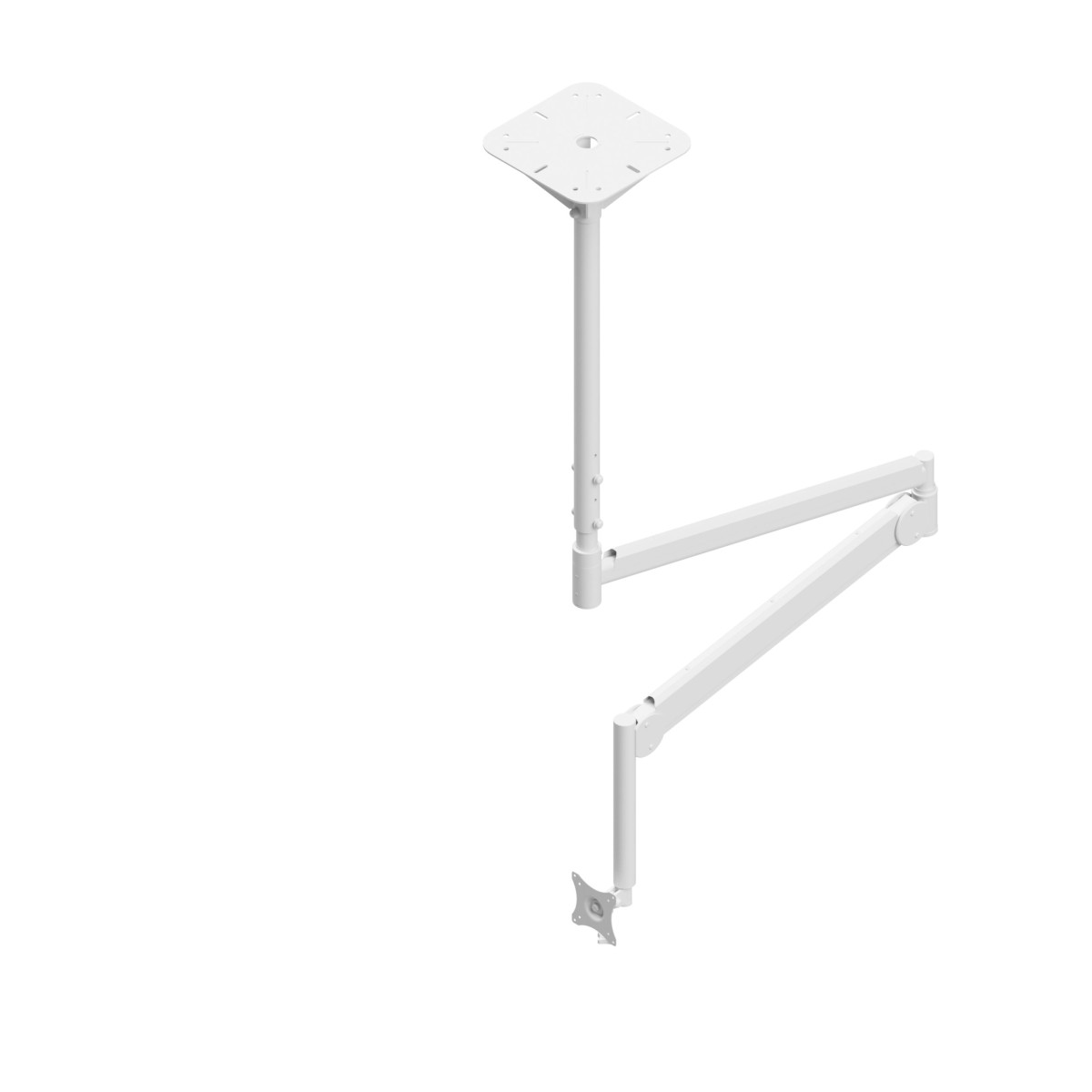

Edbak MSA01 Ceiling swivel arm for 10″-29″ screens
Product code:MSA01 is a high-quality ceiling mount with spring. The mount is equipped with VESA standard mounting holes (75 x 75, 100 x
100 mm). Its sturdy design allows it to safely mount screens weighing up to 10 kg. A great advantage of the MSA01 mount is the ability to adjust the mounted monitor to the direction and height of the user’s eyes. Easy adaptation of the screen to the user is ensured by adjustment of rotation (360°), tilt (22.5°/-22.5°) and distance of the monitor from the wall
and ceiling. The cable management system is yet another advantage.
Description
- Works with monitors with screen diagonal from 10″ to 29″
- Fully adjustable
- Maximum VESA spacing – 100 x 100 mm
- Lifting capacity up to 10 kg
Additional information
| Index | MSA01 |
| Category | Swing Arms Wall Mounts |
| Product group | Display Mounts |
| Color | Black |
| Warranty | Limited 5-years |
| Number of screens | 1 |
| Minimum screen size | 10″ |
| Maximum screen size | 29″ |
| Forward tilting | -22,5° |
| Forward tilting | +22,5° |
| Arm rotation | 90° |
| Left-right rotation | 360° |
| Maximum load | 10 kg |
| VESA Mounting Compatibility | 75×75 up to 100×100 |
| Product dimensions | W: 1744 mm D: 300 mm H: 1820 mm |
| Product weight | 18 kg (3 9.68 lb) |
| Max. distance from mounting surface | 2545 mm (100.19″) |
| Min. distance from mounting surface | 1593 mm (62.71″) |
| Max.mounting pattern | 100 mm x 100 mm (3.93 x 3.93″) |
| Min. mounting pattern | 75 mm x 75 mm (2.95 x 2.95″) |
