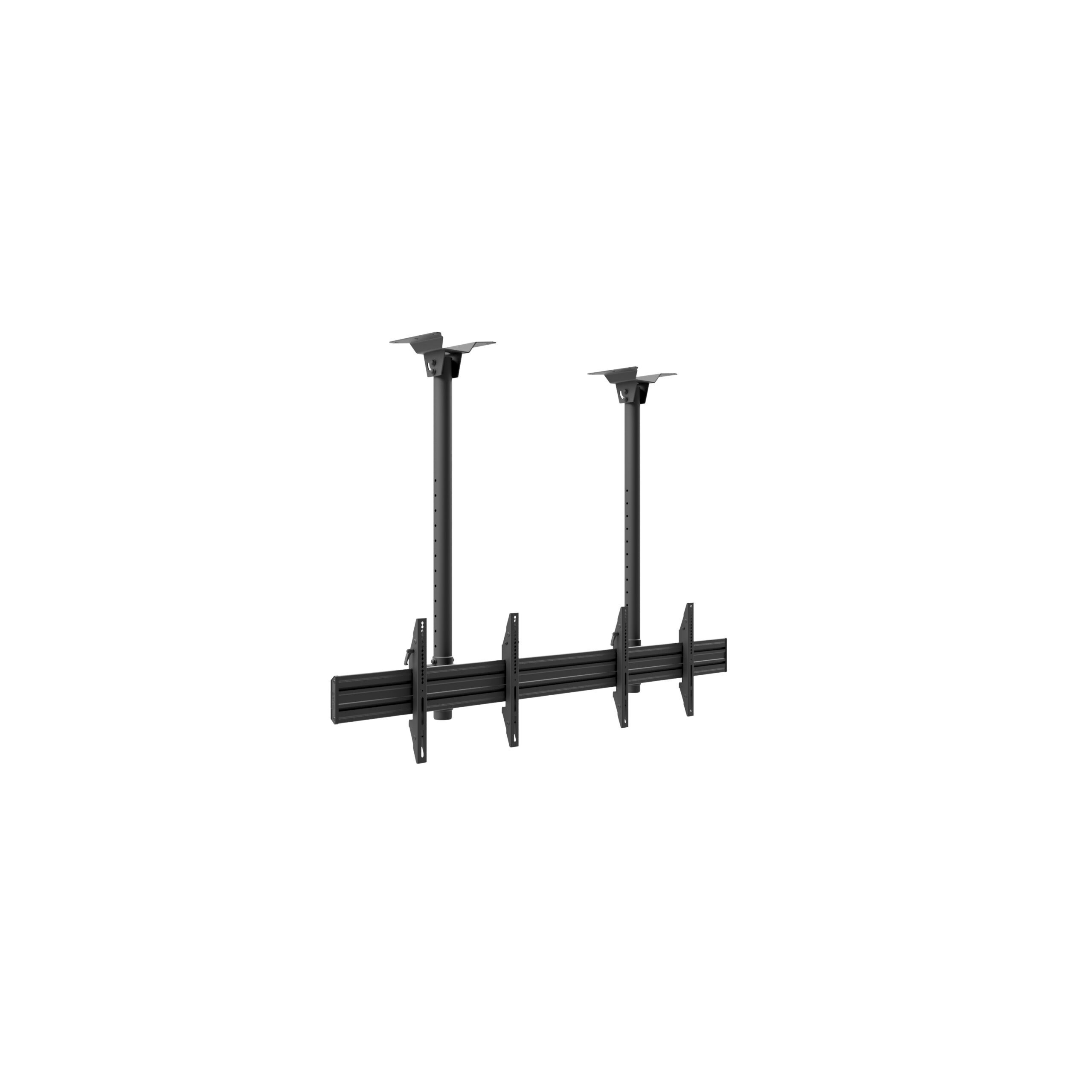

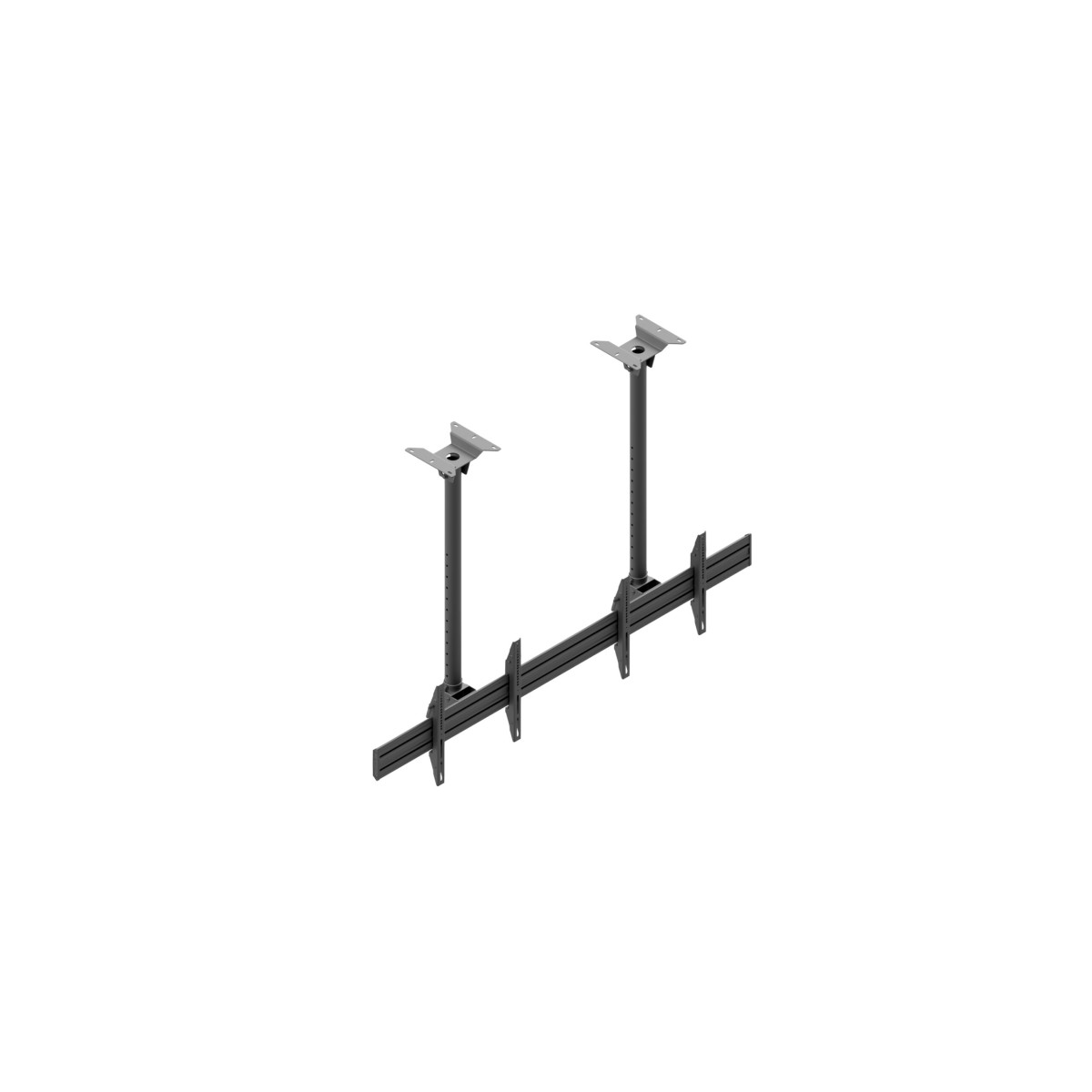

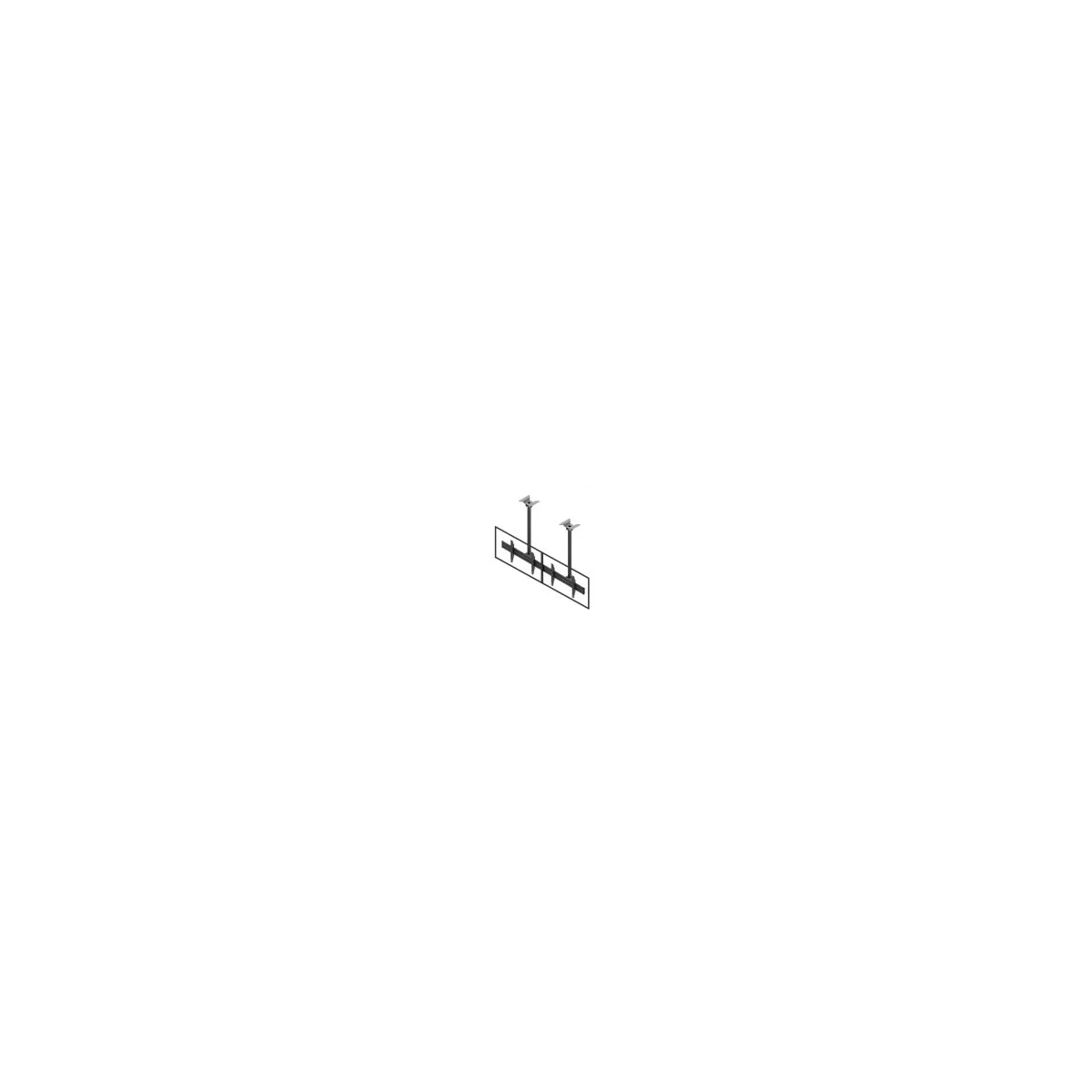

Edbak MBV2147-L Menu Board Ceiling Mount for Two 42″-47″ Screens, landscape
Product code:MBV2147-L is a robust and accurately manufactured ceiling mount for two screens. It features a slim structure and simple design. Stepwise height adjustment ensures accurate fastening, and the integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. Equipped with safety devices that protect the screen against falling, it is perfect for hotels, restaurants and public buildings. The MBV2147-L mount is a perfect solution for those who value aesthetics and comfort during use.
SEND AN ENQUIRYDescription
- Telescopic mount
- Stepwise height adjustment
- Screen load-carrying plate made of aluminum
- Quick and simple installation
- Integrated cable routing system
- Universal VESA-compliant mounting range
Additional information
Product Specifications
| Index: | MBV2147-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 2 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 47″ |
| Maximum load: | 140 kg |
| Forward tilting: | +18° |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 250 mm D: 1960 mm H: 1363 mm
(W: 9,84″ D: 77,17″ H: 53,66″) |
| Product weight: | 29,7 kg (65 lb) |
| Max. distance from mounting surface: | 1135 mm (44,68″) |
| Min. distance from mounting surface: | 535 mm (21,06″) |
| Max. mounting pattern: | 658 mm x 417,5 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WUSU-MBV2147-L |
| EAN Code: | 5902841135260 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
