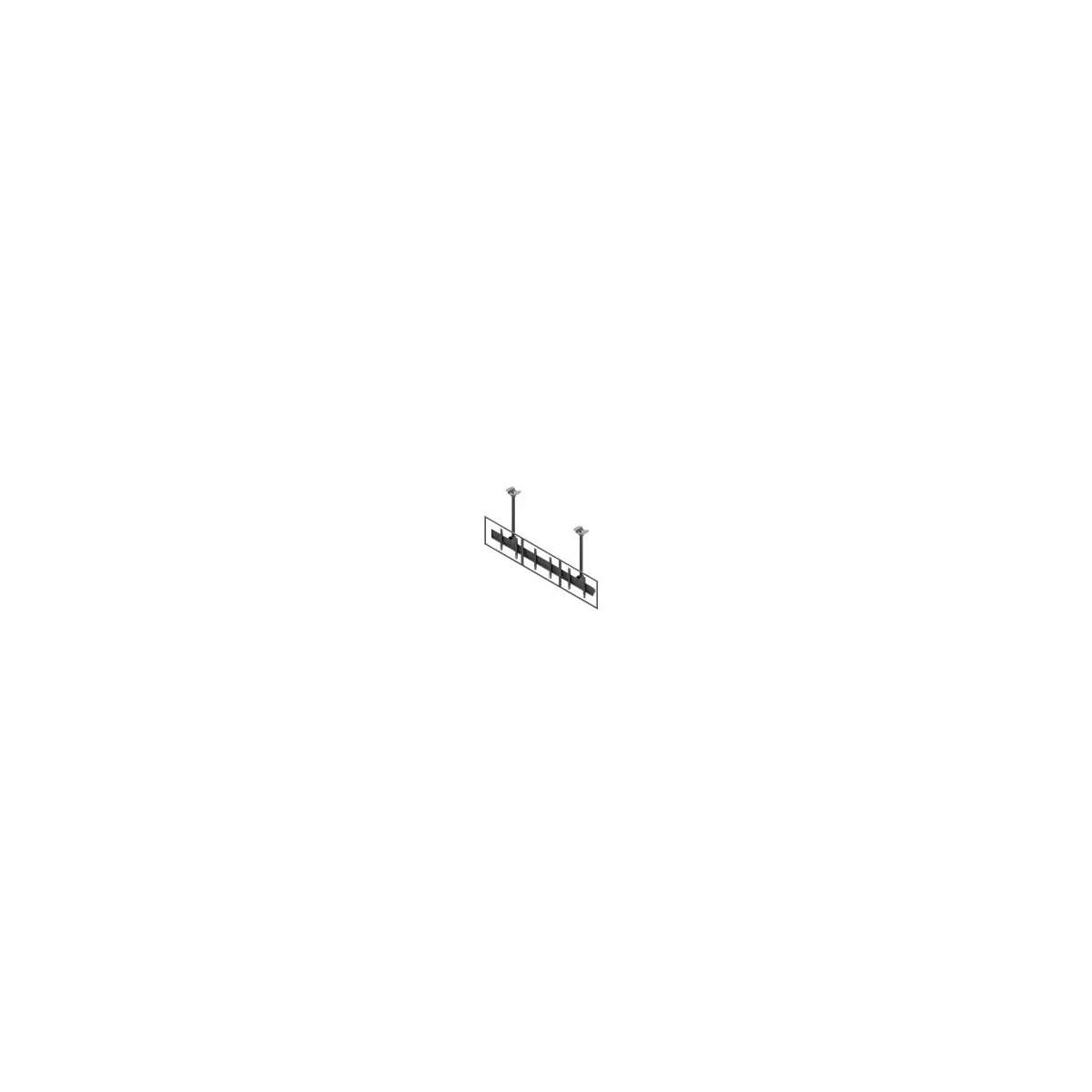

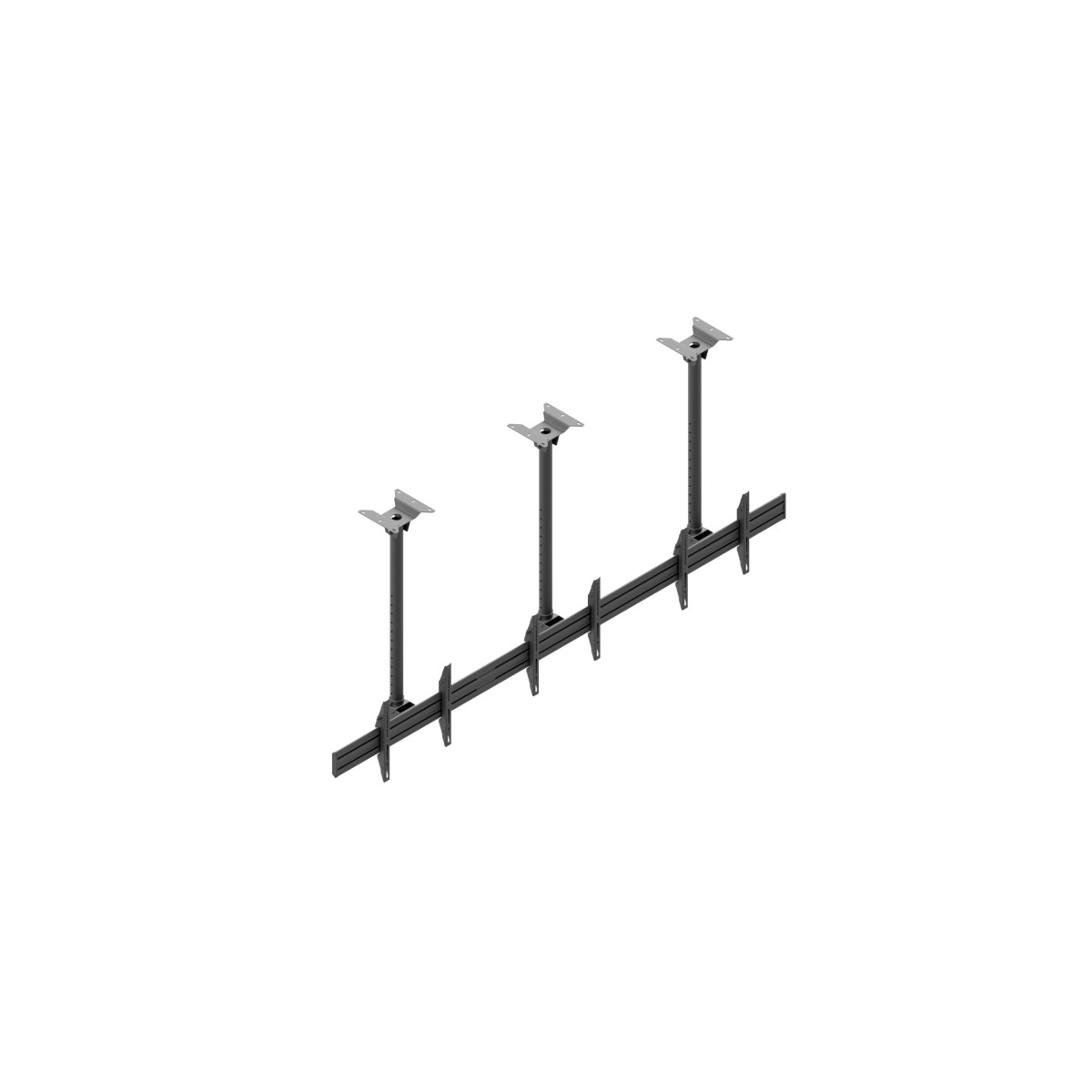

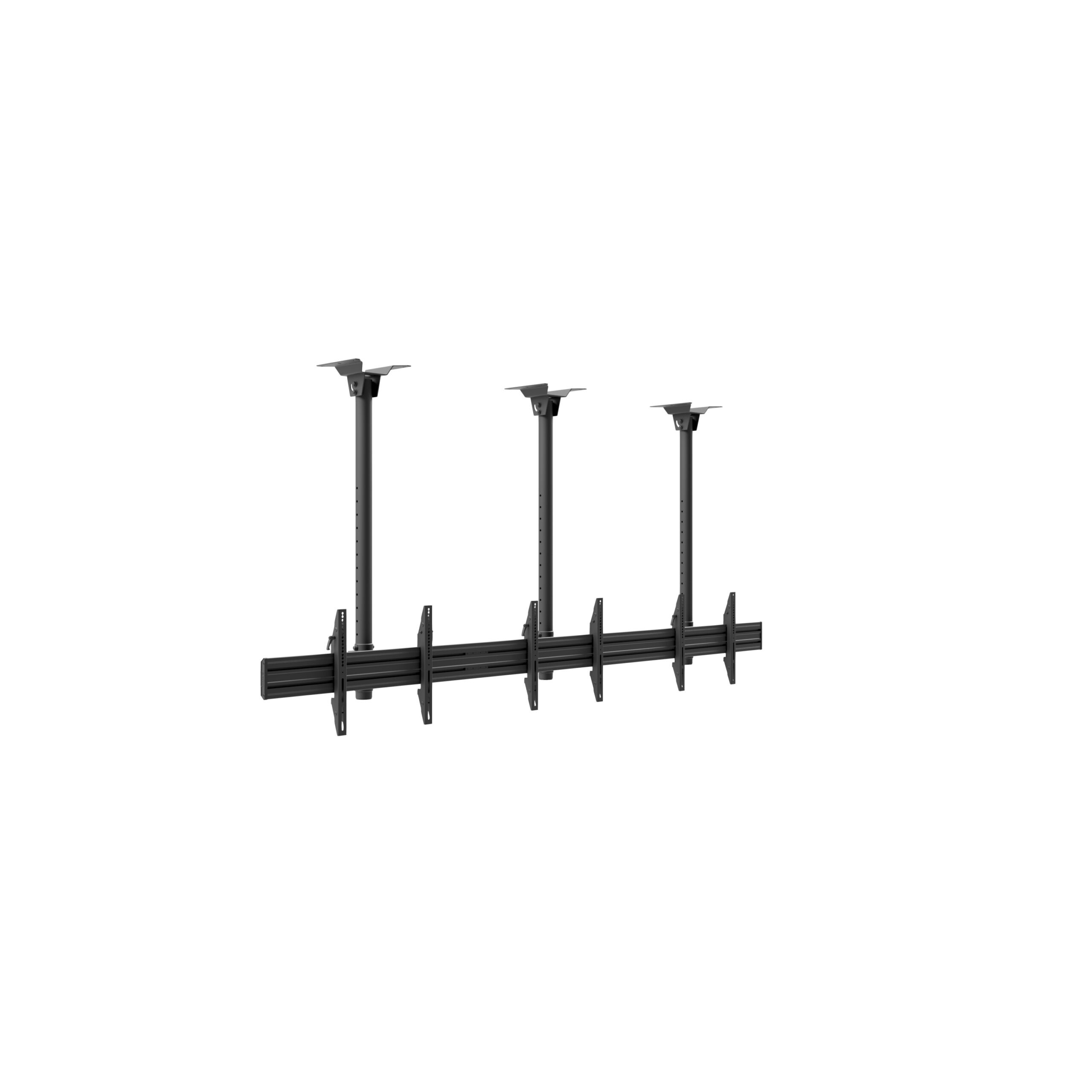

Edbak MBV3155-L Menu Board Ceiling Mount for Three 50″-57″ Screens, landscape
Product code:MBV3155-L is a robust and accurately manufactured ceiling mount for three screens. It features a slim structure and simple design. Stepwise height adjustment ensures accurate fastening, and the integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. Equipped with safety devices that protect the screen against falling, it is perfect for hotels, restaurants and public buildings. The MBV3155-L mount is a perfect solution for those who value aesthetics and comfort during use.
SEND AN ENQUIRYDescription
- Telescopic mount
- Stepwise height adjustment
- Screen load-carrying plate made of aluminum
- Quick and simple installation
- Integrated cable routing system
- Universal VESA-compliant mounting range
Additional information
Product Specifications
| Index: | MBV3155-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 3 |
| Minimum screen size: | 50″ |
| Maximum screen size: | 57″ |
| Maximum load: | 210 kg |
| Forward tilting: | +18° |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 250 mm D: 3320 mm H: 1363 mm
(W: 9,84″ D: 130,71″ H: 53,66″) |
| Product weight: | 46 kg (101 lb) |
| Max. distance from mounting surface: | 1135 mm (44,68″) |
| Min. distance from mounting surface: | 535 mm (21,06″) |
| Max. mounting pattern: | 658 mm x 417,5 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WUSU-MBV3155-L |
| EAN Code: | 5902841112193 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
Product Card
