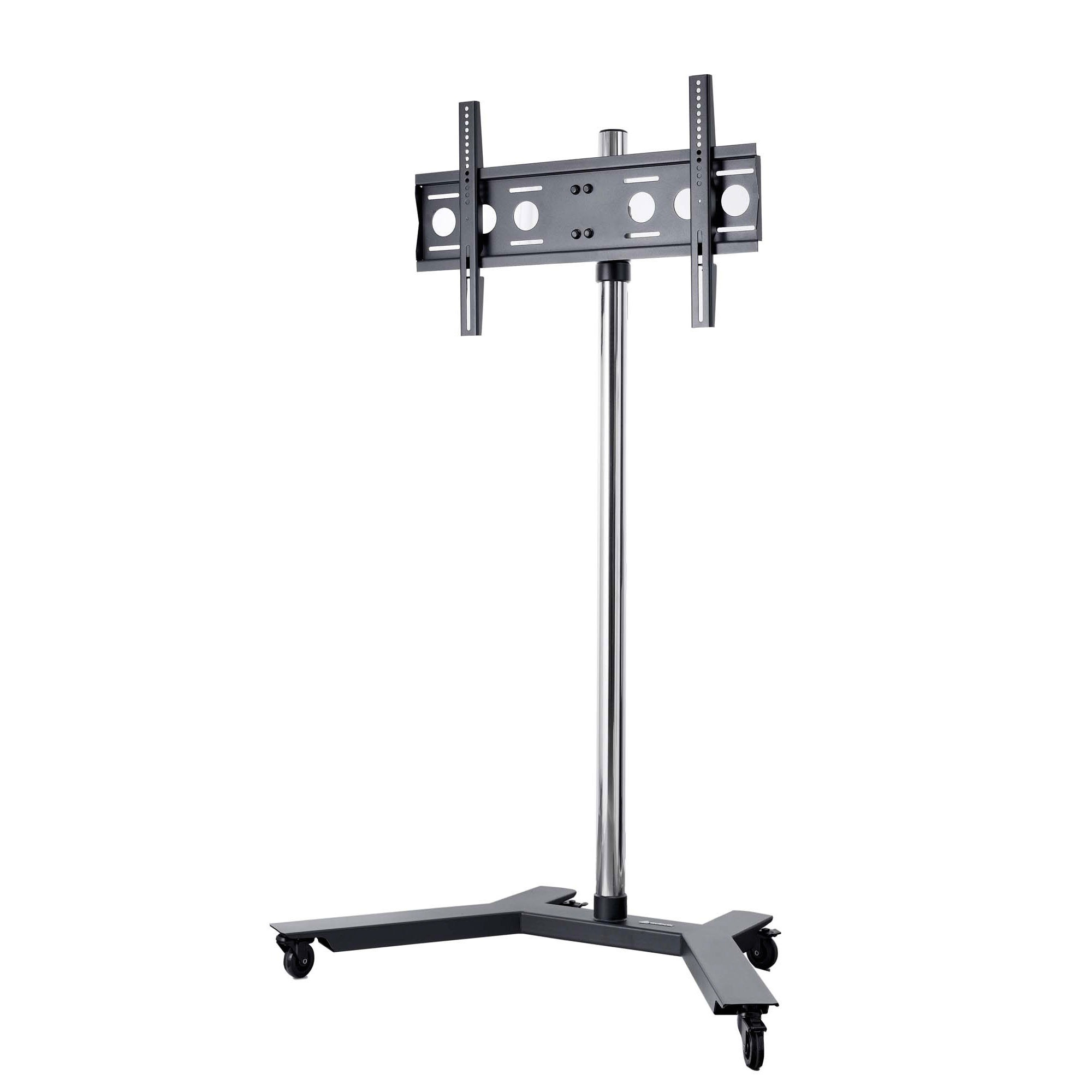

Edbak TR5 Flat Screen Trolley for One 42″-65” Screen
Product code:TR5 is a universal video conference trolley. The lightweight and minimalist design of powder-coated steel and polished tubing makes it perfect for any interior such as offices, conference rooms and waiting rooms. Adjustable height and the possibility of tilting the screen make TR5 extremely functional. TR5 features a cable management system to hide cables and keep the aesthetic, smart appearance of the entire installation. Castors with a braking mechanism ensure mobility. Castors with a braking mechanism ensure mobility.
SEND AN ENQUIRYDescription
- Simple and fast installation
- Aesthetic design of powder-coated steel and polished tubing
- Adjustable height

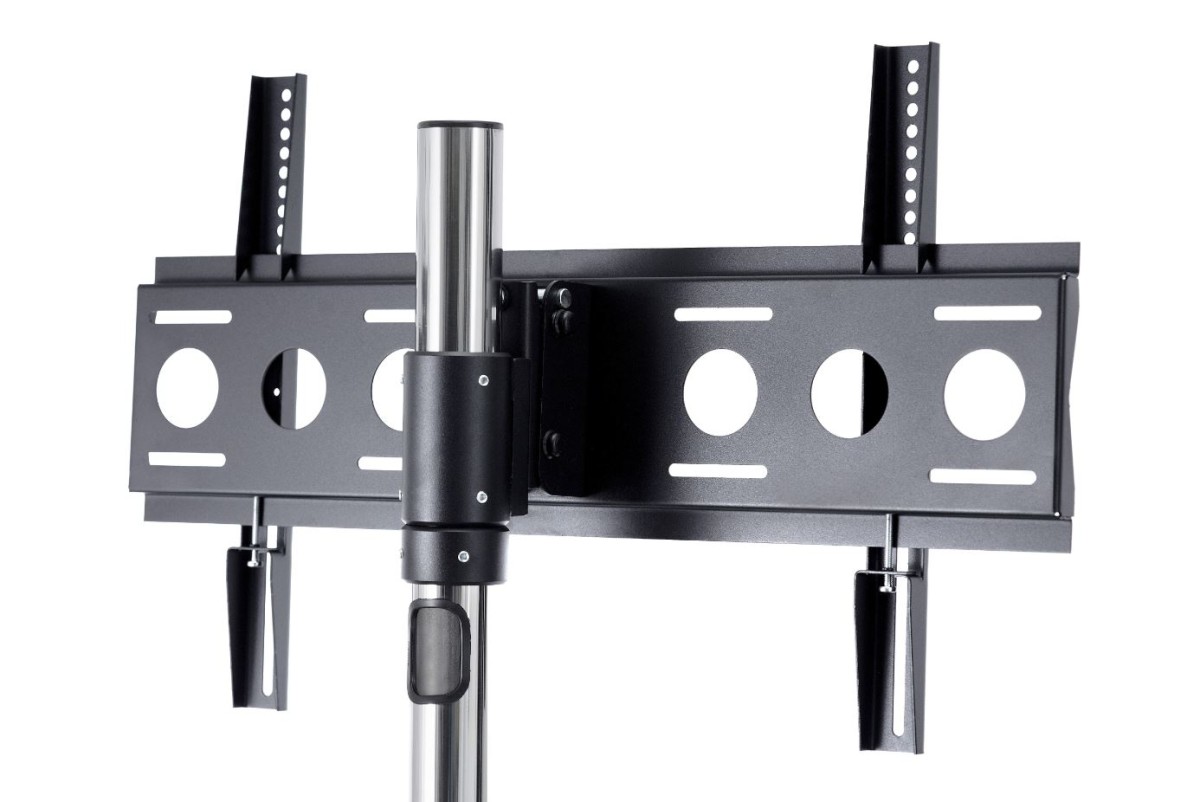

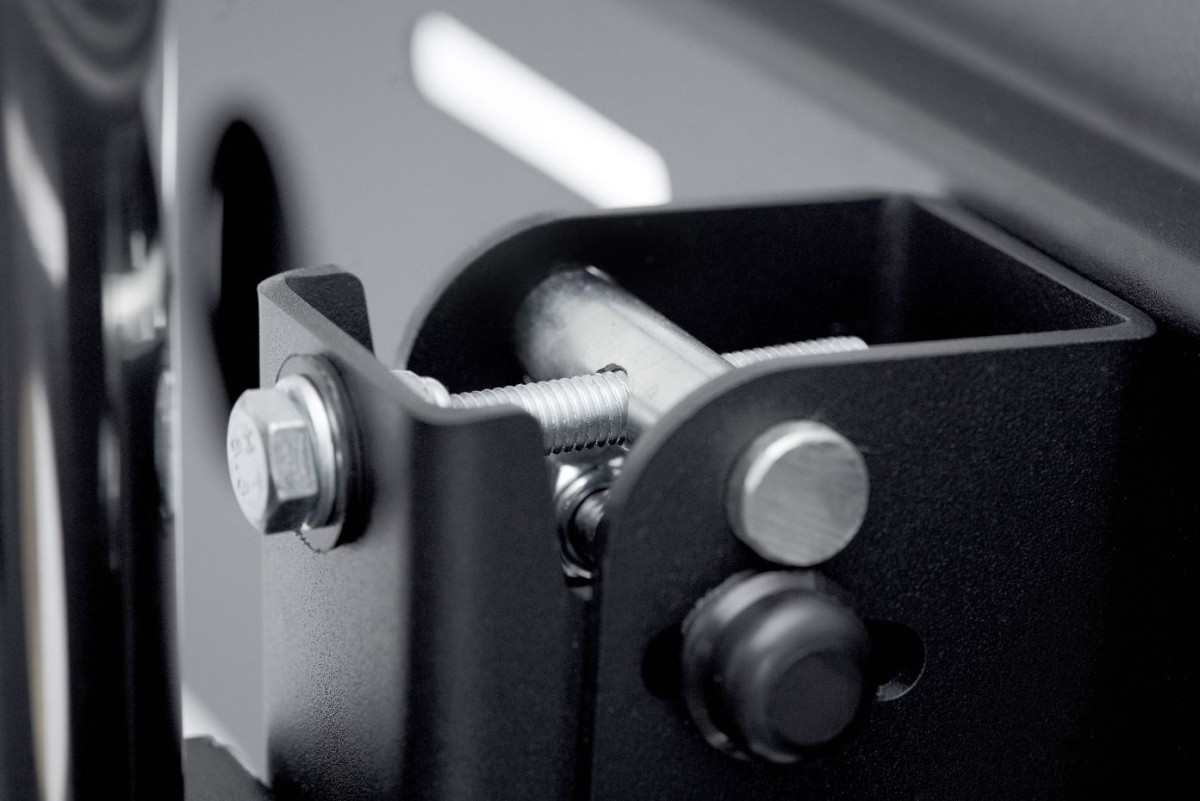

- Possible tilting

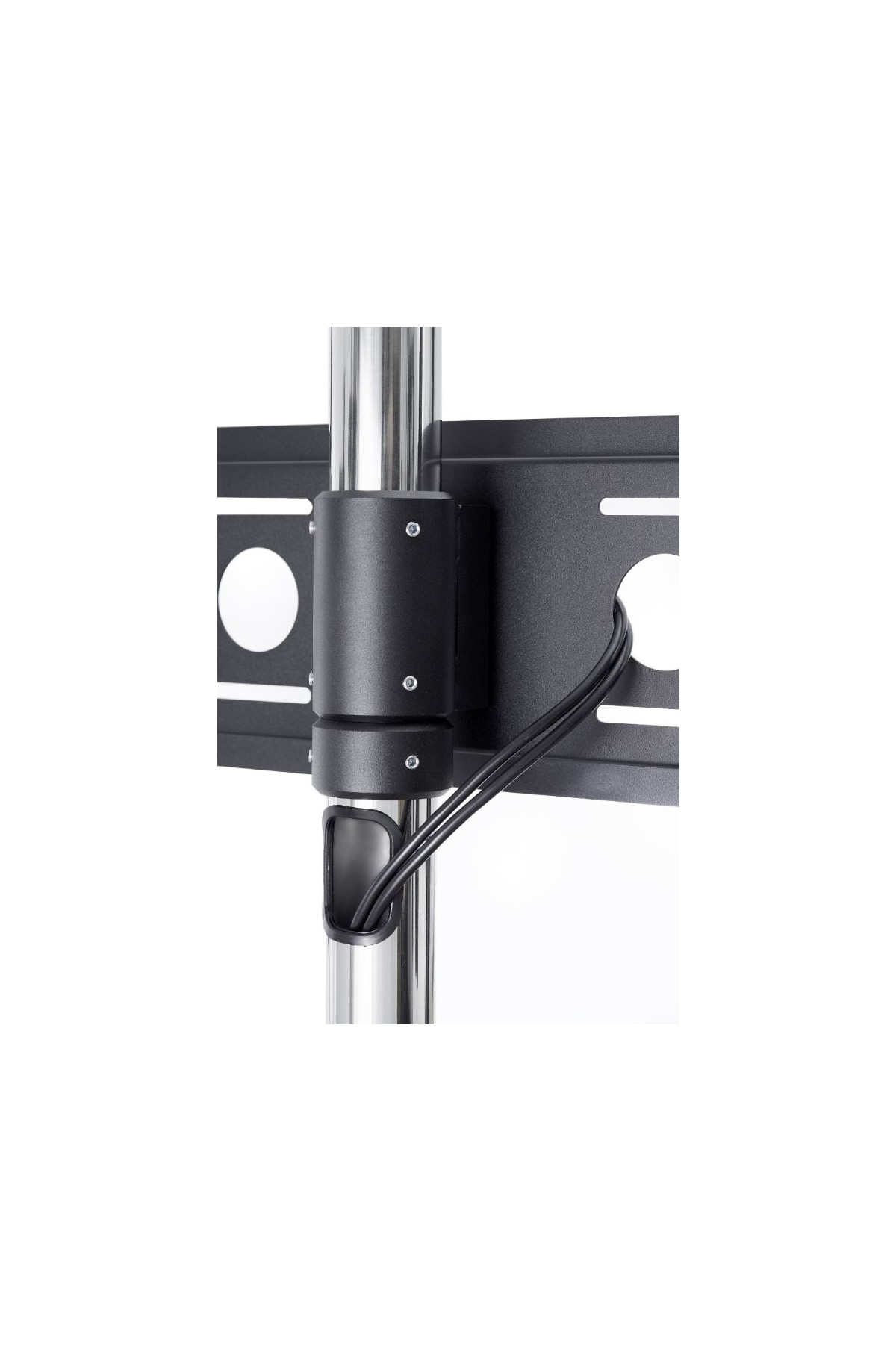

- Cable management for smart installation
- Includes 4 braked casters
Additional information
Product Specs
| Index: | TR5 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 65″ |
| Maximum load: | 80 kg |
| Forward tilting: | +6° |
| Forward tilting: | -9° |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specs
| Product dimensions: | W: 695 mm D: 1142 mm H: 1771 mm
(W: 27,36″ D: 44,96″ H: 69,72″) |
| Product weight: | 28 kg (62 lb) |
| Max. distance from floor to screen centre
Max. distance from the floor to the center of the screen: | 1745 mm (68,70″) |
| Min. distance from floor to screen centre
Min. distance from the floor to the center of the screen: | 360 mm (14,17″) |
| Max. mounting pattern: | 750 mm x 460 mm |
| Min. mounting pattern: | 50 mm x 95 mm |
Logistics Data
| SAP Index: | WWTR-TR5c-B |
| EAN Code: | 5908252961412 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
