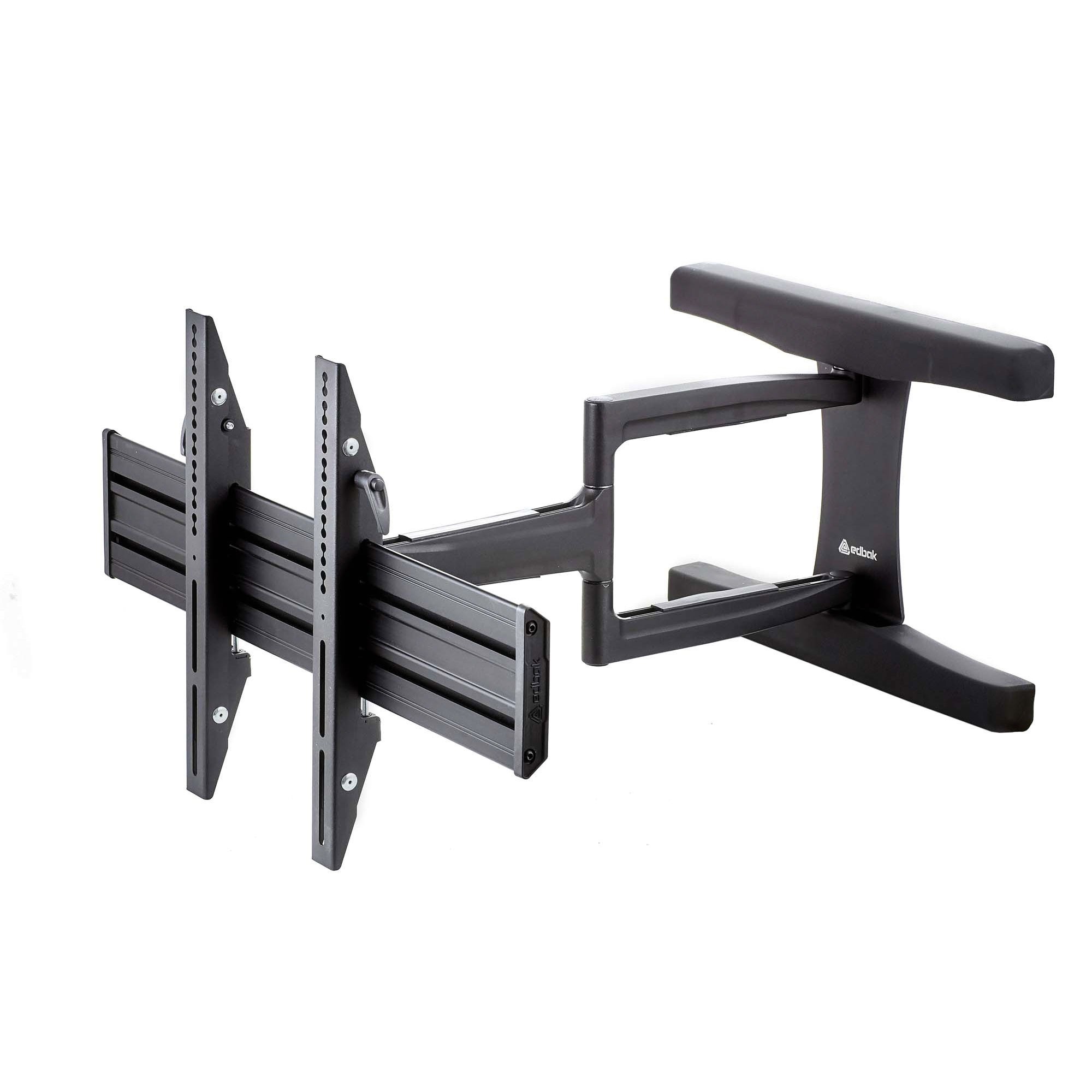

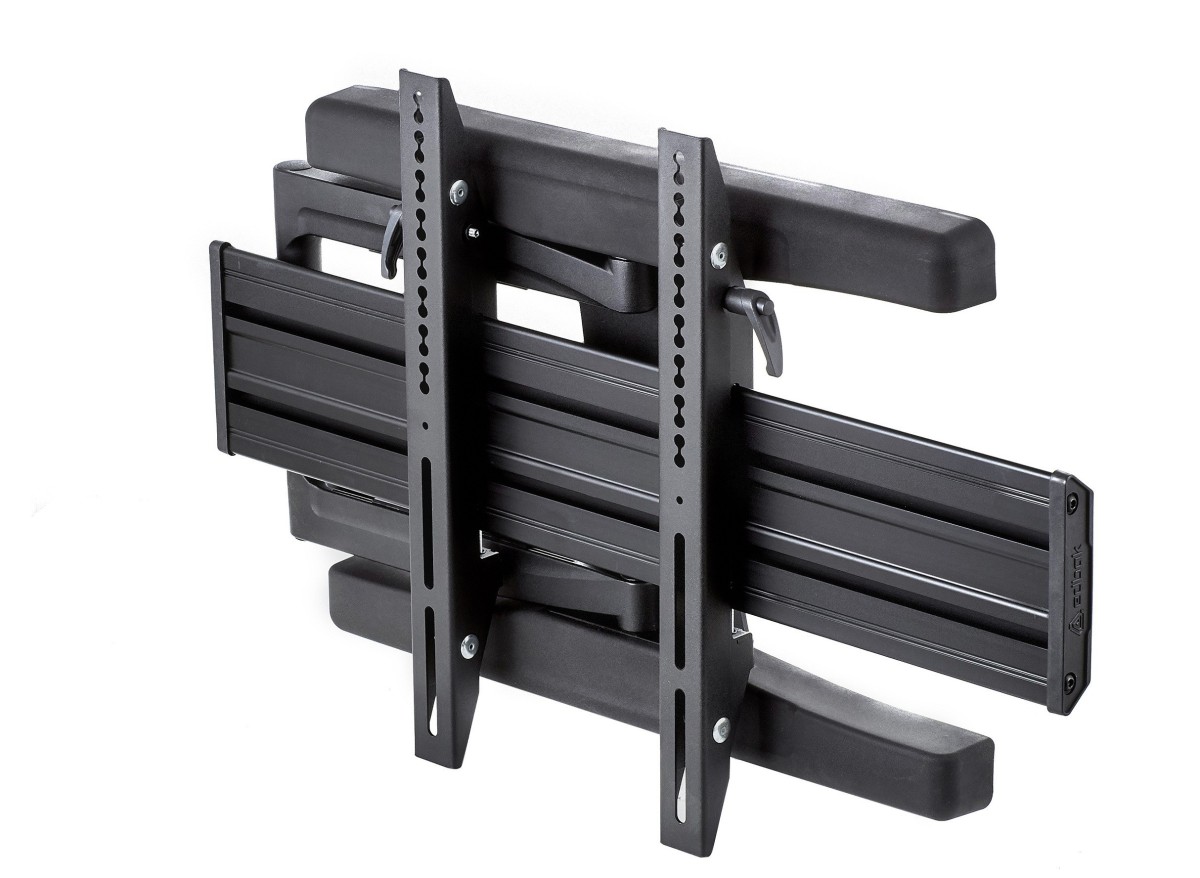

Edbak VSM653 Double Swing Arm Wall Mount for 49″-65″ Screens
Product code:The VSM653 double swing arm wall mount is dedicated to screens ranging from 49″ to 65″. The design is adapted to frequent changes in the position of the screen, so it is a perfect solution for places where the position of screens is often changed. This mount is made of aluminum arms with cables routed inside to ensure smart installation and aesthetic finish. VSM653 has the possibility of rotating the screen to the right and to the left by 90° and tilting the screen by +11°, which allows the position of the screen to be adjusted the user’s expectations and increases the comfort of use.
SEND AN ENQUIRYDescription
- Modern design and aesthetic finish of the wall mount
- 90°/90° right-left screen rotation
- Possibility of tilting the screen +11°
- Durable aluminum structure

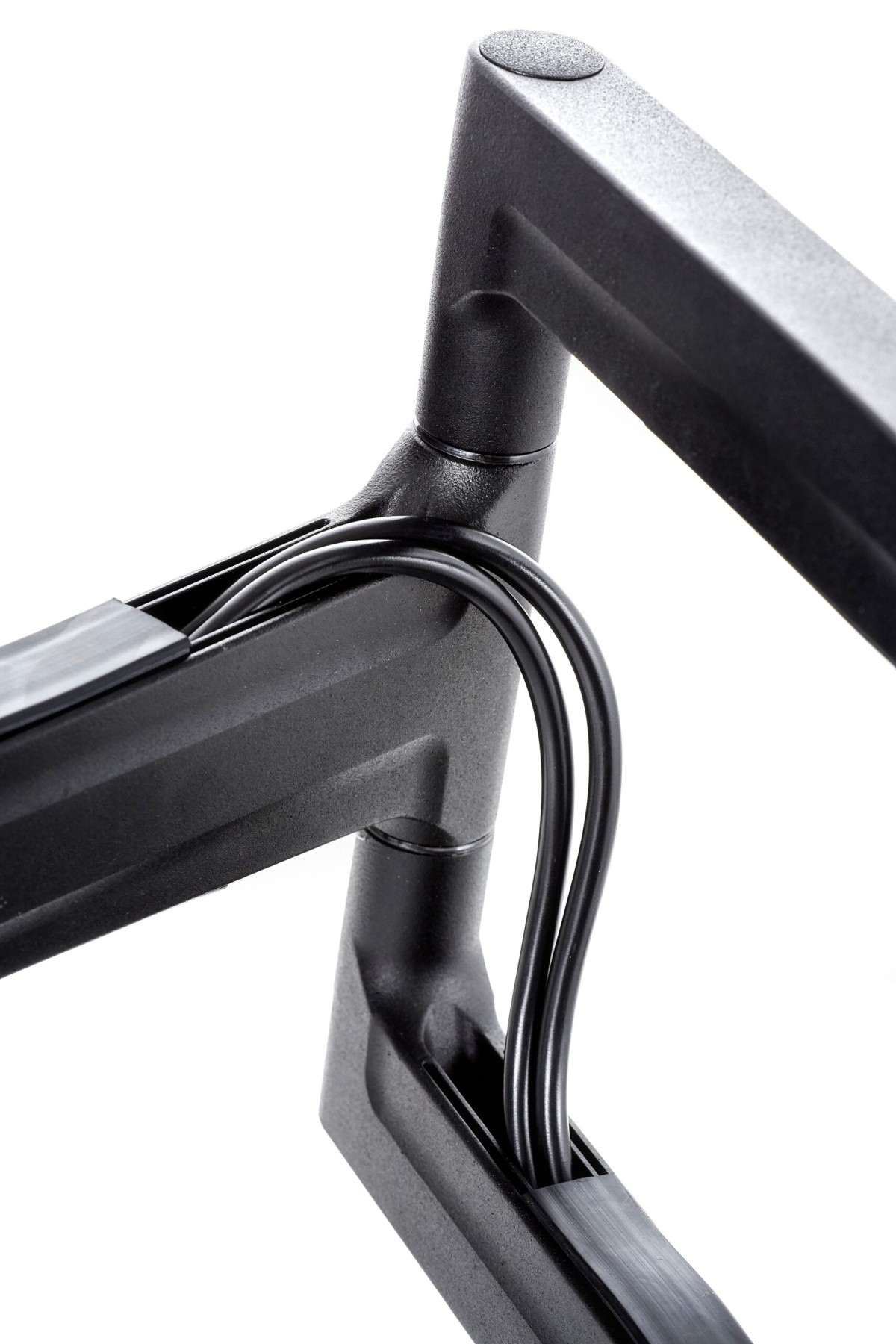

- Cable routed inside the arm
- VESA universal standard
Additional information
Product Specifications
| Index: | VSM653 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 49″ |
| Maximum screen size: | 65″ |
| Forward tilting: | +11° |
| Left-right rotation: | 90/90° |
| Maximum load: | 36 kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 720 mm D: 700 mm H: 455 mm (W: 28,35″ D: 27,56″ H: 17,91″) |
| Product weight: | 12,1 kg 27 lb |
| Max. distance from mounting surface: | 700 mm (27,56″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 650 mm x 415 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WUSC-VSM653 |
| EAN Code: | 5902841111882 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
