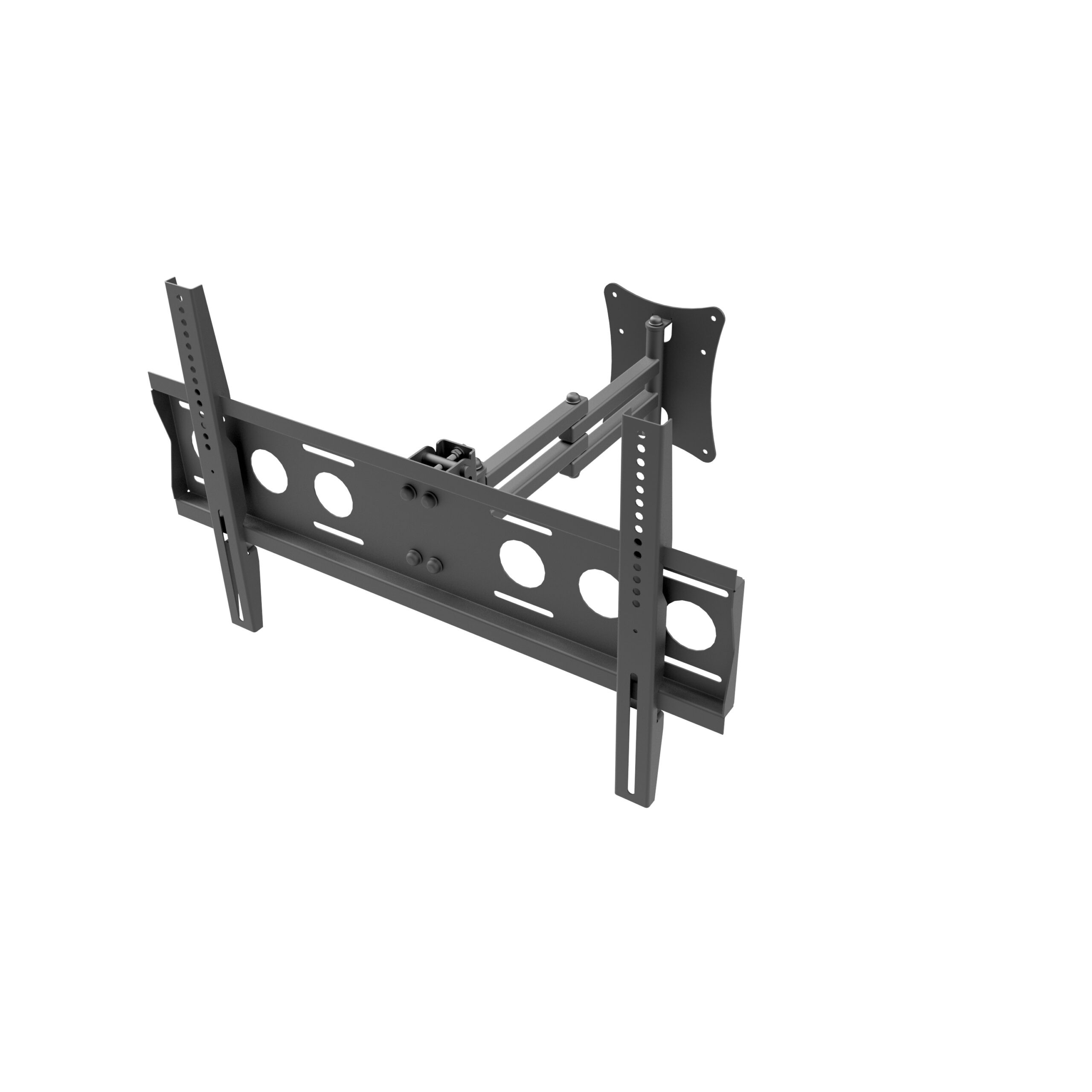

Edbak PWS1 Double Swing Arm Wall Mount for 42″-52″ Screens

Product code: PWS1

The PWS1 double swing arm wall mount is dedicated to larger screens ranging from 42″ to 52″. It is a mount with a movable arm that has 3 bending points. Three rotation axes allow any adjustment of the screen position horizontally. The possibility of tilting the screen by -6°/+9° and 90°/90° right-left screen rotation allow the screen position to be adjusted to suit the user’s needs and improve the comfort of use. With its folding arm design, the minimum screen distance from the mounting surface is only 160 mm. With its advantages and functionality, PWS1 is perfect for conference rooms, waiting rooms as well as for any public places.

SEND AN ENQUIRY

Description

Modern design and high-end aesthetics
Screen adjustment: 3 rotation axes
Possibility of tilting the screen from -6° to +9°
Protection against accidental shifting of the screen on the beam
Dedicated for installation in wall corners
90°/90° right-left screen rotation
Maximum load capacity of 80 kg
VESA universal standard
Integrated cable management system

Additional information

Product Specifications

Index:	PWS1
Color:	Black
Warranty:	Limited 5-year’s
Number of screens:	1
Minimum screen size:	42″
Maximum screen size:	52″
Forward tilting:	-6°
Forward tilting:	+9°
Left-right rotation:	90/90°
Maximum load:	80 kg
VESA Mounting Compatibility:	100×100 up to 600×400

Technical Specifications

Product dimensions:	W: 660 mm D: 605 mm H: 490 mm (W: 26″ D: 23,82″ H: 19,29″)
Product weight:	9,5 kg 21 lb
Max. distance from mounting surface:	605 mm (23,82″)
Min. distance from mounting surface:	160 mm (6,30″)
Max. mounting pattern:	620 mm x 460 mm
Min. mounting pattern:	50 mm x 95 mm

Logistics Data

SAP Index:	WUSC-PWS1c-B
EAN Code:	5908252962662
HS Code (Harmonized System):	732690
HTS Code (Harmonized Tariff Schedule):	7326909890
Country of origin:	Poland
