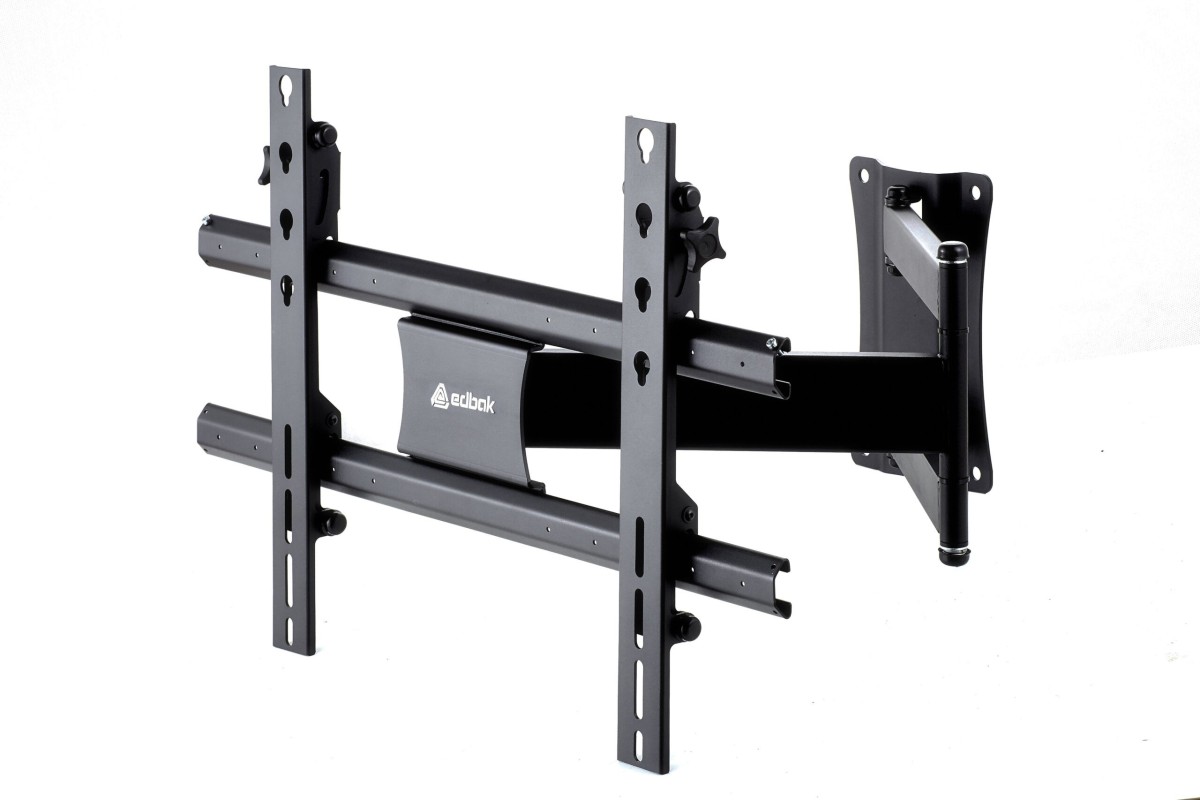

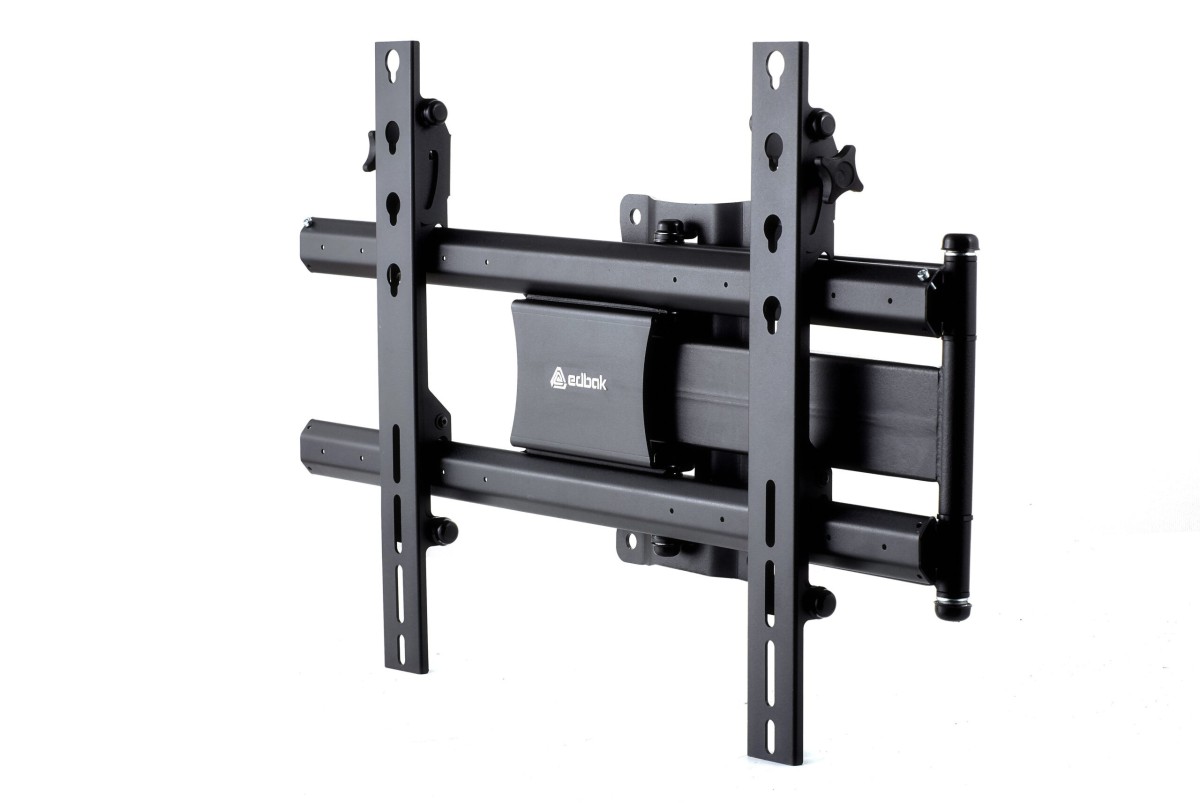

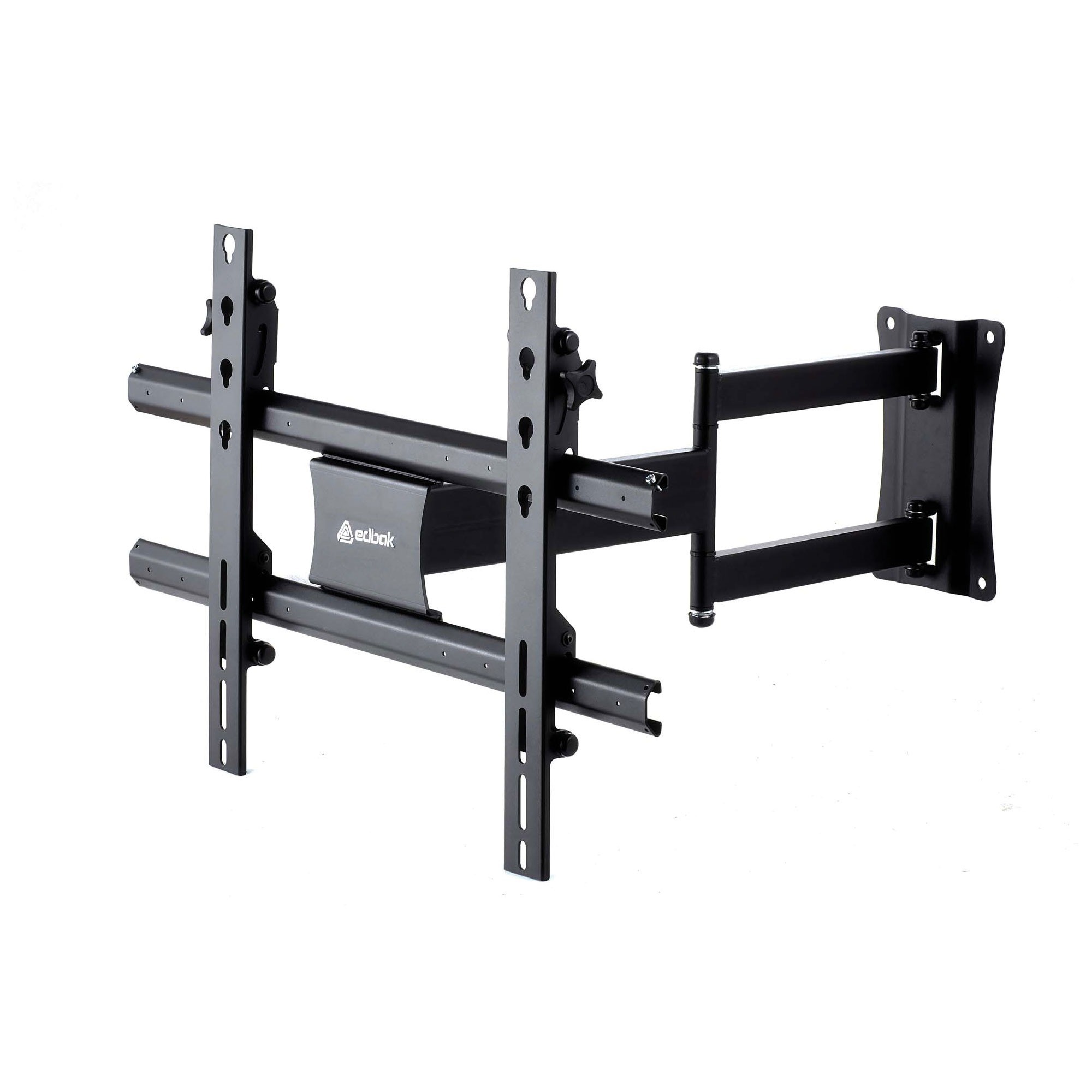

Edbak PWS2 Double Swing Arm Wall Mount for 32″-55″ Screens
Product code:The PWS2 double swing arm wall mount is dedicated to screens ranging from 32″ to 55″. It is a mount with a movable arm that has as many as 3 bending points. Three rotation axes allow any adjustment of the screen position horizontally The possibility of tilting the screen +10° and 90°/90° right-left screen rotation allow the screen position to be adjusted to suit to the user’s needs and improve the comfort of use.
SEND AN ENQUIRYDescription
- Modern design and high-end aesthetics
- Screen adjustment: 3 rotation axes
- Posibility of tilting the screen +10°
- Protection against accidental shifting of the screen on the beam
- Dedicated for installation in wall corners
- 90°/90° right-left screen rotation
- VESA universal standard
- Integrated cable management system
- Simple and fast installation
Additional information
Product Specifications
| Index: | PWS2 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 32″ |
| Maximum screen size: | 55″ |
| Forward tilting: | +10° |
| Left-right rotation: | 180° |
| Maximum load: | 25 kg |
| VESA Mounting Compatibility: | 200×200 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 669 mm D: 69 mm H: 445 mm
(W: 26,34″ D: 2,72″ H: 17,52″) |
| Product weight: | 7 kg (15 lb) |
| Max. distance from mounting surface: | 669 mm (26,34″) |
| Min. distance from mounting surface: | 69 mm (2,72″) |
| Max. mounting pattern: | 600 mm x 412 mm |
| Min. mounting pattern: | 200 mm x 98 mm |
Logistics Data
| SAP Index: | WUSC-PWS2c-B |
| EAN Code: | 5908252965892 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
